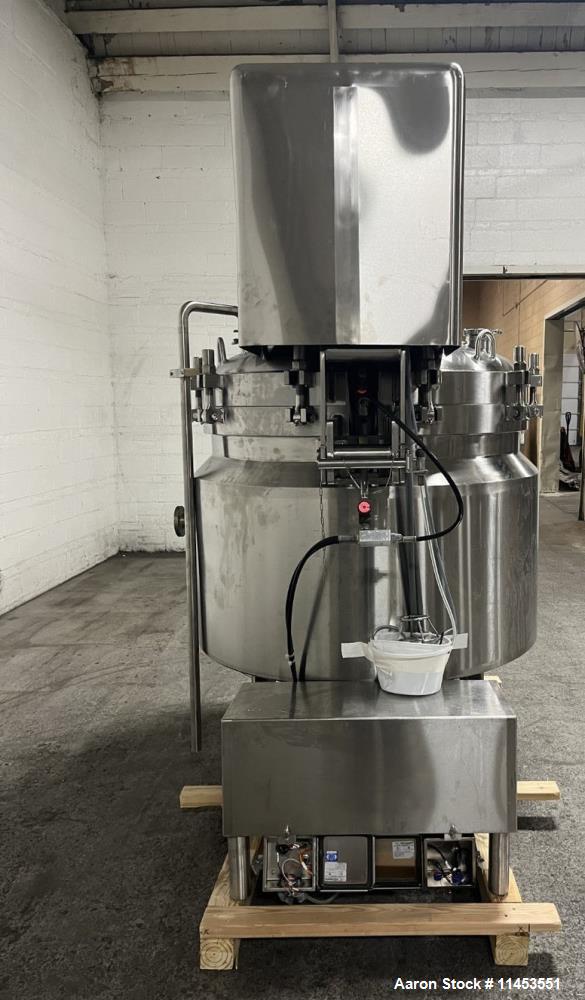

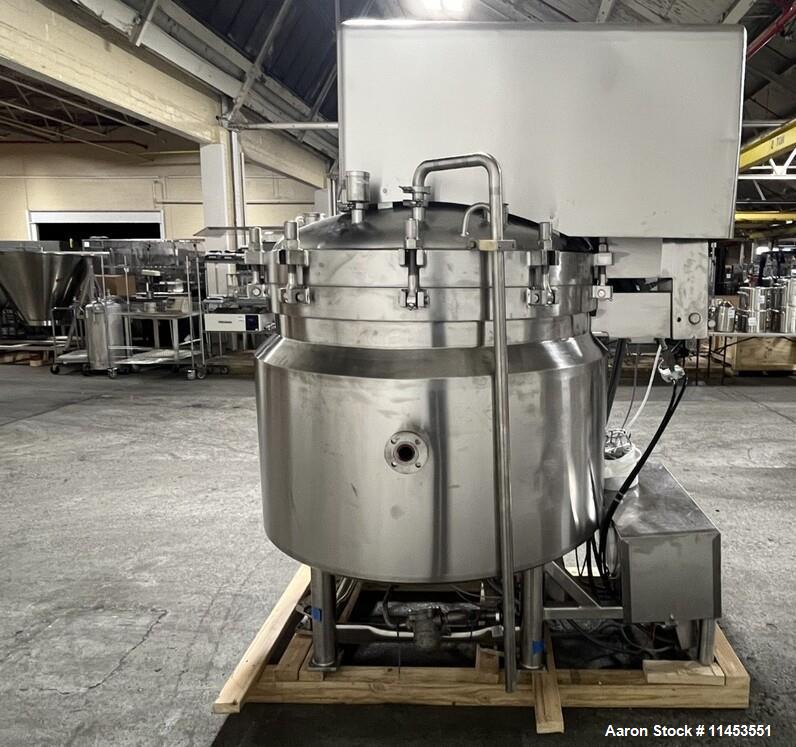

Used 160 Gallon Feldmeier Reactor, 316L stainless steel construction

Manufacturer Info:

• Manufacturer: Feldmeier Equipment

• Capacity: 160 Gallons (Approx. 600 Liters)

• Material: 316L Stainless Steel

• Finish: 320 grit, electropolished interior

• Agitation System: Bridge-mounted anchor agitator with sidewall scrapers

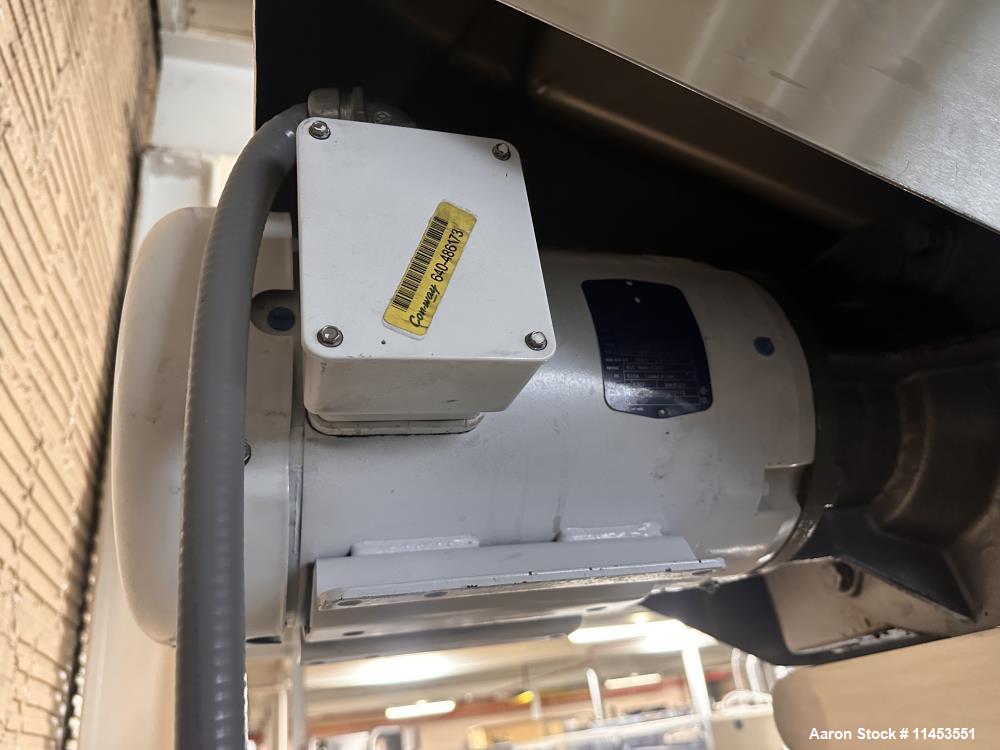

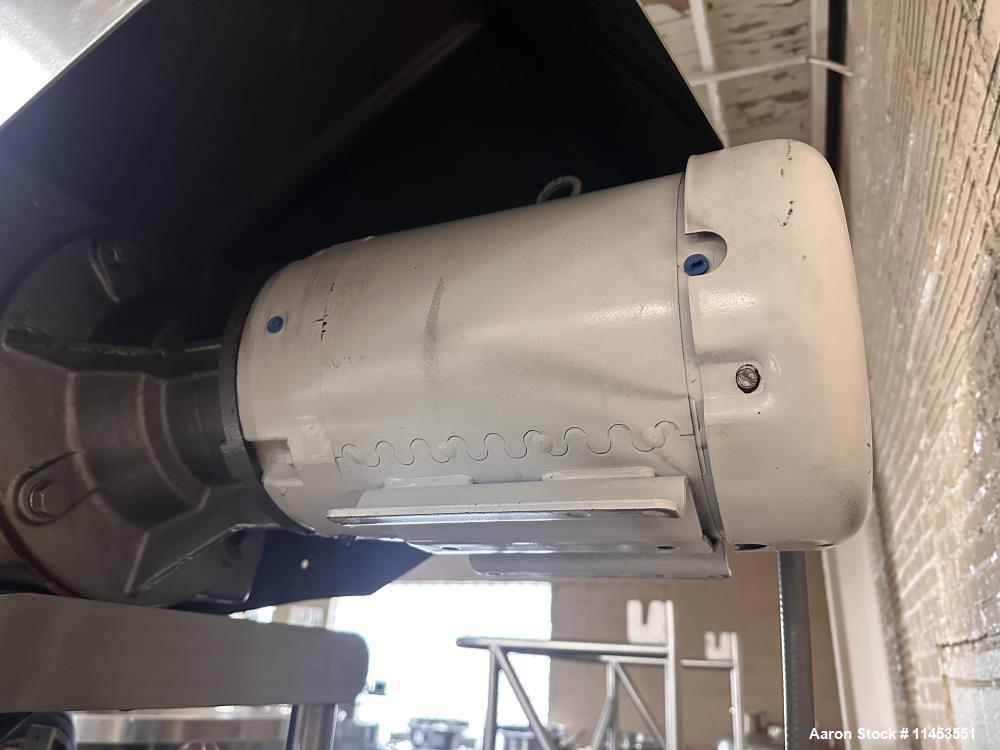

• Motor Drive: 7.5 HP motor with mechanical seal

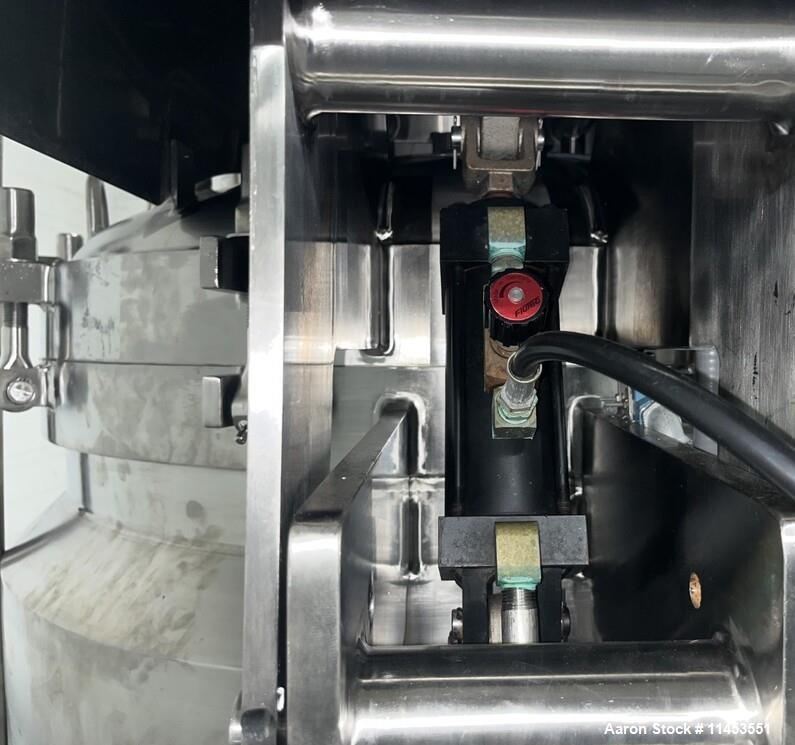

• Hydraulics: Onboard 2 HP hydraulic pump for tilt-out agitator

• Condition: Used

Description:

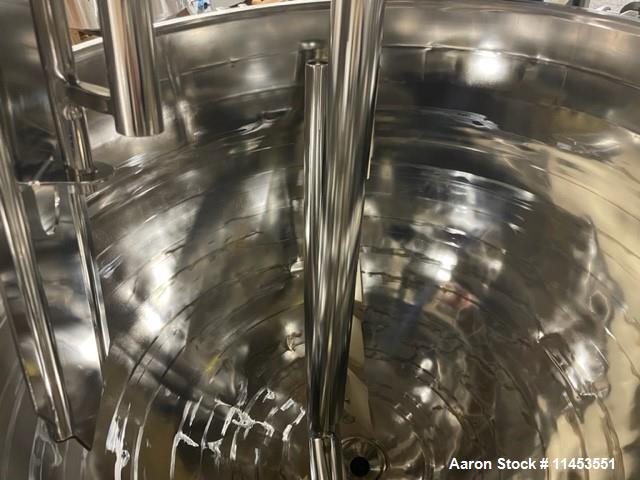

This is a used 160-gallon Feldmeier stainless steel reactor, constructed entirely of 316L stainless steel, with a 320-grit, electropolished interior for sanitary, high-purity processing.

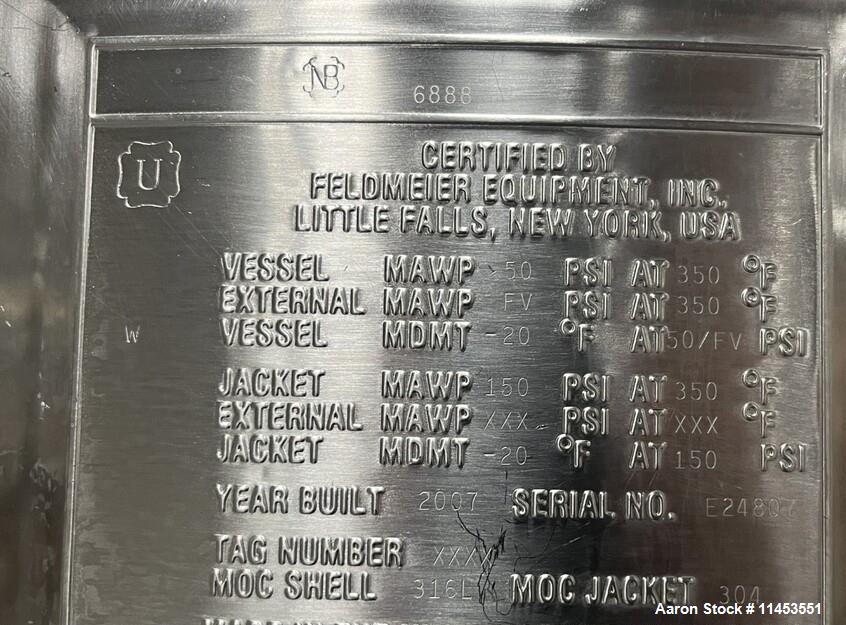

The reactor is rated for 50 PSI and full vacuum at 350°F internal pressure, and jacketed for 150 PSI at 350°F, providing excellent thermal transfer for heating or cooling processes.

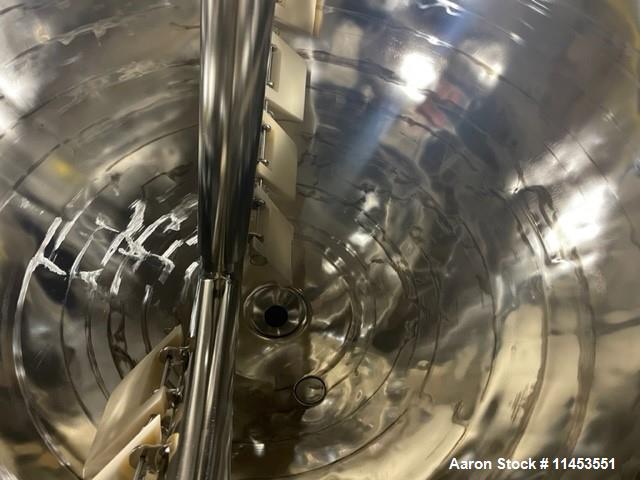

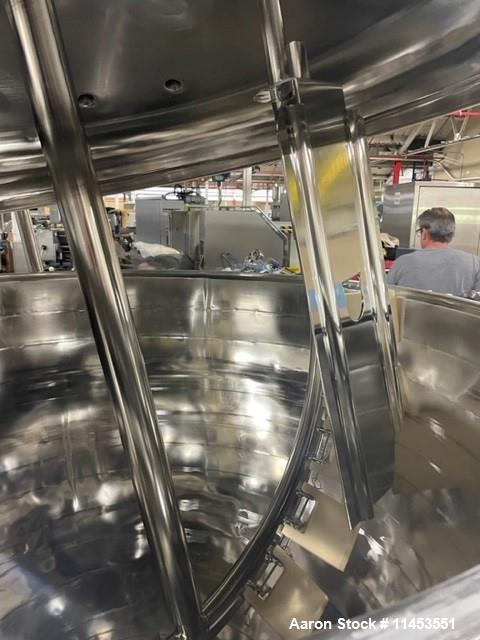

Key features include a hinged dish top, hemispherical bottom, bridge-mounted anchor agitator with sidewall scrapers, and a hydraulic tilt-out agitation system with a 2 HP onboard hydraulic pump. The reactor is equipped with multiple top ports and a 2" bottom outlet, and stands on four stainless steel legs for stability and hygiene.

Specifications:

• Capacity: 160 Gallons

• Internal Construction: 316L Stainless Steel

• Finish: 320 grit, electropolished

• Internal Dimensions: Approx. 48" diameter x 10" straight side

• Head Design: Hinged dish top, hemispherical bottom

• Internal Pressure Rating: 50 PSI / Full Vacuum @ 350°F

• Jacket Rating: 150 PSI @ 350°F

• Agitator Type: Anchor agitator with sidewall scrapers

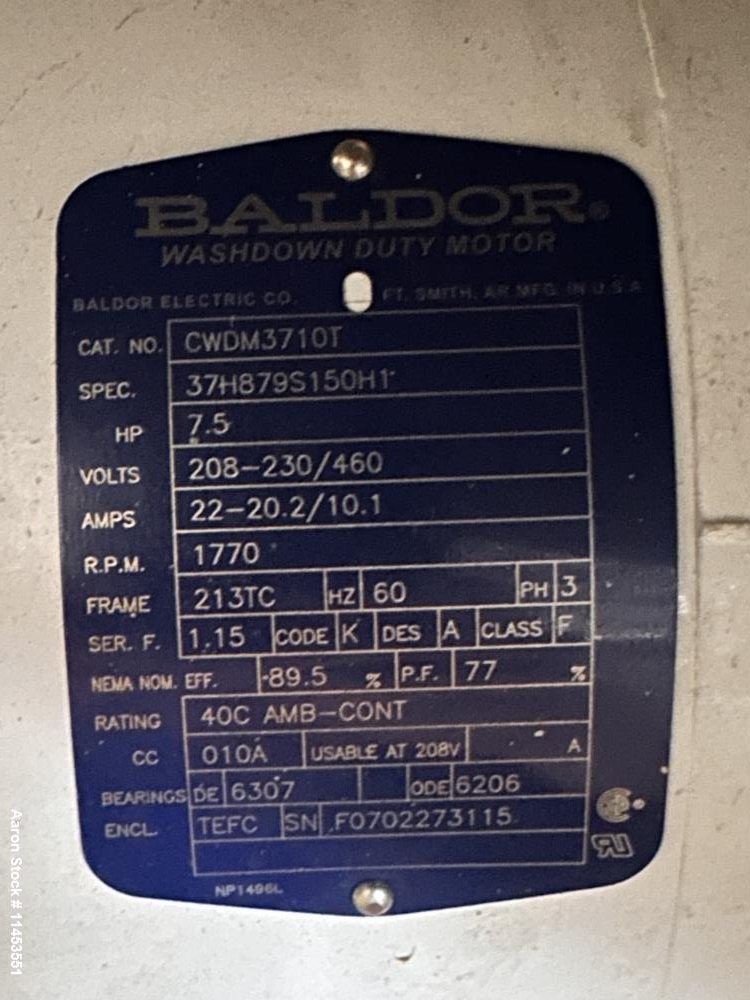

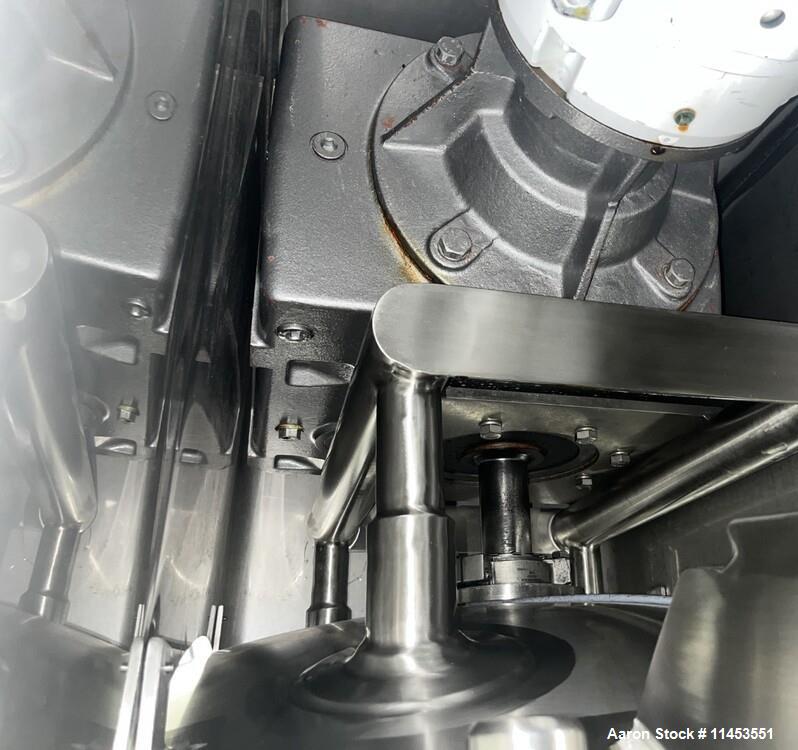

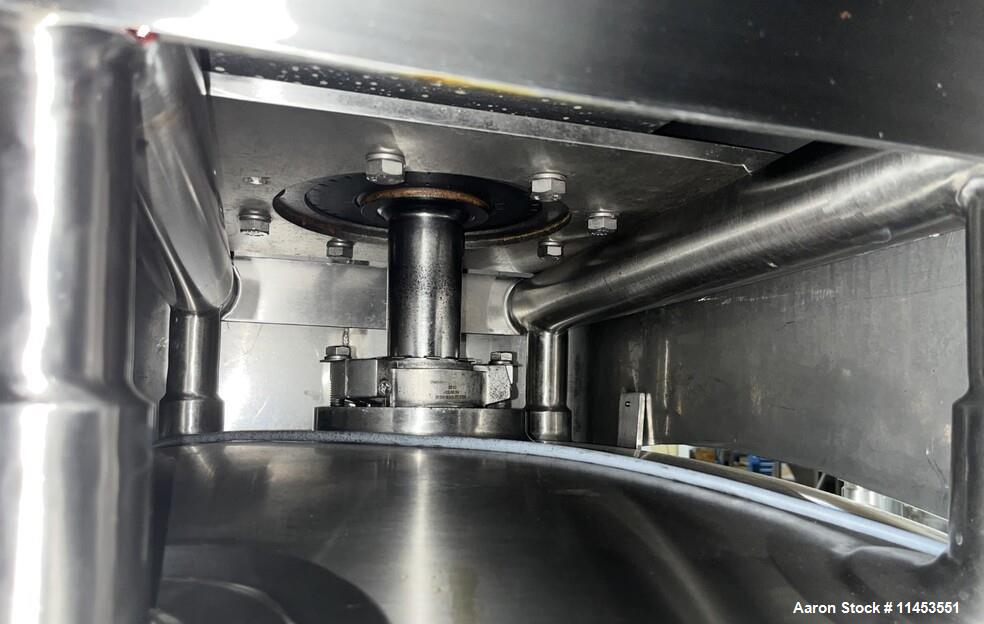

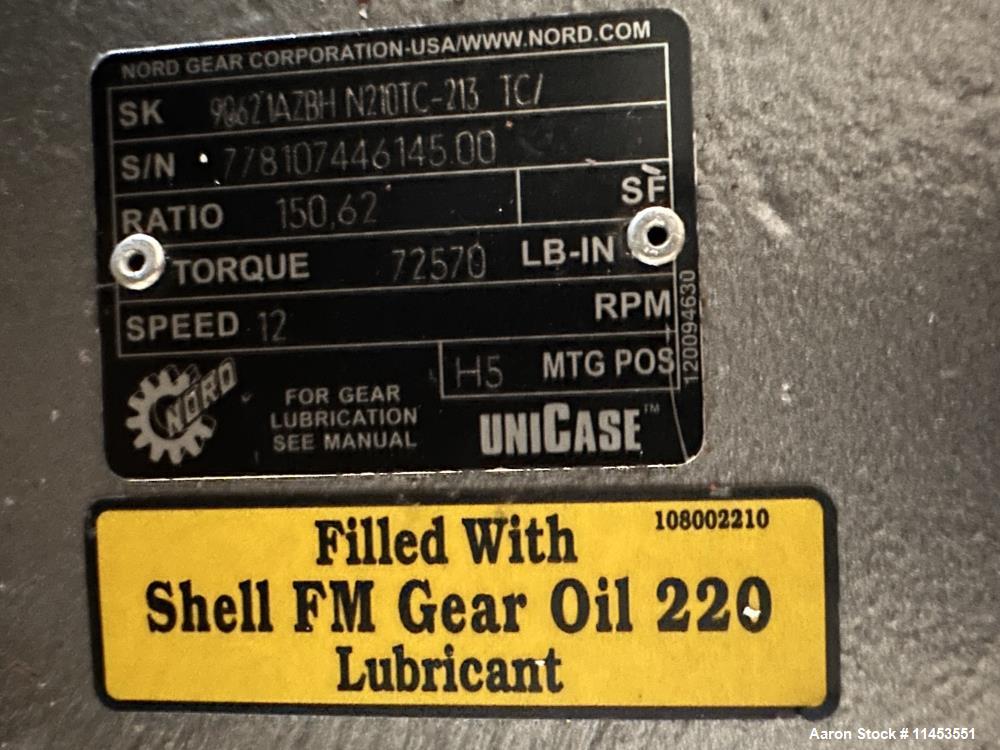

• Agitator Drive: 7.5 HP motor with mechanical seal

• Hydraulic System:

  • Bridge-mounted tilt-out mechanism

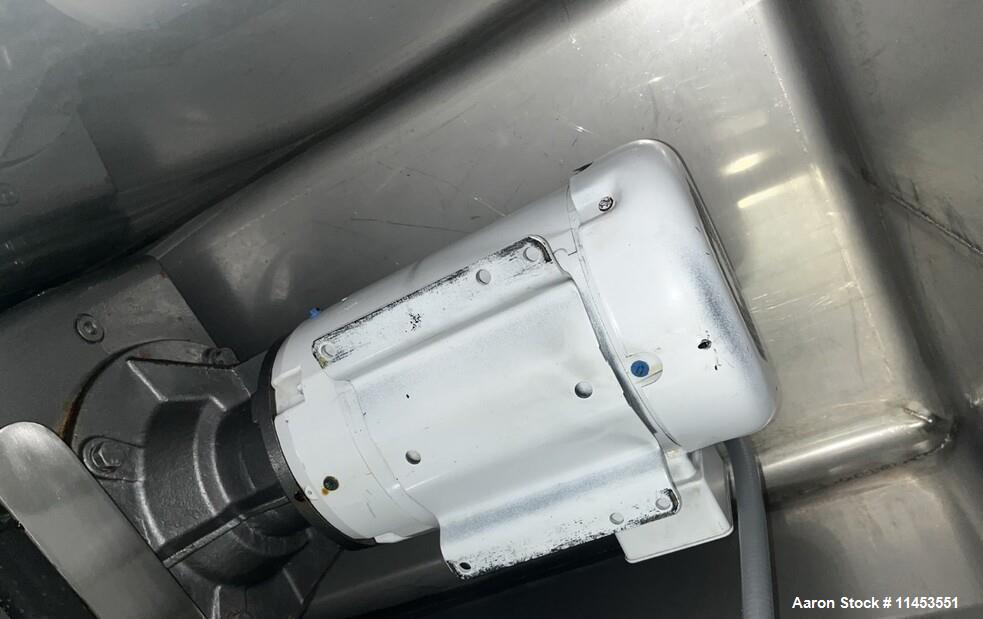

  • 2 HP onboard hydraulic pump

• Ports:

  • (3) 3"

  • (1) 2"

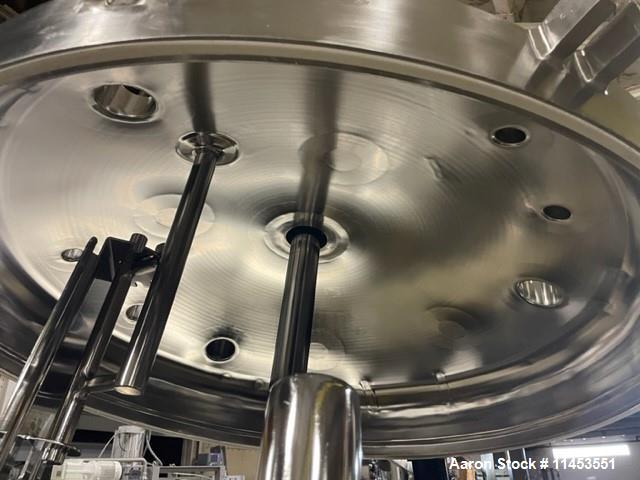

  • (4) 1.5" top ports

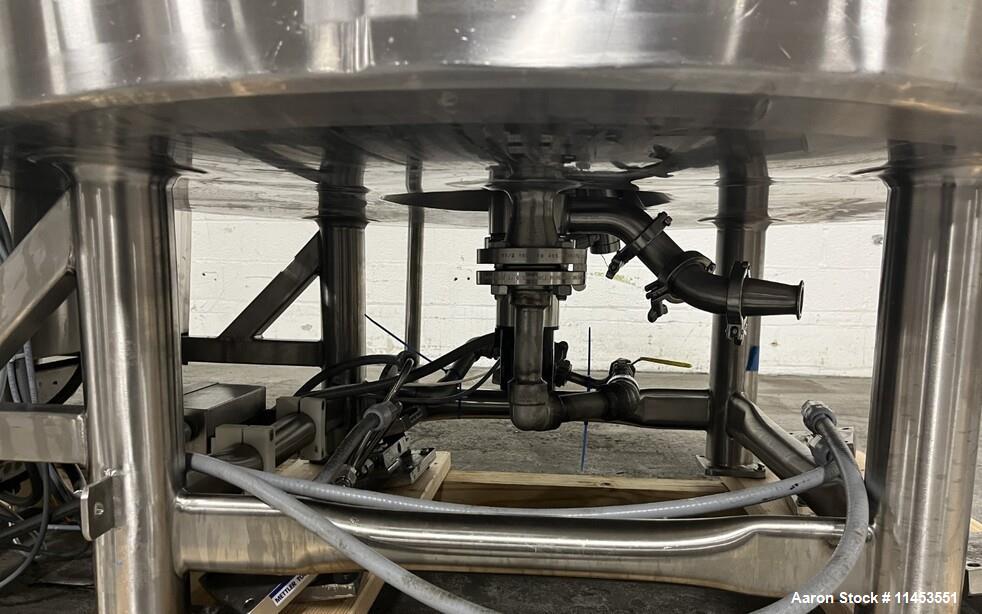

  • (1) 2" bottom outlet

• Mounting: 4 stainless steel legs

Applications:

• Pharmaceutical and biotech formulation

• High-purity chemical processing

• Cosmetic and personal care product batching

• Sanitary food and beverage blending

• Nutraceutical suspension and emulsion mixing

• API or buffer preparation

• Jacketed thermal processing under vacuum

• pH- or temperature-sensitive fluid handling

• Pilot plant and cleanroom operations

• Slurry, gel, or cream formulation

What might this be used for?:

This reactor is ideal for pharmaceutical, cosmetic, and high-purity applications, particularly where thermal control, pressure/vacuum operation, and sanitary finishes are critical. The hydraulic tilt-out agitator enables easy cleaning and maintenance, making it ideal for frequent changeover and GMP environments
