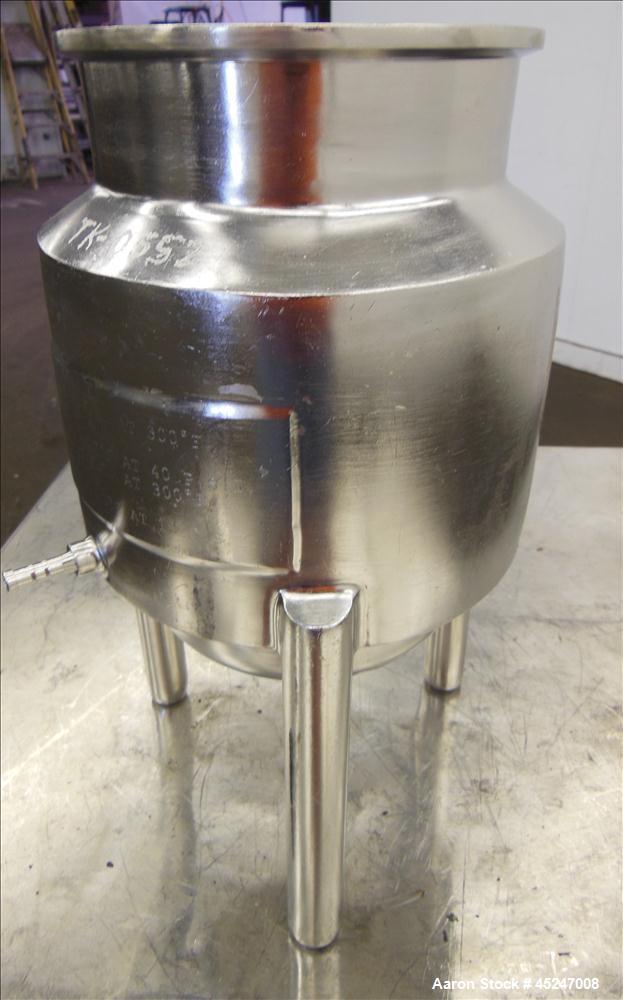

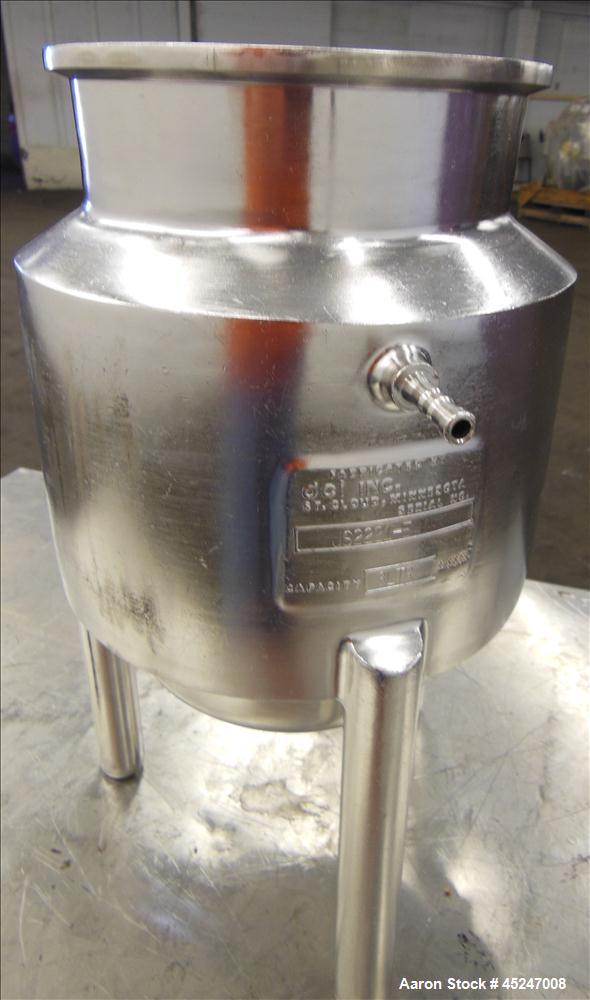

Used DCI 3-Liter (0.79-Gallon) 316 Stainless Steel Reactor – Jacketed, Vertical

Description:

This DCI 3-liter stainless steel reactor is designed for precision small-batch processing, ideal for pharmaceutical, chemical, and laboratory applications. Constructed from 316 stainless steel, the reactor provides excellent corrosion resistance, making it suitable for high-purity and chemical processing environments.

The reactor has a 6” diameter and 8” straight-side height, with a flat tri-clamp top and a dished bottom. Internally, it is rated for +40 PSI / -15 PSI at -20°F to 300°F, making it capable of handling pressure-sensitive and vacuum reactions. The jacket is rated for +10 PSI / -15 PSI at the same temperature range, allowing for precise temperature control during reactions.

This unit features multiple top openings for process connections and monitoring, including:

• 3/4" opening
• 5/8" opening
• 5/16" opening
• 1" tri-clamp connection

The reactor has a 1/4" center bottom outlet for product discharge. It is mounted on three stainless steel legs, ensuring stability and easy placement in lab or production environments.

Specifications:

• Capacity: 3 Liters (0.79 Gallons)
• Material: 316 Stainless Steel
• Orientation: Vertical
• Dimensions:
  • Diameter: 6"
  • Straight-Side Height: 8"
• Top Configuration: Flat Tri-Clamp

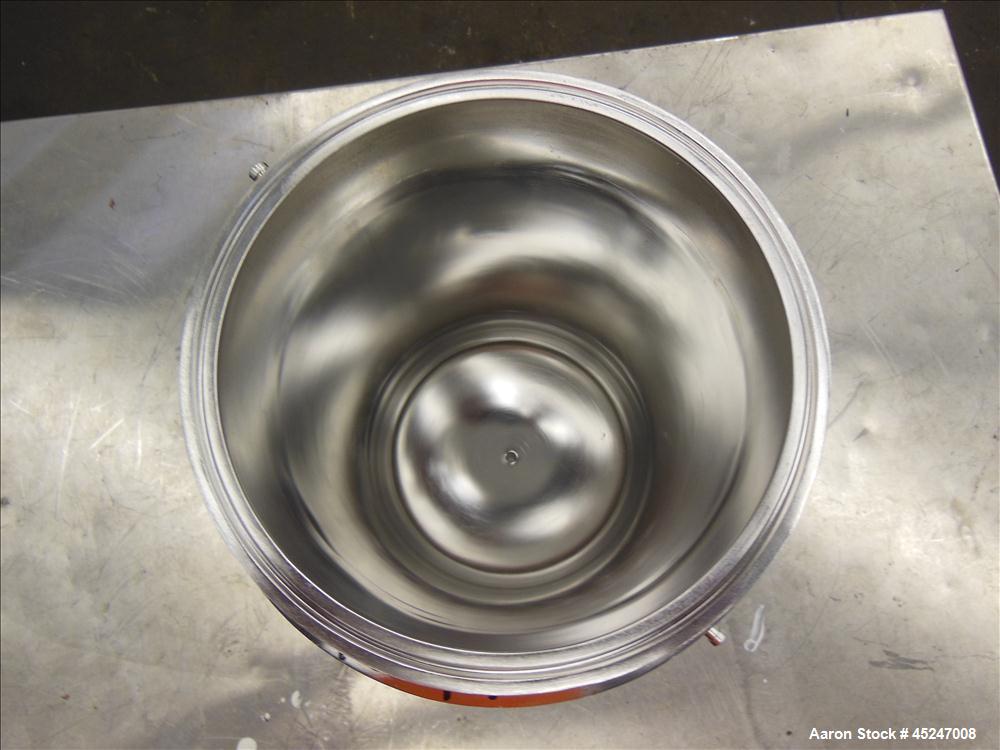

• Bottom Configuration: Dished

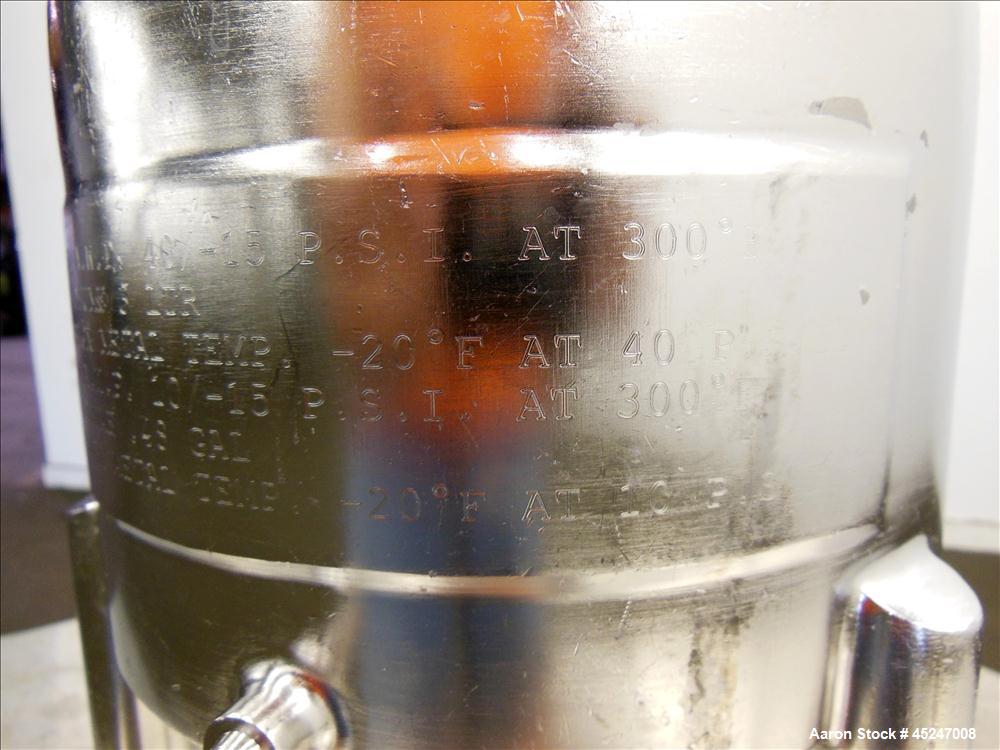

• Pressure Ratings:
  • Internal: +40 PSI / -15 PSI at -20°F to 300°F
  • Jacket: +10 PSI / -15 PSI at -20°F to 300°F
• Openings:
  • Top Openings: 3/4", 5/8", 5/16", 1" Tri-Clamp
  • Bottom Outlet: 1/4" Center Bottom
• Mounting: Three Stainless Steel Legs

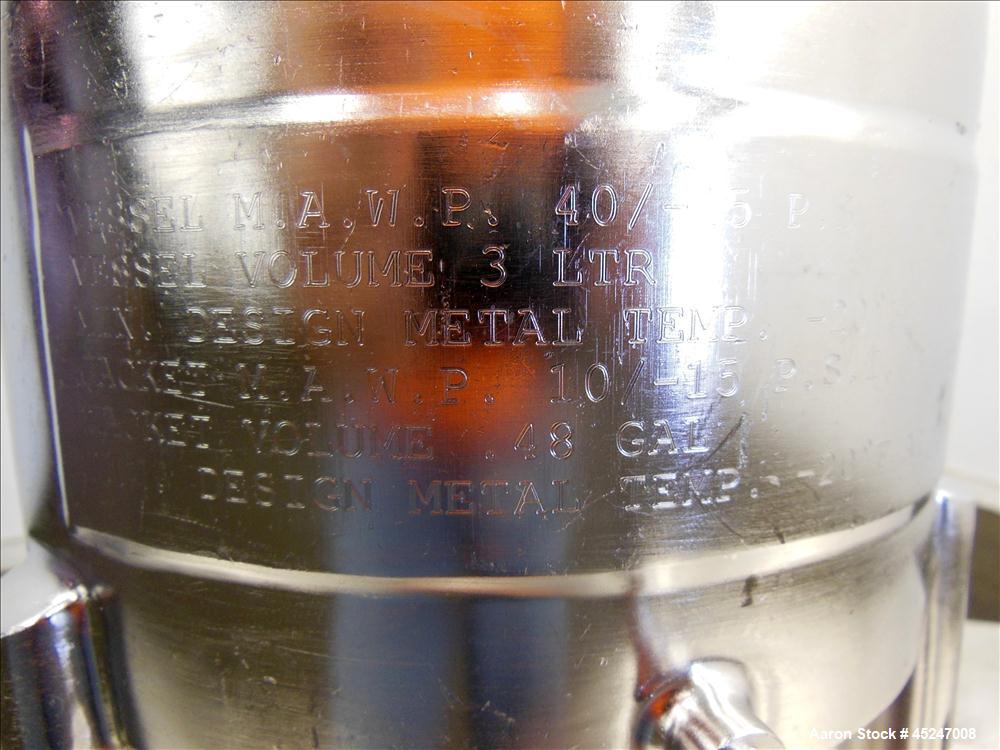

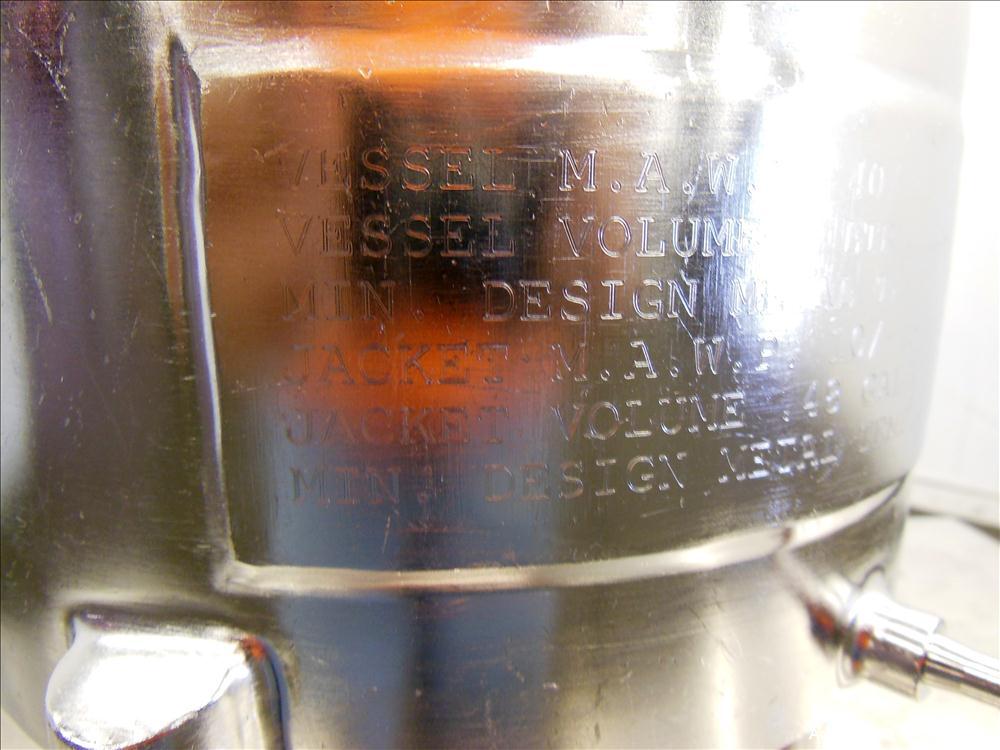

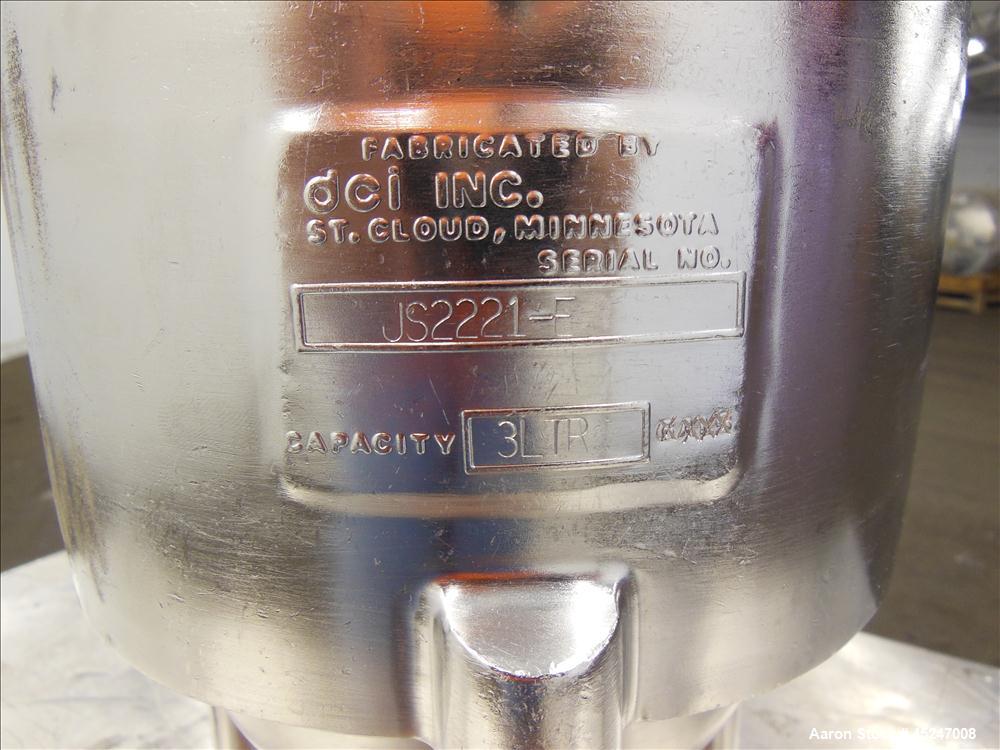

• Condition: Used (Built in 2002, Serial #JS2221-E)

Applications:

This small-scale reactor is ideal for precision-controlled reactions and processing in industries such as:

• Pharmaceutical & Biotech – API development, small-scale synthesis, and formulation testing
• Chemical Processing – Specialty chemical reactions, catalyst testing, and R&D experiments
• Food & Beverage Industry – Small-batch ingredient testing, flavor development, and formulation research
• Cosmetic & Personal Care – Mixing and emulsifying active ingredients for skincare and cosmetic products
• Petrochemical & Lubricants – Processing of specialty oils, waxes, and lubricants
• Adhesives, Coatings & Paints – R&D of resins, coatings, and polymer formulations
• Plastics & Polymer Processing – Pilot-scale polymerization reactions
• Laboratory & Research Applications – Precision-controlled chemical and material science research

What Products Would This Be Used For?

This laboratory-scale stainless steel reactor is designed for processing:

• Active pharmaceutical ingredients (APIs)
• Specialty chemicals and catalysts
• Cosmetic and skincare formulations
• Food additives, flavor extracts, and emulsions
• High-purity oils, waxes, and lubricants
• Adhesives, resins, and coatings
• Polymers and chemical blends
• Laboratory and pilot-scale reaction studies
