Stock No.: 53244005

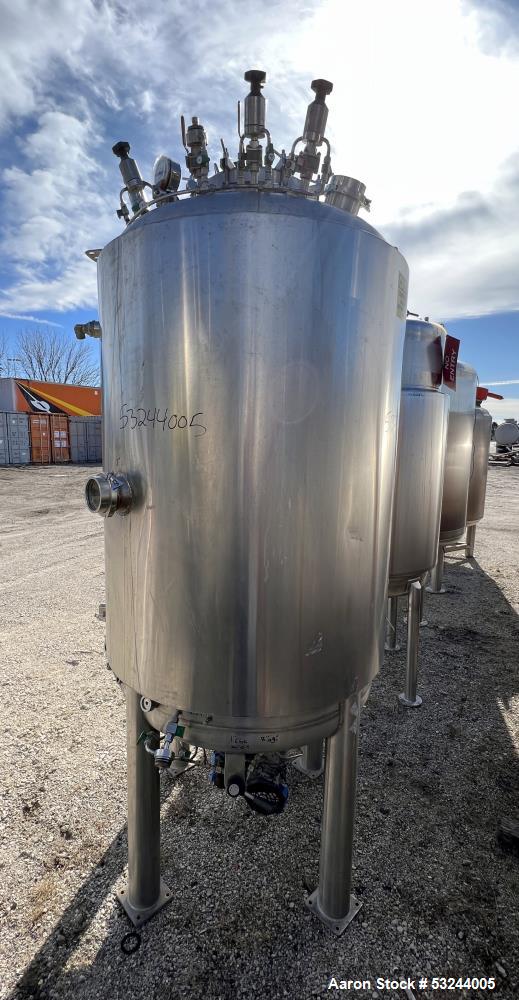

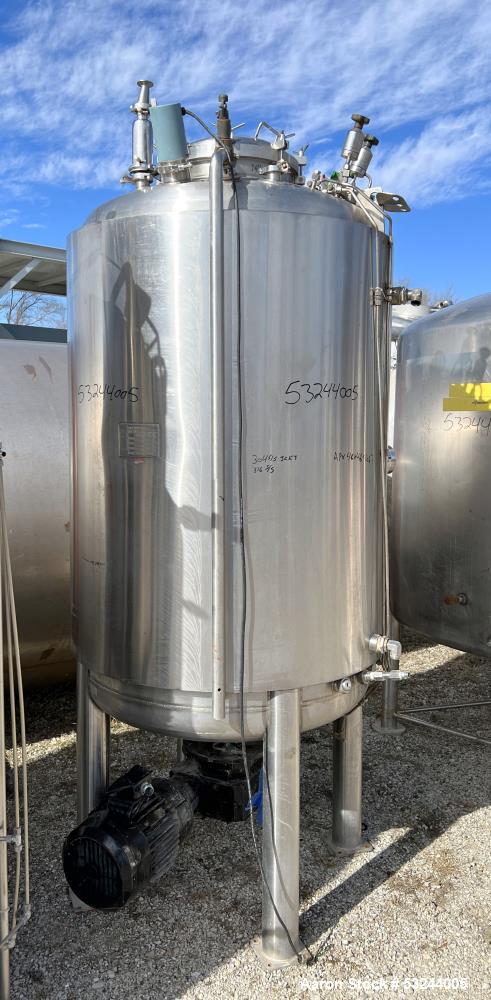

IAF 300 Gallon 316 Stainless Steel Agitated Fermentor / Reactor

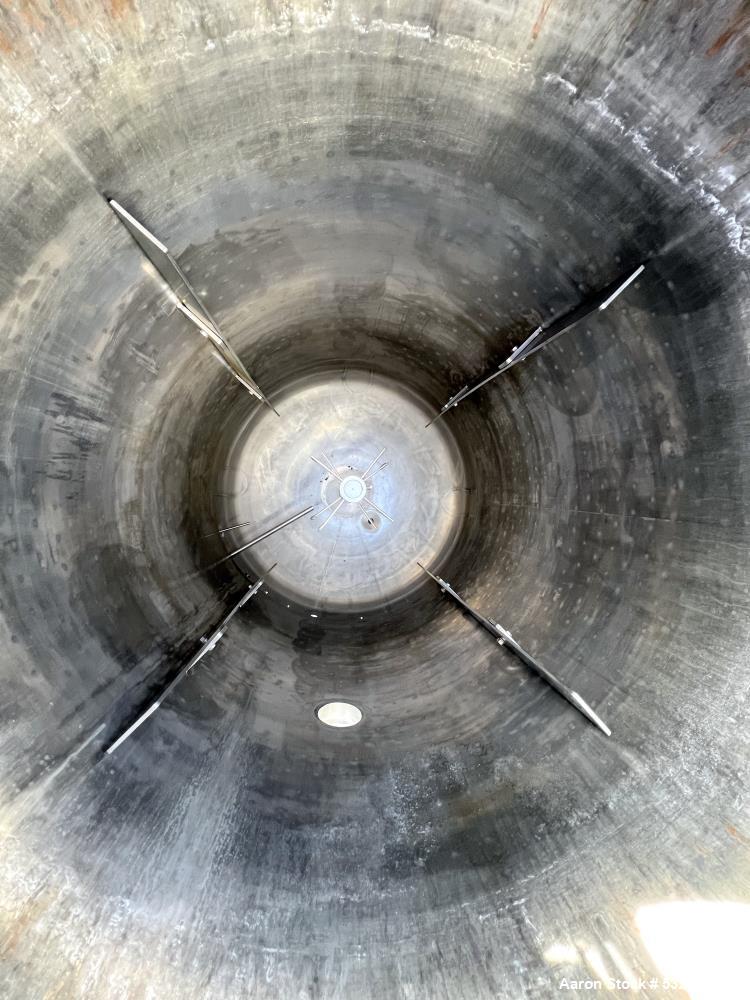

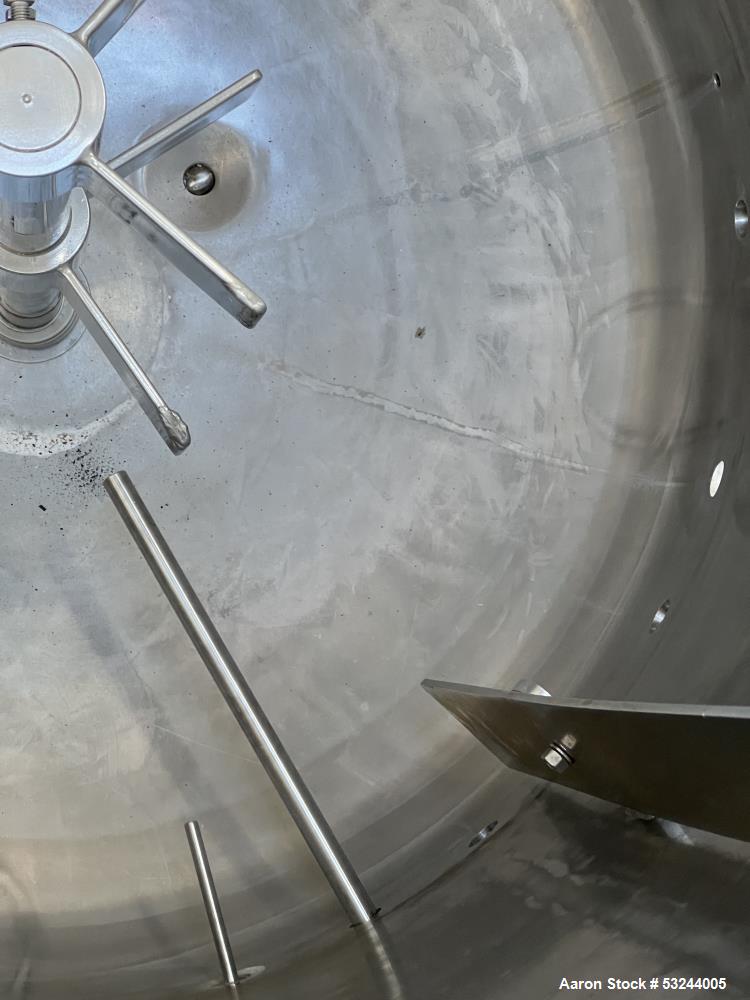

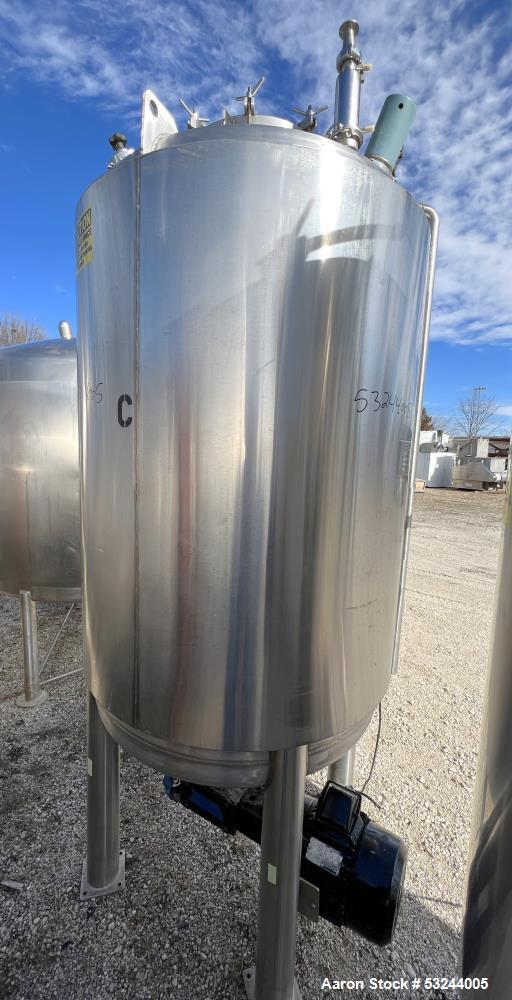

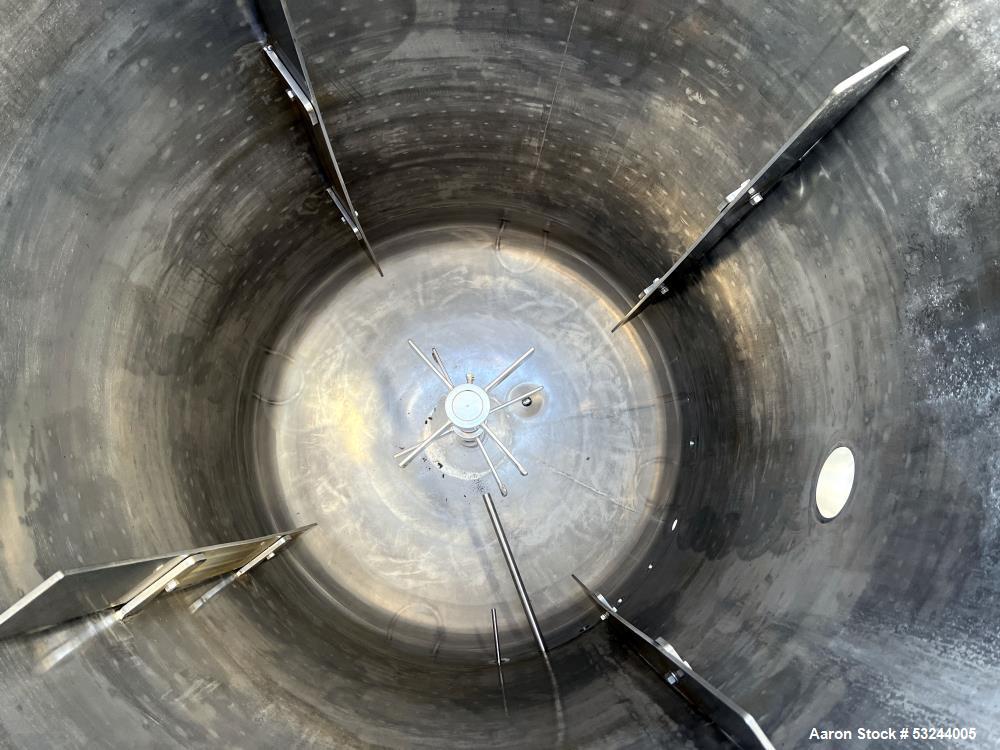

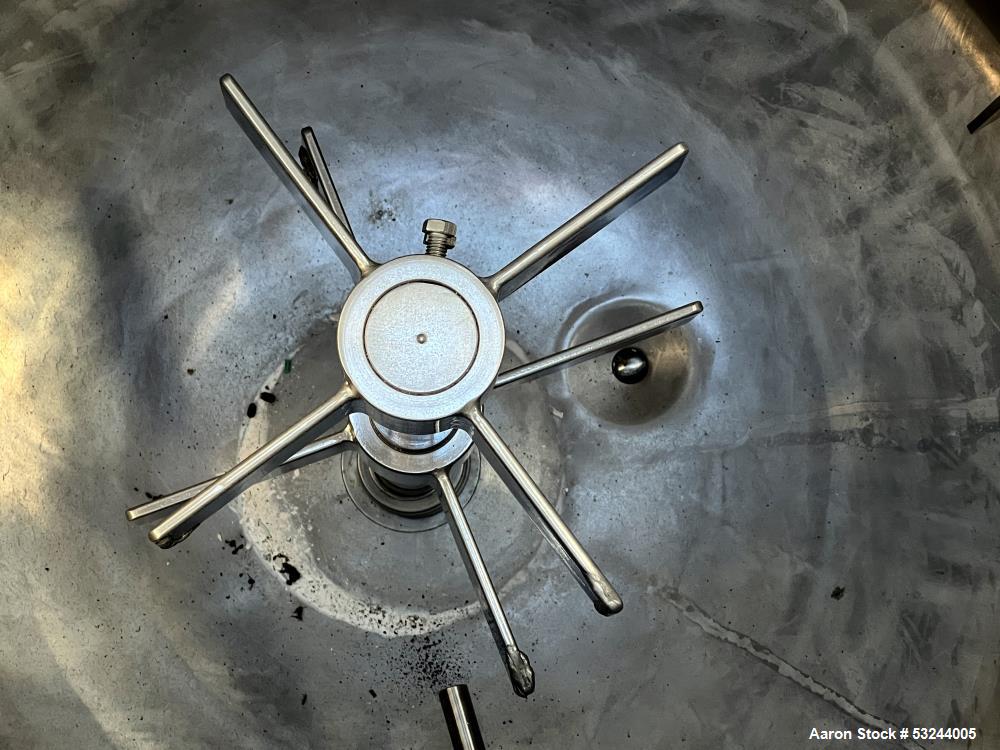

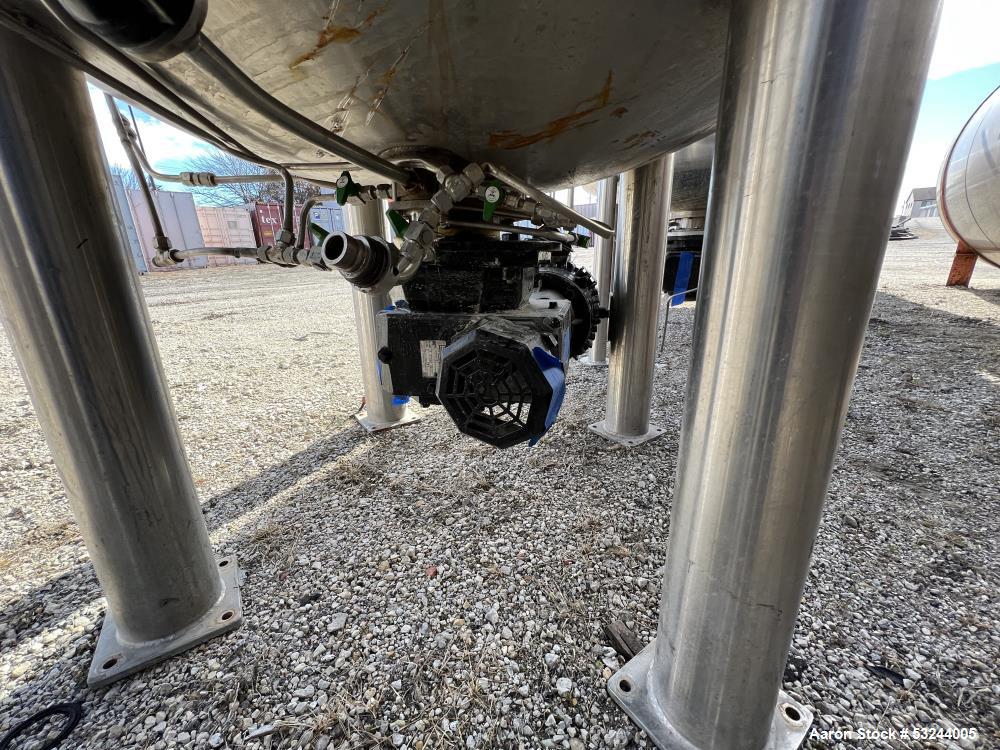

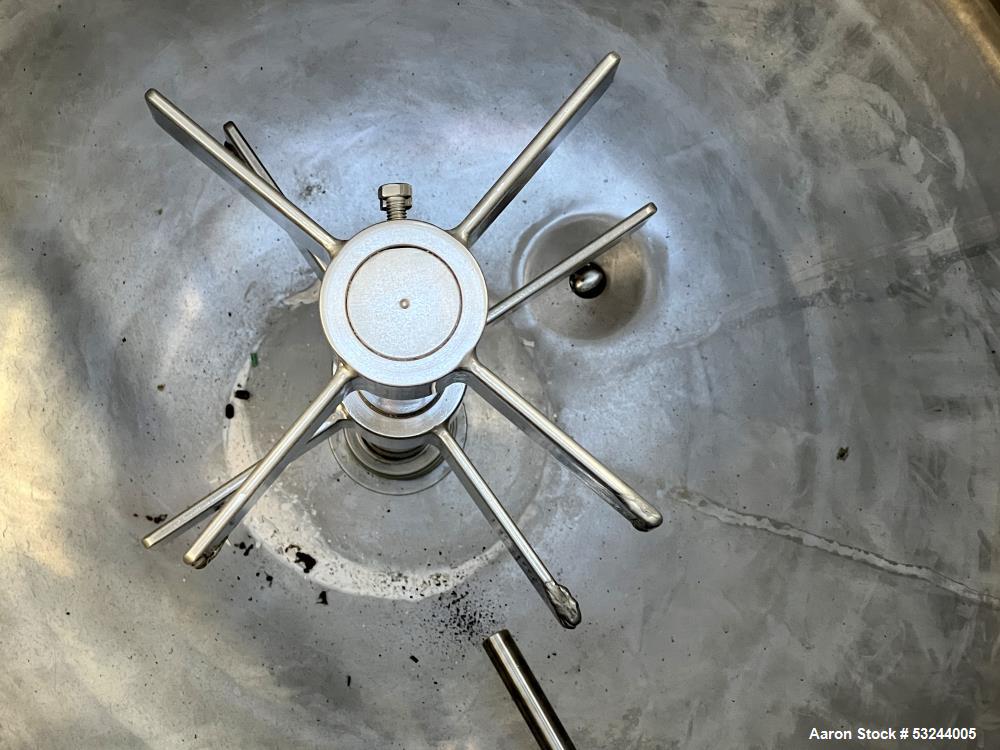

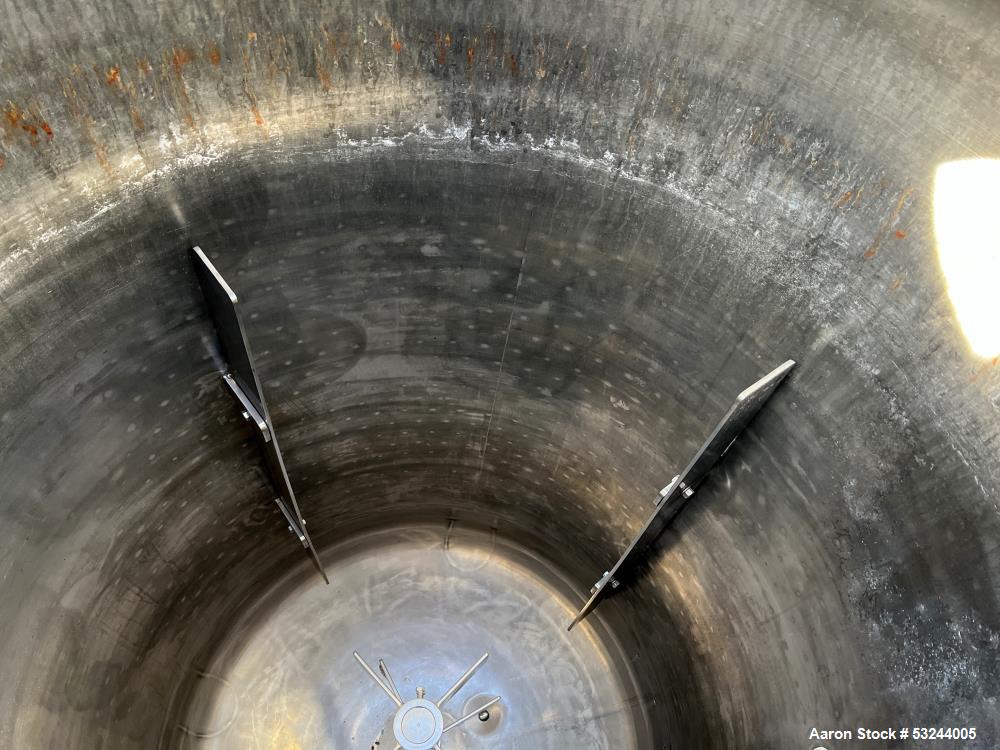

Used- IAF Fermentor / Reactor, Approximate 300 Gallons, 316 Stainless Steel. Approximate 40" diameter X 55" Straight Side. Dished top and bottom. Internal rated 50 psi at 250 degrees F. 304 Stainless steel jacket rated 80 psi at 300 degrees F. Bottom center entering dual 4-blade impeller agitator. Driven by a 7.5hp, 3/60/230/460 volt, 1755rpm motor through reducer, 5:1 ratio. Openings top: Approximate 14" manway with cover, 4", (2) 3", (3) 1-1/2", 1", (3) 1/2", (2) 3/4", side: 3" with sight glass, (7) 1-1/2", (2) 1/2", 8" for agitator. 1" Bottom outlet, with 20" discharge height. (4) fixed sidewall baffles. Mounted on (4) legs. Serial# D-651, National Board# 396.
-
Serial #D-651
-
CategoryReactors
-
SubcategoryStainless Steel 0-499 Gallon
-
GallonsApproximate 300
-
Material Of Construction316 Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter40"
-
Straight Side55"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure50 PSI
-
Internal Temperature250 Degrees F
-
Pressure Jacket80 psi
-
Temperature Jacket300 Degrees F
-

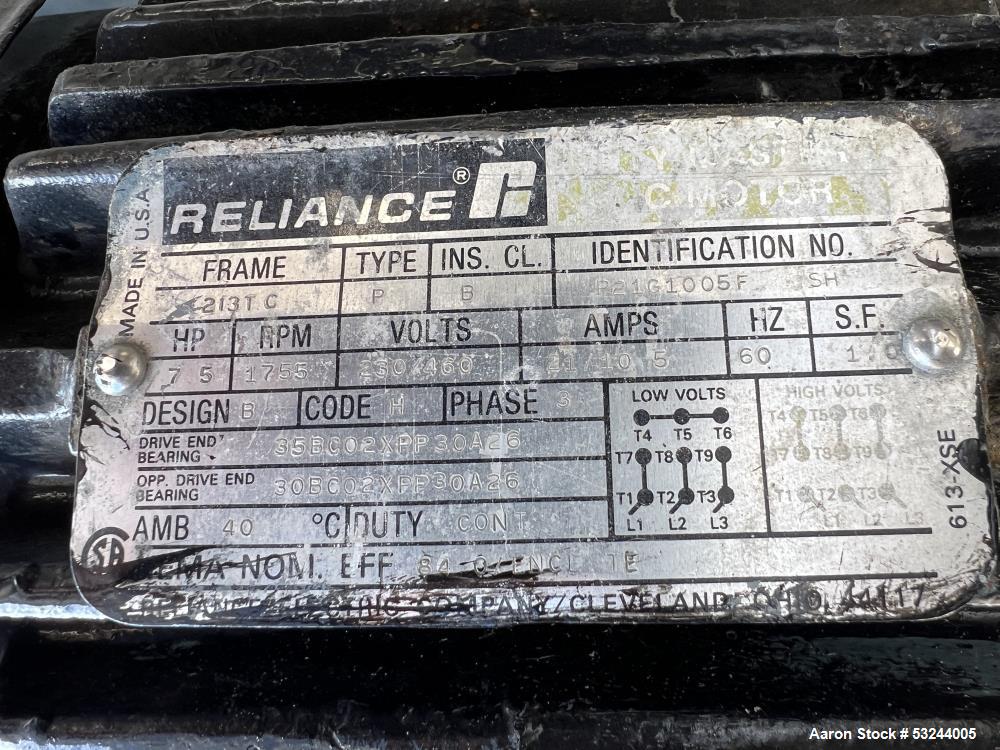

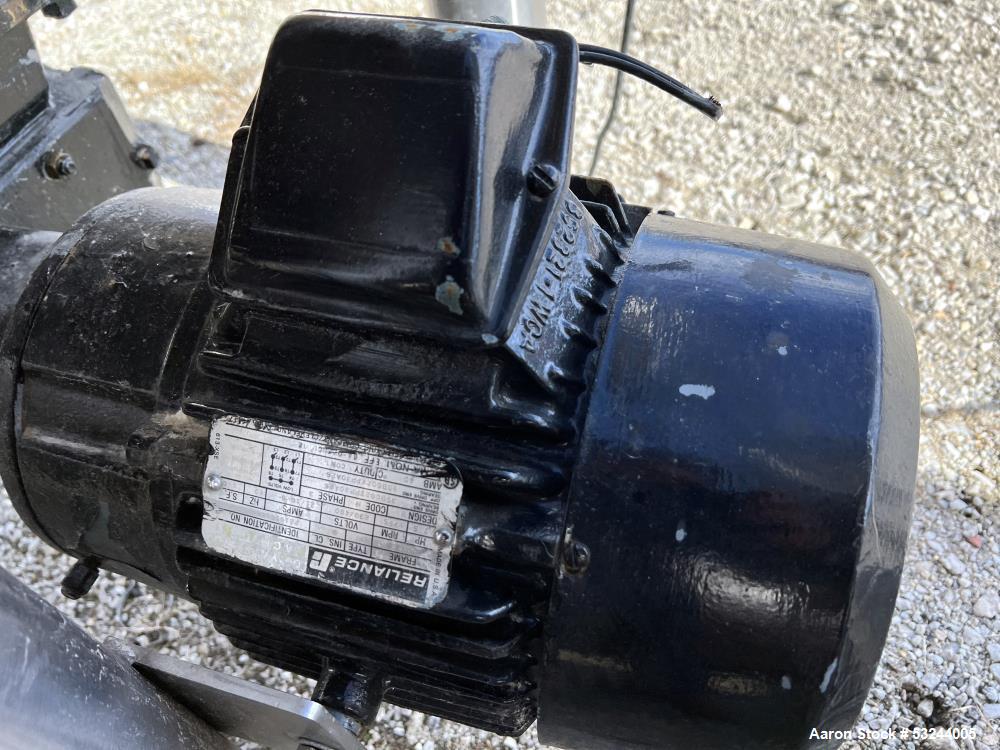

Agitator Hp7.5
-
Agitator Phase3
-
Agitator Cycle60
-
Agitator Voltage208-230/460 Volt
-
Agitator Rpm1755
-

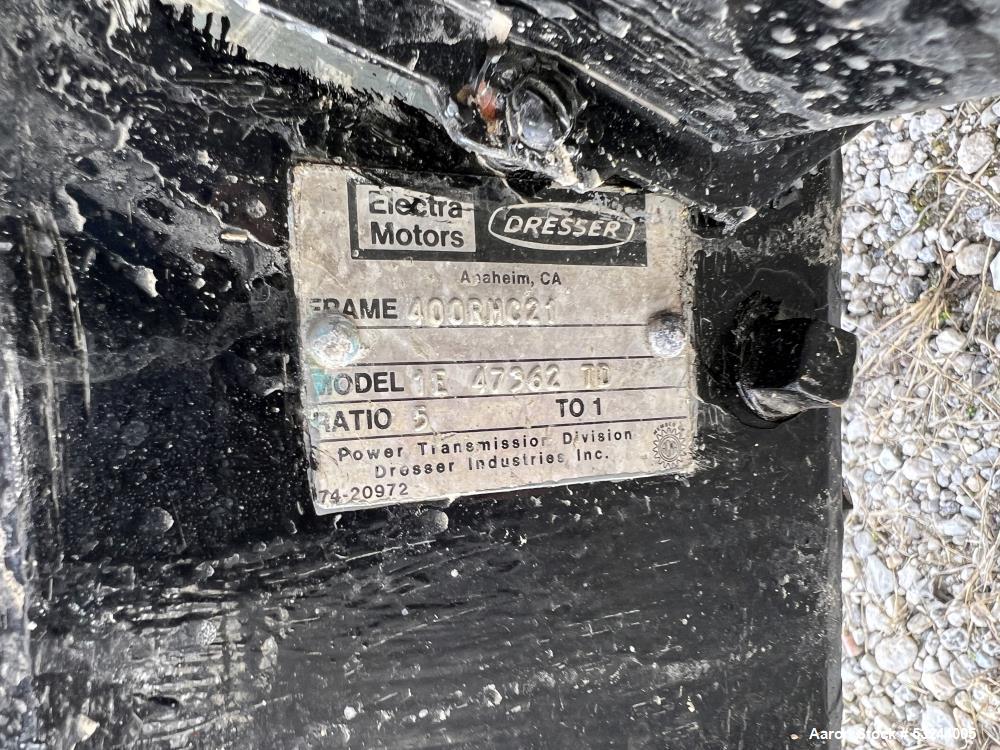

Reducer Ratio5:1
-

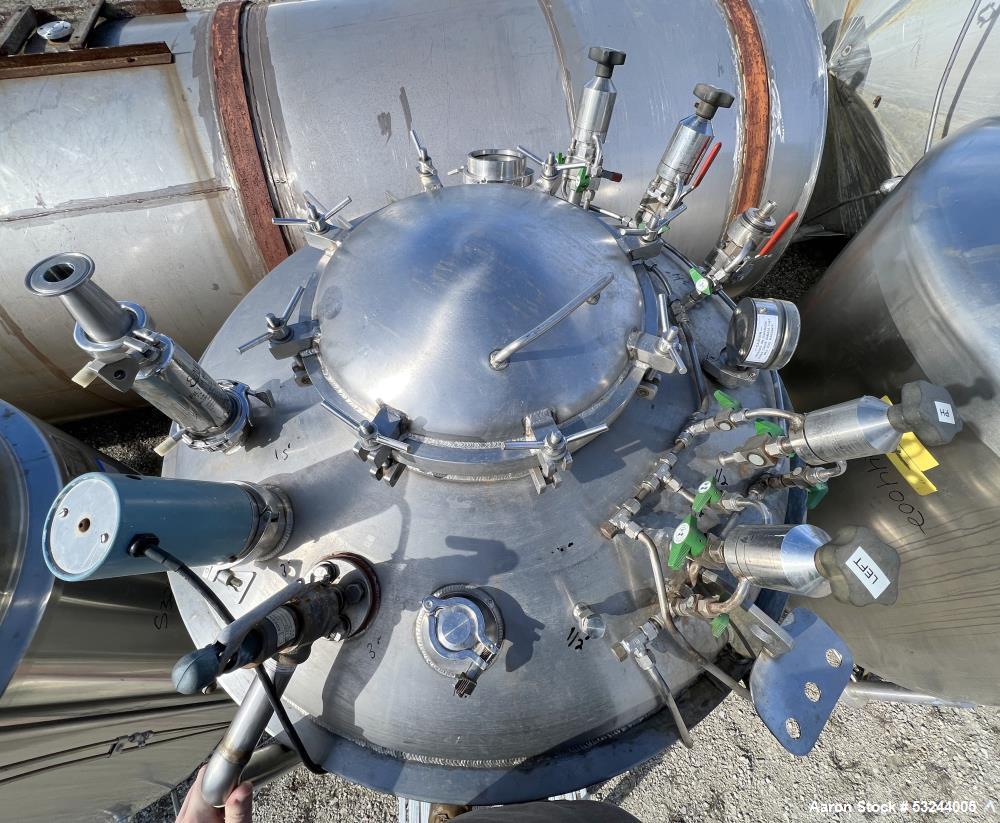

Openingtop: 14" manway with cover, 4", (2) 3", (3) 1-1/2", 1", (3) 1/2", (2) 3/4". Approximate opening side: 3" with sight glass, (7) 1-1/2", (2) 1/2", 8" for agitator
-
Opening CoverYes
-
Outlet Size1"
-
Outlet LocationBottom
-
MountedMounted on 4 Legs
-
Overall Dimensions48" x 48" x 106"T
-

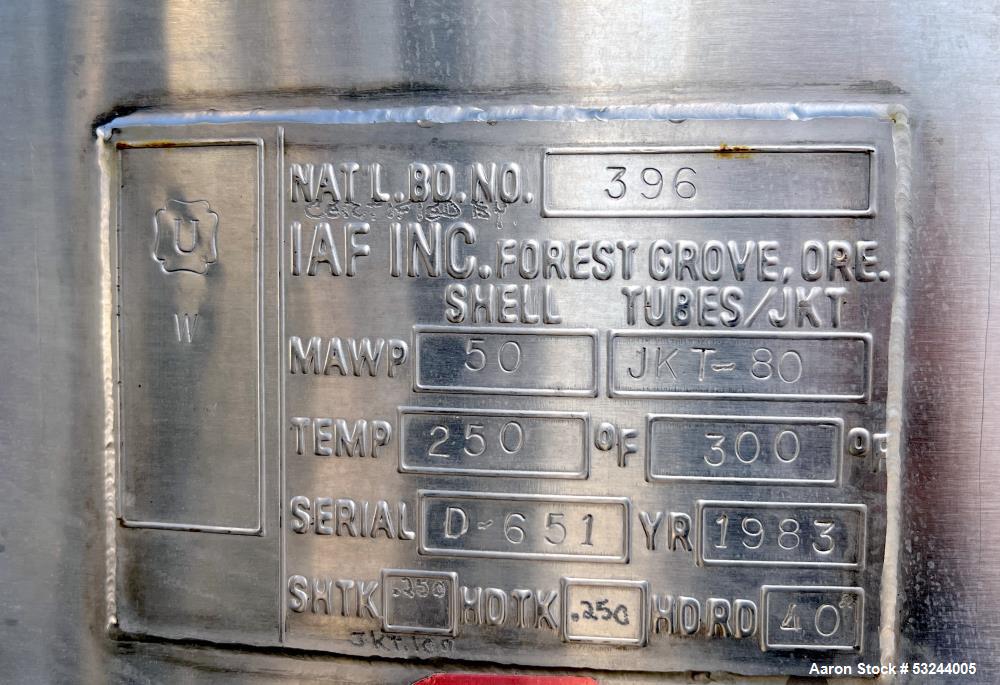

National Board No.396
-
Year Built1983
Used equipment facts about this machine
Manufacturer Information
1. General Information
The IAF Fermentor / Reactor is a 300-gallon vessel designed for fermentation, reaction, and processing applications. Constructed from 316 stainless steel for the internal tank and 304 stainless steel for the jacket, it is well-suited for handling corrosive materials, maintaining cleanliness, and providing precise temperature control through its jacket. The tank is equipped with a dual 4-blade impeller agitator for efficient mixing and agitation, supported by a powerful motor and reducer for variable speed control. Its robust construction, extensive connections, and integrated baffles make it highly versatile for various industries.
Key Features:
- 316 Stainless Steel Interior: Corrosion resistance and compatibility with a wide range of materials.
- 304 Stainless Steel Jacket: Rated for 80 psi at 300°F, allowing for effective heating or cooling.
- Dual 4-Blade Impeller Agitator: Ensures uniform mixing and agitation.
- Multiple Access Points: Comprehensive top and side openings for process flexibility.
- Fixed Sidewall Baffles: Enhance mixing efficiency by disrupting vortex formation.
2. Specifications
| Parameter | Details |
|---|---|
| Capacity | 300 gallons |
| Material (Internal) | 316 Stainless Steel |
| Material (Jacket) | 304 Stainless Steel |
| Orientation | Vertical |
| Dimensions | Approx. 40" diameter x 55" straight side |
| Head Design | Dished top and bottom |
| Internal Pressure Rating | 50 psi at 250°F |
| Jacket Pressure Rating | 80 psi at 300°F |
| Agitator Type | Dual 4-blade impeller, bottom center entering |
| Agitator Drive | 7.5 HP motor, 3-phase, 60 Hz, 230/460 Volt, 1755 RPM with 5:1 reducer |
| Top Openings | - Approx. 14" manway with cover |
3. Applications
The IAF Fermentor / Reactor is ideal for a wide variety of industrial and commercial applications requiring precise mixing, heating, cooling, and pressure control:
-
Biotechnology:
- Fermentation processes for microorganisms, enzymes, or other biological products.
- Cell culture production.
-
Pharmaceuticals:
- Reactors for chemical synthesis.
- Mixing and maintaining sterile environments for drug manufacturing.
-
Chemical Processing:
- Synthesis and reaction of chemical compounds.
- Precise heating, cooling, and pressure control for exothermic or endothermic reactions.
-
Food & Beverage:
- Fermentation processes for products such as beer, wine, and dairy cultures.
- Processing of viscous materials or heat-sensitive ingredients.
-
Cosmetics:
- Blending and processing creams, lotions, and other formulations.
-
Industrial Applications:
- Production of adhesives, polymers, and specialty chemicals.
Product Details
- Fermentor 300-Gallon Reactor
- 316 Stainless Steel Fermentor Tank
- 300 Gallon Agitated Pressure Vessel
- Industrial Mixing and Heating Reactor
- 304 Stainless Steel Jacketed Tank
- Used 300-gallon fermentor reactor with dual impeller agitator
- Stainless steel jacketed tank with 50 psi internal and 80 psi jacket rating
- Pharmaceutical-grade mixing reactor with 7.5 HP motor
- IAF fermentor tank with 4 baffles and dished heads
- Fermentor for food, chemical, and biotech applications
- Jacketed pressure vessel with multiple top and side openings
- Efficient mixing tank with bottom center agitator and reducer drive
- High-performance fermentor with temperature and pressure control
