Stock No.: 52060001

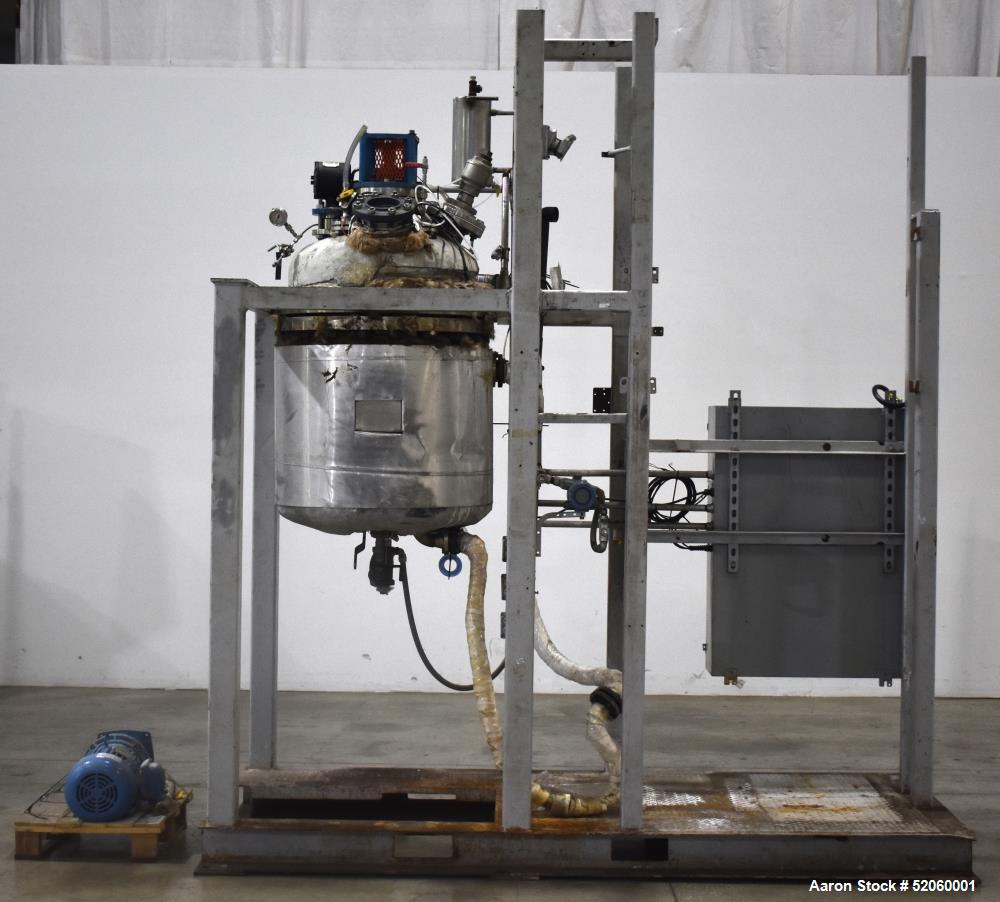

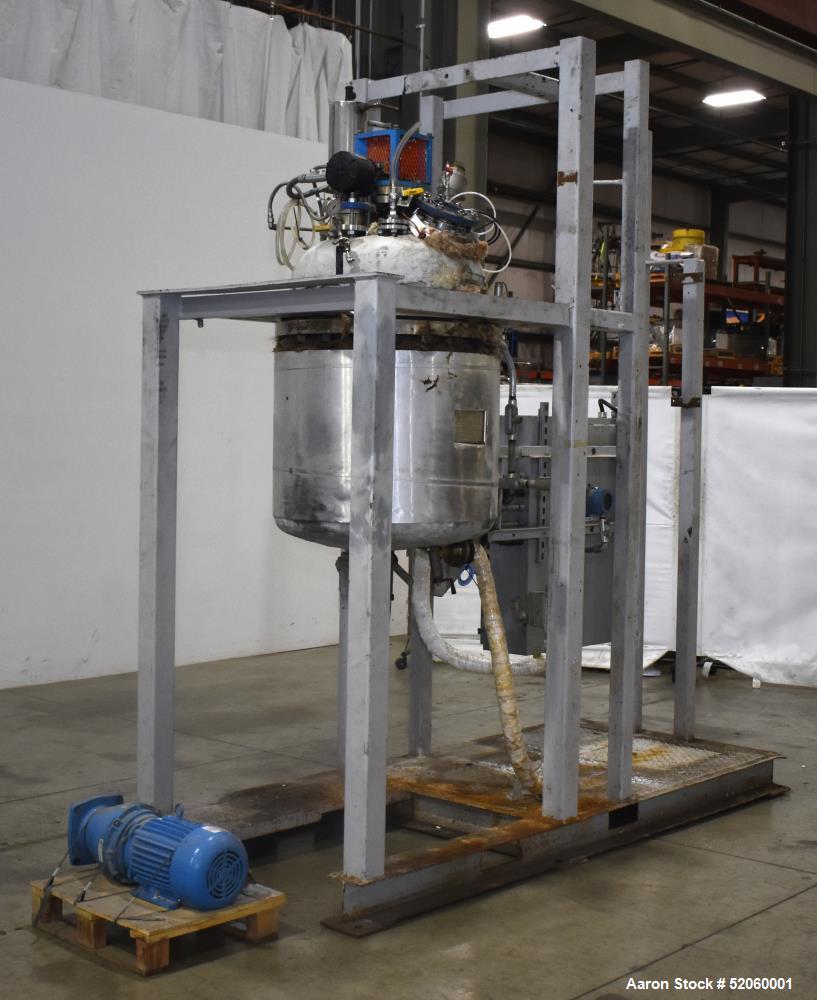

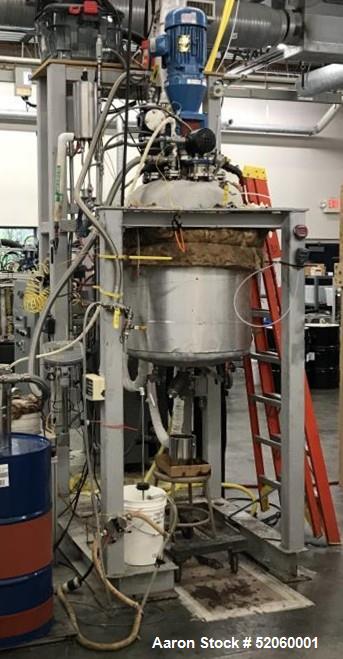

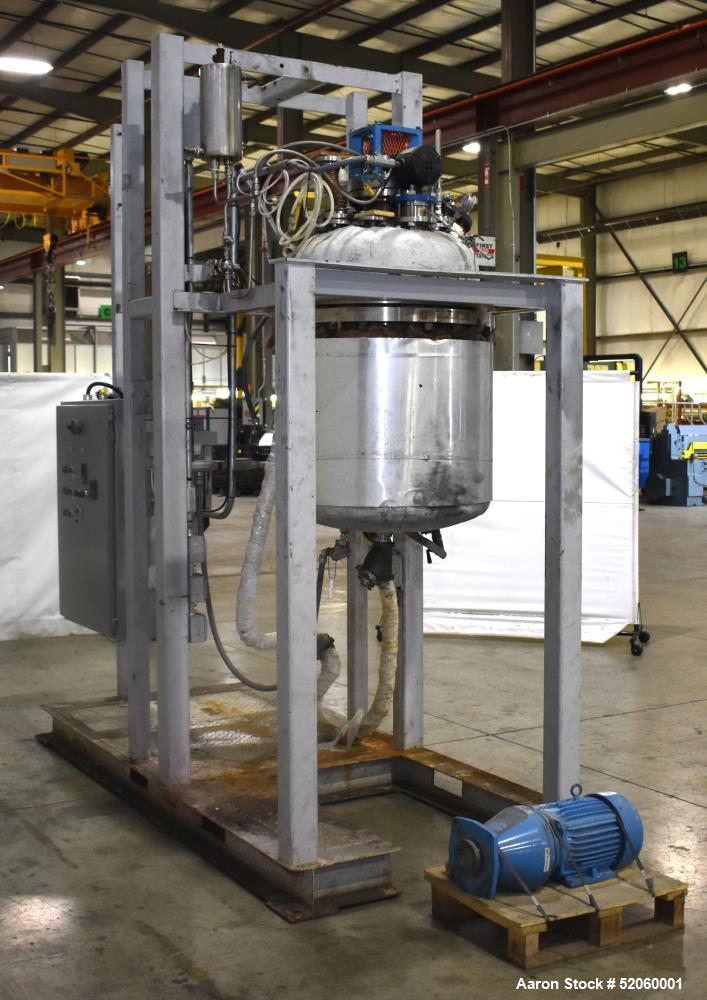

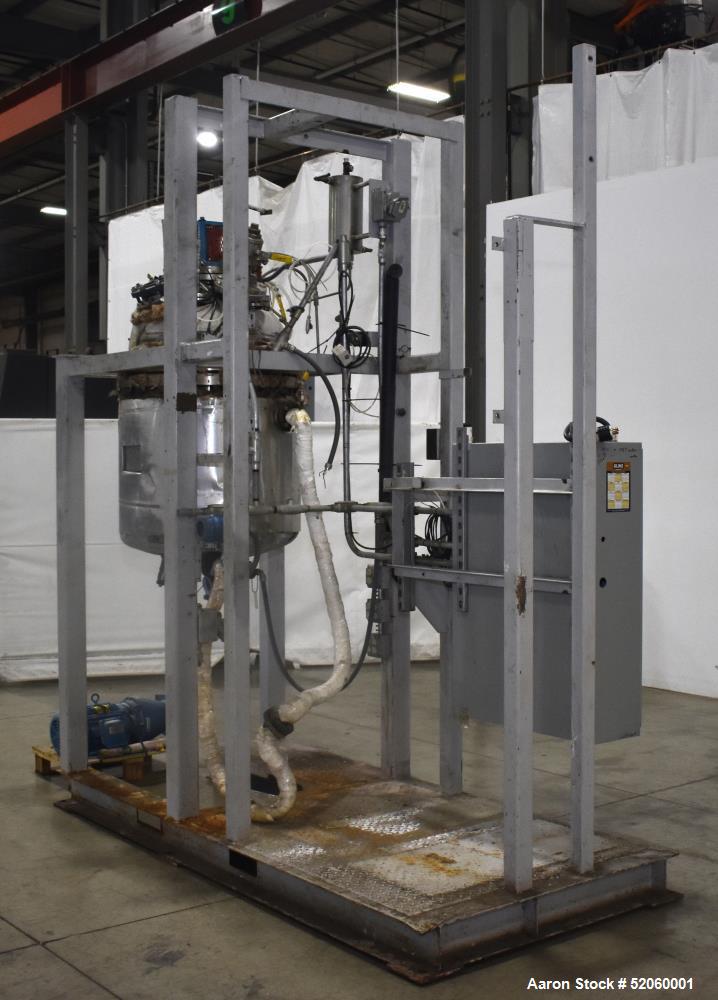

Atlantis Equipment (AEC) 50-Gallon Stainless Steel Reactor

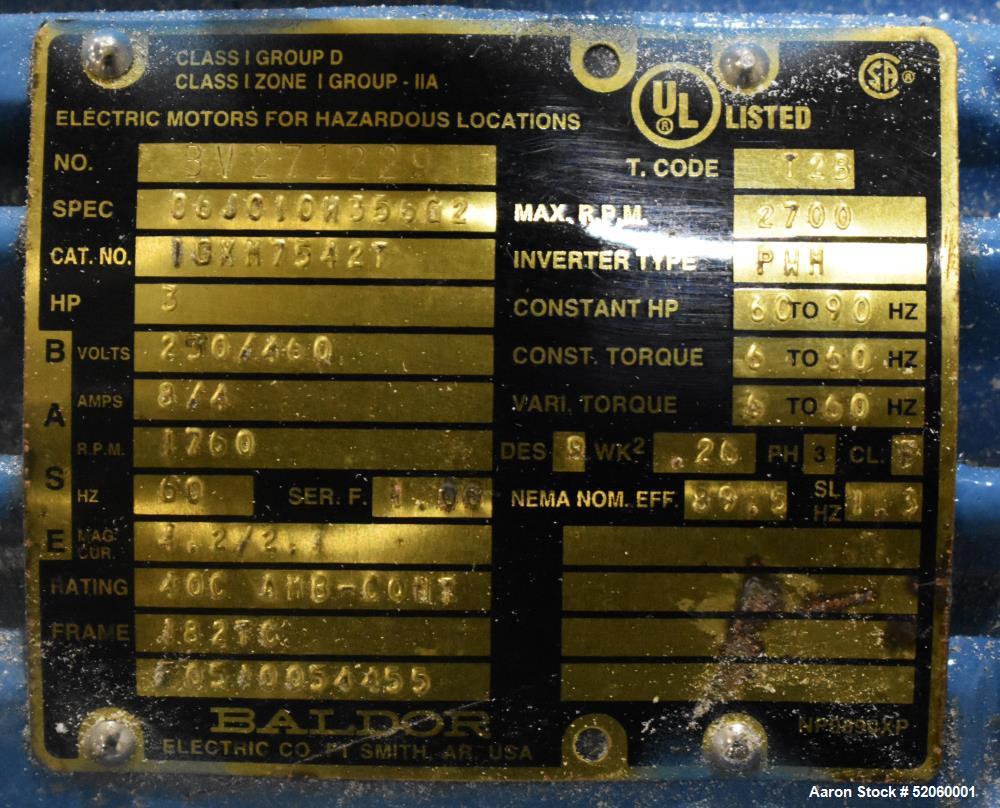

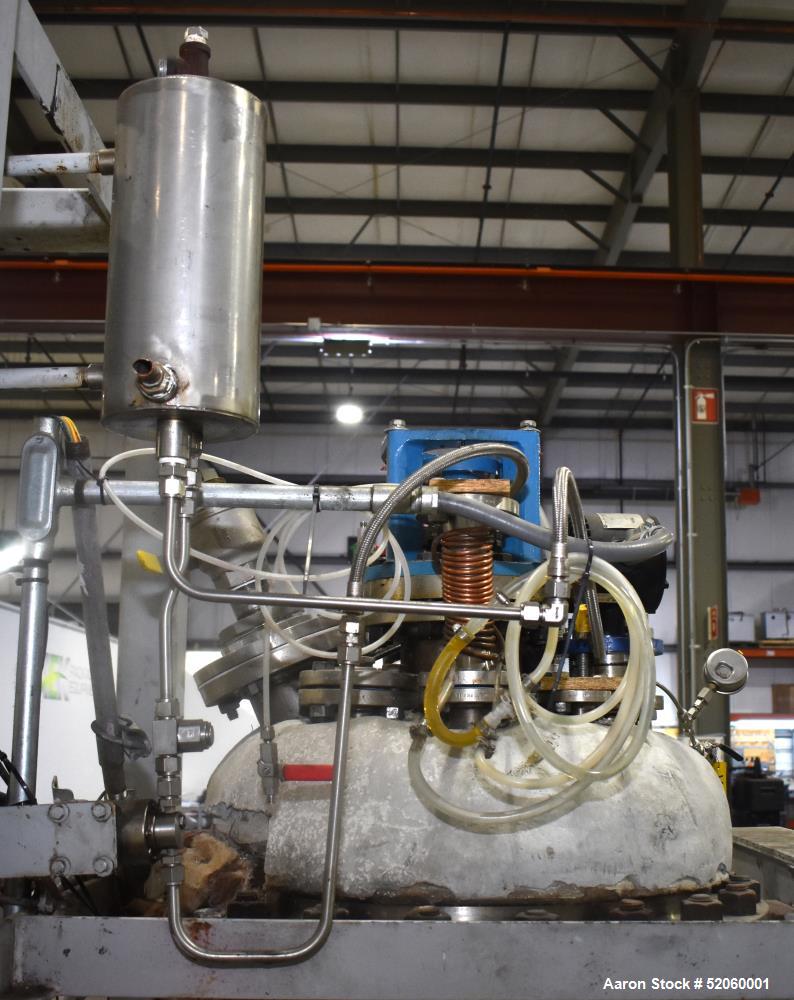

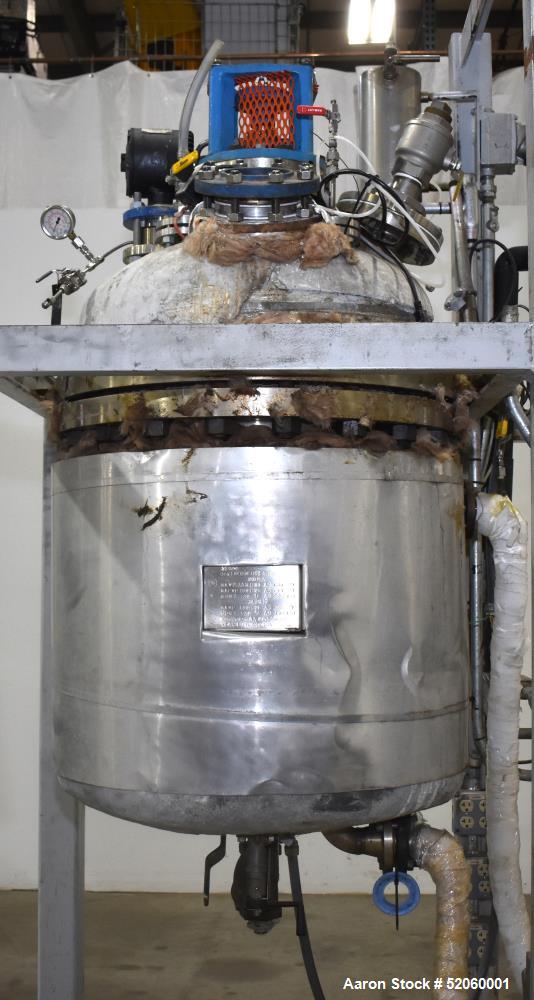

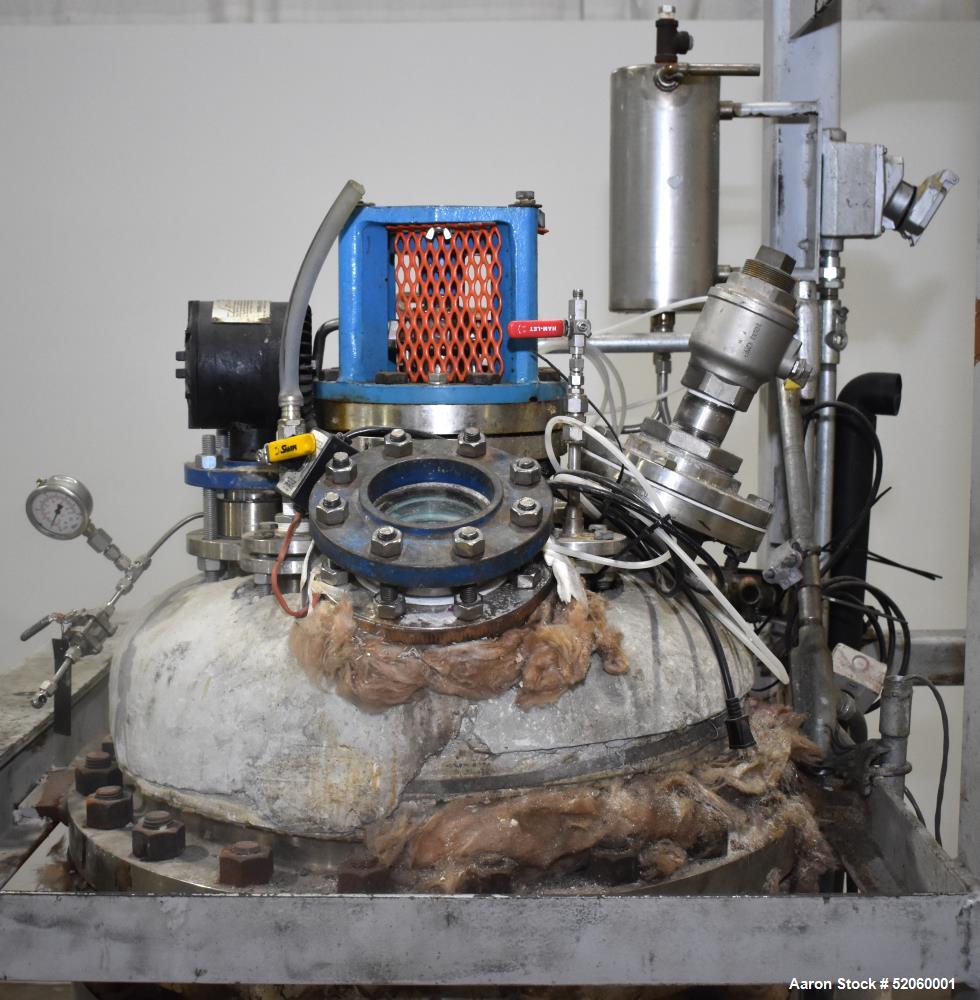

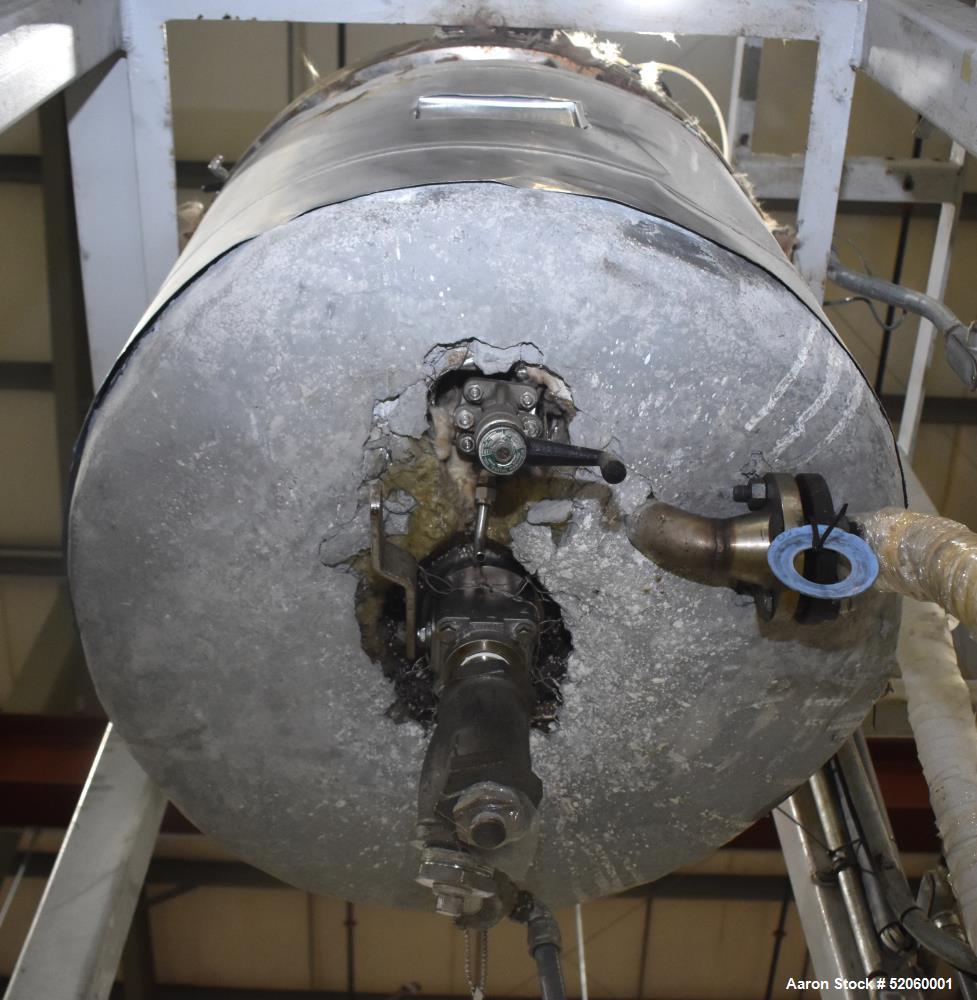

Used- Atlantis Equipment 50-Gallon Stainless Steel Reactor System, 316L Stainless Steel, Vertical. Approximate 24" diameter x 21" straight side. 316L Stainless steel elliptical heads. Internal rated 100 psi at -20 to 600 degrees F. 304L Stainless steel jacket rated 100 psi at -20 to 600 degrees F. Top mounted Chemineer agitator, driven by a 3hp, 3/60/230/460 volt, 1760 rpm motor. Approximate 1.5" center bottom outlet. Mounted on skid. National Board# 024, Serial# 13630.
-
Serial #13630
-
CategoryReactors
-
SubcategoryStainless Steel 0-499 Gallon
-
Gallons50
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter24"
-
Straight Side21"
-
Top Head StyleEliptical
-
BottomEliptical Bottom
-
Internal Pressure100 psi
-
Internal Temperature-20 to 600 degrees F
-
Pressure Jacket100 psi
-
Temperature Jacket-20 to 600 degrees F
-
Agitator ManufacturerChemineer
-

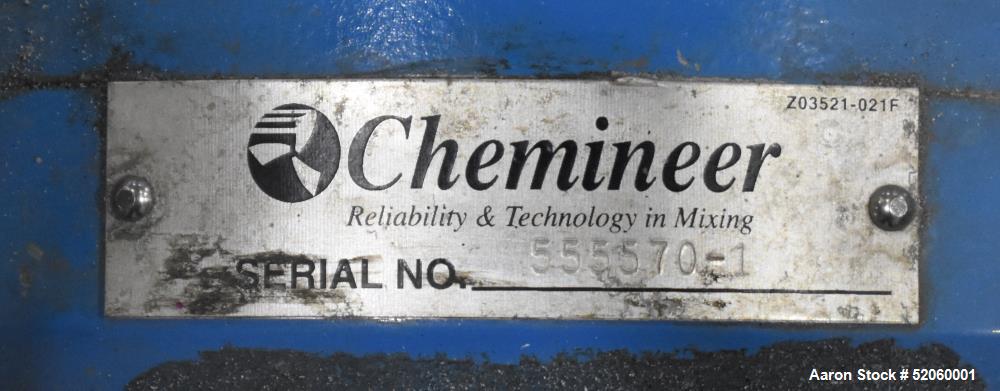

Agitator Serial No.555570-1
-

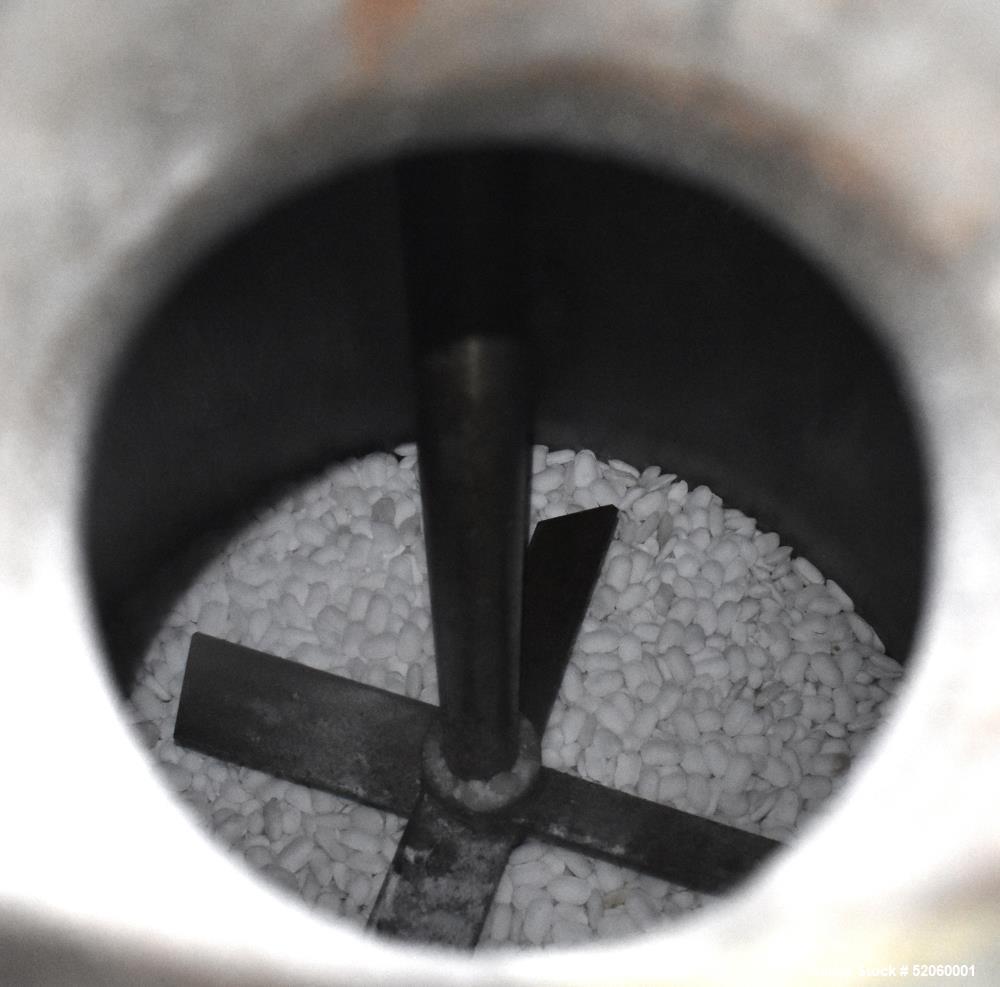

Agitator TypeTop Entering
-
Agitator Hp3
-
Agitator Phase3
-
Agitator Cycle60
-
Agitator Voltage208-230/460 Volt
-
Agitator Rpm1760
-
Outlet Size1.5"
-
Outlet LocationBottom
-
MountedCarbon Steel Frame
-

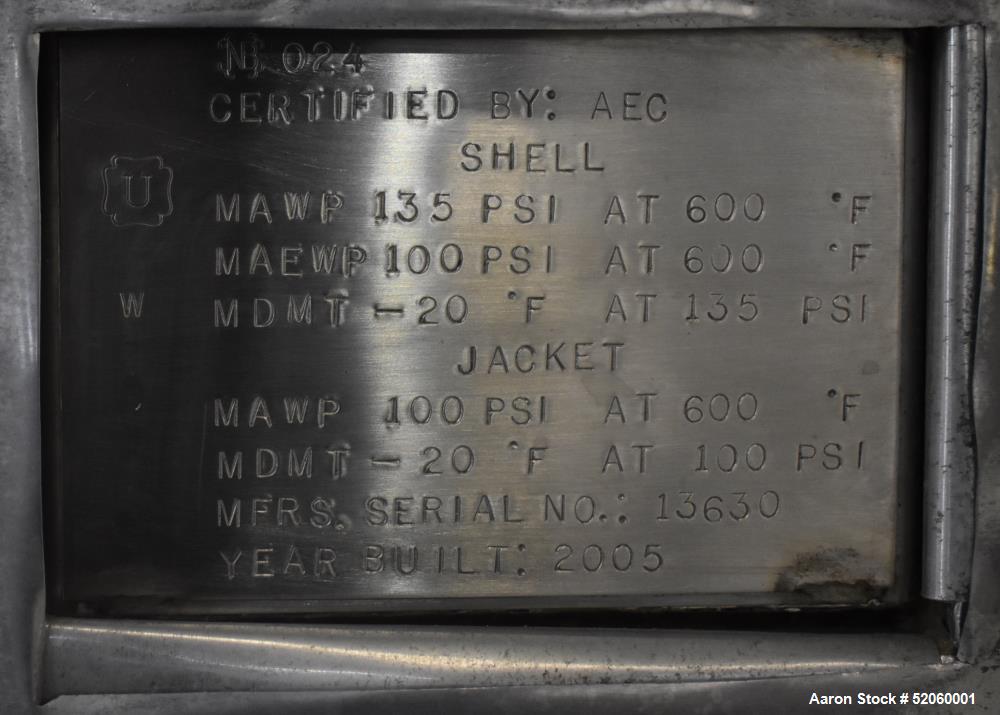

National Board No.024
-
Year Built2005
