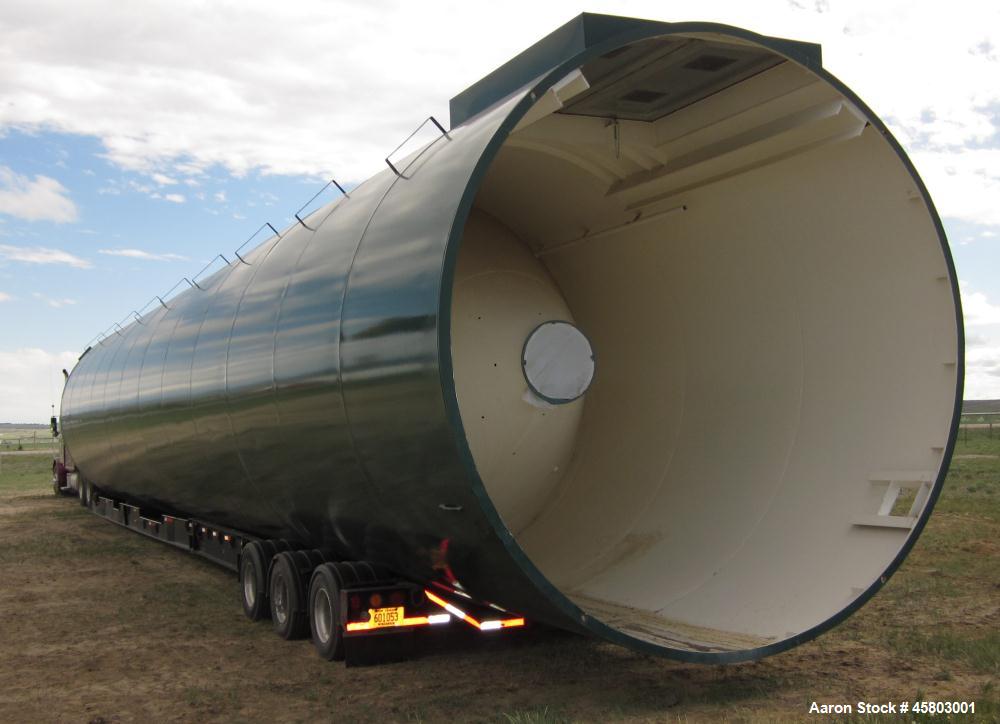

Used Soda Ash System - Including Accessories and Storage Silos. Complete as follows: (9) Storage silos, welded mild steel construction, having a usable capacity of 8,811 cubic feet, for the storage of soda Ash with a bulk density of 63 lbs/cubic foot. Each silo is constructed with the following features: 14' diameter, 54'3" cylinder height, 73' overall height, 60 degree cone to an 8" discharge diameter at a height of 6' above grade. Skirted silo support with double louvered doors, 6' x 6'8". 20" Top deck manway with pressure/vacuum relief valve. Vent filter mounting flange on top deck. (3) Level control mounts. Fill line support brackets. Top perimeter guard rail. Ladder with safety cage and step-off platform (as required). 80 MPH wind load design. 30 PSF roof load. Seismic zone 1 design. Interior is painted epoxy (white). Exterior painted finish is enamel (white).
Used Soda Ash System - Including Accessories and Storage Silos. Complete as follows: (9) Storage silos, welded mild steel construction, having a usable capacity of 8,811 cubic feet, for the storage of soda Ash with a bulk density of 63 lbs/cubic foot. Each silo is constructed with the following features: 14' diameter, 54'3" cylinder height, 73' overall height, 60 degree cone to an 8" discharge diameter at a height of 6' above grade. Skirted silo support with double louvered doors, 6' x 6'8". 20" Top deck manway with pressure/vacuum relief valve. Vent filter mounting flange on top deck. (3) Level control mounts. Fill line support brackets. Top perimeter guard rail. Ladder with safety cage and step-off platform (as required). 80 MPH wind load design. 30 PSF roof load. Seismic zone 1 design. Interior is painted epoxy (white). Exterior painted finish is enamel (white).
