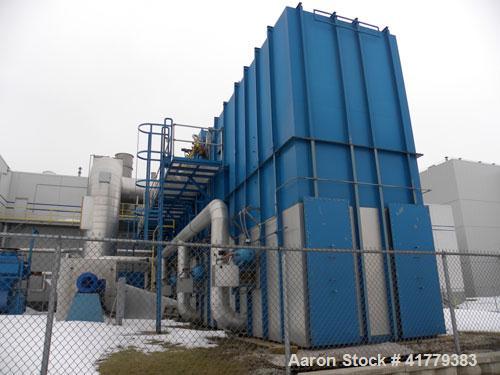

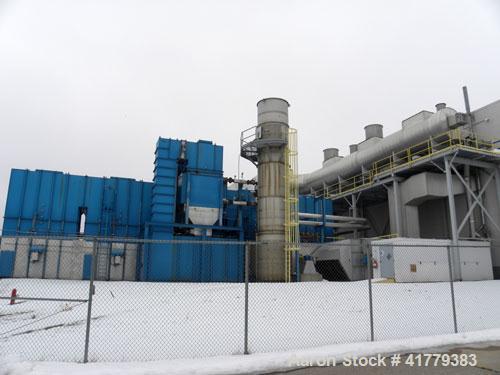

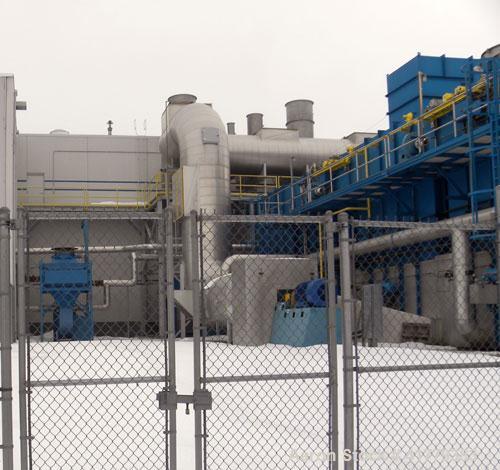

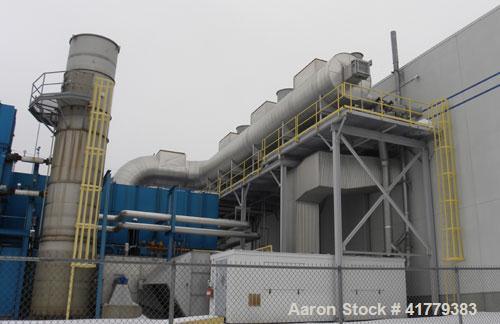

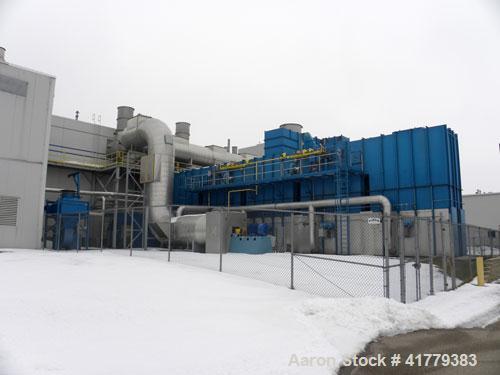

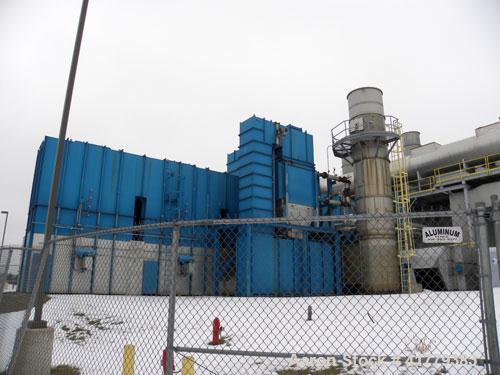

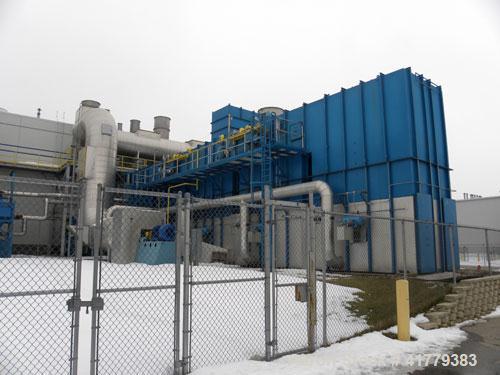

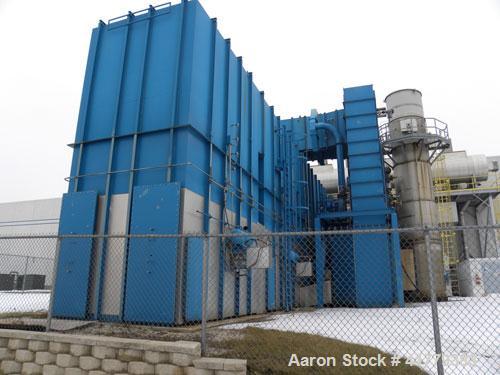

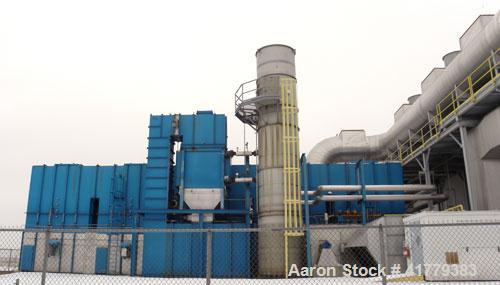

Used MEGTEC Regenerative Thermal Oxidizer with 75,000 SCFM flow volume. The MEGTEC regenerative thermal oxidizer (RTO) is equipped with 5 heat exchange towers; 10 pneumatic poppet valves; 5 purge valves; hot side bypass; fresh air/purge idle damper; 4 - 6,000,000 Btu burners; 2 FM/IRI gas trains; 2 - 30 HP combustion burners; 500 HP forced draft RTO fan with bearing vibration & temperature monitors; Siemens VFD drive system; Allen-Bradley SLC 504 PLC with color touch screen; 6 pen chart recorder; 6 process bypass tee dampers; air compressor; dessicant dryer. The thermal oil system is equipped with 12,000,000 Btu bare tube heating coil with valves & standard trim; canned pump; centrifugal pump; 1,500 gallon thermal oil expansion tank with valves; 3,000 gallon overflow tank with valves; heat recovery dampers, ductwork & controls; PE stamped thermal oil system design engineering; 12,000,000 Btu direct fired thermal oil boiler with valves & trim; auxiliary thermal oil cooler with valves; slip stream fluid filter. One tertiary air-to-air heat recovery system for building make-up-air is supplied. The system is equipped with a burner trim section.
Used MEGTEC Regenerative Thermal Oxidizer with 75,000 SCFM flow volume. The MEGTEC regenerative thermal oxidizer (RTO) is equipped with 5 heat exchange towers; 10 pneumatic poppet valves; 5 purge valves; hot side bypass; fresh air/purge idle damper; 4 - 6,000,000 Btu burners; 2 FM/IRI gas trains; 2 - 30 HP combustion burners; 500 HP forced draft RTO fan with bearing vibration & temperature monitors; Siemens VFD drive system; Allen-Bradley SLC 504 PLC with color touch screen; 6 pen chart recorder; 6 process bypass tee dampers; air compressor; dessicant dryer. The thermal oil system is equipped with 12,000,000 Btu bare tube heating coil with valves & standard trim; canned pump; centrifugal pump; 1,500 gallon thermal oil expansion tank with valves; 3,000 gallon overflow tank with valves; heat recovery dampers, ductwork & controls; PE stamped thermal oil system design engineering; 12,000,000 Btu direct fired thermal oil boiler with valves & trim; auxiliary thermal oil cooler with valves; slip stream fluid filter. One tertiary air-to-air heat recovery system for building make-up-air is supplied. The system is equipped with a burner trim section.
