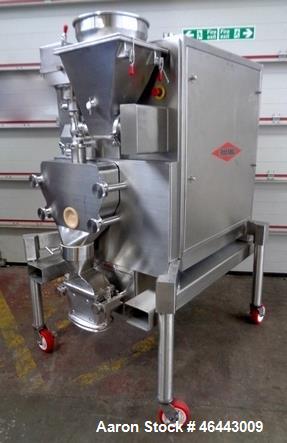

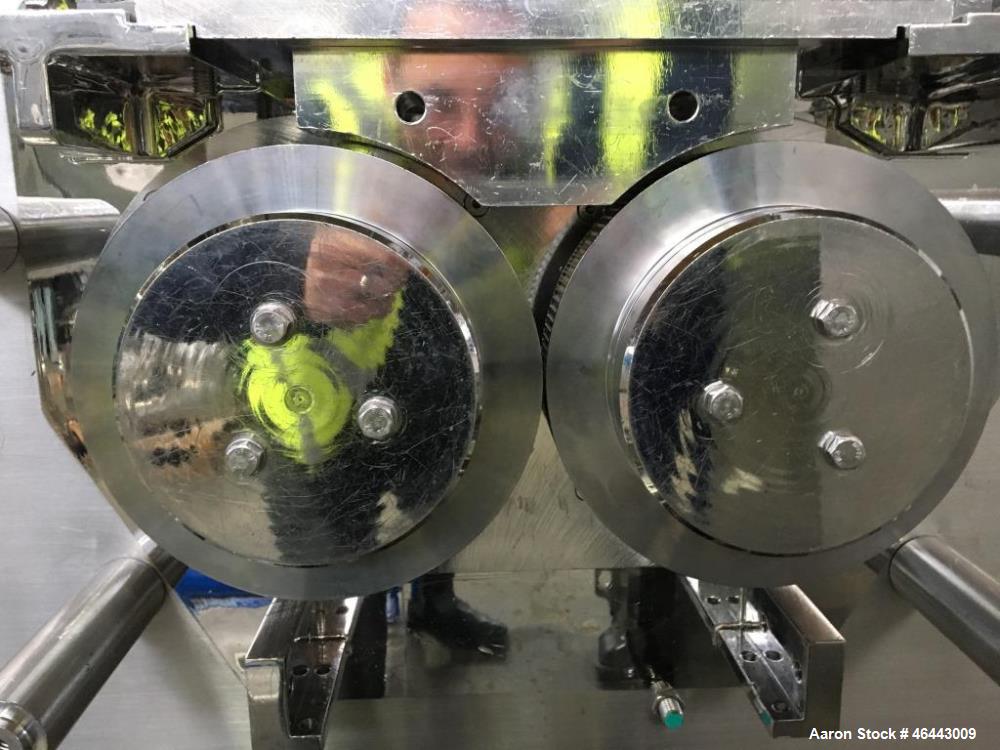

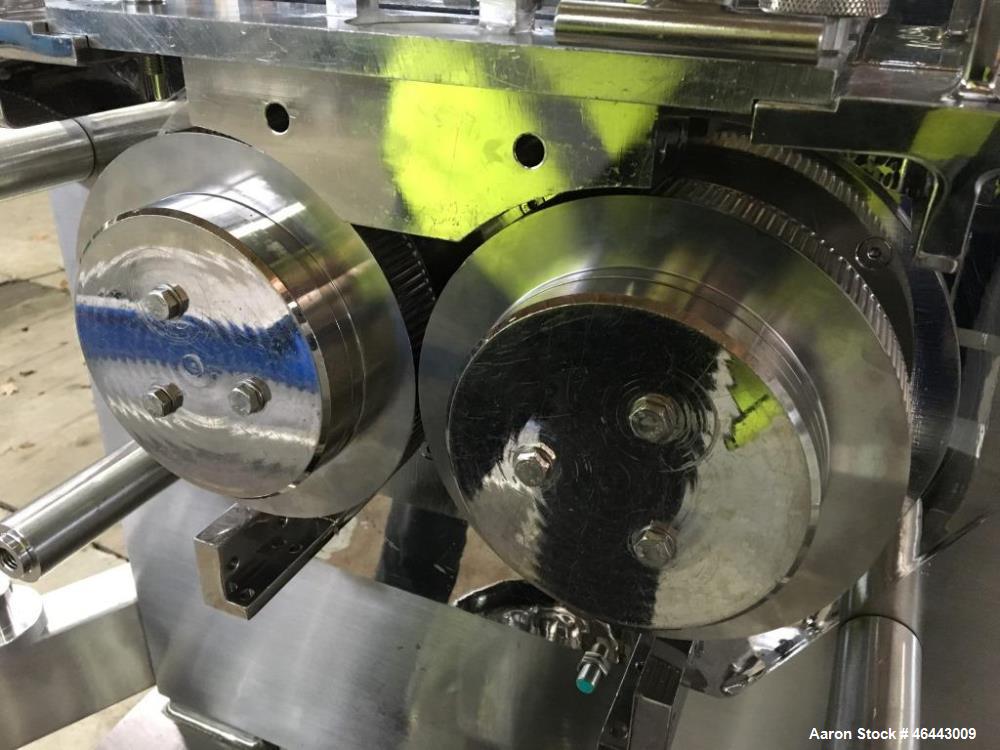

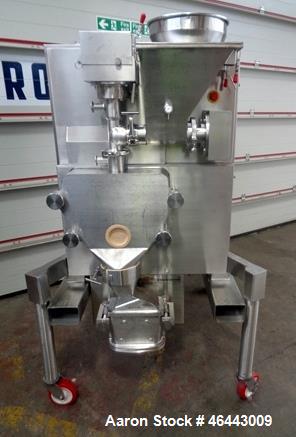

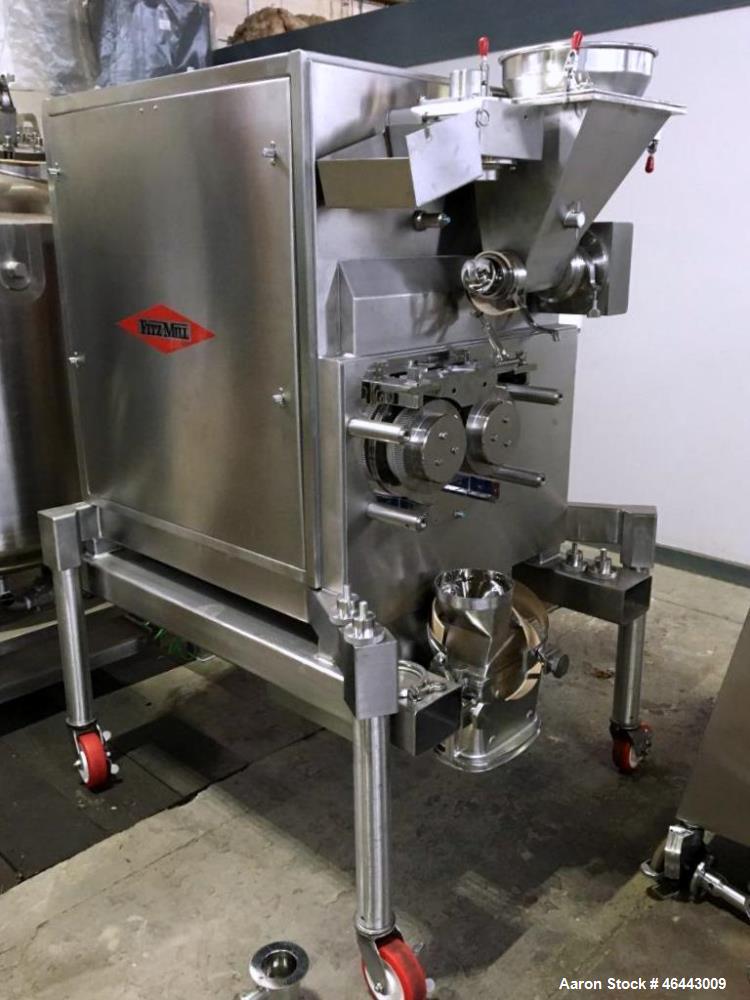

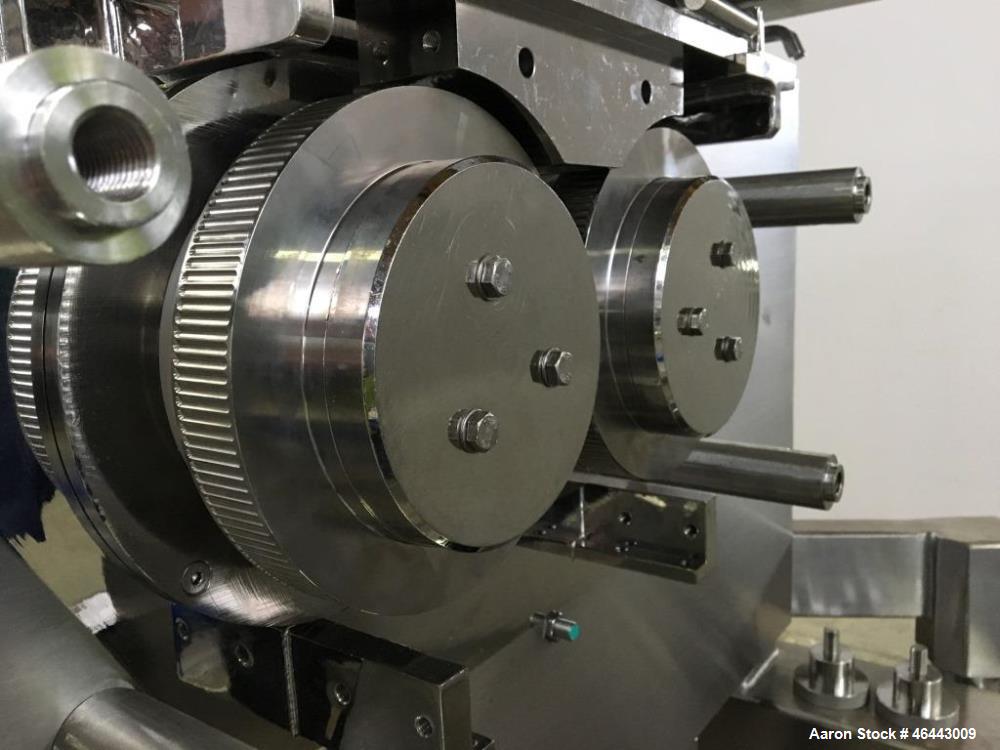

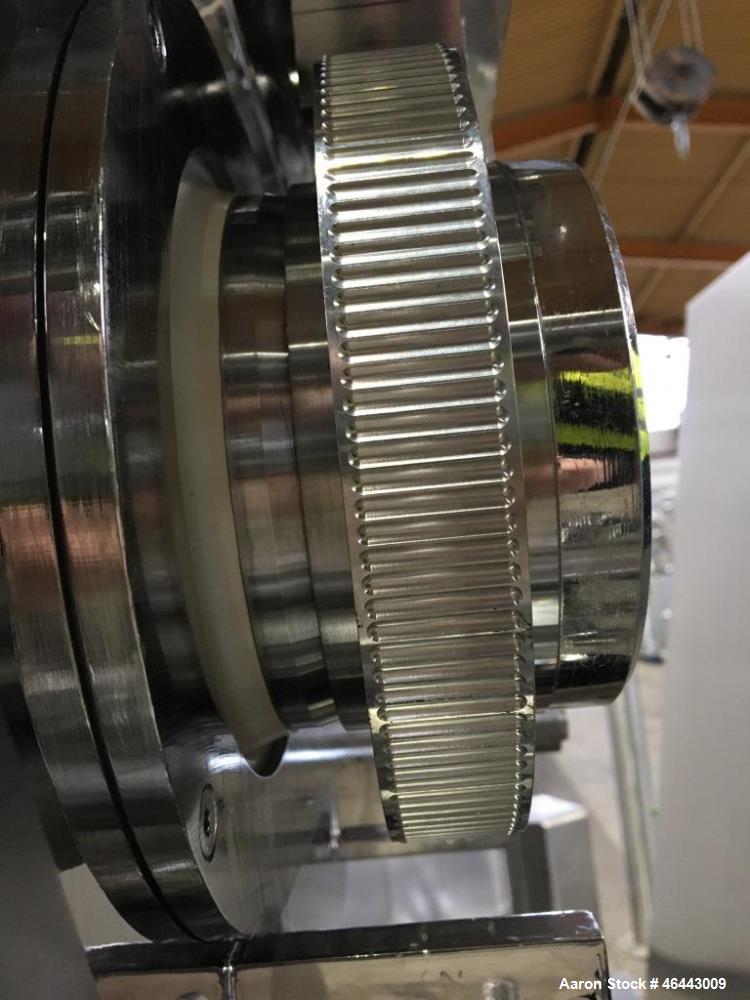

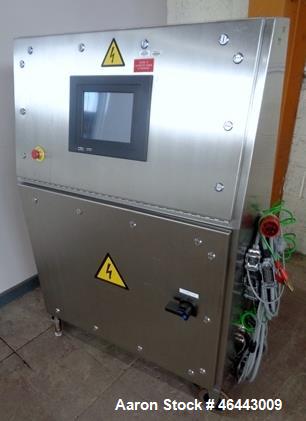

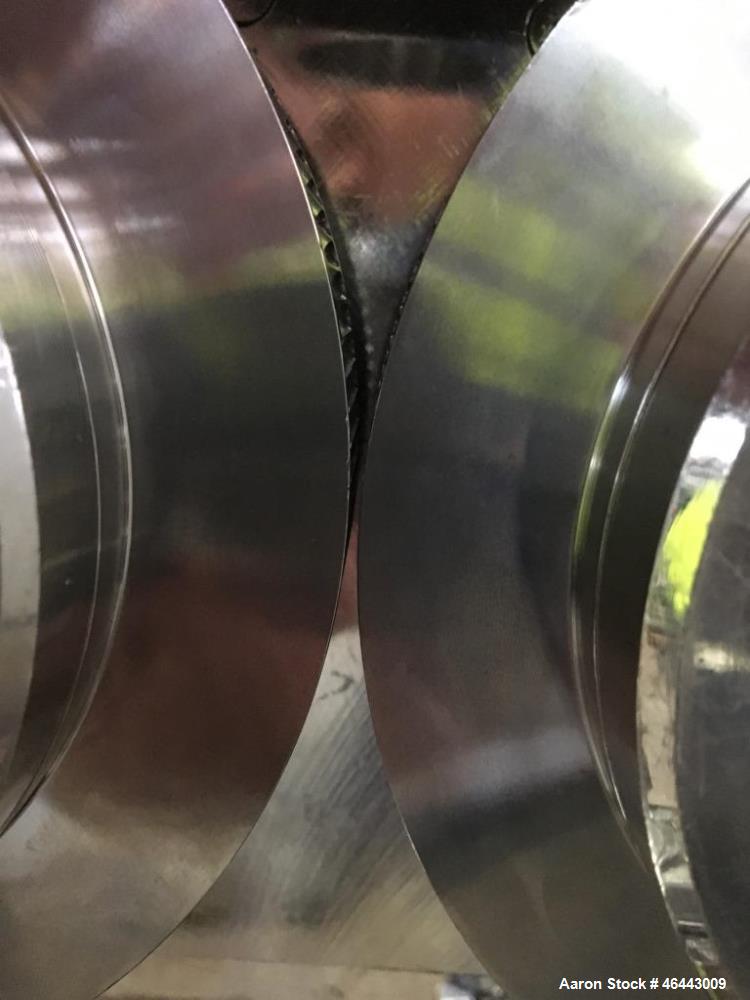

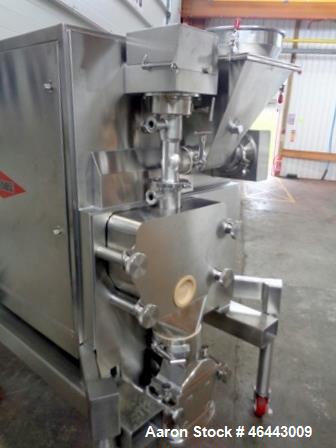

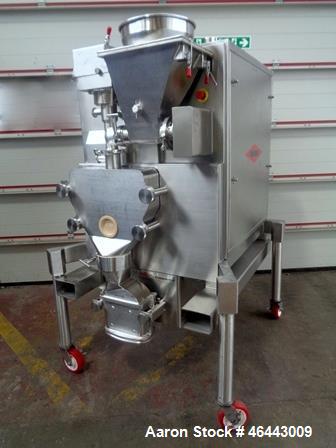

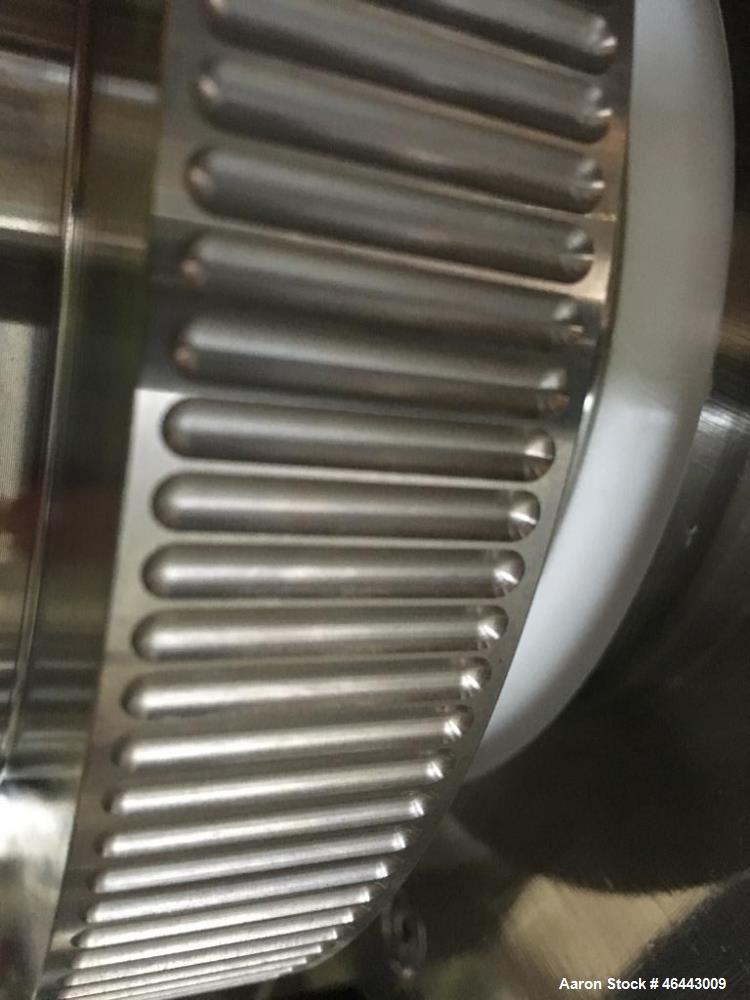

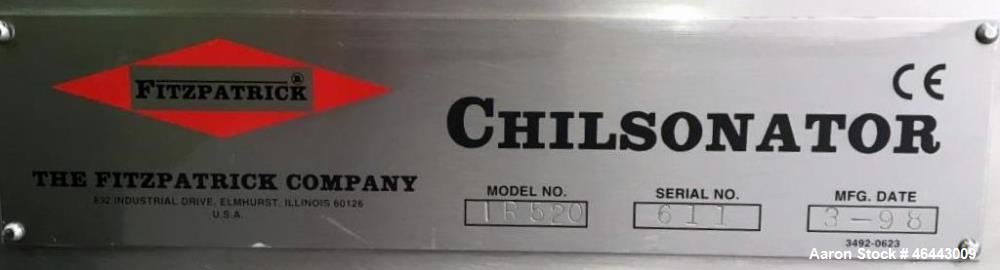

Used Fitzpatrick Chilsonator / Roll Compactor, Model IR520, Stainless Steel. Serial# 611, built 1998. Has (2) stainless steel grooved rolls measuring approximately 2? (50.8mm) wide x 8? (203.2mm) diameter. Approximate capacity 22lbs to 220lbs per hour (100kgs to 1000kgs per hour) depending on product. Rolls driven at approximately 6-24rpm with pressure 0 to 15,000lbs (0 to 68.040kg) per linear inch. Driven by 3.6 kw (4.8 hp) 380-660 volt 3/50 480/1440/1870 rpm through rex nord plant gear speed reducer rated 1750rpm in and 22rpm out giving reduction ratio of 80:1. Includes enerpac hydraulic cylinder for roll nip compression position. Includes horizontal stainless steel infeed screw feeder with hopper driven by 0.3kw (0.4hp), 380volt, 282/1410/1835rpm, 3/50 motor through radicon gearbox with 28:1 reduction ratio. Includes pre-compression vertical stainless steel screw feeder driven by 1.2kw (1.6hp), 380volt, 284/1420/1845rpm, 3/50 motor through radicon gearbox with 5:1 reduction ratio. Includes Fitzpatrick Comminutor Mill, Model M5A with (16) fixed knives driven by an approximate 4kW motor and gearbox. Serial# 2026, built 1998. Includes control panel with Parker controls. Mounted on frame with casters.
Used Fitzpatrick Chilsonator / Roll Compactor, Model IR520, Stainless Steel. Serial# 611, built 1998. Has (2) stainless steel grooved rolls measuring approximately 2? (50.8mm) wide x 8? (203.2mm) diameter. Approximate capacity 22lbs to 220lbs per hour (100kgs to 1000kgs per hour) depending on product. Rolls driven at approximately 6-24rpm with pressure 0 to 15,000lbs (0 to 68.040kg) per linear inch. Driven by 3.6 kw (4.8 hp) 380-660 volt 3/50 480/1440/1870 rpm through rex nord plant gear speed reducer rated 1750rpm in and 22rpm out giving reduction ratio of 80:1. Includes enerpac hydraulic cylinder for roll nip compression position. Includes horizontal stainless steel infeed screw feeder with hopper driven by 0.3kw (0.4hp), 380volt, 282/1410/1835rpm, 3/50 motor through radicon gearbox with 28:1 reduction ratio. Includes pre-compression vertical stainless steel screw feeder driven by 1.2kw (1.6hp), 380volt, 284/1420/1845rpm, 3/50 motor through radicon gearbox with 5:1 reduction ratio. Includes Fitzpatrick Comminutor Mill, Model M5A with (16) fixed knives driven by an approximate 4kW motor and gearbox. Serial# 2026, built 1998. Includes control panel with Parker controls. Mounted on frame with casters.
