Used- Struthers Wells Reactor, Approximate 3500 Gallon

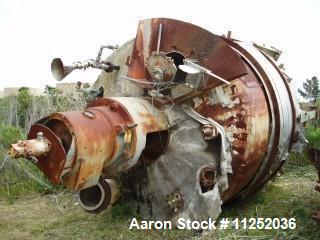

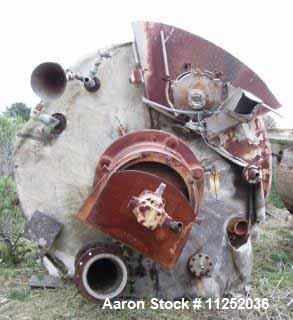

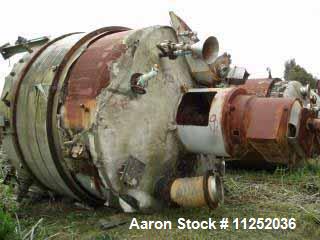

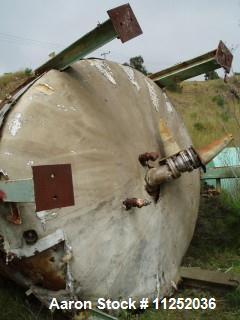

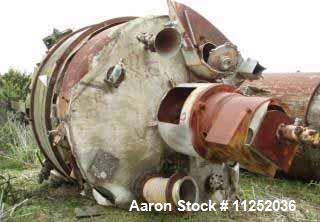

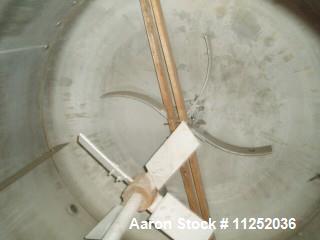

Used- Struthers Wells Reactor, Approximate 3500 Gallon, 347 Stainless Steel Clad, Vertical. 102" diameter x 84" straight side, dish top and bottom. Carbon steel jacket on 2/3 side and bottom head rated 50 PSI. Internal rated 15 PSI/Full Vacuum. Approximate 2" diameter shaft with (1) 4 blade turbine and (1) retreat curve blade driven by a 3 HP motor thru reducer. Approximate 3" center bottom outlet. Mounted on 6 legs. Approximate 24" discharge height.
