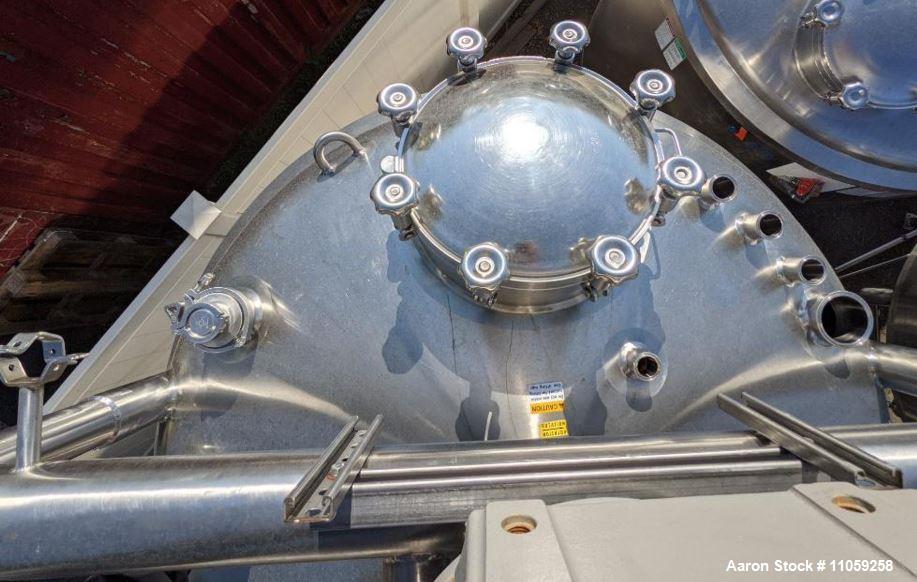

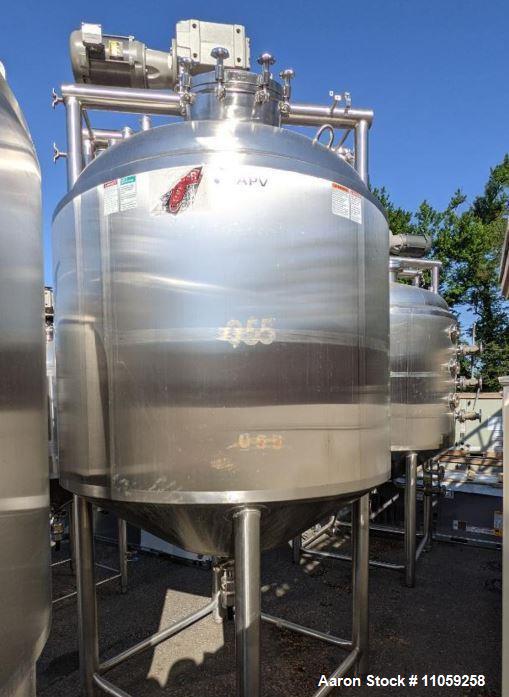

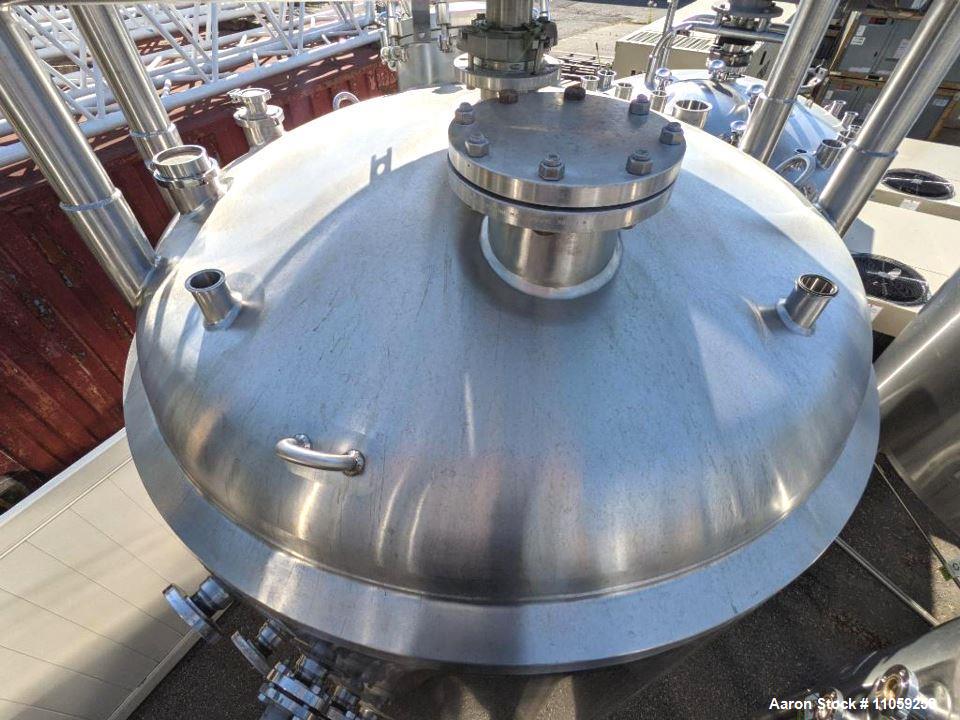

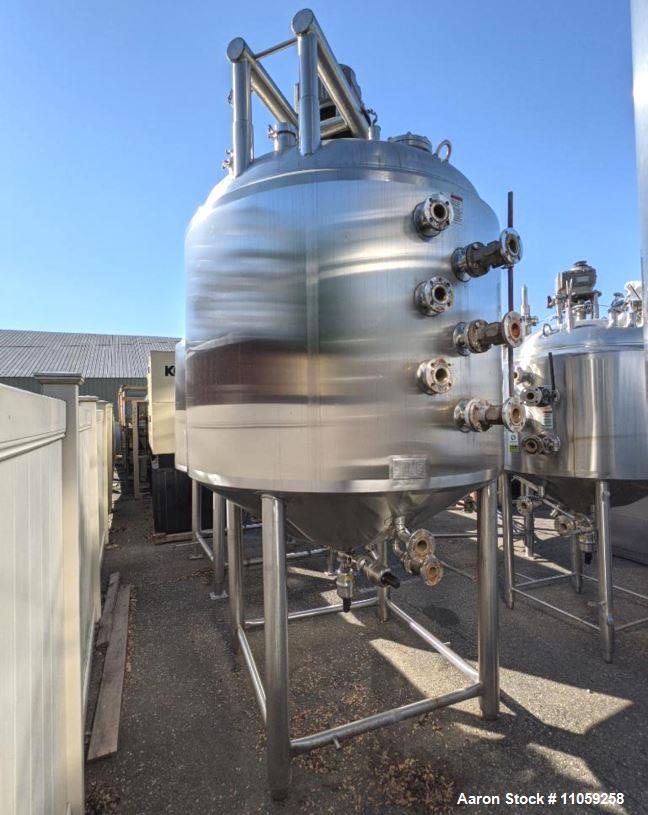

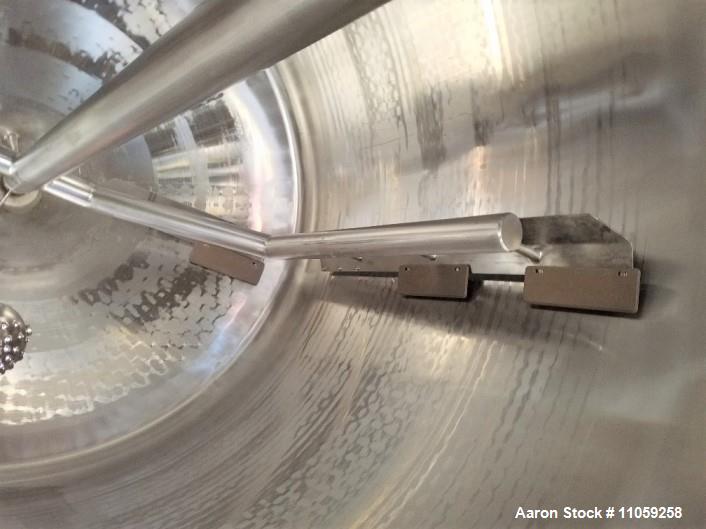

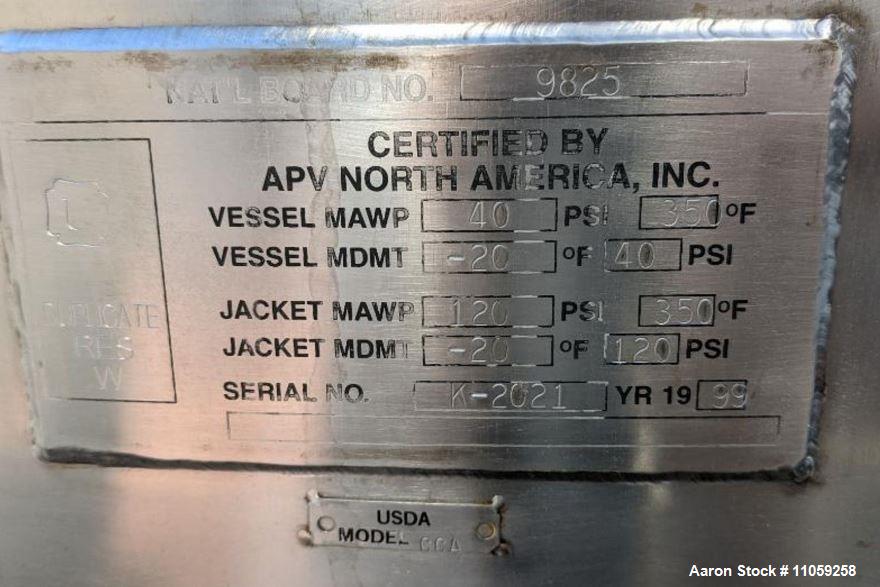

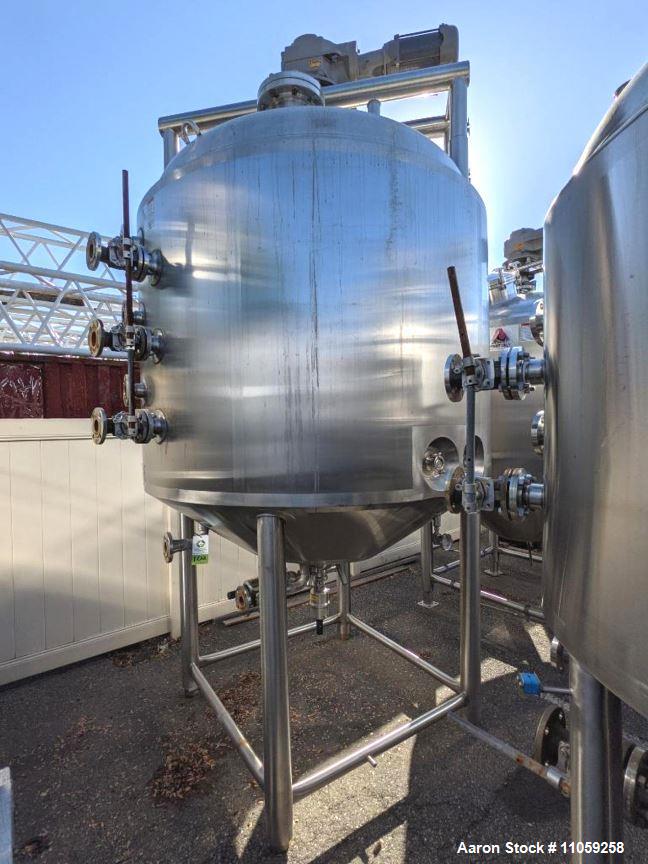

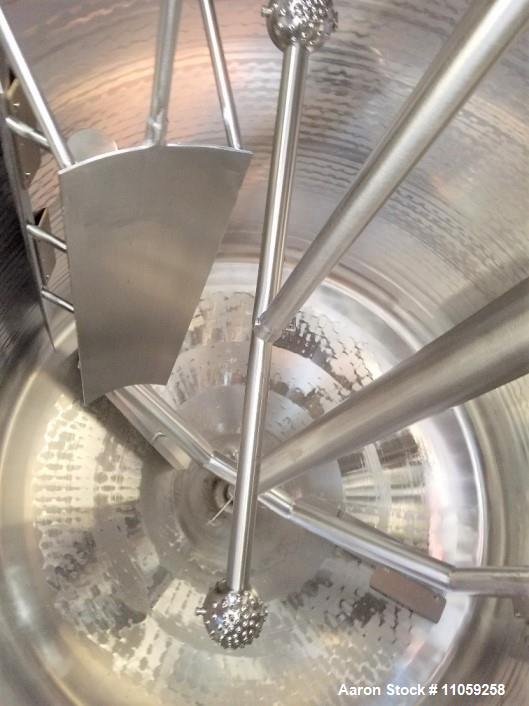

Used 1,000 Gallon APV Jacketed Vacuum Processor / Kettle with Sweep Mixer Scrape Surface Agitation. Shell is 316L Stainless Steel Rated 40 PSI/FV @ 350 Deg.F.. Jacket Rated 120 PSI @ 350 Deg.F.. S/N K-2021. 72" dia. x 60" T/T. 24" deep Cone Bottom. Dome top. 18 in. dia. top manway. 7.5 HP Explosion Proof (XP) motor into gear box with 22 RPM output. Also has top flange to add a high shear type mixer (not included). Stationary baffle, dual spray balls, Top ports: (1) 8 in. dia. flange fitting, (3) 4 in. sanitary fitting ports, (5) 2 in. sanitary fitting ports, (1) 1 in. sanitary fitting port, Side ports: (1) 2.5 in. sanitary clamp and (1) 2 in. sanitary fitting port, Bottom ports: (2) 1 in. threaded female ports, (1) 2.5 in. threaded male, 3 in. diameter discharge, with flange fitting and pneumatic 2-way ball valve to 2 in. sanitary fitting, discharge height 32 in., Jacket ports: (8) 2 in. flange fitting ports, adjustable welded legs, (3) picking eyes on top. Last used in Sanitary Food Plant. overall dimensions: 92 in. long x 84 in. wide x 161 in. tall. Jacket hydro-tested good. (1000 gallon; 3785 Liter)
Used 1,000 Gallon APV Jacketed Vacuum Processor / Kettle with Sweep Mixer Scrape Surface Agitation. Shell is 316L Stainless Steel Rated 40 PSI/FV @ 350 Deg.F.. Jacket Rated 120 PSI @ 350 Deg.F.. S/N K-2021. 72" dia. x 60" T/T. 24" deep Cone Bottom. Dome top. 18 in. dia. top manway. 7.5 HP Explosion Proof (XP) motor into gear box with 22 RPM output. Also has top flange to add a high shear type mixer (not included). Stationary baffle, dual spray balls, Top ports: (1) 8 in. dia. flange fitting, (3) 4 in. sanitary fitting ports, (5) 2 in. sanitary fitting ports, (1) 1 in. sanitary fitting port, Side ports: (1) 2.5 in. sanitary clamp and (1) 2 in. sanitary fitting port, Bottom ports: (2) 1 in. threaded female ports, (1) 2.5 in. threaded male, 3 in. diameter discharge, with flange fitting and pneumatic 2-way ball valve to 2 in. sanitary fitting, discharge height 32 in., Jacket ports: (8) 2 in. flange fitting ports, adjustable welded legs, (3) picking eyes on top. Last used in Sanitary Food Plant. overall dimensions: 92 in. long x 84 in. wide x 161 in. tall. Jacket hydro-tested good. (1000 gallon; 3785 Liter)
