Stock No.: 43855002

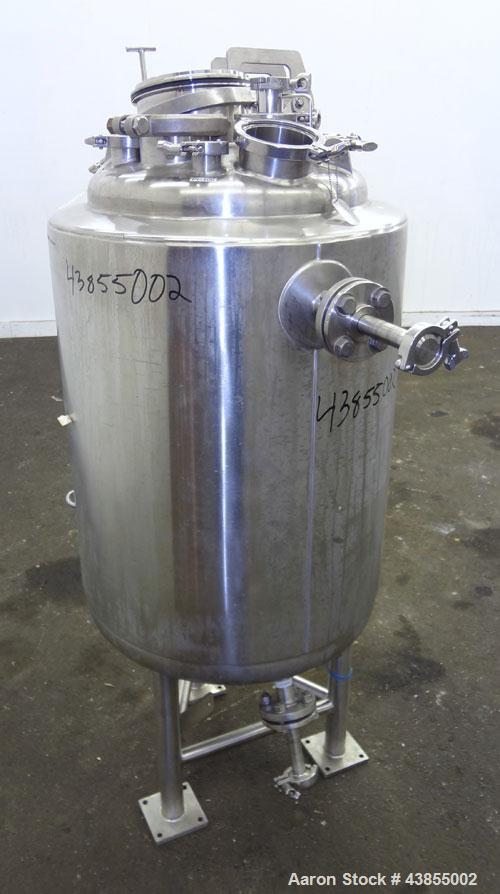

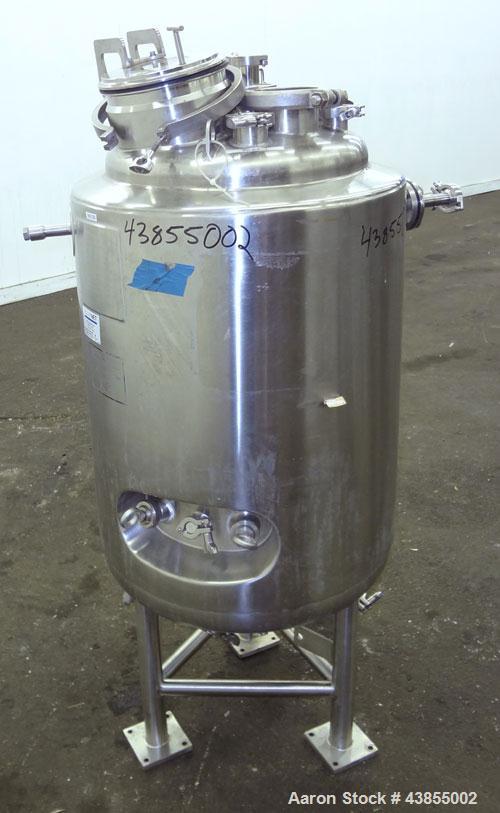

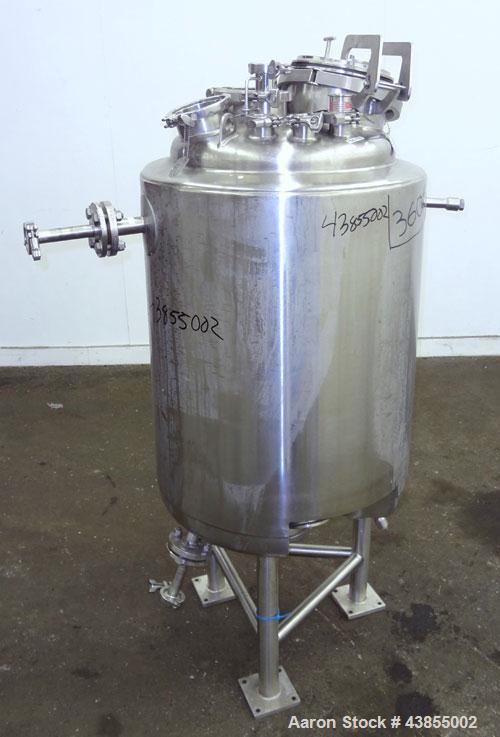

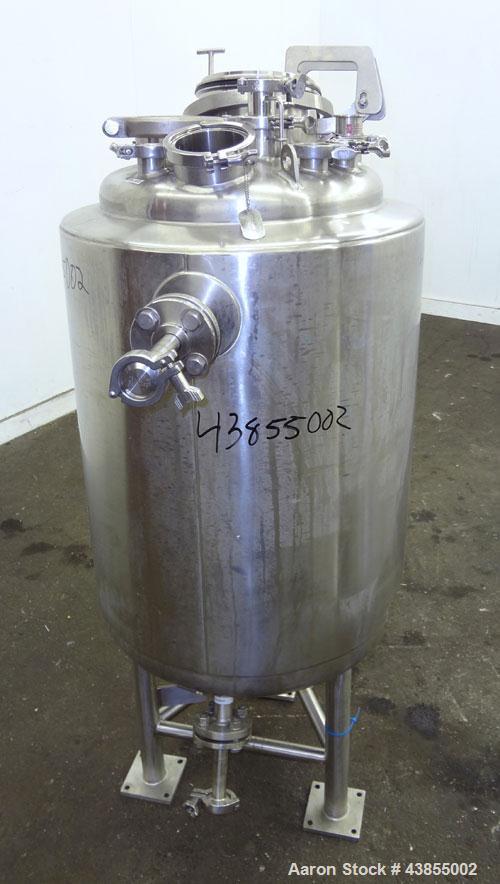

Used Pure-Flo Reactor, 30 Gallon

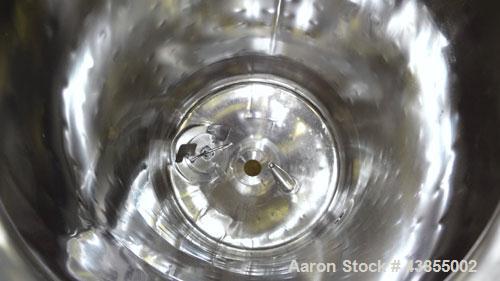

Used- Pure-Flo Reactor, 30 Gallon, 316L Stainless Steel, Vertical. 18" Diameter x 26" straight side, dished top and bottom. Internal rated 20 psi at -20 to 350 degrees F, 304L stainless steel dimple jacket rated 150 psi at -20 to 350 degrees F. Off center bottom entering agitator with a 3 blade disc turbine, no drive. (1) Spray ball. Openings top (4) 1-1/2", (2) 2", (2) 3", 4", 6" hand hole with a sight glass cover. 2" Center bottom outlet. Mounted on 3 stainless steel legs. Built 2004.
-
ManufacturerPureflo
-
Serial #MT4088
-
CategoryReactors
-
SubcategoryStainless Steel 0-499 Gallon
-
Gallons30
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter18"
-
Straight Side26"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure20psi
-
Internal Temperature-20 to 350 degrees F
-
Pressure Jacket150psi
-
Temperature Jacket-20 to 350 degrees F
-
Spray BallYes
-

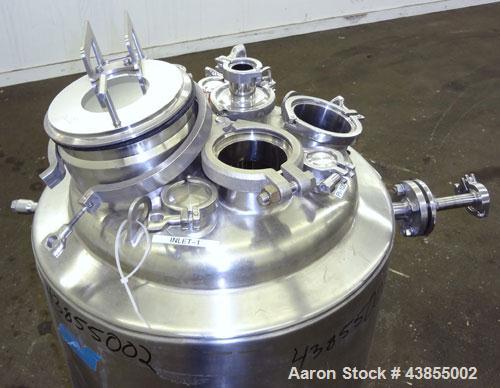

Opening(4) 1-1/2", (2) 2", (2) 3", 4", 6" hand hole with a sight glass cover
-
Opening CoverYes
-
Outlet Size2"
-
Outlet LocationBottom
-

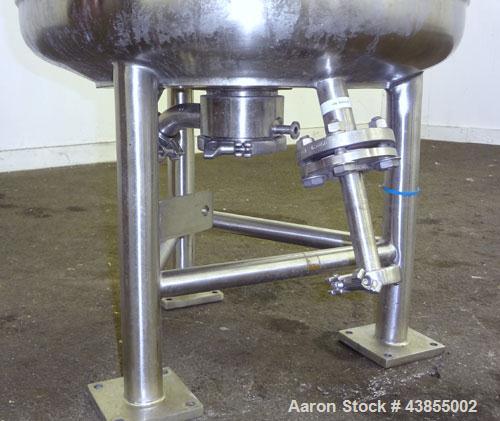

MountedMounted on 3 Legs
-
Overall Dimensions30"L X 30"W X 60"T
-

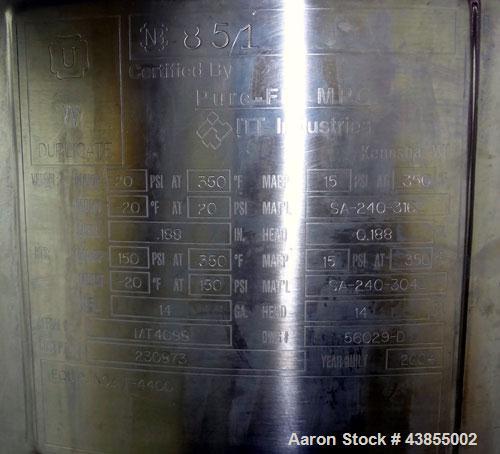

National Board No.851
-
Year Built2004
