Stock No.: 49260001

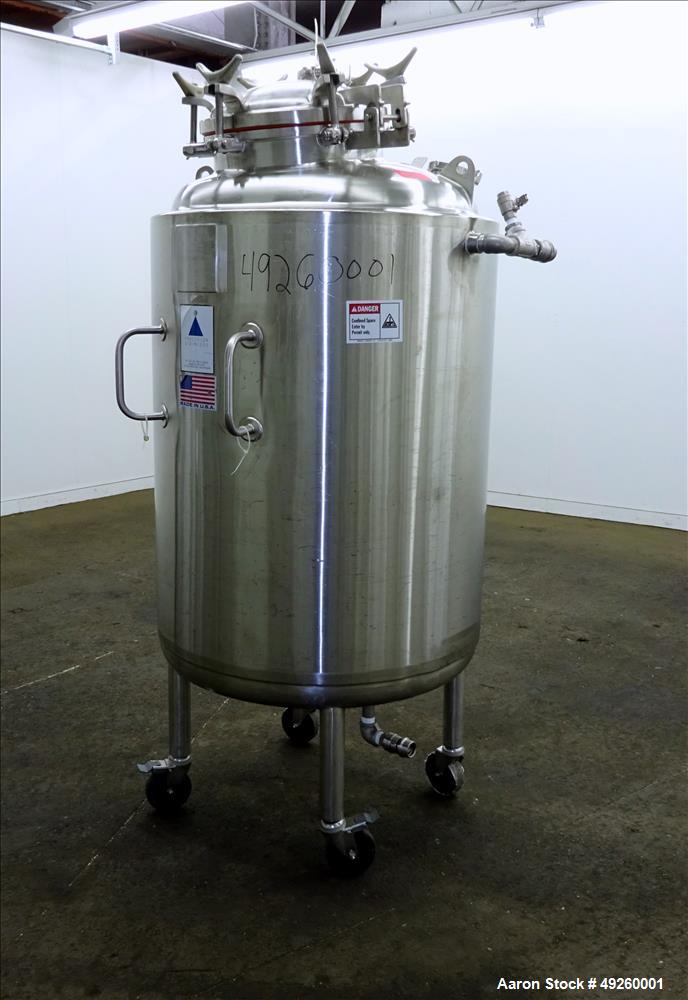

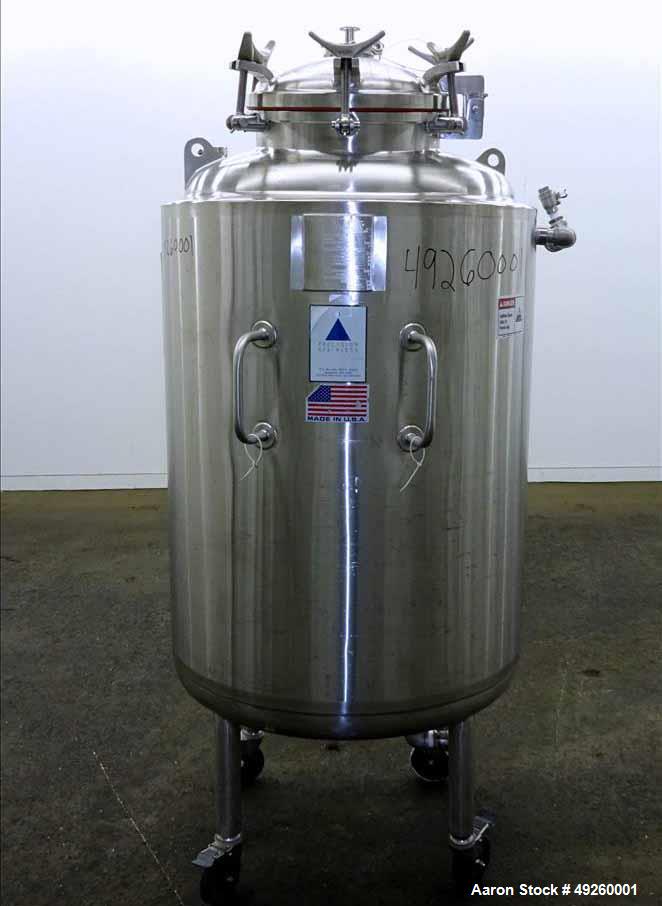

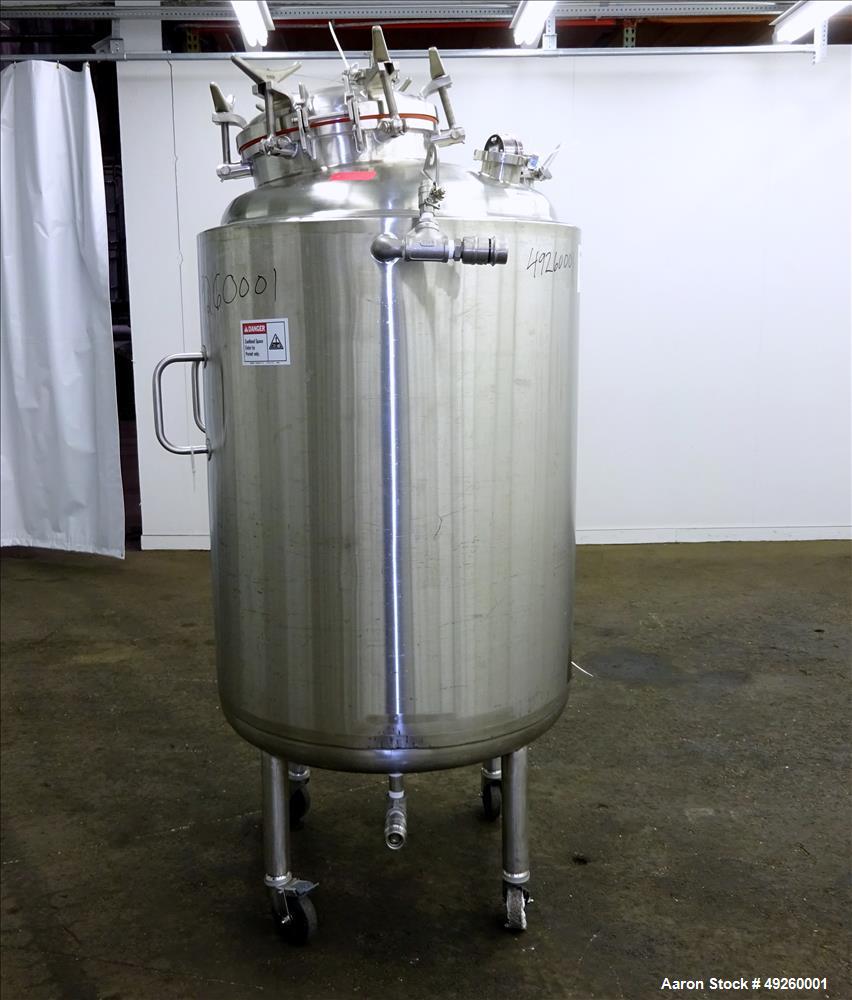

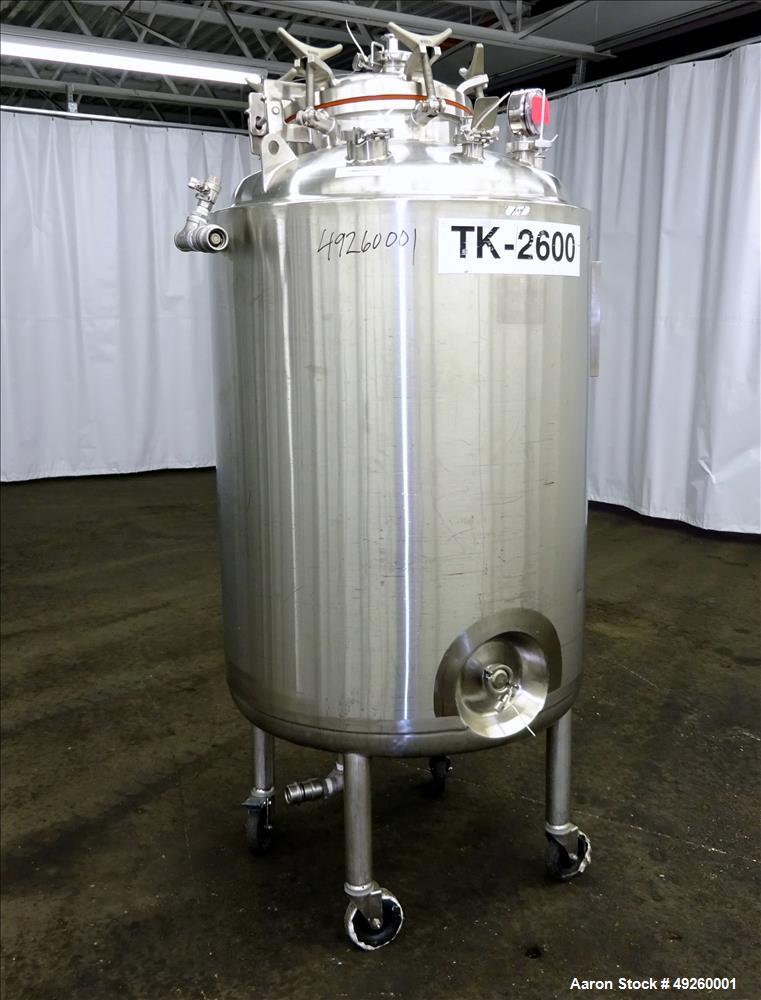

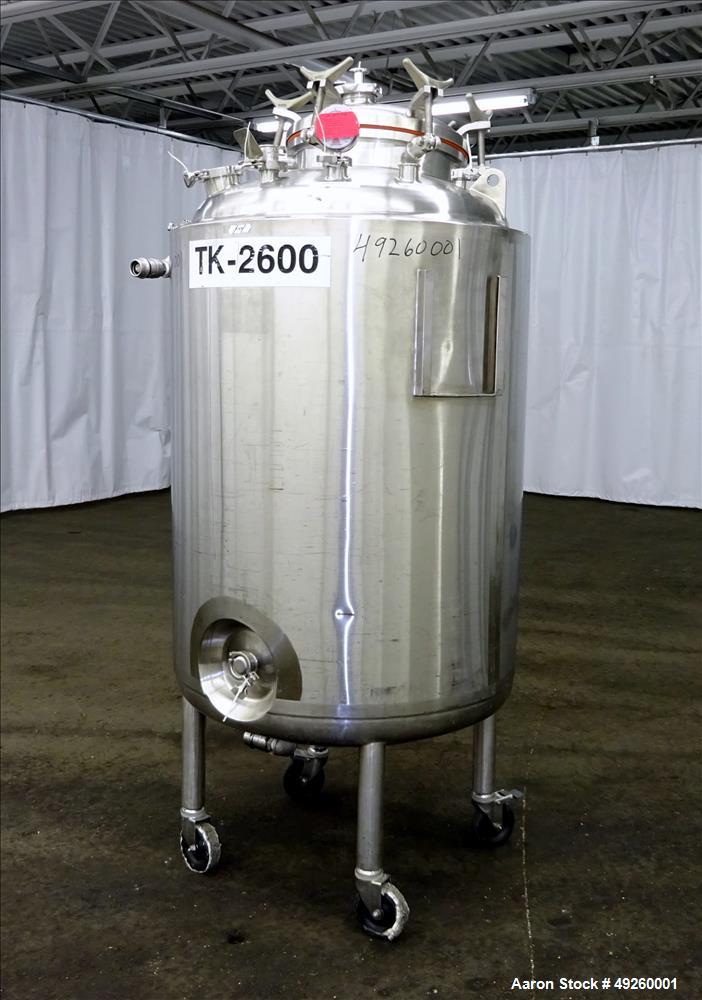

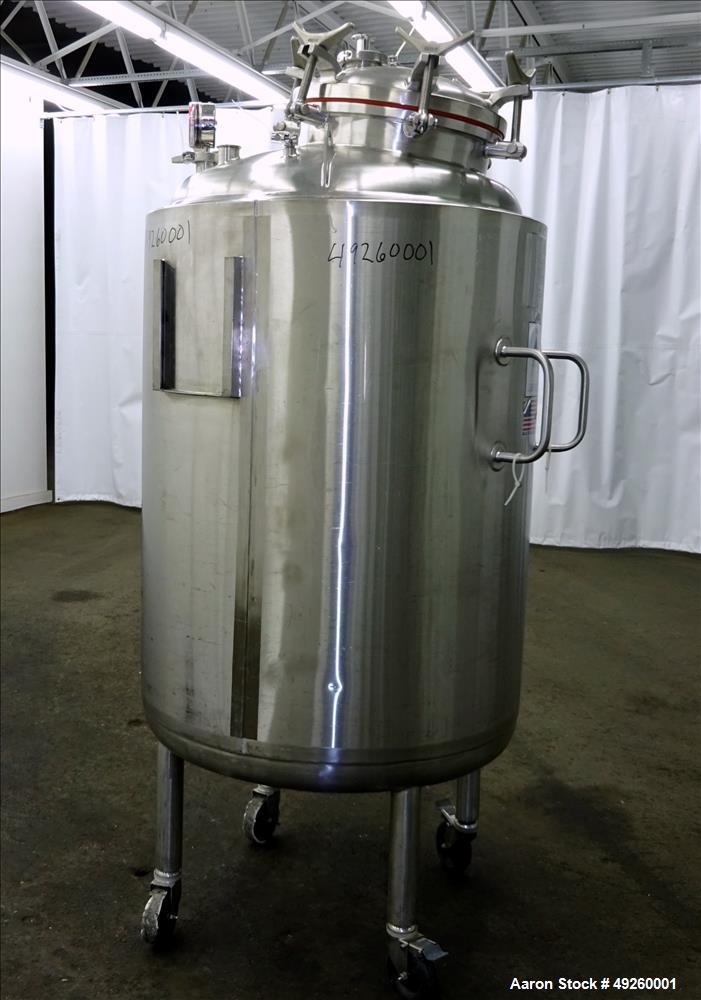

Used Precision Stainless Reactor, 500 Liter (132.08 Gallon)

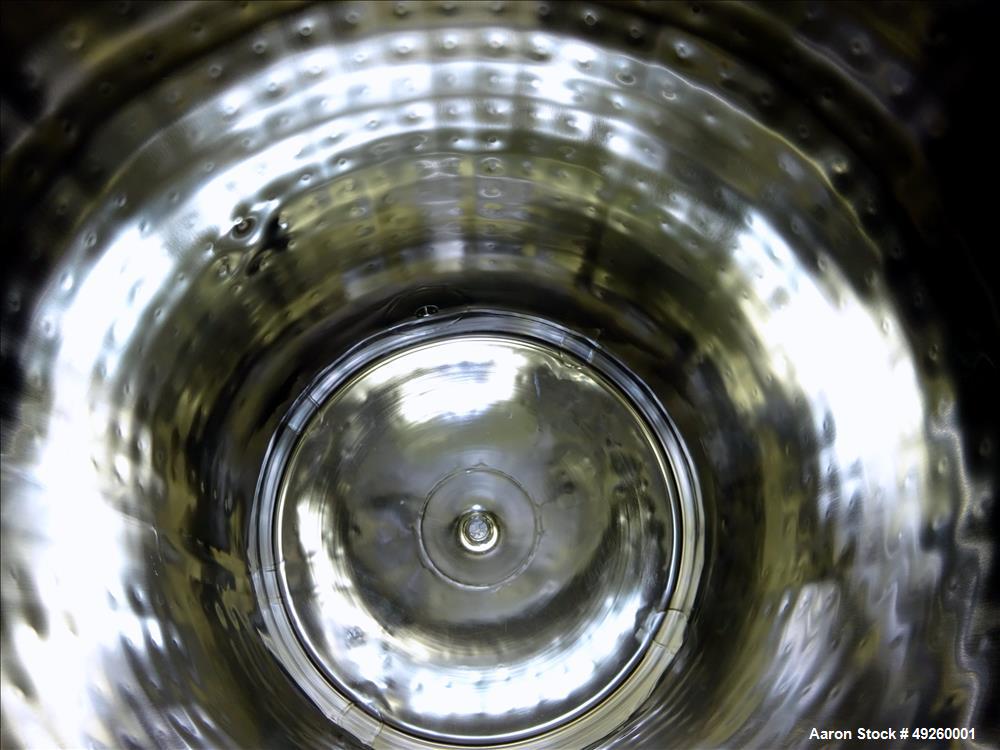

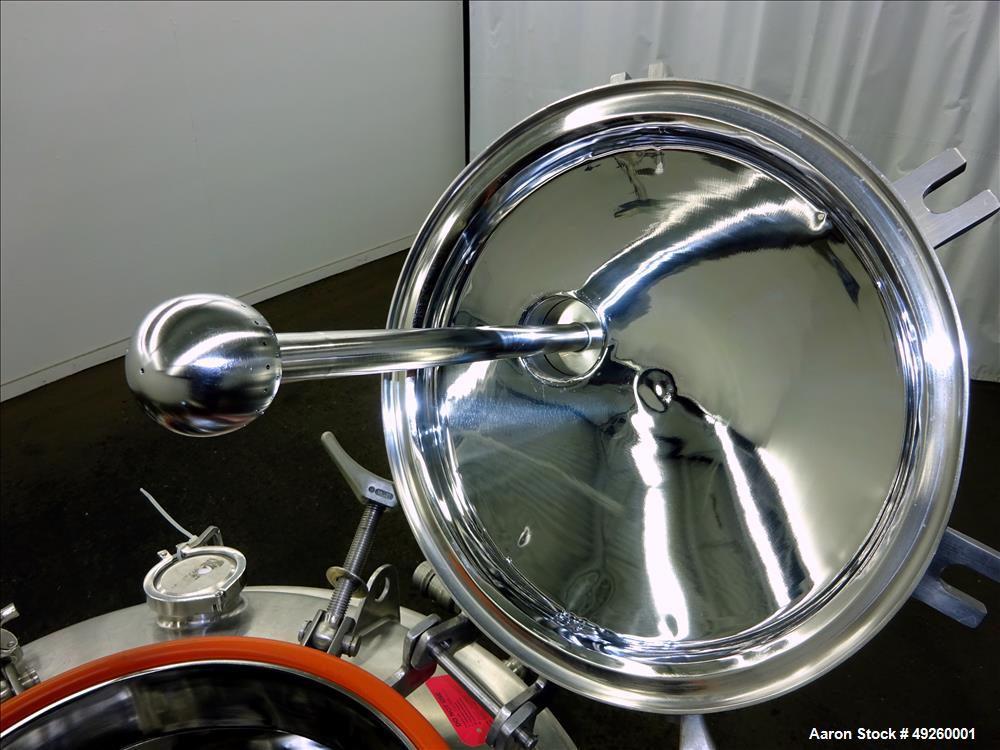

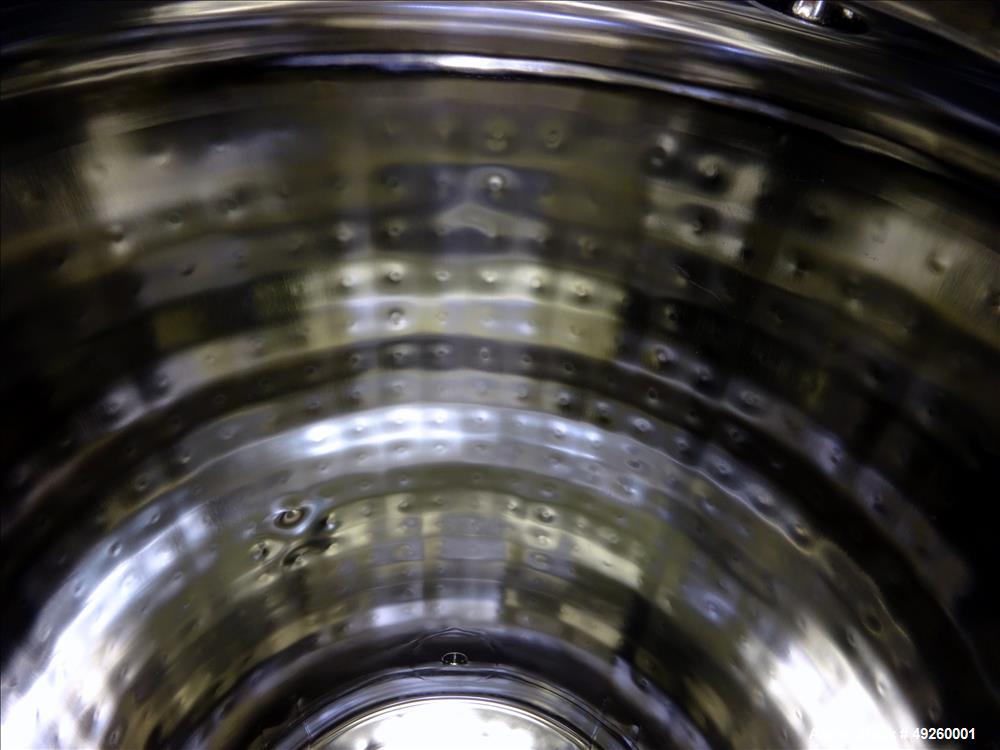

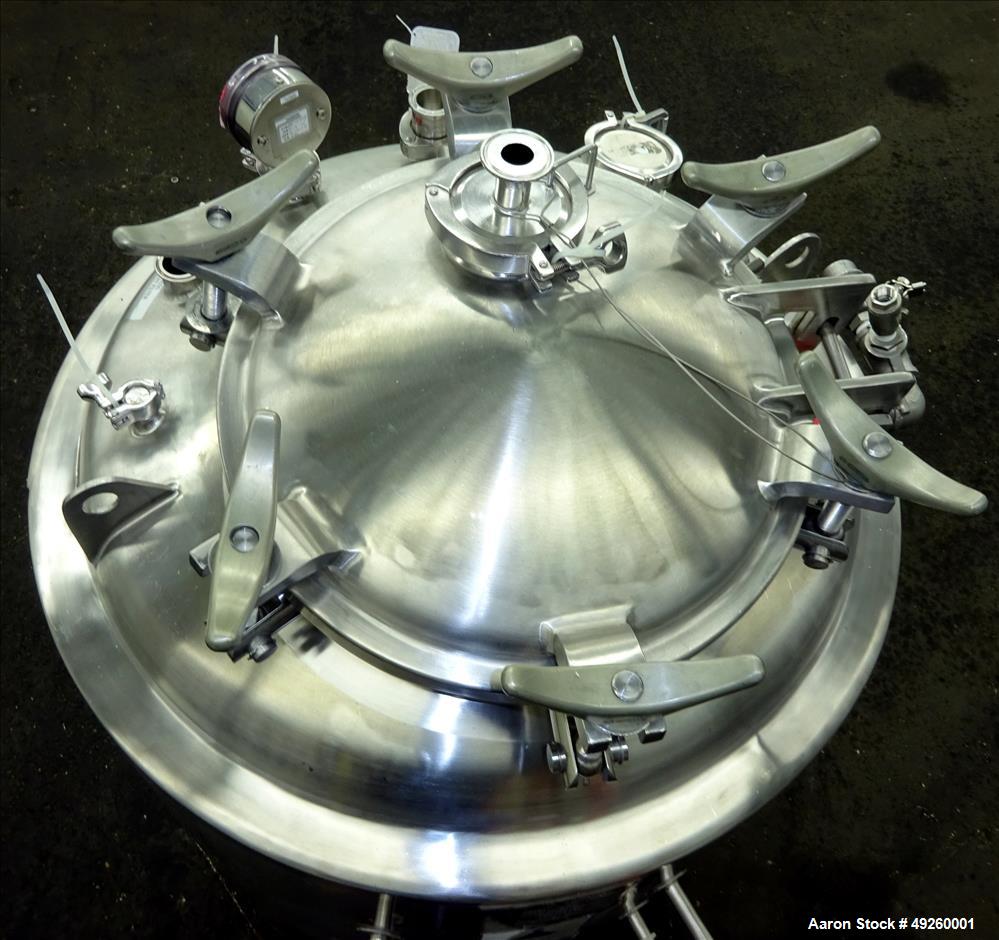

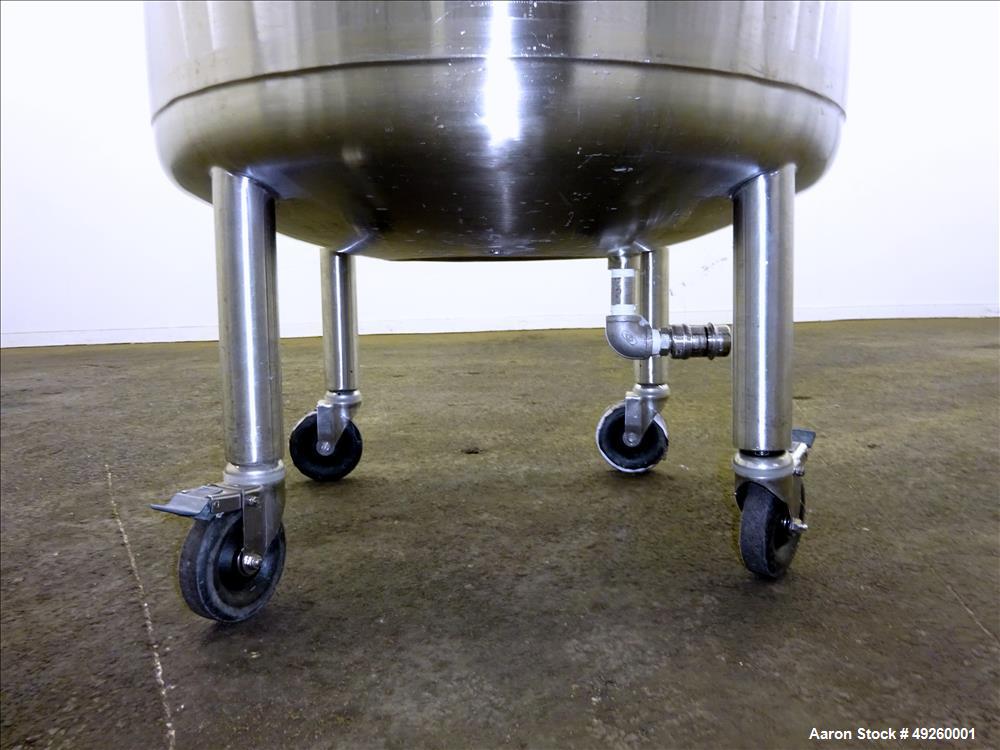

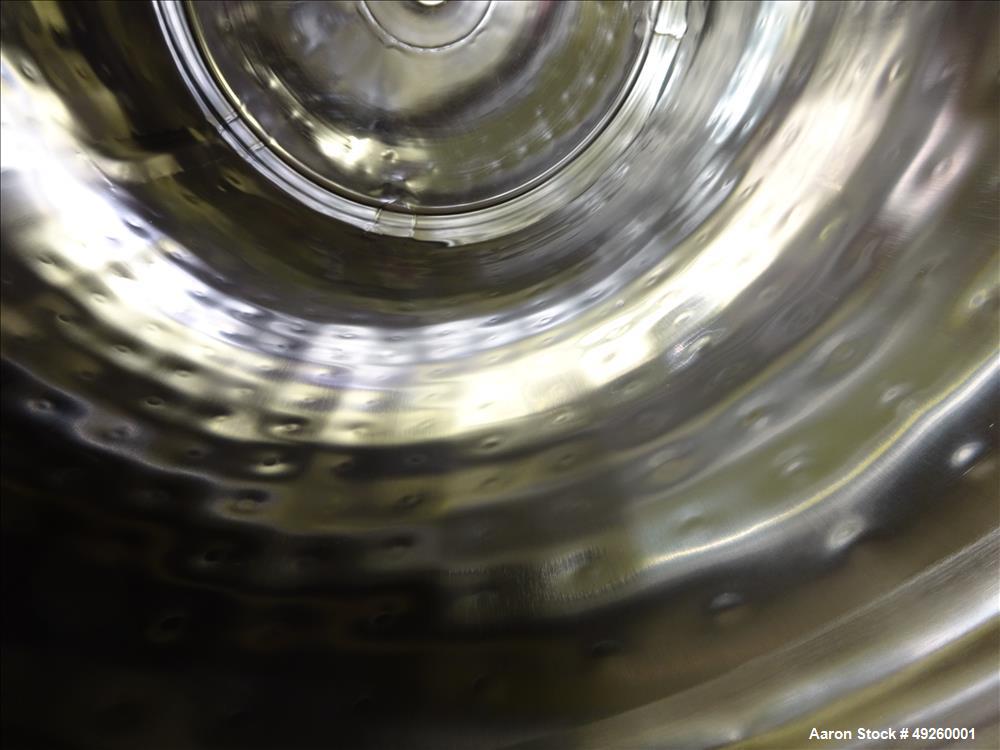

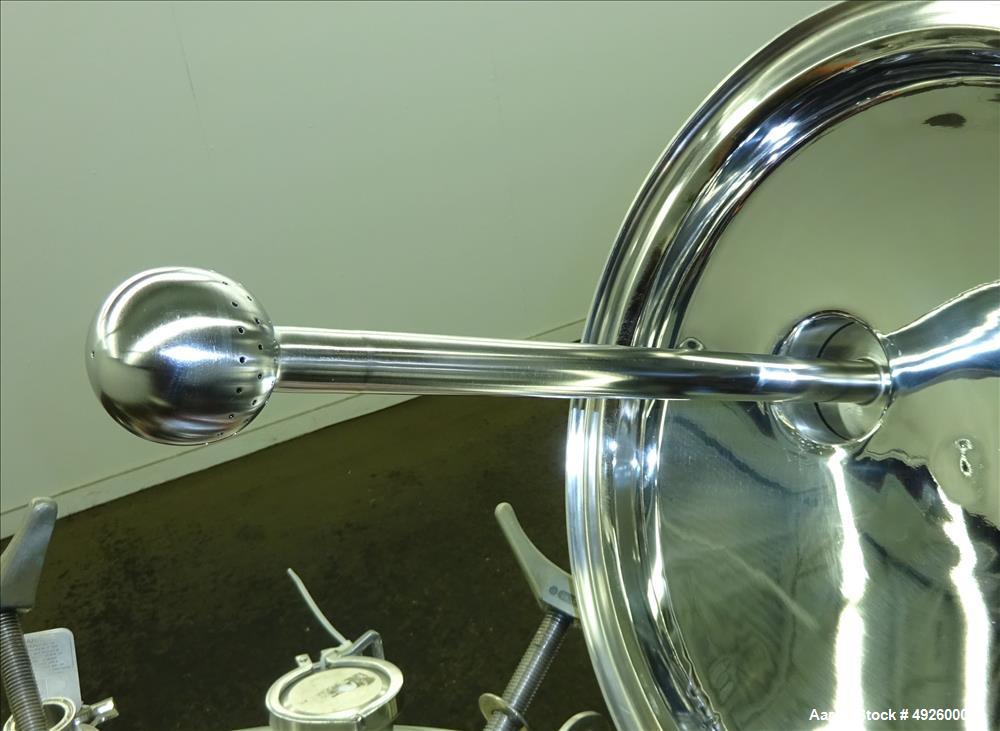

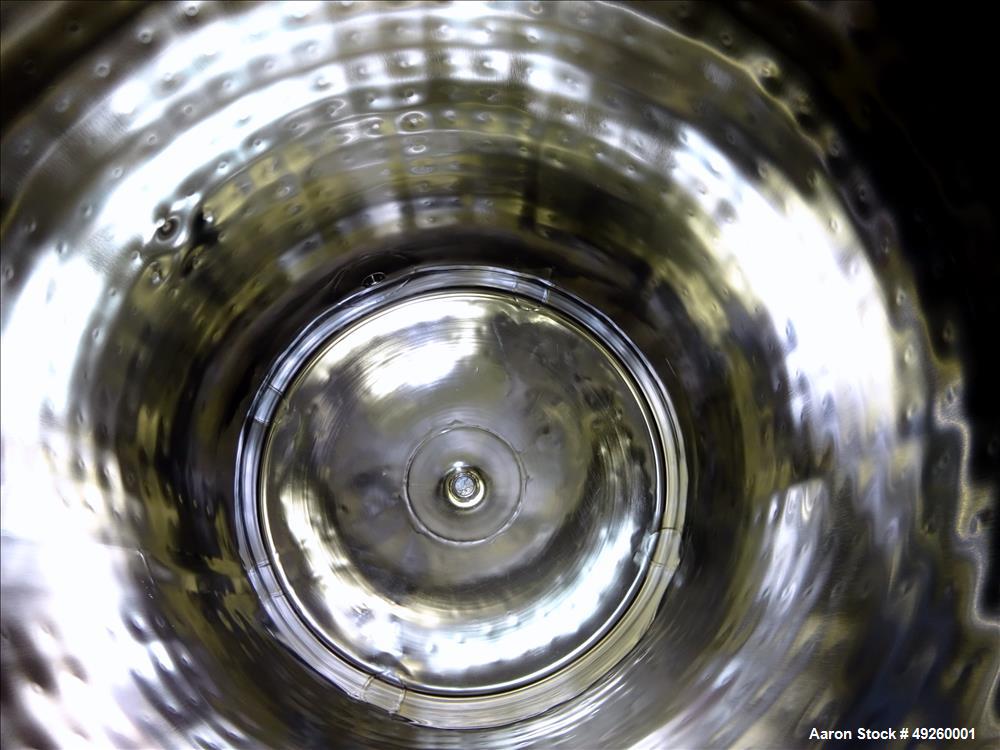

Used- Precision Stainless Reactor, 500 Liter (132.08 Gallon), 316L Stainless Steel, Vertical. Approximate 30" diameter x 40" straight side, dished heads. Internal rated 50 psi/FV at -20 to 350 degrees F. 304L Stainless steel dimple jacket rated 120 psi at -20 to 350 degrees F. (1) Spray ball. Openings top: 16" manway with cover, 3", (3) 1-1/2". 1-1/2" Center bottom outlet. Mounted on (4) legs with casters. National Board # 2685, Serial # 9395-6. Built 1989.
-
ManufacturerPrecision Stainless
-
Model500 Liter
-
Serial #9395-6
-
CategoryReactors
-
SubcategoryStainless Steel 0-499 Gallon
-
Gallons132
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter30"
-
Straight Side40”
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure50 full vacuum
-
Internal Temperature-20 to 350
-
Pressure Jacket120
-
Temperature Jacket-20 to 350 degrees F
-
Spray BallYes
-
Opening CoverYes
-
Outlet Size1-1/2"
-
Outlet LocationBottom
-
MountedMounted on Casters
-
Overall Dimensions48"L x 48"W x 80"T
-

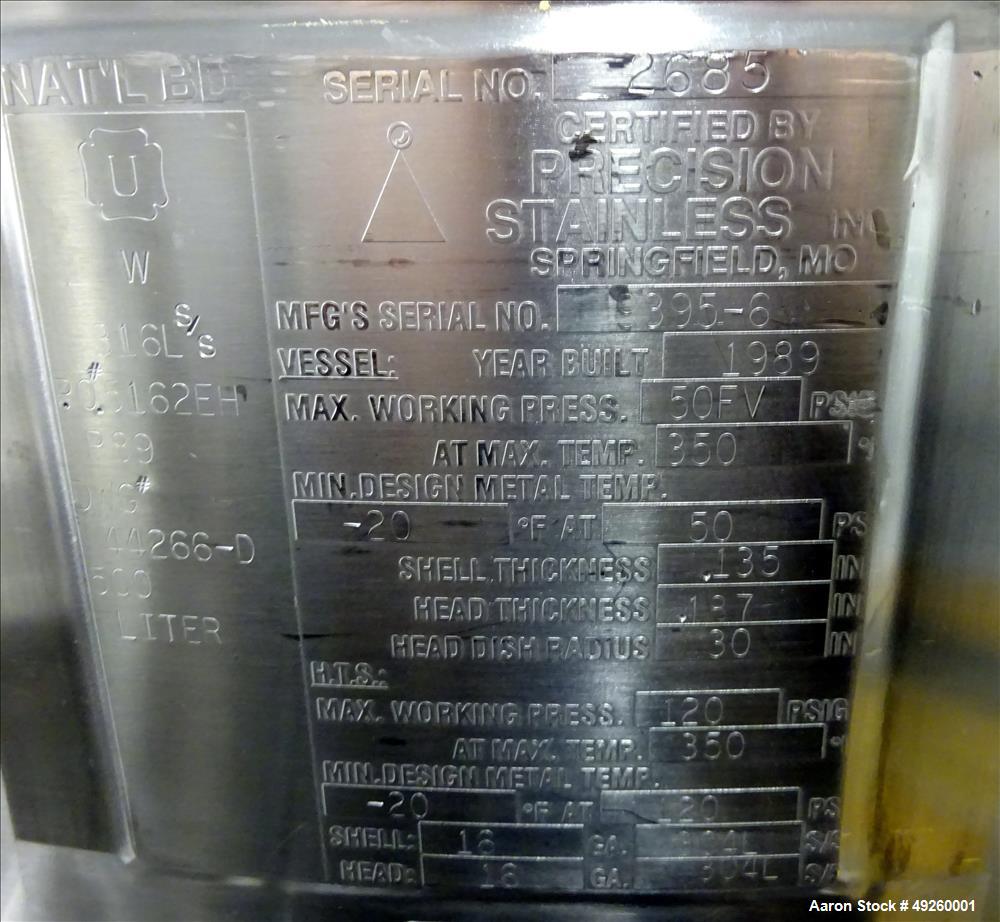

National Board No.2685
-
Year Built1989
