Used- Precision Stainless Reactor, 400 Liter (105 Gallon), 316L Stainless Steel

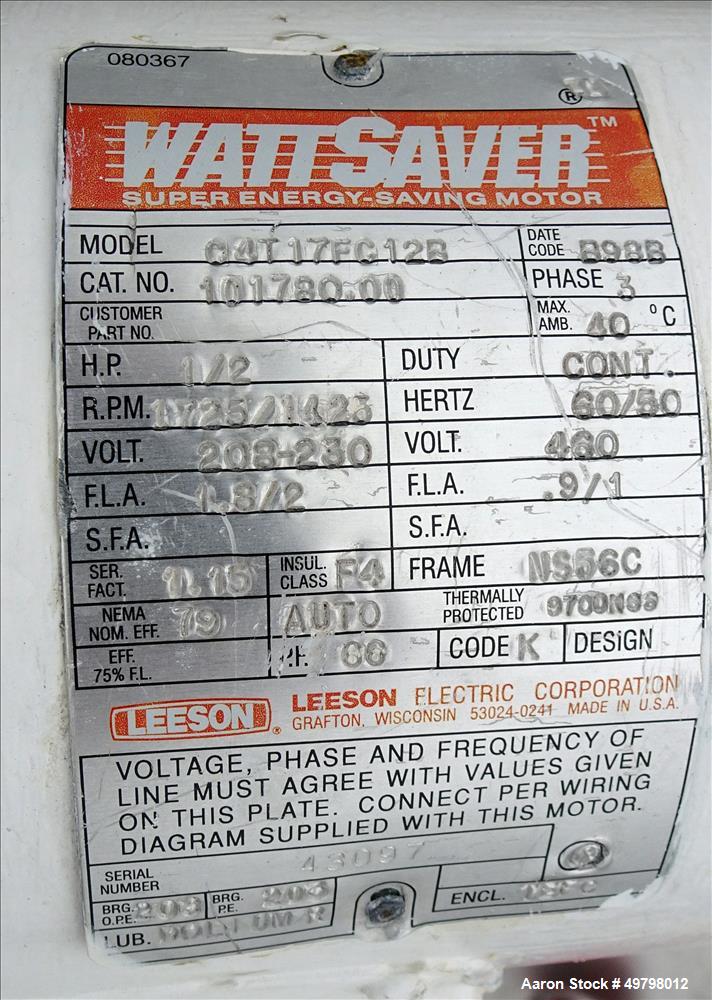

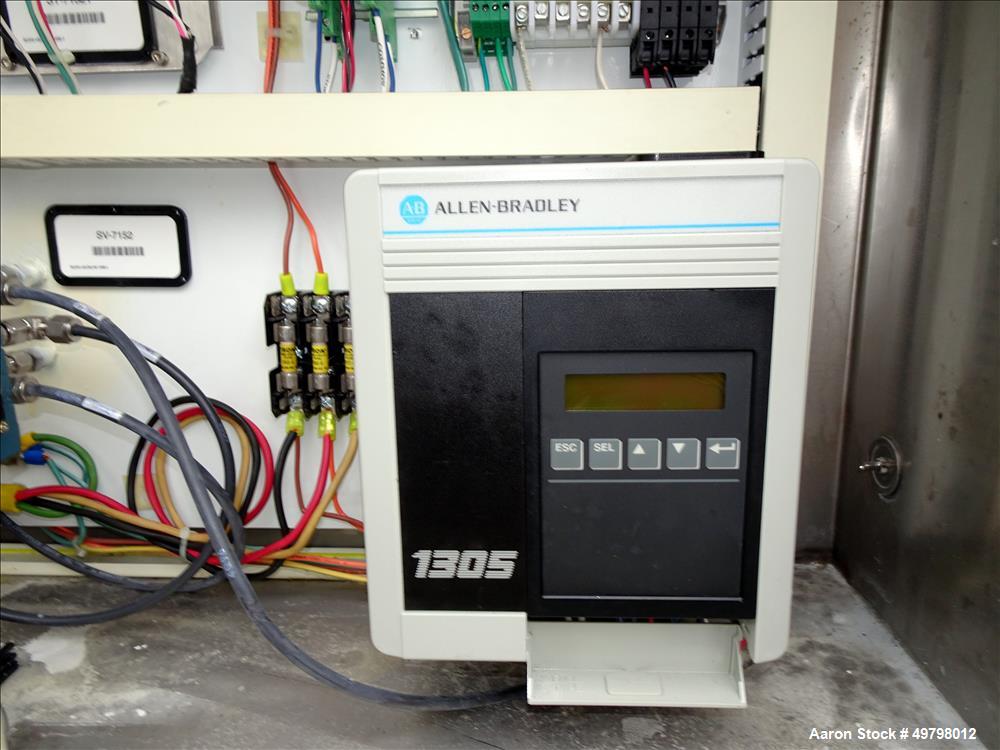

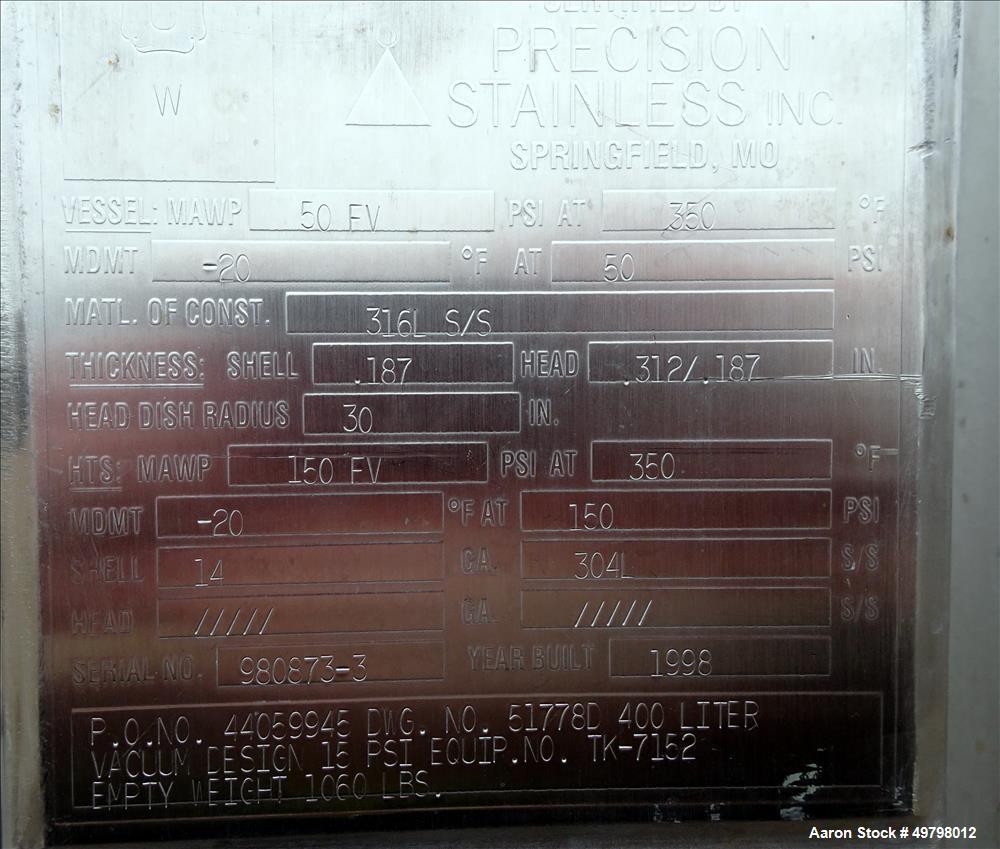

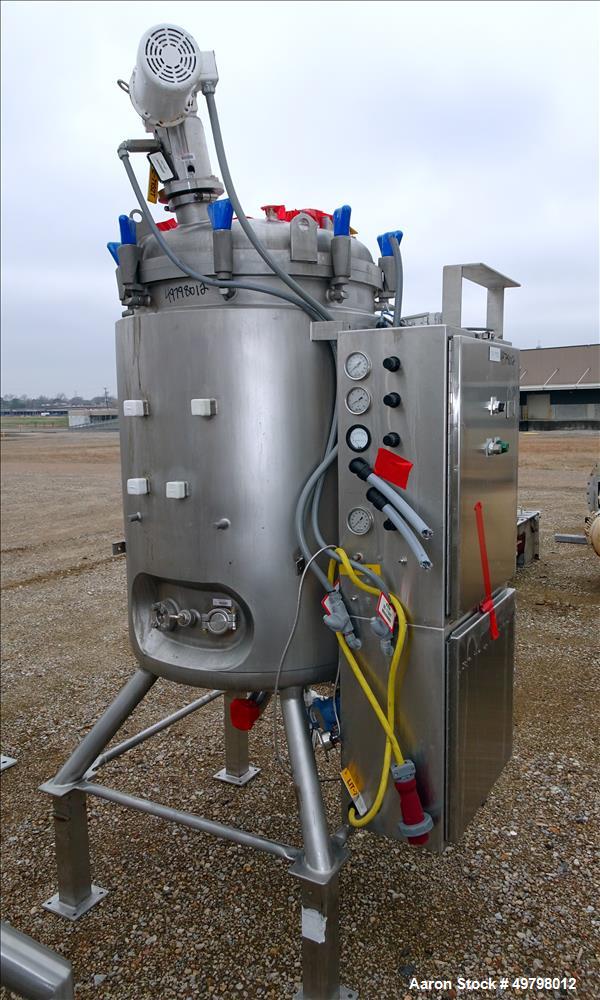

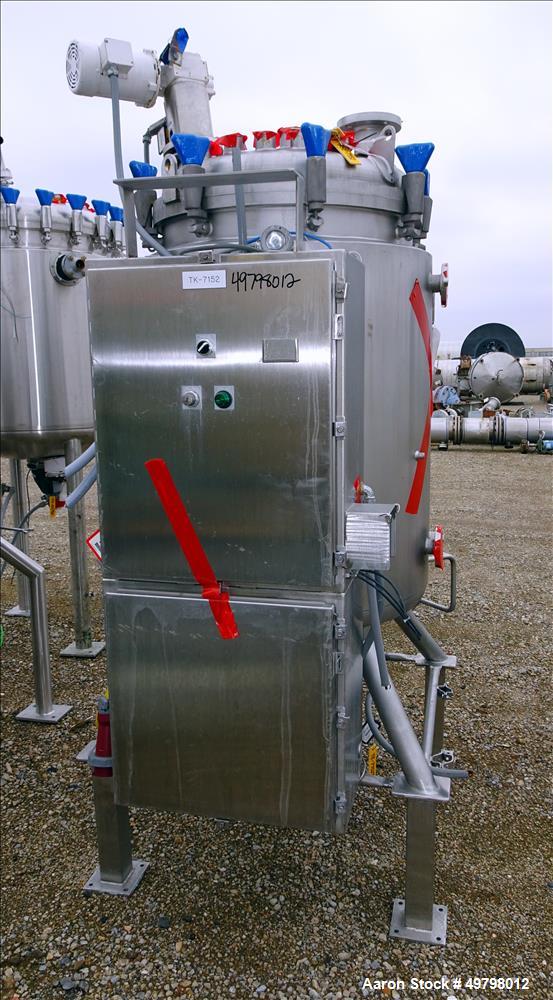

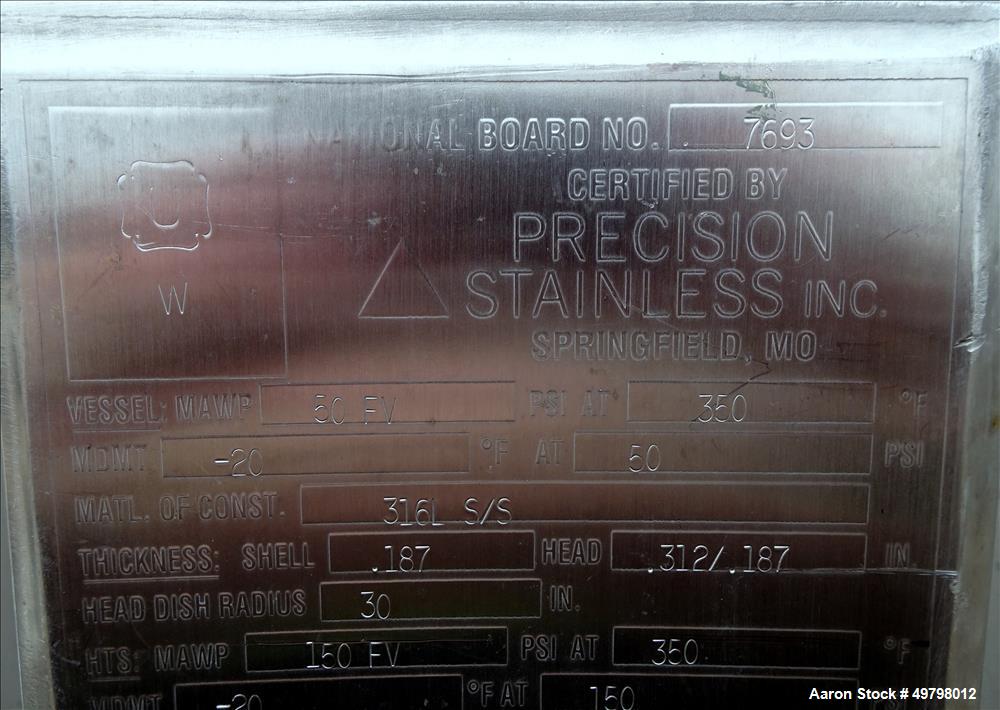

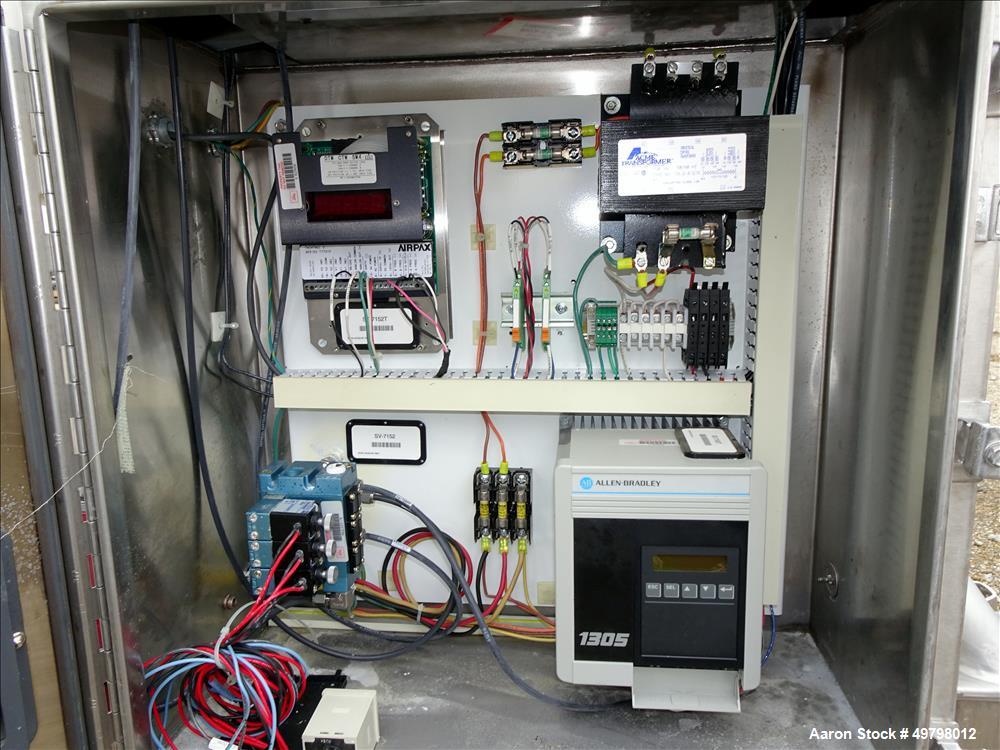

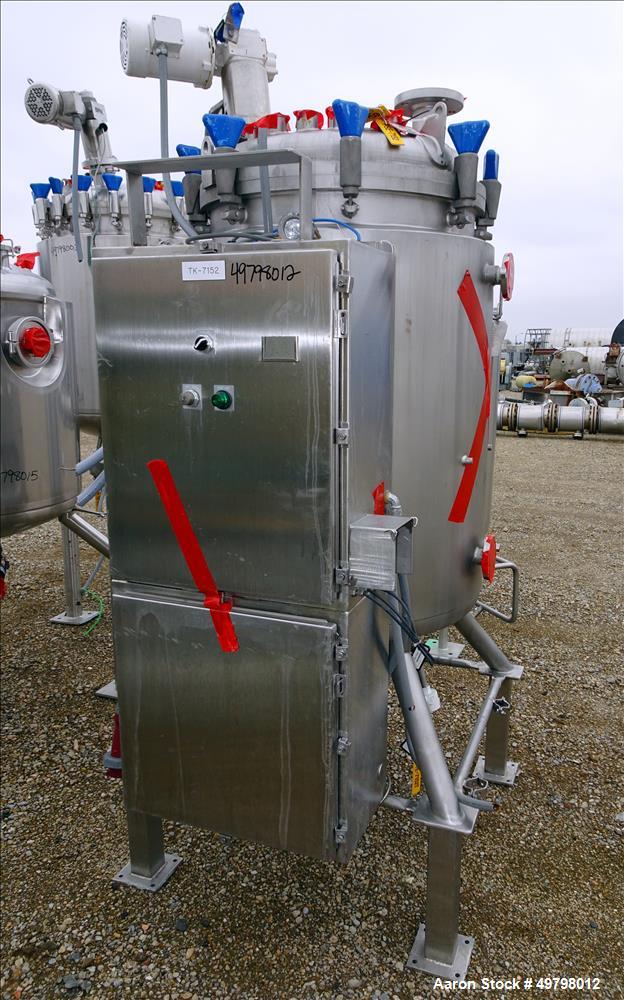

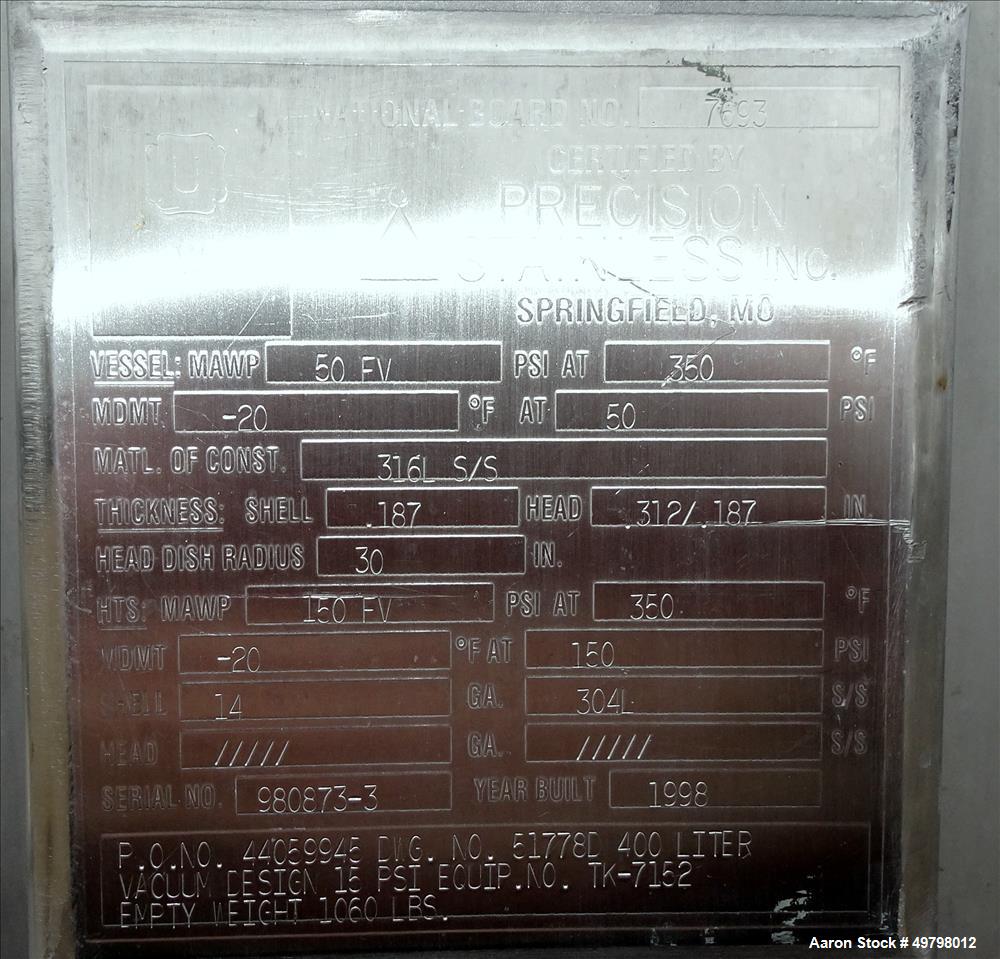

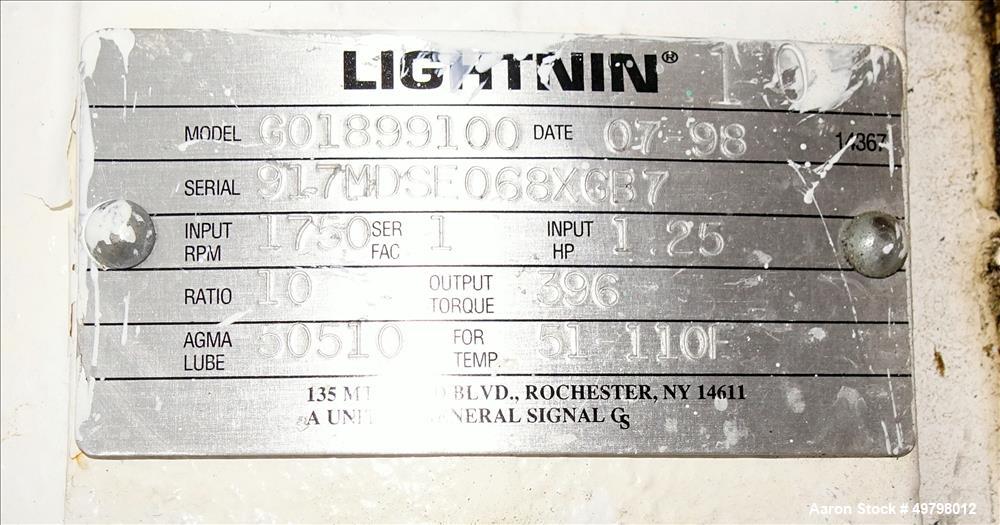

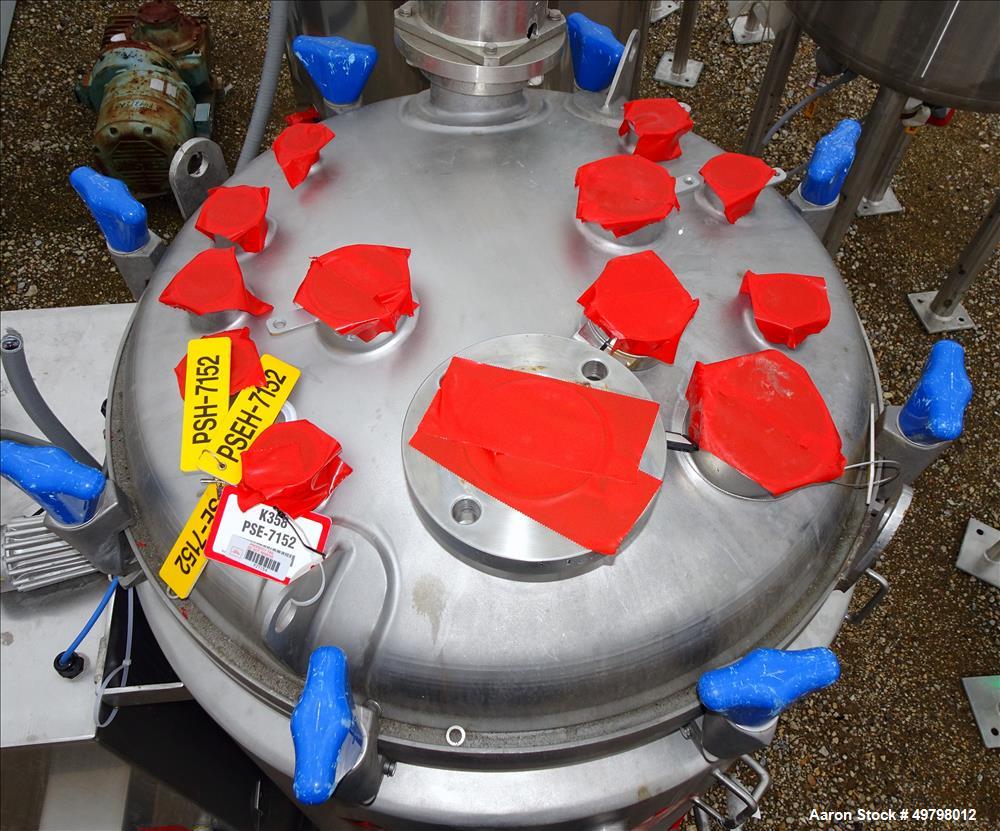

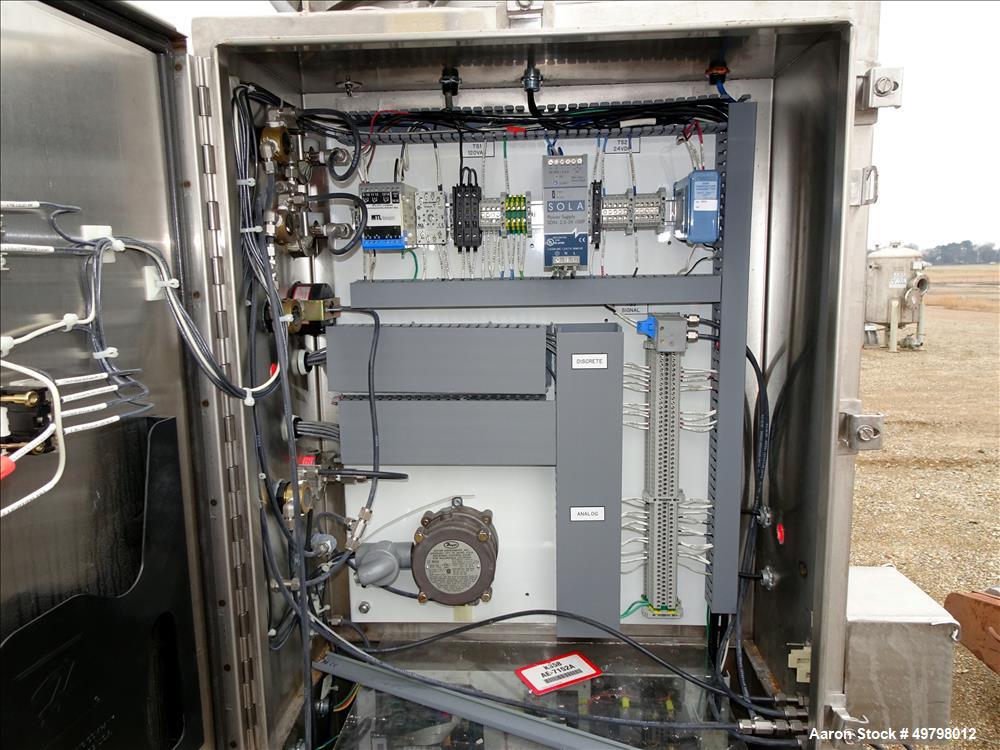

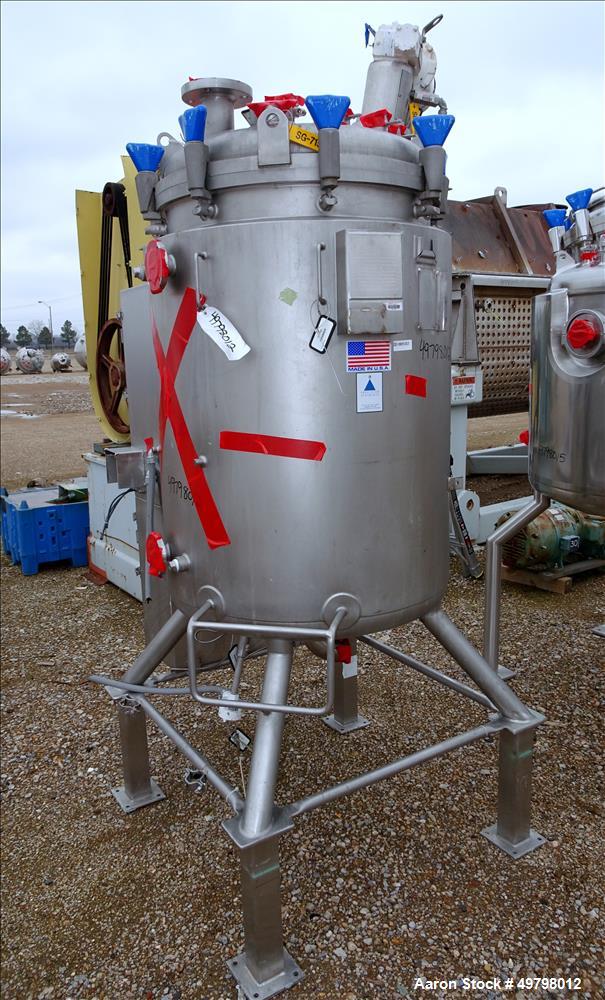

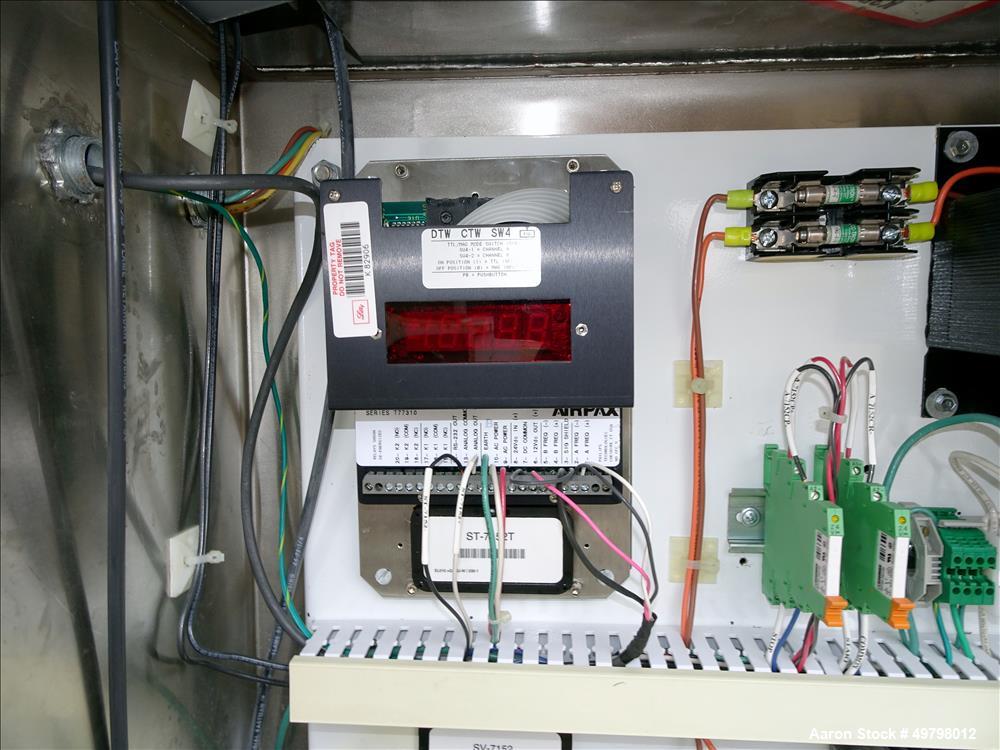

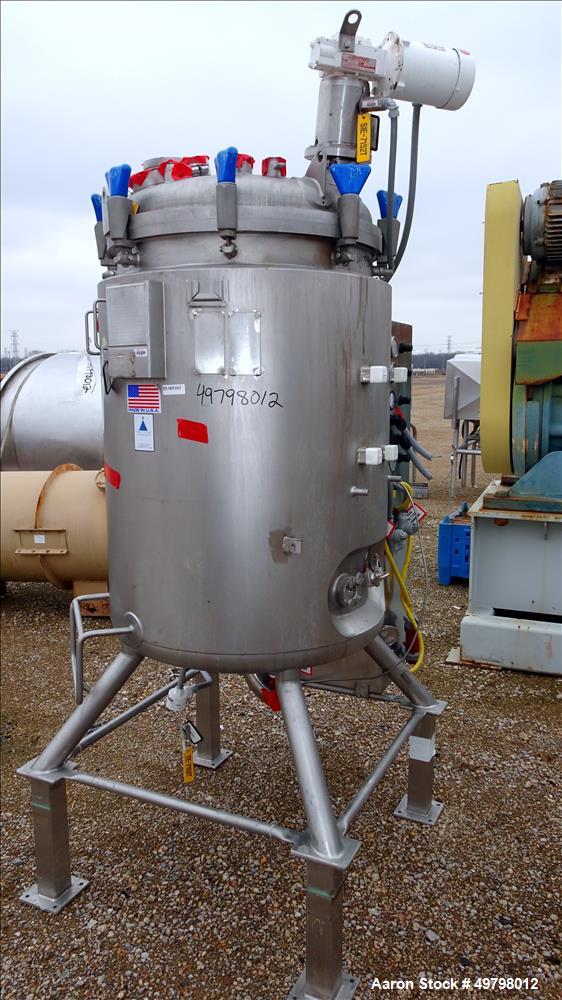

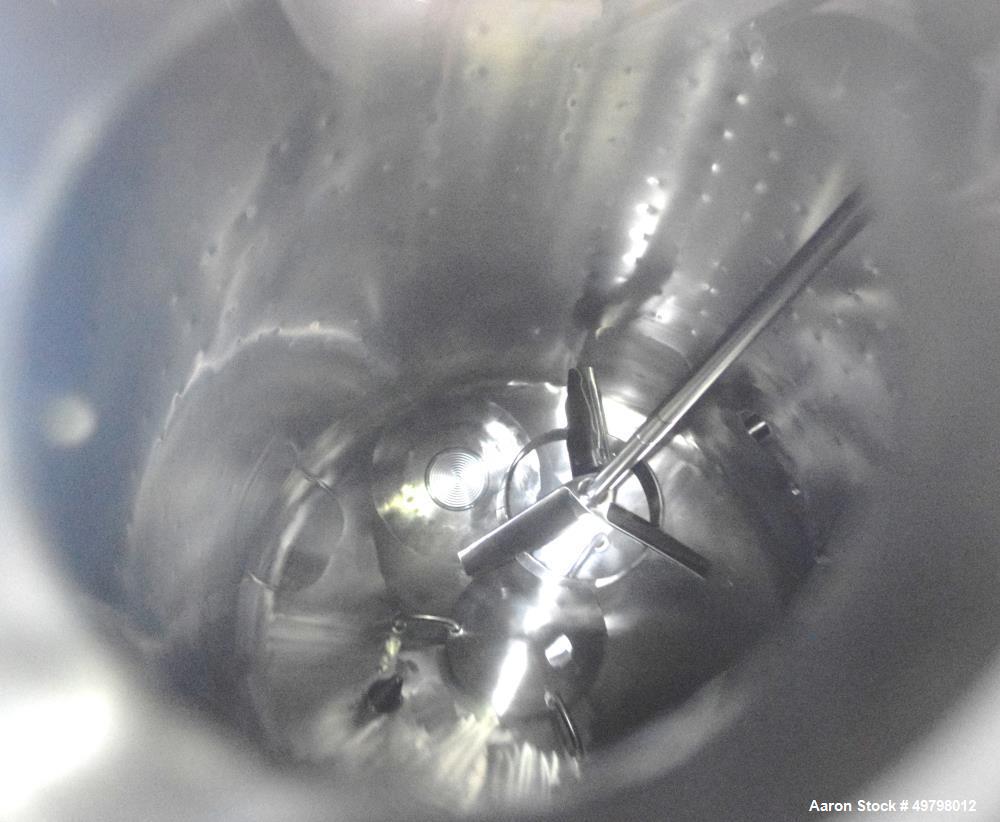

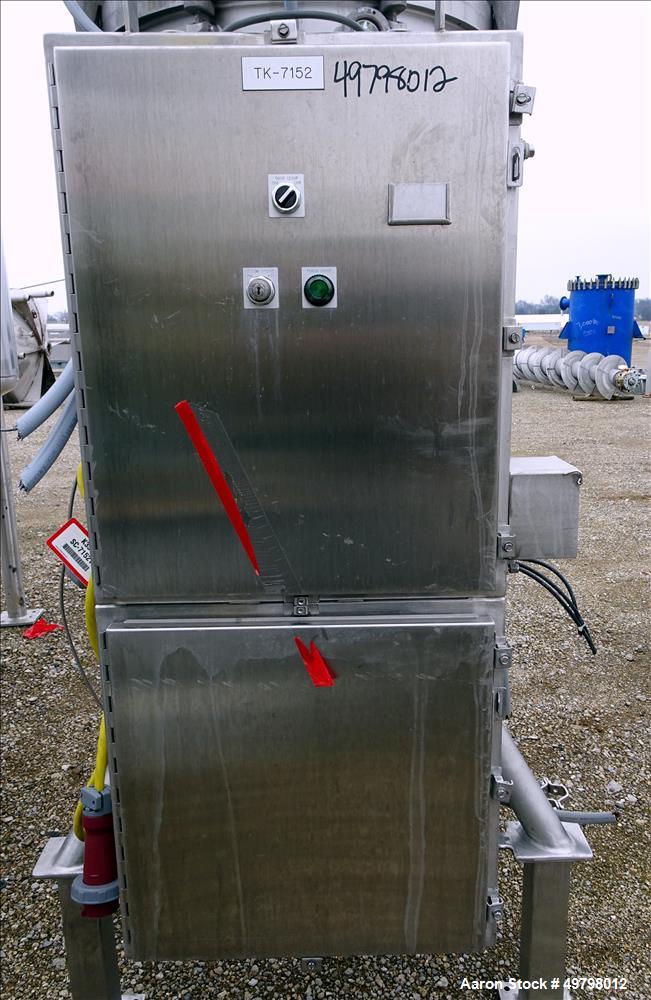

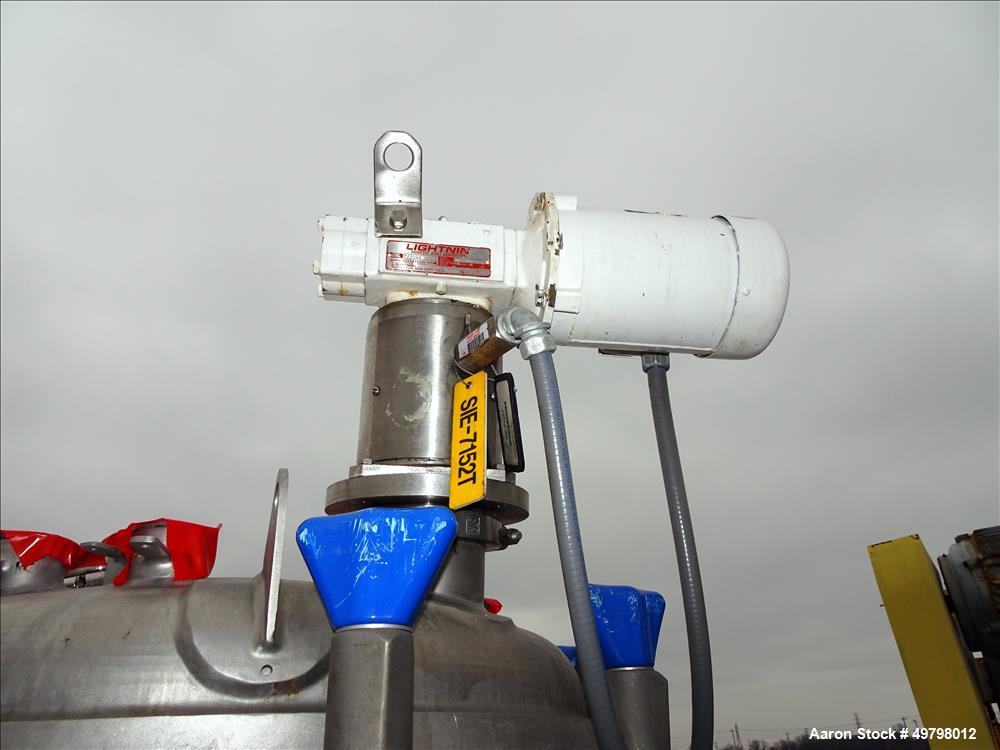

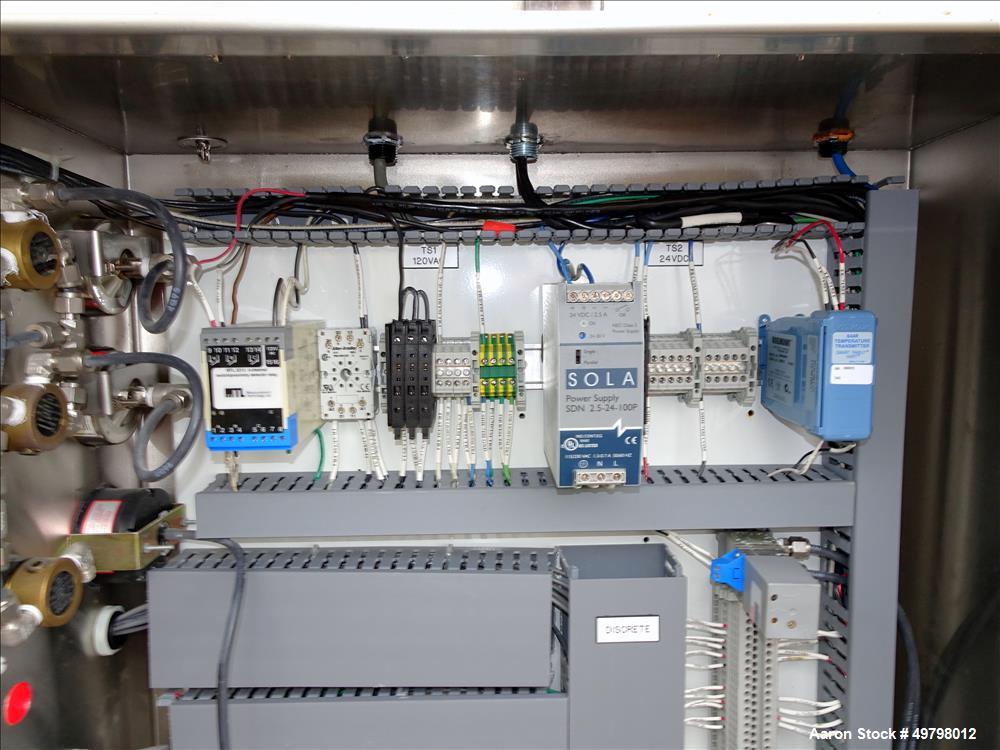

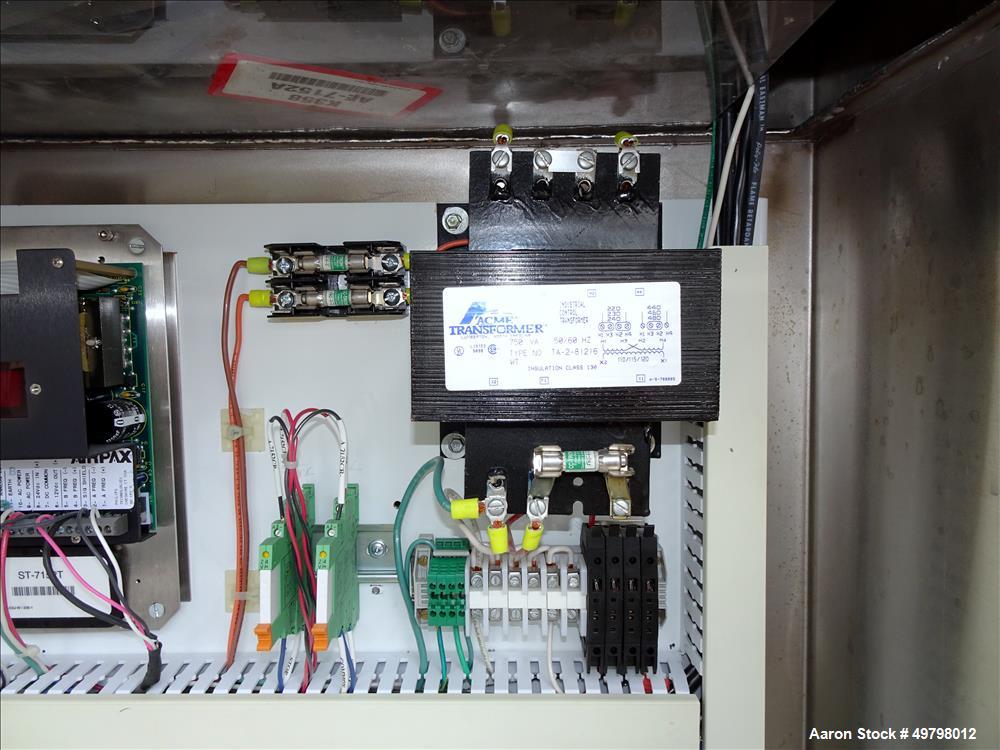

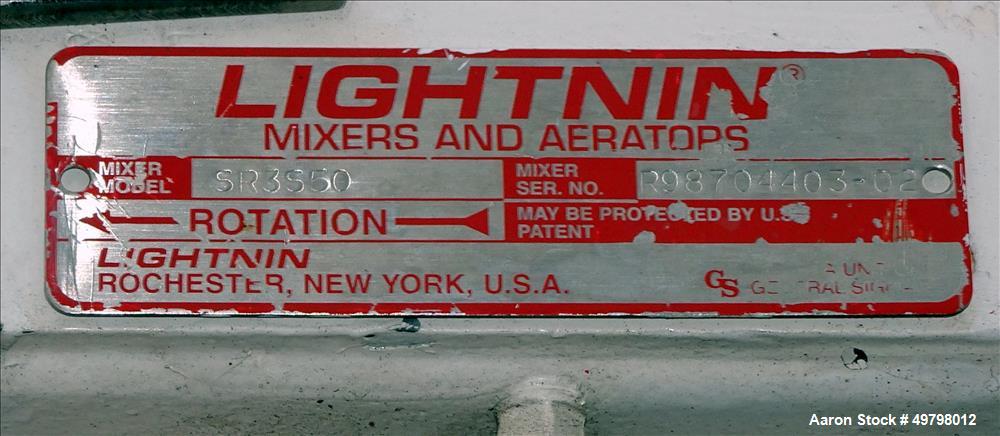

Used- Precision Stainless Reactor, 400 Liter (105 Gallon), 316L Stainless Steel, Vertical. 30" Diameter x 44" straight side, clamp dished top, dished bottom. Internal rated 50/ Full Vacuum at -20 to 350 degrees F., 304 stainless steel dimple jacket rated 150/Full Vacuum at -20 to 350 degrees F. Off center top entering Lightnin agitator, Model SR3S50, Serial # R98704403-02. Approximately 1" diameter shaft with a 3 blade turbine and mechanical seal, driven by a 0.50 hp, 3/60/208-230/460 volt, 1725 rpm gear motor, ratio 10 to 1. 3" Center bottom outlet. Mounted on 4 stainless steel legs with frame. Includes a control panel with an Allen-Bradley 1305 drive. Serial # 980873-3, National Board # 7693. Built 1998.
