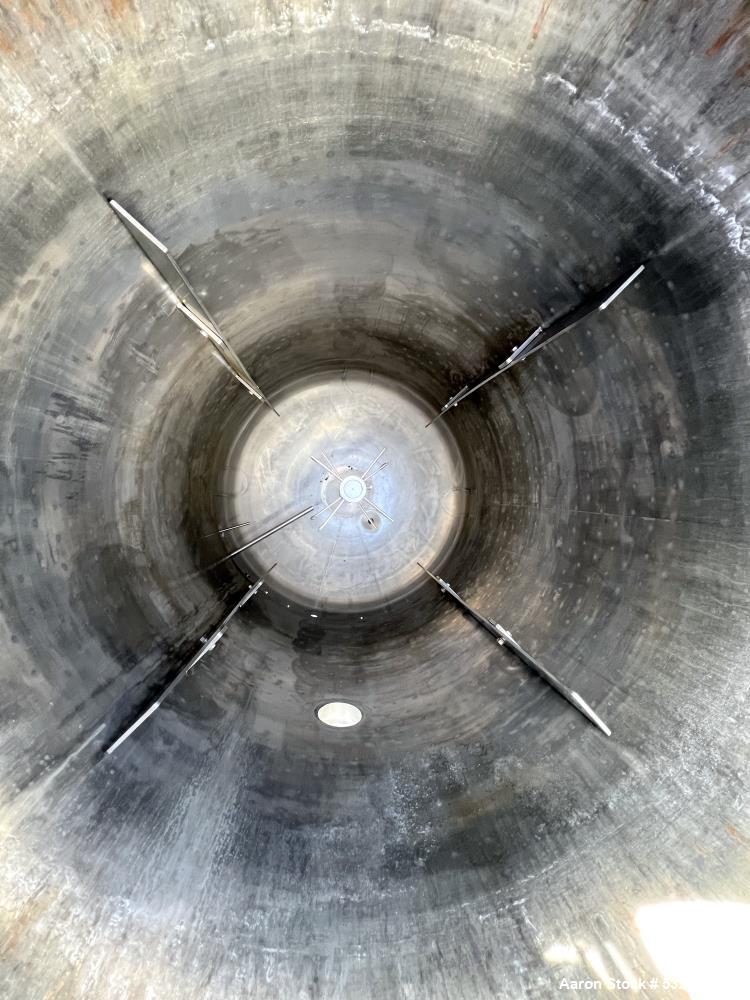

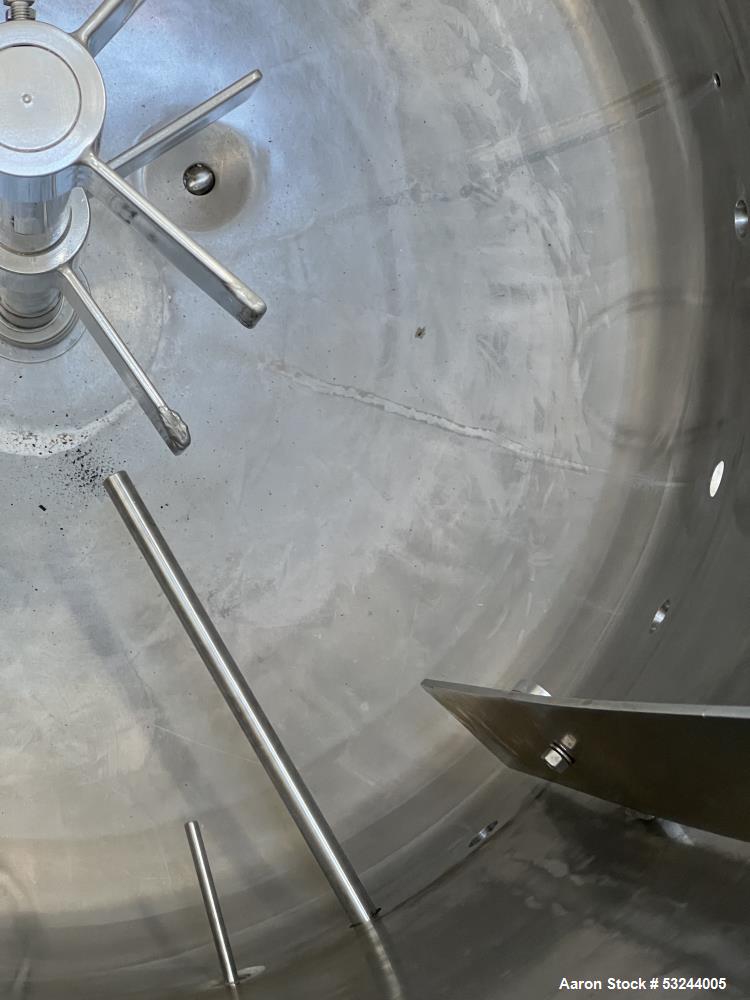

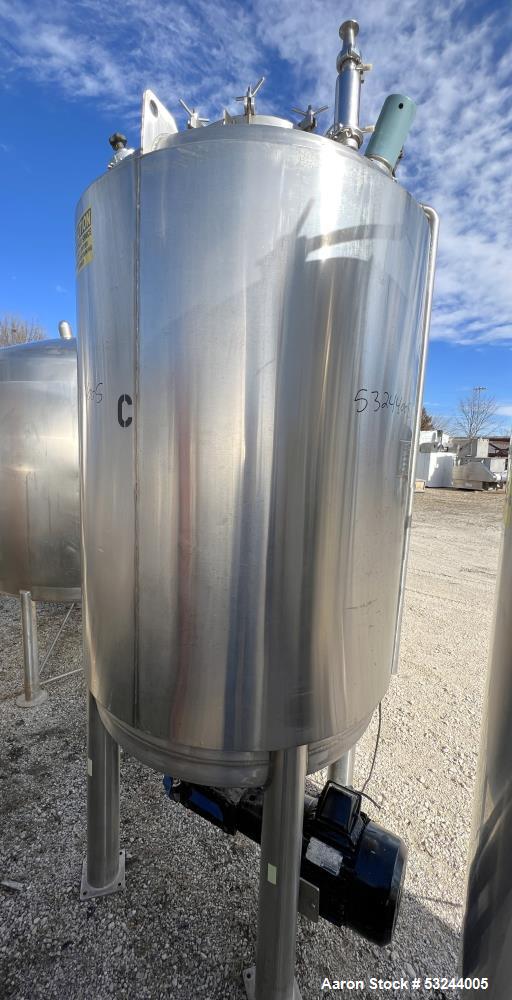

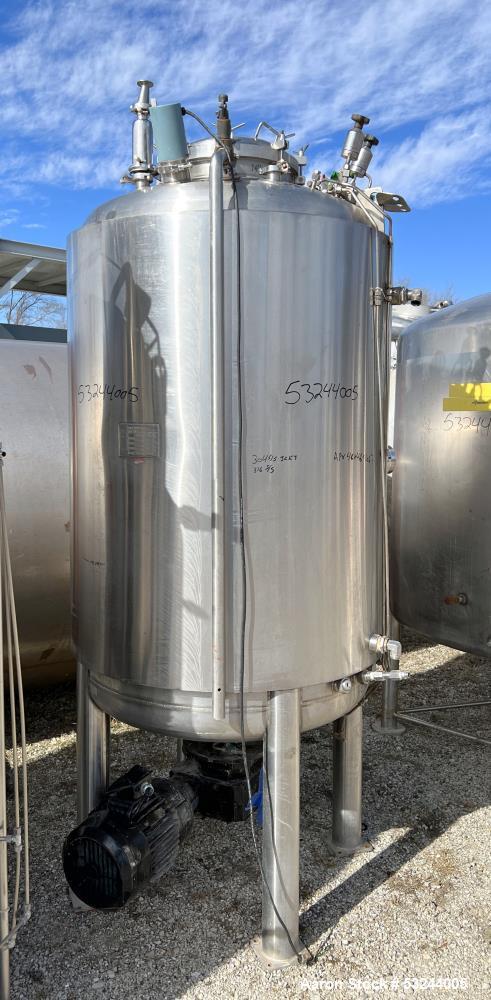

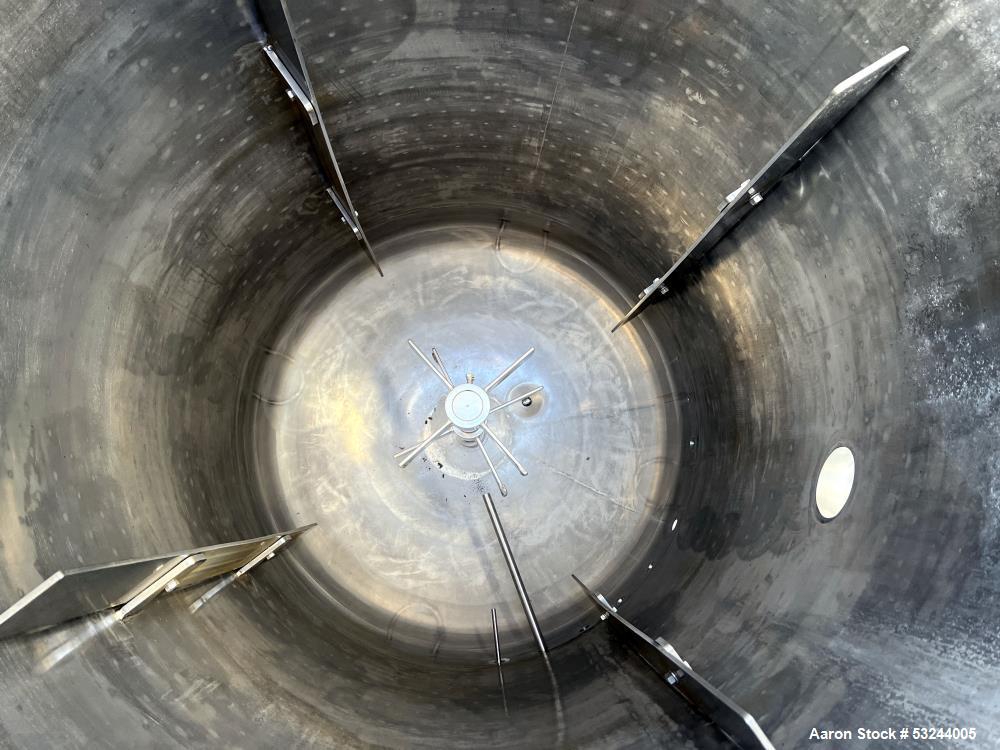

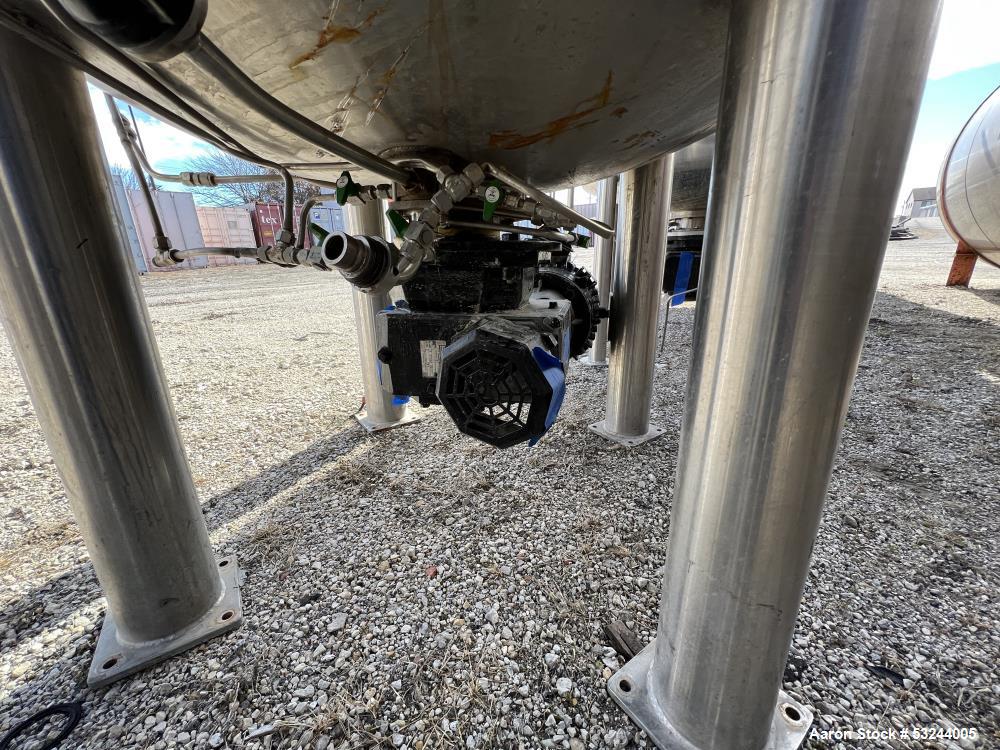

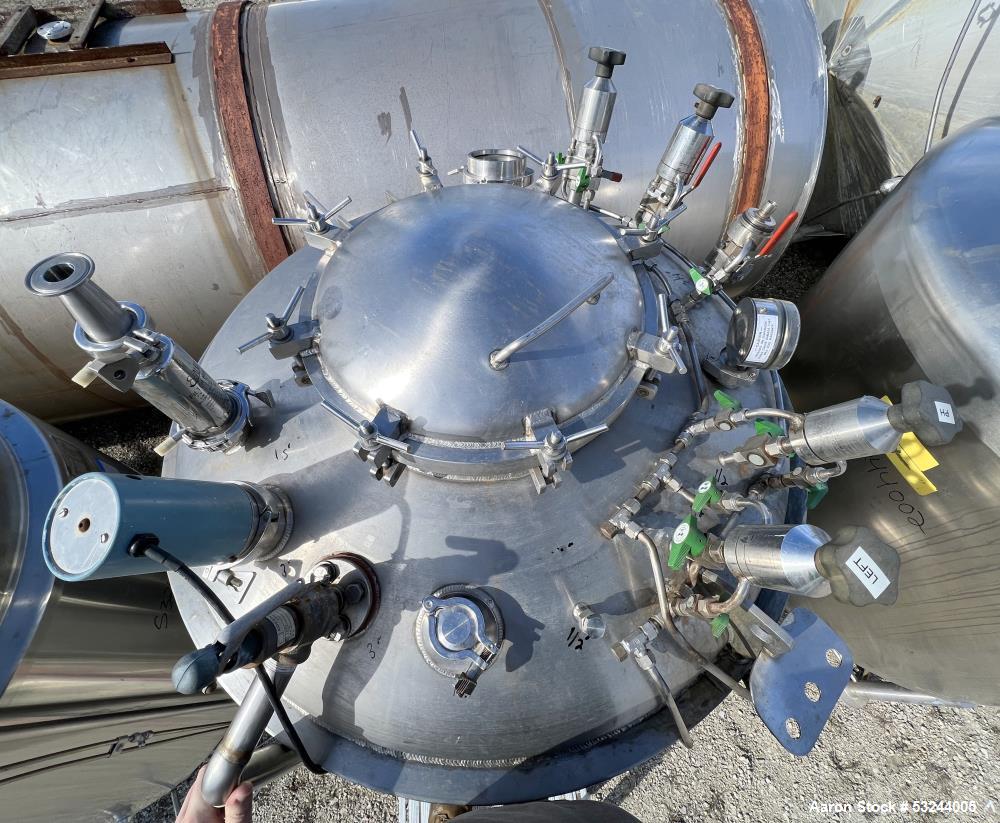

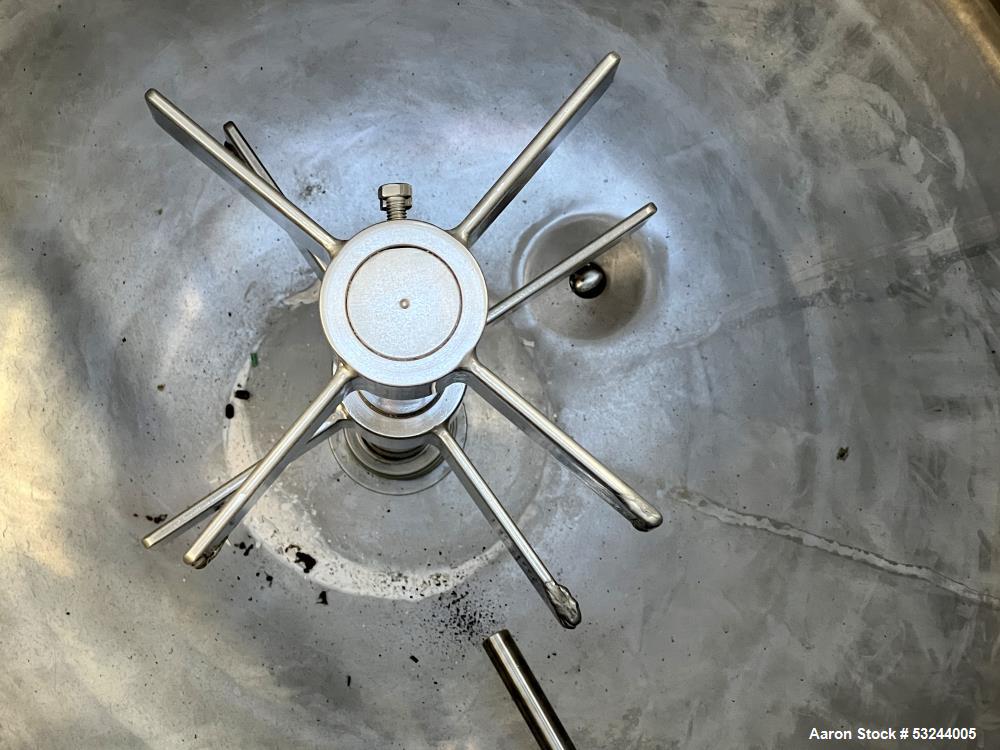

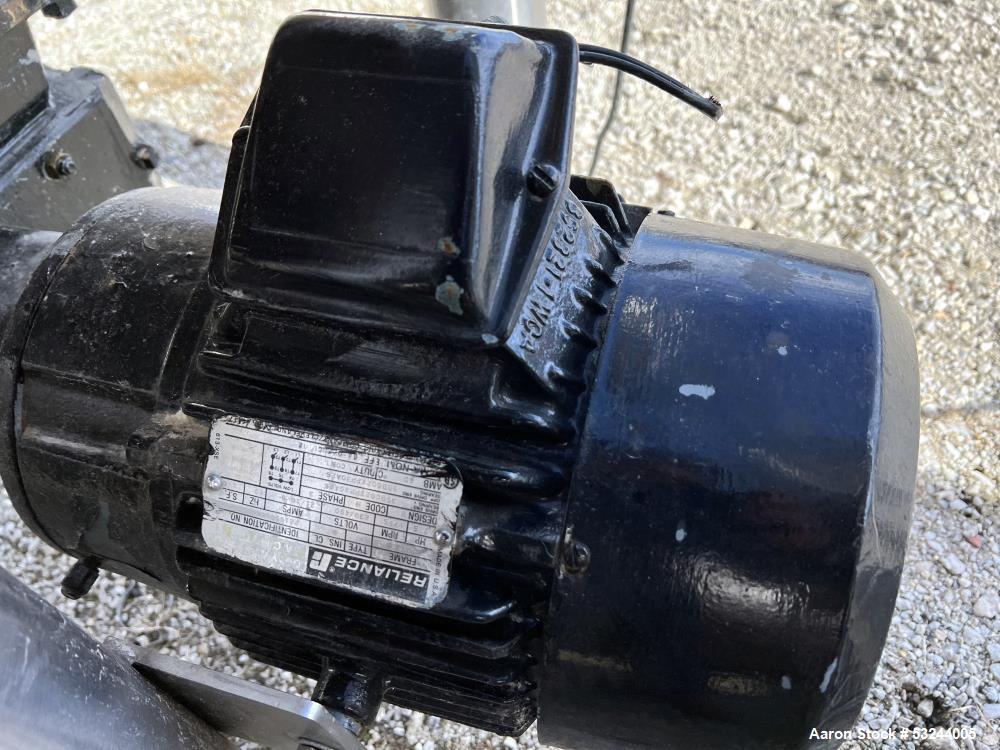

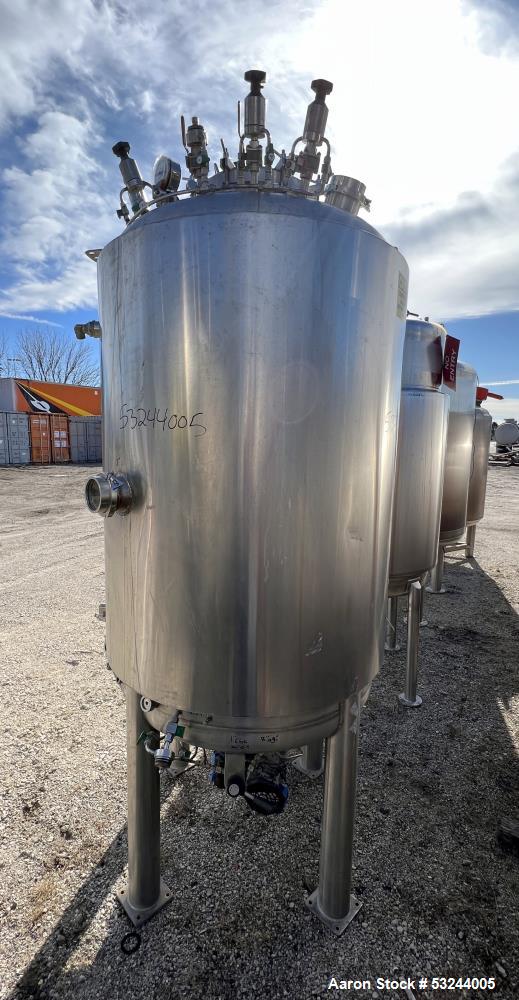

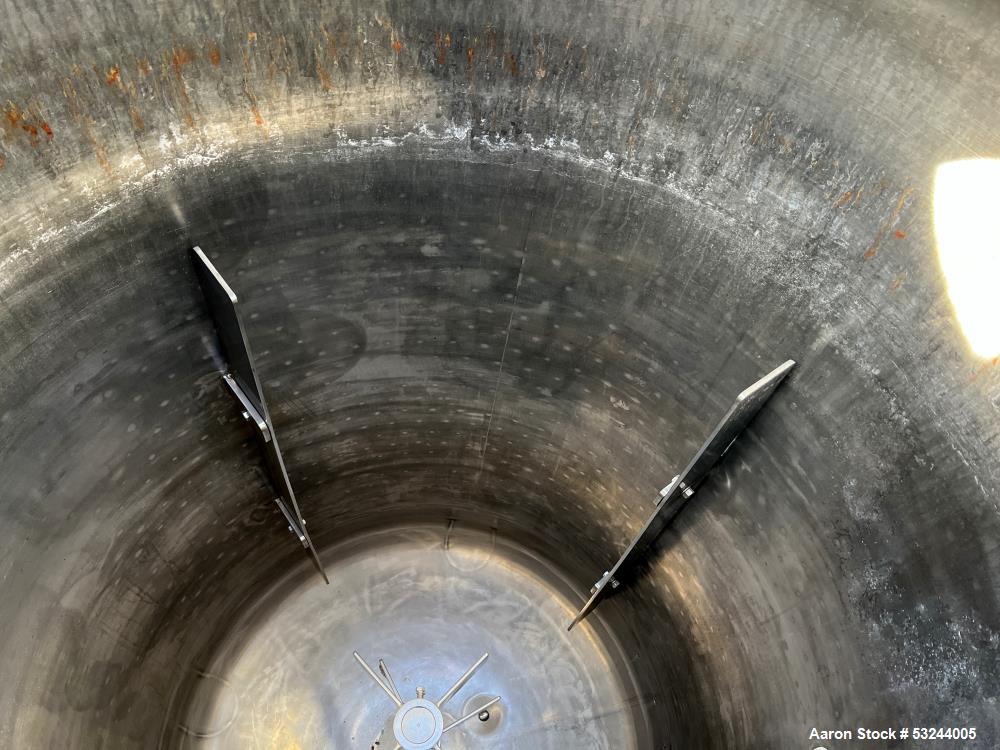

Used IAF Fermentor / Reactor, Approximate 300 Gallons, 316 Stainless Steel. Approximate 40" diameter X 55" Straight Side. Dished top and bottom. Internal rated 50 psi at 250 degrees F. 304 Stainless steel jacket rated 80 psi at 300 degrees F. Bottom center entering dual 4-blade impeller agitator. Driven by a 7.5hp, 3/60/230/460 volt, 1755rpm motor through reducer, 5:1 ratio. Openings top: Approximate 14" manway with cover, 4", (2) 3", (3) 1-1/2", 1", (3) 1/2", (2) 3/4", side: 3" with sight glass, (7) 1-1/2", (2) 1/2", 8" for agitator. 1" Bottom outlet, with 20" discharge height. (4) fixed sidewall baffles. Mounted on (4) legs. Serial# D-651, National Board# 396.
Serial # | D-651 |
Category | ReactorsReactors |
Subcategory | Stainless Steel 0-499 GallonStainless Steel 0-499 Gallon |
Gallons | Approximate 300 |
Material of Construction | 316 Stainless Steel |
Horizontal or Vertical | Vertical |
Diameter | 40" |
Straight Side | 55" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 50 PSI |
Internal Temperature | 250 Degrees F |
Pressure - Jacket | 80 psi |
Temperature - Jacket | 300 Degrees F |

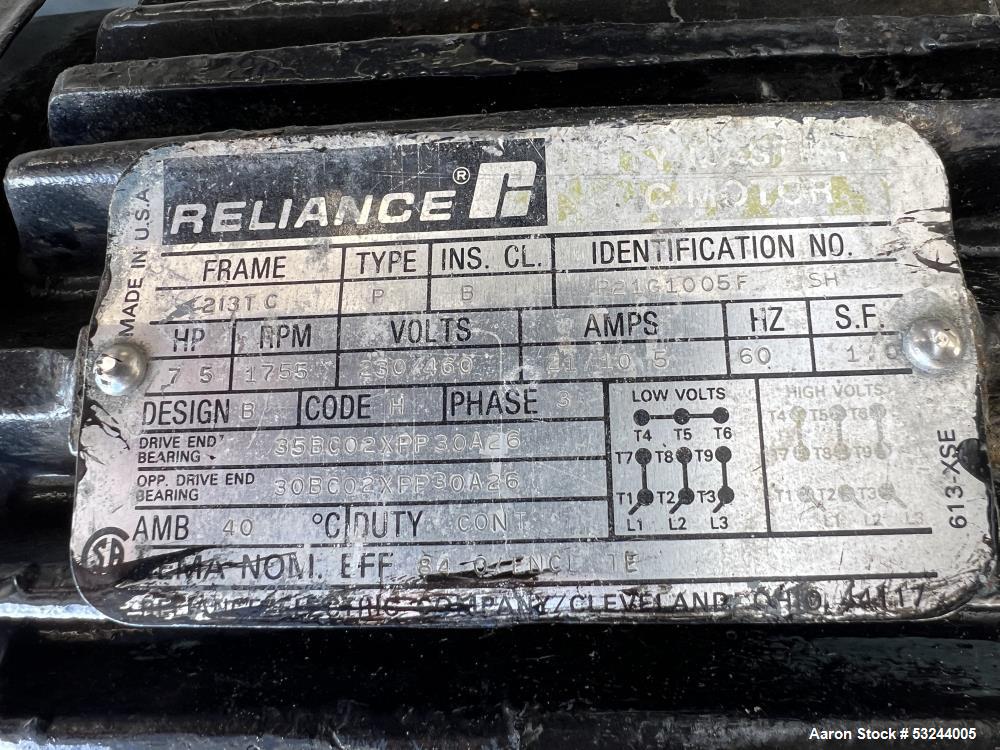

Agitator HP | 7.5 |
Agitator Phase | 3 |
Agitator Cycle | 60 |
Agitator Voltage | 208-230/460 Volt |
Agitator Rpm | 1755 |

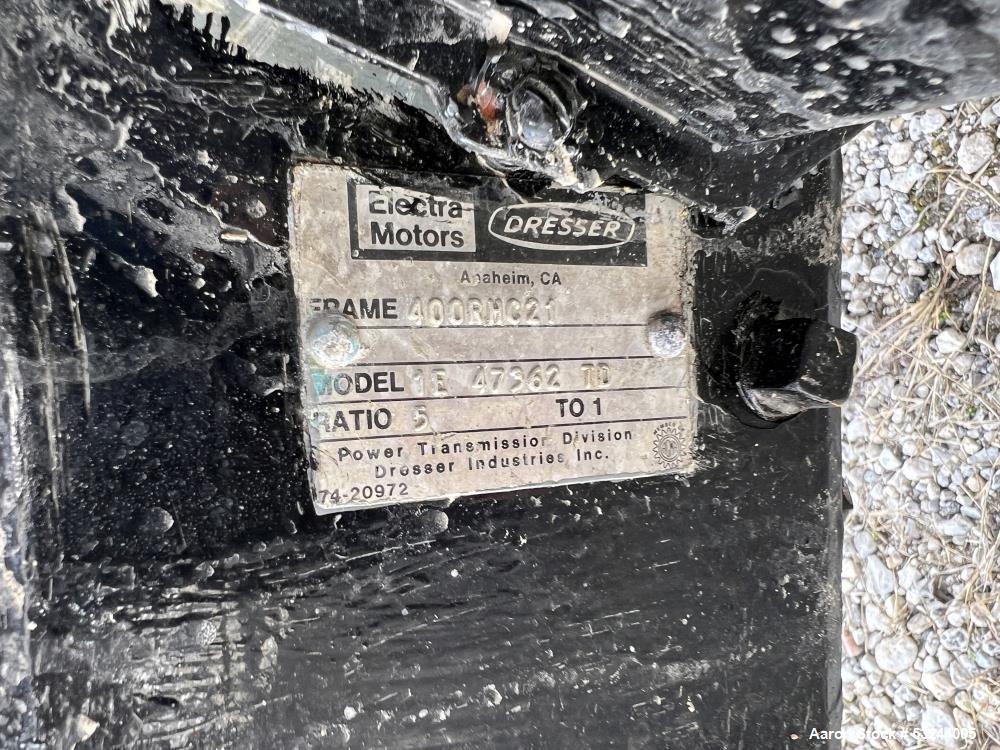

Reducer Ratio | 5:1 |
Opening | top: 14" manway with cover, 4", (2) 3", (3) 1-1/2", 1", (3) 1/2", (2) 3/4". Approximate opening side: 3" with sight glass, (7) 1-1/2", (2) 1/2", 8" for agitator |
Opening Cover | Yes |
Outlet Size | 1" |
Outlet Location | Bottom |
Mounted | Mounted on 4 Legs |
Overall Dimensions | 48" x 48" x 106"T |

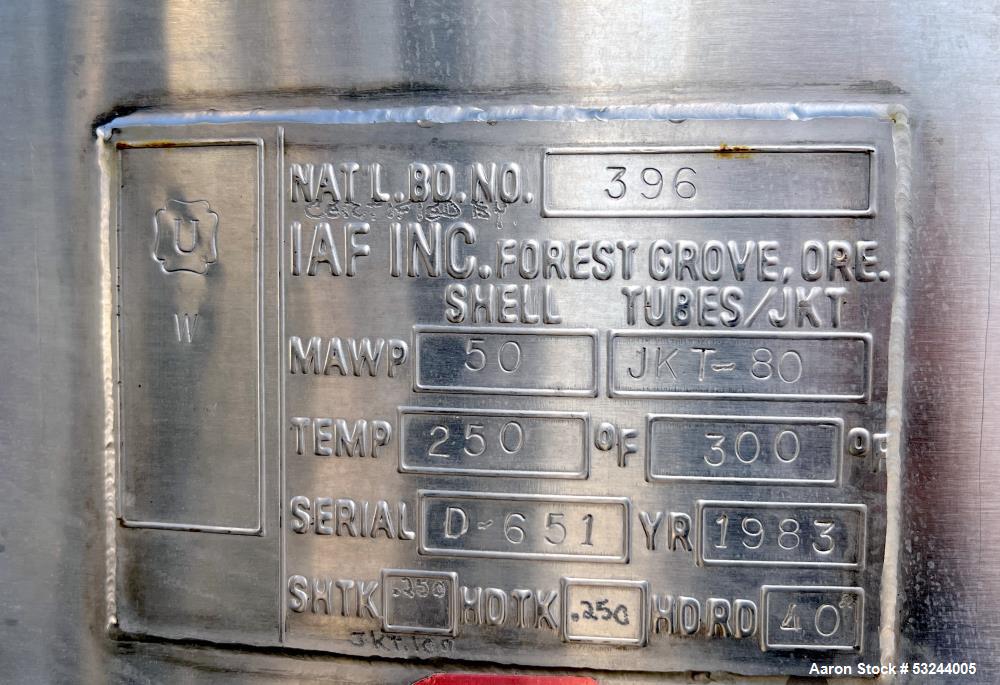

National Board No. | 396 |
Year Built | 1983 |
The IAF Fermentor / Reactor is a 300-gallon vessel designed for fermentation, reaction, and processing applications. Constructed from 316 stainless steel for the internal tank and 304 stainless steel for the jacket, it is well-suited for handling corrosive materials, maintaining cleanliness, and providing precise temperature control through its jacket. The tank is equipped with a dual 4-blade impeller agitator for efficient mixing and agitation, supported by a powerful motor and reducer for variable speed control. Its robust construction, extensive connections, and integrated baffles make it highly versatile for various industries.
Key Features:
Parameter | Details |
---|---|
Capacity | 300 gallons |
Material (Internal) | 316 Stainless Steel |
Material (Jacket) | 304 Stainless Steel |
Orientation | Vertical |
Dimensions | Approx. 40" diameter x 55" straight side |
Head Design | Dished top and bottom |
Internal Pressure Rating | 50 psi at 250°F |
Jacket Pressure Rating | 80 psi at 300°F |

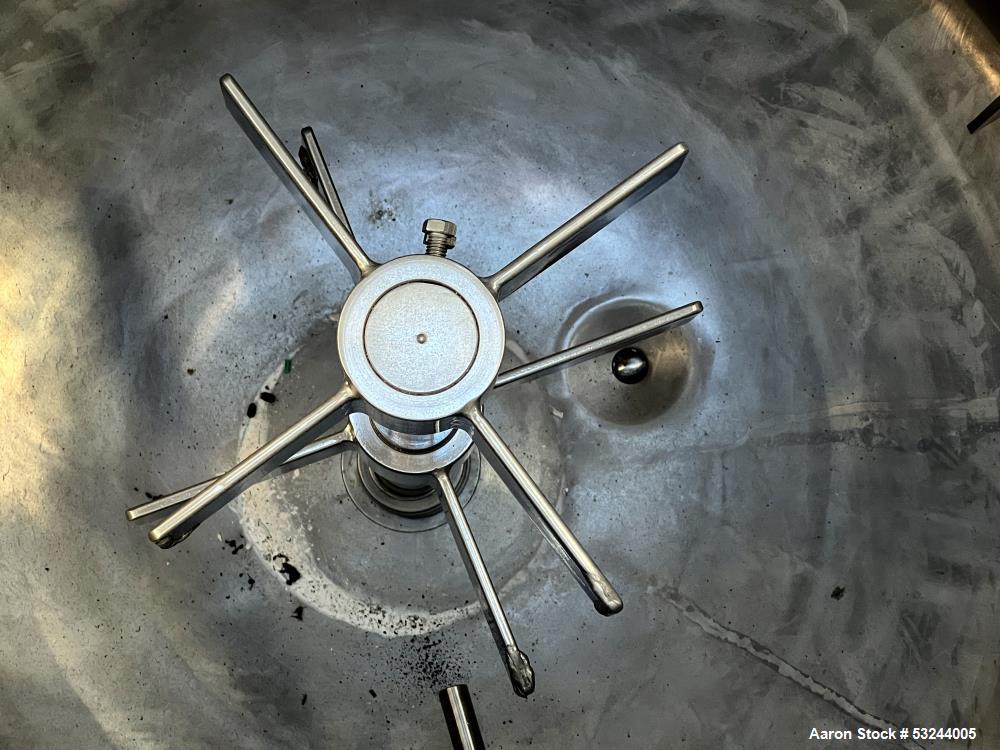

Agitator Type | Dual 4-blade impeller, bottom center entering |
Agitator Drive | 7.5 HP motor, 3-phase, 60 Hz, 230/460 Volt, 1755 RPM with 5:1 reducer |
Top Openings | - Approx. 14" manway with cover |
The IAF Fermentor / Reactor is ideal for a wide variety of industrial and commercial applications requiring precise mixing, heating, cooling, and pressure control:
Biotechnology:
Pharmaceuticals:
Chemical Processing:
Food & Beverage:
Cosmetics:
Industrial Applications:
beer, brewery, Beverage, Beverage / Brewing Industry, Brewery, Chemical, Chemical Industries, Chemical Products, Chemical Storage, Coffee, Coffee, Tea, Craft Breweries, Craft Brewing, Detergent, Detergents, Food and Beverage, Food Industry, Food Manufacturing, Food Packaging, Food Processing, Food Production, Food Products, Foods, Kambucha, Kombucha, laundry detergent, Laundry Softner, pharma, Pharmaceutical, Pharmaceutical Industries, Pharmaceutical Products
Used IAF Fermentor / Reactor, Approximate 300 Gallons, 316 Stainless Steel. Approximate 40" diameter X 55" Straight Side. Dished top and bottom. Internal rated 50 psi at 250 degrees F. 304 Stainless steel jacket rated 80 psi at 300 degrees F. Bottom center entering dual 4-blade impeller agitator. Driven by a 7.5hp, 3/60/230/460 volt, 1755rpm motor through reducer, 5:1 ratio. Openings top: Approximate 14" manway with cover, 4", (2) 3", (3) 1-1/2", 1", (3) 1/2", (2) 3/4", side: 3" with sight glass, (7) 1-1/2", (2) 1/2", 8" for agitator. 1" Bottom outlet, with 20" discharge height. (4) fixed sidewall baffles. Mounted on (4) legs. Serial# D-651, National Board# 396.
The IAF Fermentor / Reactor is a 300-gallon vessel designed for fermentation, reaction, and processing applications. Constructed from 316 stainless steel for the internal tank and 304 stainless steel for the jacket, it is well-suited for handling corrosive materials, maintaining cleanliness, and providing precise temperature control through its jacket. The tank is equipped with a dual 4-blade impeller agitator for efficient mixing and agitation, supported by a powerful motor and reducer for variable speed control. Its robust construction, extensive connections, and integrated baffles make it highly versatile for various industries.
Key Features:
Parameter | Details |
---|---|
Capacity | 300 gallons |
Material (Internal) | 316 Stainless Steel |
Material (Jacket) | 304 Stainless Steel |
Orientation | Vertical |
Dimensions | Approx. 40" diameter x 55" straight side |
Head Design | Dished top and bottom |
Internal Pressure Rating | 50 psi at 250°F |
Jacket Pressure Rating | 80 psi at 300°F |
Agitator Type | Dual 4-blade impeller, bottom center entering |
Agitator Drive | 7.5 HP motor, 3-phase, 60 Hz, 230/460 Volt, 1755 RPM with 5:1 reducer |
Top Openings | - Approx. 14" manway with cover |
The IAF Fermentor / Reactor is ideal for a wide variety of industrial and commercial applications requiring precise mixing, heating, cooling, and pressure control:
Biotechnology:
Pharmaceuticals:
Chemical Processing:
Food & Beverage:
Cosmetics:
Industrial Applications:
beer, brewery, Beverage, Beverage / Brewing Industry, Brewery, Chemical, Chemical Industries, Chemical Products, Chemical Storage, Coffee, Coffee, Tea, Craft Breweries, Craft Brewing, Detergent, Detergents, Food and Beverage, Food Industry, Food Manufacturing, Food Packaging, Food Processing, Food Production, Food Products, Foods, Kambucha, Kombucha, laundry detergent, Laundry Softner, pharma, Pharmaceutical, Pharmaceutical Industries, Pharmaceutical Products
Serial # | D-651 |
Category | Reactors |
Subcategory | Stainless Steel 0-499 Gallon |
Gallons | Approximate 300 |
Material of Construction | 316 Stainless Steel |
Horizontal or Vertical | Vertical |
Diameter | 40" |
Straight Side | 55" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 50 PSI |
Internal Temperature | 250 Degrees F |
Pressure - Jacket | 80 psi |
Temperature - Jacket | 300 Degrees F |
Agitator HP | 7.5 |
Agitator Phase | 3 |
Agitator Cycle | 60 |
Agitator Voltage | 208-230/460 Volt |
Agitator Rpm | 1755 |
Reducer Ratio | 5:1 |
Opening | top: 14" manway with cover, 4", (2) 3", (3) 1-1/2", 1", (3) 1/2", (2) 3/4". Approximate opening side: 3" with sight glass, (7) 1-1/2", (2) 1/2", 8" for agitator |
Opening Cover | Yes |
Outlet Size | 1" |
Outlet Location | Bottom |
Mounted | Mounted on 4 Legs |
Overall Dimensions | 48" x 48" x 106"T |
National Board No. | 396 |
Year Built | 1983 |
