Stock No.: 51669009

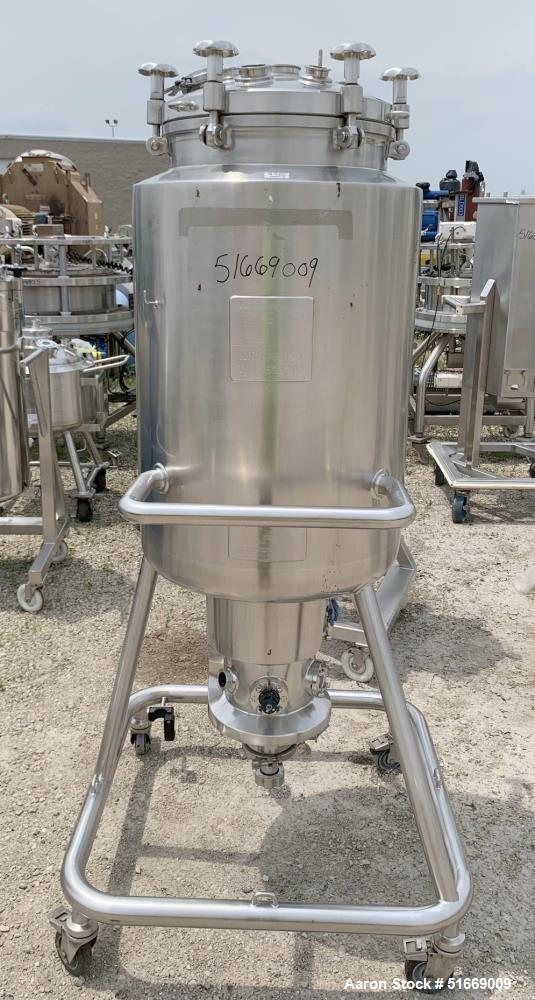

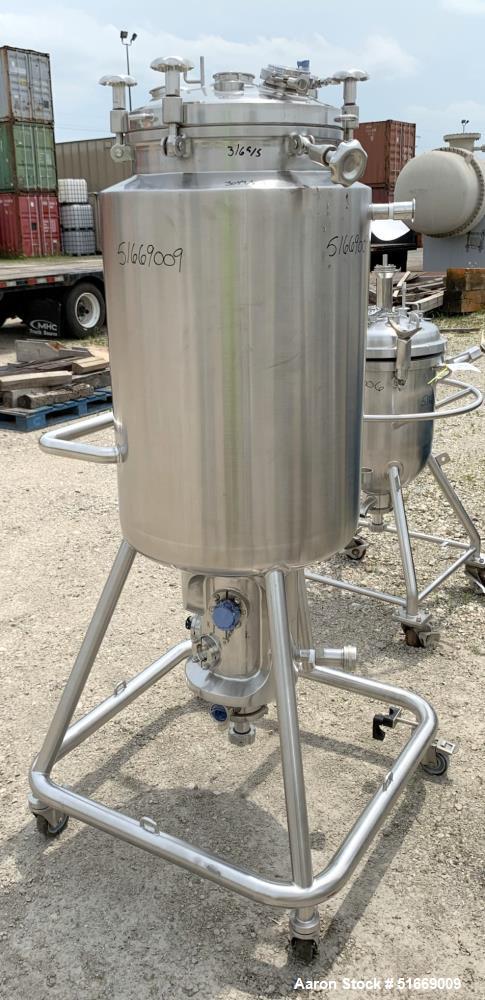

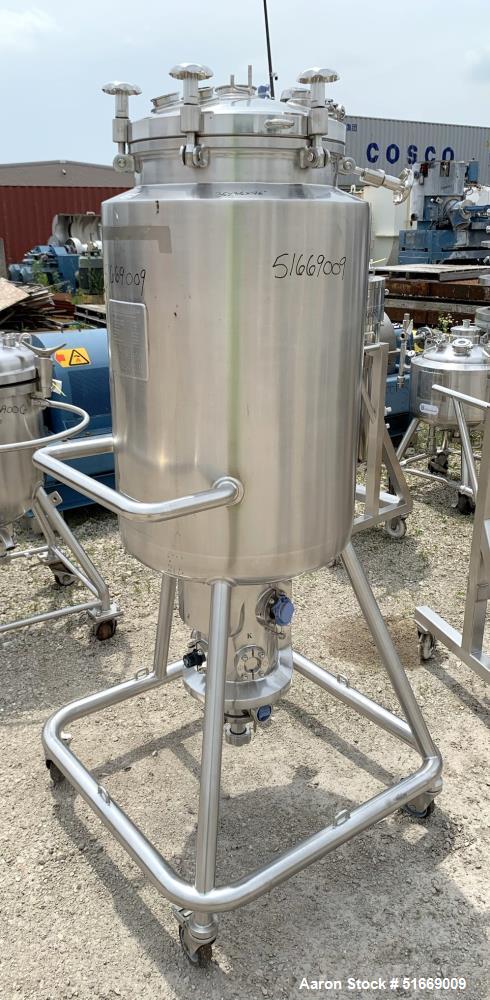

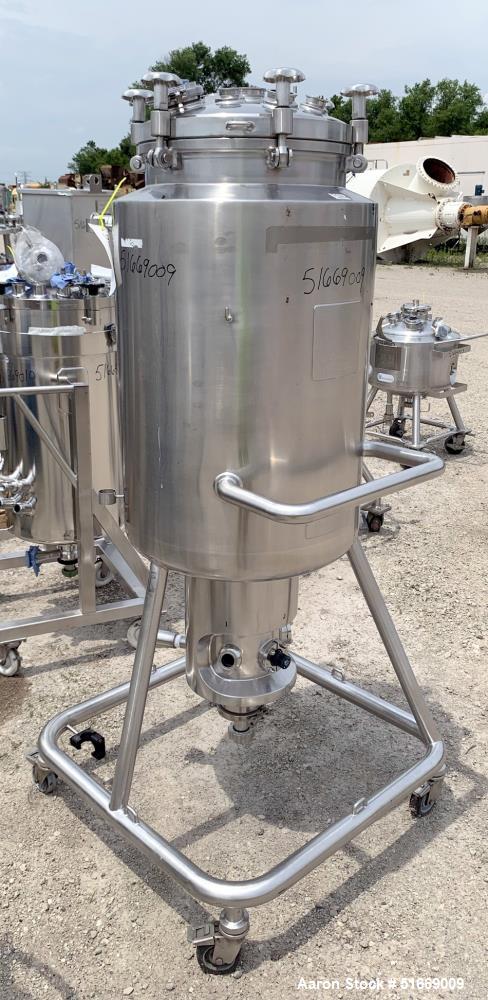

Used Baumgartner & Co 186 Liter (49 Gallon) Stainless Steel Reactor

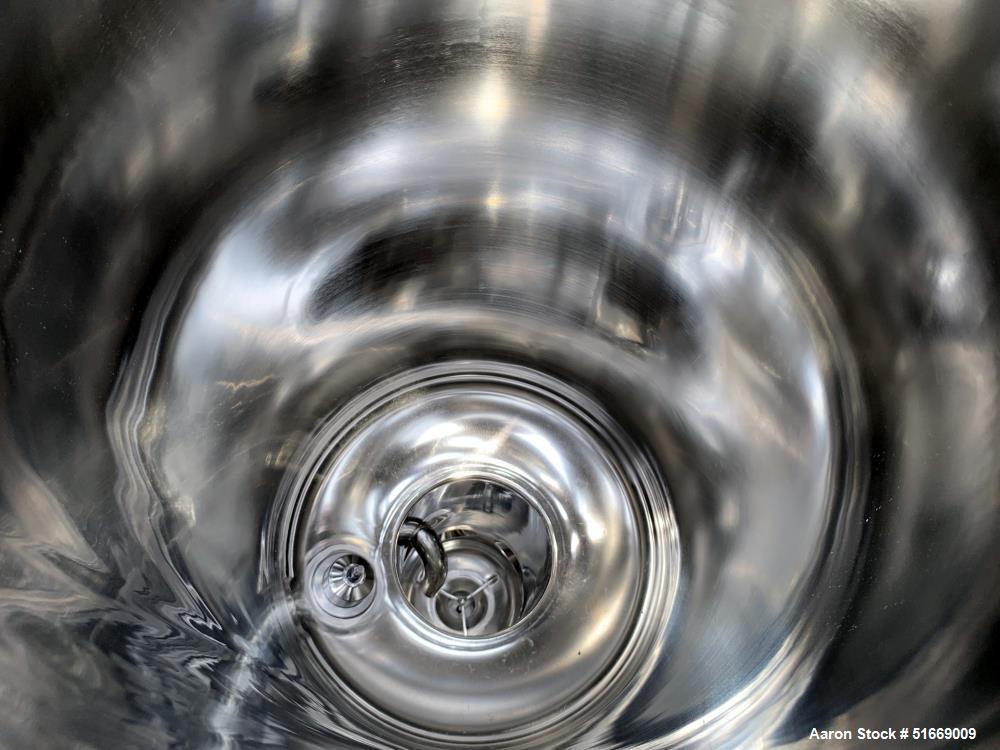

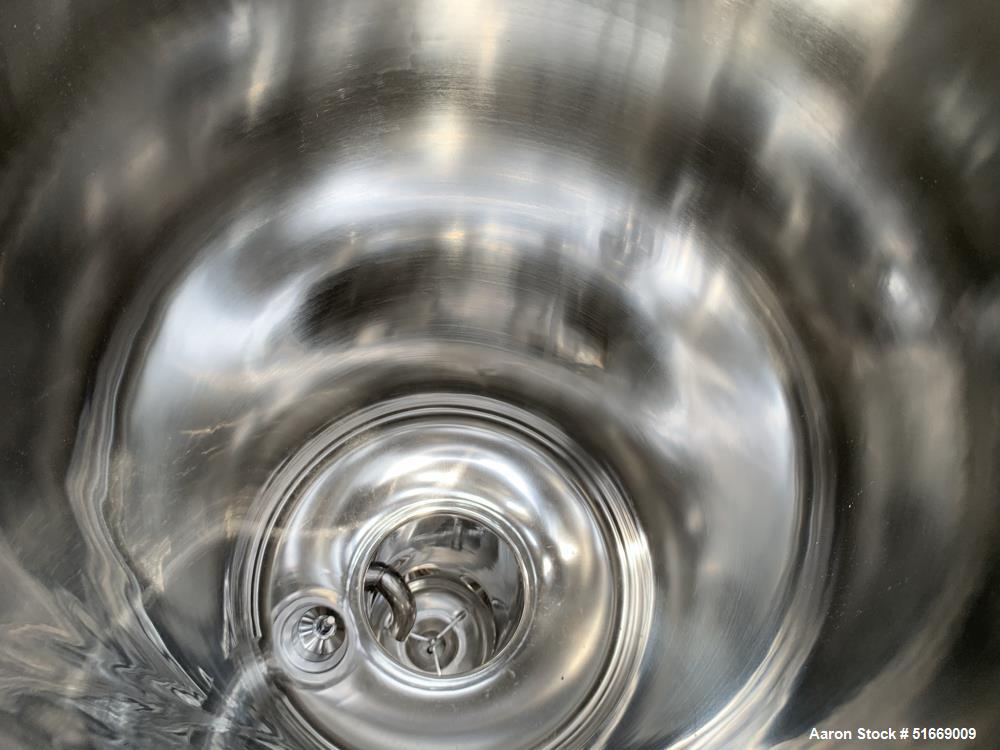

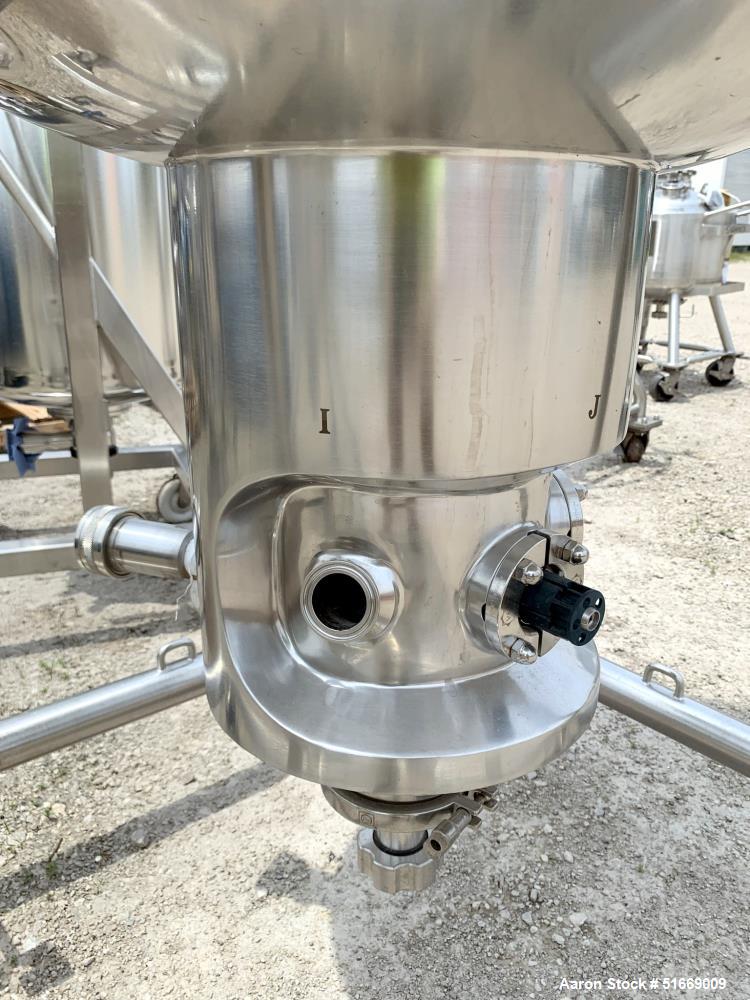

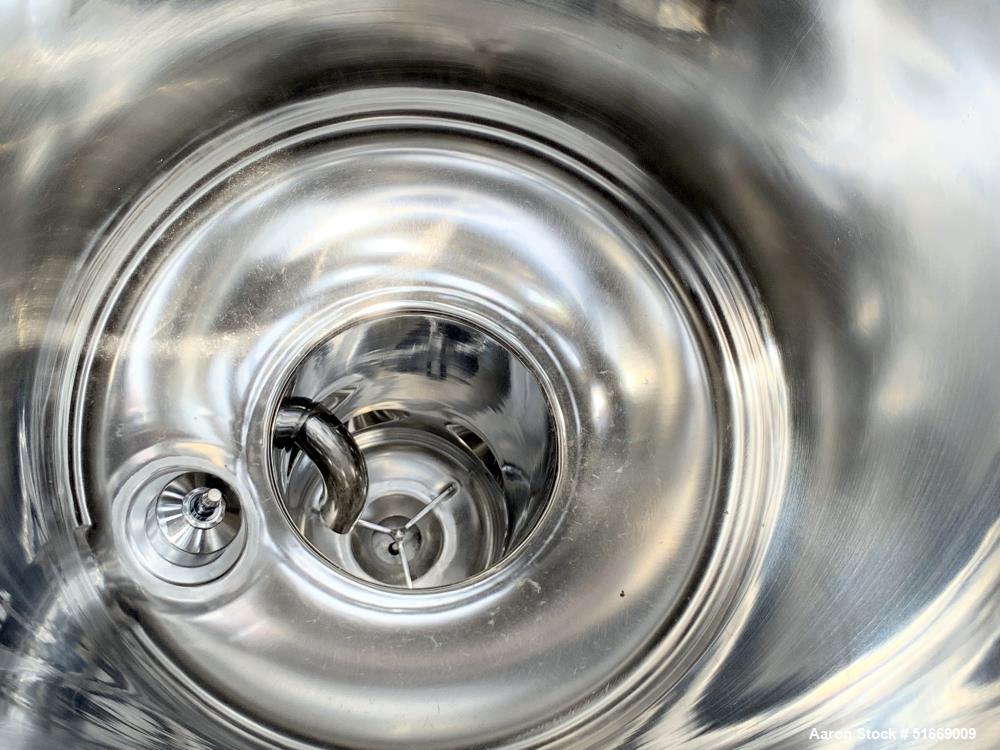

Used- Baumgartner & Co / Zimmerlin Reactor, 186 Liter (49 Gallon), 316L Stainless Steel, Vertical. 17.32" diameter x 32.79" straight side. Slight dished clamp-on top, slight dished bottom. Internal Rated 45 psi / FV at 35 to 350 degrees F. 316L Stainless steel jacket rated 150 psi / FV at 35 to 350 degrees F. Bottom discharge chamber approximate 7.48" diameter x 14.89" straight side. Openings Top: (4) 1-1/2", (3) 3", 2". 2" Side bottom outlet, 2" center bottom outlet. Provision for bottom entering agitator. Mounted on (3) legs with casters, Serial # 761, National Board # 189, ASME Code 2211-1. Built 2006.
-
Model186 Liter
-

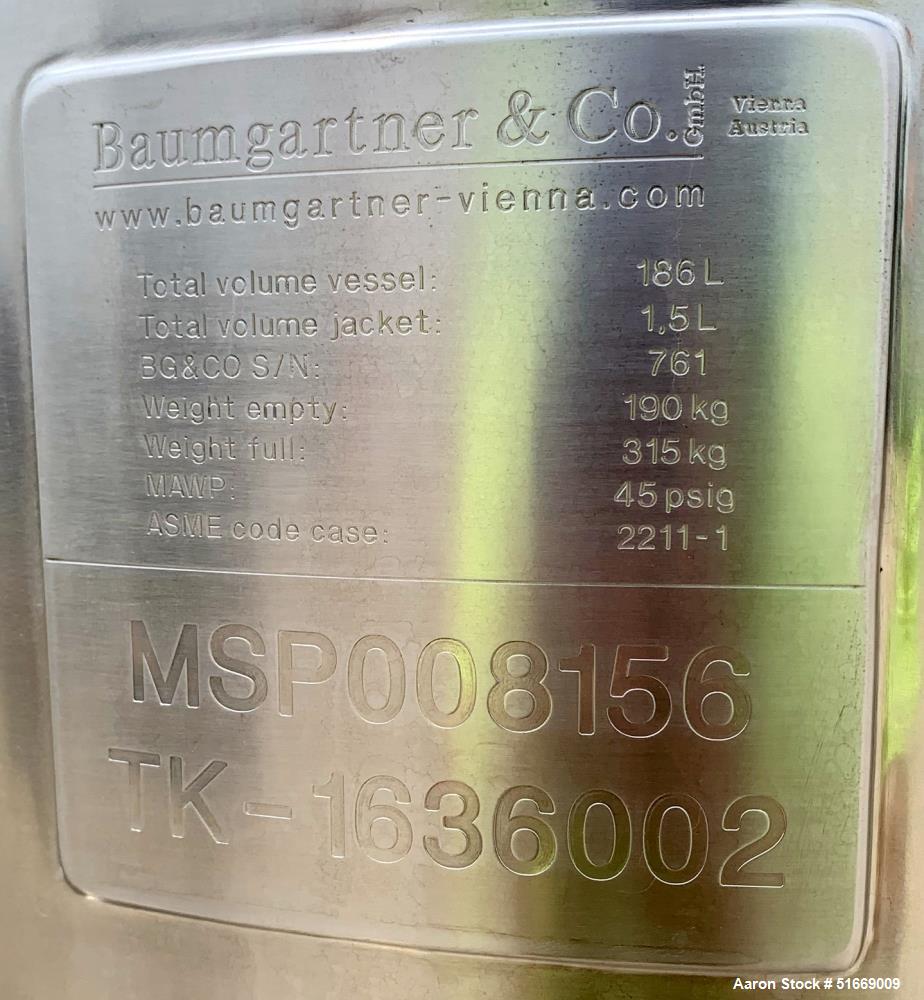

Serial #761
-
CategoryReactors
-
SubcategoryStainless Steel 0-499 Gallon
-
Gallons49
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter17.32"
-
Straight Side32.79"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure45 psi / FV
-
Internal Temperature35 to 350 degrees F
-
Pressure Jacket150 / FV
-
Temperature Jacket35 to 350 degrees F
-

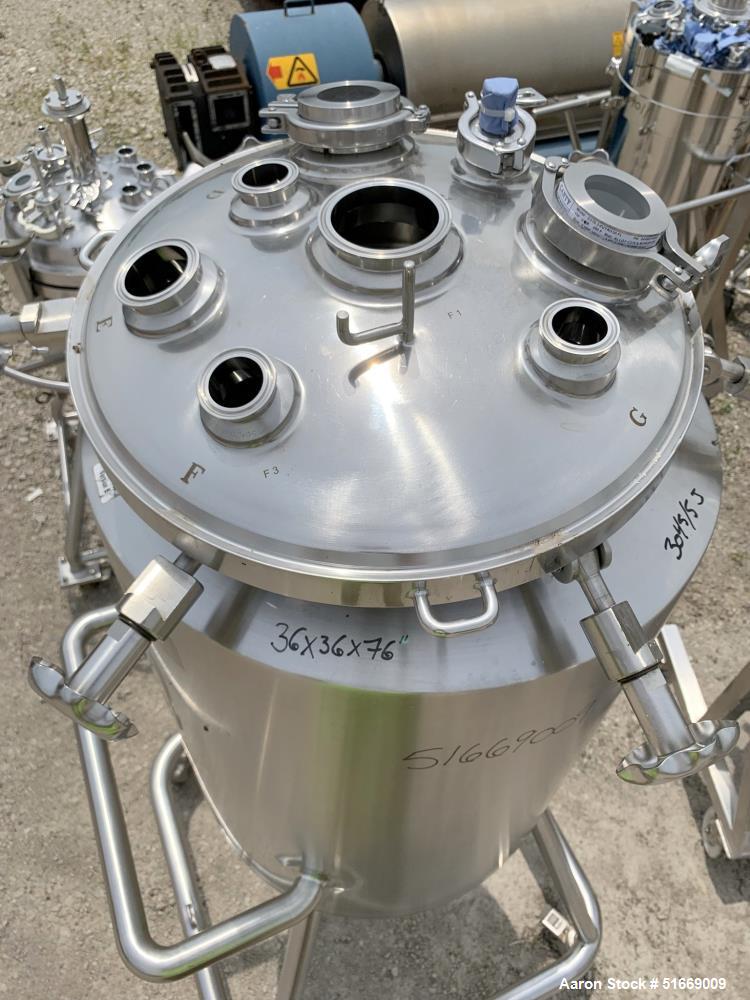

OpeningTop: (4) 1-1/2”, (3) 3”, 2”
-
Opening CoverYes
-
Outlet Size2"
-
Outlet LocationBottom
-
MountedMounted on Casters
-
Overall Dimensions36" X 36" X 76"T
-

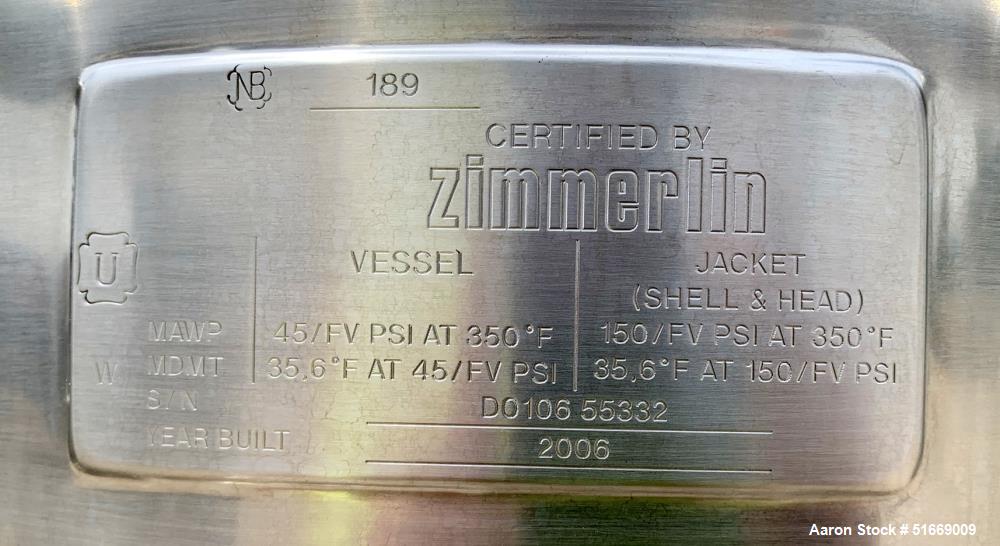

National Board No.189
-
Year Built2006
