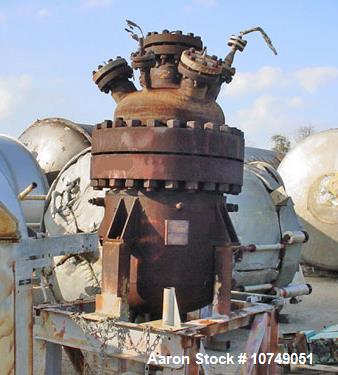

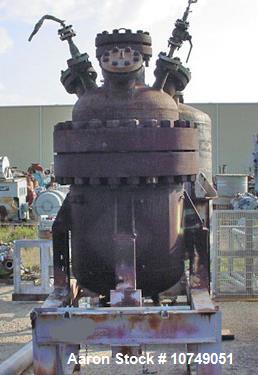

Used Vulcan Reactor, 200 gallons, Carbon Steel

Used- Vulcan Reactor, 200 gallons, Carbon Steel. Approximately 30" diameter x 42" long, dish top and bottom. Jacket rated 250 psi @ 500 deg F. Carbon steel shell rated 1000 psi @ 500 deg F. Mounts on side lug mounts.

ManufacturerVulcan
Serial #9963
CategoryReactors
SubcategoryCarbon Steel & Alloy Reactors
Gallons200
Material Of ConstructionCarbon Steel
Horizontal Or VerticalVertical
Diameter30"
Straight Side42"
Top Head StyleDished Head
BottomDished Bottom
Internal Pressure1000 psi
Internal Temperature500 deg f
Pressure Jacket250 psi
Temperature Jacket500 deg f
MountedSide Lug Mounted
Year Built1965

We offer a variety of finance programs. Please contact your sales person for more information.
