Used- Roben Reactor, 5000 Gallon, Hastelloy C276, Vertical. 108" diameter x 108" straight side, dished top, elliptical botto...

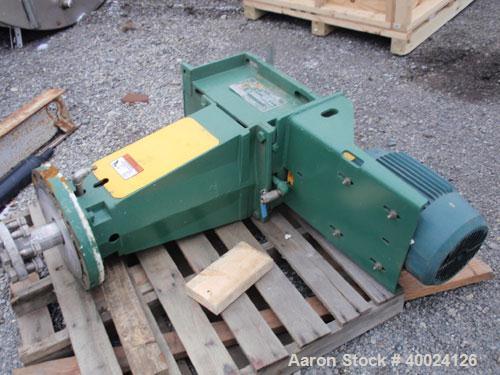

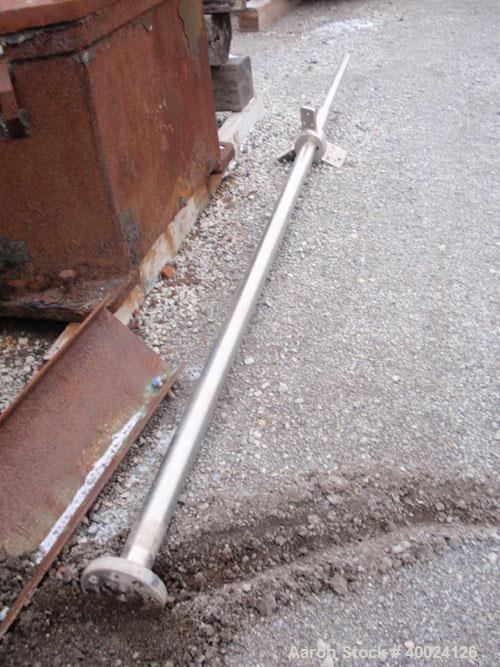

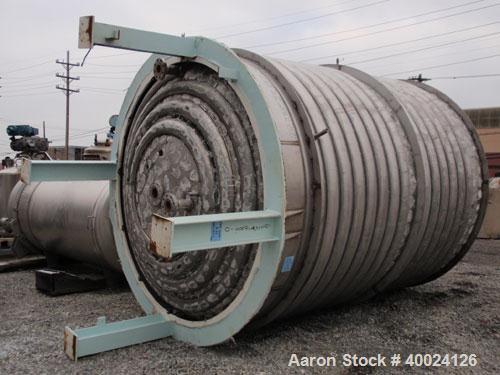

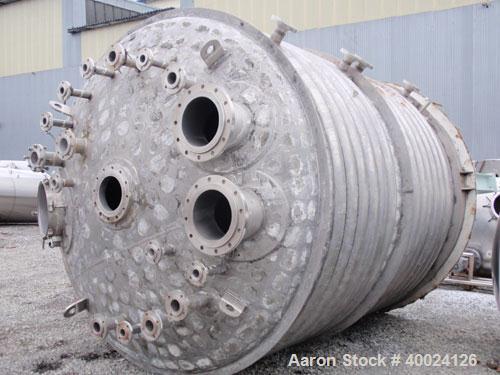

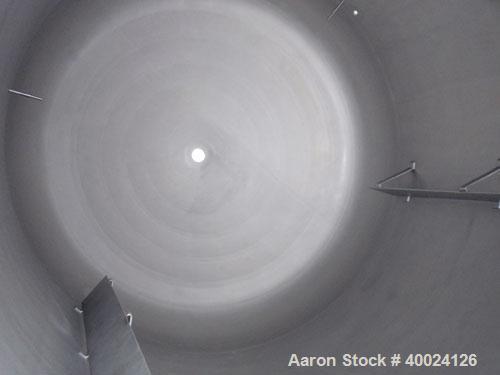

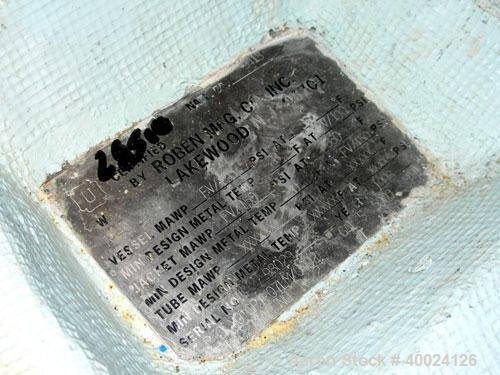

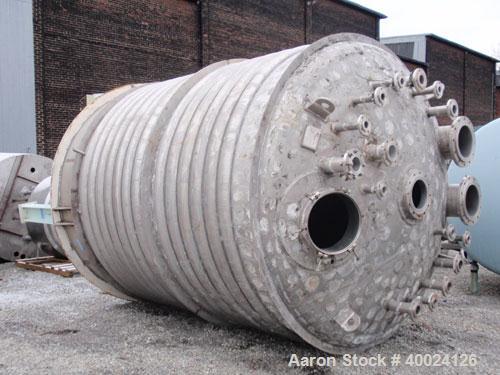

Used- Roben Reactor, 5000 Gallon, Hastelloy C276, Vertical. 108" diameter x 108" straight side, dished top, elliptical bottom. Internal rated 100 psi/fv at 360 deg F, 304 stainless steel 1/2 pipe coil jacket rated 150 psi/fv at 360 deg F. Lightnin agitator, model C04S10T, 84 rpm, 2 tier agitator with approximately 50" diameter props, and a 3" diameter X 151-1/2" long shaft, driven by a 10 hp motor. 3 sidewall baffles. 18" manway. Serial #98029, National Board #9418, built 1998.
