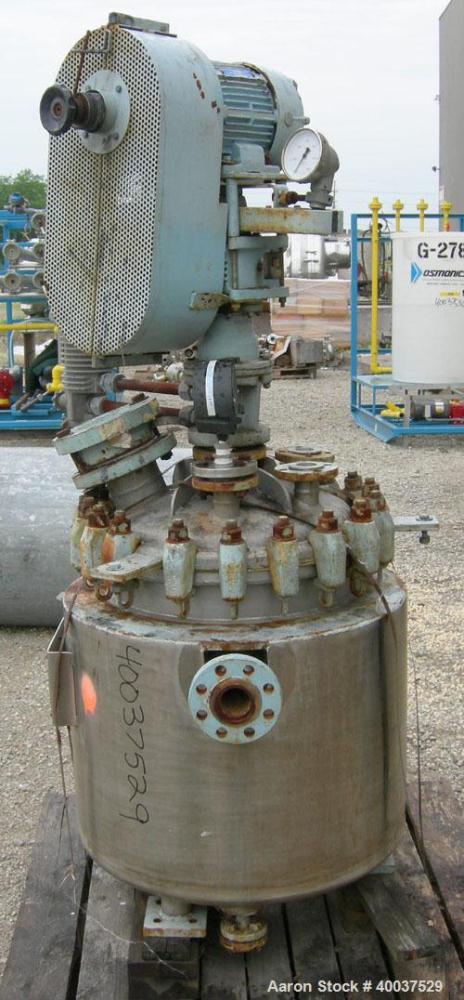

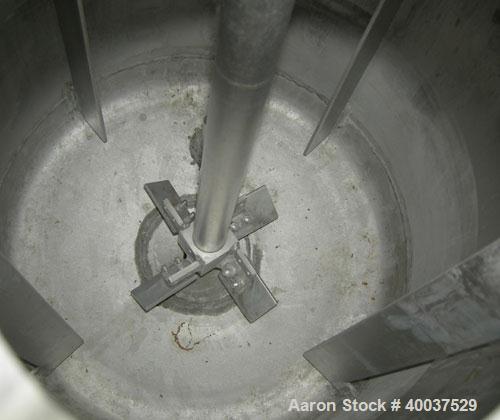

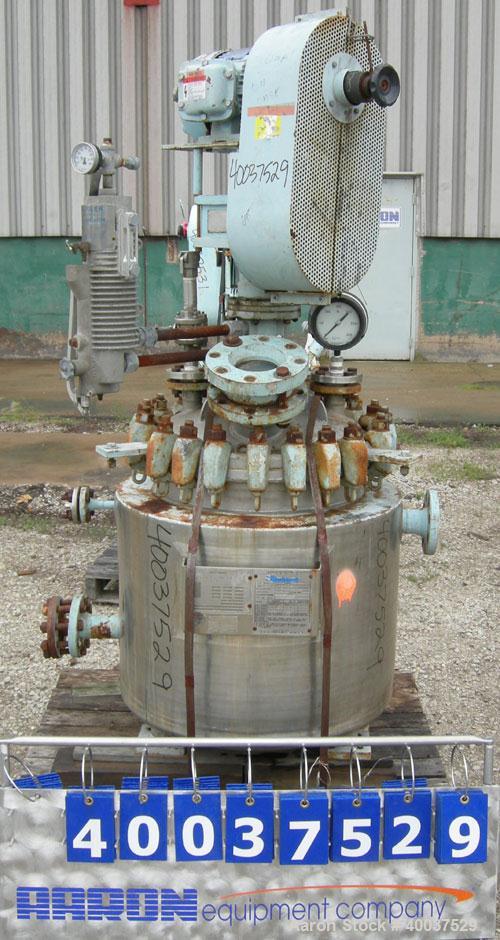

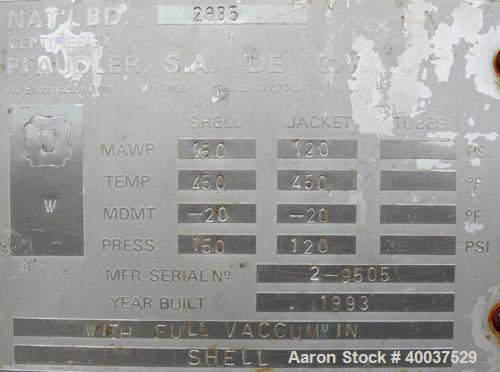

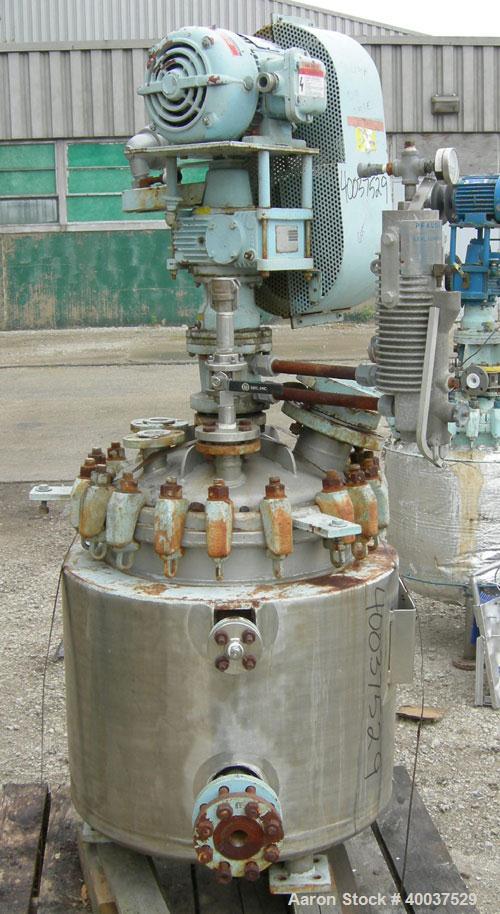

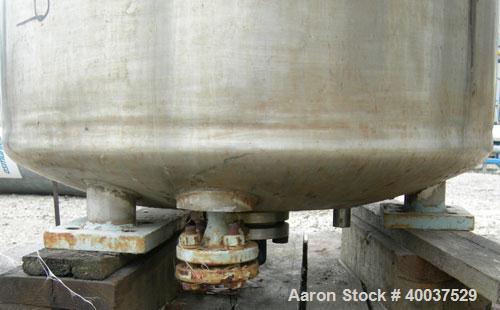

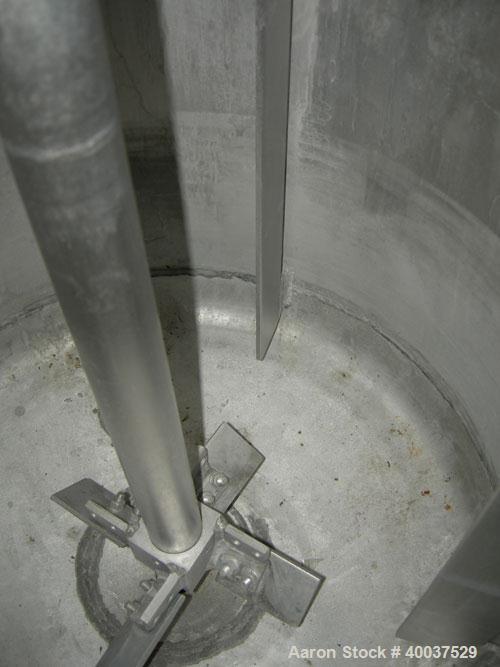

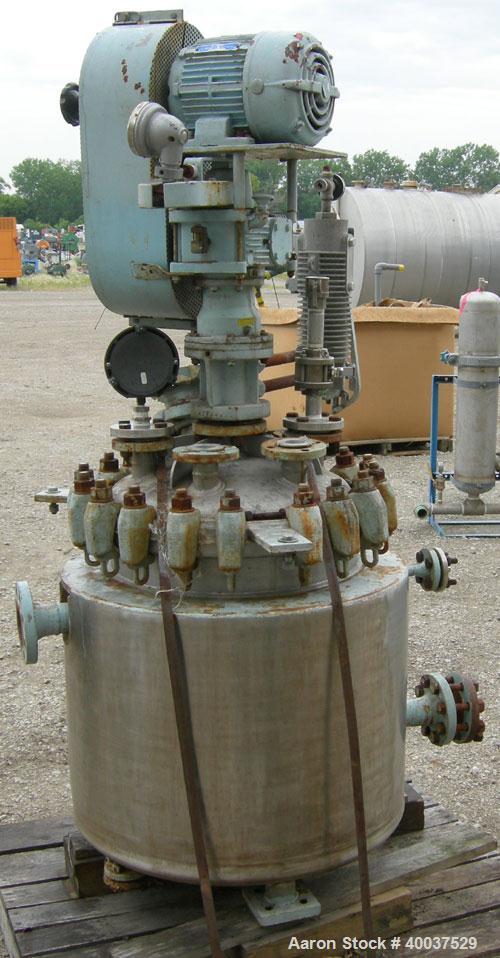

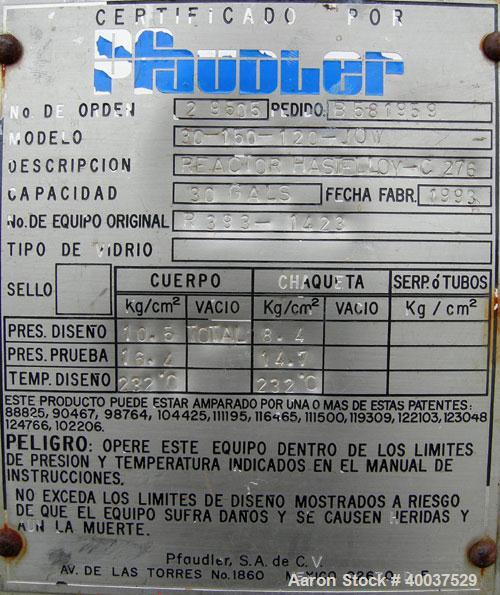

Used Pfaudler Reactor, 30 Gallon, Model 30-150-120-JOW, Hastelloy C-276, Vertical. Approximately 20" diameter x 20" straight side. Dished bolt on top, dish bottom. Internal rated 150/fv psi at 450 degree F, carbon steel jacket rated 120 psi at 450 degree F. Pfaudler 2.5 DWV50210AKC agitator ratio 5 to 1 with lubricator. Approximately 2" diameter shaft with a 4 blade turbine driven by a 3 hp, 3/60/230/460 volt, 1735 rpm XP motor, manual vari-speed. 4 sidewall baffles. Openings: top (4) 1-1/2", 4" sight glass; 1-1/2" center bottom outlet. Mounted on 3 legs. Stainless steel sheathing. Serial #2-9505, National Board #2635. Built 1993.
Used Pfaudler Reactor, 30 Gallon, Model 30-150-120-JOW, Hastelloy C-276, Vertical. Approximately 20" diameter x 20" straight side. Dished bolt on top, dish bottom. Internal rated 150/fv psi at 450 degree F, carbon steel jacket rated 120 psi at 450 degree F. Pfaudler 2.5 DWV50210AKC agitator ratio 5 to 1 with lubricator. Approximately 2" diameter shaft with a 4 blade turbine driven by a 3 hp, 3/60/230/460 volt, 1735 rpm XP motor, manual vari-speed. 4 sidewall baffles. Openings: top (4) 1-1/2", 4" sight glass; 1-1/2" center bottom outlet. Mounted on 3 legs. Stainless steel sheathing. Serial #2-9505, National Board #2635. Built 1993.
