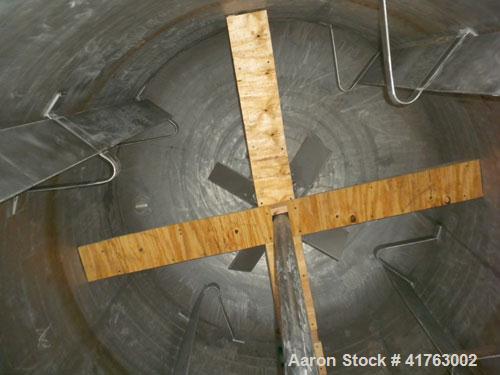

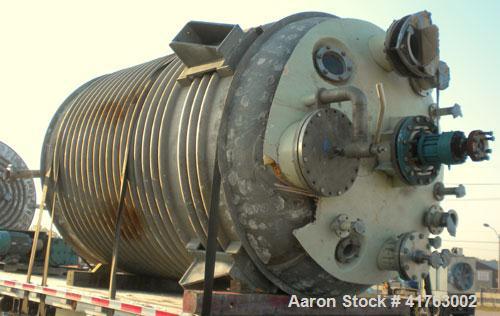

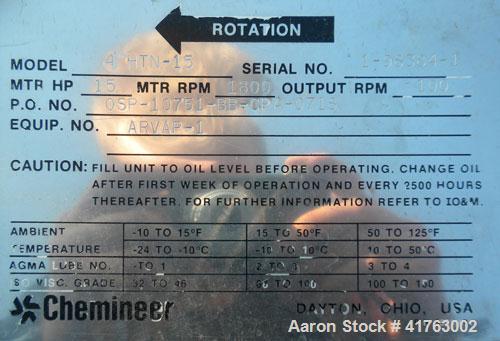

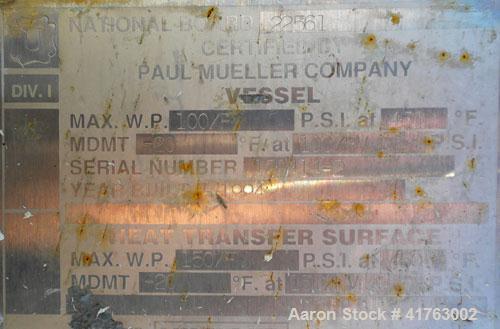

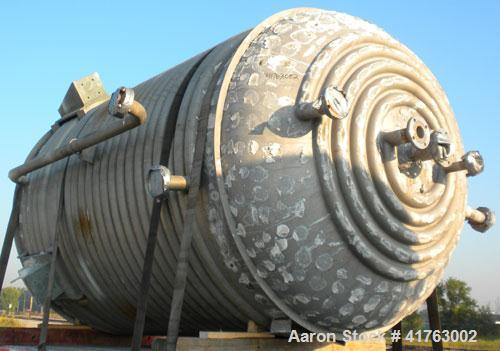

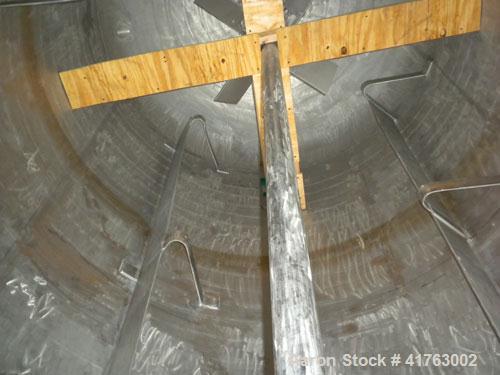

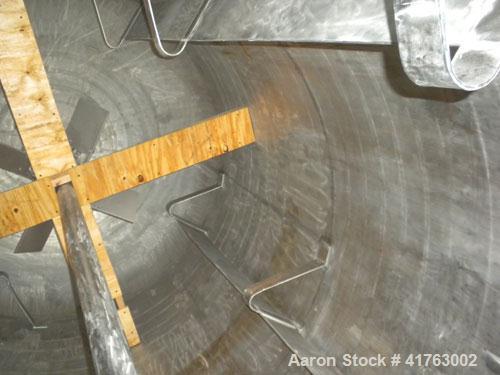

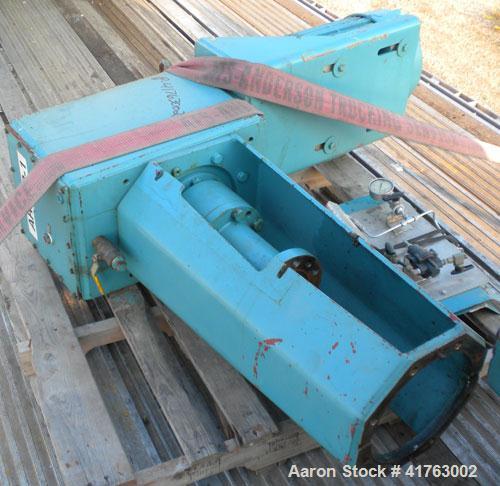

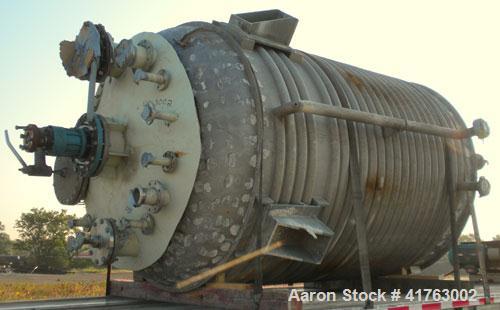

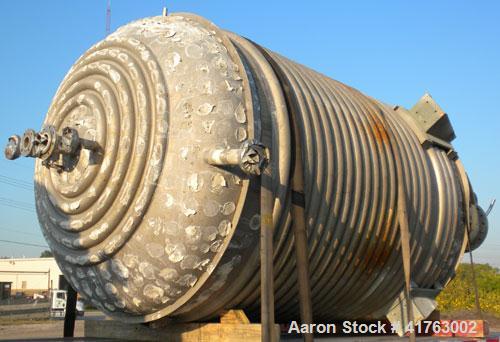

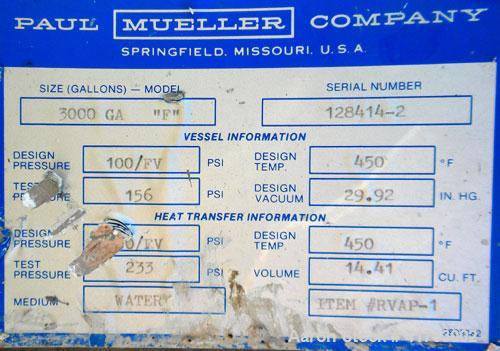

Used Mueller Reactor, 3000 Gallon, Model F, Hastelloy C-276, Vertical. 84’’ diameter x 111’’ straight side, 2 to 1 elliptical top and bottom. Internal rated 100/FV psi at 450 deg F and –20 deg F at 100/FV psi. 304 Stainless steel 1/2 pipe coil jacket rated 150/FV psi at 450 deg F and –20 deg F at 150/FV psi with 3’’ connections. Top entering Chemineer agitator, model 4-HTN-15, 100 output rpm. Approximately 3" diameter shaft with a 4 blade turbine, driven by a 2.5-15 hp, 3/10-60/84-460 volt, 255-1770 rpm XP motor. (4) Sidewall baffles. Openings: top (5) 2", (2) 4", 8", 10", 12" drive, 4" sight glass, 4" sight glass, 18" manway with a Davited cover; 4" center bottom outlet. Mounts on 4 side lugs.
