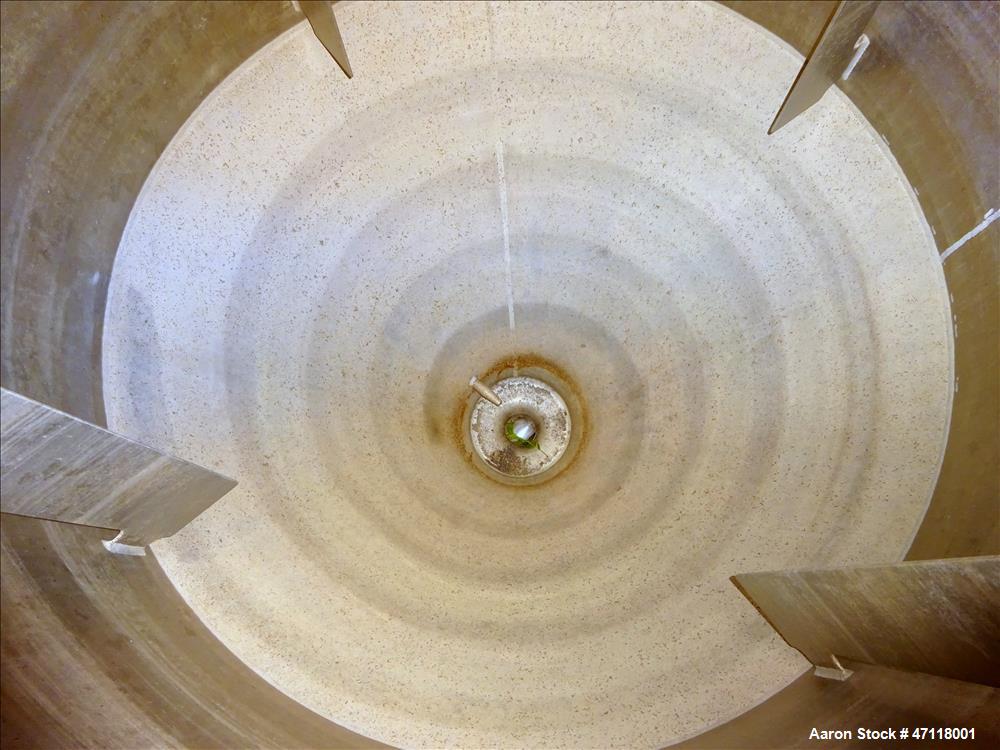

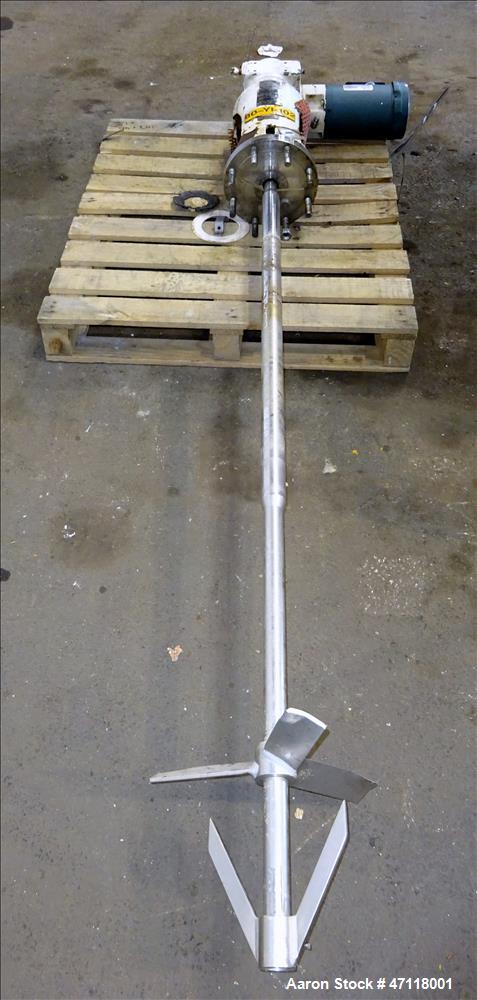

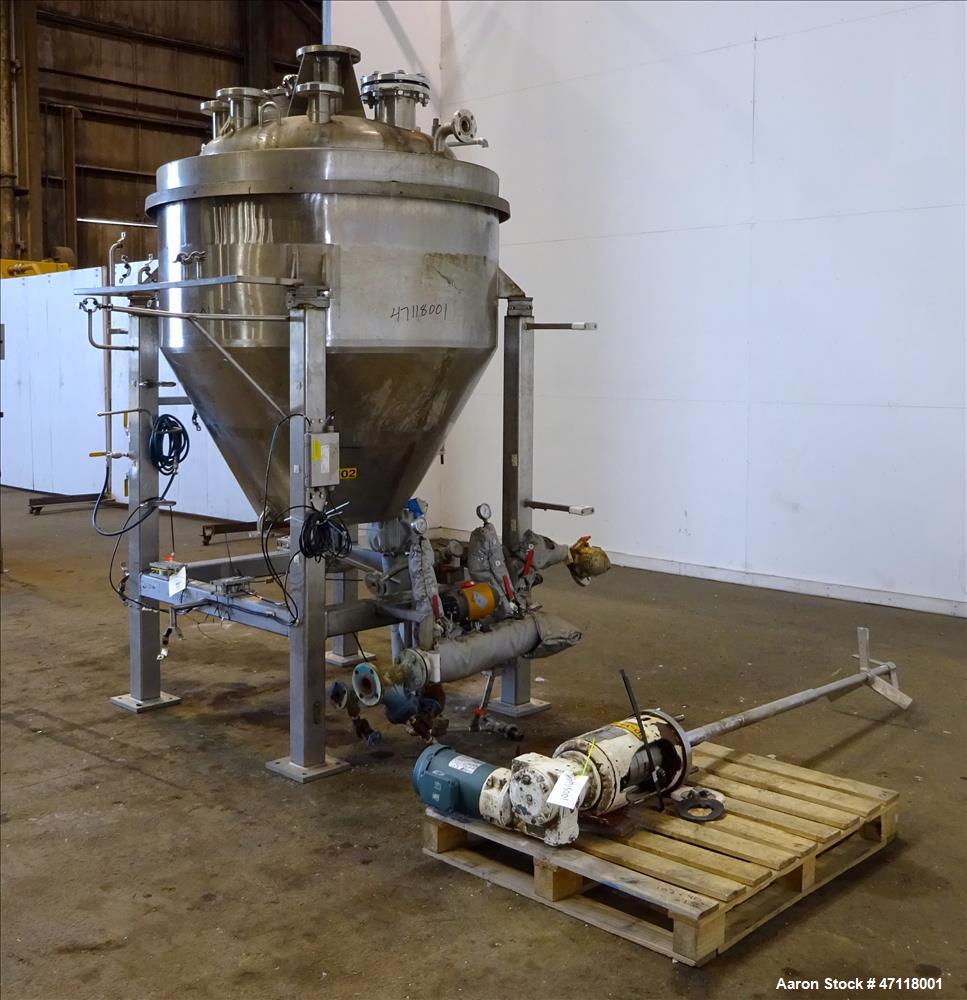

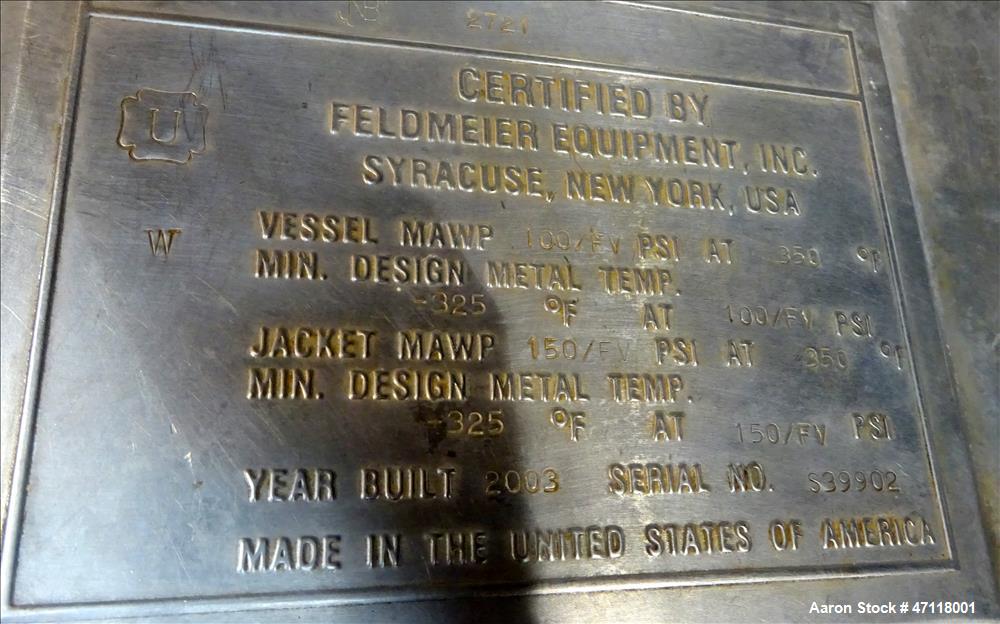

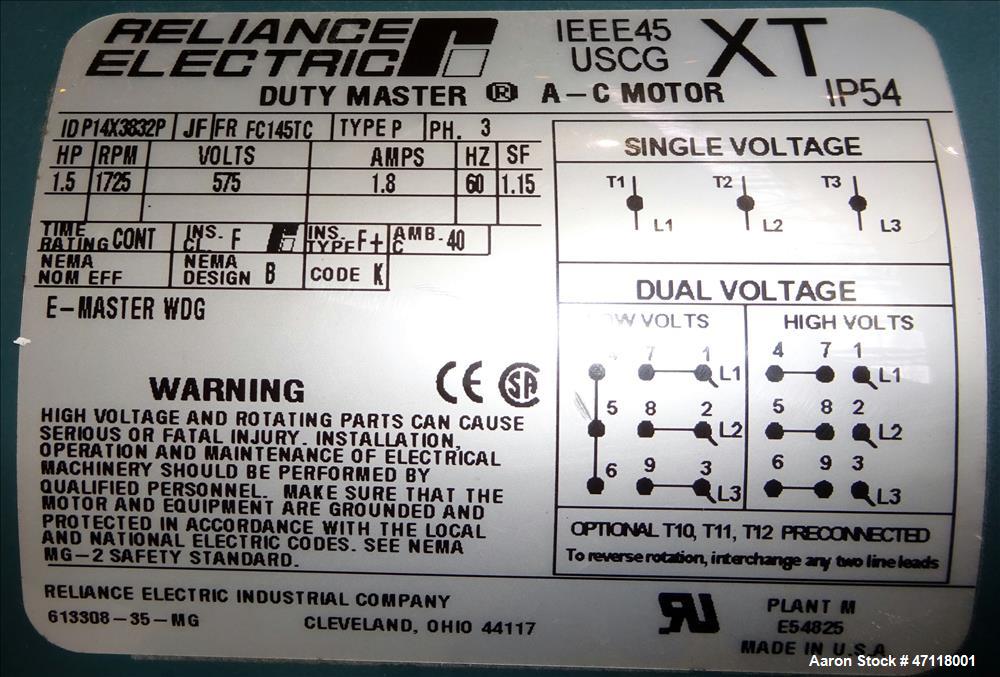

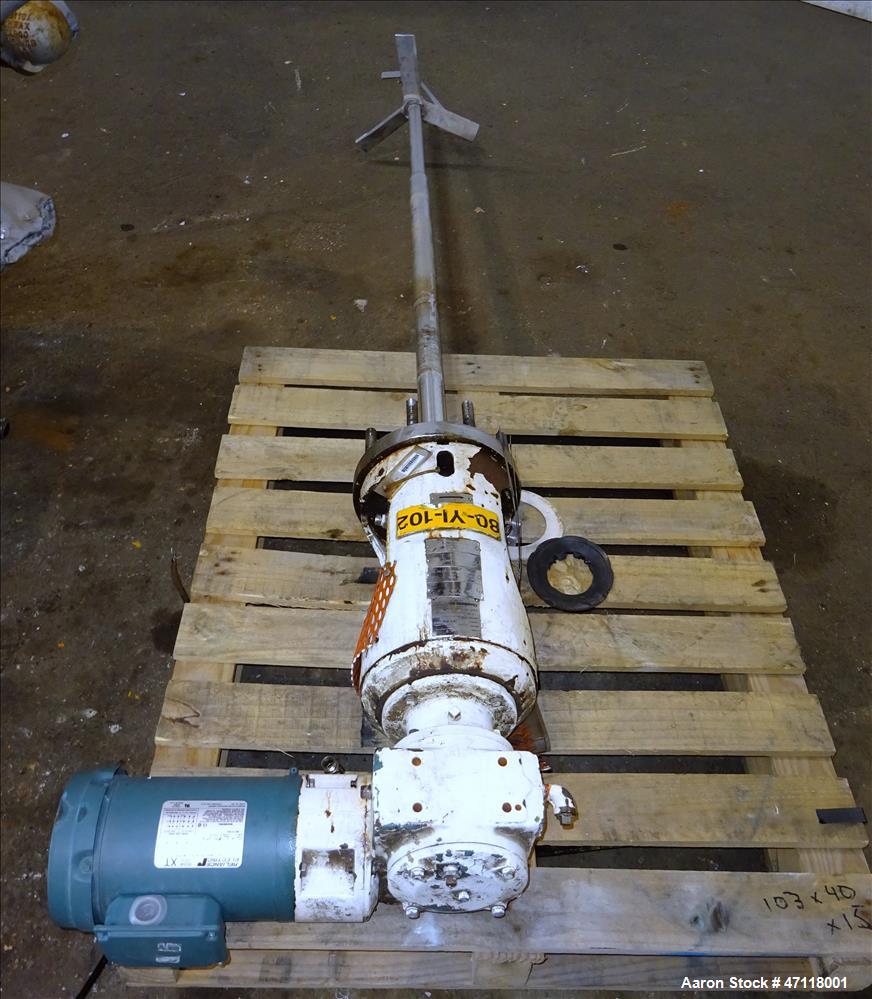

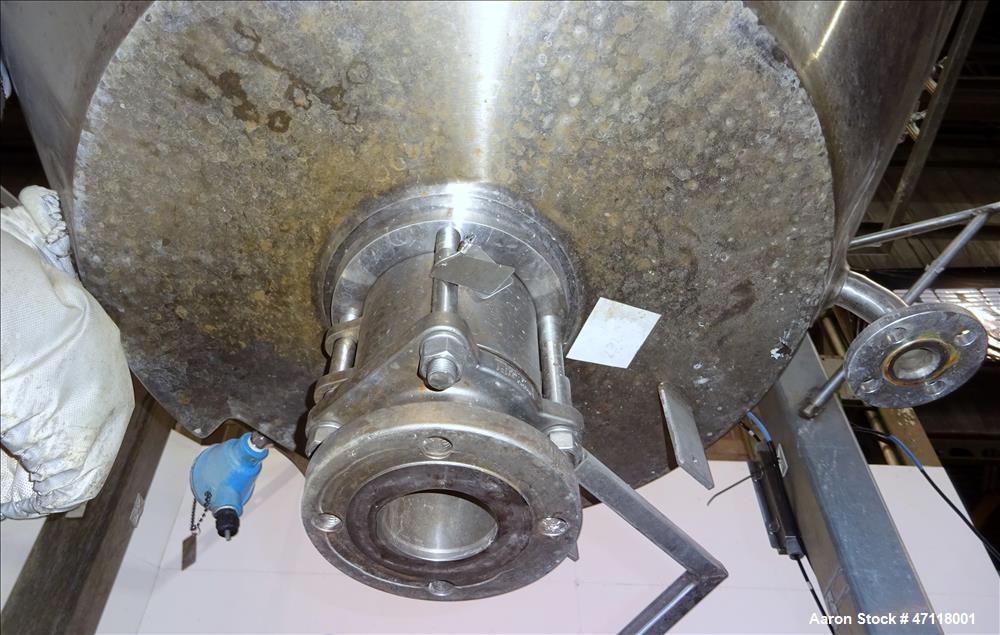

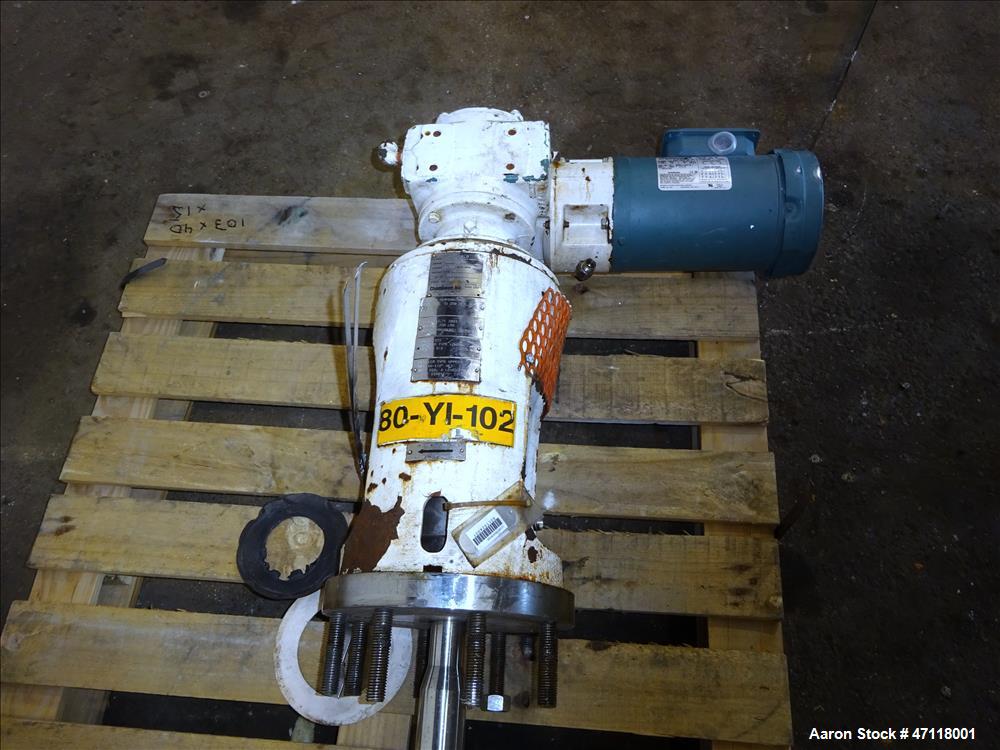

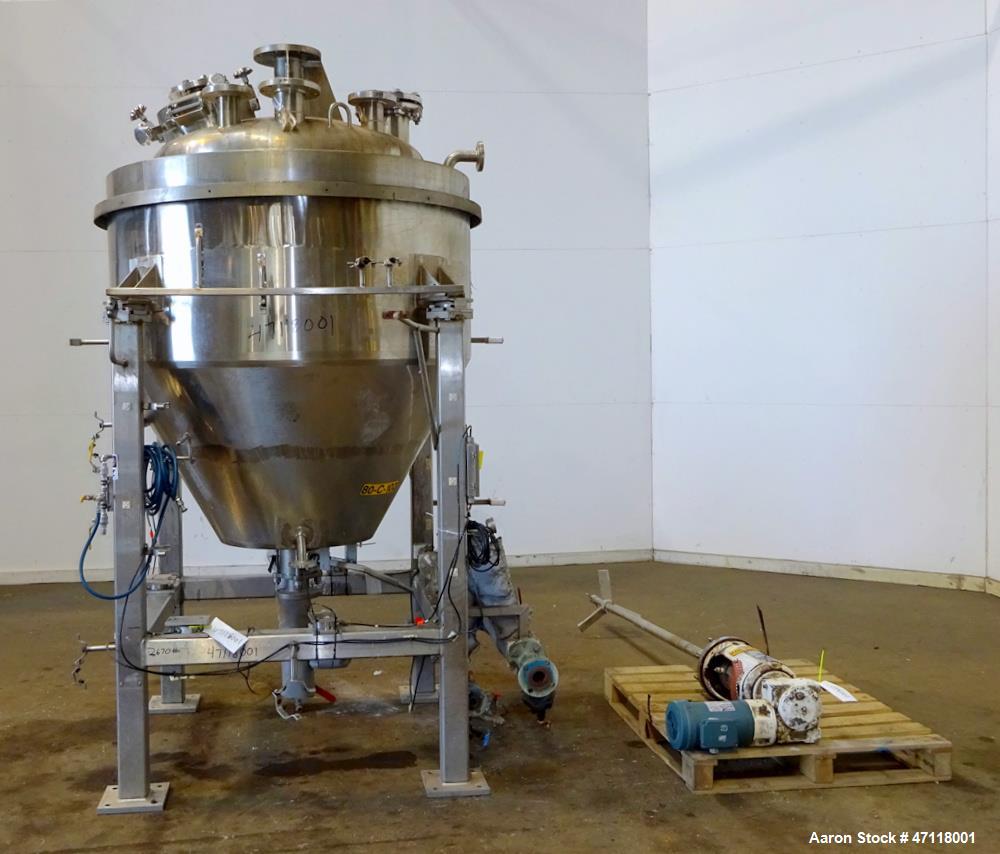

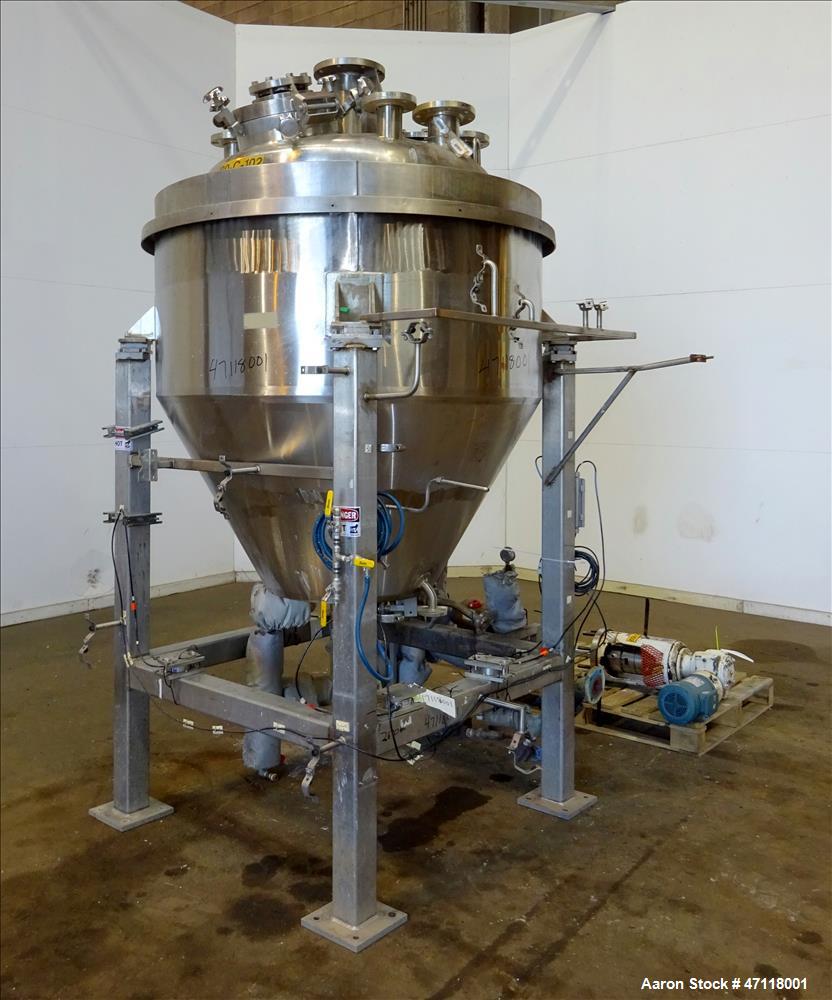

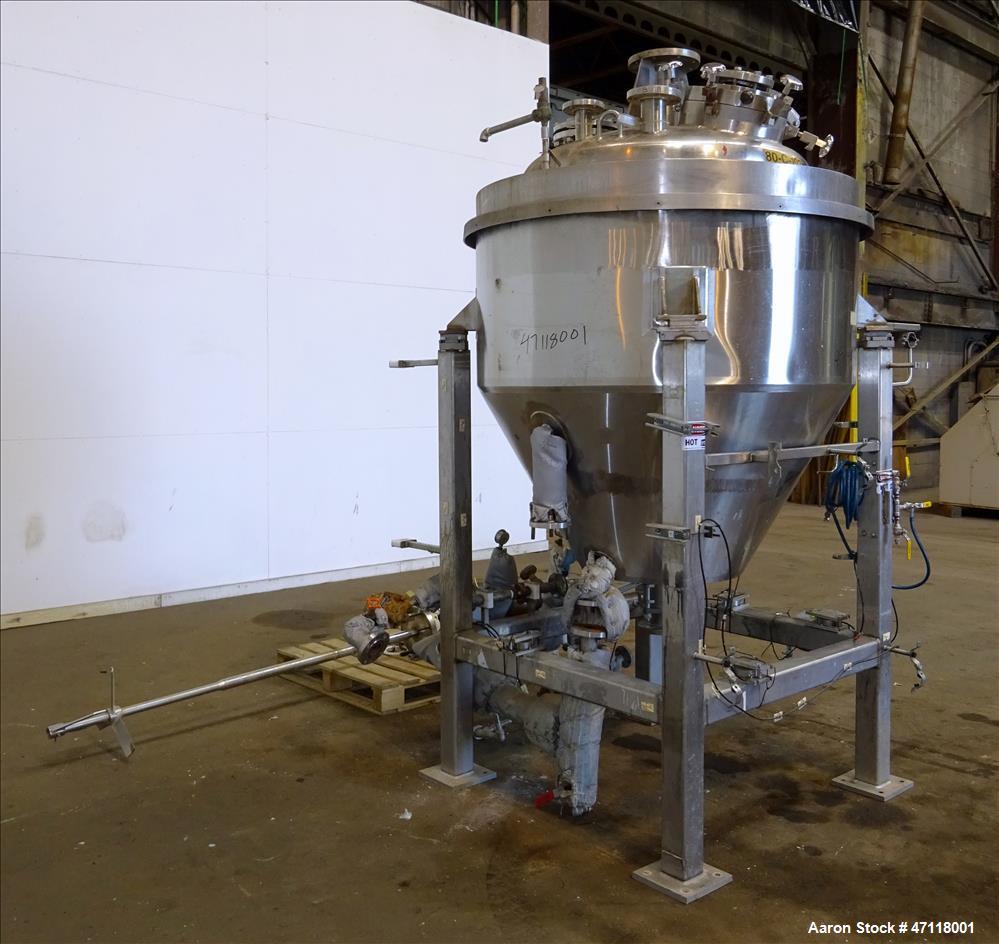

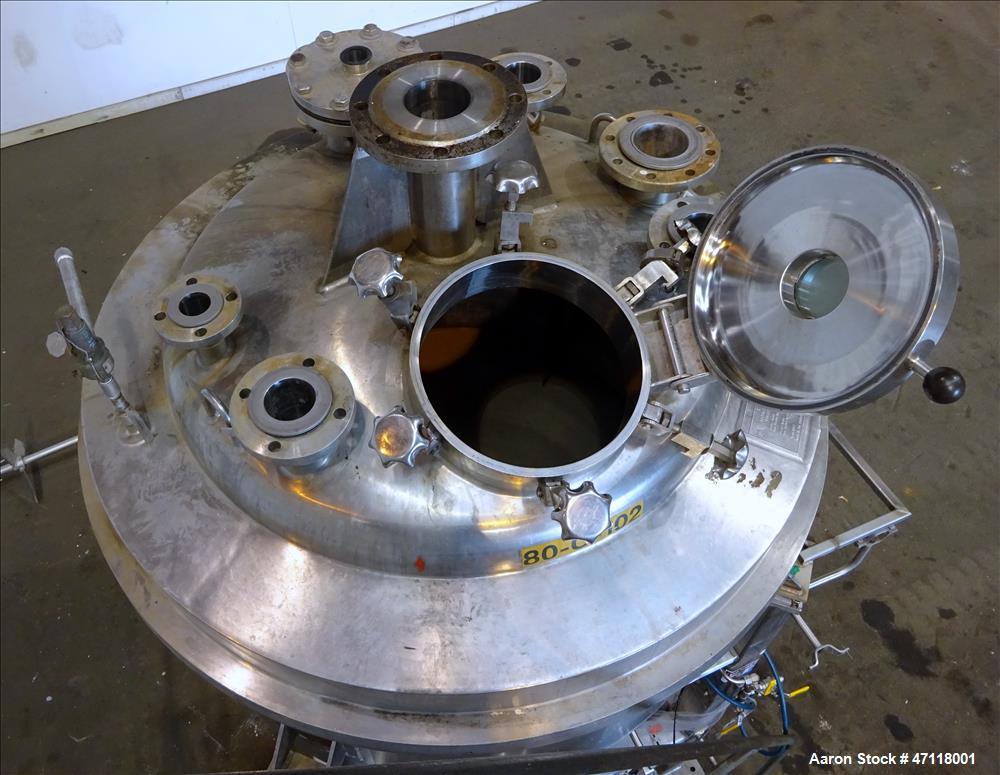

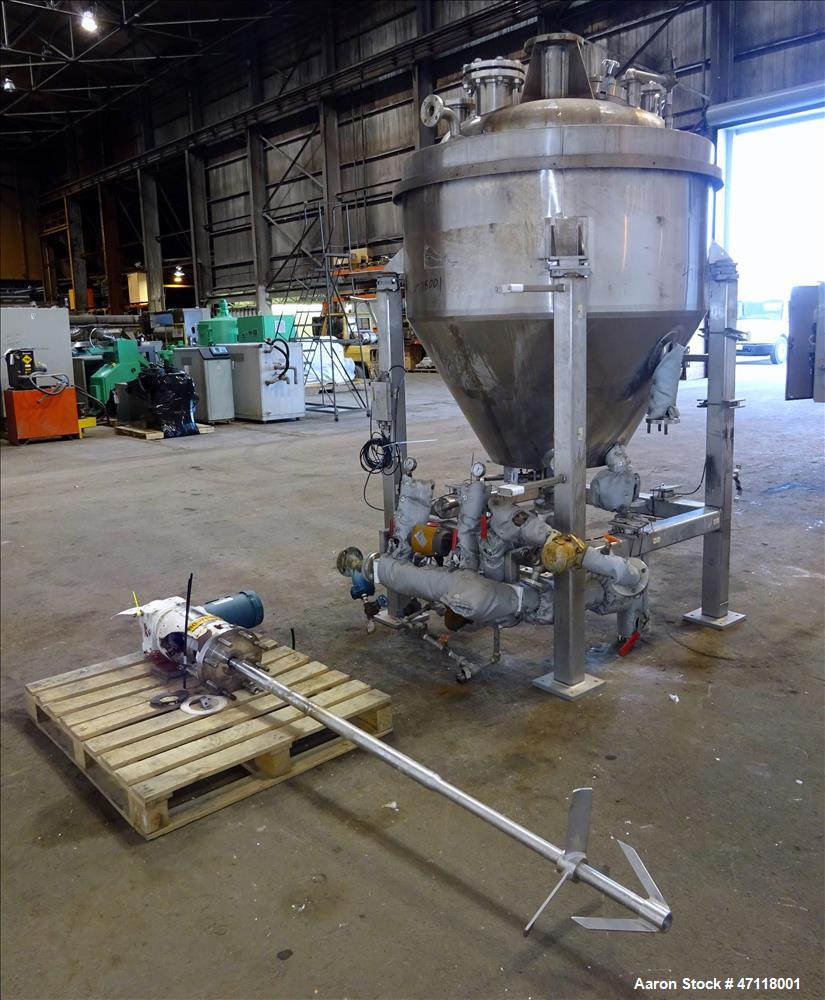

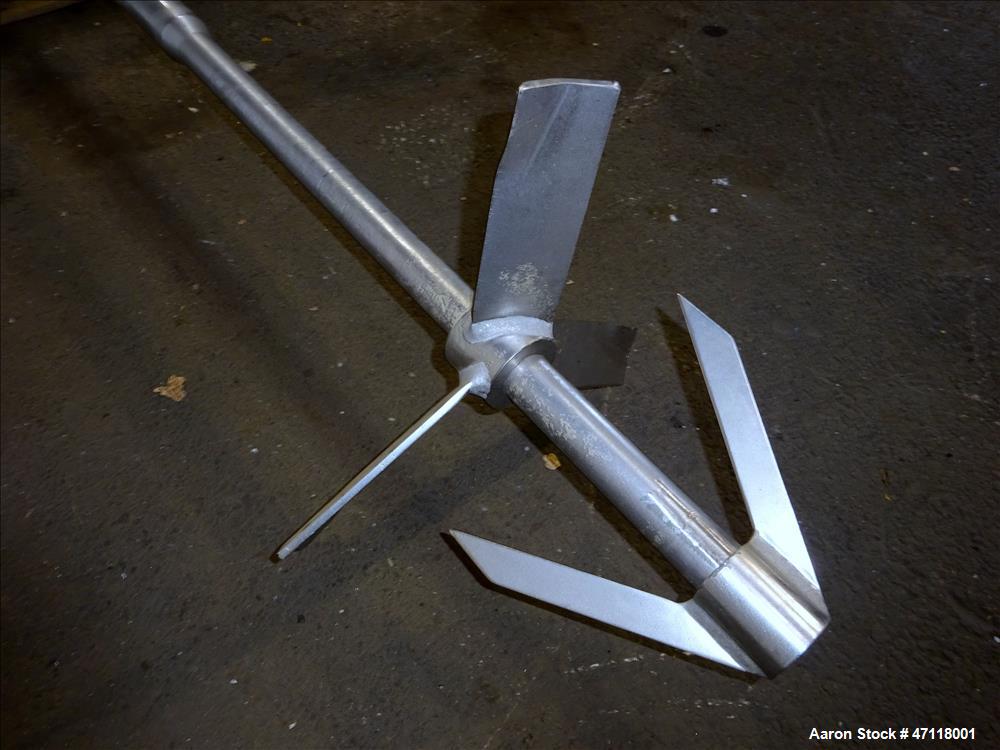

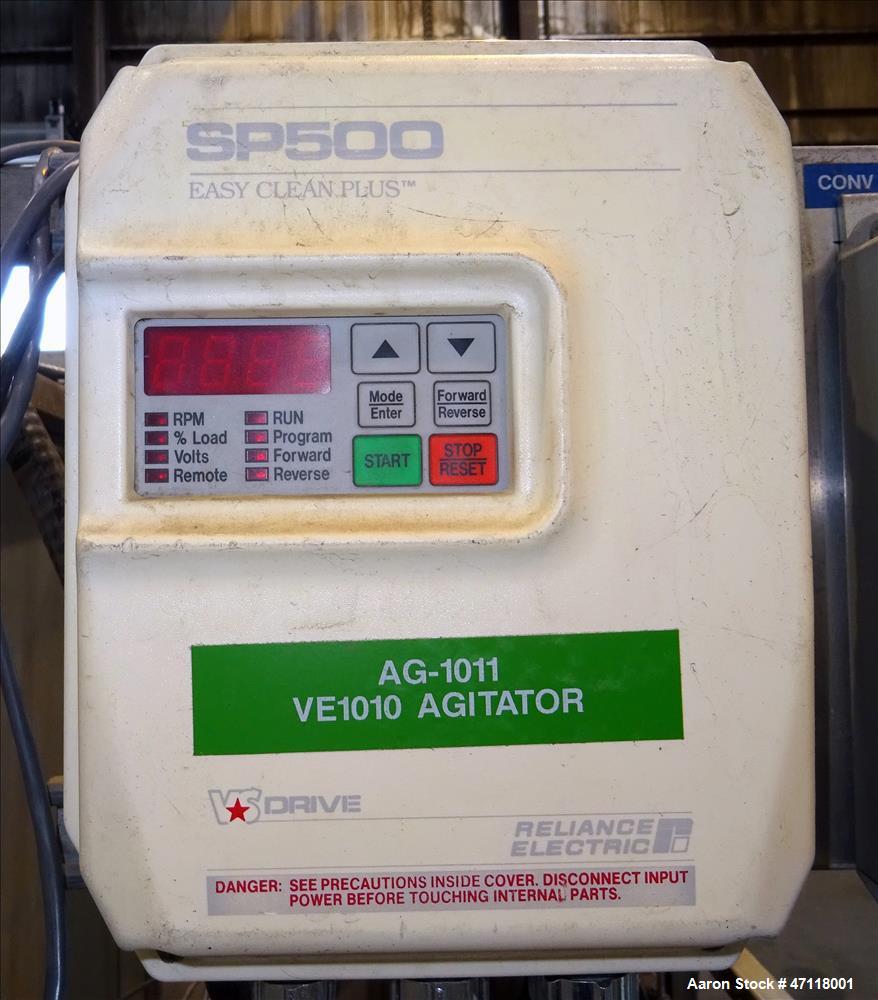

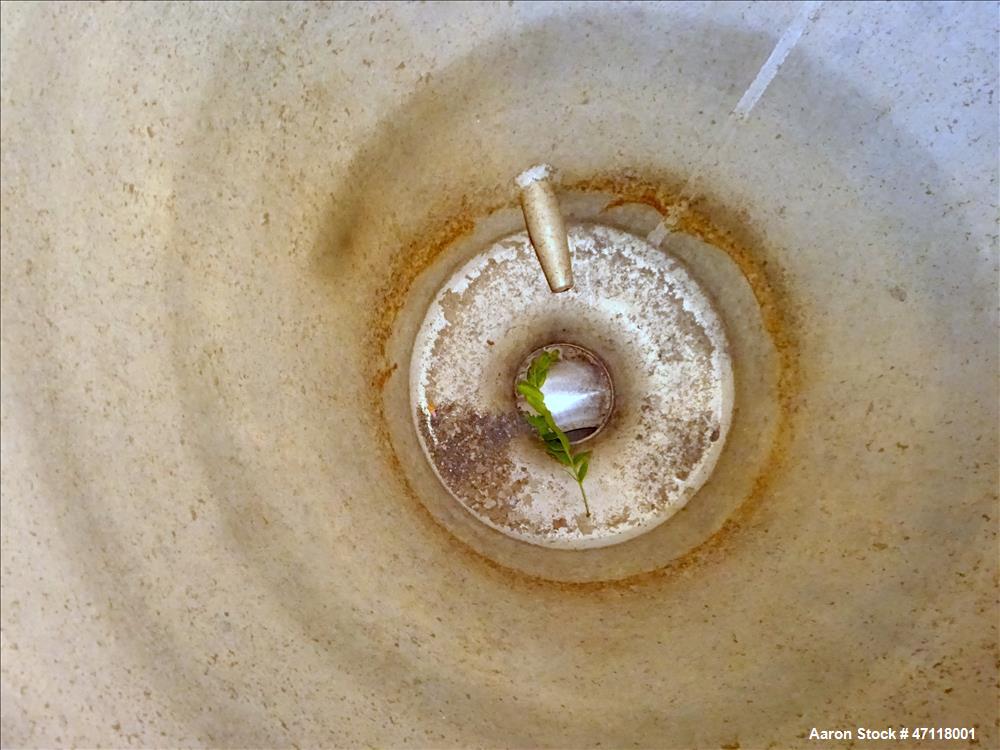

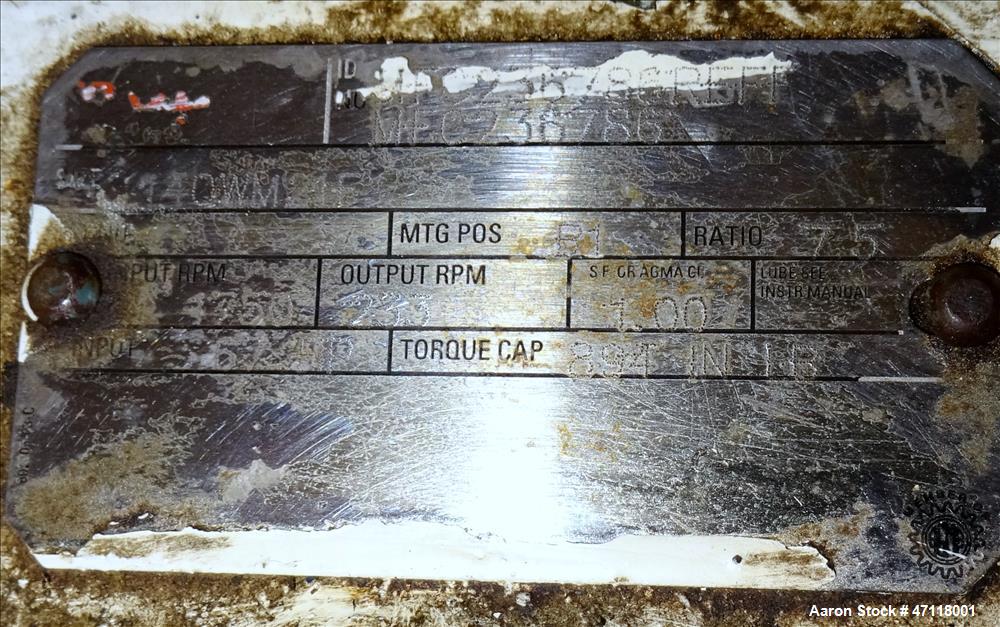

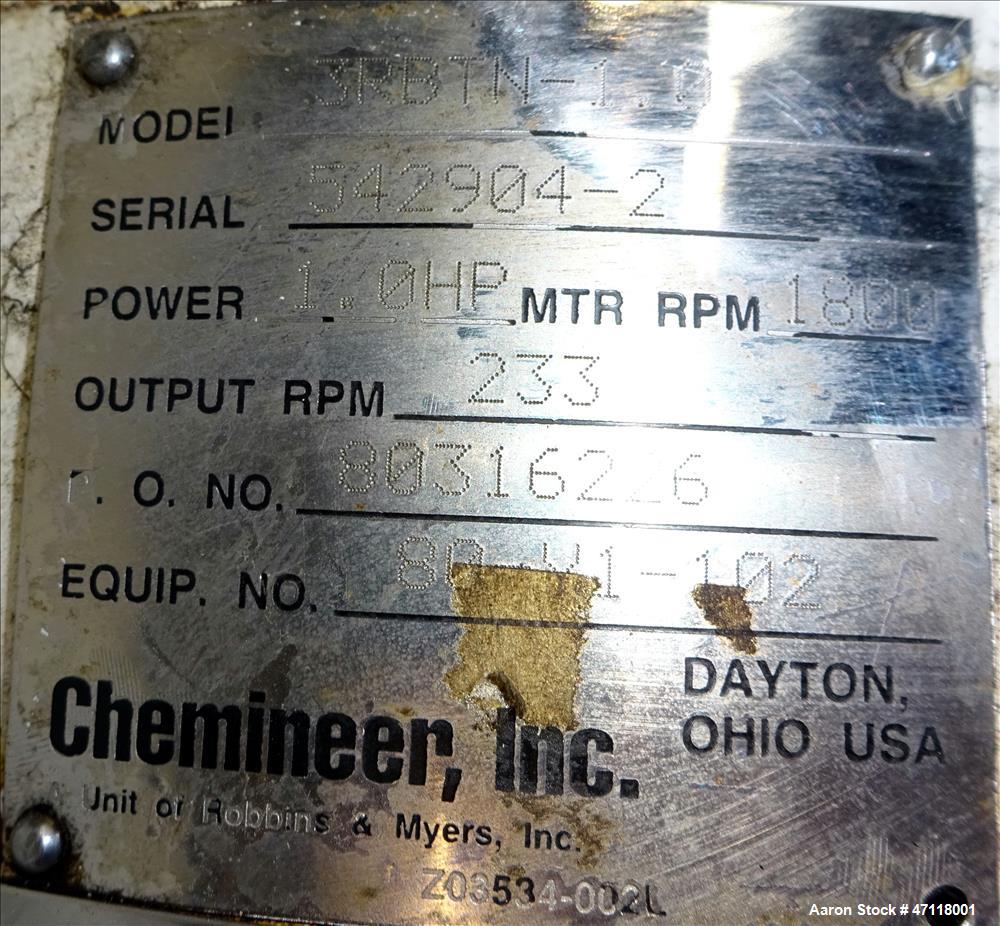

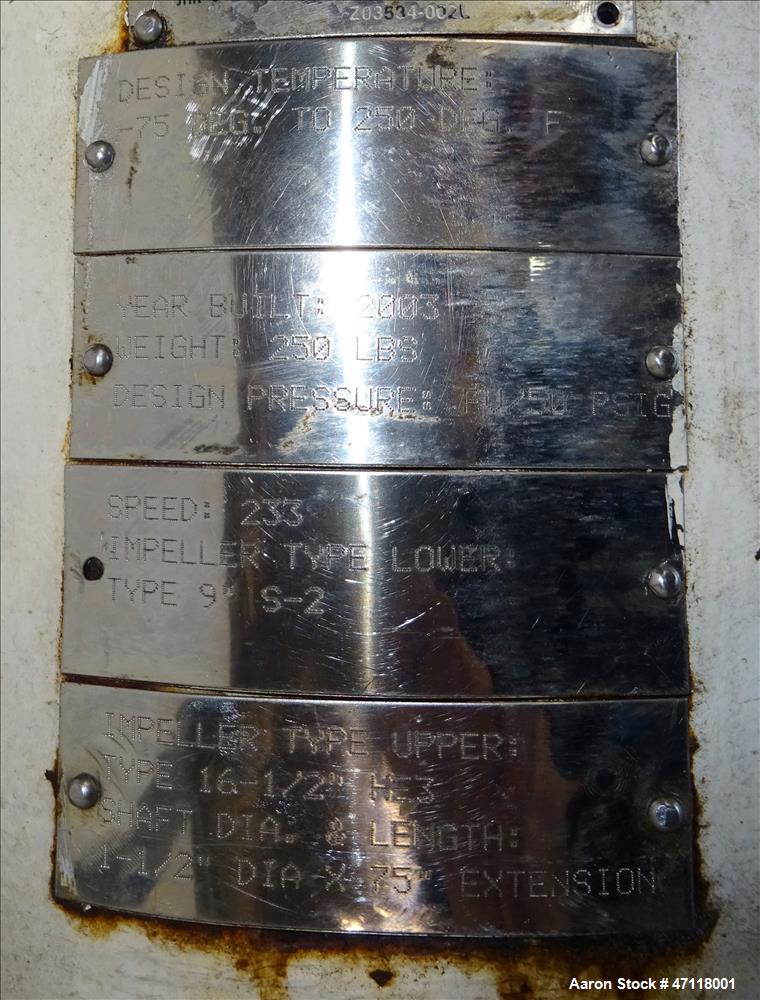

Used Feldmeier Reactor, 250 Gallon, Hastelloy C-276, Vertical. 44" Diameter x 29-1/2" straight side, dished top, 60 degree coned bottom. Internal rated 100/Full Vacuum at -325 to 350 degrees F. 304L Stainless steel 1/2 pipe coil jacket on side wall and cone rated at 150/Full Vacuum at -325 to 350 degrees F. Insulated with 6" chloride and asbestos free fiberglass, and 316L stainless steel sheathing. Top entering Chemineer agitator, Model 3RBTN-1.0, Serial # 542904-2, with mechanical seal, hastelloy C-276 shaft, approximate 76.5" long x 2" diameter with a 3 blade turbine. Driven by a 1.5 hp, 3/60/575 volt, 1725 rpm motor with 7.5:1 gearbox ratio. (4) Sidewall baffles. Openings top 2", (3) 3", 4", 6", 4" drive, 14" man way with a 4" sight glass on the cover. 3" Center bottom outlet. Mounted on a stainless steel frame with 4 legs. Control panel with Allen-Bradley controls and Reliance Electric SP500 drive. Serial # S39902, National Board # 2721. Built 2003.
