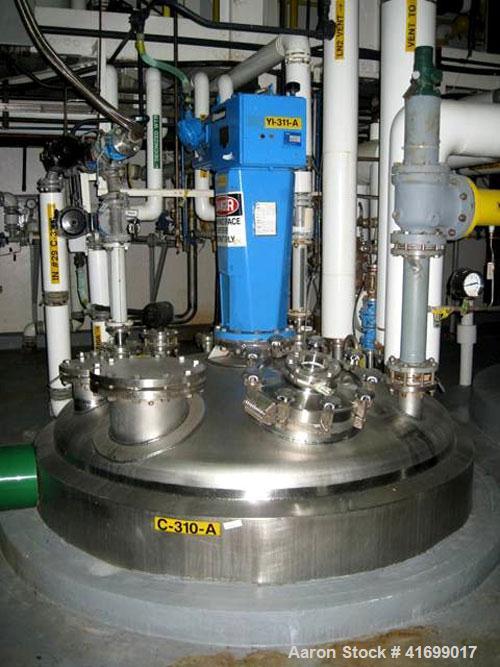

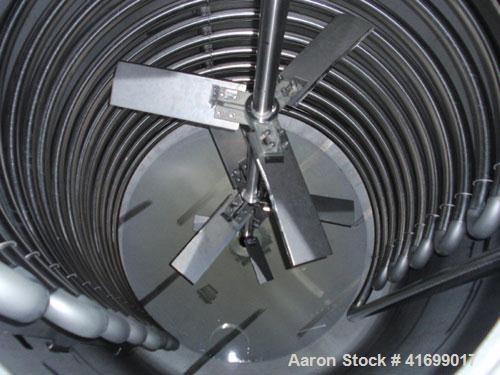

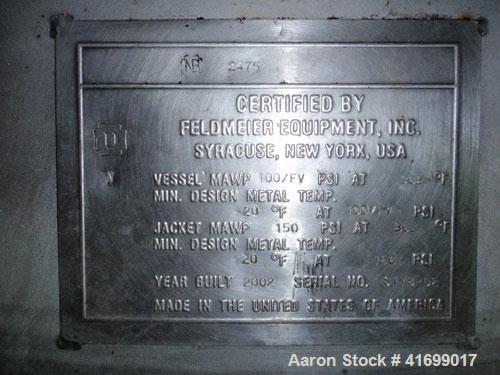

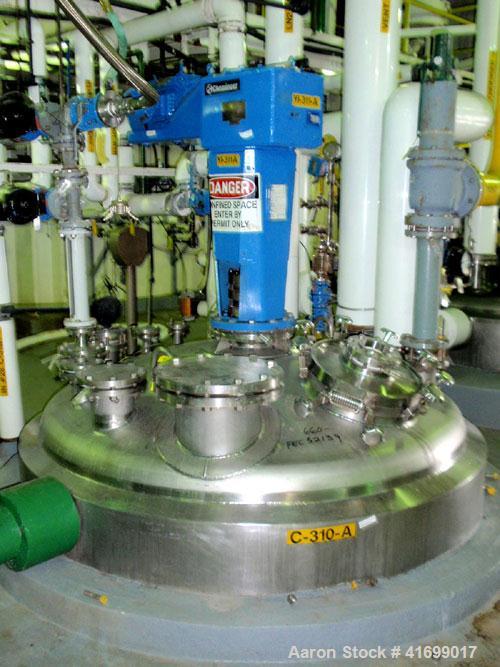

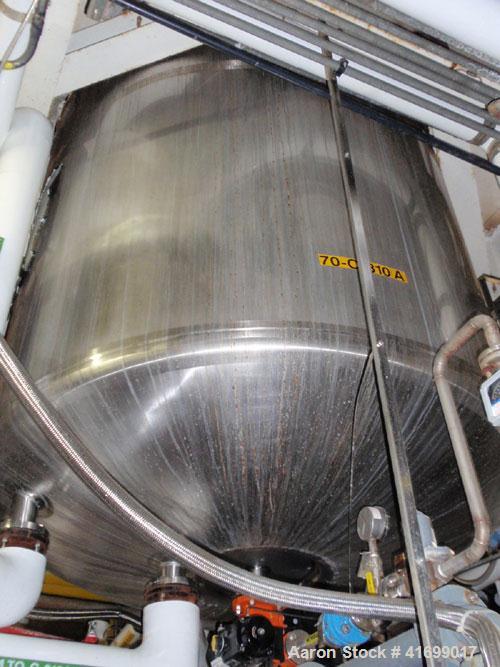

Used Feldmeier Reactor, 2000 Gallon, Hastelloy C22, vertical. 78" diameter x 100" straight side, dished top and bottom. Internal rated 100 psi/FV at 302 deg F and -20 feg F at 100/FV. Jacket rated 150 psi at 302 deg F and -20 deg F at 150 psi. (16) Turns of 3" internal pipe coil on approximately 3/4 of the internal side wall. Chemineer agitator, model 3HT-10, 125 output rpm, mechanical seal. (3) 3 blade turbines, driven by a 15 hp, 230/460 volt motor. Openings: top 1", 2", (3) 2-1/2", (4) 4", 6", 8", 14", 18" manway; 3" center bottom outlet. Built 2002.
