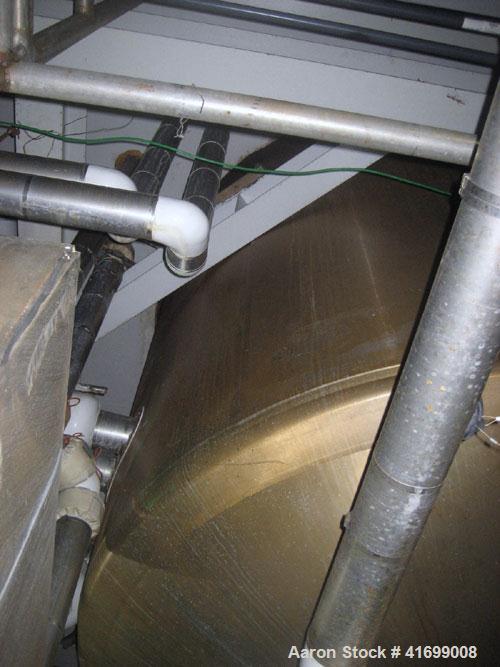

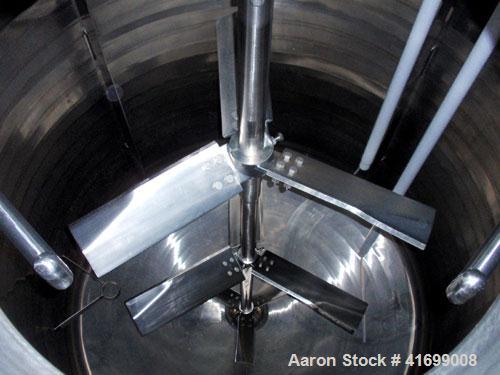

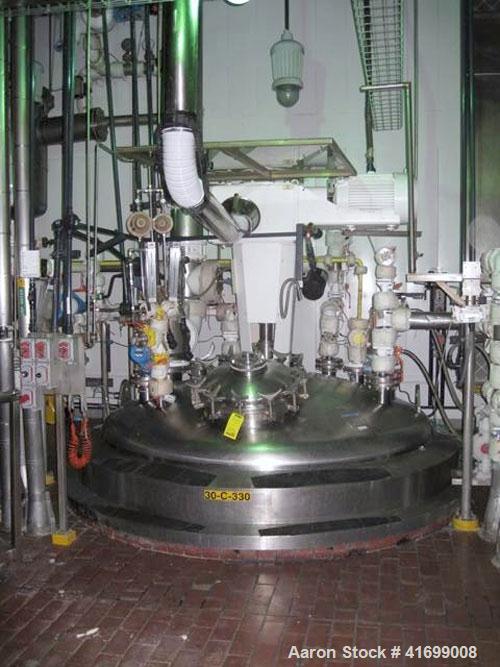

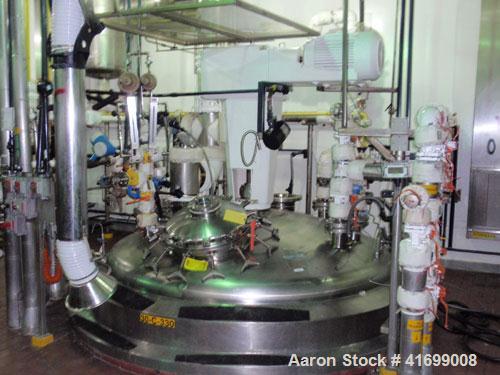

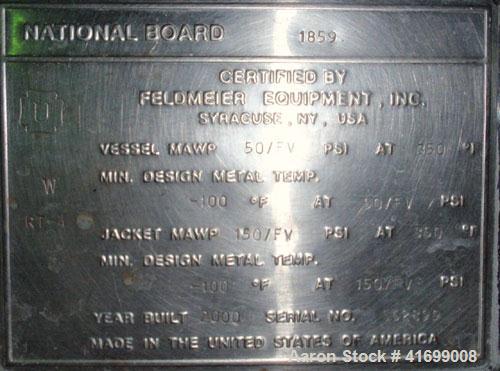

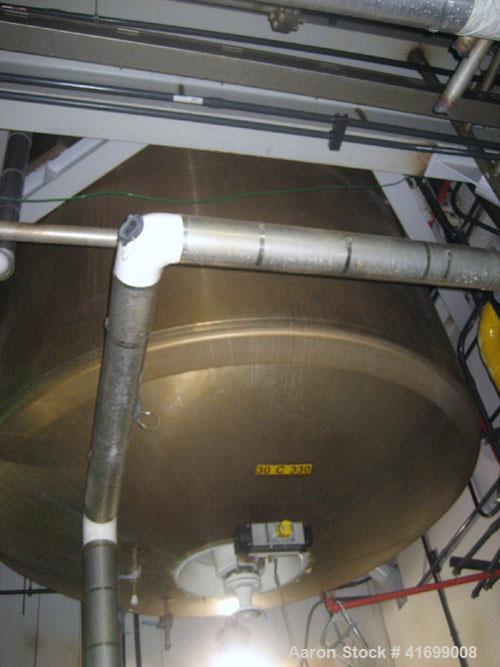

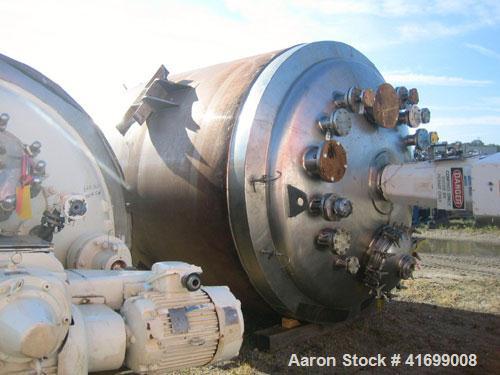

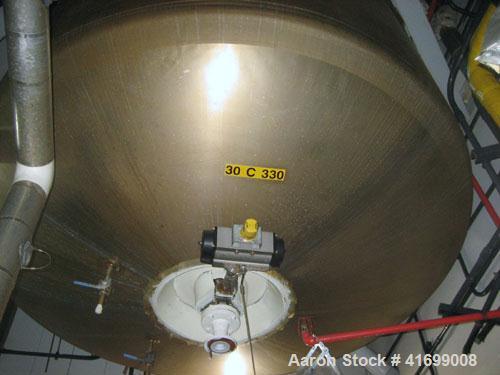

Used Feldmeier Reactor, 3500 Gallon, Hastelloy C22, Vertical. 95-1/4" diameter x 108" straight side, dished top and bottom. Internal rated 50 psi/FV at 350 deg F and -100 deg F at 50 psi/FV, 3" 304 stainless steel 1/2 pipe coil jacket rated 150 psi/FV at 350 deg F and -100 deg F at 150 psi/FV. (4) Haselloy C22 baffles, spray ball. Chemineer agitator, approximate 100 output rpm, (3) 3 blade turbines, driven by a 30 hp motor. 6" Chloride and asbestos free urethane faom insulation with 304 stainless steel sheathing. Openings: top 2", (10) 4", 8", 10", 24" manway; 4" center bottom outlet. Built 2000.
Used Feldmeier Reactor, 3500 Gallon, Hastelloy C22, Vertical. 95-1/4" diameter x 108" straight side, dished top and bottom. Internal rated 50 psi/FV at 350 deg F and -100 deg F at 50 psi/FV, 3" 304 stainless steel 1/2 pipe coil jacket rated 150 psi/FV at 350 deg F and -100 deg F at 150 psi/FV. (4) Haselloy C22 baffles, spray ball. Chemineer agitator, approximate 100 output rpm, (3) 3 blade turbines, driven by a 30 hp motor. 6" Chloride and asbestos free urethane faom insulation with 304 stainless steel sheathing. Openings: top 2", (10) 4", 8", 10", 24" manway; 4" center bottom outlet. Built 2000.
