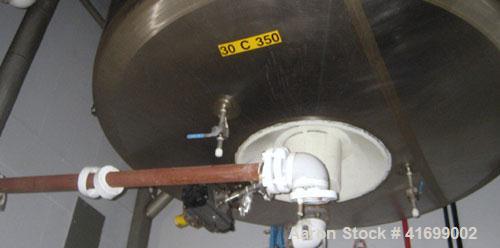

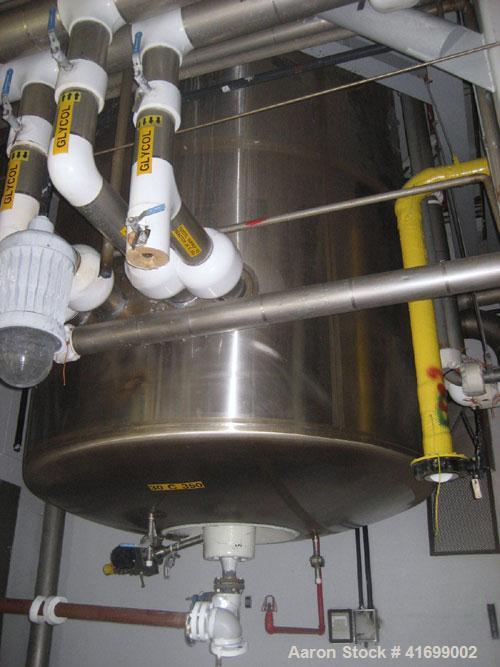

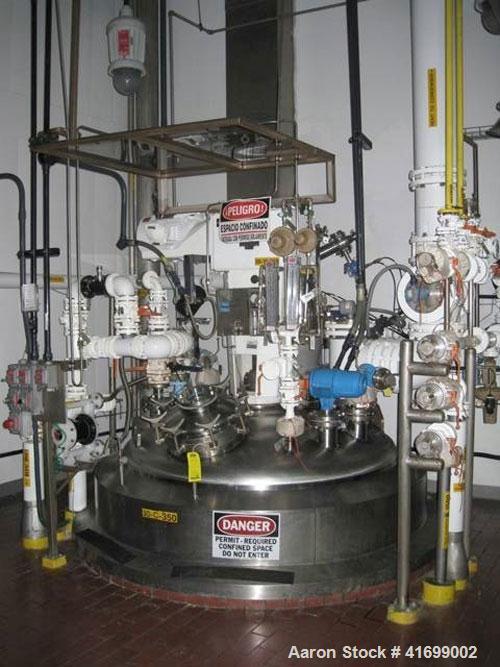

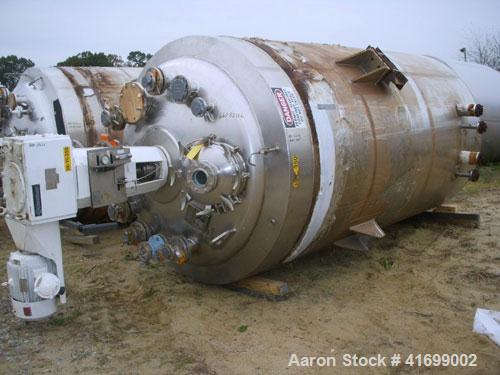

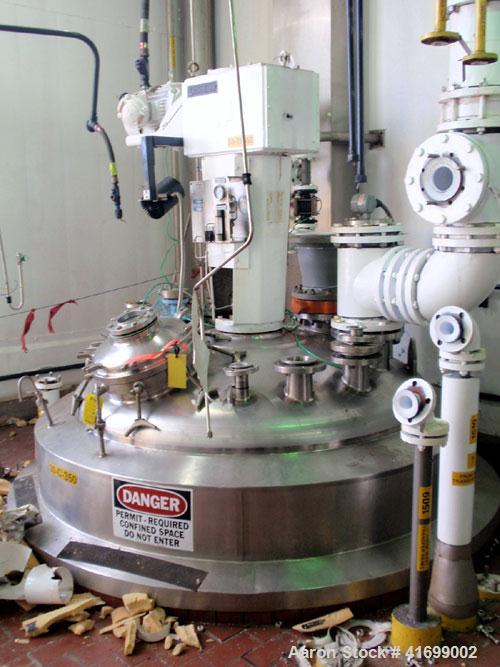

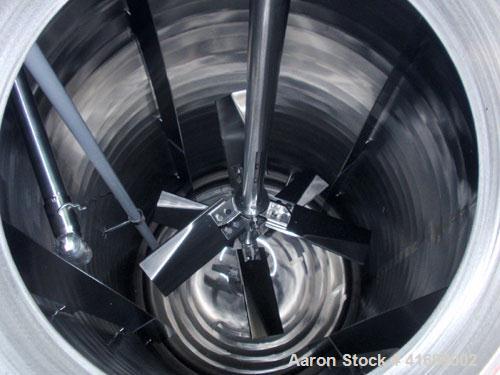

Used Feldmeier Reactor, 2500 Gallon, Hastelloy C22, Vertical. 71-3/4" diameter x 143" straight side, dished top and bottom. Mechanically polished to 180 grit finished internal rated 50 psi/FV at 350 deg.f., and -100 deg.f. at 50psi/FV, 304 stainless steel 3" half pipe coil jacket rated 150 psi/FV at 350 deg.f., and -100 deg.f. at 150psi/FV. Insulated with chloride, and asbestos free urethane foam, and 304 stainless steel sheathing. (4) 1/4" thick x 6" wide side wall baffles, 1" off tank sidewall, (1) spray ball. Top entering Chemineer agitator, 100 output rpm, with 3 blade turbines, driven by a 15 hp motor. Openings top (2) 1/2" NPT, 2", (7) 4", 8", 10", 8" drive, 18" manway with a 4" sight glass in the cover. 3" center bottom outlet. Side lug mounts.
Used Feldmeier Reactor, 2500 Gallon, Hastelloy C22, Vertical. 71-3/4" diameter x 143" straight side, dished top and bottom. Mechanically polished to 180 grit finished internal rated 50 psi/FV at 350 deg.f., and -100 deg.f. at 50psi/FV, 304 stainless steel 3" half pipe coil jacket rated 150 psi/FV at 350 deg.f., and -100 deg.f. at 150psi/FV. Insulated with chloride, and asbestos free urethane foam, and 304 stainless steel sheathing. (4) 1/4" thick x 6" wide side wall baffles, 1" off tank sidewall, (1) spray ball. Top entering Chemineer agitator, 100 output rpm, with 3 blade turbines, driven by a 15 hp motor. Openings top (2) 1/2" NPT, 2", (7) 4", 8", 10", 8" drive, 18" manway with a 4" sight glass in the cover. 3" center bottom outlet. Side lug mounts.
