Used- Alloy Fab Reactor, 2000 gallon, Hastelloy C22, vertical. 78" diameter x 84" straight side, 2:1 elliptical top and bot...

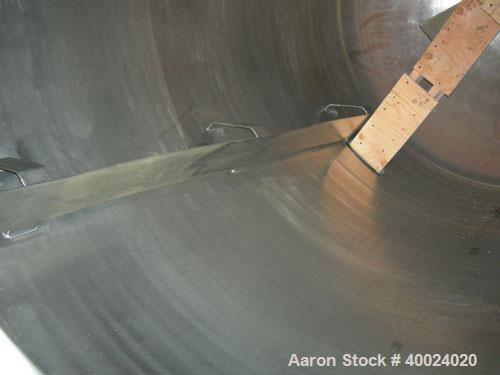

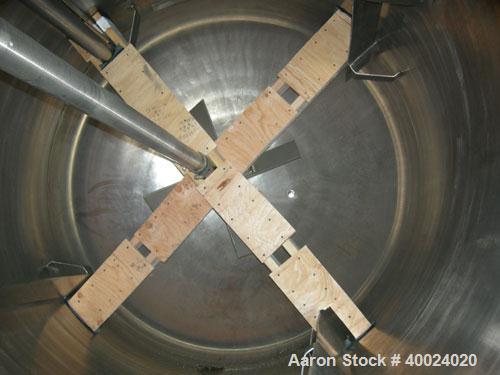

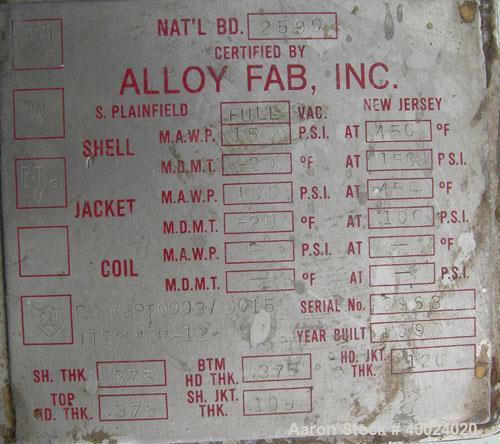

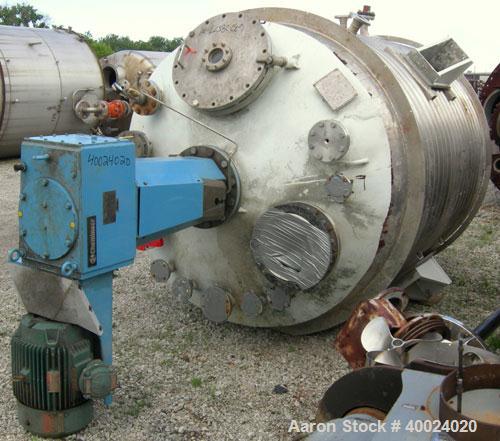

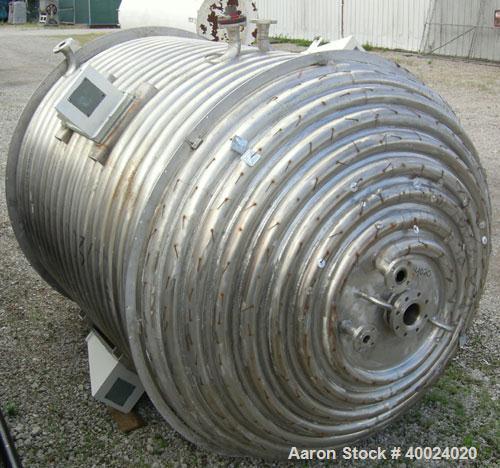

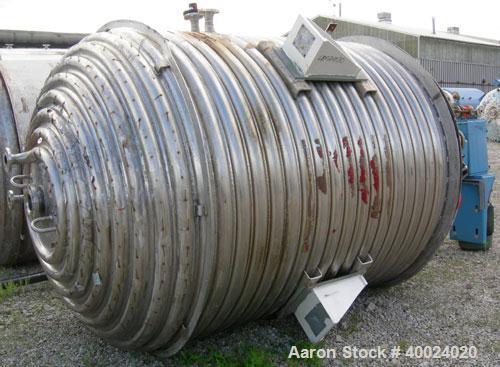

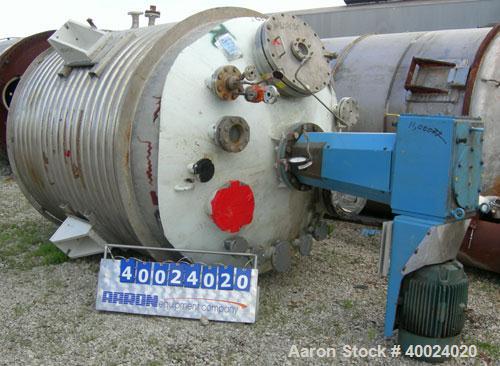

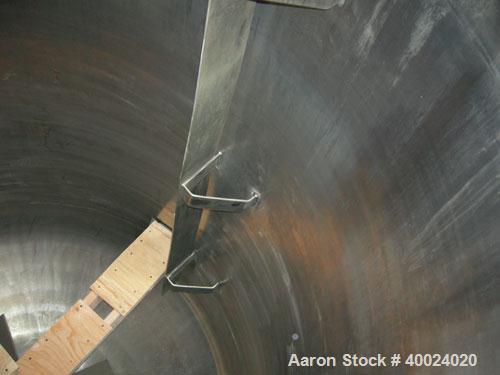

Used- Alloy Fab Reactor, 2000 gallon, Hastelloy C22, vertical. 78" diameter x 84" straight side, 2:1 elliptical top and bottom. Internal rated 150 psi/fv at 450 deg.f., 316L stainless steel 3" 1/2 pipe coil jacket rated 100 psi at 450 deg.f.. Chemineer agitator, model 4HTN-15,125/25 rpm. 3" diameter shaft with a 4 blade turbine and mechanical seal, driven by a 15hp, 3/60/230/460 volt, 1800 rpm XP motor. Openings top (6) 2", (4) 4", 8", 12", 12" drive, 20" manway,with a 4" sight glass in the cover. 4" center bottom outlet. Side lug mounts. Serial# 3963, National Board# 2590, built 1999.
