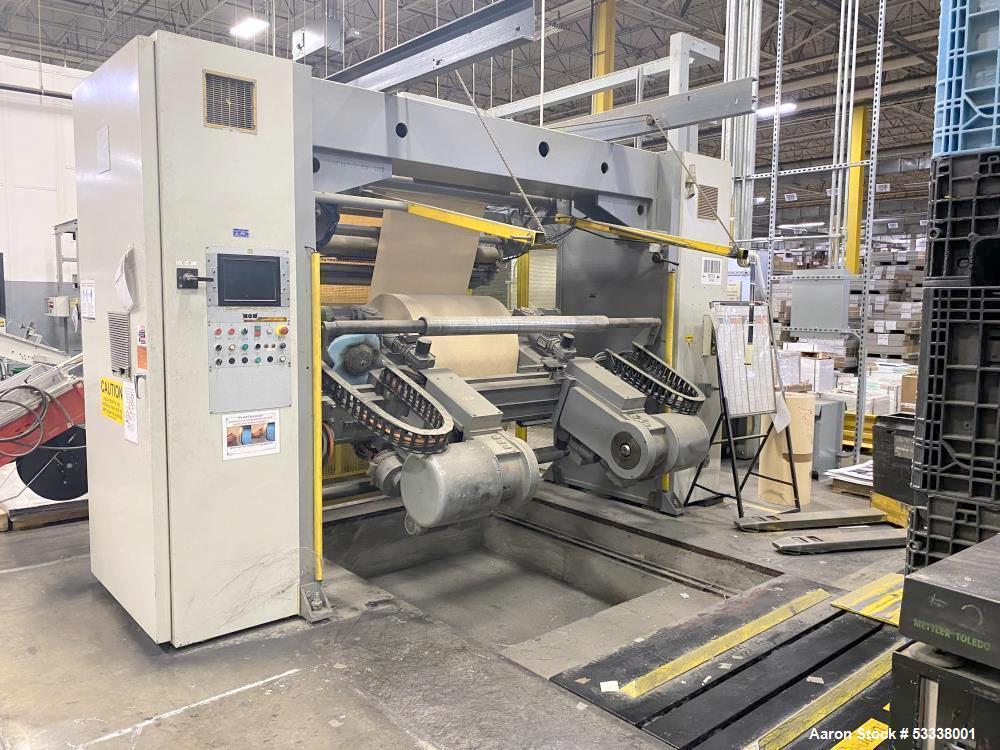

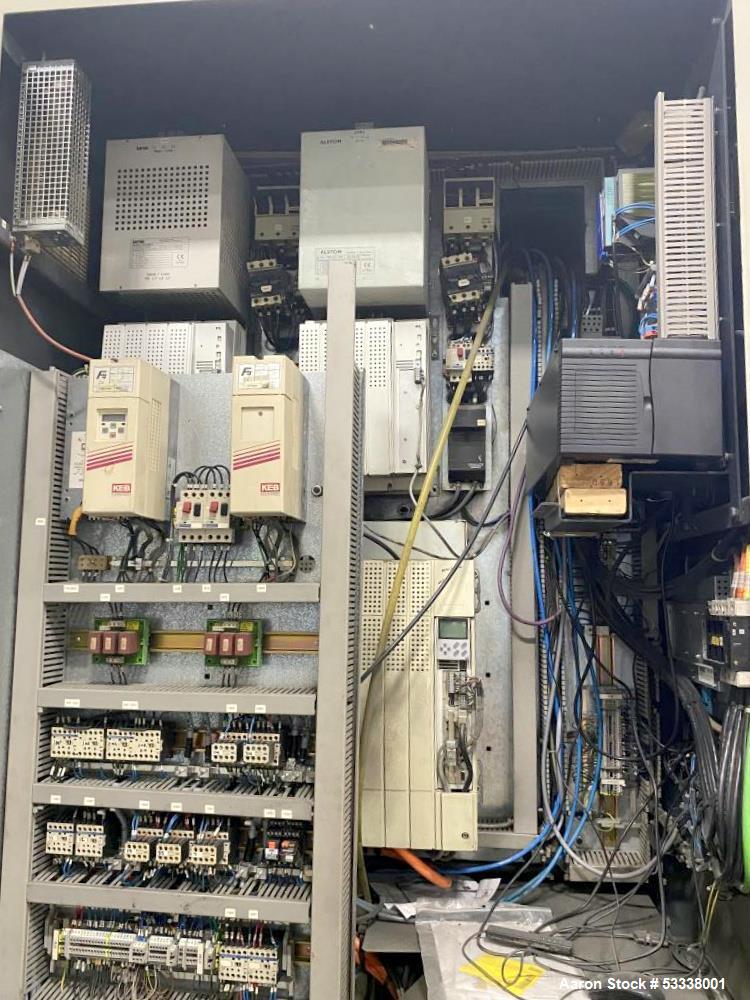

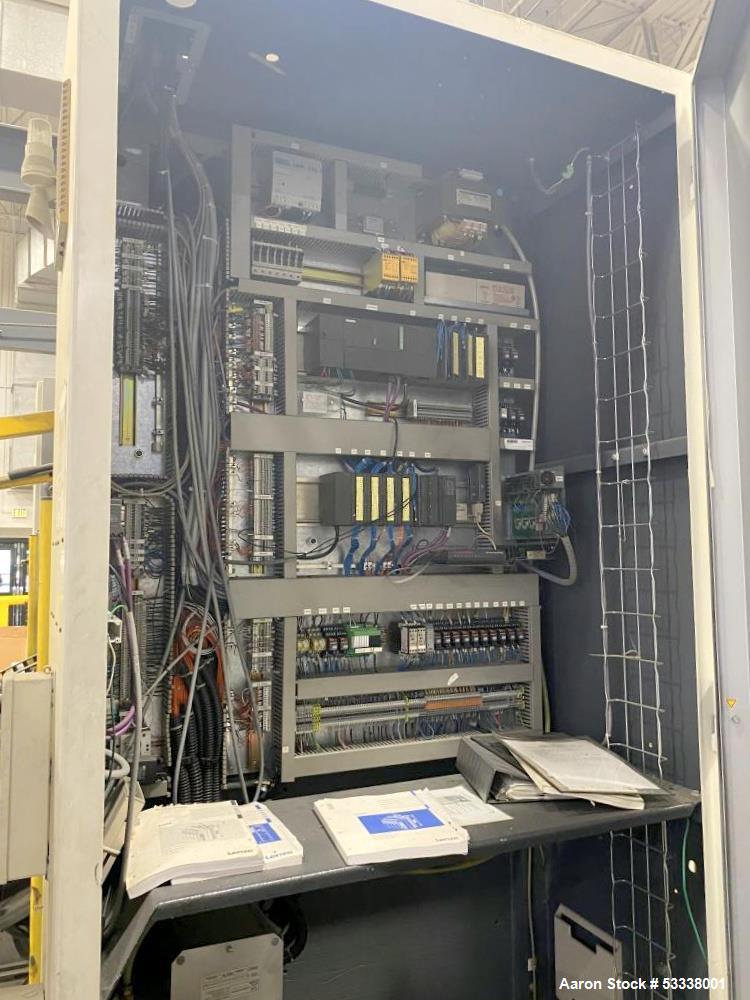

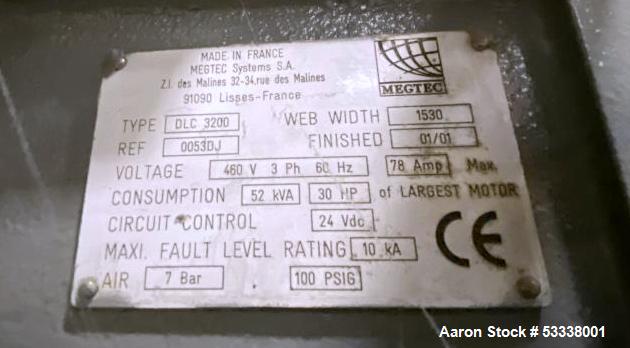

Used Megtec Splicer-Flying Paster, Model DLC 3200. 7190 lbs max. roll weight; 3350 fpm max. running and splicing speed; 165 fpm min. slicing speed; +/- 20 mm sidelay adjustment; 51" max roll diameter; 20" min. roll diameter; 10" min. roll width for splice"; 1530 web width; 3" roll core inner diameter; 11-66 lbs standard tension range; 330 fpm/s E-stop rate; 25-100lbs paper weight range. Straight, V, or W splice pattern. Flying paster with (2) arms; core acceleration and braking by 4 quadrant AC motors; control and regulation by PLC; Black pasting tabs with photo cell detection; simultaneous cut and past under tension; local push-button panel and WEBVIEW; simple roll loading directly from floor into arms; Arm automatic positioning; Automatic roll alignment before splicing; Normal symmetric arrangement for center loading; MEGTEC motorized web-up device; Manual cocking roller adjustment to assist running deforemed rolls; Independent frames. 3/60/460V. Built 2001.
Labels, Packaging, Packaging Equipment, Paper Production, Printing
Used Megtec Splicer-Flying Paster, Model DLC 3200. 7190 lbs max. roll weight; 3350 fpm max. running and splicing speed; 165 fpm min. slicing speed; +/- 20 mm sidelay adjustment; 51" max roll diameter; 20" min. roll diameter; 10" min. roll width for splice"; 1530 web width; 3" roll core inner diameter; 11-66 lbs standard tension range; 330 fpm/s E-stop rate; 25-100lbs paper weight range. Straight, V, or W splice pattern. Flying paster with (2) arms; core acceleration and braking by 4 quadrant AC motors; control and regulation by PLC; Black pasting tabs with photo cell detection; simultaneous cut and past under tension; local push-button panel and WEBVIEW; simple roll loading directly from floor into arms; Arm automatic positioning; Automatic roll alignment before splicing; Normal symmetric arrangement for center loading; MEGTEC motorized web-up device; Manual cocking roller adjustment to assist running deforemed rolls; Independent frames. 3/60/460V. Built 2001.
Labels, Packaging, Packaging Equipment, Paper Production, Printing
