Stock #
52647001

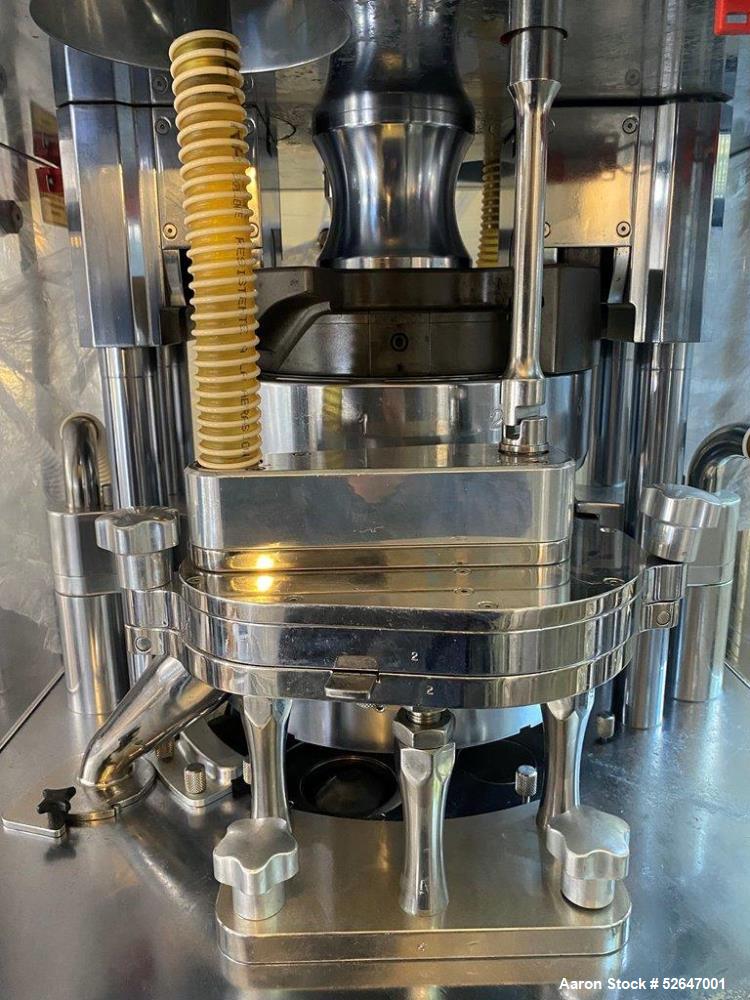

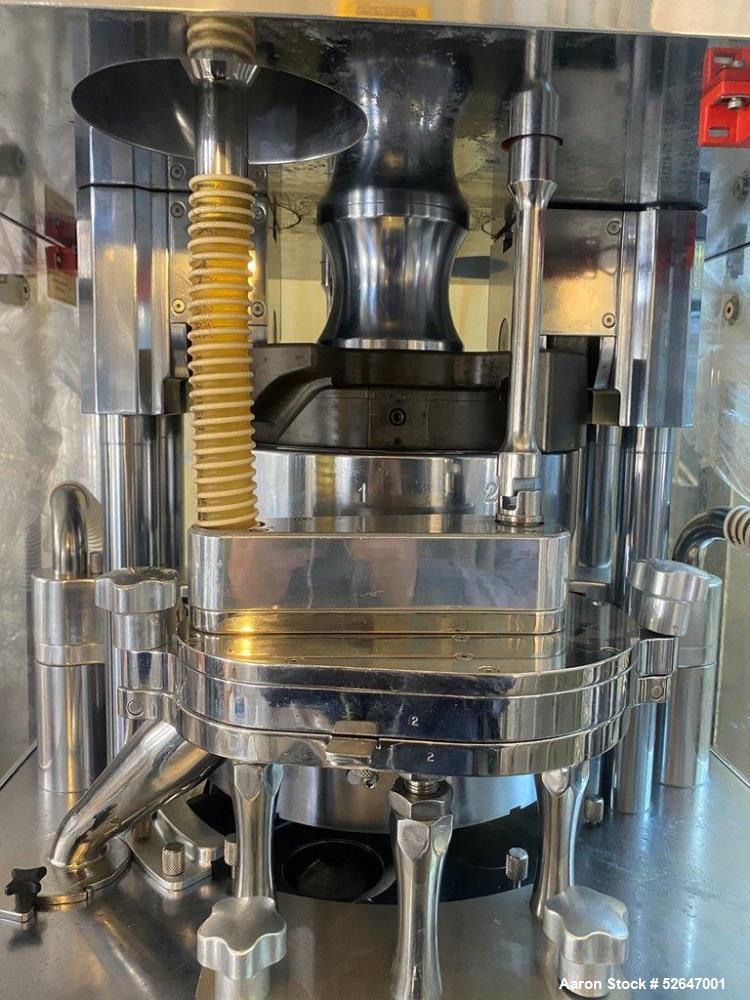

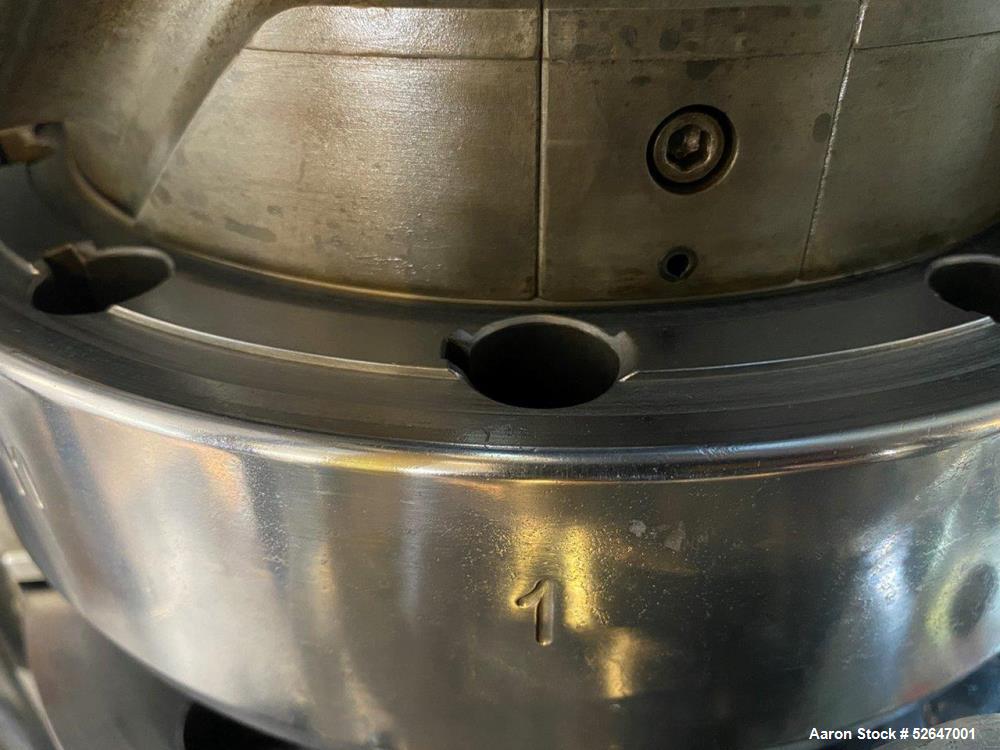

Used Riva Piccola DC Bilayer Tablet Press Model PI-DC, 11 stations, B tooling Serial #030 Built 2005 8Kn max compression PDF of Mechanical Manual Included Dual Force Feeders and Dual gravity feeders 2 Large hoppers and 2 small hoppers 4 feeder/hopper configurations obtainable based on the desired use 33,000 Tablets per hour max production 16mm Max tablet Diameter 19mm Maximum Load depth first layer 8mm Maximum Load depth second layer PLC controls with SMI data collection software "The Director" passwords included for turn-key operation 163 hours run time.
Used Equipment Facts About This Machine

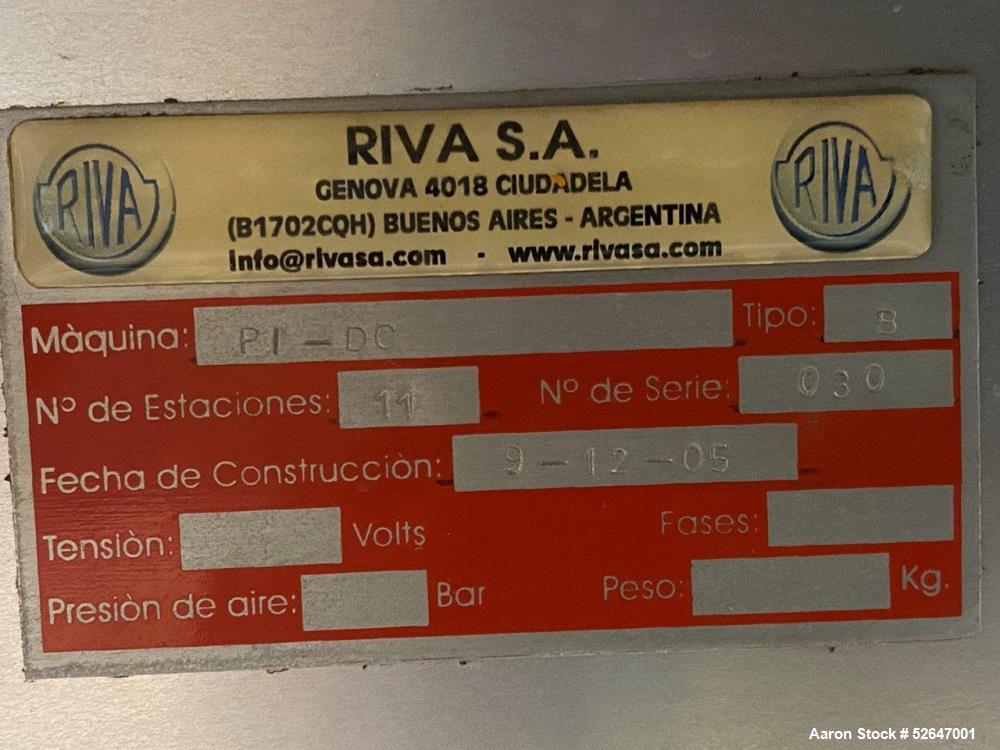

Manufacturer Information:
- Manufacturer: Riva
- Model: Piccola DC (PI-DC)
- Serial Number: 030
- Year Built: 2005
- Condition: Used
Description:

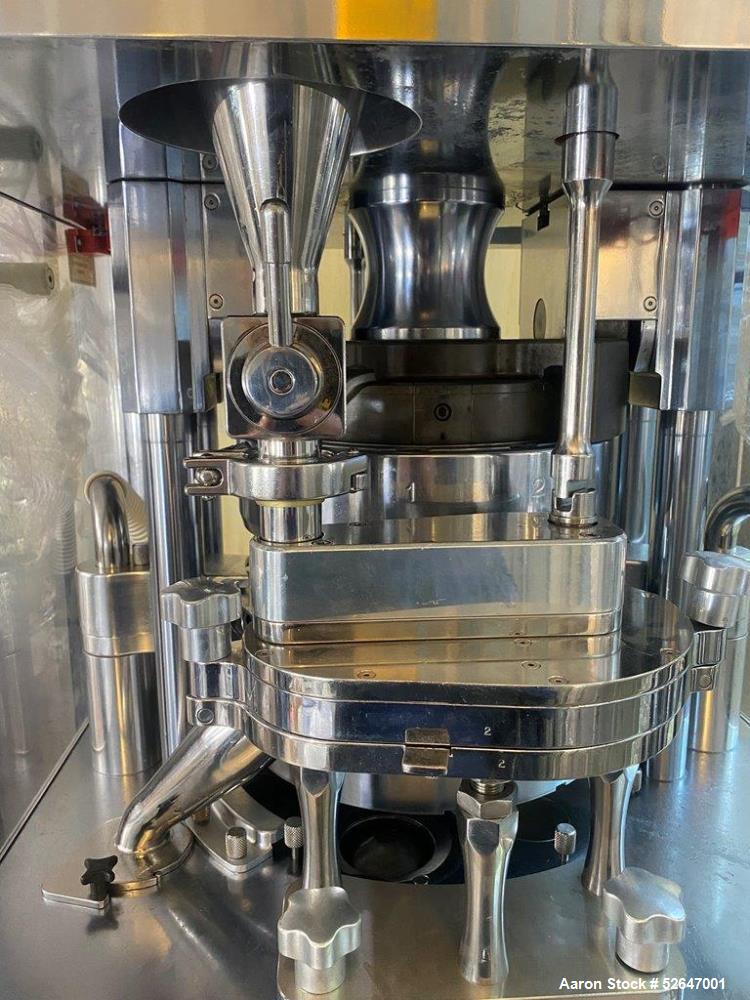

The Riva Piccola DC Bilayer Tablet Press (Model PI-DC) is a high-precision pharmaceutical tablet press, designed for bilayer tablet production with maximum efficiency. With 11 stations and B tooling, this unit offers dual compression capability with a maximum compression force of 8Kn.
This machine is capable of producing up to 33,000 tablets per hour and supports a maximum tablet diameter of 16mm. It provides customizable tablet load depths, with a 19mm maximum first-layer load depth and an 8mm maximum second-layer load depth, ensuring precise bilayer formation.

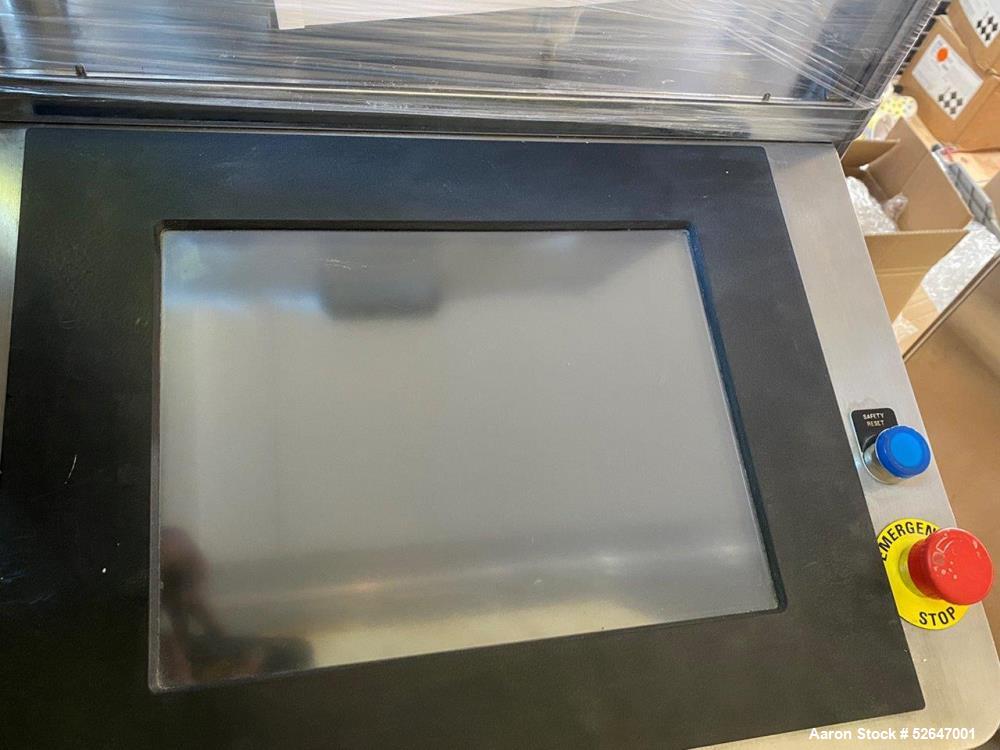

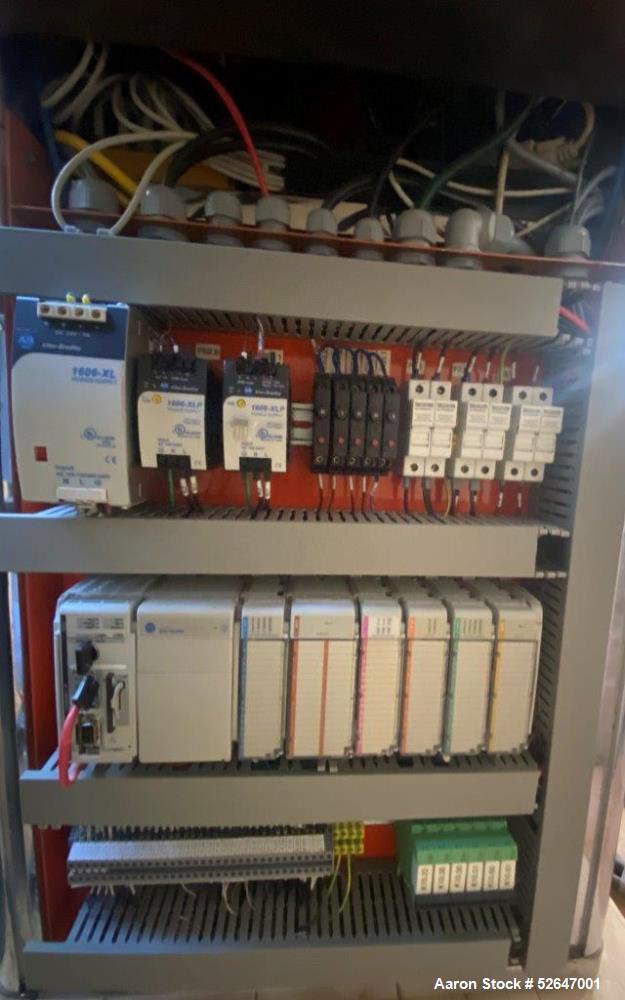

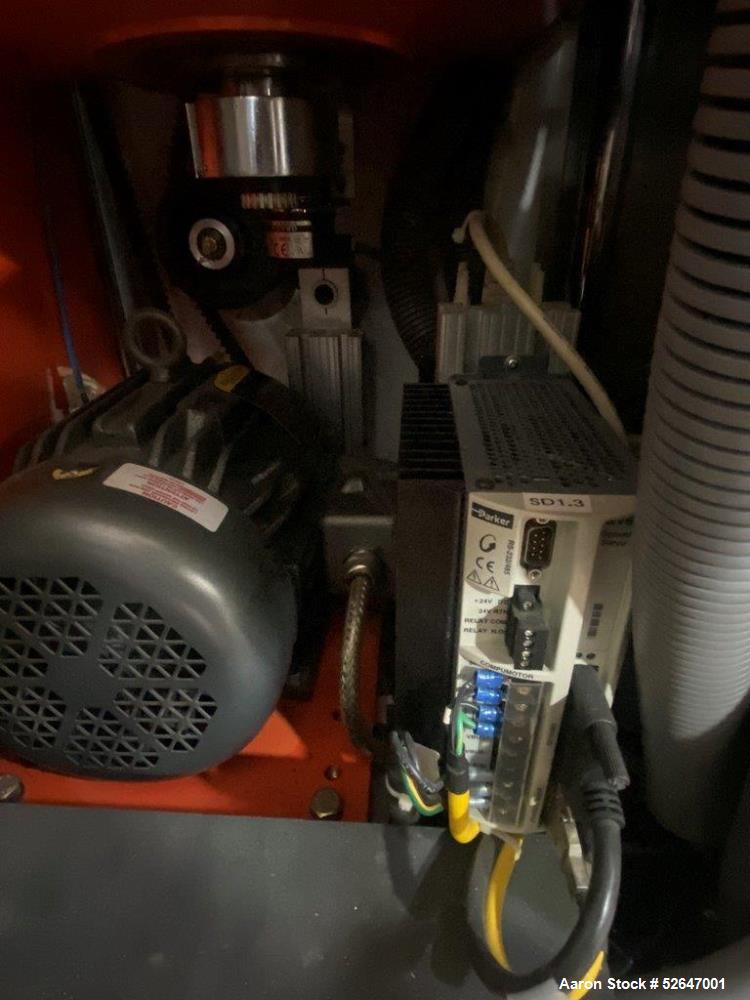

Equipped with PLC controls and SMI data collection software ("The Director"), this unit enables real-time monitoring, process optimization, and secure password-protected operation. The system includes:

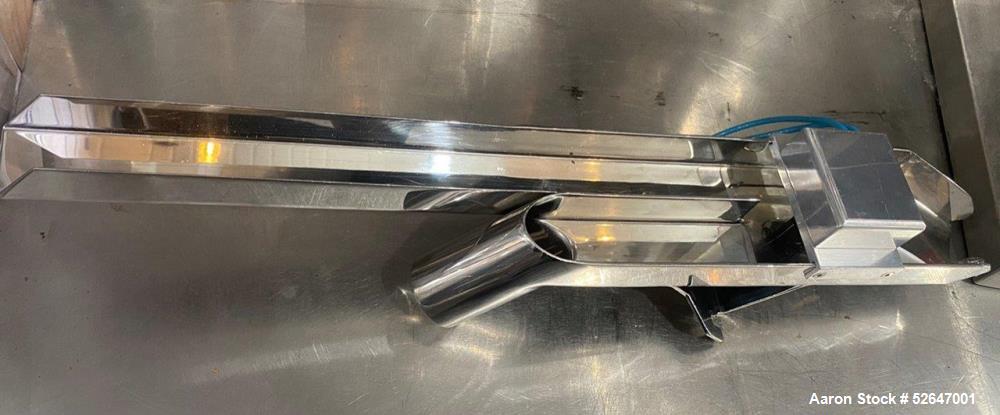

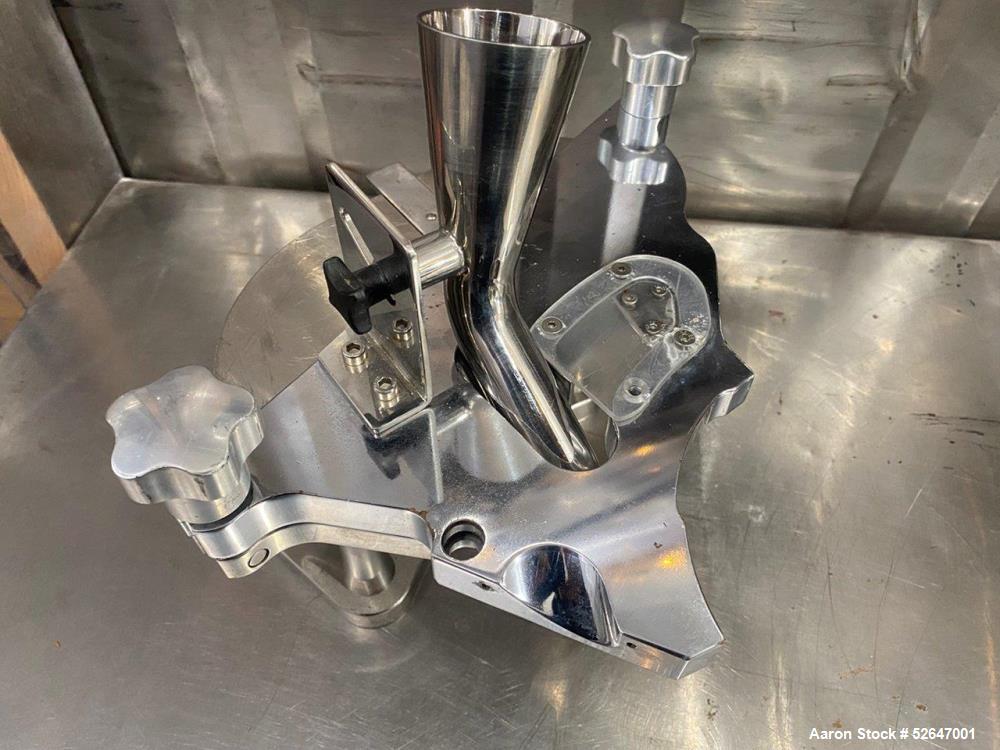

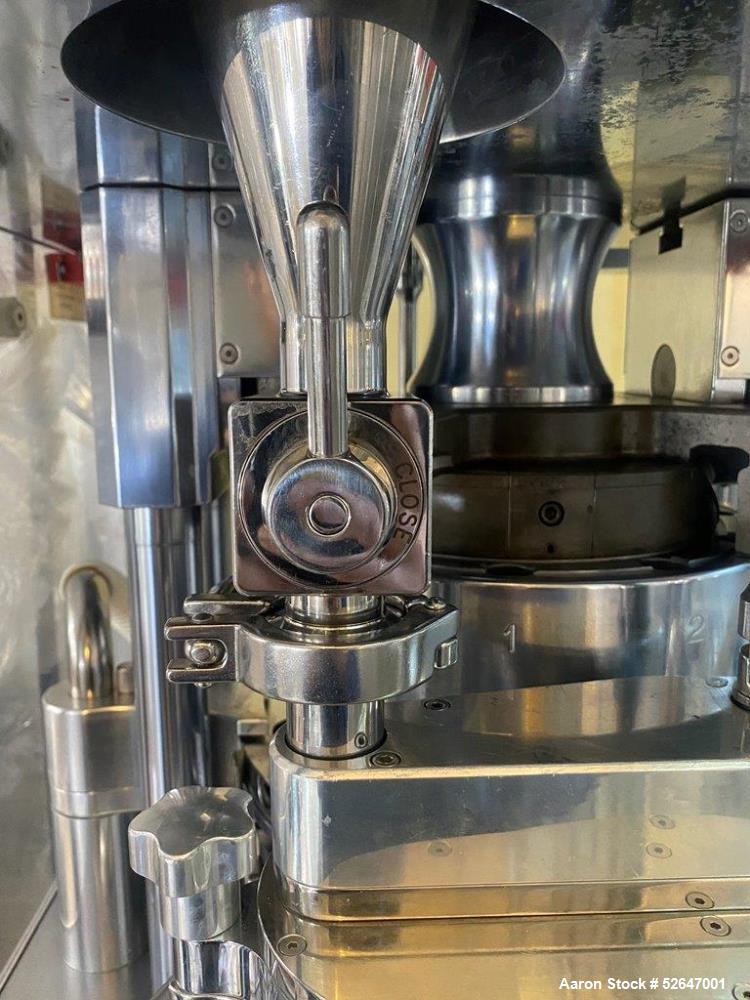

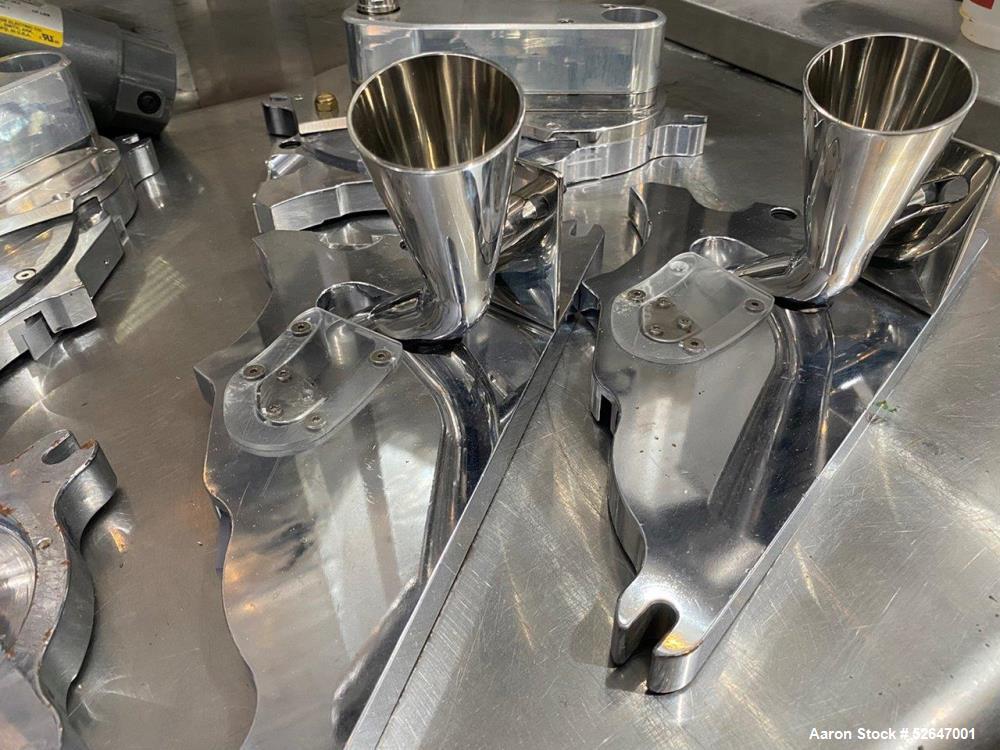

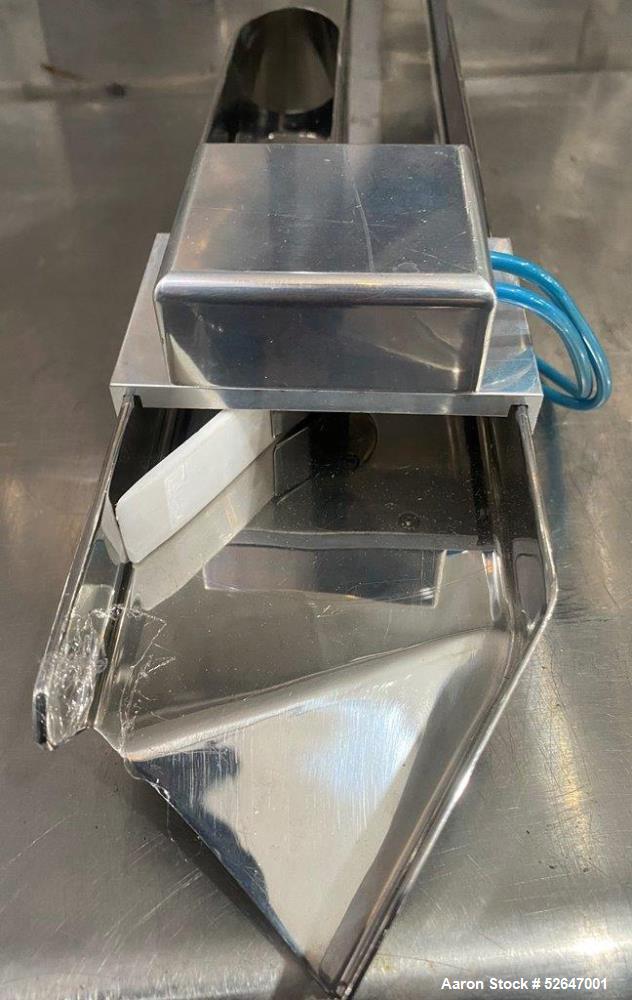

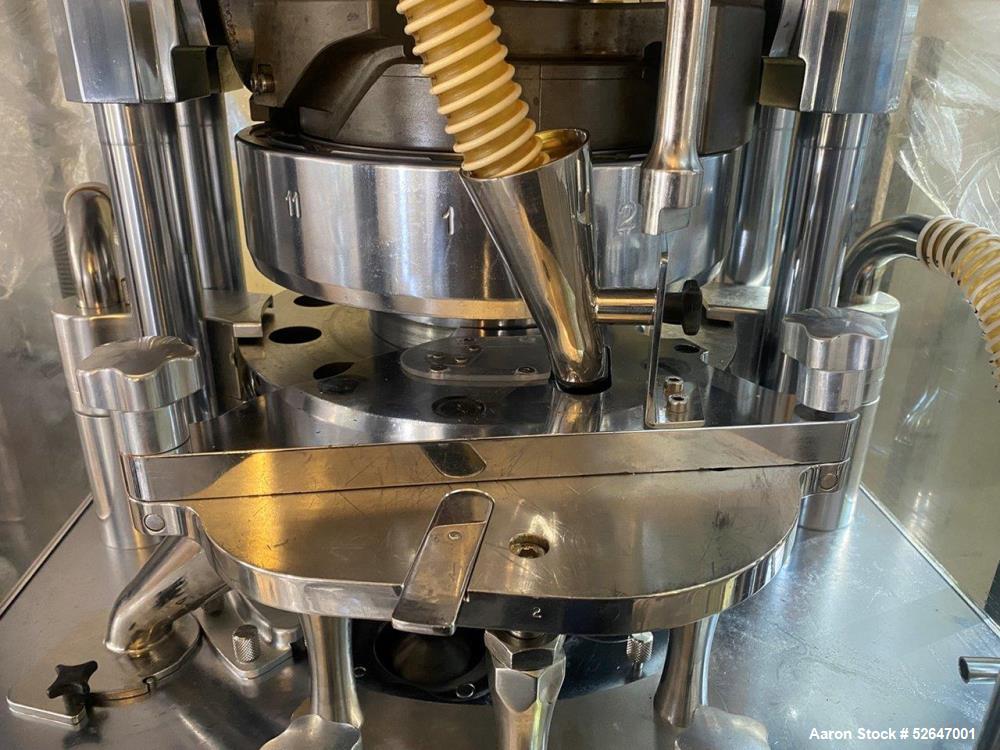

- Dual Force Feeders & Dual Gravity Feeders

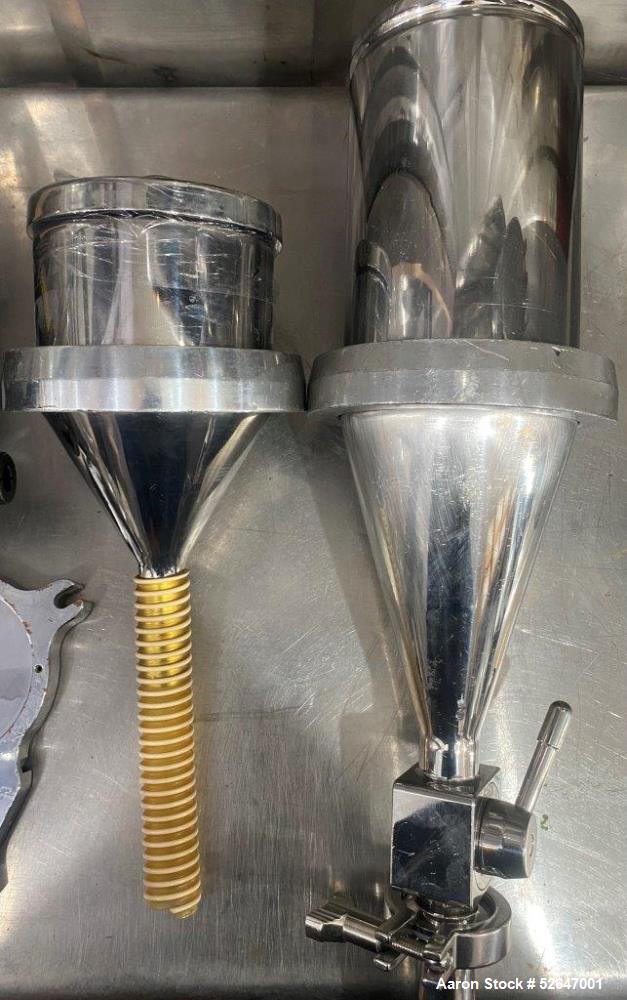

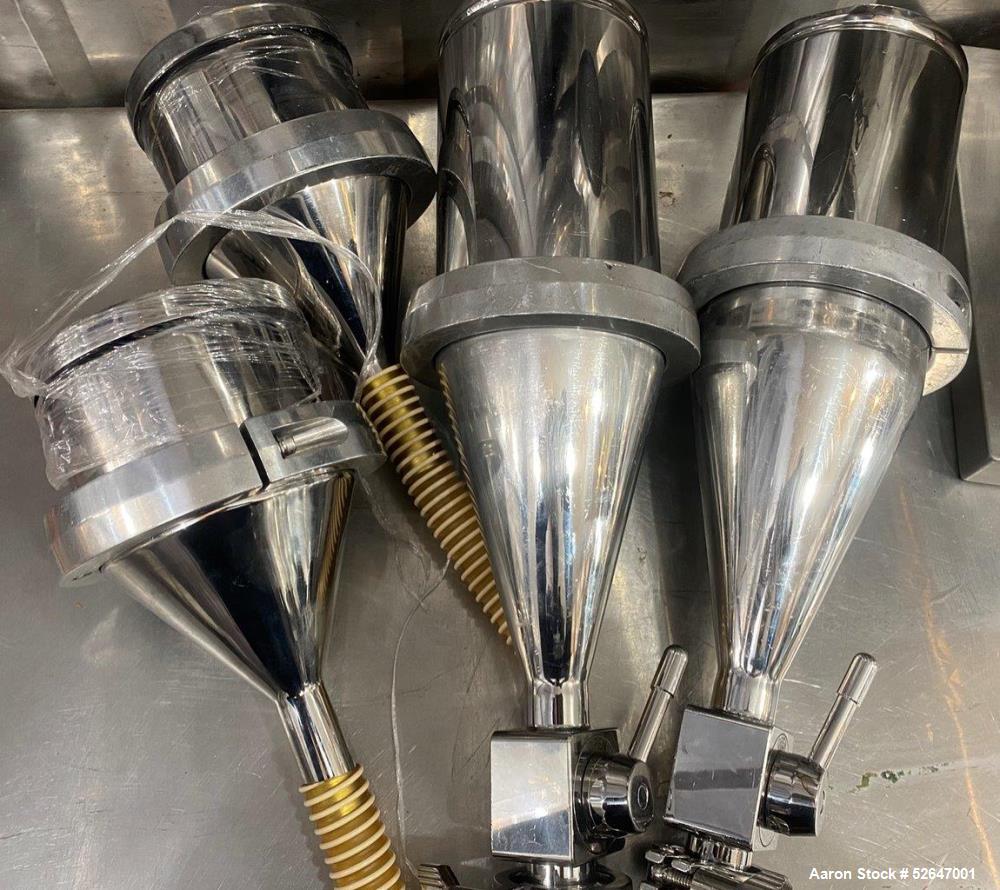

- Two Large Hoppers & Two Small Hoppers
- Four Feeder/Hopper Configurations for Versatile Production Needs

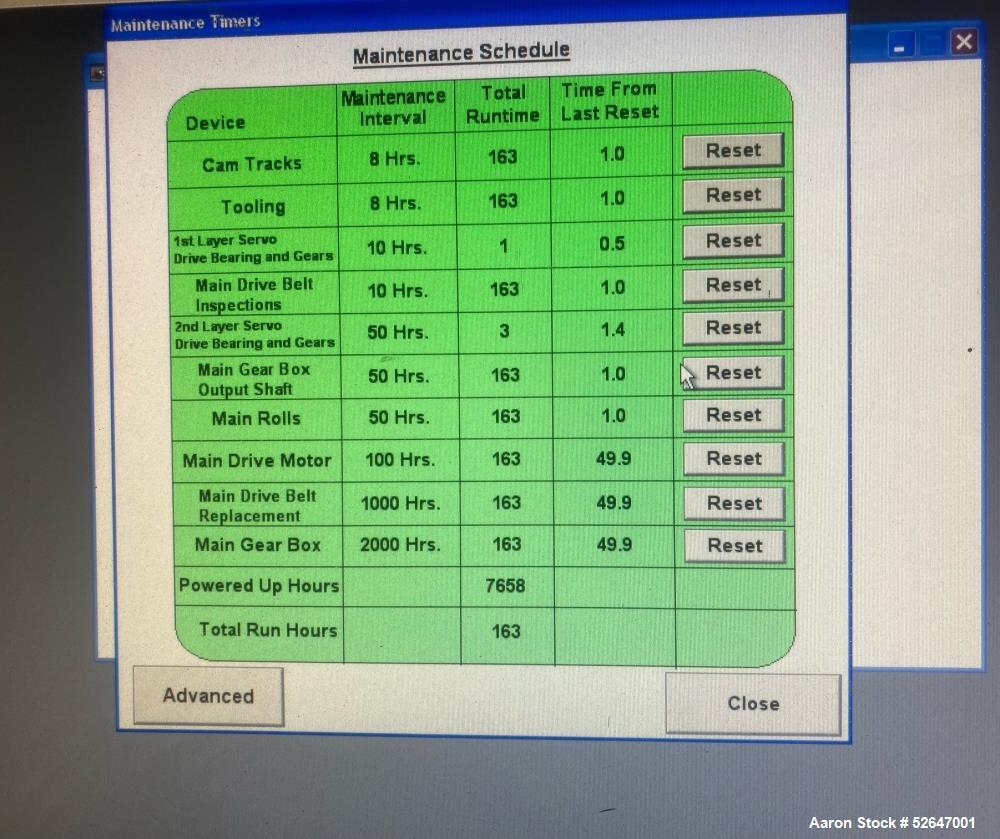

- 163 Hours of Run Time
- PDF of Mechanical Manual Included
With turn-key operation capabilities, this tablet press is ideal for pharmaceutical and nutraceutical manufacturing requiring bilayer tablet formation and precise dosage control.
Specifications:
- Model: PI-DC (Piccola DC)

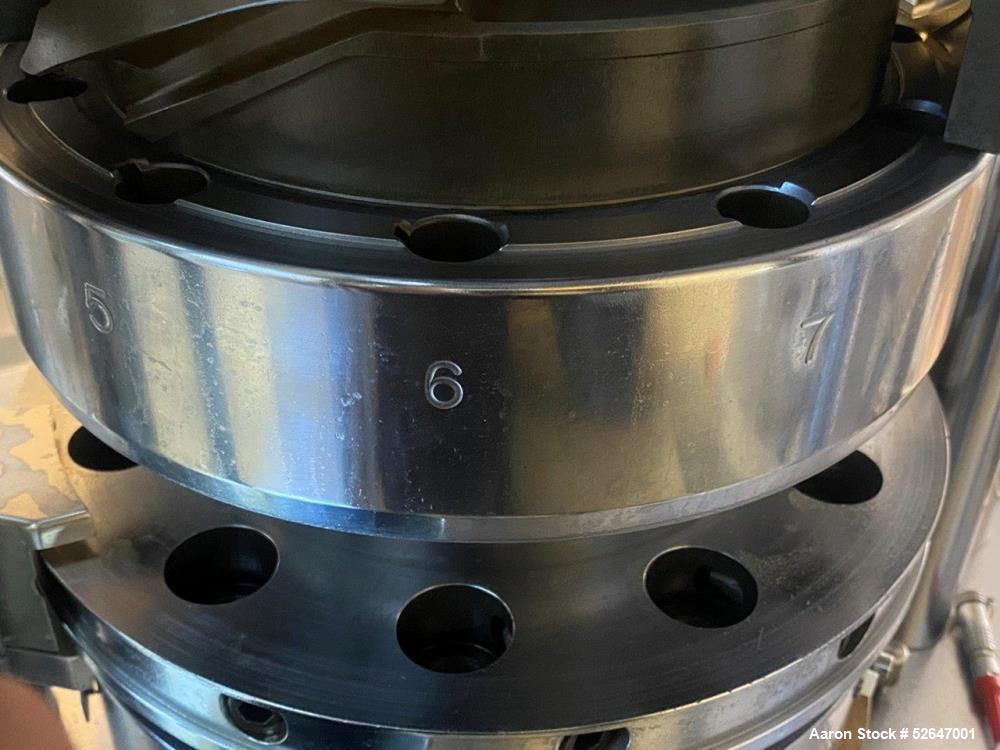

- Stations: 11 (B Tooling)
- Maximum Compression Force: 8Kn
- Maximum Tablet Production: 33,000 Tablets Per Hour
- Tablet Size Capacity:
- Max Tablet Diameter: 16mm
- Max Load Depth First Layer: 19mm
- Max Load Depth Second Layer: 8mm
- Feeding System:
- Dual Force Feeders & Dual Gravity Feeders
- 2 Large Hoppers & 2 Small Hoppers
- Four Feeder/Hopper Configurations Available

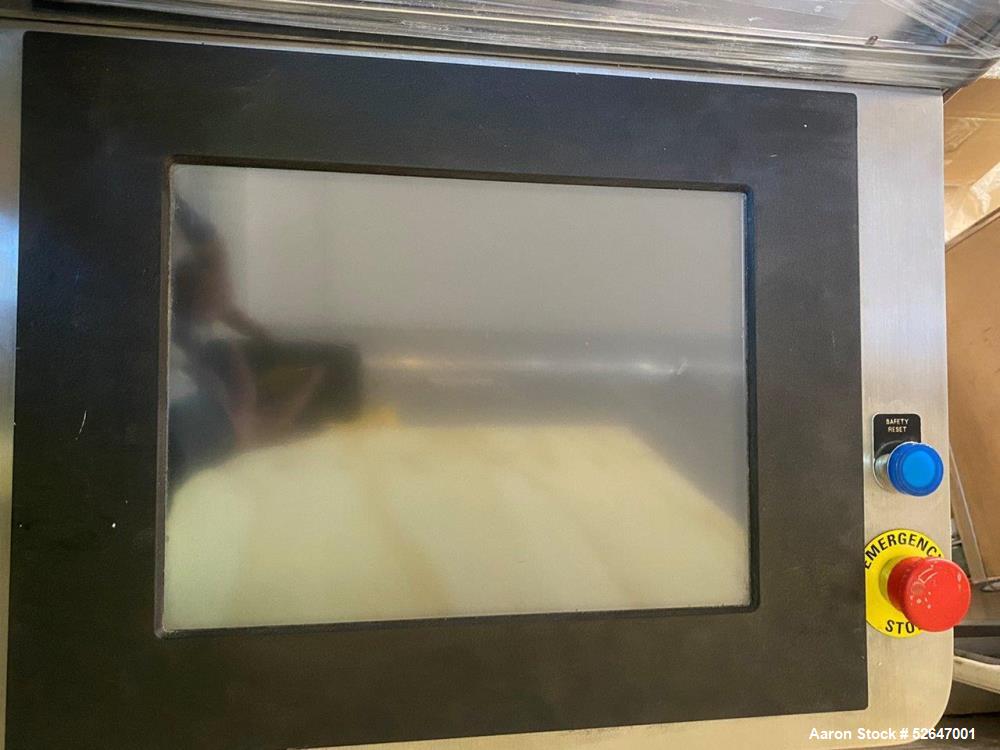

- Control System: PLC Controls with SMI Data Collection Software ("The Director")
- Password-Protected Operation
- Hours of Use: 163 Hours
- Year Built: 2005
- Condition: Used
Applications:
The Riva Piccola DC Bilayer Tablet Press is ideal for:
- Pharmaceutical Tablet Manufacturing
- Nutraceutical & Supplement Tablet Production
- Research & Development for Bilayer Formulations
- Laboratory & Small-Scale Production Environments
What Products Would This Be Used For?
- Bilayer pharmaceutical tablets
- Multivitamins & dietary supplements
- Effervescent tablets with dual-layer composition
- Controlled-release & modified-release medications
- R&D formulation testing in pharma and nutraceuticals
