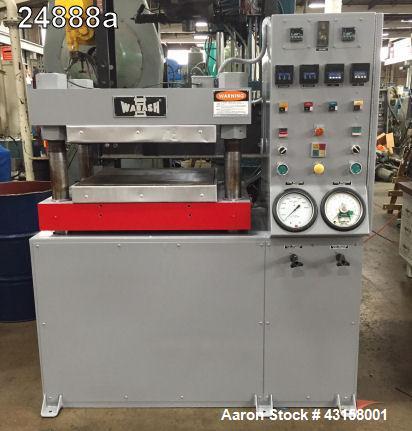

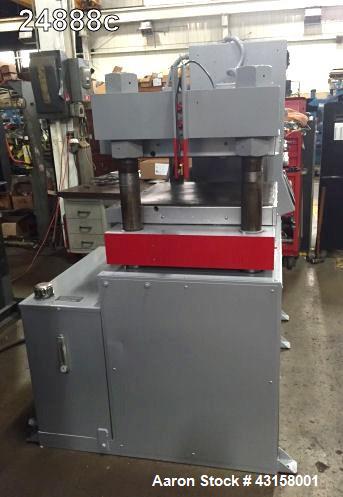

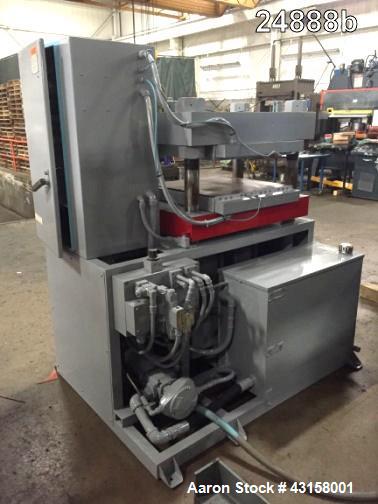

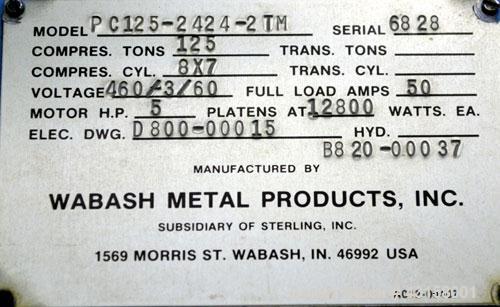

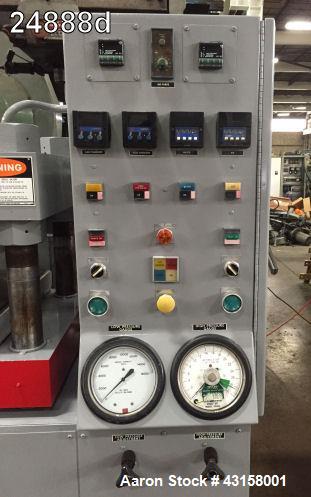

Used 125 TON WABASH MOLDING AND LAMINATING PRESS Hydraulic Model PC125-2424-2TM 4-post upstroke type Floor standing Distance between 3" dia. posts: 28" L-R x 15" F-B Platen area (nominal): 28" L-R x 25" F-B Overall dimension of platen: 37" L-R x 25" F-B Stroke of fully guided platen: 0-7" maximum Daylight opening (total): 13" maximum Daylight opening between hot plates (1): 6" maximum Hot plates (2): 24" L-R x 24" F-B x 2" thick (Electrically heated to 600 F- water cooled) Main ram diameter (2): 8"/3.5" @ 2486 PSI - 125 tons Power unit (base of press): Combination hydraulic pump, driven by 5 HP 1740 RPM 230/460/3/60 motor Speeds approx.: 55"/minute closing 3"/minute pressing to 125 tons 65"/minute return Controls: Pushbutton operation with stroke & pressure control Dual palm buttons Cycle timers - low pressure, high pressure, water, air, air purge (2) digital temperature indicating controllers Low & high pressure gauge Weight approx. 7500# Overall dimensions approx. 60" L-R x 48" F-B x 72" H Serial no. 6828
Used 125 TON WABASH MOLDING AND LAMINATING PRESS Hydraulic Model PC125-2424-2TM 4-post upstroke type Floor standing Distance between 3" dia. posts: 28" L-R x 15" F-B Platen area (nominal): 28" L-R x 25" F-B Overall dimension of platen: 37" L-R x 25" F-B Stroke of fully guided platen: 0-7" maximum Daylight opening (total): 13" maximum Daylight opening between hot plates (1): 6" maximum Hot plates (2): 24" L-R x 24" F-B x 2" thick (Electrically heated to 600 F- water cooled) Main ram diameter (2): 8"/3.5" @ 2486 PSI - 125 tons Power unit (base of press): Combination hydraulic pump, driven by 5 HP 1740 RPM 230/460/3/60 motor Speeds approx.: 55"/minute closing 3"/minute pressing to 125 tons 65"/minute return Controls: Pushbutton operation with stroke & pressure control Dual palm buttons Cycle timers - low pressure, high pressure, water, air, air purge (2) digital temperature indicating controllers Low & high pressure gauge Weight approx. 7500# Overall dimensions approx. 60" L-R x 48" F-B x 72" H Serial no. 6828
