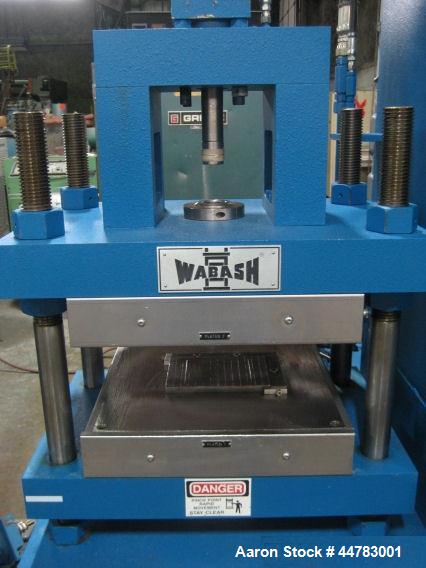

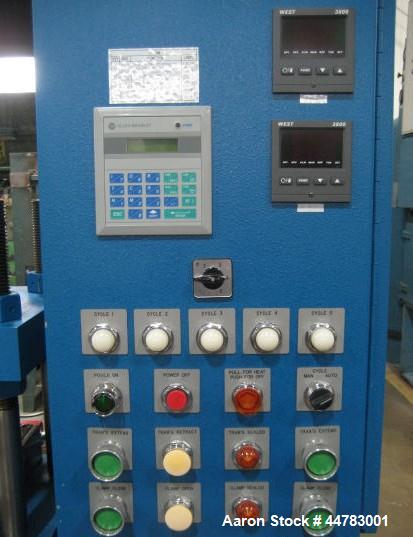

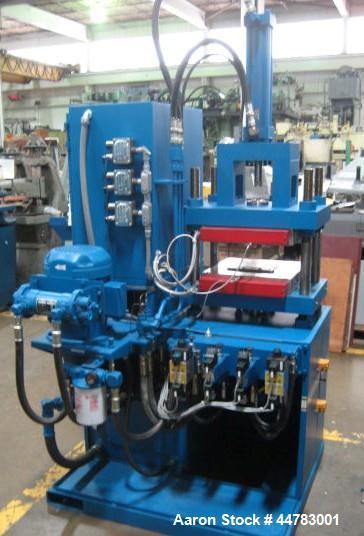

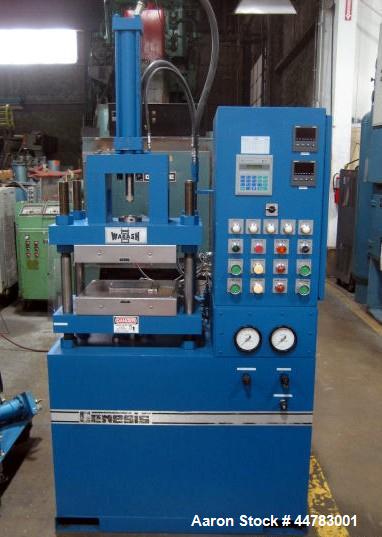

Used Wabash 30 Ton Hydraulic Transfer Molding Press, Model GTR30H-15-X. With 12 ton top transfer. (4) Post upstroke type, Floor standing. Distance between 1.75" diameter posts: 18" L-R x 9" F-B. Platen area (nominal): 18" L-R x 16" F-B. Overall dimensions of platen: 24" L-R x 16" F-B. Stroke of fully guided platen: 0-6" maximum. Stroke of hydraulic transfer ram: 0-15" maximum. Daylight opening (total): 11"-16" maximum (adjustable). Daylight opening between hot plates (1): 5"-10" maximum (adjustable). Hot plates (2): 15" L-R x 15" F-B x 2" thick (electrically heated). Insulation (2): 15" L-R x 15" F-B x 1" thick. Main ram diameter (1): 5"/2" @ 3055 PSI - 30 tons. Transfer ram diameter (1): 3.25"/1.375" @ 2900 PSI -12 tons. Floor to top of moving platen: 38". Power unit (base of press): Rexroth model AA10VS028DRG/30R-PKC62N00 hydraulic pump, driven by 7.5 HP 1745 RPM 200/400/3/60 motor. Speeds approx.: Clamp: 75"/min. closing, 5"/min. pressing to 30 tons, 75"/min. return. Transfer: 220"/minute closing20"/minute pressing to 12 tons, 240"/minute return. Controls: Pushbutton operation w/stroke & pressure control, Dual palm buttons, Selector switch for manual or semiautomatic operation, (2) digital temperature indicating controllers, Allen Bradley PLC, Low & high pressure gauges.
Used Wabash 30 Ton Hydraulic Transfer Molding Press, Model GTR30H-15-X. With 12 ton top transfer. (4) Post upstroke type, Floor standing. Distance between 1.75" diameter posts: 18" L-R x 9" F-B. Platen area (nominal): 18" L-R x 16" F-B. Overall dimensions of platen: 24" L-R x 16" F-B. Stroke of fully guided platen: 0-6" maximum. Stroke of hydraulic transfer ram: 0-15" maximum. Daylight opening (total): 11"-16" maximum (adjustable). Daylight opening between hot plates (1): 5"-10" maximum (adjustable). Hot plates (2): 15" L-R x 15" F-B x 2" thick (electrically heated). Insulation (2): 15" L-R x 15" F-B x 1" thick. Main ram diameter (1): 5"/2" @ 3055 PSI - 30 tons. Transfer ram diameter (1): 3.25"/1.375" @ 2900 PSI -12 tons. Floor to top of moving platen: 38". Power unit (base of press): Rexroth model AA10VS028DRG/30R-PKC62N00 hydraulic pump, driven by 7.5 HP 1745 RPM 200/400/3/60 motor. Speeds approx.: Clamp: 75"/min. closing, 5"/min. pressing to 30 tons, 75"/min. return. Transfer: 220"/minute closing20"/minute pressing to 12 tons, 240"/minute return. Controls: Pushbutton operation w/stroke & pressure control, Dual palm buttons, Selector switch for manual or semiautomatic operation, (2) digital temperature indicating controllers, Allen Bradley PLC, Low & high pressure gauges.
