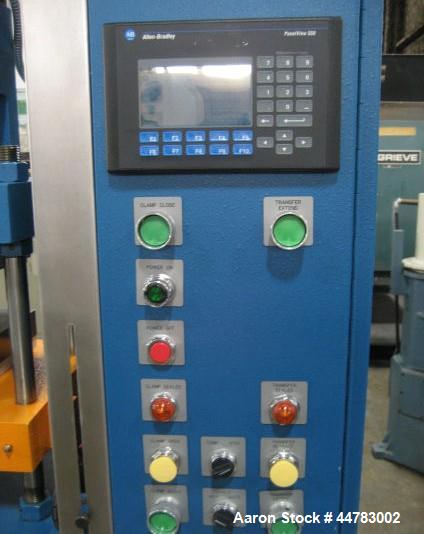

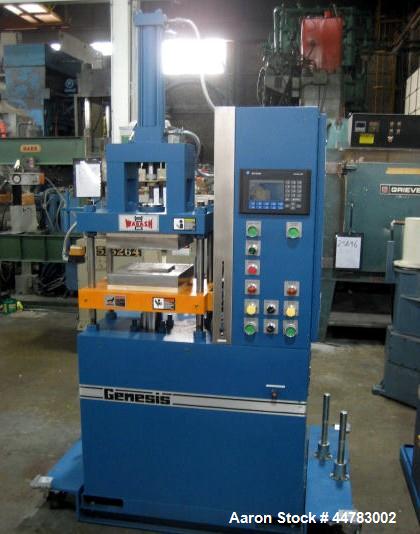

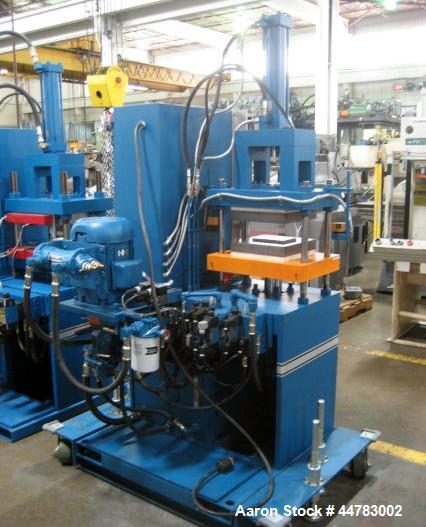

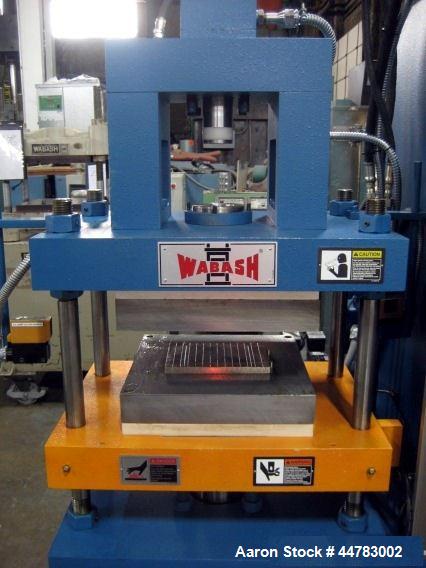

Used Wabash 30 Ton Hydraulic Transfer Molding Press, Model GTR30-12-X. With 15 ton top transfer. (4) Post upstroke type, Floor standing. Distance between 1.25" diameter posts: 17.25" L-R x 15" F-B. Platen area (nominal): 17" L-R x 15" F-B. Overall dimensions of platen: 21" L-R x 15" F-B. Stroke of fully guided platen: 0 - 6" maximum. Stroke of hydraulic transfer ram: 0 - 14" maximum. Daylight opening (total): 10" maximum. Daylight opening between steel plates (1): 4" maximum. Steel plates (2): 12" L-R x 12" F-B x 1.75" thick. Insulation (2): 12" L-R x 12" F-B x 0.75" thick. Main ram diameter (1): 5"/3.5" @ 3055 PSI - 30 tons. Transfer ram diameter (1): 3.25"/2" @ 3620 PSI - 15 tons. Floor to top of moving platen: 43". Power unit (base of press): Rexroth model A10VS018DRG/31R-PKC62K40, hydraulic pump driven by 7.5 HP 1745 RPM 230/460/3/60 motor. Speeds approx.: Clamp: 75"/min. closing, 5"/min. pressing to 30 tons, 75"/min. return. Transfer: 220"/minute closing, 20"/minute pressing to 12 tons, 240"/minute return. Controls: Pushbutton operation w/stroke & pressure control, Dual palm buttons, Selector switch for manual or semiautomatic operation, Allen Bradley PLC.
