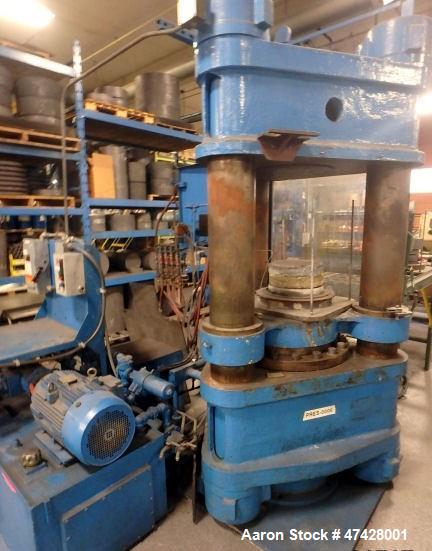

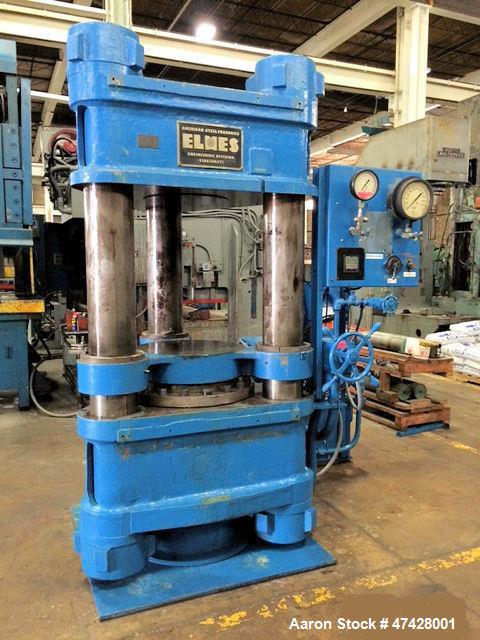

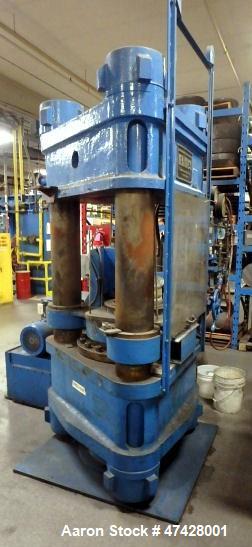

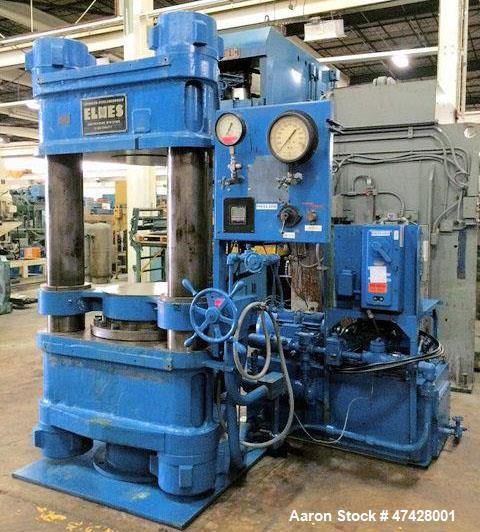

Used Elmes 1000 Ton Floor Standing Upstroke Type Hydraulic Hobbing Press. Distance between 9" diameter posts 27" left to right. Nominal platen area 24" diameter. Stroke of fully guided platen approximate 0 - 8" maximum, total daylight opening 32" maximum, (1) main ram diameter 22.5" at 5000 psi (1000 tons). Floor to top of moving platen 43". Free standing power unit, oil gear hydraulic pumps, driven by 7.5 hp, 1175 RPM 220/460/3/60 motor. Controls push button operation with stroke and pressure control, operator controller, pressure gauge.
Used Elmes 1000 Ton Floor Standing Upstroke Type Hydraulic Hobbing Press. Distance between 9" diameter posts 27" left to right. Nominal platen area 24" diameter. Stroke of fully guided platen approximate 0 - 8" maximum, total daylight opening 32" maximum, (1) main ram diameter 22.5" at 5000 psi (1000 tons). Floor to top of moving platen 43". Free standing power unit, oil gear hydraulic pumps, driven by 7.5 hp, 1175 RPM 220/460/3/60 motor. Controls push button operation with stroke and pressure control, operator controller, pressure gauge.
