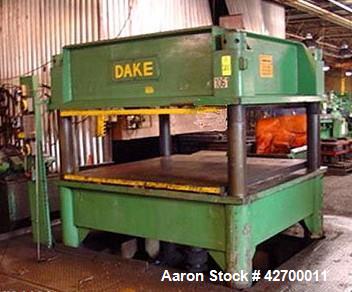

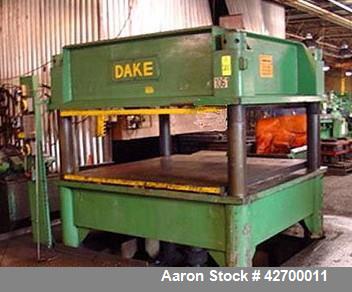

Used 150 Ton Dake Upstroke Hydraulic Molding Press. 4 Post Type. Distance between 6.5" diameter posts: 80" L-R x 65" F-B. Platen area (Nominal) 80" L-R x 82" F-B. Overall dimensions of platen 97" L-R x 82" F-B. Stroke of fully guided platen approximately 0 - 24" maximum. Daylight Opening (Total) 47" Maximum. 31" maximum with 16" ram spacer. Daylight opening between cold plates (1) 41" maximum. 25" maximum with 16" ram spacer. Cold plates (2) 79" L-R x 82" F-B x 2" thick. Main ram diameter 12"/6" at 2652 PSI - 150 Tons. Power unit (Free Standing) Vickers Model PVB20RC20C Hyd. Pump. Driven by 20 hp 1760 rpm, 230/460/3/60 Motor. Speeds approximately 40"/min. closing, 20"/min. pressing to 150 tons. 55"/min. return, controls pushbutton operation with stroke and pressure control. Dual palm Bbuttons. Cycle timer.
Used 150 Ton Dake Upstroke Hydraulic Molding Press. 4 Post Type. Distance between 6.5" diameter posts: 80" L-R x 65" F-B. Platen area (Nominal) 80" L-R x 82" F-B. Overall dimensions of platen 97" L-R x 82" F-B. Stroke of fully guided platen approximately 0 - 24" maximum. Daylight Opening (Total) 47" Maximum. 31" maximum with 16" ram spacer. Daylight opening between cold plates (1) 41" maximum. 25" maximum with 16" ram spacer. Cold plates (2) 79" L-R x 82" F-B x 2" thick. Main ram diameter 12"/6" at 2652 PSI - 150 Tons. Power unit (Free Standing) Vickers Model PVB20RC20C Hyd. Pump. Driven by 20 hp 1760 rpm, 230/460/3/60 Motor. Speeds approximately 40"/min. closing, 20"/min. pressing to 150 tons. 55"/min. return, controls pushbutton operation with stroke and pressure control. Dual palm Bbuttons. Cycle timer.
