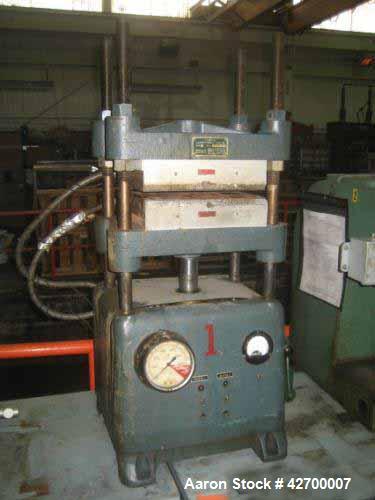

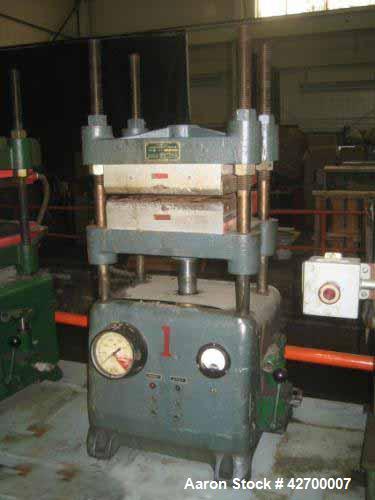

Used 30 Ton Carver Heated Platen Lab Press, Model W. Hydraulic 4 post upstroke type. Table model. Distance between 1.25" diameter posts: 13.5" left-right x 7.5" front-back. Platen area (nominal): 13" left-right x 12" front-back. Stroke of fully guided platen: 0-6" maximum. Daylight opening (total): 10" - 17" maximum (adjustable). Daylight opening between hot plates (1): 4" - 11" maximum (adjustable). Hot plates (2): 12" left-right x 12" front-back x 2" thick (electrically heated to 600°F - water cooled). Insulation (2): 12" left-right x 12" front-back x 1" thick. Main ram diameter(1): 3"/2" at 8488 PSI - 30 tons Power unit: 2 stage hand pump with dump valve. Controls: Pressure gauge. Weight approximately, 700 pounds. Overall dimensions approximately, 30" left-right x 24" front-back x 43" high. Serial number 2629-9.
Used 30 Ton Carver Heated Platen Lab Press, Model W. Hydraulic 4 post upstroke type. Table model. Distance between 1.25" diameter posts: 13.5" left-right x 7.5" front-back. Platen area (nominal): 13" left-right x 12" front-back. Stroke of fully guided platen: 0-6" maximum. Daylight opening (total): 10" - 17" maximum (adjustable). Daylight opening between hot plates (1): 4" - 11" maximum (adjustable). Hot plates (2): 12" left-right x 12" front-back x 2" thick (electrically heated to 600°F - water cooled). Insulation (2): 12" left-right x 12" front-back x 1" thick. Main ram diameter(1): 3"/2" at 8488 PSI - 30 tons Power unit: 2 stage hand pump with dump valve. Controls: Pressure gauge. Weight approximately, 700 pounds. Overall dimensions approximately, 30" left-right x 24" front-back x 43" high. Serial number 2629-9.
