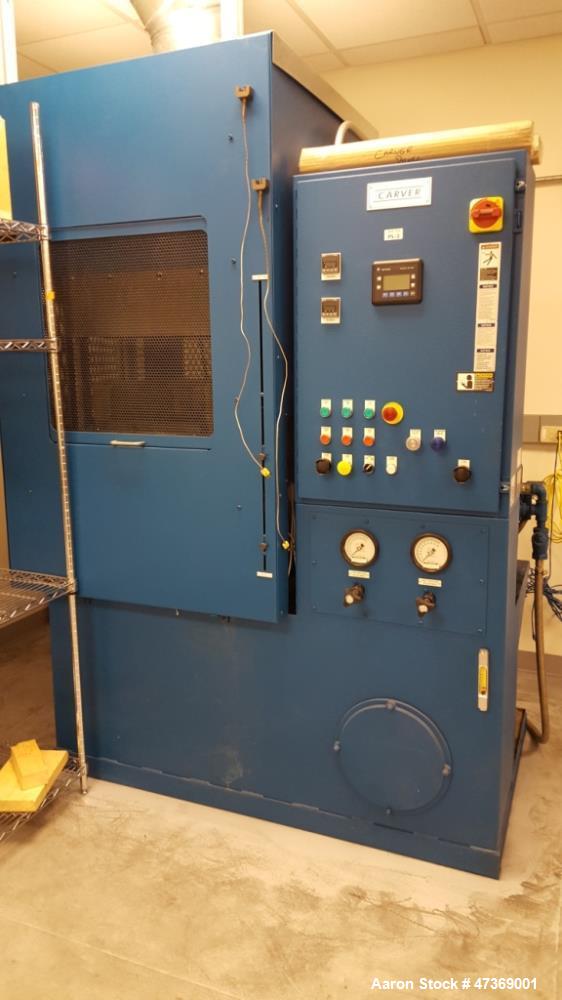

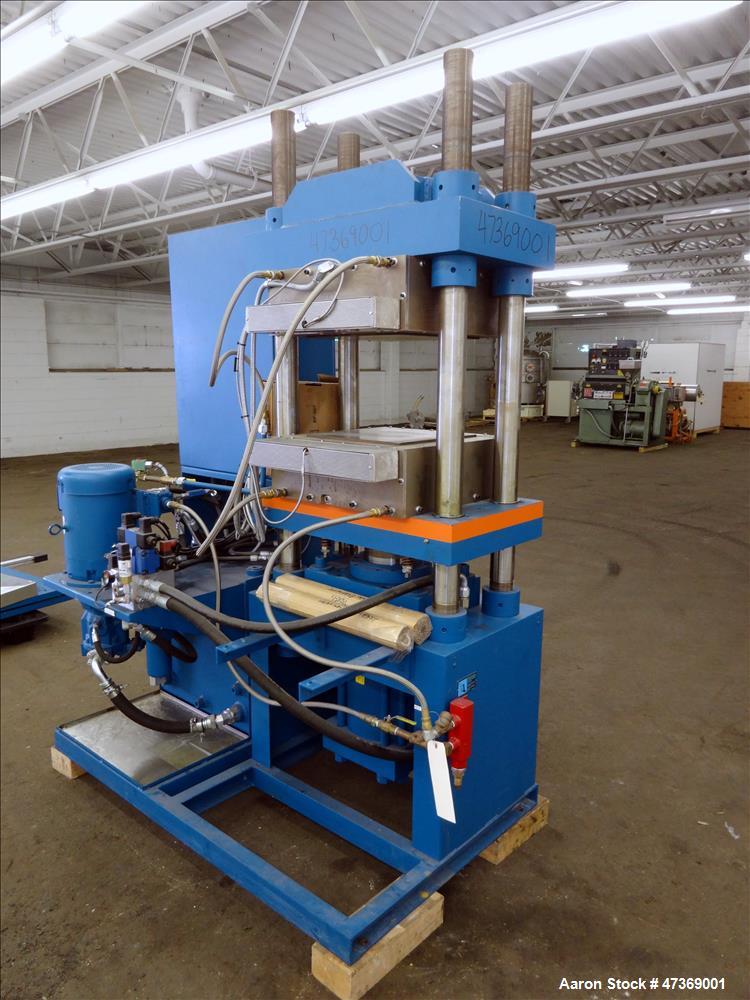

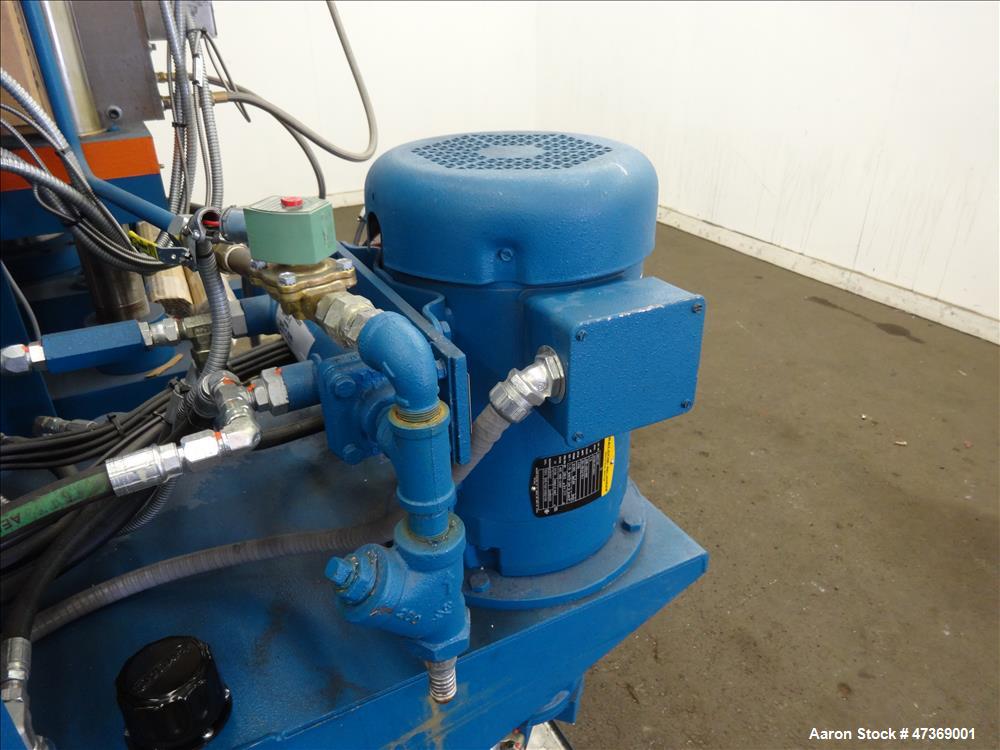

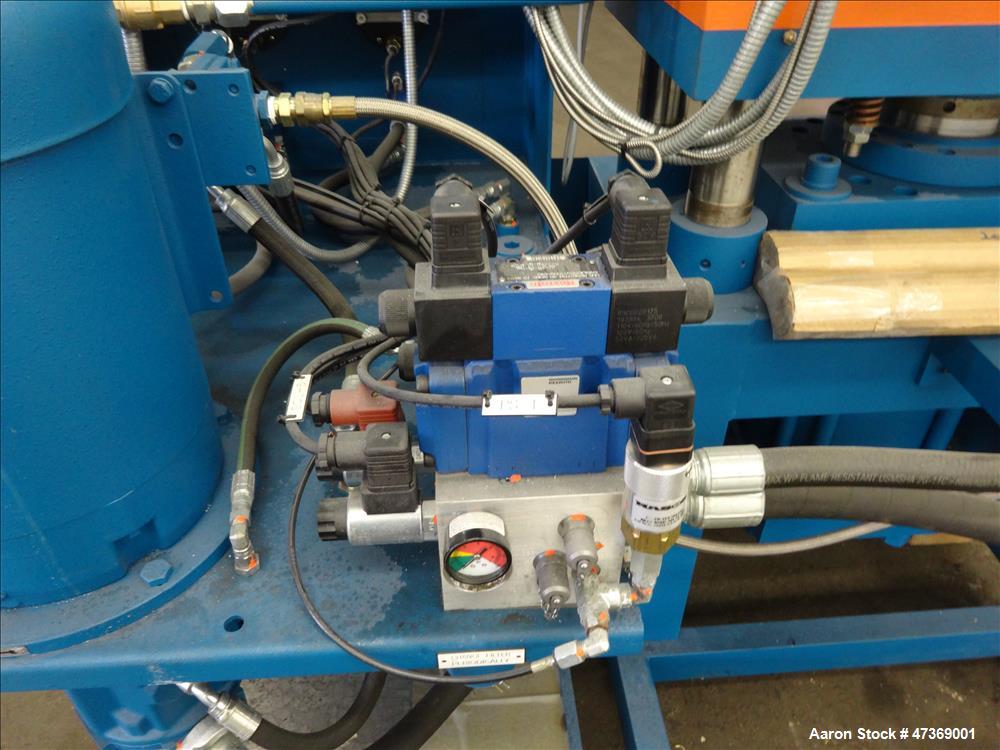

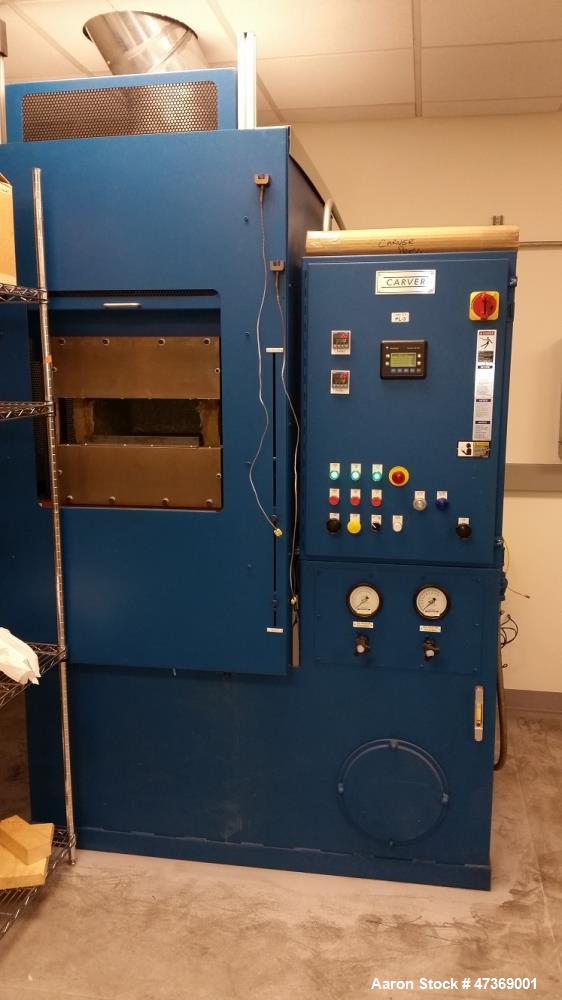

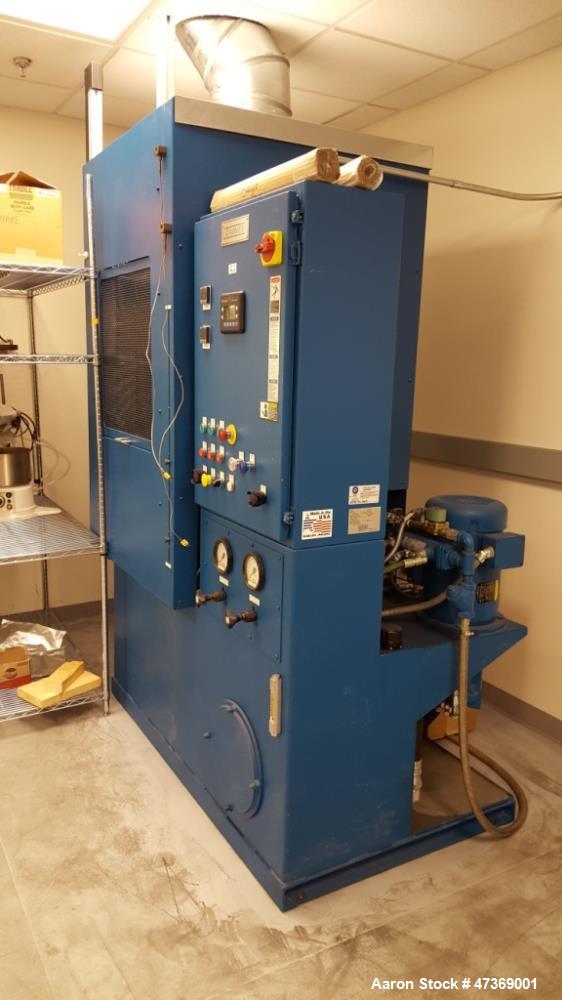

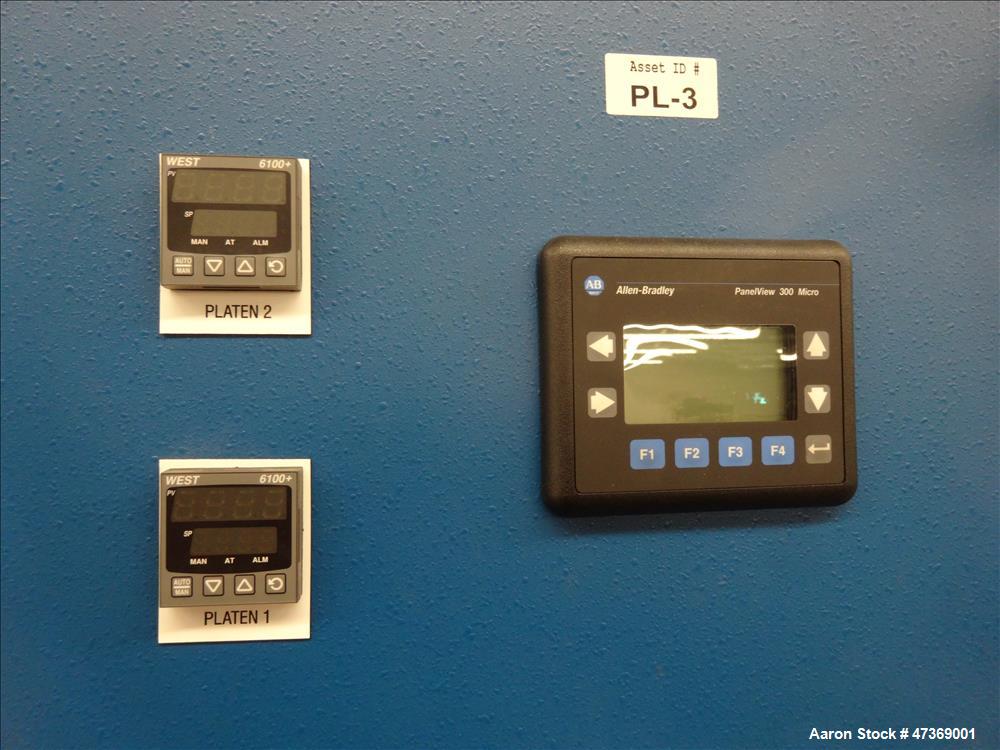

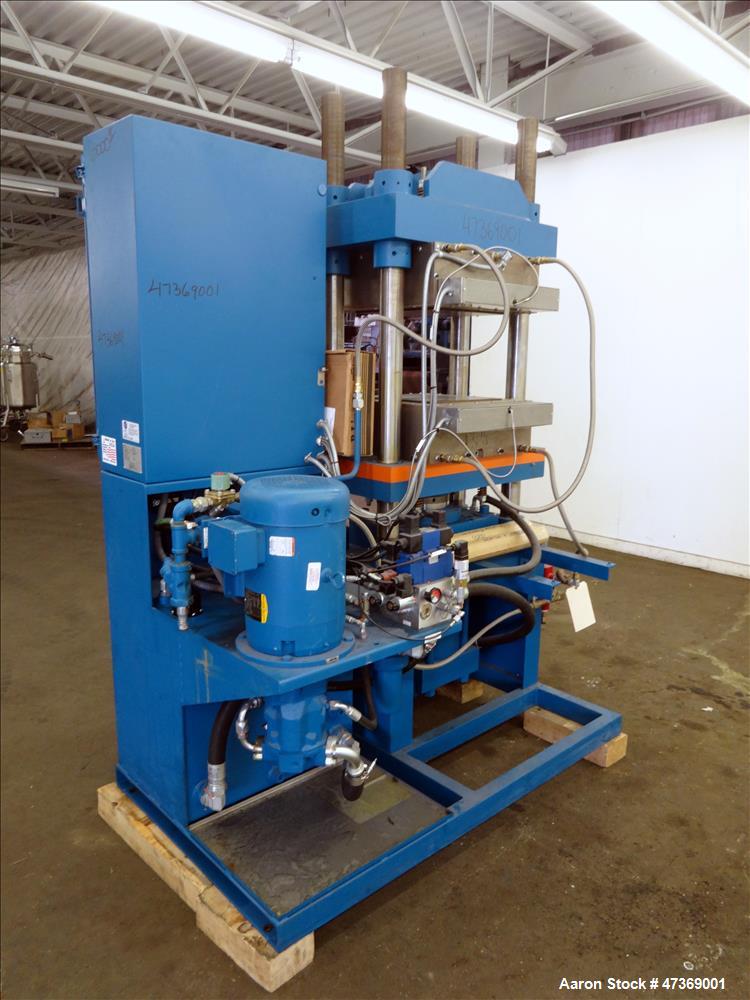

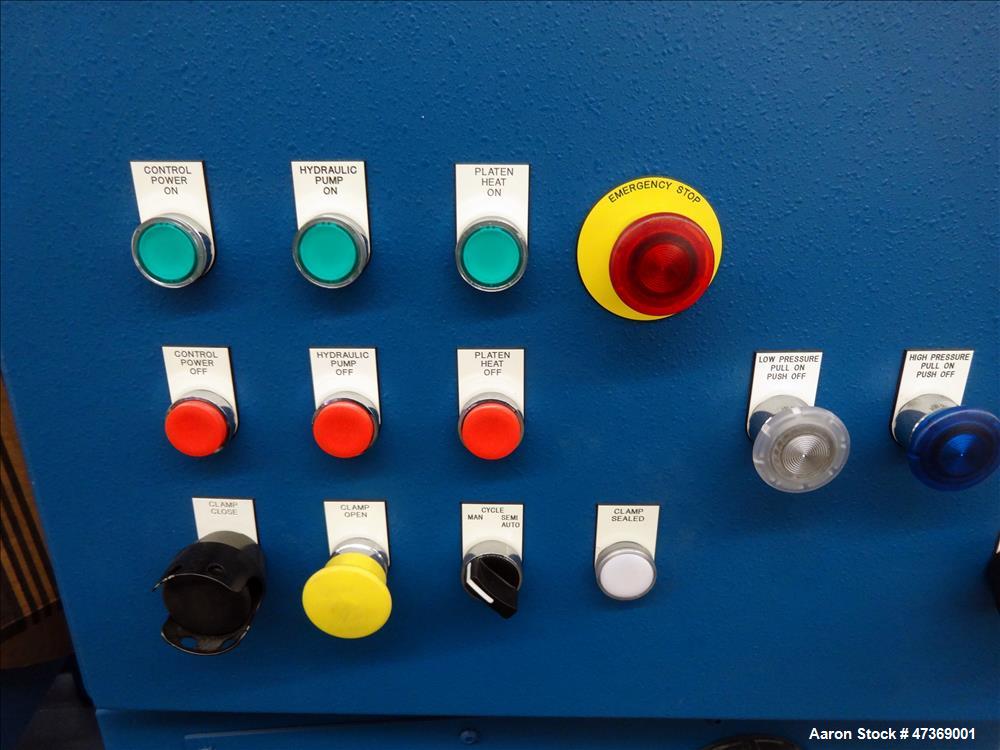

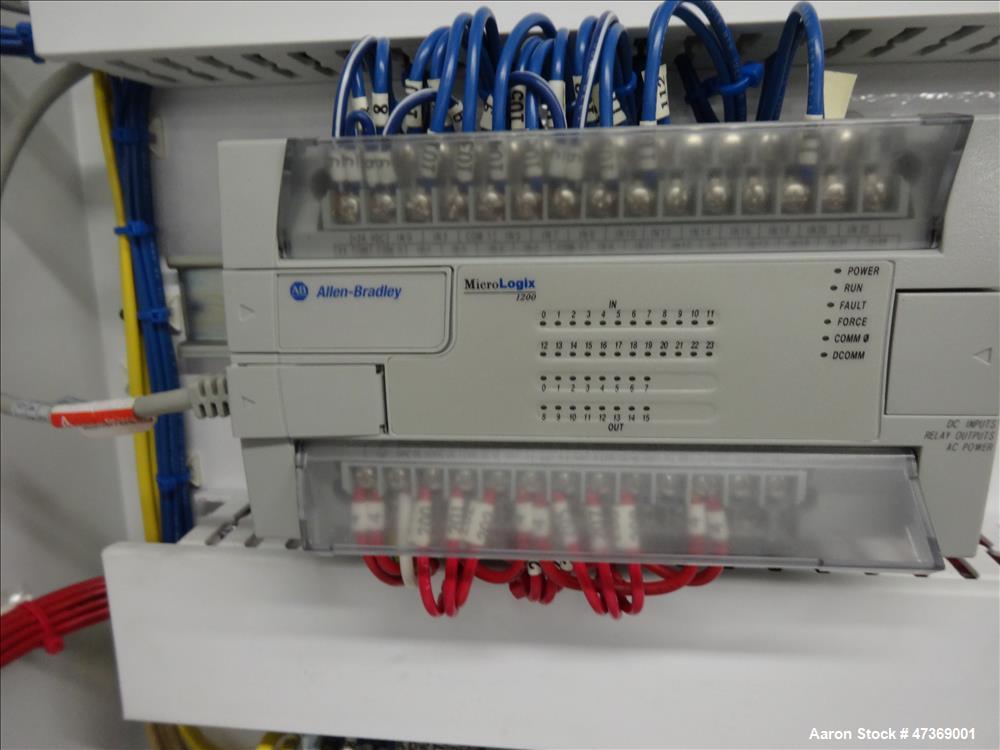

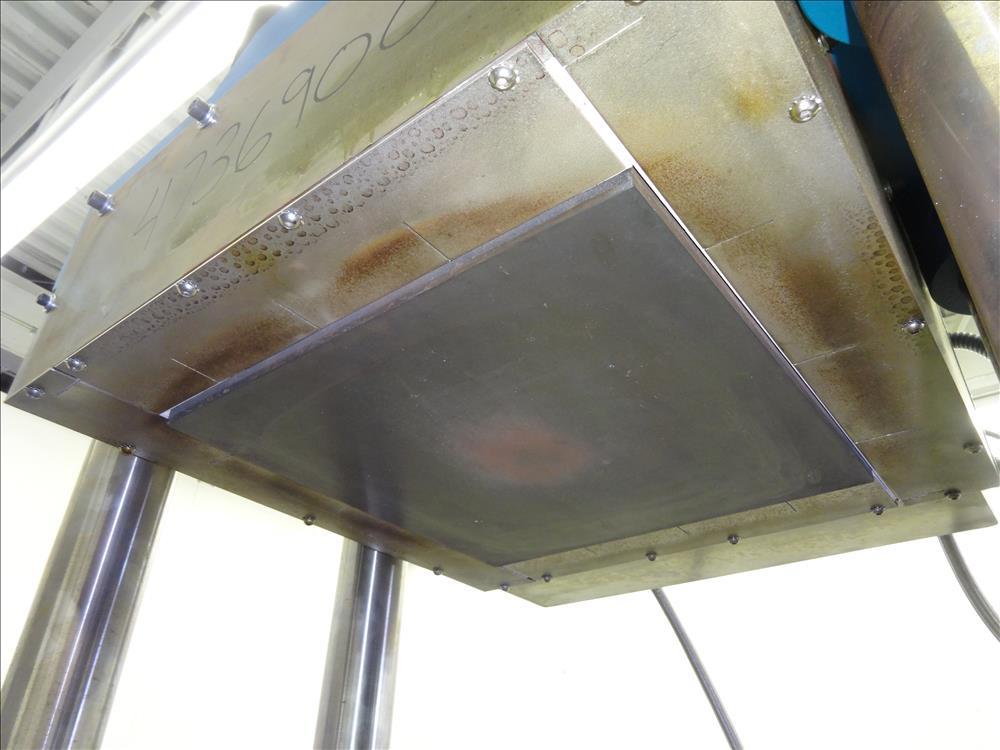

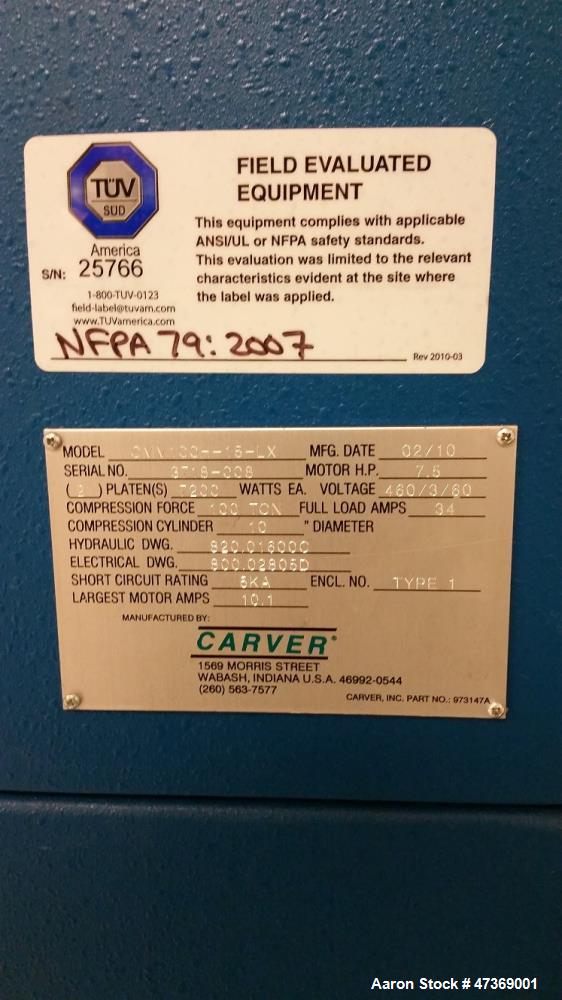

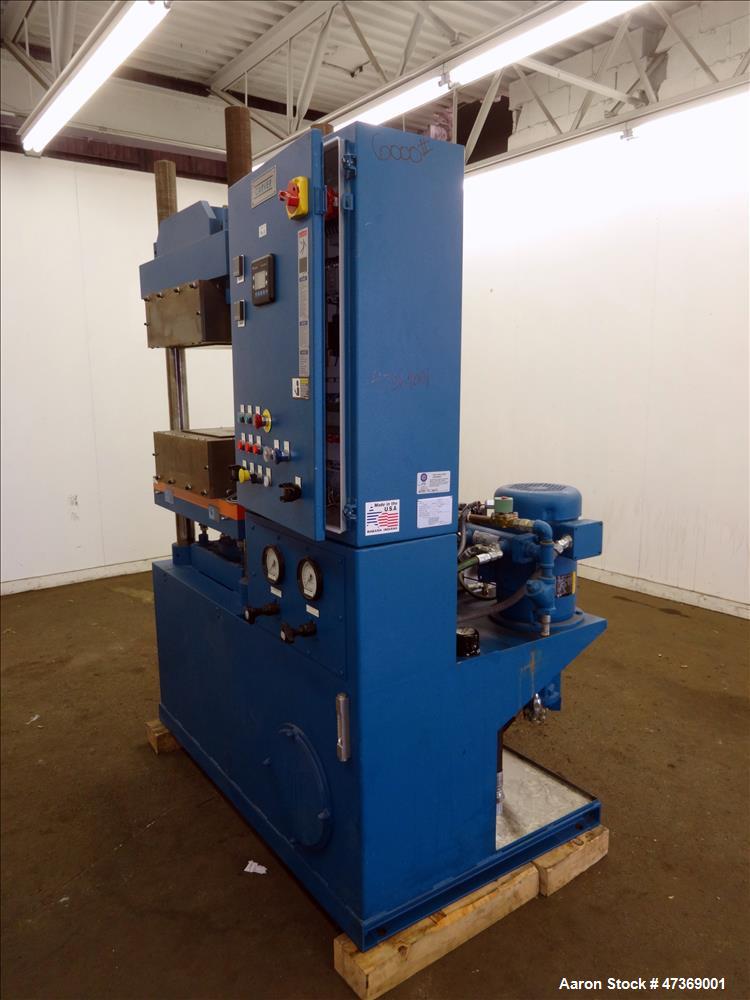

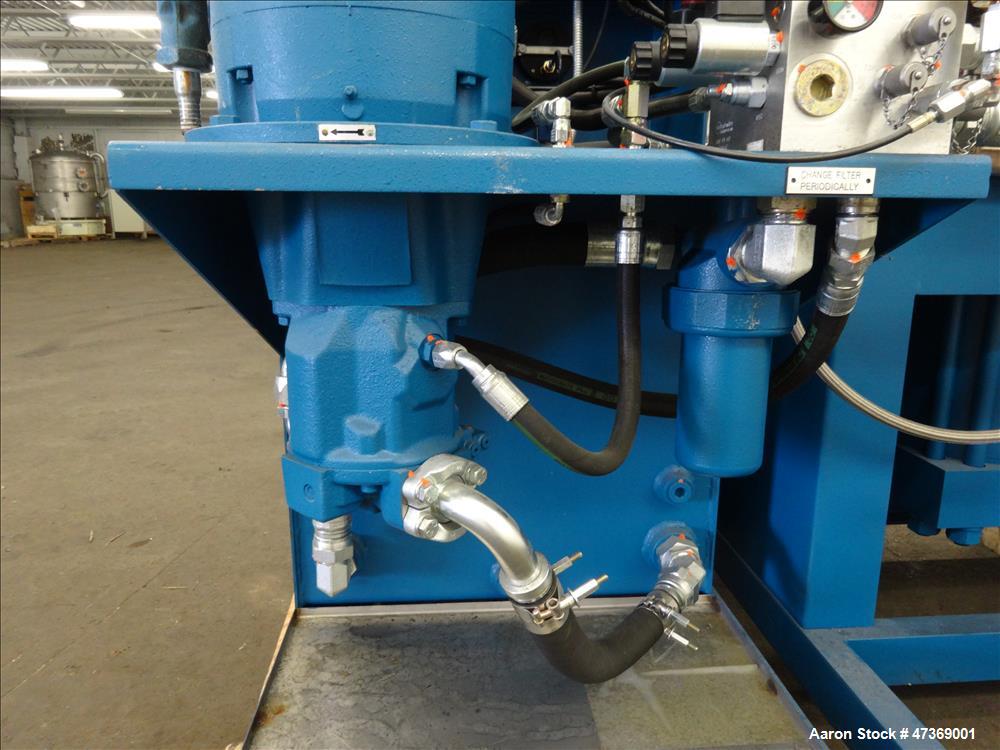

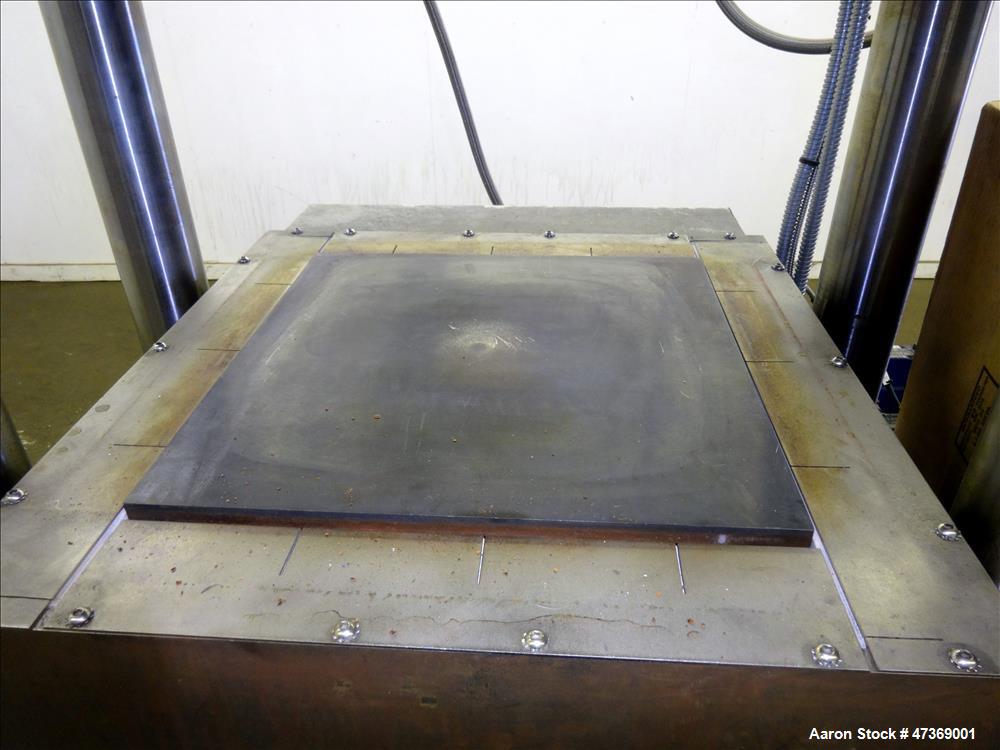

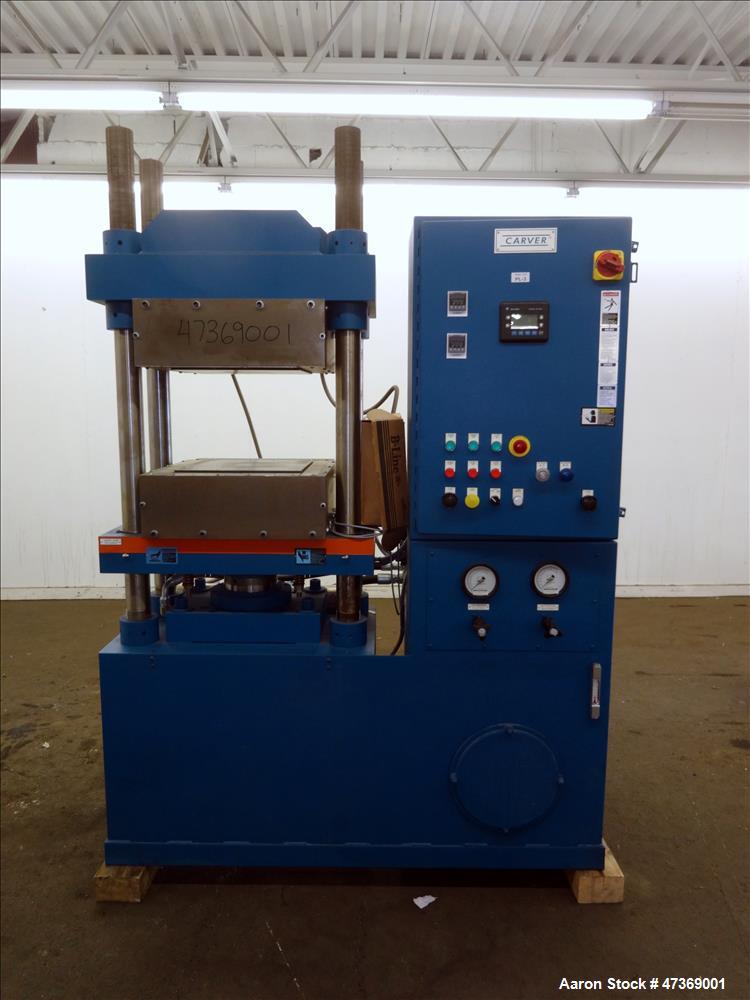

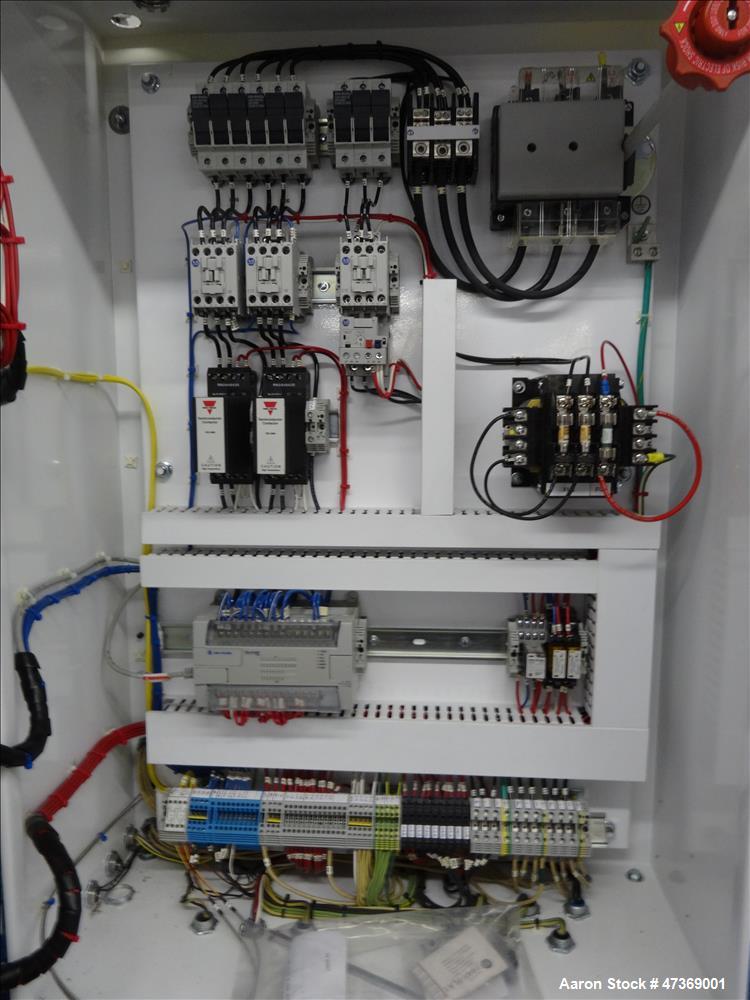

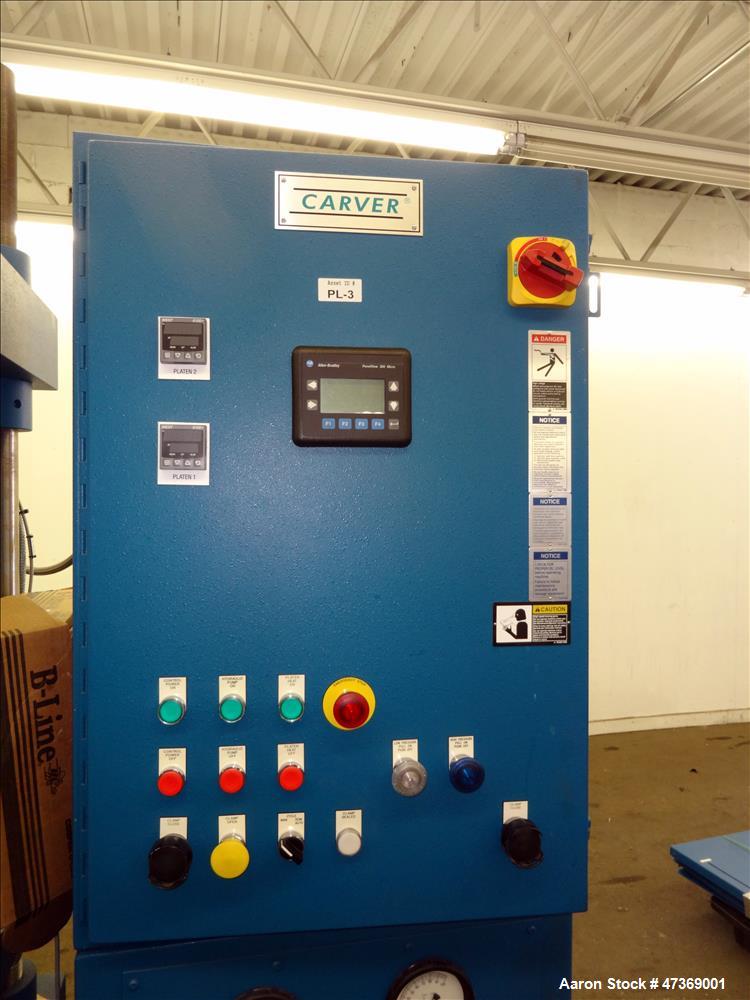

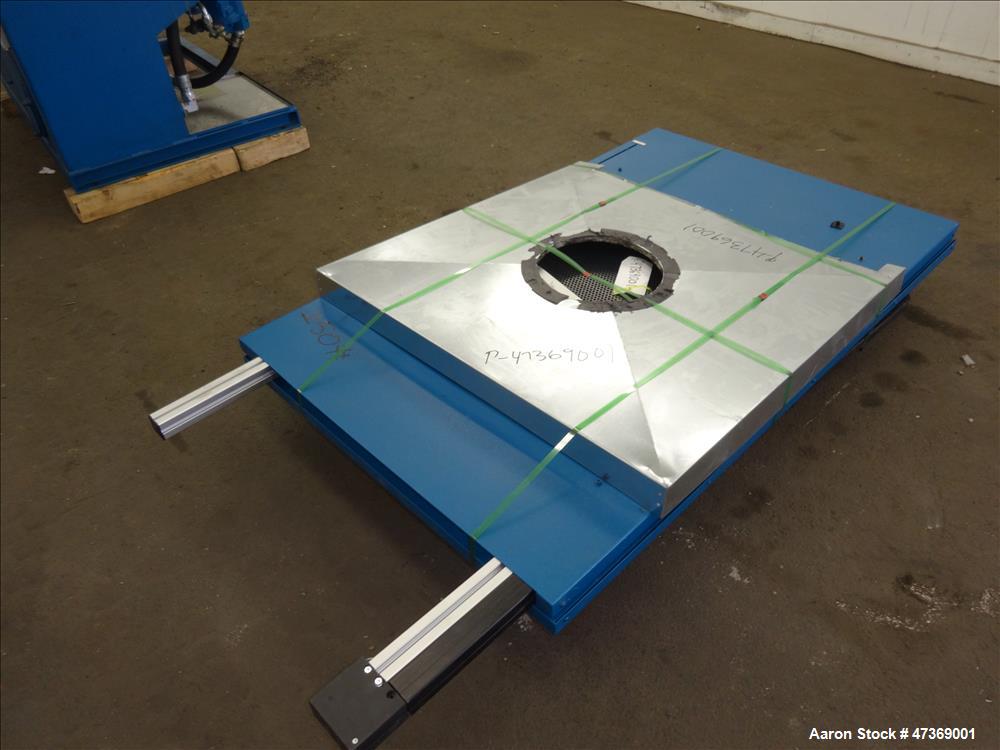

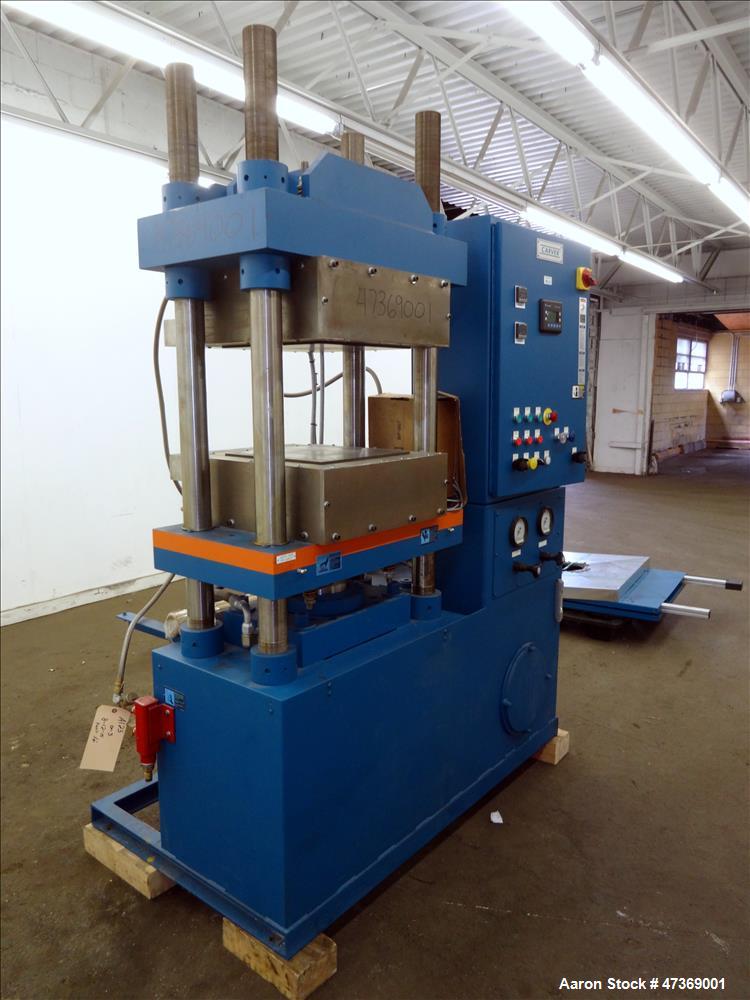

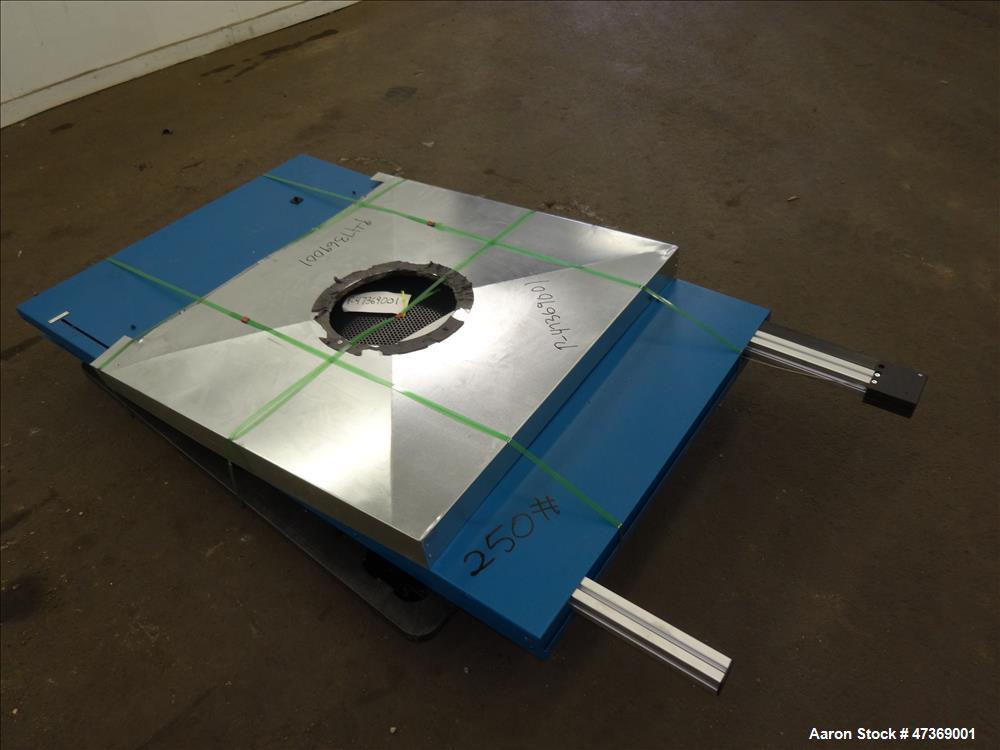

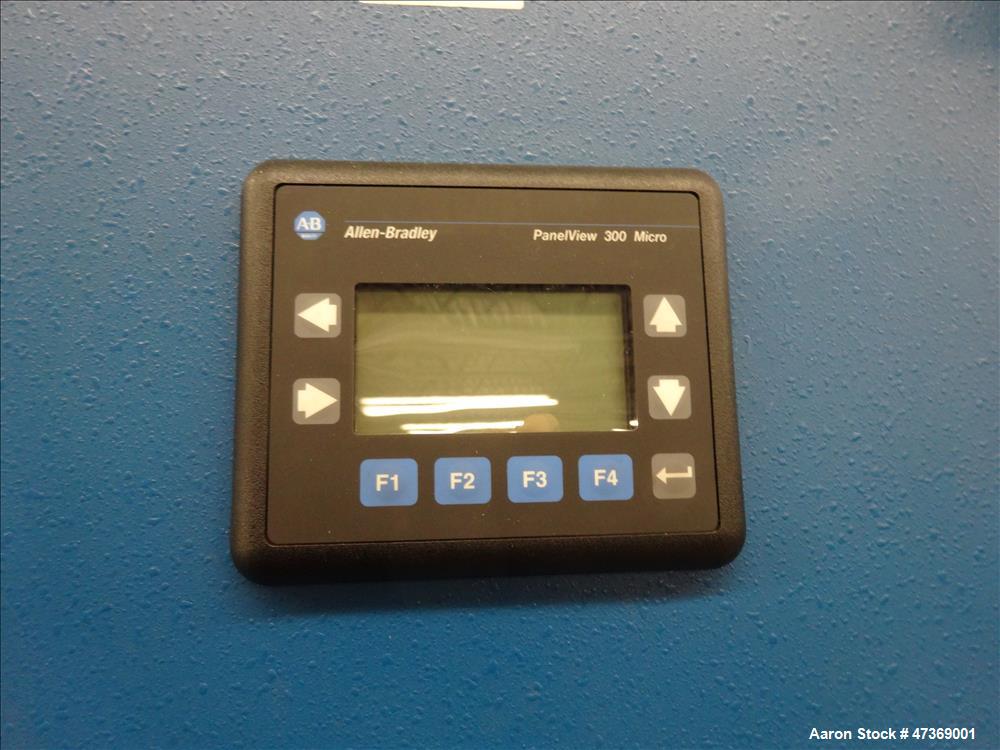

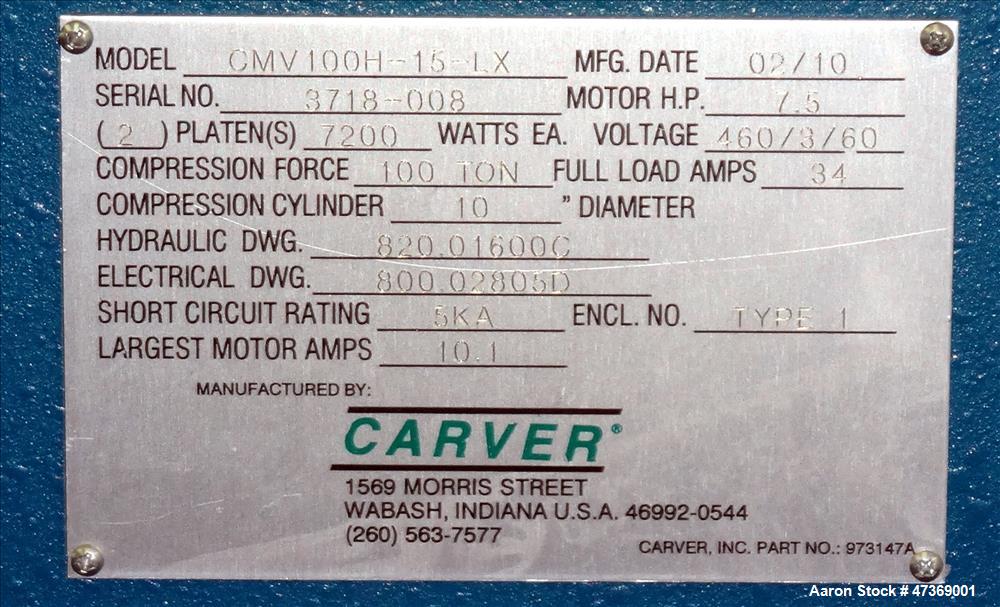

Used Carver Monarch Series Hydraulic Compression Press, Model CMV100H-15-LX, 100 Ton Maximum Capacity. Electrically heated, water cooled 15" x 15" platens, with temperature controllers, 7200 watts each. Approximate 1200 degrees F maximum operating temperature. 4 Tie bars/posts, 3" diameter. Adjustable daylight approximate 12" to 22". 12" Cylinder stroke, compression cylinder 10" diameter. Hydraulically operated by 7.5hp hydraulic system. Has NEMA-rated control panel with Allen-Bradley MicroLogix 1200 PLC with Allen-Bradley PanelView 300 micro operator interface. Approximate water requirements 5 gallons per minute at 50 psi and 70 degrees F., approximate air requirements 5 SCFM at 80 psi (intermittent). Includes guarding/enclosure. Serial# 3718-008. Built 2010. 3/60/460V.
