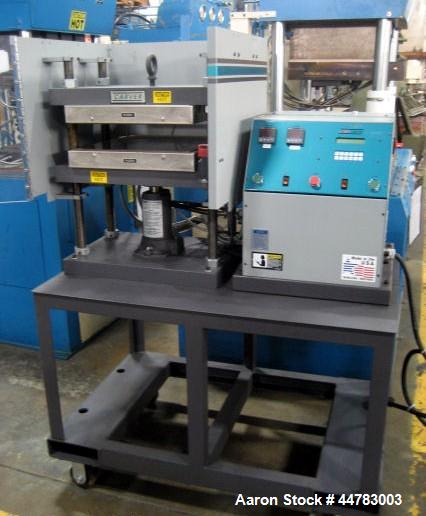

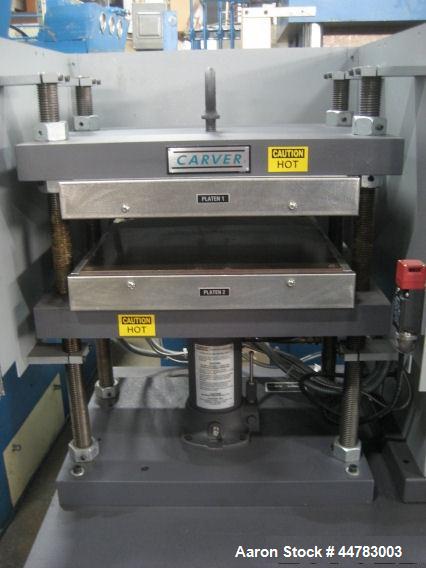

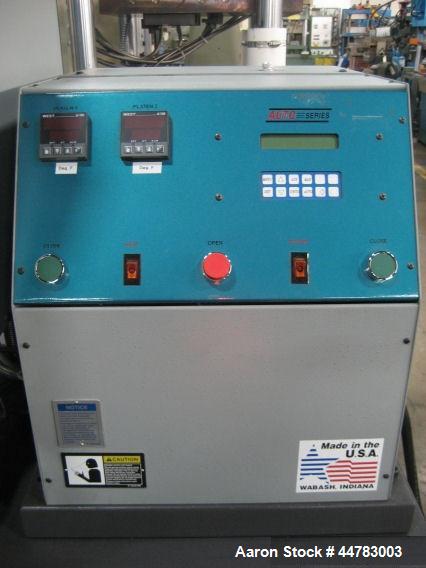

Used Carver 7.5 Ton Hydraulic Molding & Laminating Press, Model 4425-4D10A01. (4) Post upstroke type, table model on stand. Distance between 1.25" diameter posts: 17.25" L-R x 15" F-B. Platen area (nominal): 17" L-R x 15" F-B. Overall dimensions of platen: 21" L-R x 15" F-B. Stroke of fully guided platen: 0-5" maximum. Daylight opening (total): 9.5” maximum. Daylight opening between hot plates (1): 5" maximum. Hot plates (2): 15" L-R x 15" F-B x 1.25" thick (electrically heated to 600 degrees F). Insulation (2): 15" L-R x 15" F-B x 1" thick. Main ram diameter (1): 2" @ 4775 PSI – 7.5 tons. Floor to top of moving platen: 44". Power unit (base of press): hydraulic pump, driven by 0.25 hp 240/1/60 motor. Controls: Pushbutton operation with stroke and pressure control, dual operator pushbuttons, (2) digital temperature indicating controllers, PLC. Built 2002.
Used Carver 7.5 Ton Hydraulic Molding & Laminating Press, Model 4425-4D10A01. (4) Post upstroke type, table model on stand. Distance between 1.25" diameter posts: 17.25" L-R x 15" F-B. Platen area (nominal): 17" L-R x 15" F-B. Overall dimensions of platen: 21" L-R x 15" F-B. Stroke of fully guided platen: 0-5" maximum. Daylight opening (total): 9.5” maximum. Daylight opening between hot plates (1): 5" maximum. Hot plates (2): 15" L-R x 15" F-B x 1.25" thick (electrically heated to 600 degrees F). Insulation (2): 15" L-R x 15" F-B x 1" thick. Main ram diameter (1): 2" @ 4775 PSI – 7.5 tons. Floor to top of moving platen: 44". Power unit (base of press): hydraulic pump, driven by 0.25 hp 240/1/60 motor. Controls: Pushbutton operation with stroke and pressure control, dual operator pushbuttons, (2) digital temperature indicating controllers, PLC. Built 2002.
