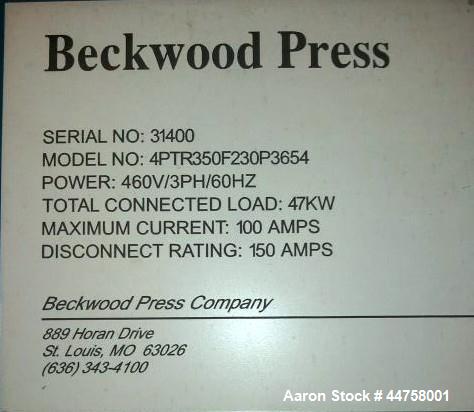

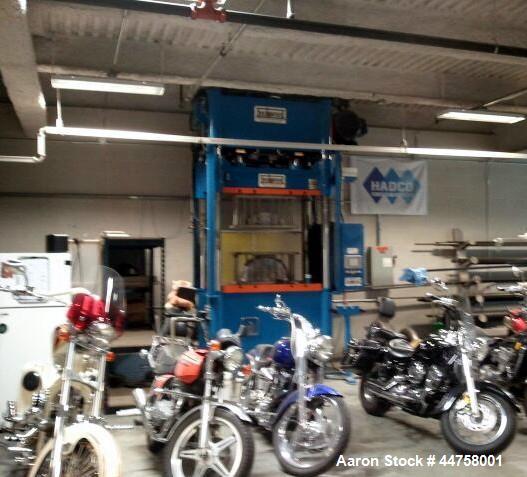

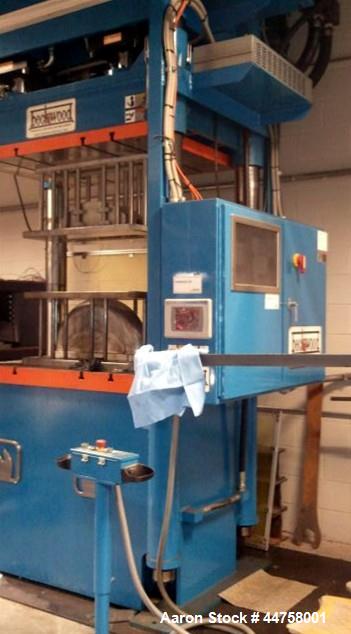

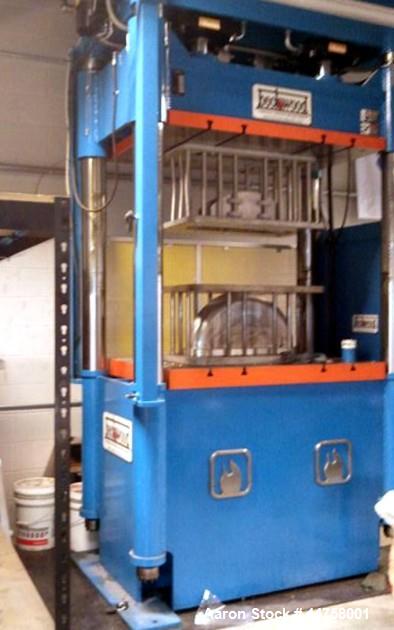

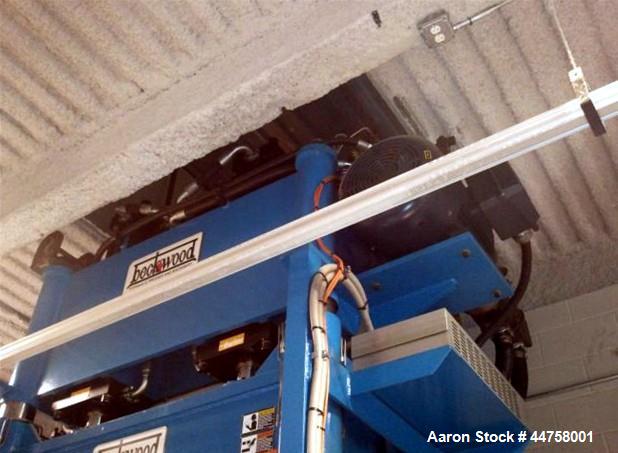

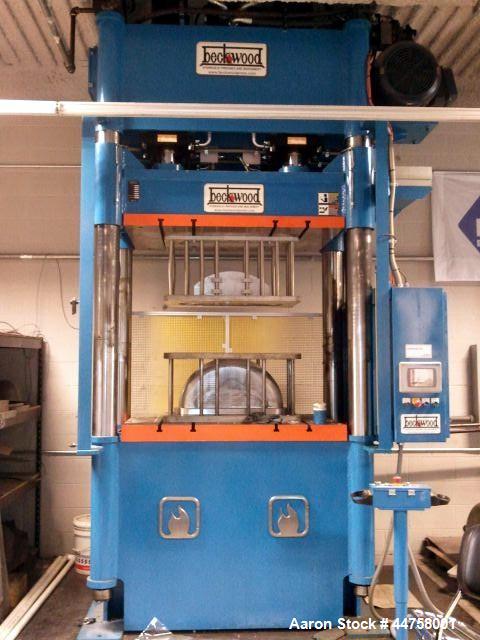

Used Beckwood Press, Model 4PTR350F230P3654, 350 Ton Capacity. 3" x 36" x 54" Bolsters, 34" stroke Parker cylinders. Ram speeds: 210 IPM approach, 40 IPM pressing, 191 IPM return. Hydraulic power system, 0-75 ton capacity programmable bed cushion equipped with 16" stroke cylinders, industry leading oversized ram guide bushings for superior ram guidance and rigidity. Equipped with two axis self-leveling precision parallelism control for programming of desired height to +/- .001" with performance of +/- .002". Automatic ram slide lubrication system, water/oil heat exchanger with modulating valve, light curtain guards front opening of the press, bolt-on expanded metal guards with interlocks, closed loop control for each corner of the press utilizing four cylinders, each with independent high performance directional valves, linear measurement and axis control, Allen Bradley PLC, programmable control system with touch screen and recipe handling - Level 2.
Used Beckwood Press, Model 4PTR350F230P3654, 350 Ton Capacity. 3" x 36" x 54" Bolsters, 34" stroke Parker cylinders. Ram speeds: 210 IPM approach, 40 IPM pressing, 191 IPM return. Hydraulic power system, 0-75 ton capacity programmable bed cushion equipped with 16" stroke cylinders, industry leading oversized ram guide bushings for superior ram guidance and rigidity. Equipped with two axis self-leveling precision parallelism control for programming of desired height to +/- .001" with performance of +/- .002". Automatic ram slide lubrication system, water/oil heat exchanger with modulating valve, light curtain guards front opening of the press, bolt-on expanded metal guards with interlocks, closed loop control for each corner of the press utilizing four cylinders, each with independent high performance directional valves, linear measurement and axis control, Allen Bradley PLC, programmable control system with touch screen and recipe handling - Level 2.
