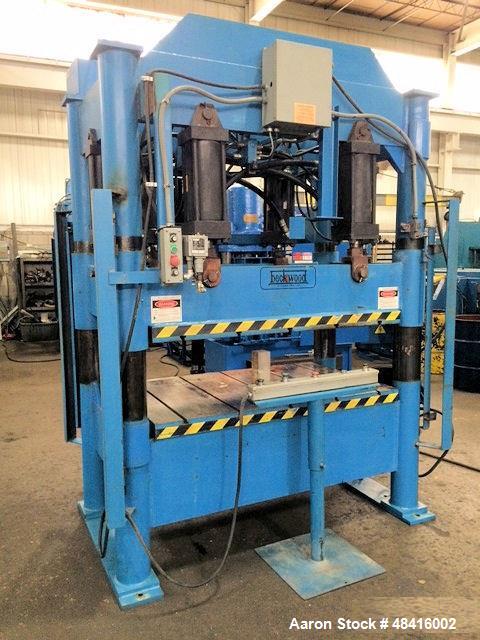

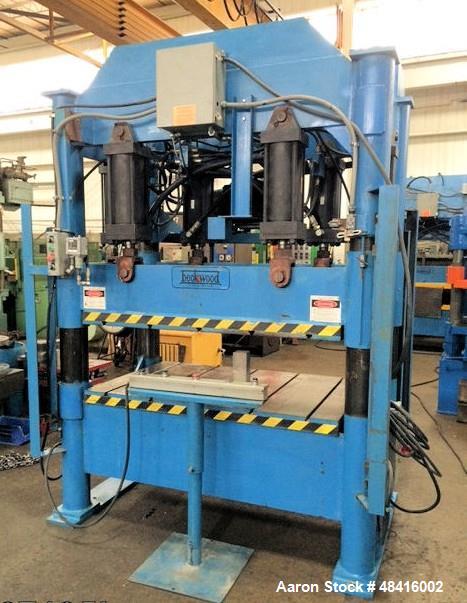

Used Beckwood 150 Ton 4 Post Downstroke Type Hydraulic Press, Model 1502862, Floor Standing. Distance between 6.5" diameter posts 62" left to right x 28" front to back, area of bed (nominal) 60" left to right x 38" front to back (T-slotted), area of slide (nominal) 60" left to right x 38" front to back (T-slotted), stroke of fully guided slide 0-12" maximum, daylight opening (total) 16.5" maximum. Main ram diameter (4) 6"-2.5", side ram diameter (2) 4"-2", floor to top of bed 32". Power unit (top rear of press) Parker model PFVH25A14R2FN1 hydraulic pump, driven by a 25hp, 1775rpm, 230/460/3/60 motor, speeds approximate 120" minute closing, 20" minute pressing to 150 tons, 142" minute return. Controls are pushbutton operation with stroke & pressure control, dual palm buttons, selector switch for inch or run and pressure gauge. Serial#23576, built 1999.
Used Beckwood 150 Ton 4 Post Downstroke Type Hydraulic Press, Model 1502862, Floor Standing. Distance between 6.5" diameter posts 62" left to right x 28" front to back, area of bed (nominal) 60" left to right x 38" front to back (T-slotted), area of slide (nominal) 60" left to right x 38" front to back (T-slotted), stroke of fully guided slide 0-12" maximum, daylight opening (total) 16.5" maximum. Main ram diameter (4) 6"-2.5", side ram diameter (2) 4"-2", floor to top of bed 32". Power unit (top rear of press) Parker model PFVH25A14R2FN1 hydraulic pump, driven by a 25hp, 1775rpm, 230/460/3/60 motor, speeds approximate 120" minute closing, 20" minute pressing to 150 tons, 142" minute return. Controls are pushbutton operation with stroke & pressure control, dual palm buttons, selector switch for inch or run and pressure gauge. Serial#23576, built 1999.
