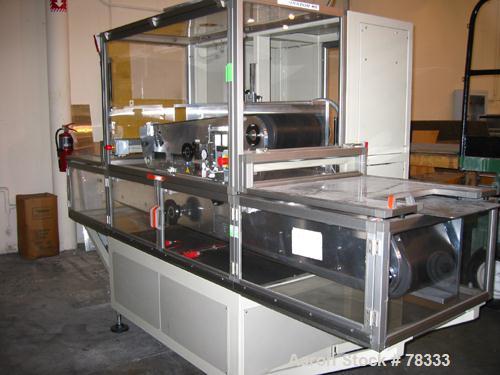

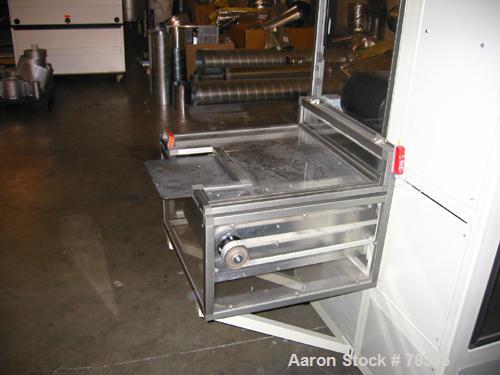

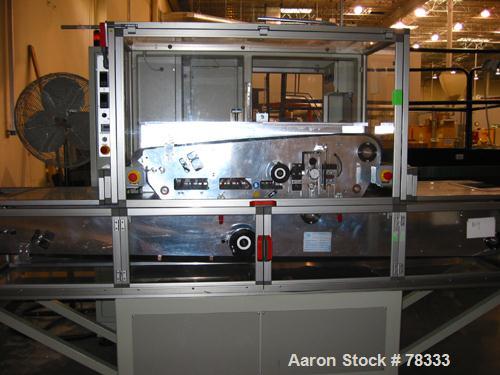

USED: Arcotronics laminator with conveyor belts. Material: stainlesssteel with a teflon coating on the side in contact with the product.Thickness: 0.2mm teflon (PTFE) coating thickness: 0.03mm. Productpath length between belts 1000mm. Preheating path length 700mm. Beltsspeed 0.03 to 0.2m/sec., adjustable by a multi-turns potentiometer. Heated sliding blocks: material hard anodized aluminum. Upper length:55mm, width: 300mm N degrees of blocks: 12. Lower length: 230mm, width300mm n degrees of blocks: 3. Temperature range: up to 150 degrees C.Precision: +/- 5 degrees C. Temperature control: adjustable at 1 degree C step. Lamination rolls: outer diameter (OD): 150mm. Forceapplied on rolls: between 1 and 280kg; spring loaded adjustable byscrew. Force resolution: 100gr. Peripheral speed: same of the belts.Lamination gap: adjustable between 0.1 and 1.5mm with 0.02mm stepincrements.
USED: Arcotronics laminator with conveyor belts. Material: stainlesssteel with a teflon coating on the side in contact with the product.Thickness: 0.2mm teflon (PTFE) coating thickness: 0.03mm. Productpath length between belts 1000mm. Preheating path length 700mm. Beltsspeed 0.03 to 0.2m/sec., adjustable by a multi-turns potentiometer. Heated sliding blocks: material hard anodized aluminum. Upper length:55mm, width: 300mm N degrees of blocks: 12. Lower length: 230mm, width300mm n degrees of blocks: 3. Temperature range: up to 150 degrees C.Precision: +/- 5 degrees C. Temperature control: adjustable at 1 degree C step. Lamination rolls: outer diameter (OD): 150mm. Forceapplied on rolls: between 1 and 280kg; spring loaded adjustable byscrew. Force resolution: 100gr. Peripheral speed: same of the belts.Lamination gap: adjustable between 0.1 and 1.5mm with 0.02mm stepincrements.
