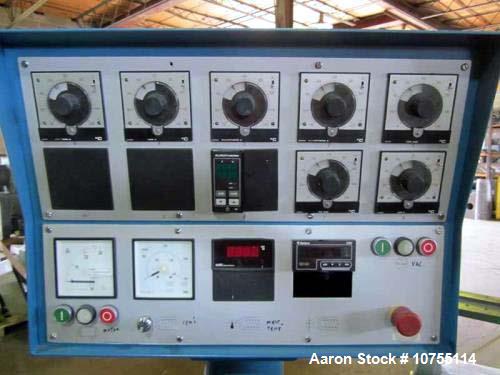

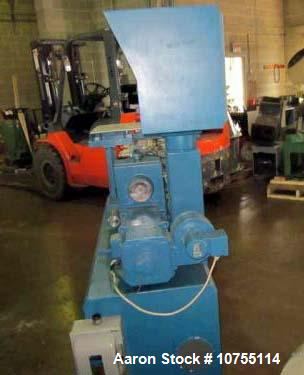

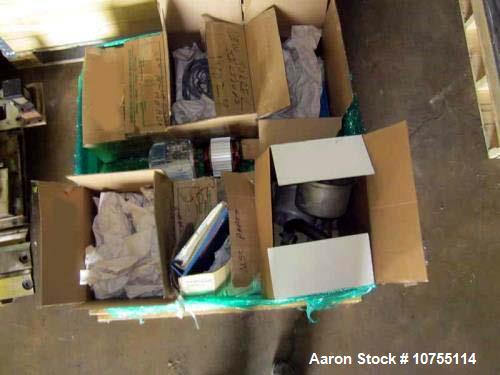

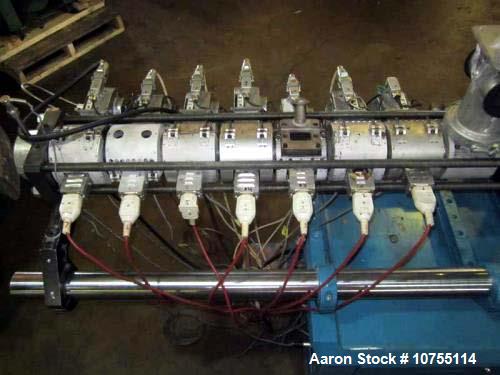

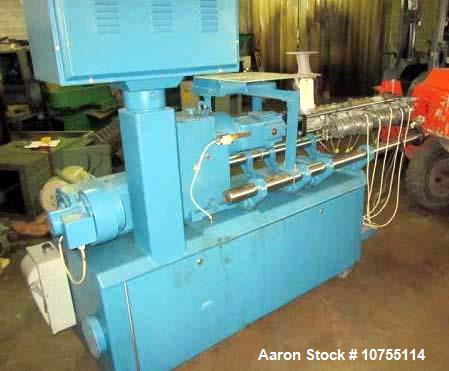

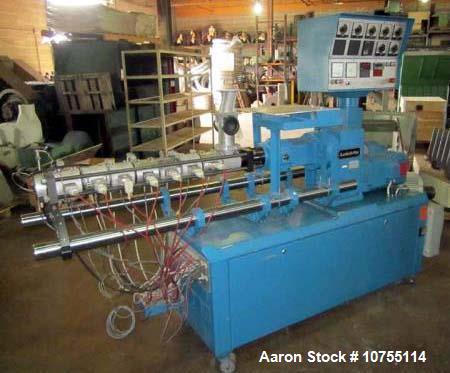

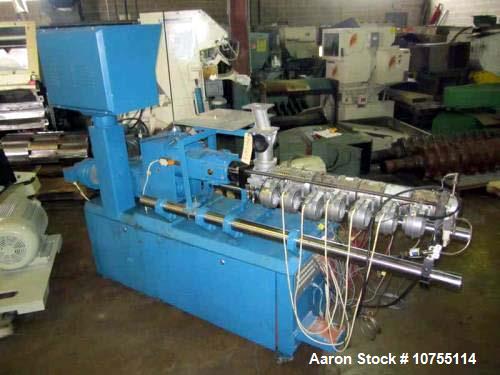

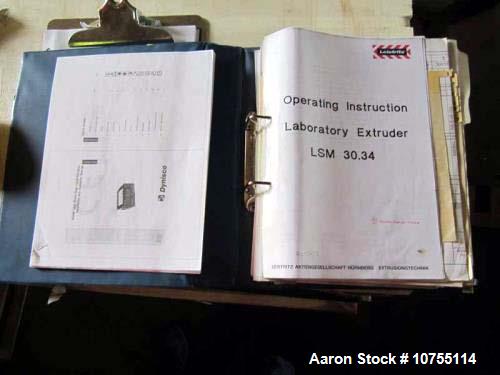

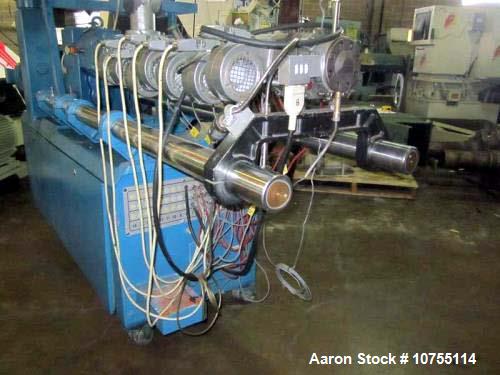

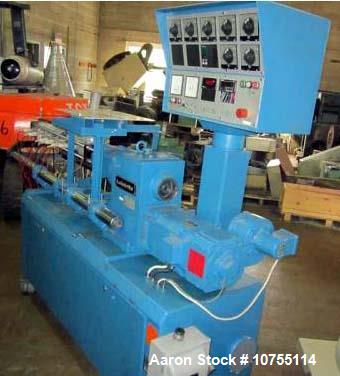

Used Leistritz Model LSM-30.34 Twin Screw Counter Rotating. Currently set up at 30:1 L/D. Can be changed to 12.35, 12.88, 19.41, 22.94, 26.47, 30, and 33.53:1 L/D, 34mm (1.181") screws with a center distance of 30mm and a flight depth of 4mm, has 7 heating zones per side, 7 air cooled barrel fans, (barrels can be vented or non vented with included adapters). 16 KW up to 2200 RPM Baumuller drive motor through 7.31: gearbox. Water cooled feed throat, Dynisco Pressure Sensor, Pantather Analog temperature controls, screws and barrels can be equipped with single elements up to a length (both left & right) of 4 at 510mm, 5 at 630mm, 6 at 750mm, 7 at 870mm, 8 at 990 mm, 9 at 1110mm and 10 at 1230mm. 240/3/60 power input, ran PLA. Includes spare screw shafts, barrel sections, heater bands with cables and covers, original build sheet, operator's manual and electrical schematics. Low hour machine in excellent condition used by a technical college for training purposes.
