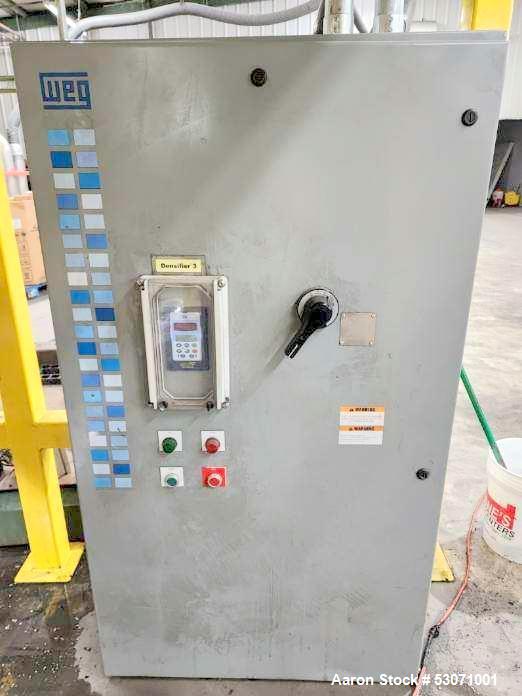

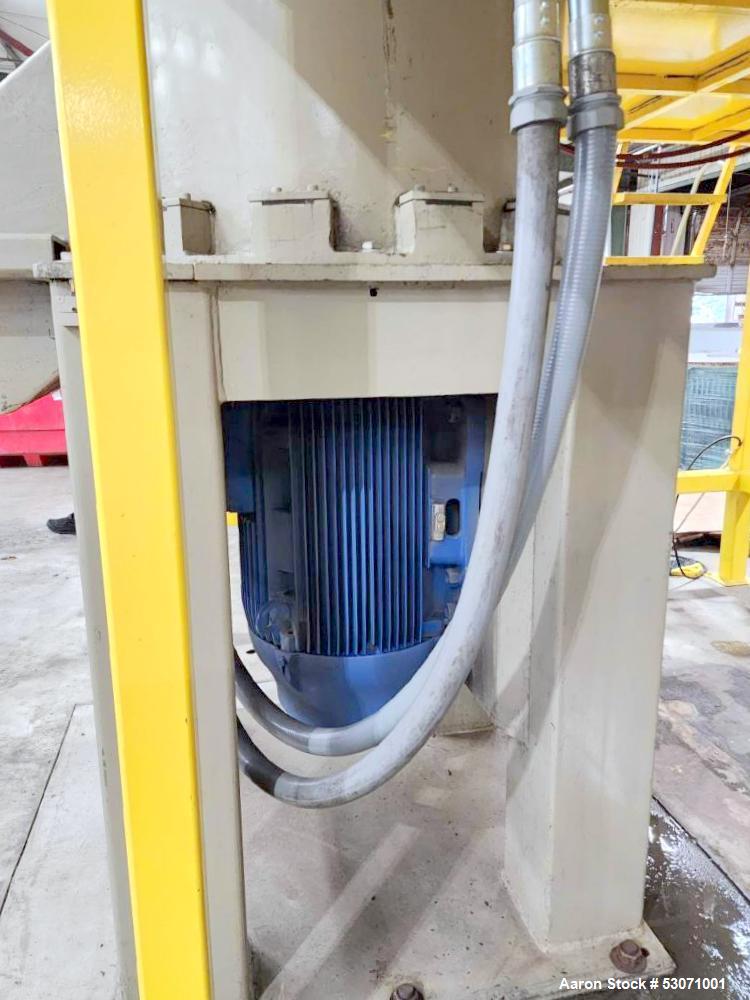

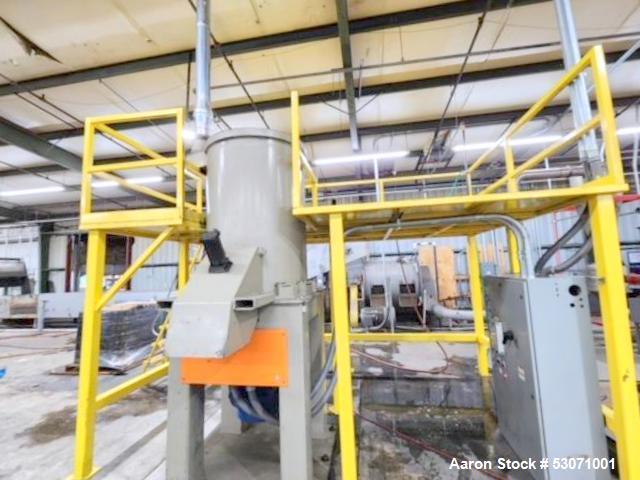

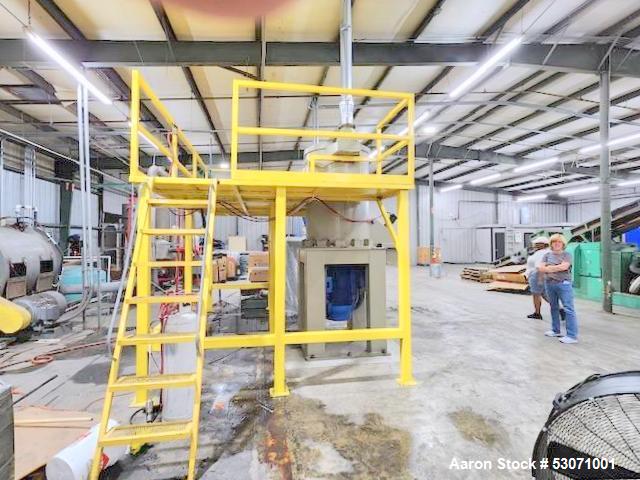

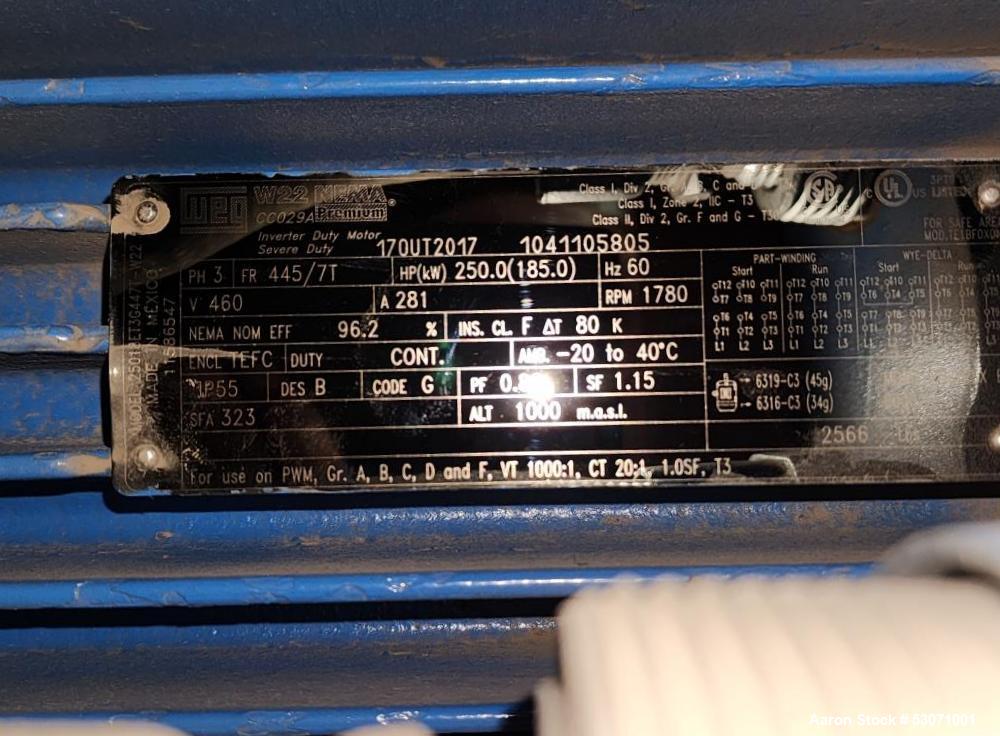

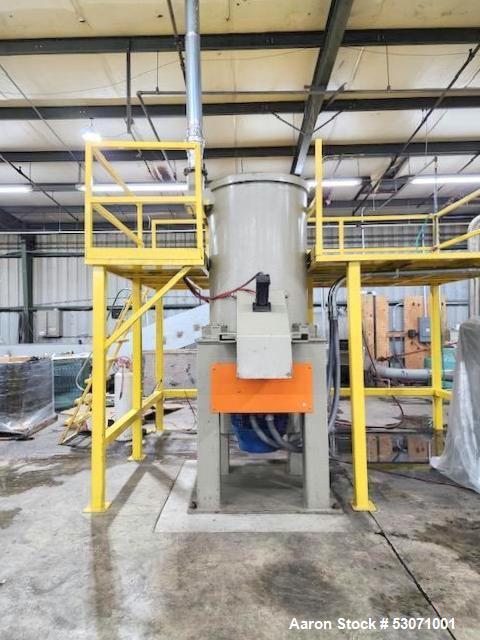

Used MGB Engineering Densifier with Custom Built Operators Platform; The drum is made of 3/8" thick steel plate, and is 40" in diameter by 60" high. The bottom of the drum is made from a 1" steel plate, and has 10 stationary and one rotating blade. The bottom seal for the shaft is of a special design to prevent leakage and entry of water in the motor. The support legs are constructed of heavy structural tubing and the bottom of the base is made from 3/4" steel plate for additional support. Provisions for bolting down to the foundation are also incorporated, the height of the discharge chute is approx. 44" from the floor in order to discharge into a Gaylord. Unit powered by a 250 HP WEG AC direct drive motor and includes a WEG soft start package. The Densifier includes a custom-built Operators Platform. The platform is 14.6 feet wide and 9.6 feet deep. The upper work platform is 7.5 feet from the floor. The Densifier and Operator's Platform are being offered as a package. 460V Voltage requirements - 400 AMP Main Breaker
Used MGB Engineering Densifier with Custom Built Operators Platform; The drum is made of 3/8" thick steel plate, and is 40" in diameter by 60" high. The bottom of the drum is made from a 1" steel plate, and has 10 stationary and one rotating blade. The bottom seal for the shaft is of a special design to prevent leakage and entry of water in the motor. The support legs are constructed of heavy structural tubing and the bottom of the base is made from 3/4" steel plate for additional support. Provisions for bolting down to the foundation are also incorporated, the height of the discharge chute is approx. 44" from the floor in order to discharge into a Gaylord. Unit powered by a 250 HP WEG AC direct drive motor and includes a WEG soft start package. The Densifier includes a custom-built Operators Platform. The platform is 14.6 feet wide and 9.6 feet deep. The upper work platform is 7.5 feet from the floor. The Densifier and Operator's Platform are being offered as a package. 460V Voltage requirements - 400 AMP Main Breaker
