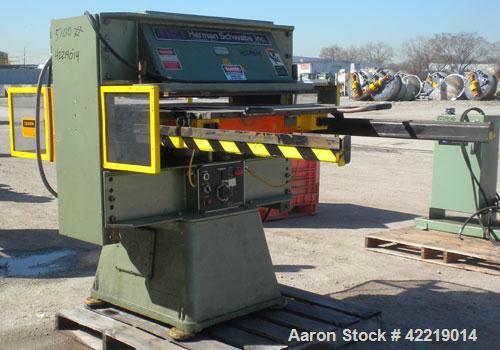

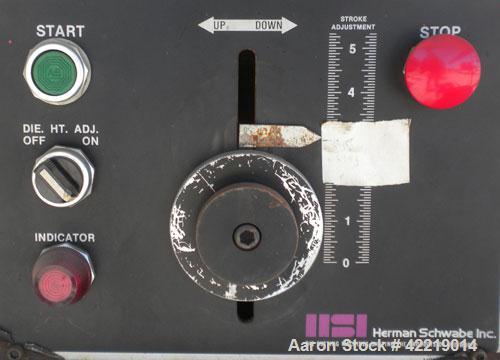

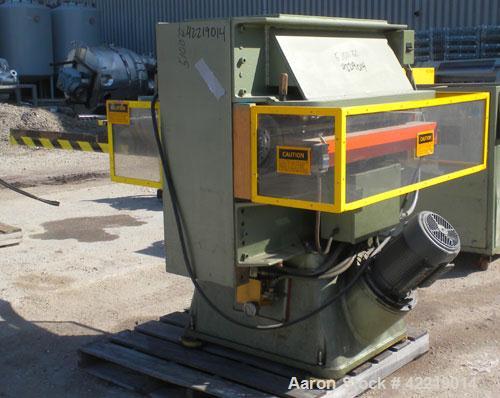

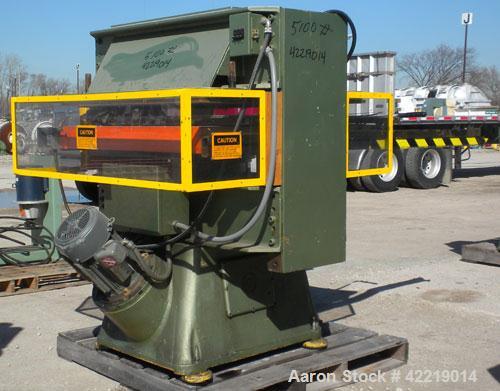

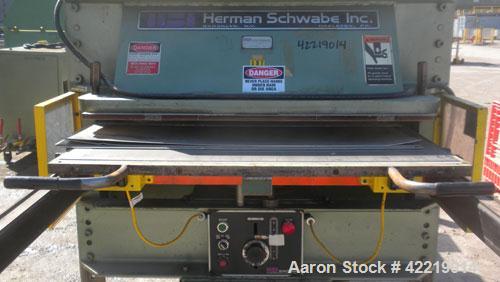

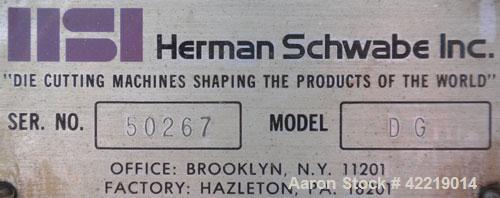

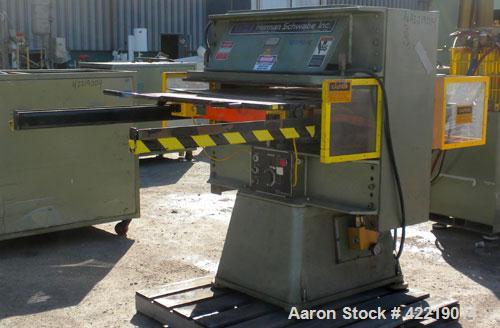

Used Schwabe 35 Ton Hydraulic Die Cutting Press with shuttle table, model DG, floor standing. Ideal press for cutting paper, cardboard, leather, rubber, plastics or textiles. Distance between side frames 43" left to right. Cutting area 38" left to right X 38" front to back. Stroke of moving platen 0 - 5" maximum. Daylight over sliding table approximately 4" maximum. Floor to sliding table 42". Power unit submerged hydraulic pump. Driven by 5 hp, 3/60/230/460 volt, 1745 rpm motor. Controls, pushbutton operation with stroke and pressure control, dual operator touch palms.
Used Schwabe 35 Ton Hydraulic Die Cutting Press with shuttle table, model DG, floor standing. Ideal press for cutting paper, cardboard, leather, rubber, plastics or textiles. Distance between side frames 43" left to right. Cutting area 38" left to right X 38" front to back. Stroke of moving platen 0 - 5" maximum. Daylight over sliding table approximately 4" maximum. Floor to sliding table 42". Power unit submerged hydraulic pump. Driven by 5 hp, 3/60/230/460 volt, 1745 rpm motor. Controls, pushbutton operation with stroke and pressure control, dual operator touch palms.
