Used Equipment Facts About This Machine
MANUFACTURER INFORMATION
• Manufacturer: Quadrel
• Series: ProLine
• Model: ZDT ProLine
• Equipment type: Wraparound pressure-sensitive labeler
• Labeling configuration: Zero downtime
• Drive type: Servo driven
• Year built: 2021
• Condition: Unused and never put into production
• Stock number: 73231001
• Serial number: 83288-100
• Category: Packaging Equipment
• Subcategory: Labelers Pressure Sensitive – Wraparound
MAIN PRODUCT DESCRIPTION

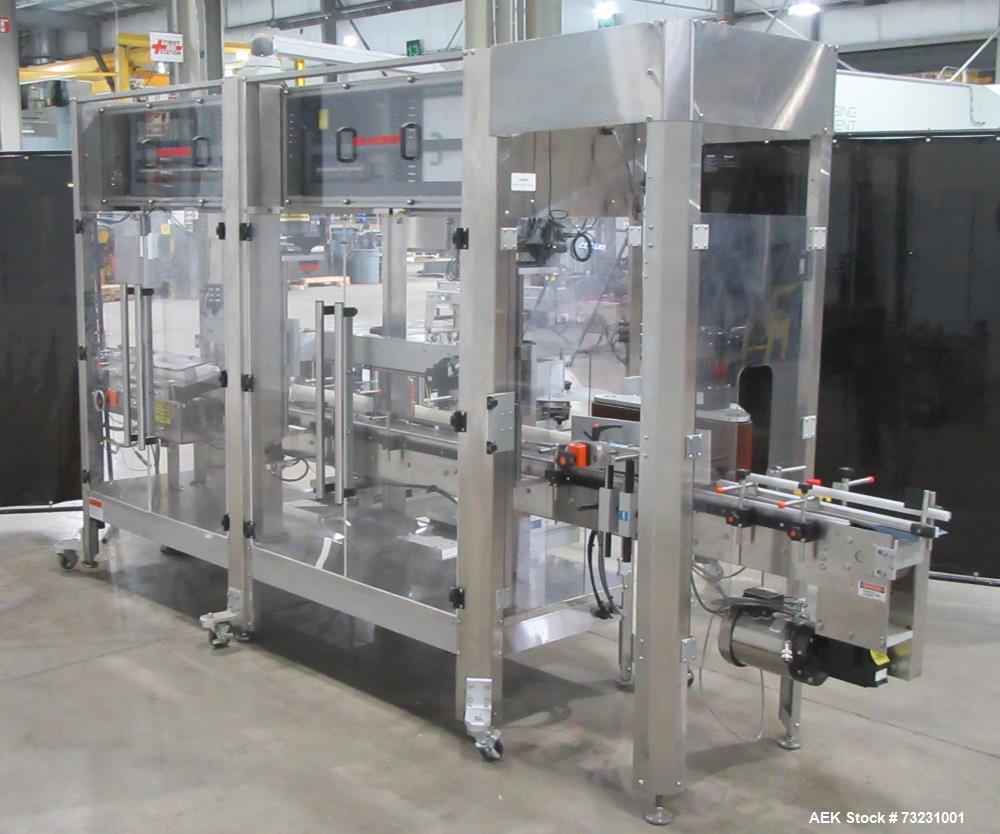

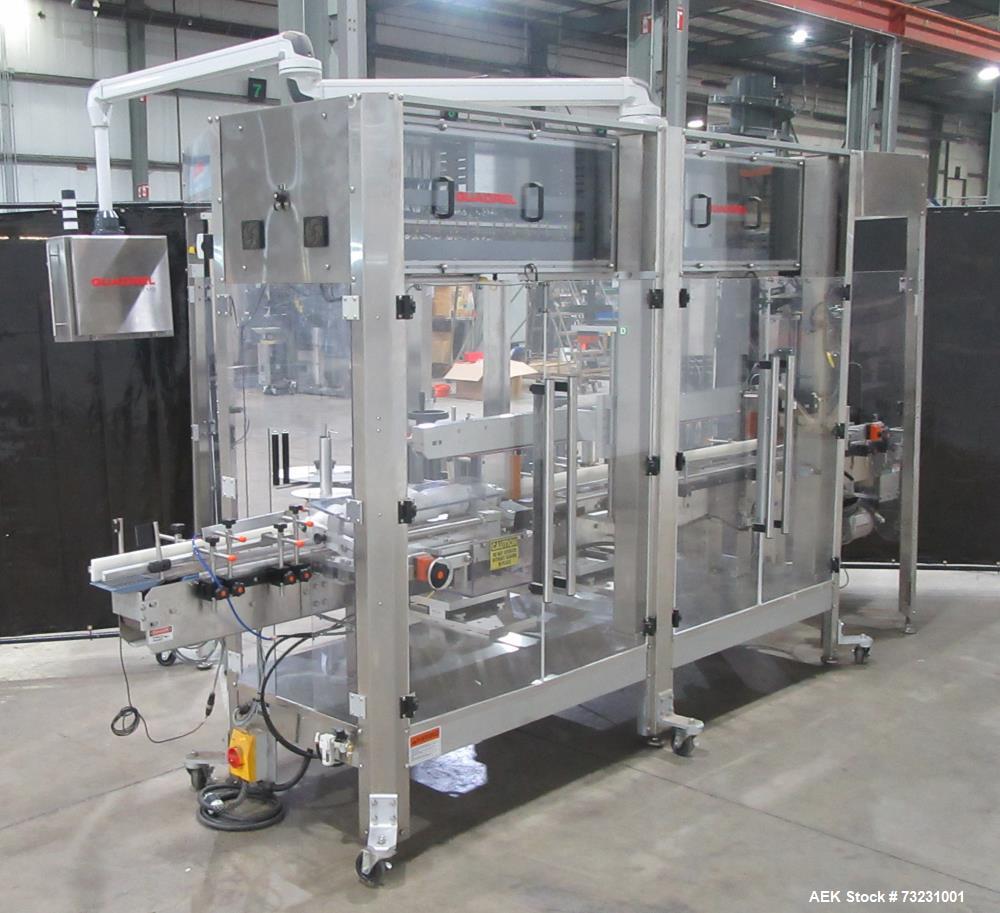

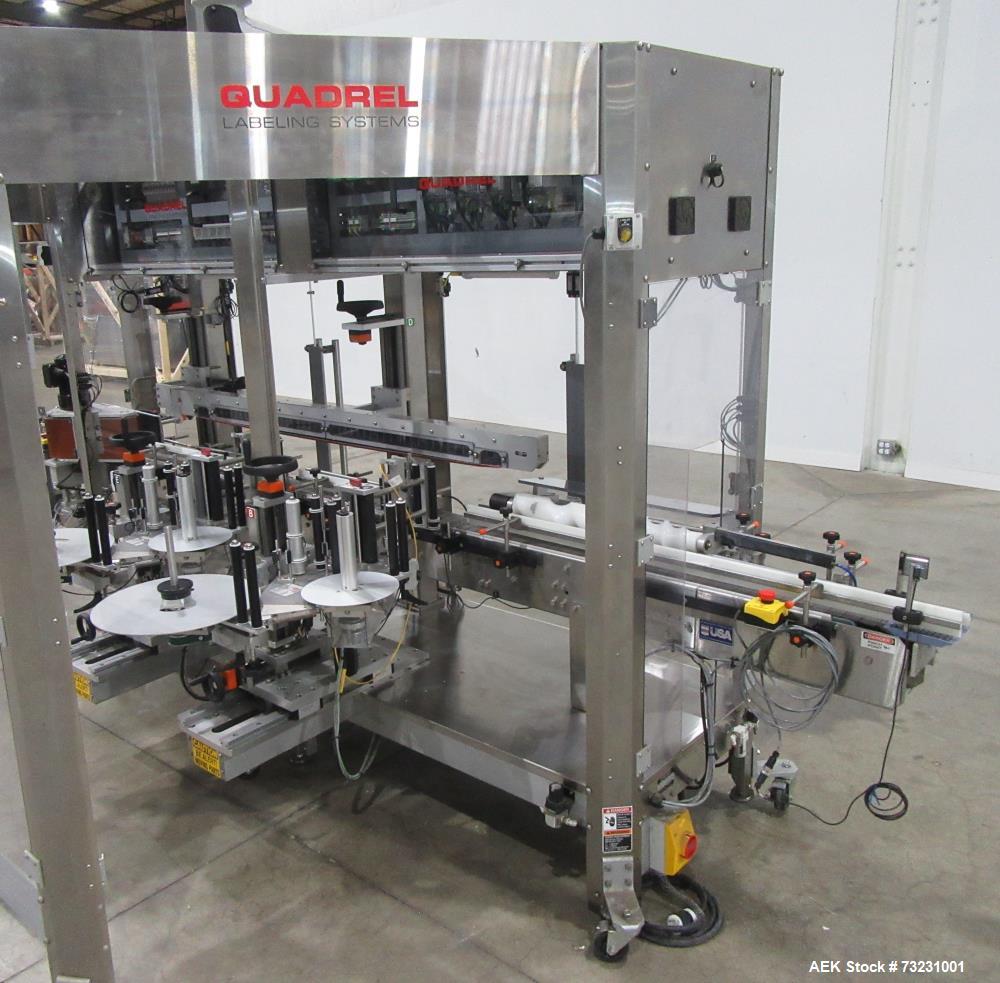

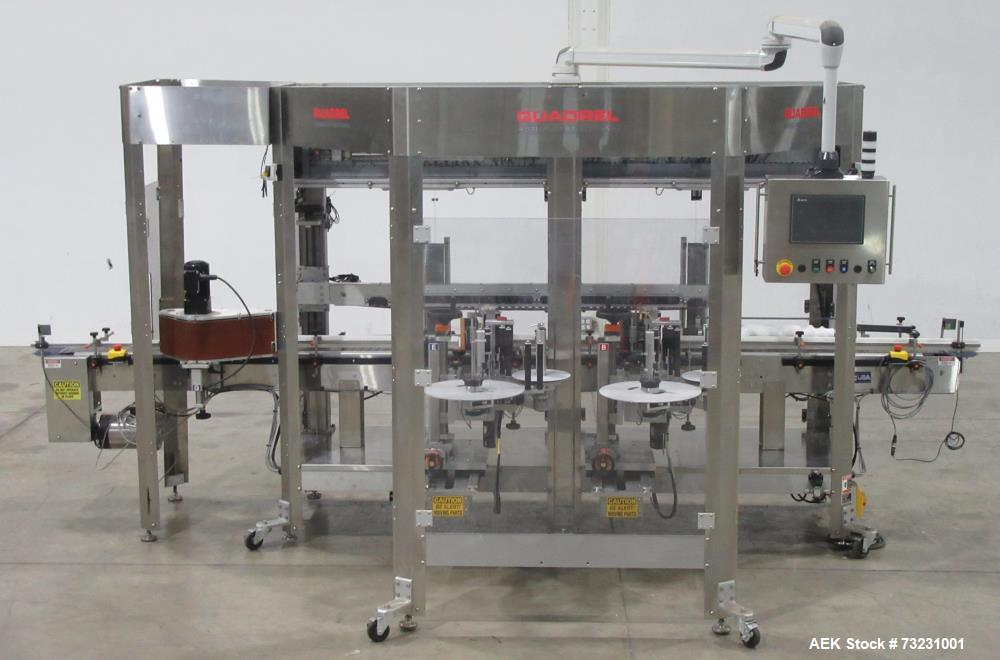

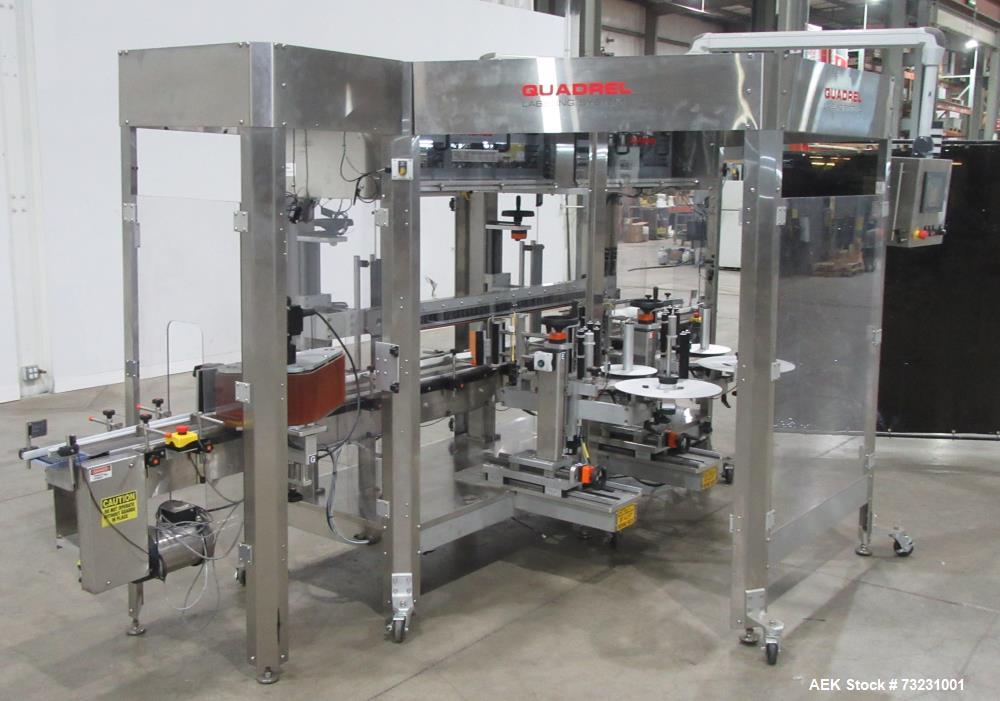

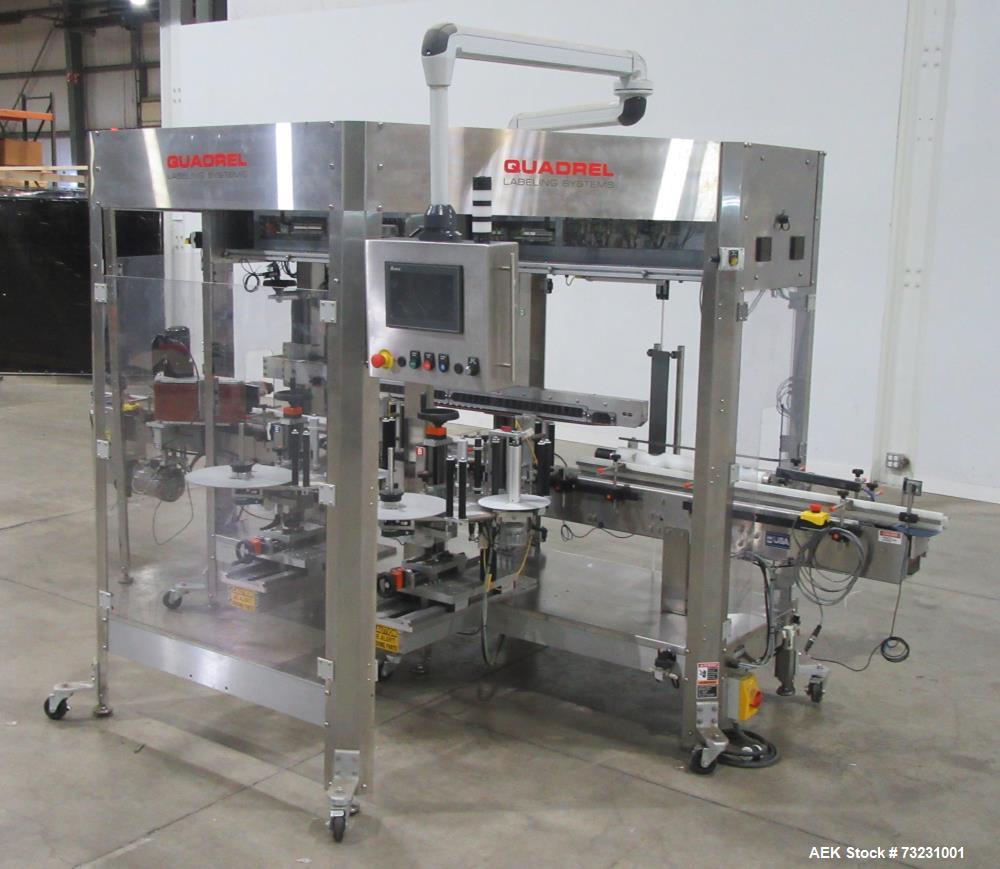

Unused Quadrel ProLine Series model ZDT servo-driven zero-downtime wraparound pressure-sensitive labeler built in 2021 and never put into production. The system uses two redundant 7-inch-high label heads to support continuous labeling operation and includes a wrap station with top hold-down, wormscrew container infeed, and a 4-1/2-inch-wide conveyor belt. The labeler handles labels up to 6-7/8 inches high, offers stated labeling accuracy of plus or minus 1/32 inch, and provides label dispensing speeds up to 3,000 inches per minute. Each label head accepts a 16-inch outside-diameter label reel with a 3-inch-diameter core. Controls include an Allen-Bradley PLC, Delta DOP-110WS HMI, and Nidec Control Techniques Commander and Epsilon EP drives. Electrical requirements are 220 volts, single phase, 60 hertz. Overall dimensions are 175 inches long x 68 inches wide x 96 inches high.
• Manufacturer: Quadrel
• Series: ProLine
• Model: ZDT ProLine
• Stock number: 73231001
• Equipment type: Pressure-sensitive wraparound labeler
• Configuration: Zero downtime
• Drive type: Servo driven
• Year built: 2021
• Condition: Unused
• Production history: Never put into production

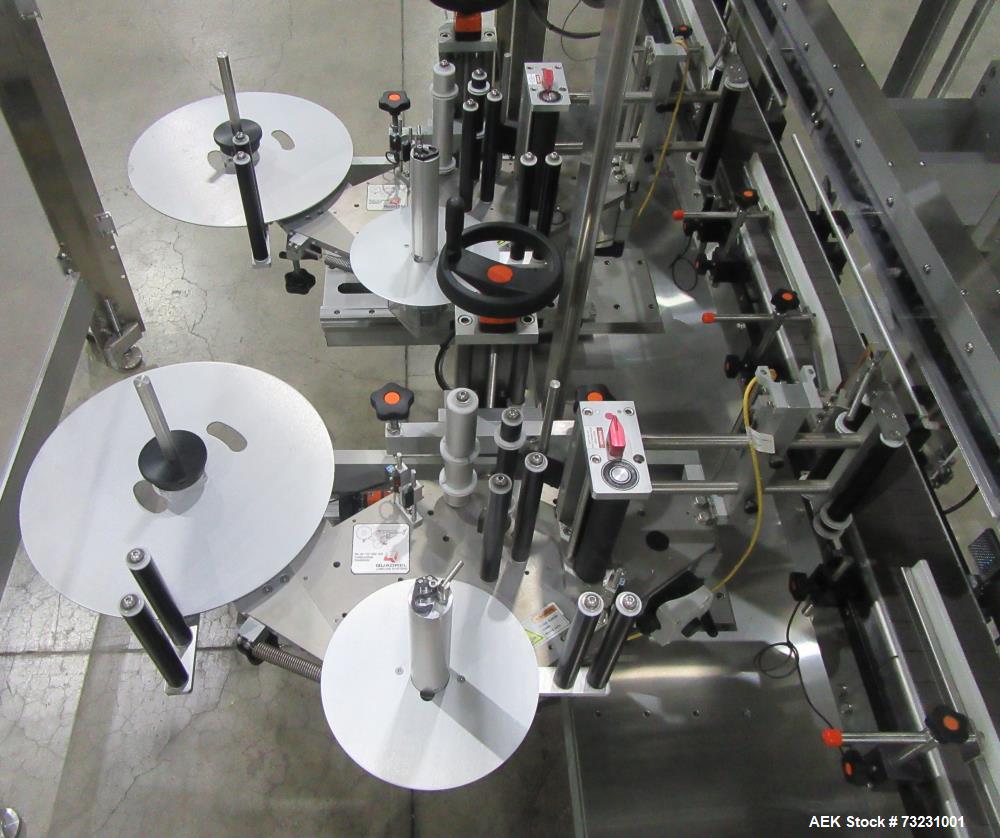

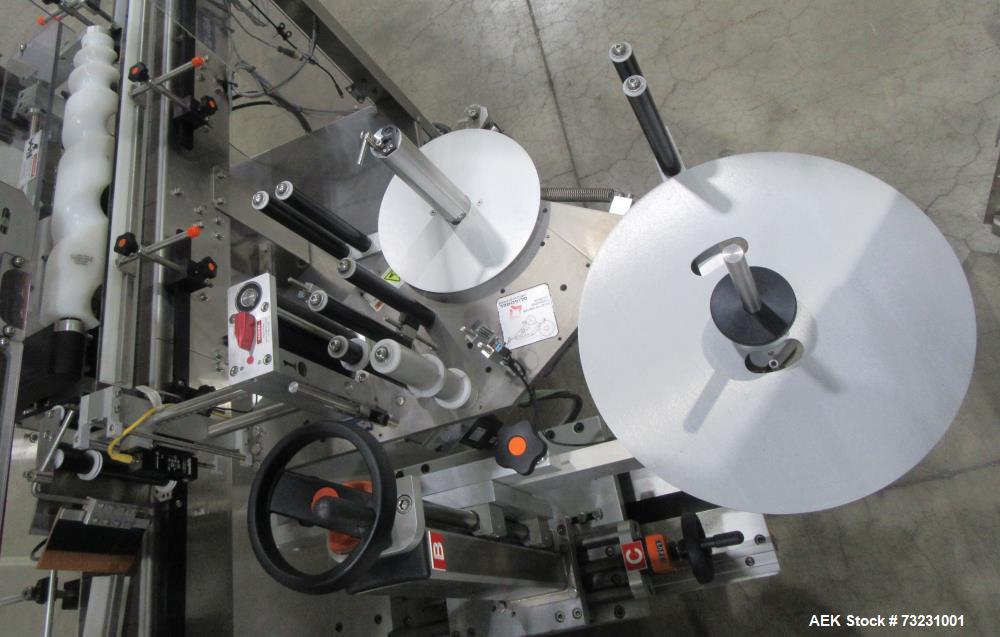

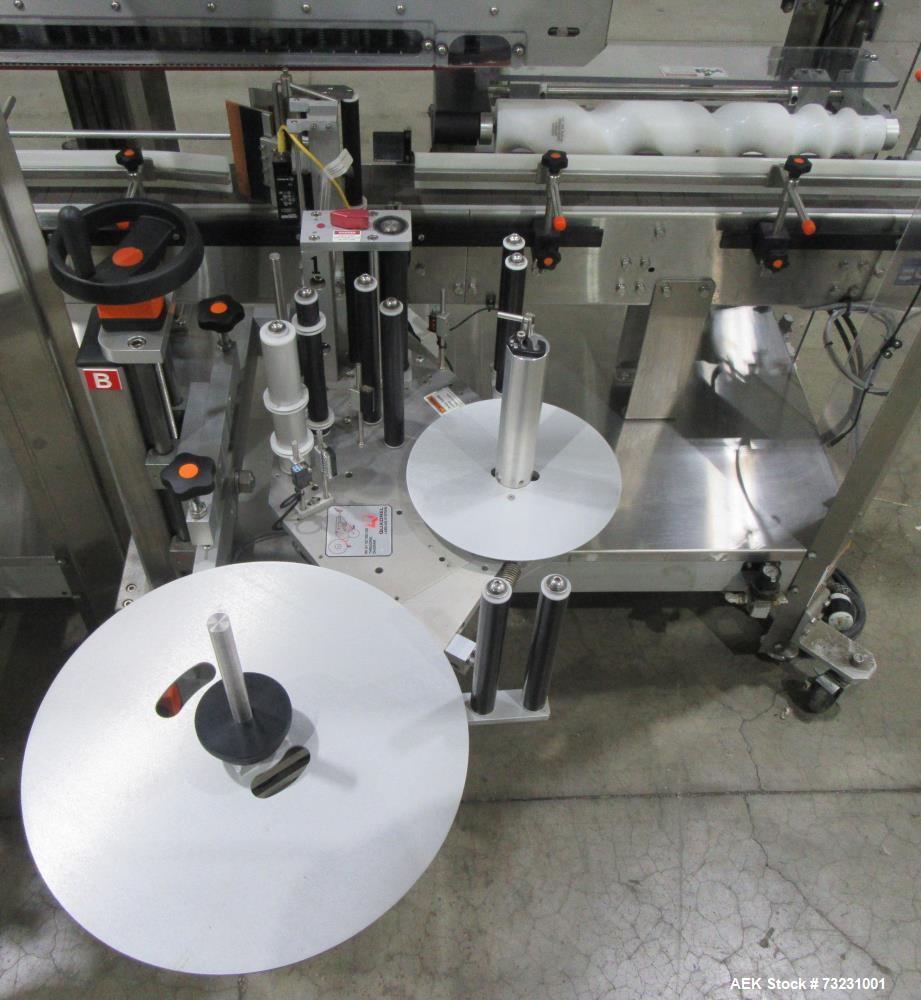

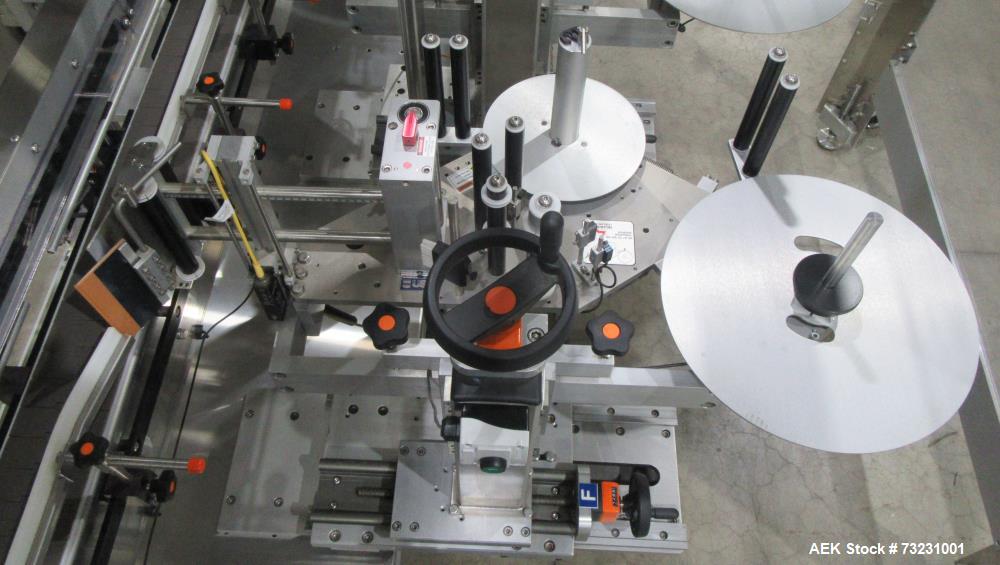

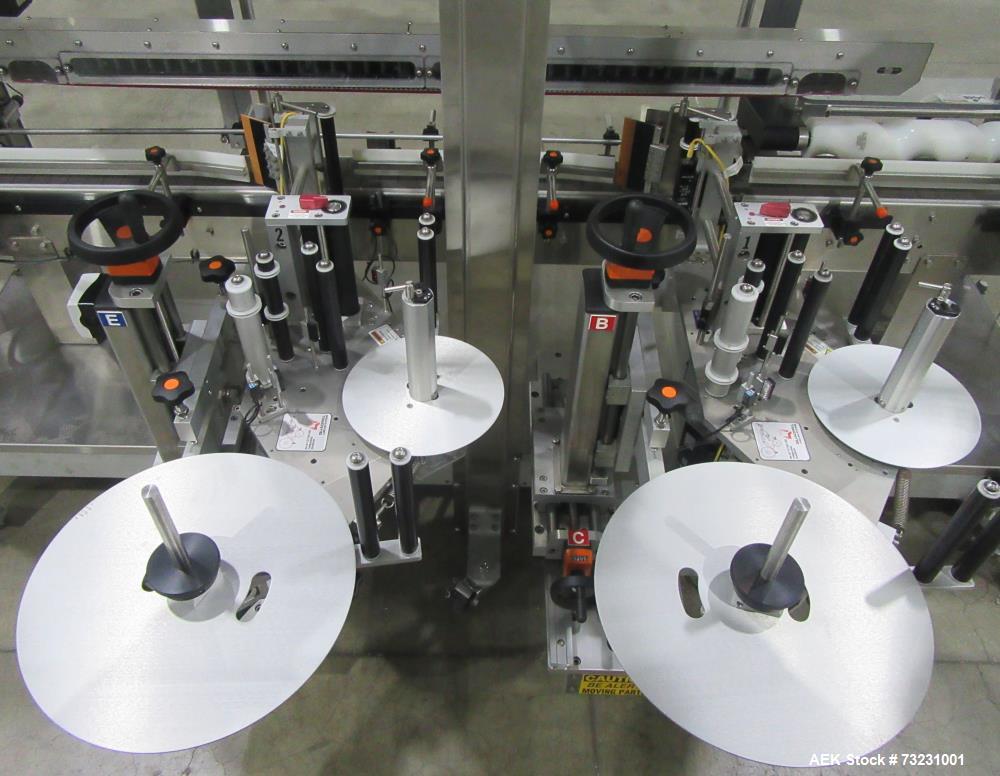

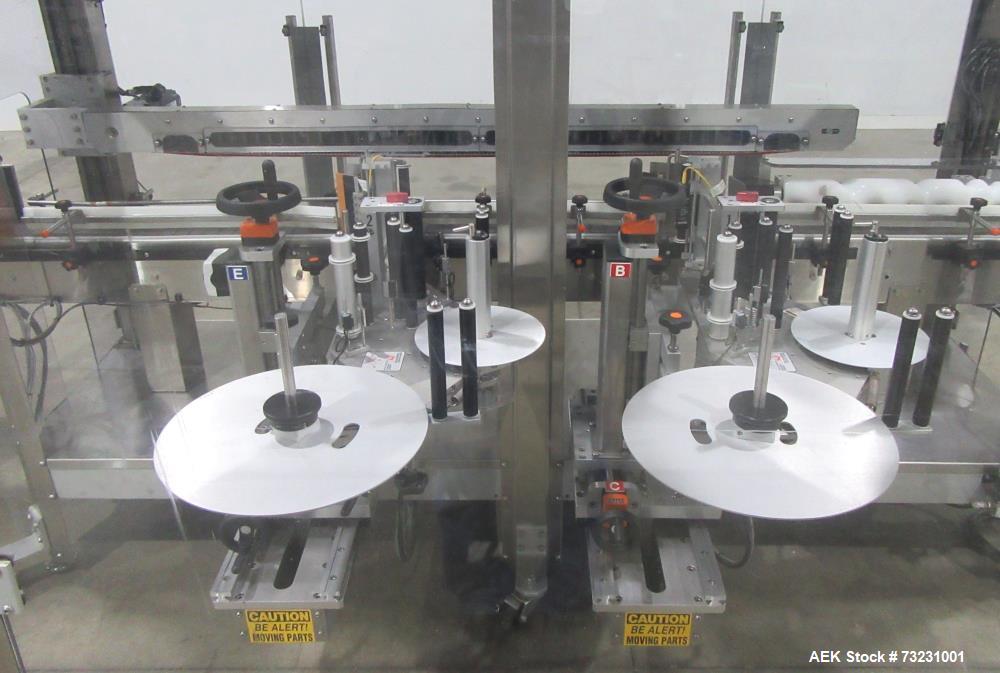

• Label heads: Two redundant heads
• Label-head height: 7 inches
• Maximum label height: 6-7/8 inches
• Maximum label dispensing speed: 3,000 inches per minute
• Stated labeling accuracy: Plus or minus 1/32 inch
• Maximum label reel outside diameter: 16 inches
• Label reel core diameter: 3 inches

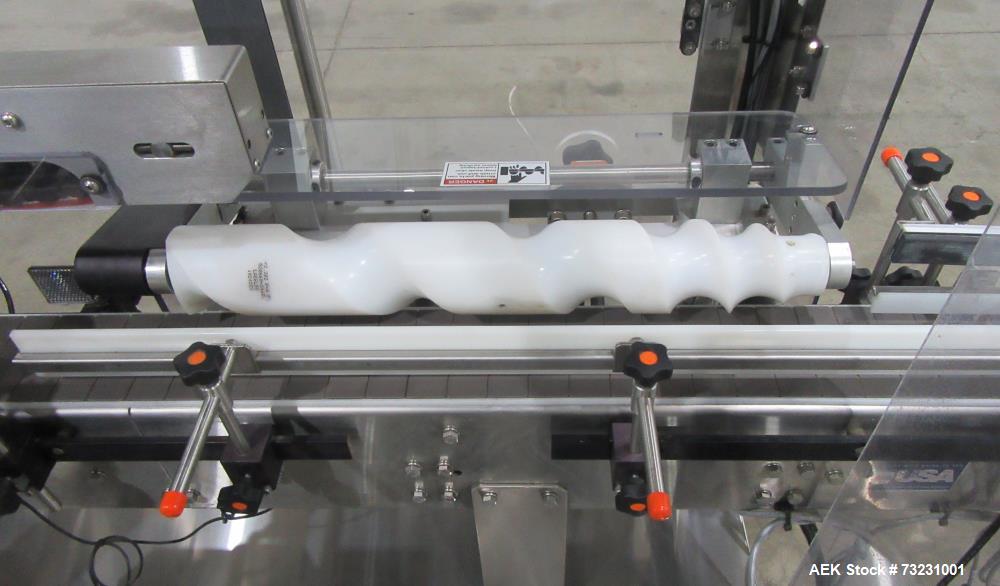

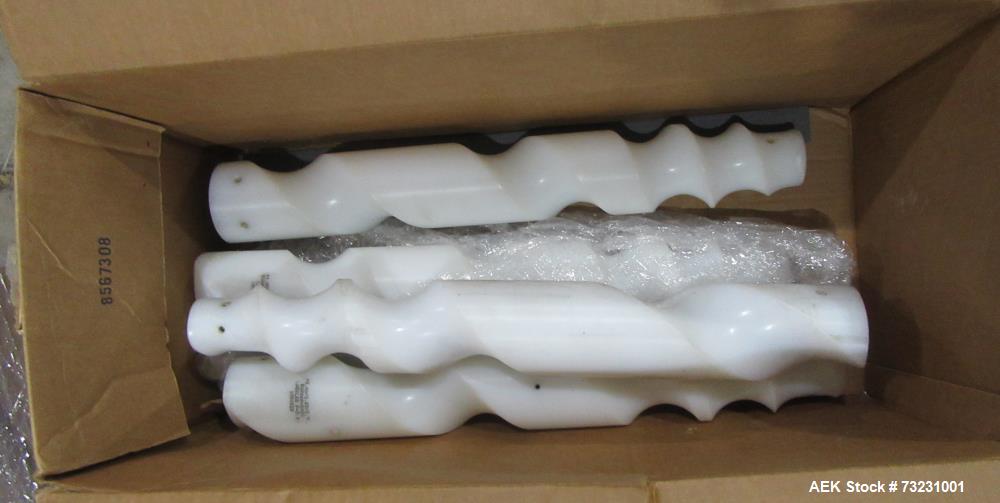

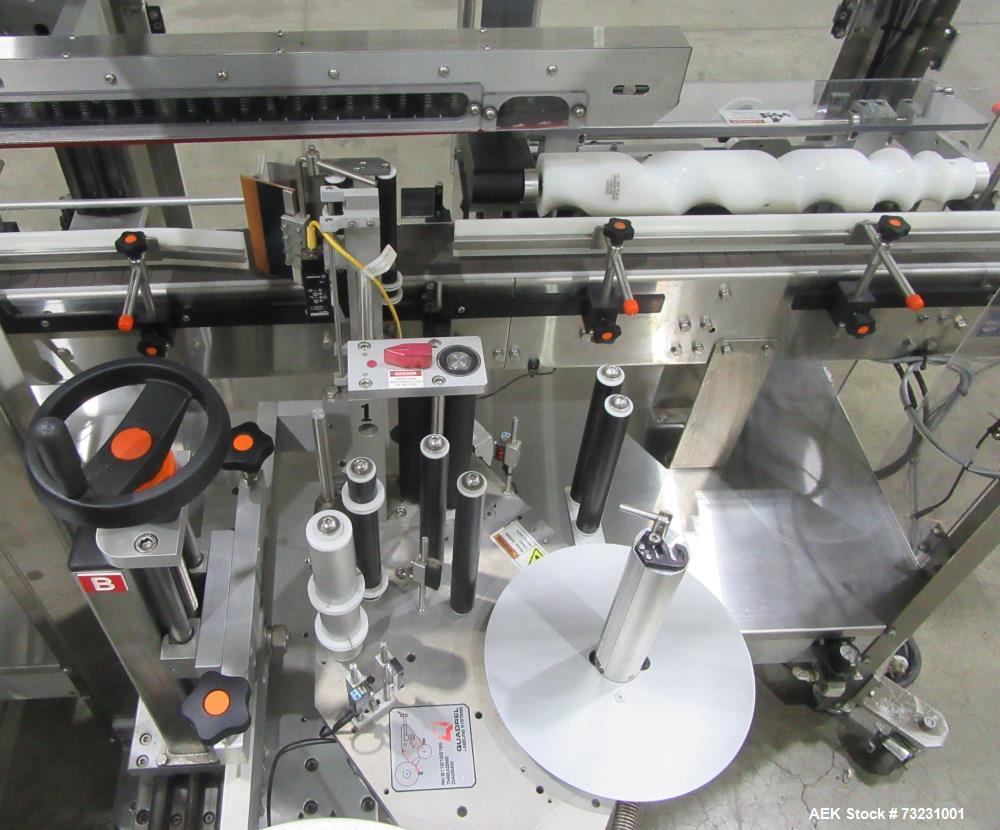

• Container infeed: Wormscrew

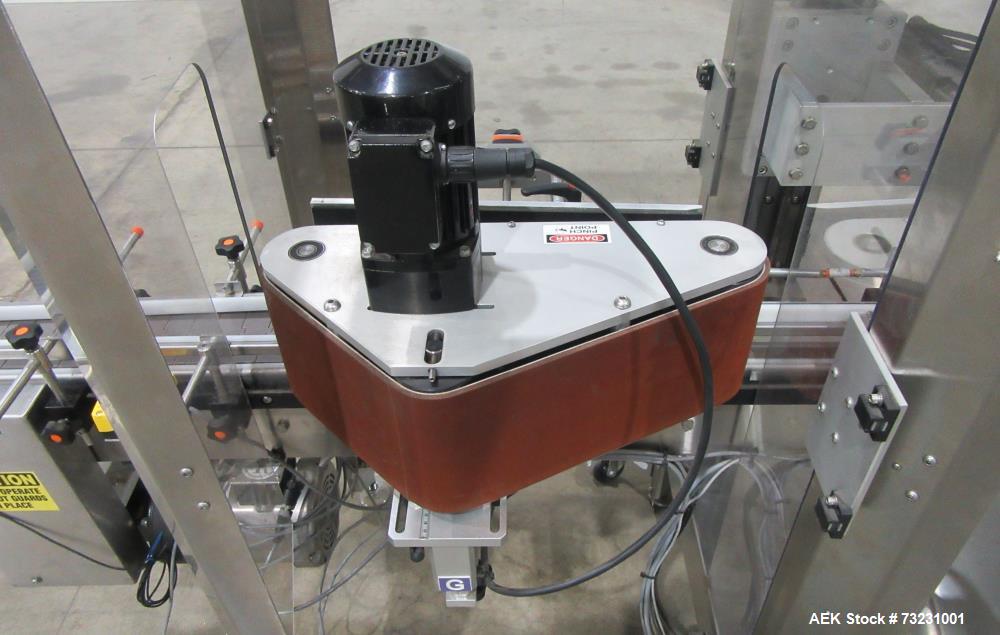

• Wrap station: Included
• Top hold-down: Included

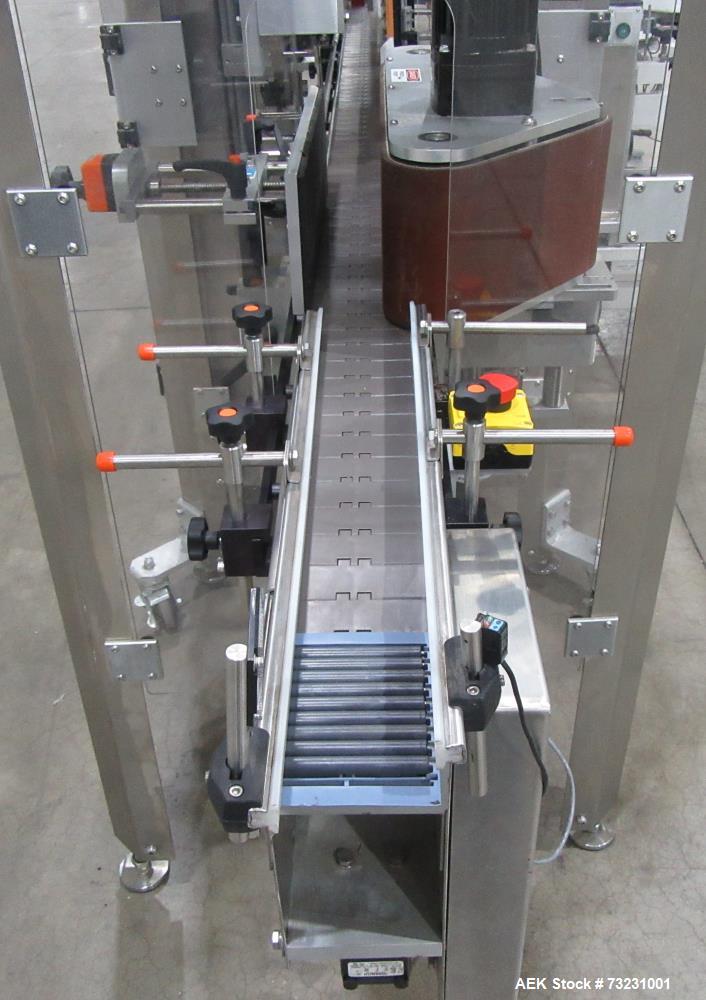

• Conveyor width: 4-1/2 inches

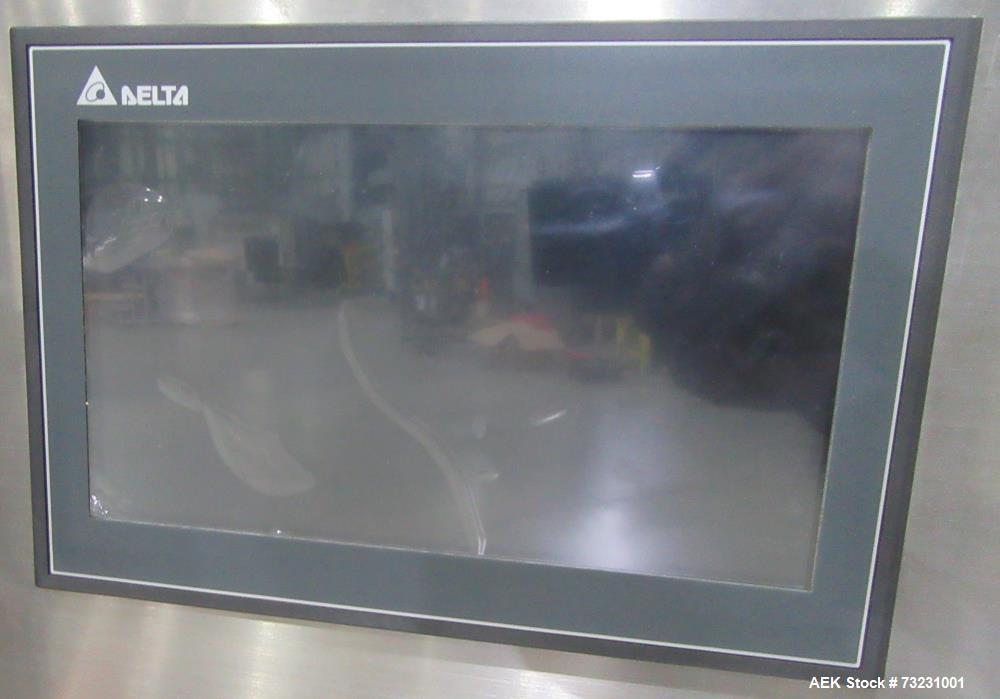

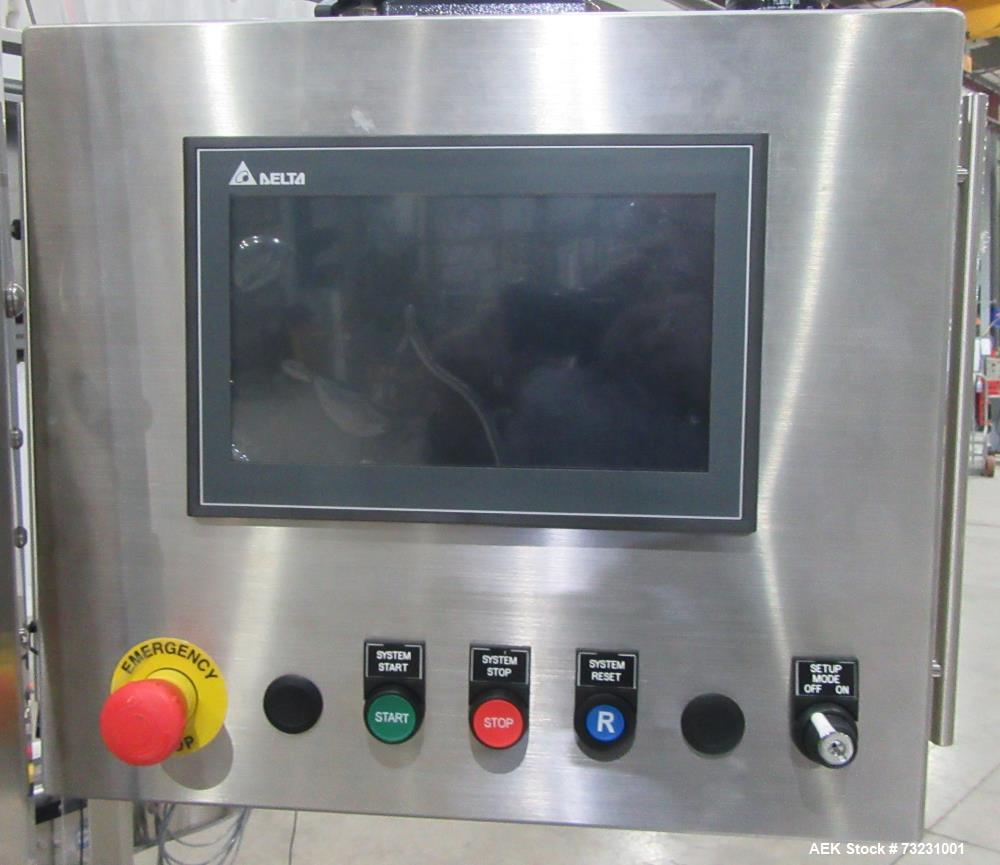

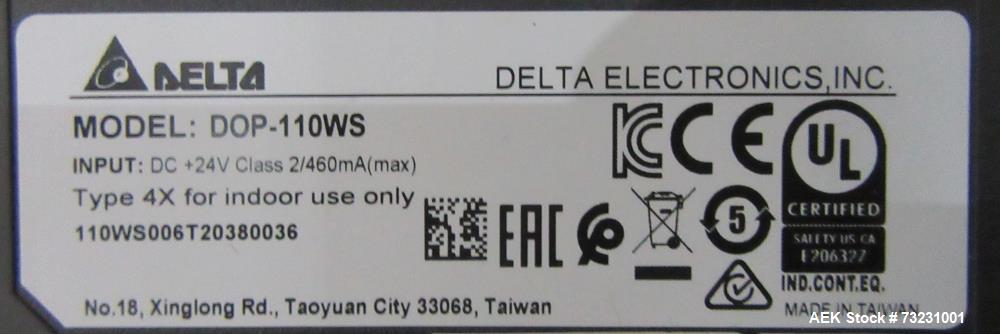

• HMI: Delta DOP-110WS

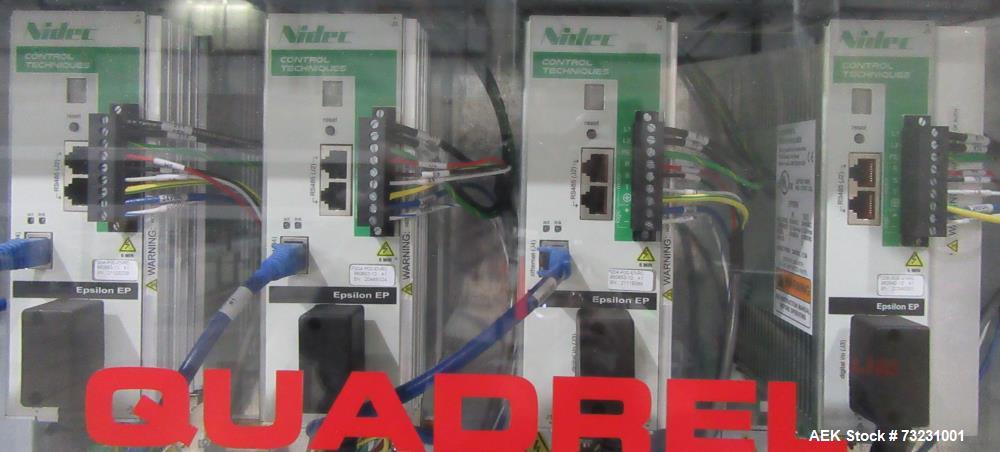

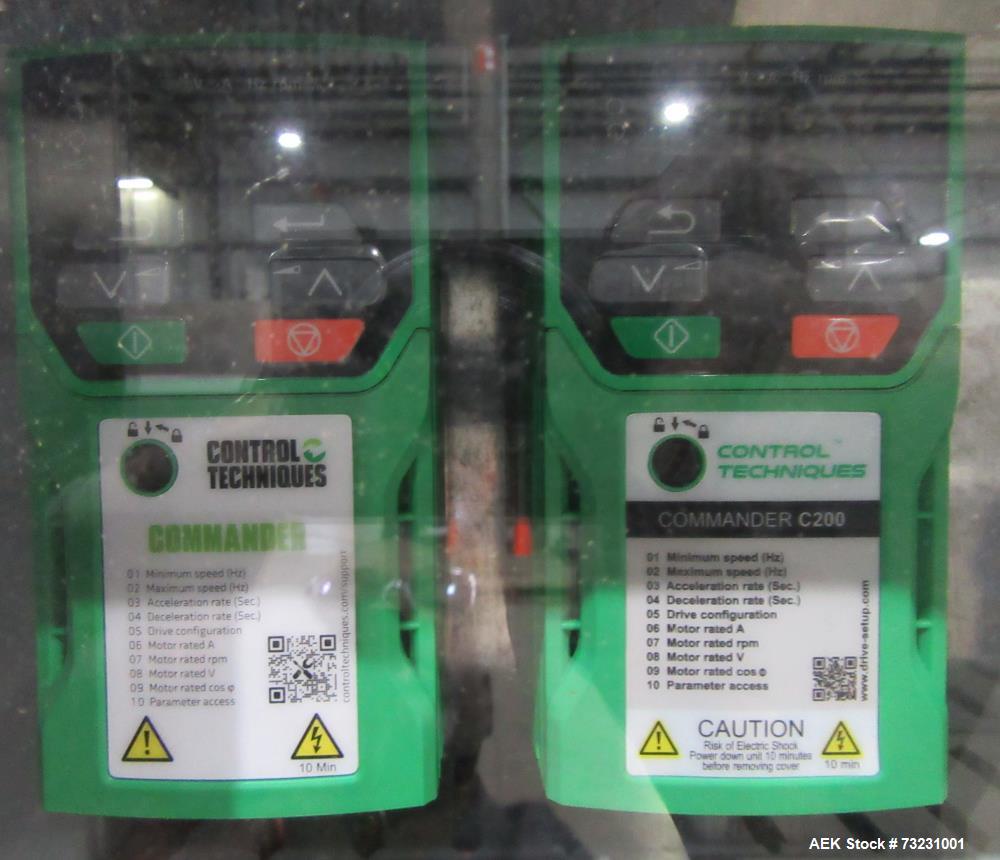

• Drives: Nidec Control Techniques Commander and Epsilon EP
• Electrical requirements: 220 volts, 1 phase, 60 hertz
• Overall length: 175 inches
• Overall width: 68 inches
• Overall height: 96 inches
• Serial number: 83288-100

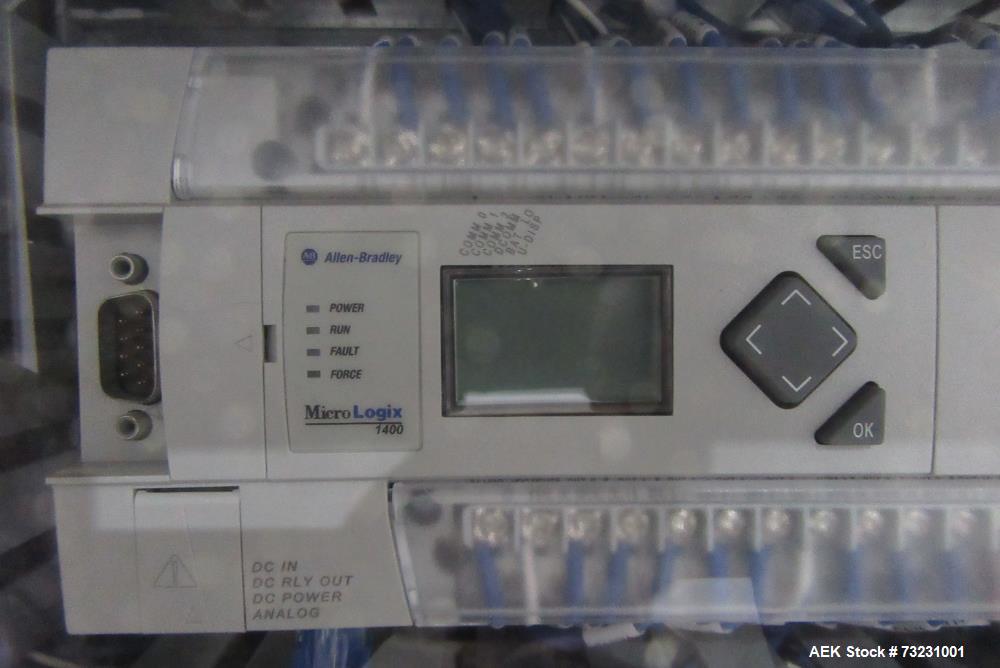

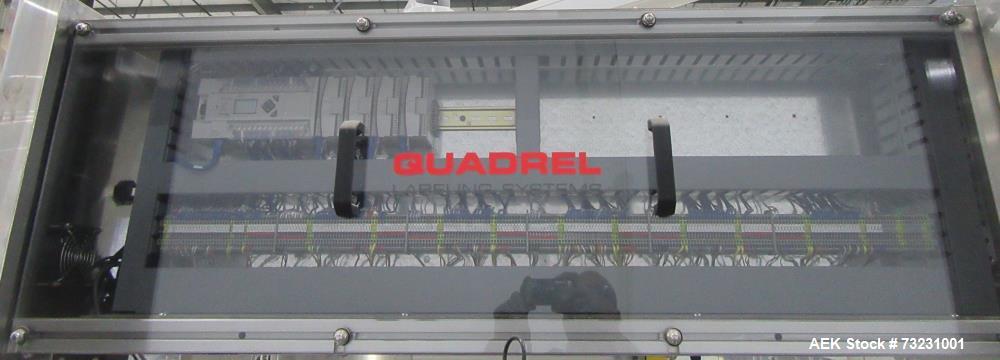

• PLC model: MicroLogix 1400
PRODUCT DETAILS
• Unused 2021 Quadrel labeling system
• Never put into production
• Servo-driven operation
• Zero-downtime labeling configuration
• Two redundant 7-inch label heads
• Continuous labeling capability
• Pressure-sensitive label application
• Wraparound labeling configuration

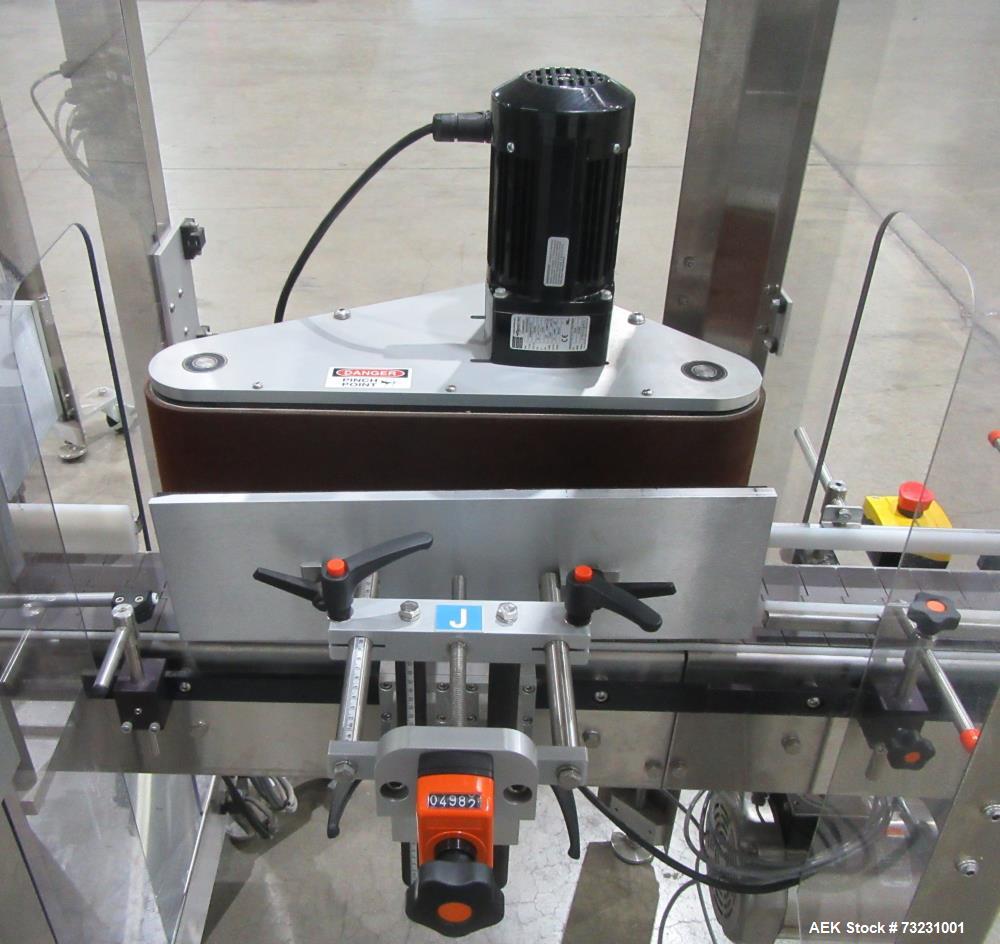

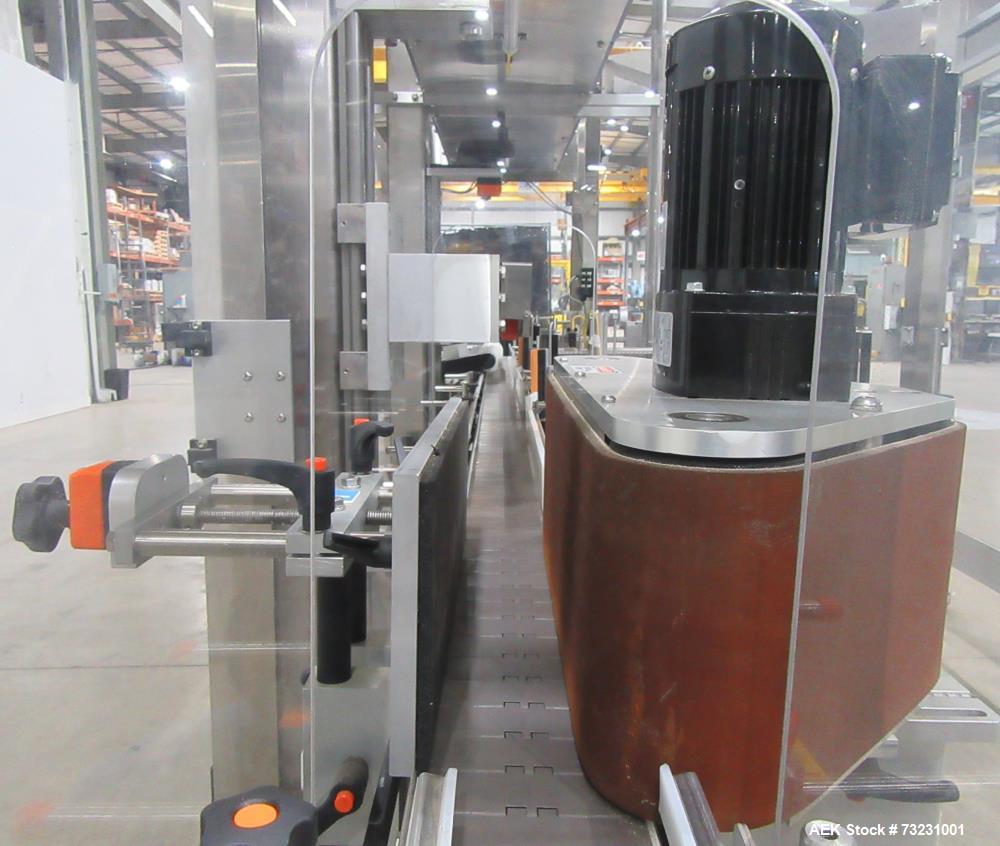

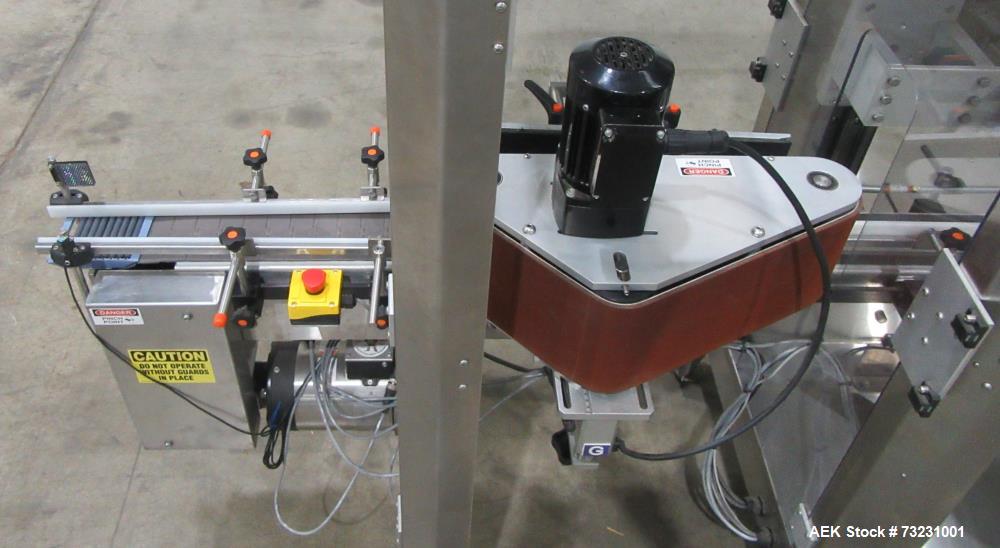

• Wrap station
• Top container hold-down

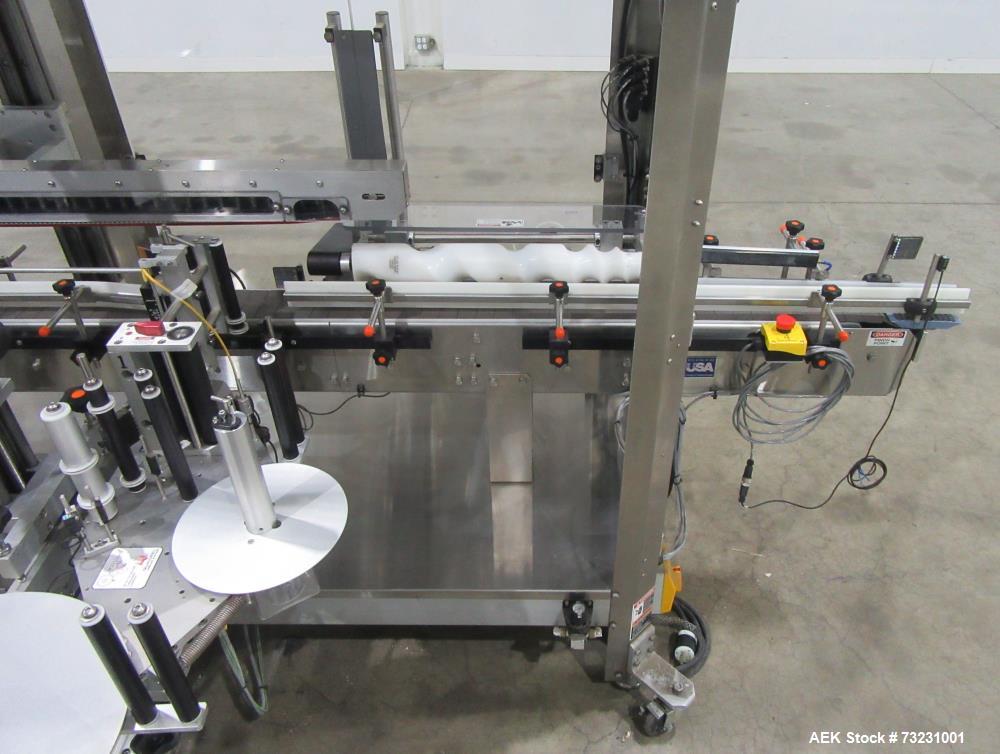

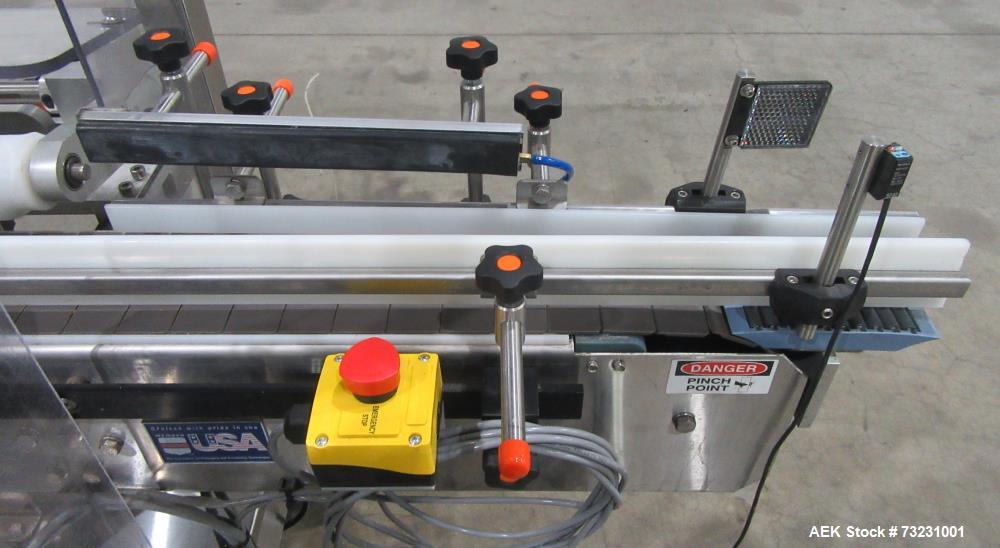

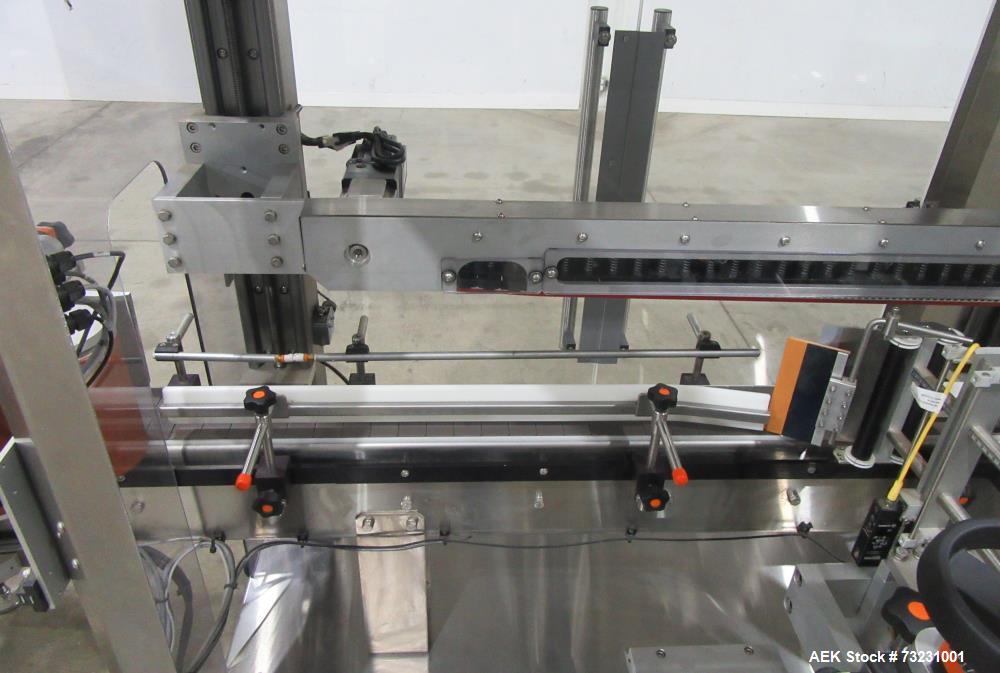

• Wormscrew container infeed

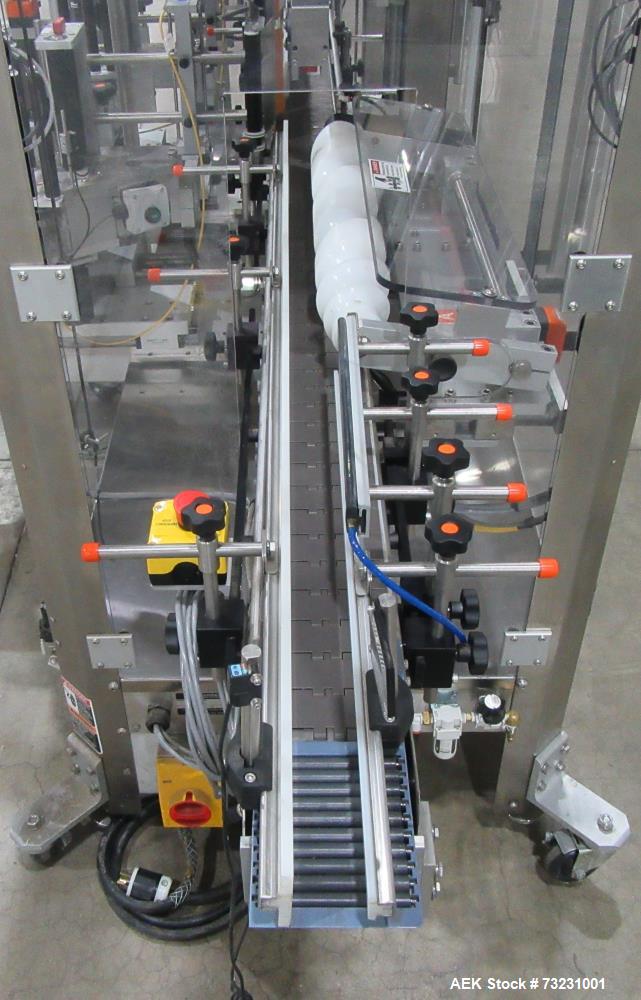

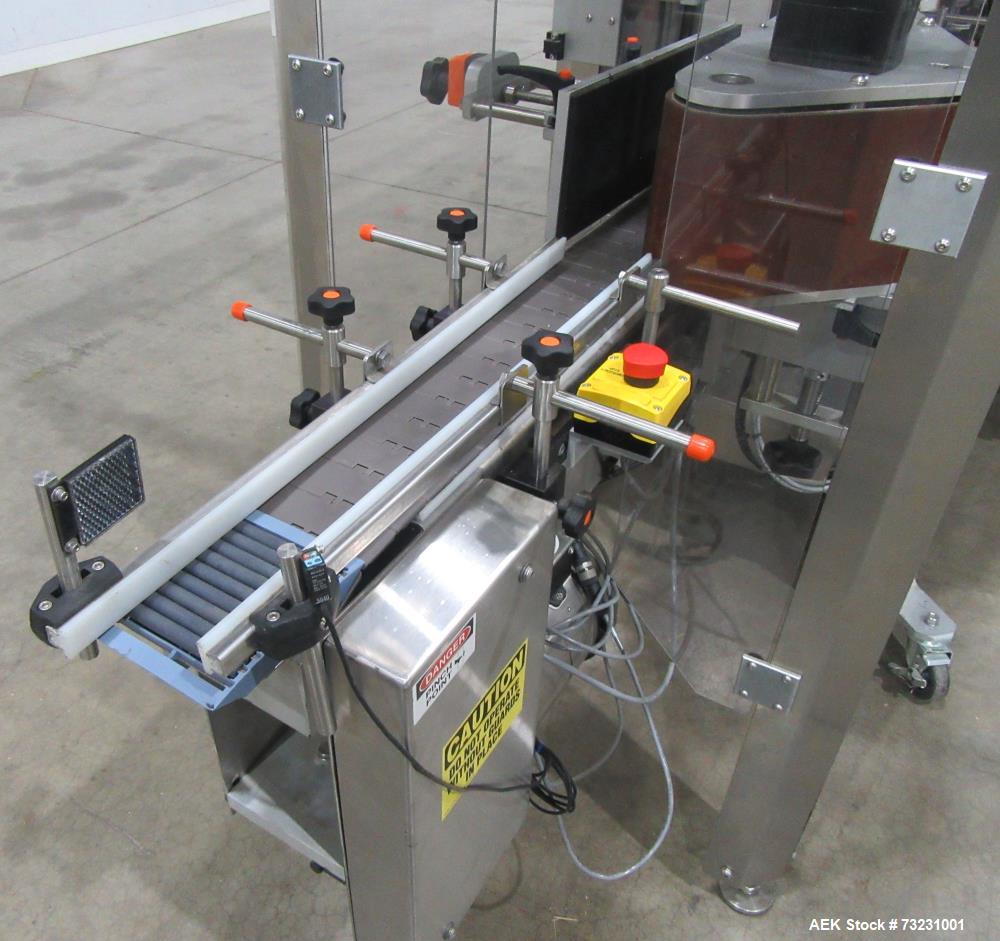

• 4-1/2-inch-wide conveyor belt
• Labels up to 6-7/8 inches high
• Label dispensing speed up to 3,000 inches per minute
• Stated accuracy of plus or minus 1/32 inch
• 16-inch maximum label reel outside diameter
• 3-inch label reel core
• Delta touchscreen HMI
• Nidec Control Techniques drives
• 220-volt single-phase electrical service
• Manufacturer brochure available
• Equipment video available
APPLICATIONS
• Continuous wraparound labeling
• High-speed pressure-sensitive labeling
• Full-wrap label application
• Partial-wrap label application where compatible
• Round-container labeling
• Bottle labeling
• Jar labeling
• Can labeling
• Container decoration
• Product identification
• Branding-label application
• Ingredient-label application
• Regulatory-label application
• Batch and product label application
• Packaging-line integration
• Applications requiring reduced label-roll changeover downtime
SUITABLE CONTAINERS AND PRODUCTS
Container compatibility must be confirmed using actual samples and application testing.
• Round bottles
• Cylindrical jars
• Round cans
• Rigid cylindrical containers
• Plastic bottles
• Glass bottles
• Metal cans
• Food containers
• Beverage containers
• Pharmaceutical containers
• Nutraceutical containers
• Cosmetic containers
• Personal-care containers
• Household-product containers
• Chemical-product containers
• Containers using pressure-sensitive labels
• Containers requiring continuous wraparound labeling
• Products requiring frequent label-roll changes
FAQS
• WHAT DOES ZERO DOWNTIME MEAN ON THIS LABELER?
The system uses two redundant label heads so labeling can continue while an operator services or changes the label supply on the alternate head. Actual transition performance should be confirmed during testing.
• IS THIS QUADREL LABELER USED?
The page describes the machine as unused, built in 2021, and never put into production.
• HOW MANY LABEL HEADS ARE INCLUDED?
The system has two redundant label heads, each described as 7 inches high.
• WHAT IS THE MAXIMUM LABEL HEIGHT?
The maximum stated label height is 6-7/8 inches.
• HOW FAST CAN THE LABEL HEADS DISPENSE LABELS?
The stated maximum label dispensing speed is 3,000 inches per minute. This is label-web speed, not necessarily the container rate in containers per minute.
• WHAT IS THE LABELING ACCURACY?
The listing states an accuracy of plus or minus 1/32 inch. Buyers should confirm achievable accuracy using their container and label materials.

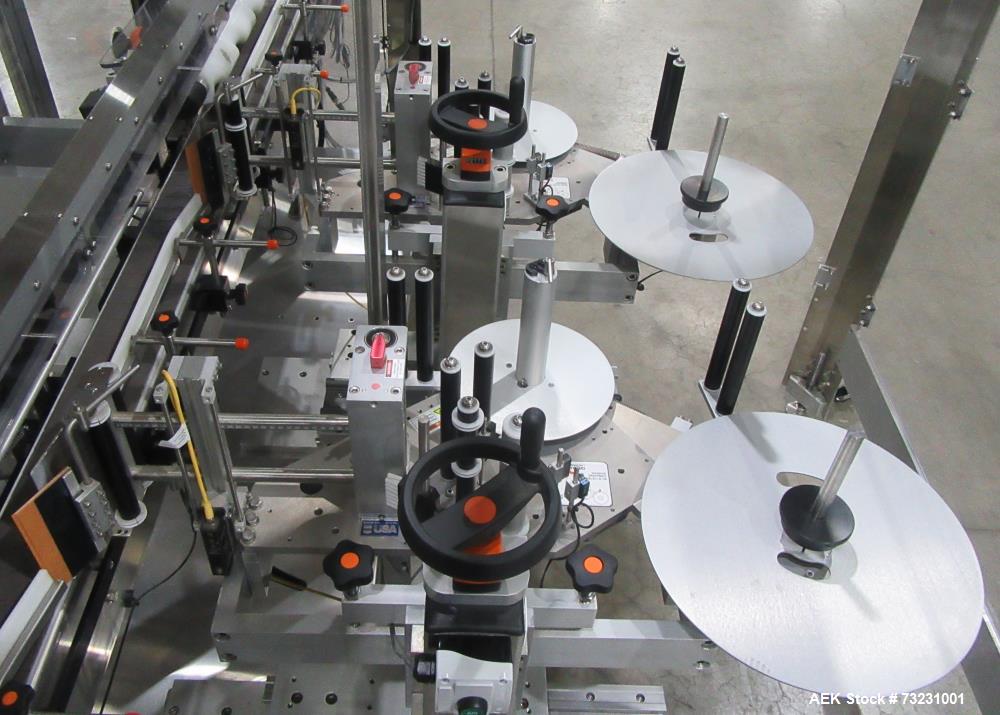

• WHAT SIZE LABEL REELS DOES THE MACHINE ACCEPT?
Each label head accepts a label reel up to 16 inches in outside diameter with a 3-inch-diameter core.

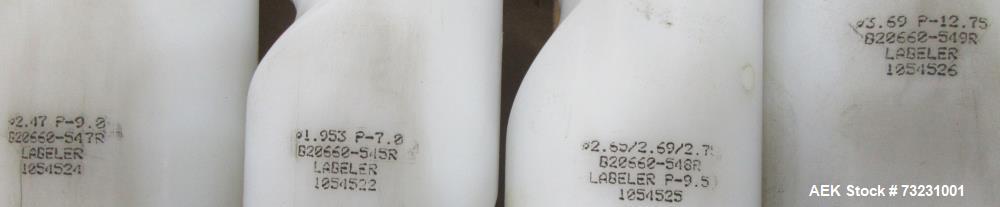

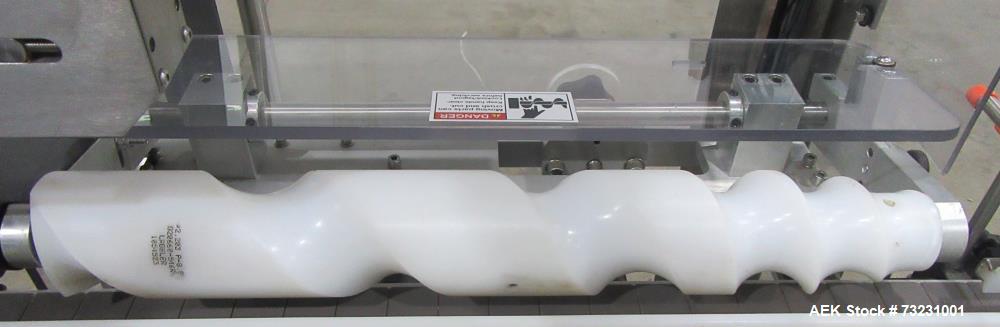

• WHAT TYPE OF CONTAINER INFEED IS INCLUDED?
The system includes a wormscrew container infeed.

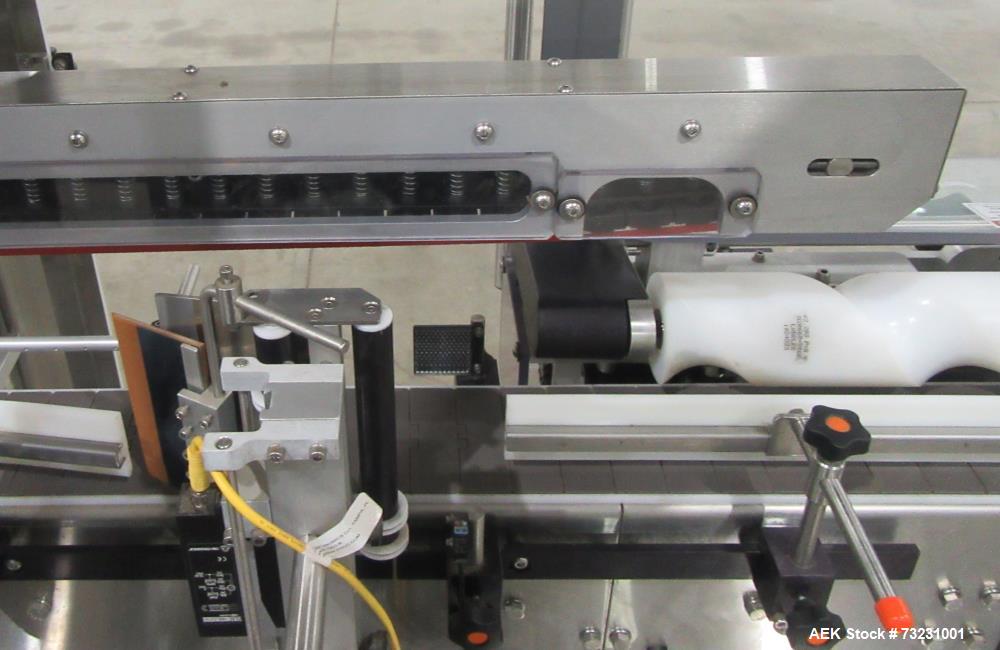

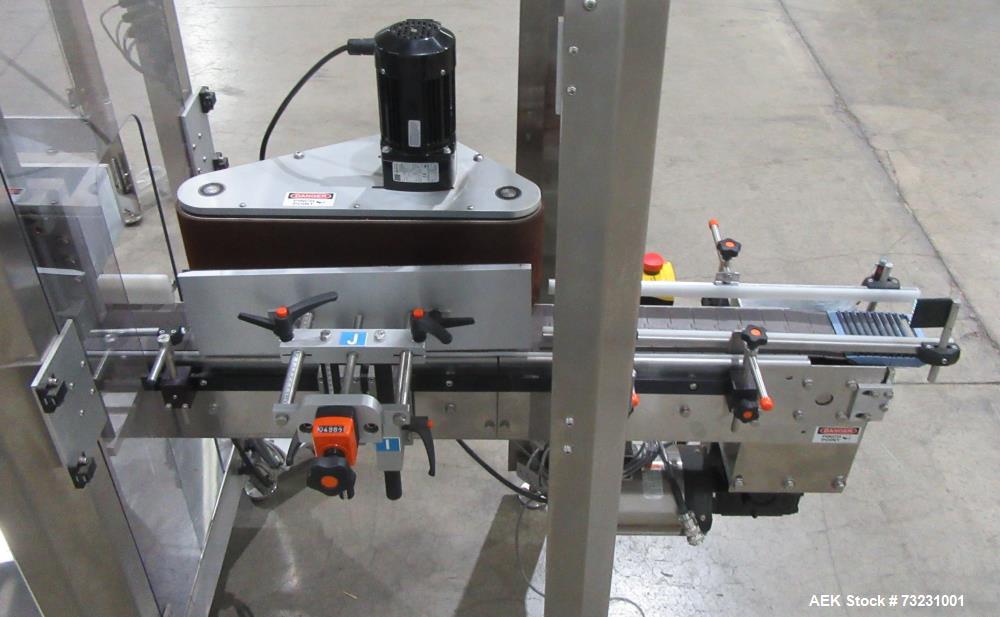

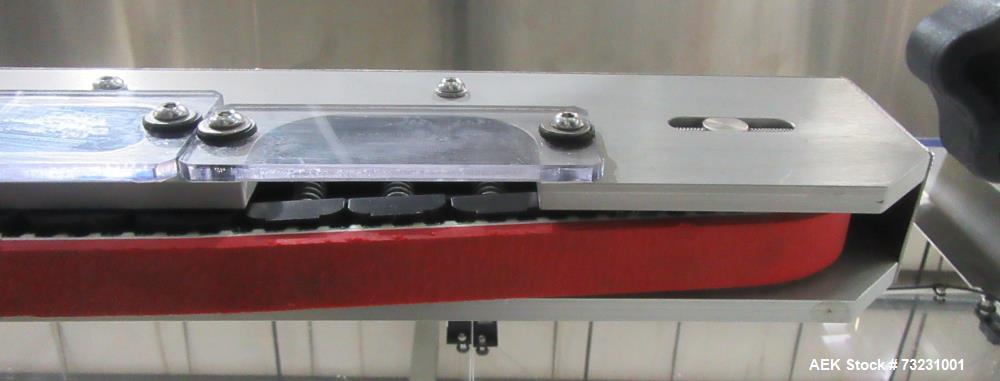

• DOES THE LABELER INCLUDE A TOP HOLD-DOWN?
Yes. The wrap station includes a top hold-down to help control containers during label application.
• WHAT IS THE CONVEYOR WIDTH?
The conveyor belt is 4-1/2 inches wide.

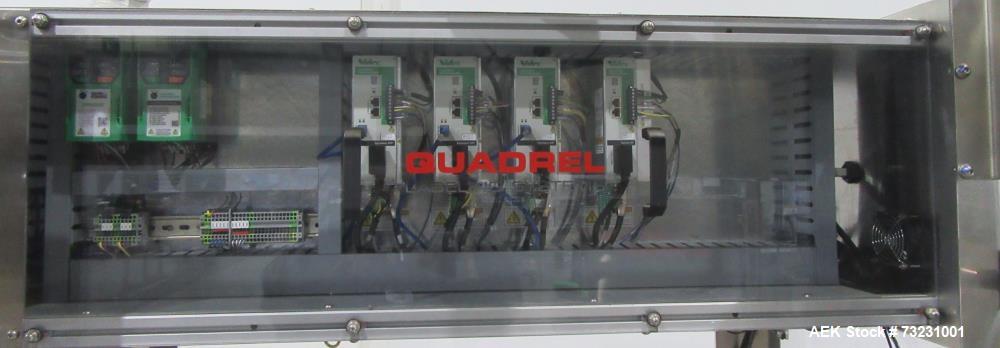

• WHAT CONTROLS ARE INSTALLED?
The listing identifies a Delta DOP-110WS HMI and Nidec Control Techniques Commander and Epsilon EP drives. Allen-Bradleys MicroLogix 1400 PLC.
• WHAT ELECTRICAL SERVICE IS REQUIRED?
The listed electrical requirement is 220 volts, single phase, 60 hertz.

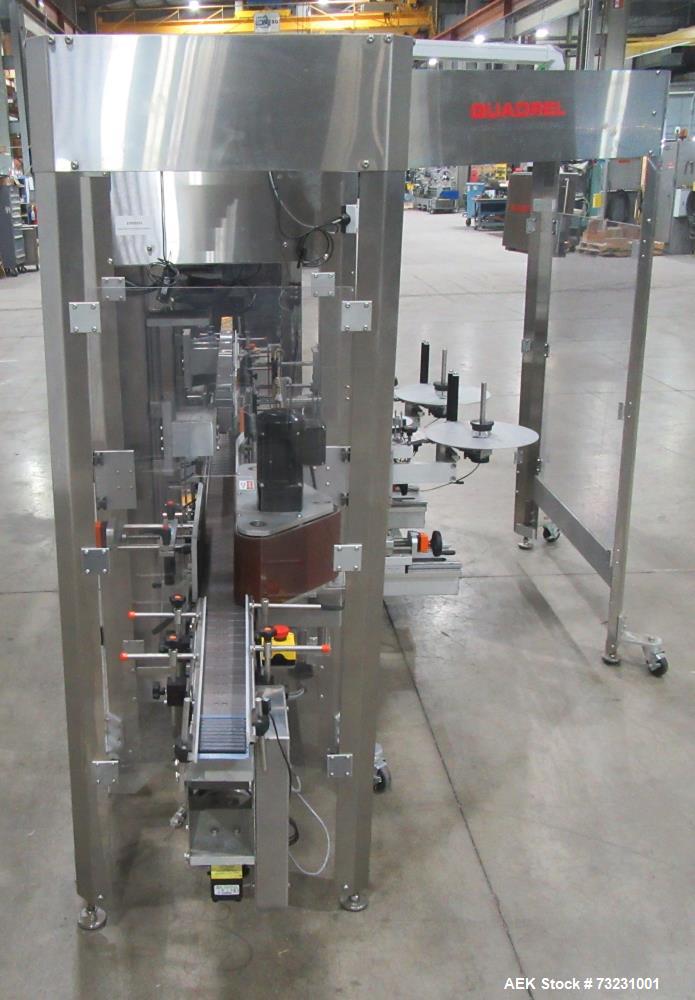

• WHAT ARE THE OVERALL DIMENSIONS?
The machine measures approximately 175 inches long x 68 inches wide x 96 inches high.

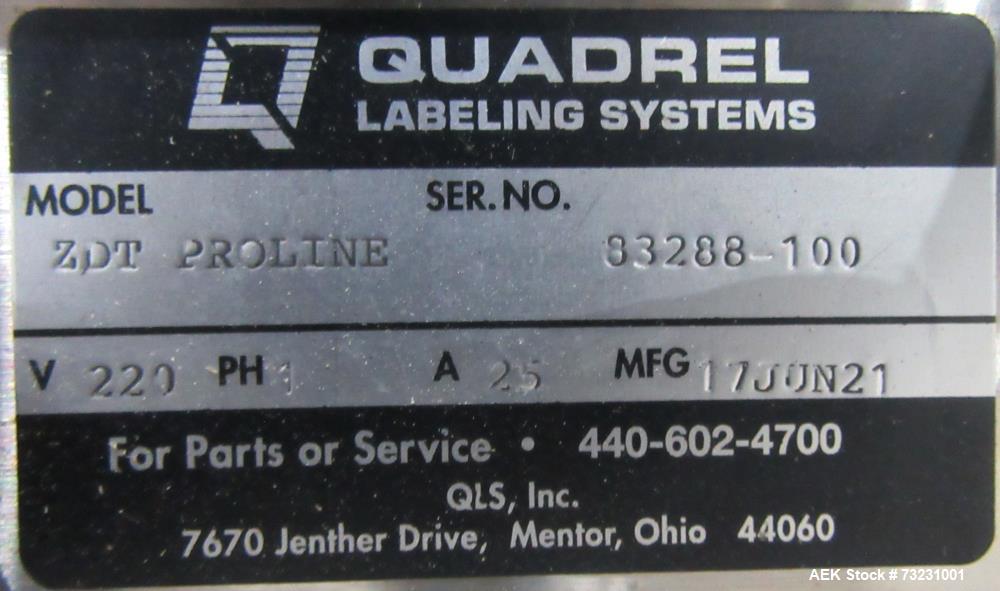

• WHAT IS THE MACHINE SERIAL NUMBER?
83288-100.
• CAN AARON EQUIPMENT HELP WITH INSTALLATION OR LINE INTEGRATION?
Contact Aaron Equipment with your upstream and downstream conveyor specifications, line speed, container details, electrical requirements, and control-integration needs to discuss available assistance.
• CAN AARON EQUIPMENT ASSIST WITH SHIPPING?
Yes. Aaron Equipment can help coordinate domestic or international freight. Request the machine weight, shipping dimensions, loading requirements, and destination-specific freight options with the quotation.
