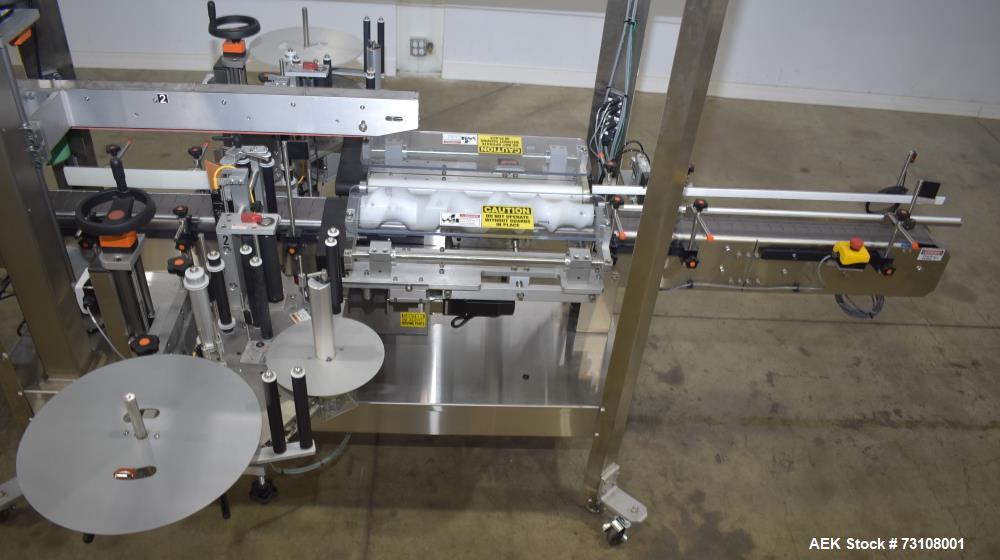

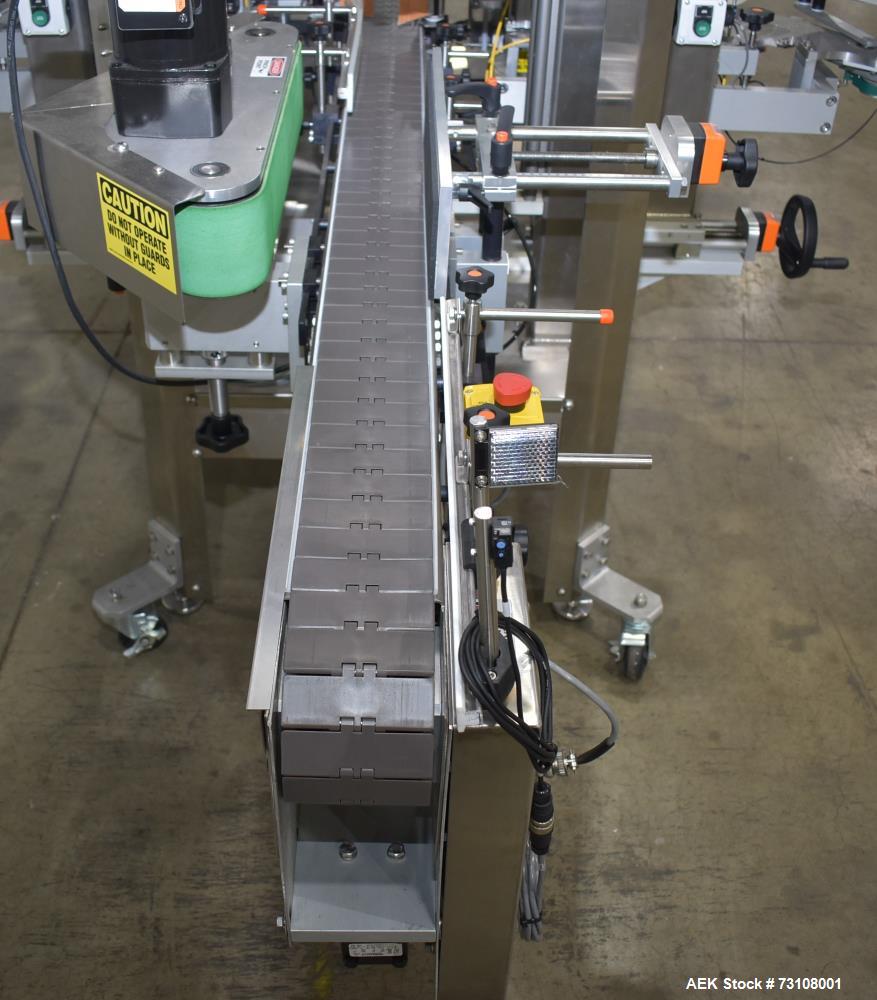

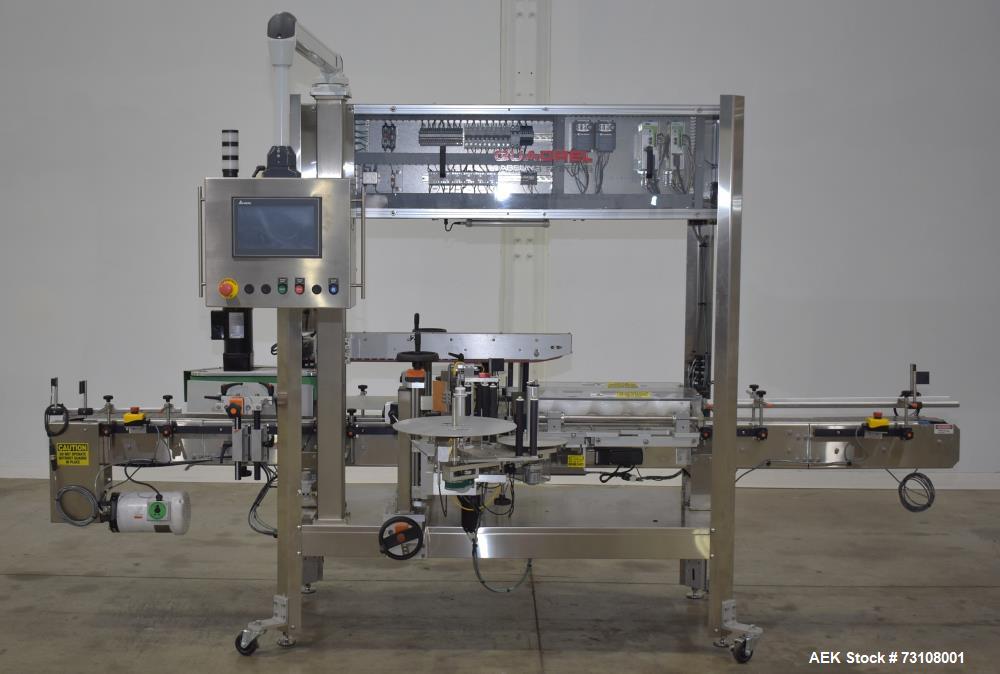

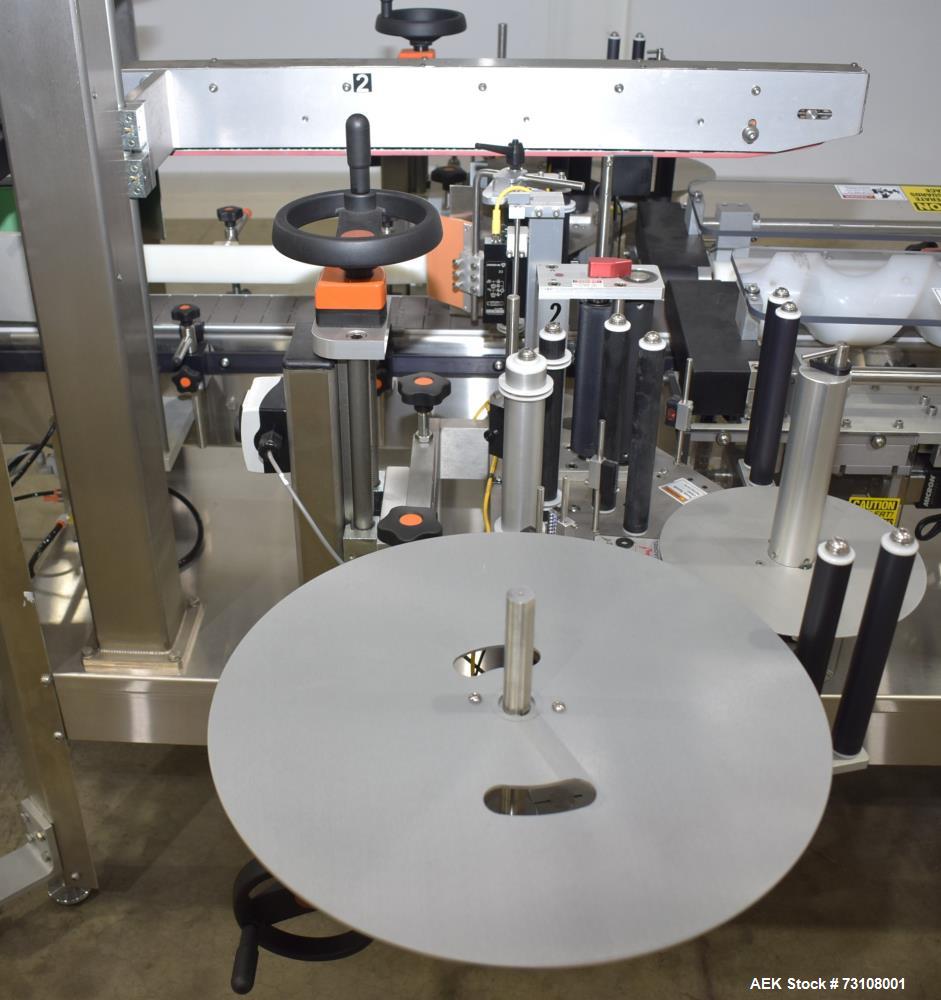

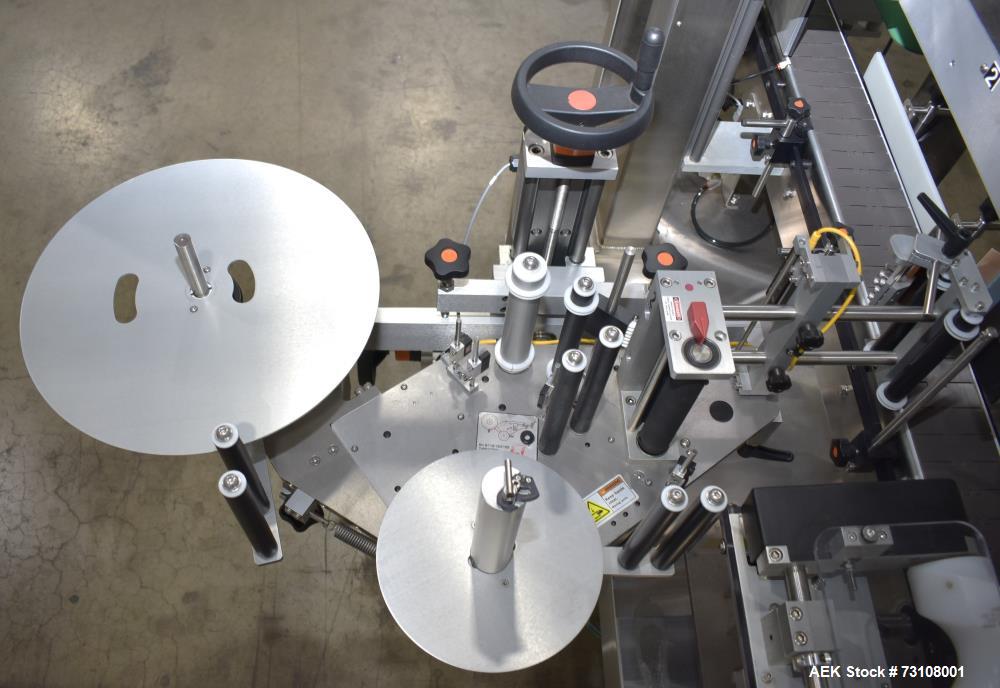

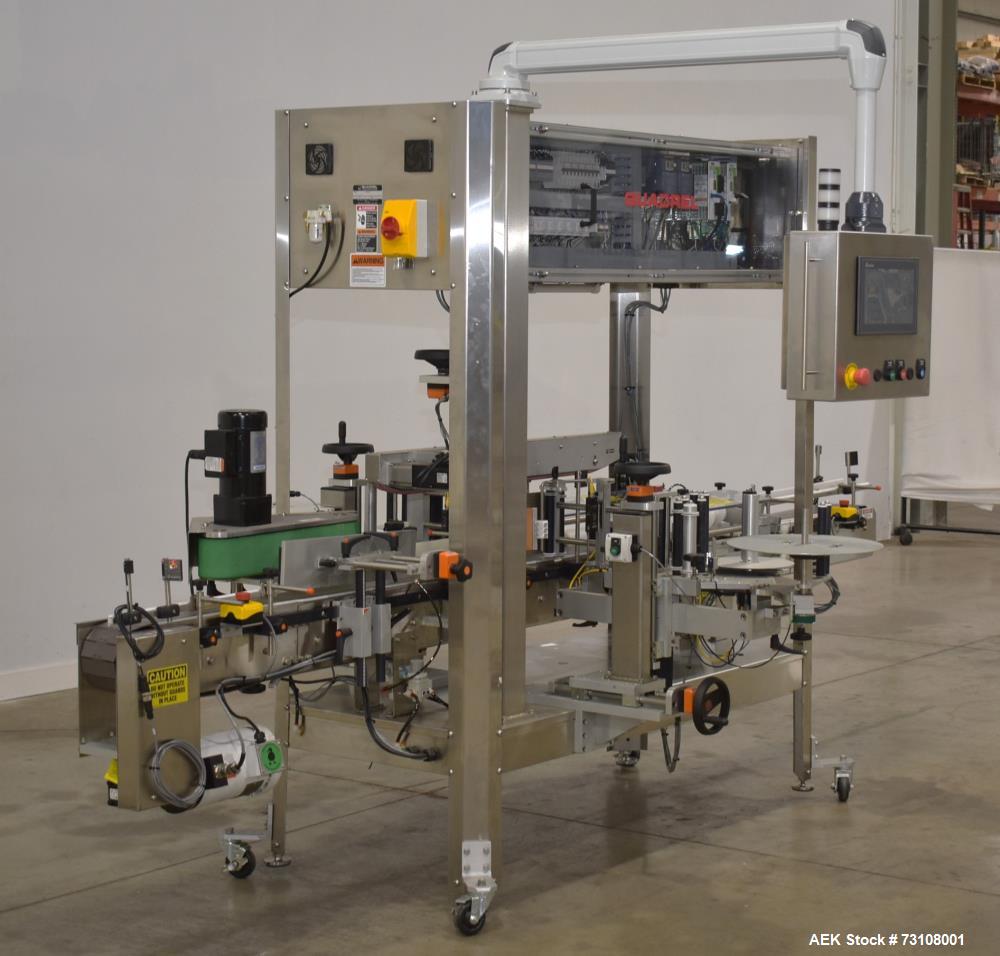

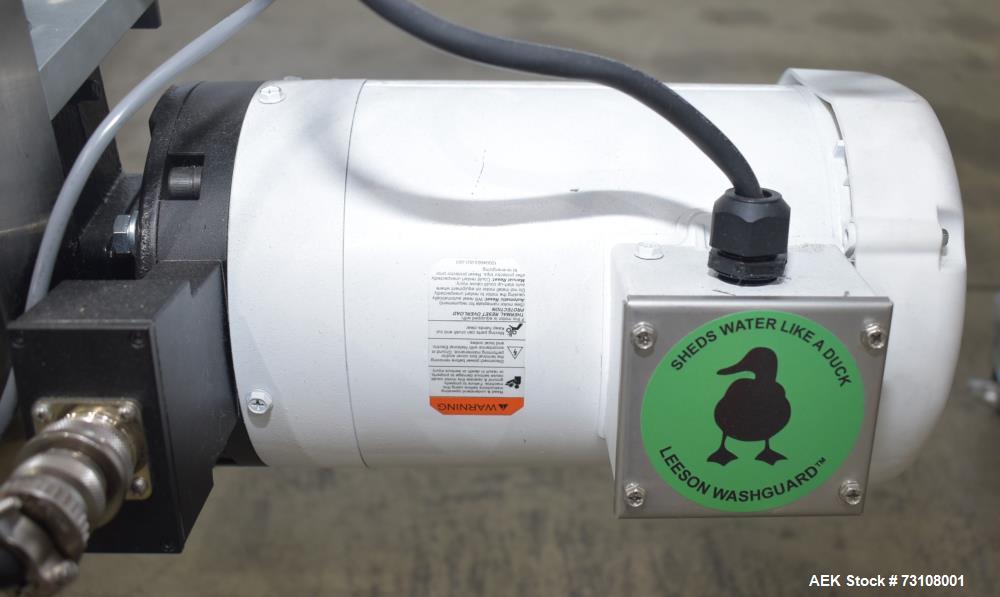

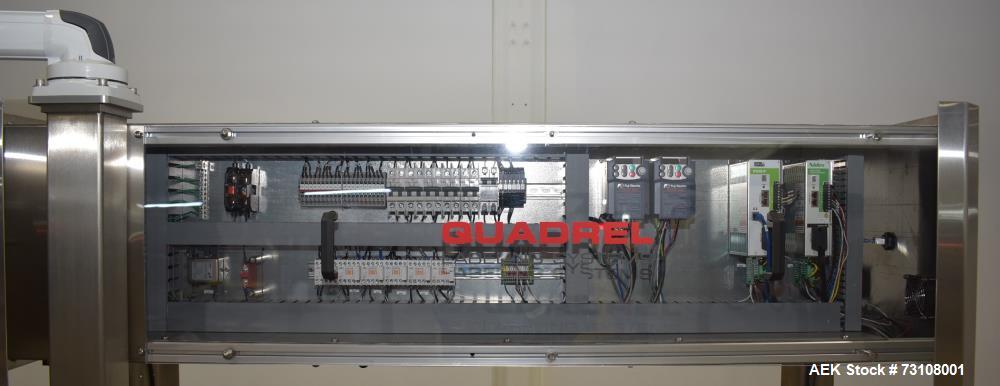

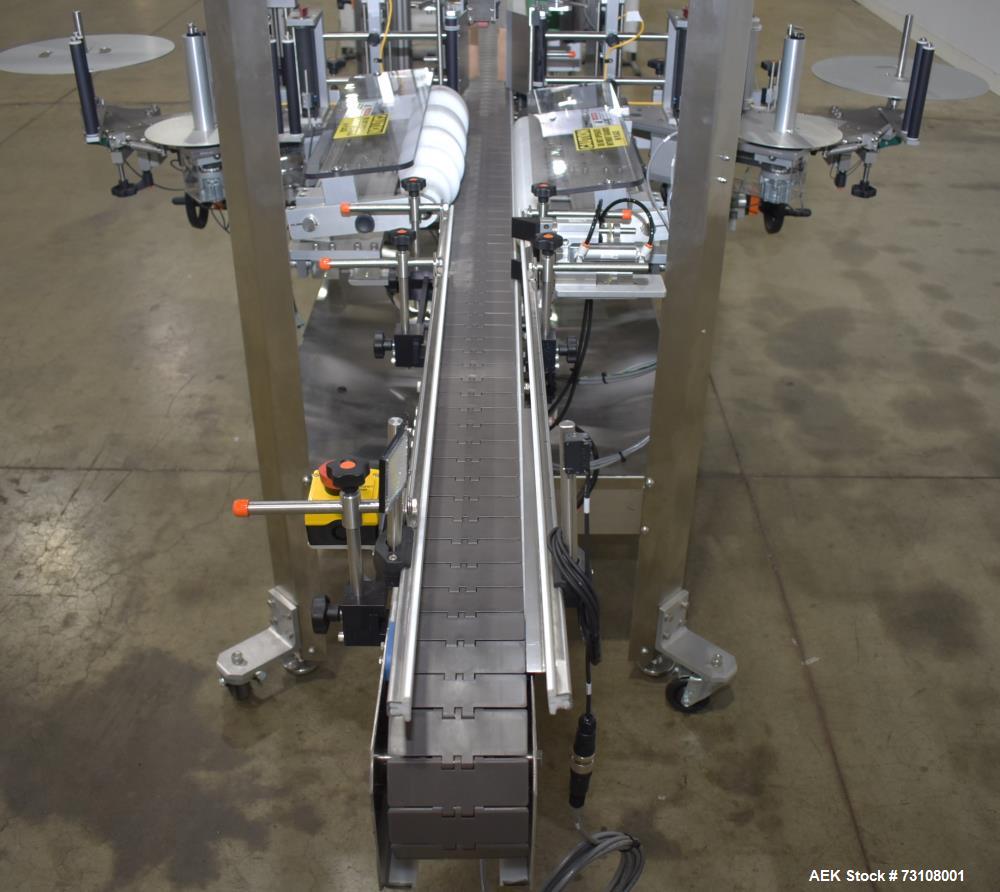

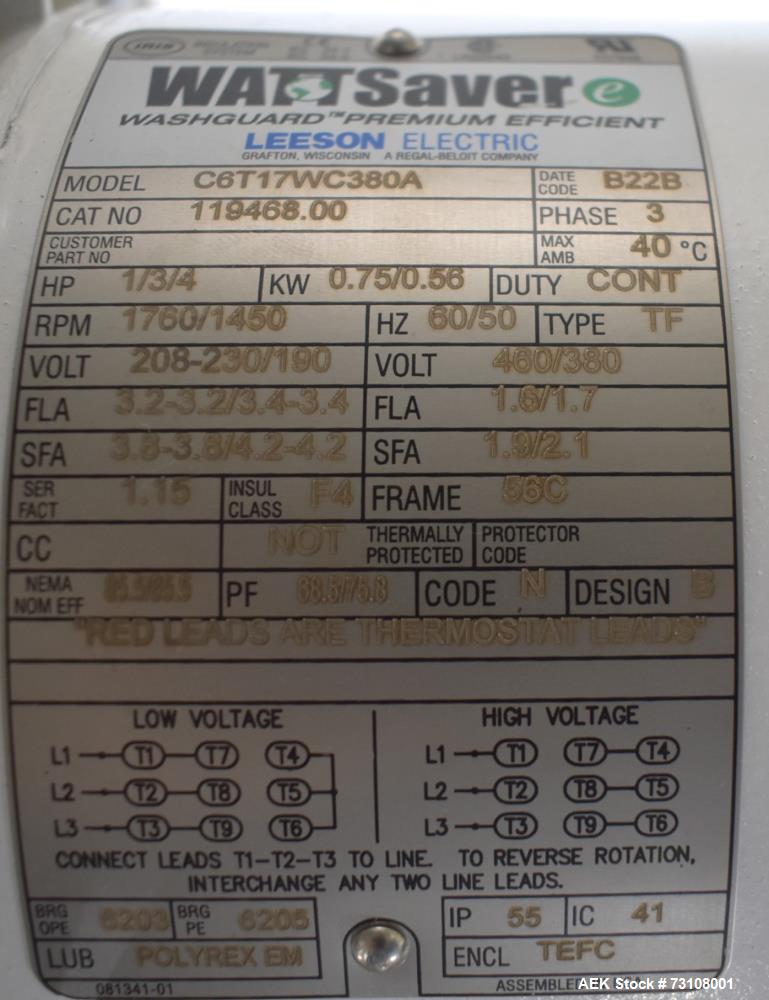

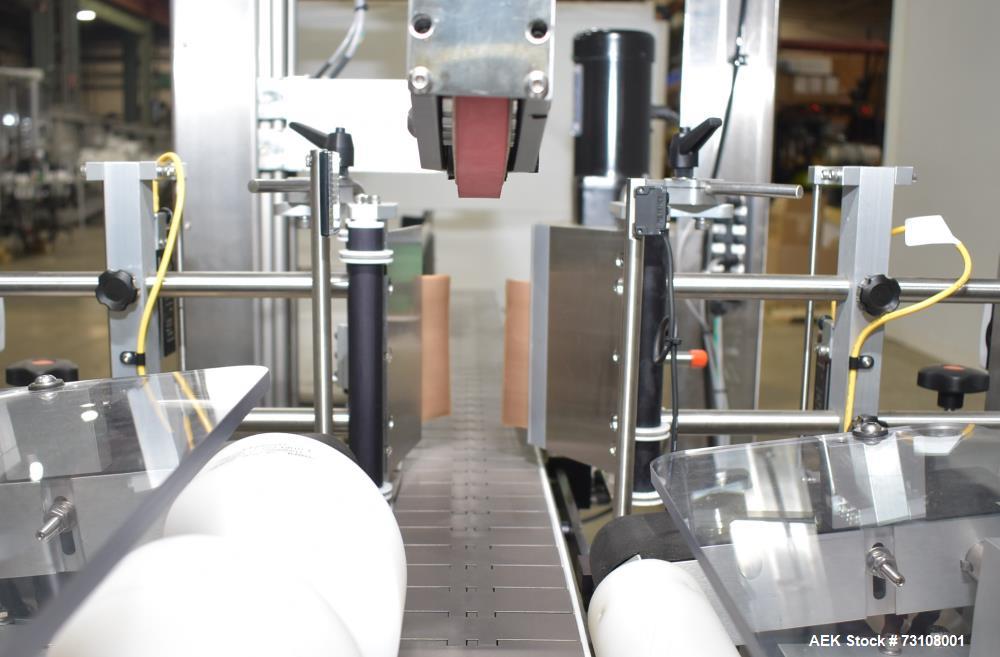

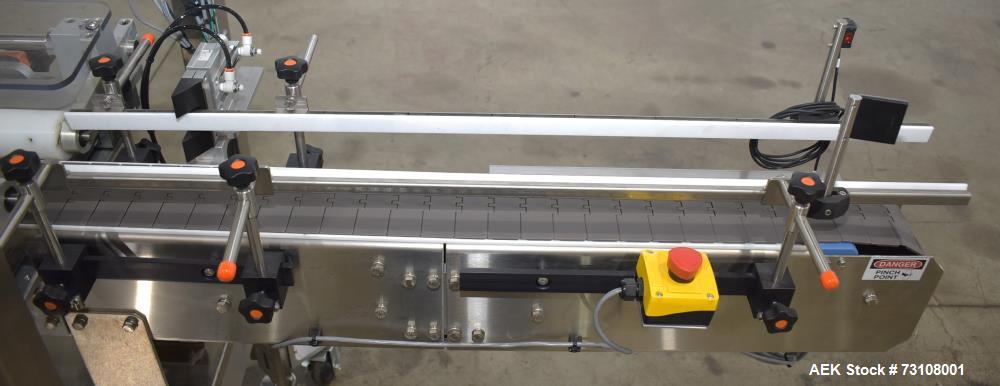

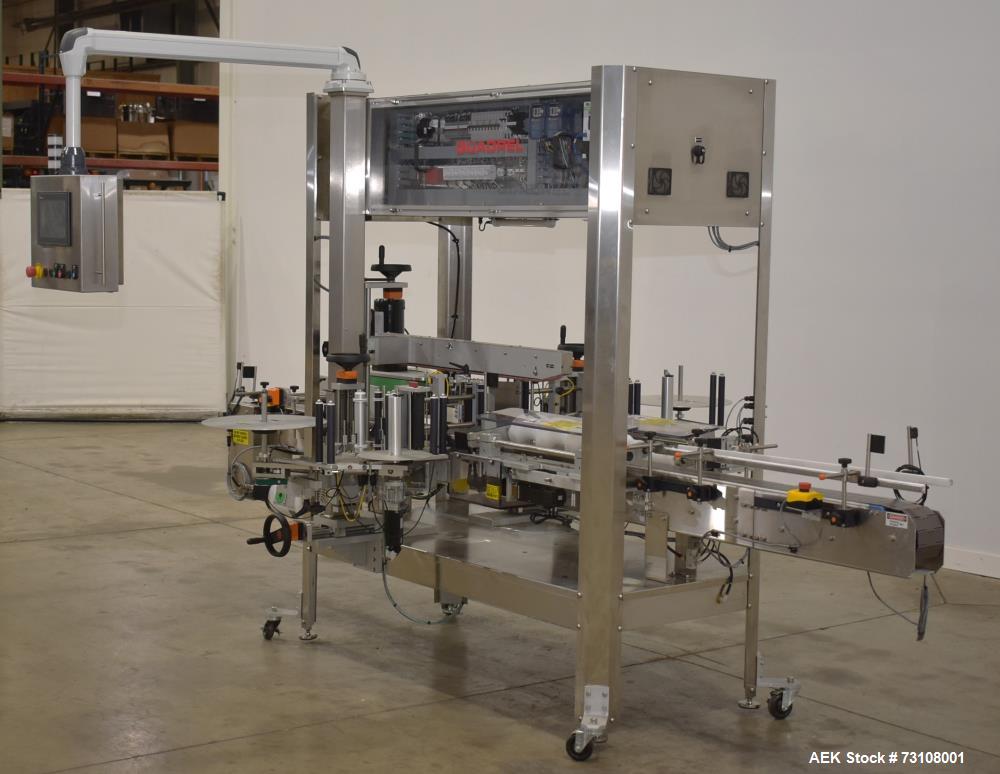

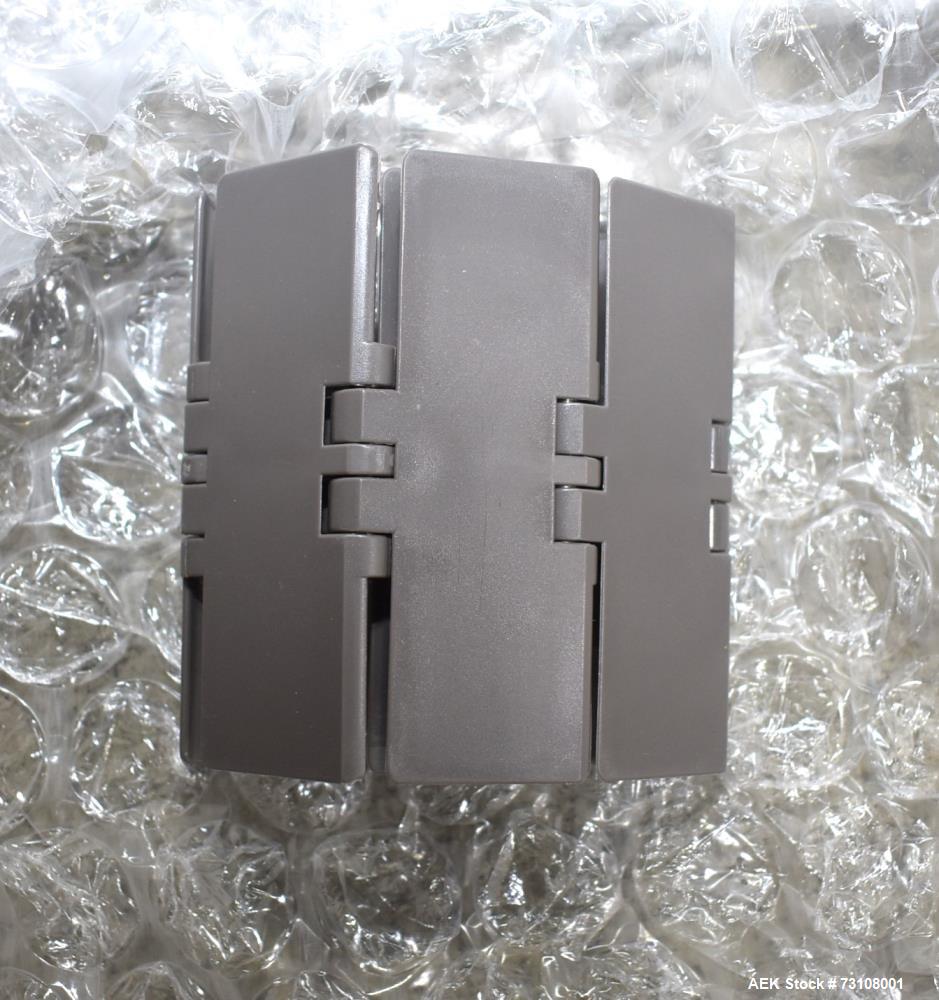

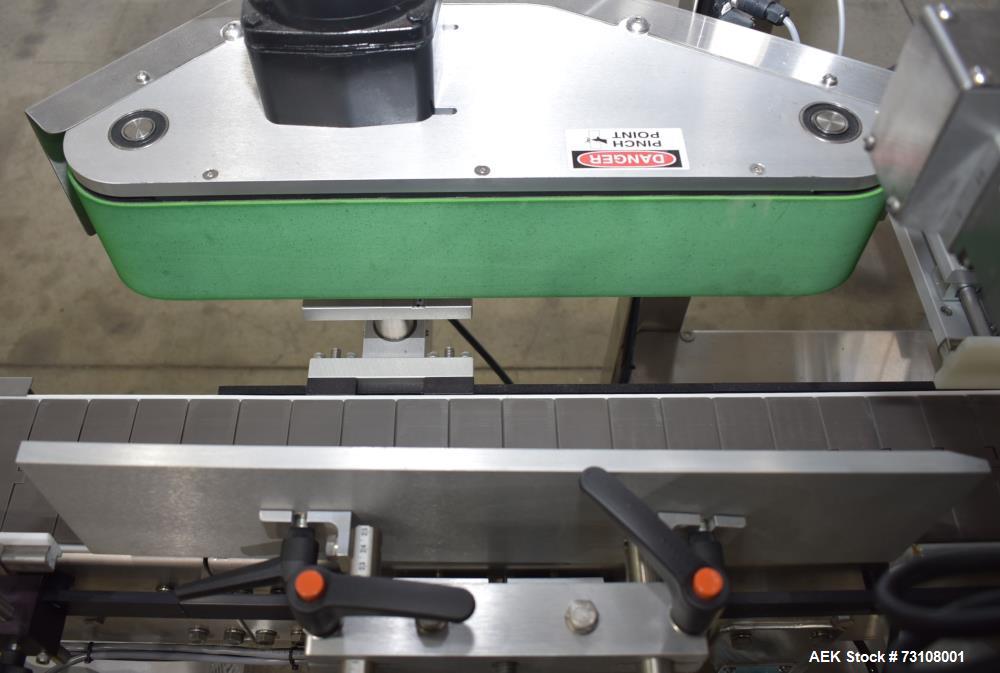

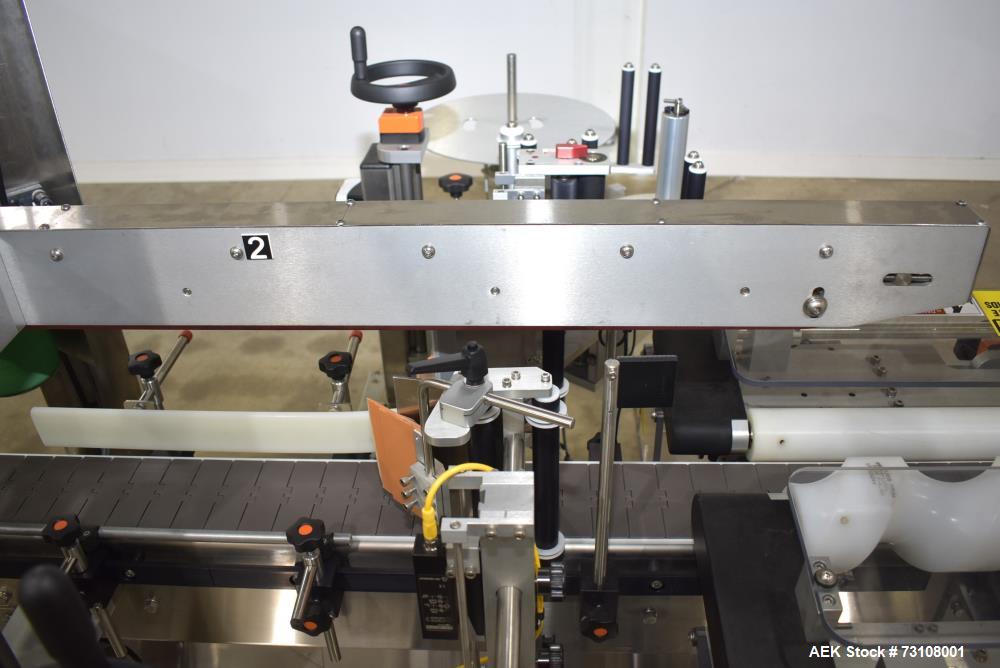

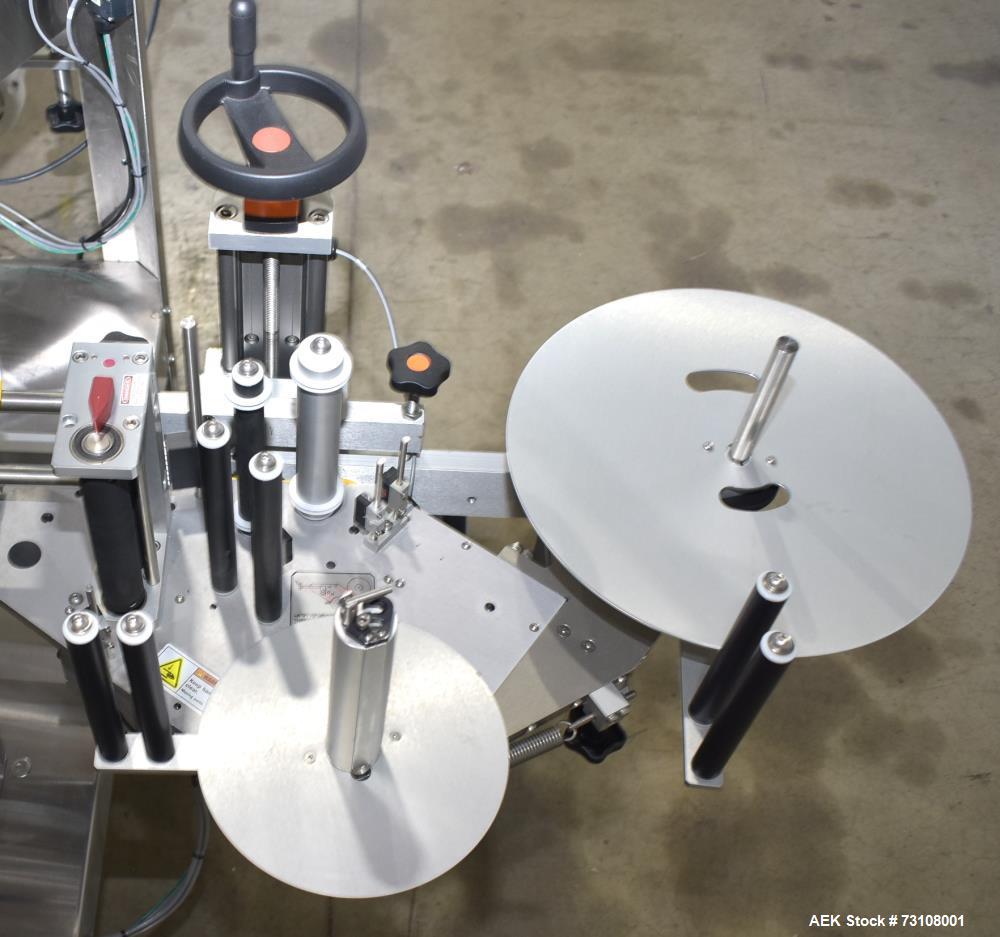

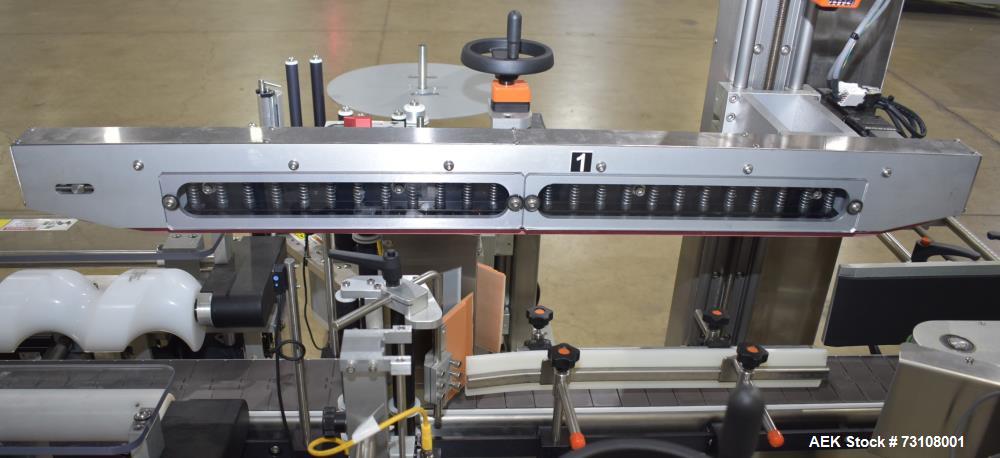

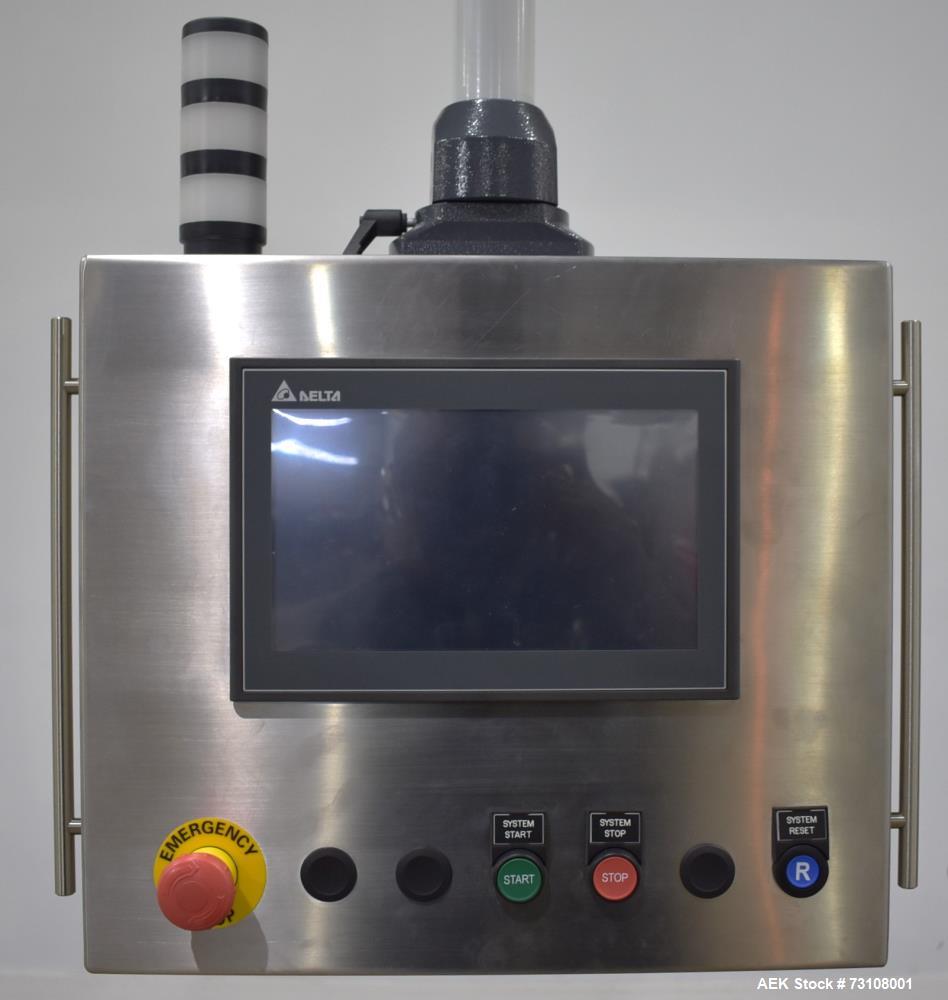

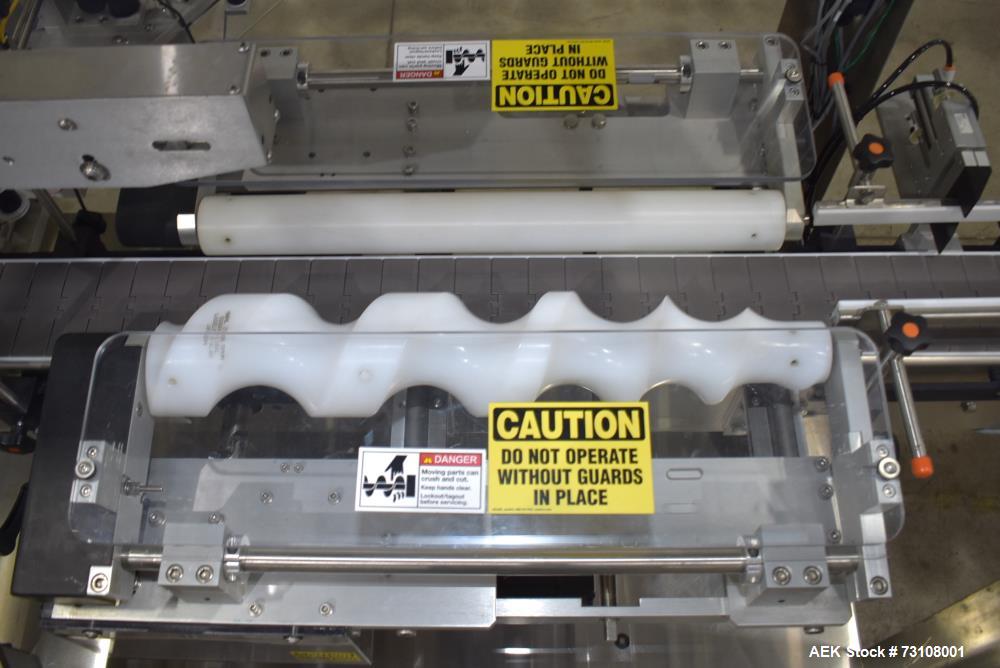

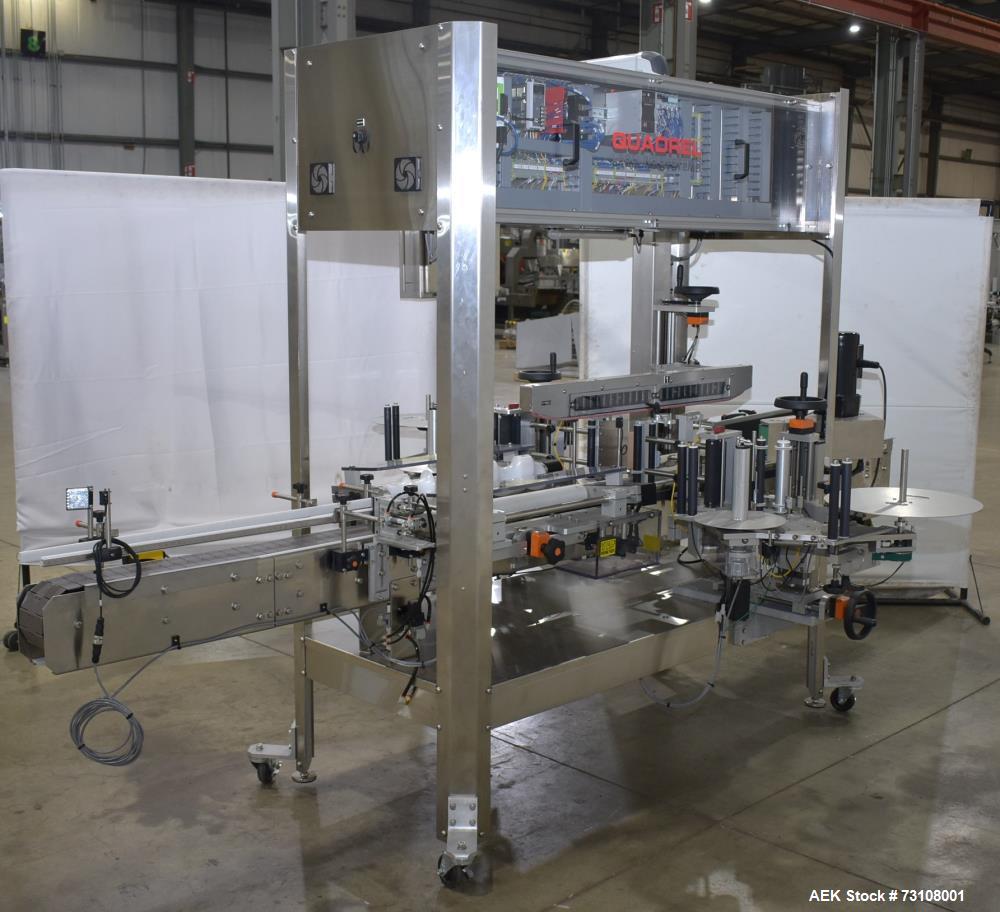

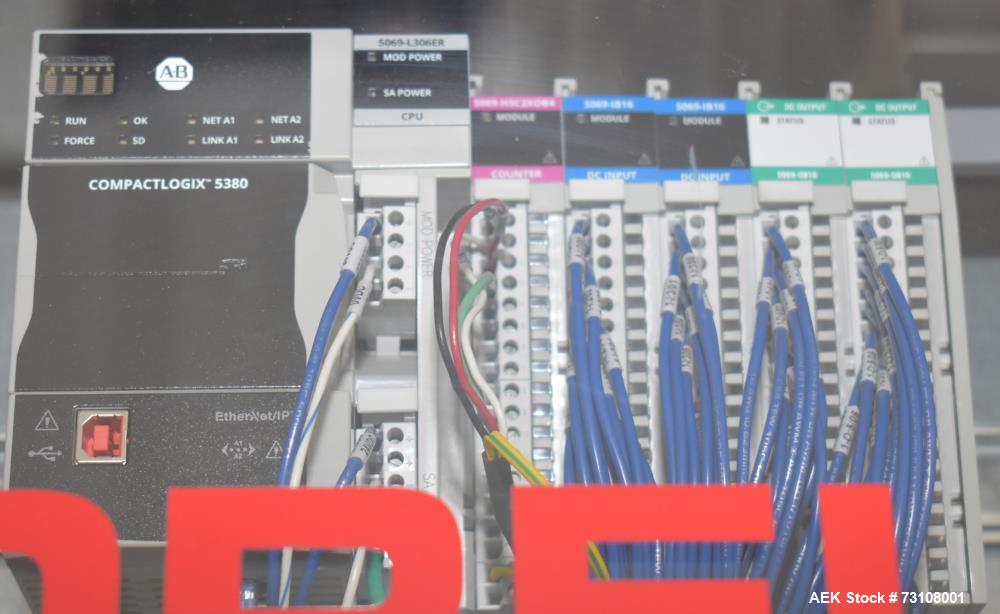

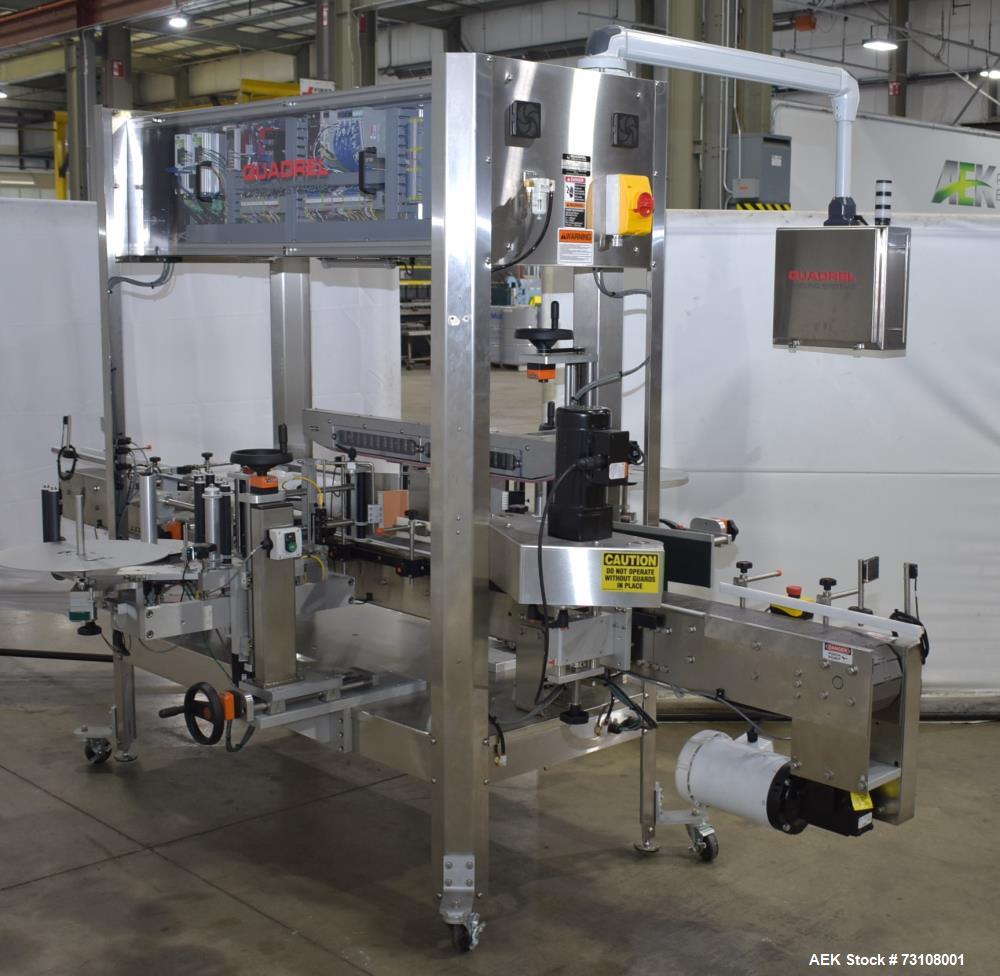

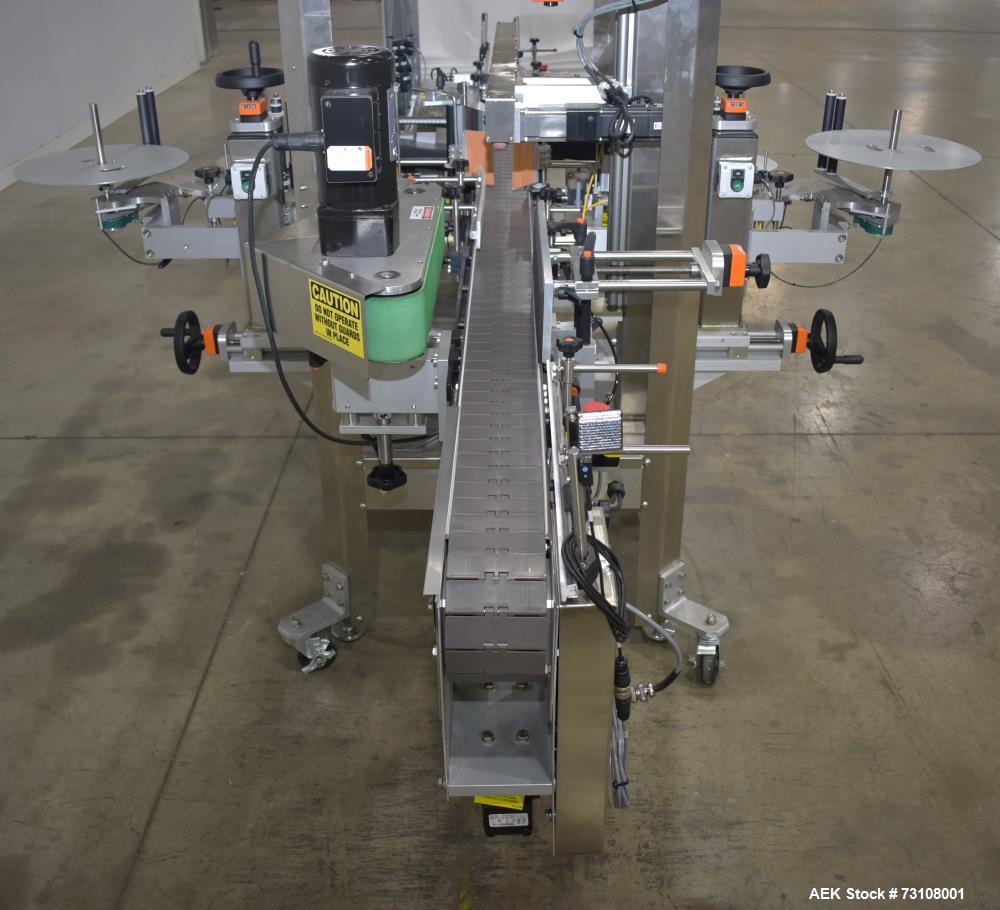

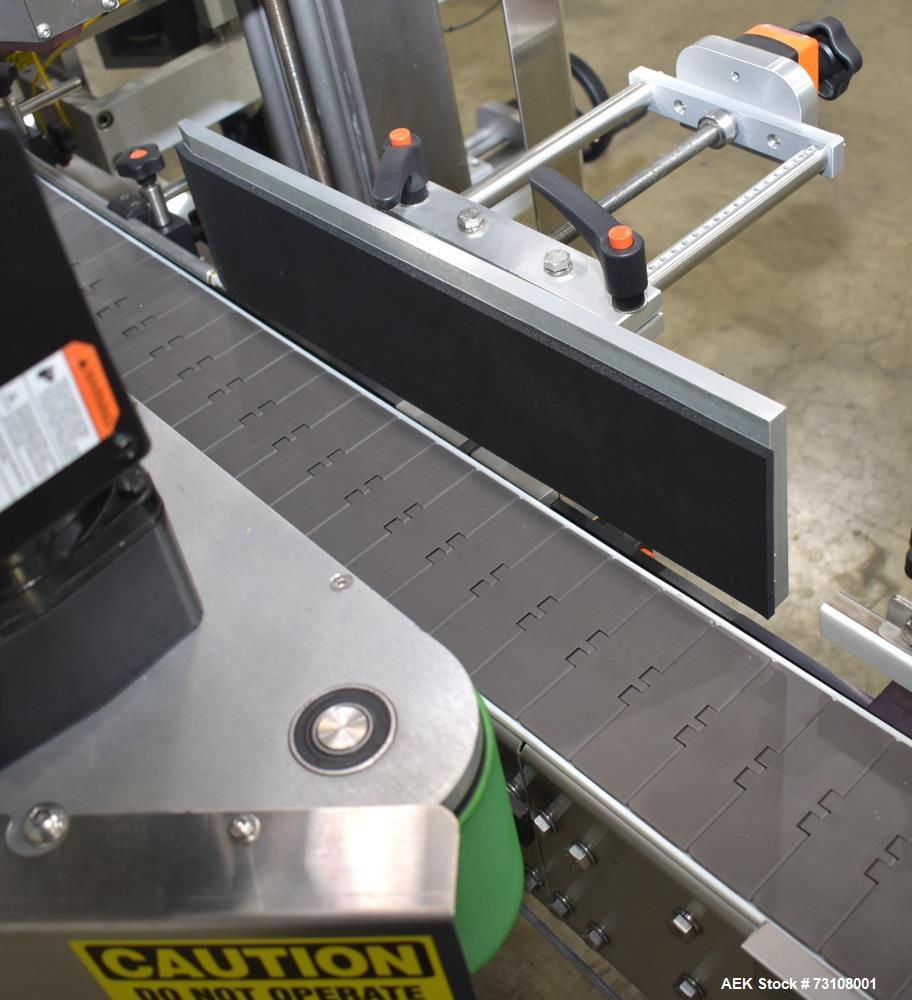

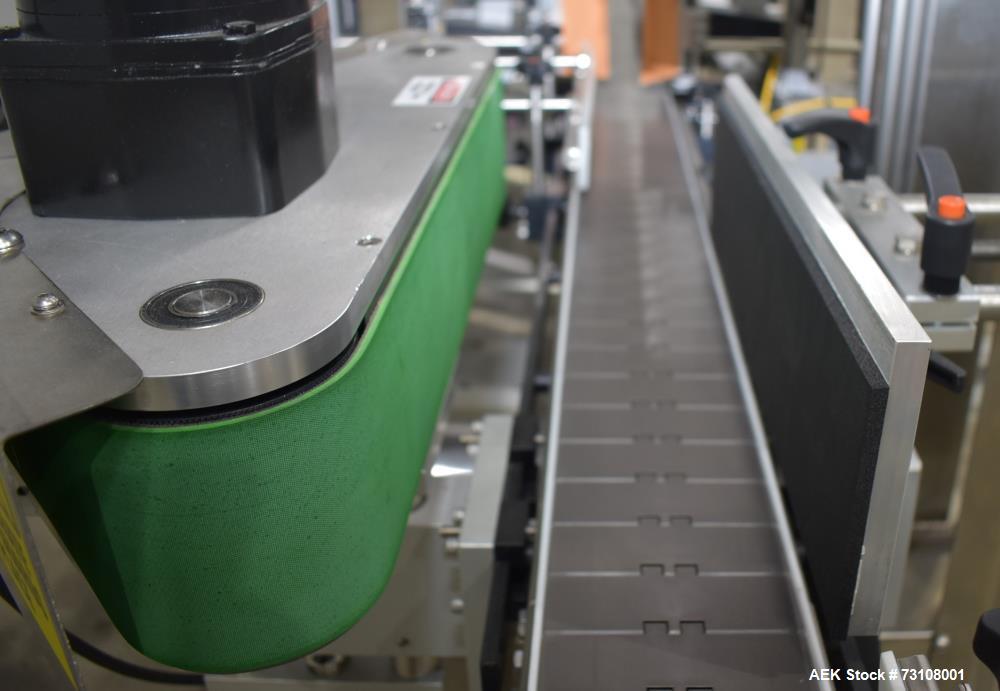

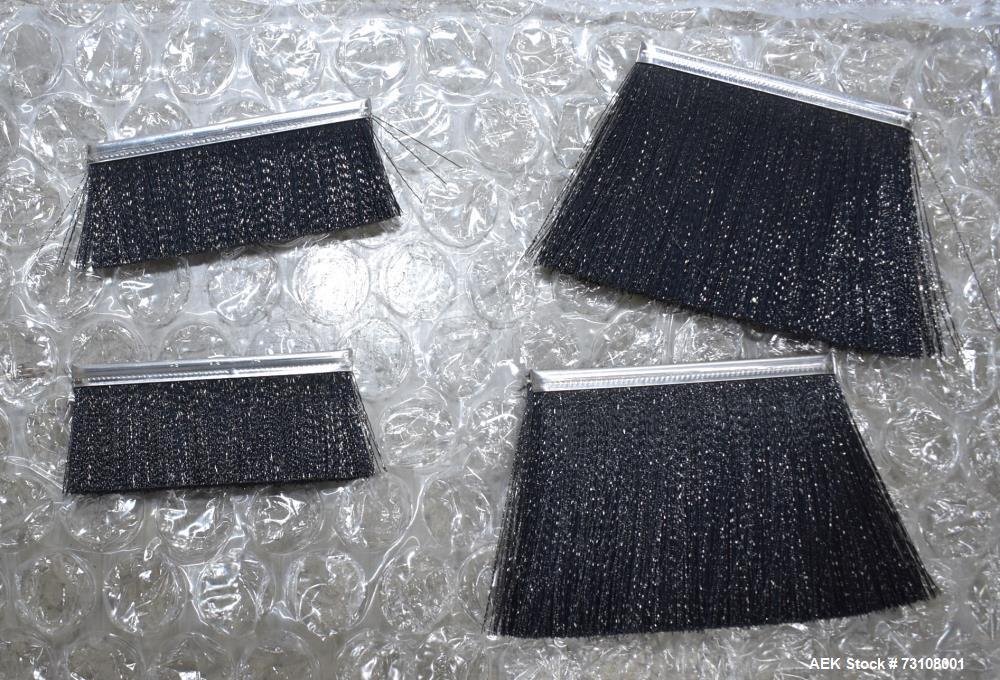

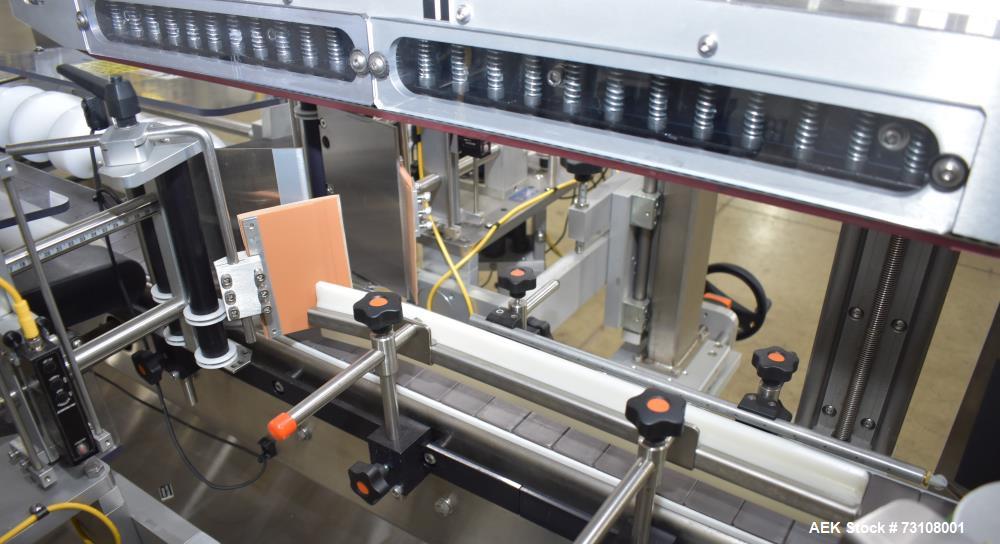

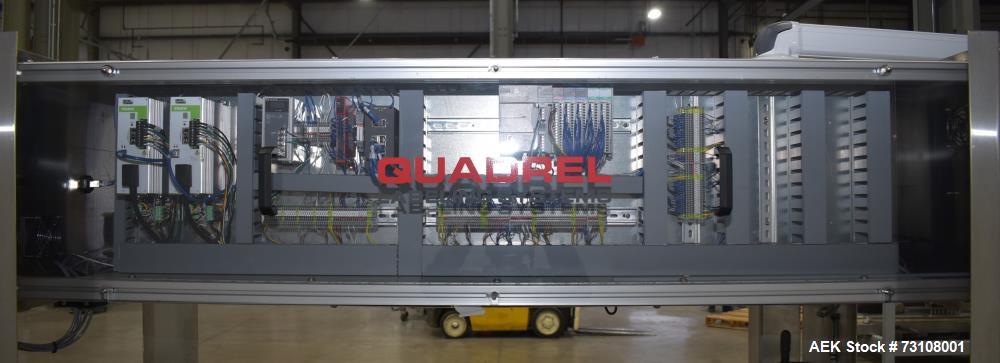

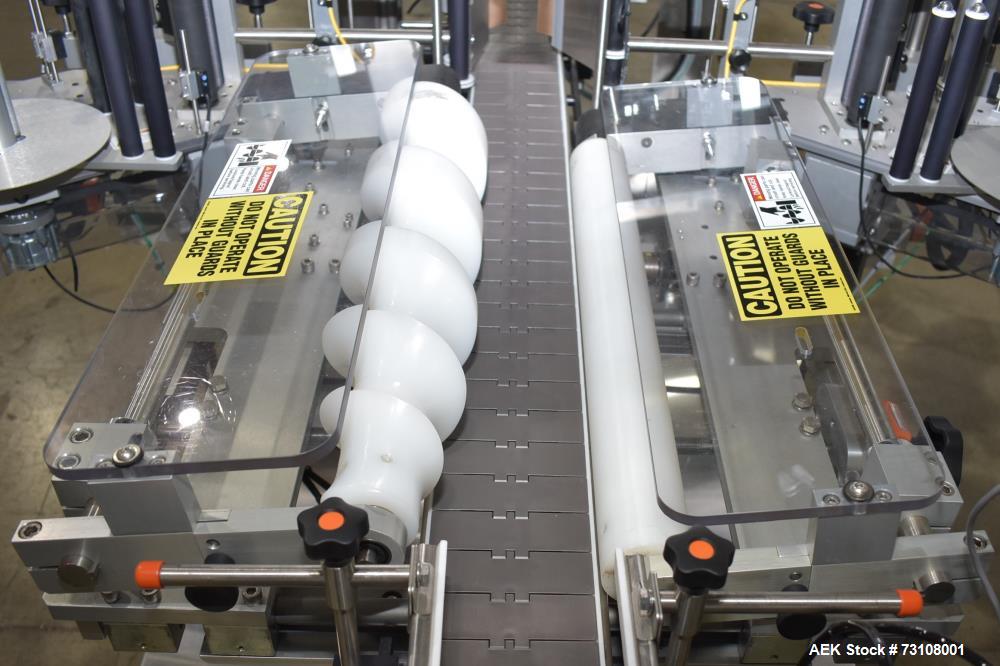

Unused- Quadrel Proline Front Back and Wraparound Pressure Sensitive Labeler. Built 2023. Has dual Q125 servo driven label applicators. 7" web width, max label width 6 7/8". 16" label roll unwind, 2,800" per minute, label brush impression mounts, low label with amber light, broken and end of web with red light, green light for ready. Standard label sensor. Label applicator mount by 4-axis adjustability and position indicators for repeatable changeover. Dual timing screw infeed, servo driven, integrated feed screw clutch with electrical interlock and in feed gate assembly. Wrap station: 4 1/2"W x 18"L, powered by direct drive variable speed AC motor. 32"L top hold down, adjustable range of 0"-15", powered by variable speed servo motor and electrically synchronized to main conveyor. Conveyor is 144"L x 4 1/2"W x 34"H, powered by 1hp splash proof approved variable speed AC motor, mattveyor table top chain, stainless steel side plate construction. Overhead mounted electronics, Allen Bradley CompactLogix 5380 PLC, Delta color touchscreen operator interface (10" diagonal), intuitive operator panel with keyed access to system set up screens, complete I/O system diagnostics, digital speed indicator touchscreen, setup memory for 50 label presets. Product and label counters, elapsed hour meter, dispense speed per minute display on board. 20" clearance under complete system for ease of cleaning in FDA environment. Elec: 1/50/60/220V, 80 PSI air. Originally set up to run front/back on 700ml bottle, 114.8mm x 124.6mm front label and 73mm x 55mm back label at 200 bottles per minute. Built 2023, Unit was never installed after factory FAT.
Alcohol, Beer, beer, brewery, Bottles, can mfr, Candy, Candy and Confectionary, CBD Oil, Cosmetic, Cosmetic Cans, Cosmetics, Hand Cream, hand sanitizer, Hand Sanitizers, Hemp, Hemp Oil, Marijuana, MCT Oils, Oil Products, olive oil, Pet Products, Petrochemical, Pharmaceutical, Pharmaceutical Products, Pharmaceuticals, Seasonings, Shampoo, shampoo conditioner products, spirits, water, bottled water, Wine, Wineries, Winery, Wineries
Unused- Quadrel Proline Front Back and Wraparound Pressure Sensitive Labeler. Built 2023. Has dual Q125 servo driven label applicators. 7" web width, max label width 6 7/8". 16" label roll unwind, 2,800" per minute, label brush impression mounts, low label with amber light, broken and end of web with red light, green light for ready. Standard label sensor. Label applicator mount by 4-axis adjustability and position indicators for repeatable changeover. Dual timing screw infeed, servo driven, integrated feed screw clutch with electrical interlock and in feed gate assembly. Wrap station: 4 1/2"W x 18"L, powered by direct drive variable speed AC motor. 32"L top hold down, adjustable range of 0"-15", powered by variable speed servo motor and electrically synchronized to main conveyor. Conveyor is 144"L x 4 1/2"W x 34"H, powered by 1hp splash proof approved variable speed AC motor, mattveyor table top chain, stainless steel side plate construction. Overhead mounted electronics, Allen Bradley CompactLogix 5380 PLC, Delta color touchscreen operator interface (10" diagonal), intuitive operator panel with keyed access to system set up screens, complete I/O system diagnostics, digital speed indicator touchscreen, setup memory for 50 label presets. Product and label counters, elapsed hour meter, dispense speed per minute display on board. 20" clearance under complete system for ease of cleaning in FDA environment. Elec: 1/50/60/220V, 80 PSI air. Originally set up to run front/back on 700ml bottle, 114.8mm x 124.6mm front label and 73mm x 55mm back label at 200 bottles per minute. Built 2023, Unit was never installed after factory FAT.
Alcohol, Beer, beer, brewery, Bottles, can mfr, Candy, Candy and Confectionary, CBD Oil, Cosmetic, Cosmetic Cans, Cosmetics, Hand Cream, hand sanitizer, Hand Sanitizers, Hemp, Hemp Oil, Marijuana, MCT Oils, Oil Products, olive oil, Pet Products, Petrochemical, Pharmaceutical, Pharmaceutical Products, Pharmaceuticals, Seasonings, Shampoo, shampoo conditioner products, spirits, water, bottled water, Wine, Wineries, Winery, Wineries
