Used Bagger Only Vertical Form and Fill

Stock# 72586001

Used-Bosch SVE3800 Vertical Form Fill and Seal Machine. Capable of speeds up to 120 bags per minute. Has a bag size range: width 60 mm 380 mm (2 1/3" -15") x length 75 mm 600 mm (3"- 24"). Film specifications: Width 800 mm max (32" max) x diameter: 650 mm max (26" max), Has print registration, market smart date coder, Allen Bradley RS Logix 5000 plc. Mfg. 2020.

Stock# 73006001

Used- CMD Packaging Systems Model Icon 380 Vertical Form Fill & Seal Bagger. Capable of speeds up to 120 cycles per minute. Has a bag size range (with changeparts): 2.36" - 15.76" or 60mm - 400mm (width) x 2.36" - 19.6" or 60mm - 500mm (length). Haas film registration and pull belt film drives. Allen bradley logix 5571, A/B panelview 1000 HMI. Side seal bar 22-1/2" long x 1-1/2". Former 9" diameter with 7" diameter outfeed. VFD powered film unwind.

Stock# 71772002

Used- Hayssen Ultimax CM-15 HPR Continuous Motion Washdown Vertical Form Fill Seal Bagger. Capable of speeds up to 130 Bags per Minute (depending on size and application). Suitable for structured, barrier type resistance sealed film, with bagsize range approximately 2" - 15" (width) 2" - 30" (length). Has top and bottom gusseting. Uses Allen Bradley Logix 5561 PLC controls, Allen Bradley Versa View 1200 HMI, Rexroth Servo drives and print registration. Last used in washdown facility and was running frozen sausage and meat products. AEK can mount and integrate fillers per application at an additional cost (combination scales, auger fillers, volumetric cup fillers, liquid/piston fillers etc). 30 amps. 1/60/460V. Currently equipped with a 15" former, inquire with sales representative about other available formers.

Stock# 70250002

Used-Matrix Vertical Form, Fill & Seal Machine, Model 916. Capable of speeds up to 70 cycles per minute. Has a package size range of: 2" to 8" wide and 3" to 15" long. Has a 1/2" wide horizontally serrated seal jaw and printed film registration. Includes Norwood AKS-7 embosse date coder. Mistubishi PLC and LCD HMI. Stainless steel construction. Air requirements: 90 psi @ 20 CFM. 1/50-60/220V. Approximately 5,000 lbs. Last running snack foods.

Stock# 73027001

Used- Pacmac Model 9500 Vertical Form, Fill, and Seal Machine with Zipper. Equipped with film registration. Utilizes High Density Polyethylene (HDPE) film. Has a maximum web width of 36". Has a bag size range of: 3" to 15" (wide) and 4" to 19" (length). 3/60/220V. Has Term-A-Zip zipper attachment and Video Jet Smart Date Coder. Last used in food operation.

Stock# 72727042

Used- Premier Tech Model TFS-411 Vertical Form, Fill and Seal Machine, Model TFS-411. Application: bulk materials; granular, pellet, power, flake, coarse aggregate, fibrous materials. Production output rate: up to 22 bags per minute, product dependent. Bag types: gusseted, pillow type, gusseted flat bottom. Bag Dimensions: Minimum: 13 inches, Maximum: 17 inches; Length: Minimum: 13 inches Maximum: 39 inches Side Gusset (if Used) Minimum: 3 .5 inches Maximum: 7 inches. Film thickness: 4 - 8 mils. Maximum roll diameter: 47 inches. Maximum roll weight: 880 pounds Last used to fill wine corks into bulk bags.

Stock# 72693001

Used- UVA Packaging Model Butler-4 Form and Fill Vertical Form Fill Seal Machine. Capable of speeds up to 120 BPM. Intermittent motion. Has a bag size range: 50mm - 220mm (width) x up to 400mm (length). Has belt pull down, print registration and set up for supported films.

Stock# 70431015

Used- Viking Masek M400 Vertical Form Fill and Seal. Capable up to 100 bags per minute. Intermittent motion. Bag size range: 3.93" - 15.75"W x 2.36" - 19.69"L. Siemens CPU, Pro-face touch screen HMI. 2 1/4" dia former. Vacuum film pull-down over bag former. 20.5" long longitudinal seal bar. Stainless steel construction. Last ran spices and was fed by an auger filler. Elec: 3/60/480V.

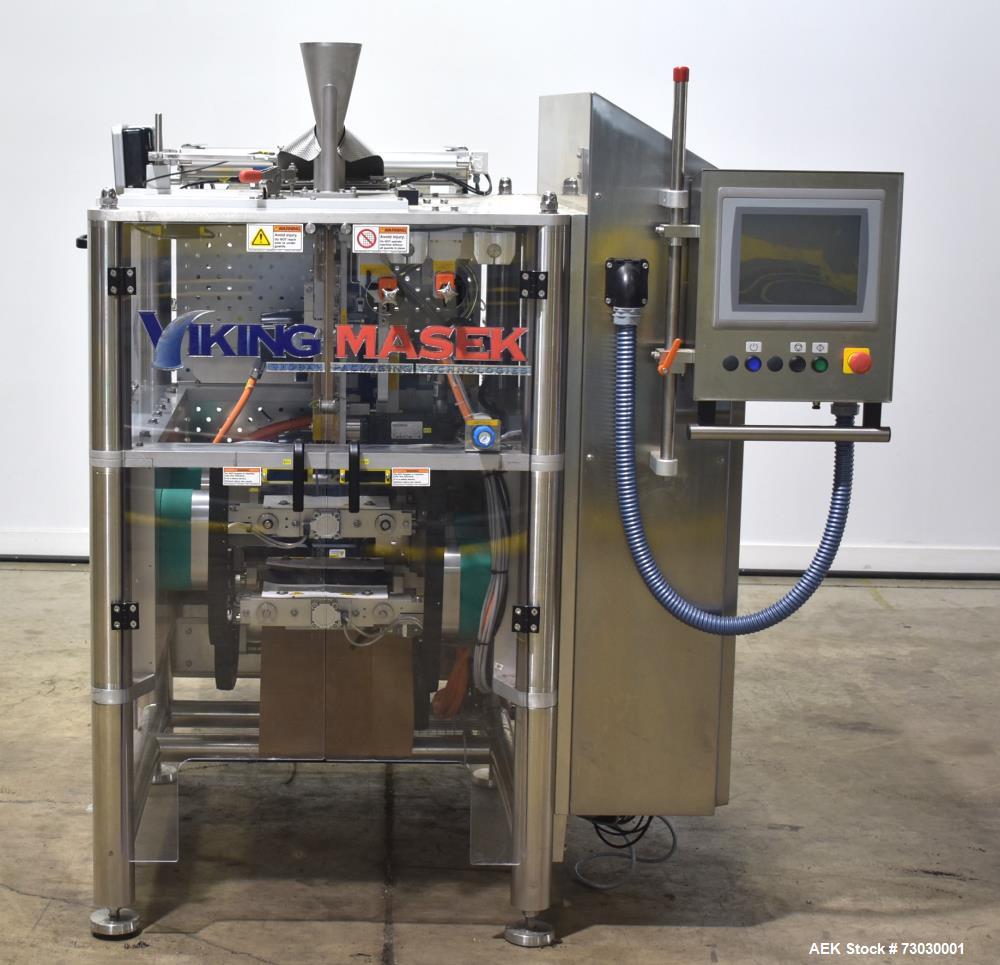

Stock# 73030001

Used- Viking Masek Vertical Form Fill Seal Machine, Model Velocity 250. Capable of speeds up to 250 bags per minute (depending on application). Has a bag size range: 50mm - 250mm (width) x 90mm - 1000mm (length). Seal bar 11" long x 1" wide. Allen Bradley CompactLogix 5380 PLC, A/B Panelview Plus HMI, (4) A/B Kinetix drives. Has a Video Jet Data Flex 6330 Thermal Date Coder. Print registration. 3/60/480V. Built 2022.

Stock# 72924001

Used- WeighPack Systems Xpdius Elite 1700 Servo Vertical Form, Fill and Seal Machine with Scale. Capable of up to 50 cycles per minute. Bag size range: up to 17" (430mm) wide pillow bag x up to 24" (600mm) bag length x up to 35.25" (890mm) web width. Auto retractable pull belts. Anti-static bar, vacuum pump, gas flush. Control panel with PLC and HMI. Includes WeighPack top-mounted PrimoLinear V25 vibratory automatic smooth bucket scale. Two-lane 25 liter bucket volume, HMI, camera, frame. I-shaped incline infeed conveyor. Incline cleated 24" wide takeaway conveyor. Stainless steel construction. Bagger S/N- 7262, 1/60/230 Volt. Scale Serial# 7263, 1/60/120 Volt.

Stock# 72483001

Used- Wolf VPP-180 Mini-Master Vertical Form, Fill & Sealer Machine (Bagger Only). Capable of up to 100 bags per minute (depending on product and wrapping material). Bag size range: 50 to 180 mm (1.97" - 7.086") width x 120 to 320 mm (4.72" - 12.6") length. Film width 420mm (16.54"). Horizontal serration knife seal bar, top seal 1/2", bottom 1/2". Horizontal seal bar approximate 8-1/4" long x 1-3/4" wide. Vertical seal bar approximate 13" long x 1/4" wide. Allen Bradley compact logix L35E PLC, A/B panel plus 700 HMI, Sew Eurodrive Servo drive (for seal jaws). Has registration. Includes takeaway conveyor. 3/60/230 Volt.
