Automatic Capsule Filler with Tumble Dryer & Gelatin Melting Tank – HTSYS-5
Used Huizhou Pingfang Capsule Filling System, Model HTSYS-5. Rated 5000-10000 units/hour; 10-500mg capsule size range; 64mm x 75mm rolling die size; 0-5RPM rolling die speed. (4) Pistons. Stainless steel construction. Controlled by touch-screen PLC. OAD: 820mm x 640mm x 1200mm. 220/380V. System includes: Water chiller, 100 liter Stainless steel gelatin melting tank/dosing tank, Air compressor, Tumble dryer; Capsule dry trays; Grinding tank; Rolling die; Capsule conveyor. Reported to have been test run once without product.
| Model | HTSYS-5 |
| Category | Packaging EquipmentPackaging Equipment |
| Subcategory | Fillers Tablet-Capsule - Disc CountersFillers Tablet-Capsule - Disc Counters |
🔹 Manufacturer Info
-
Manufacturer: Huizhou Pingfang
-
Model: HTSYS-5
-
Country of Origin: China
-
Control Interface: Touchscreen PLC
-
Electrical: 220V / 380V
-
Reported Condition: Test run only, never used with product
🔹 Product Description

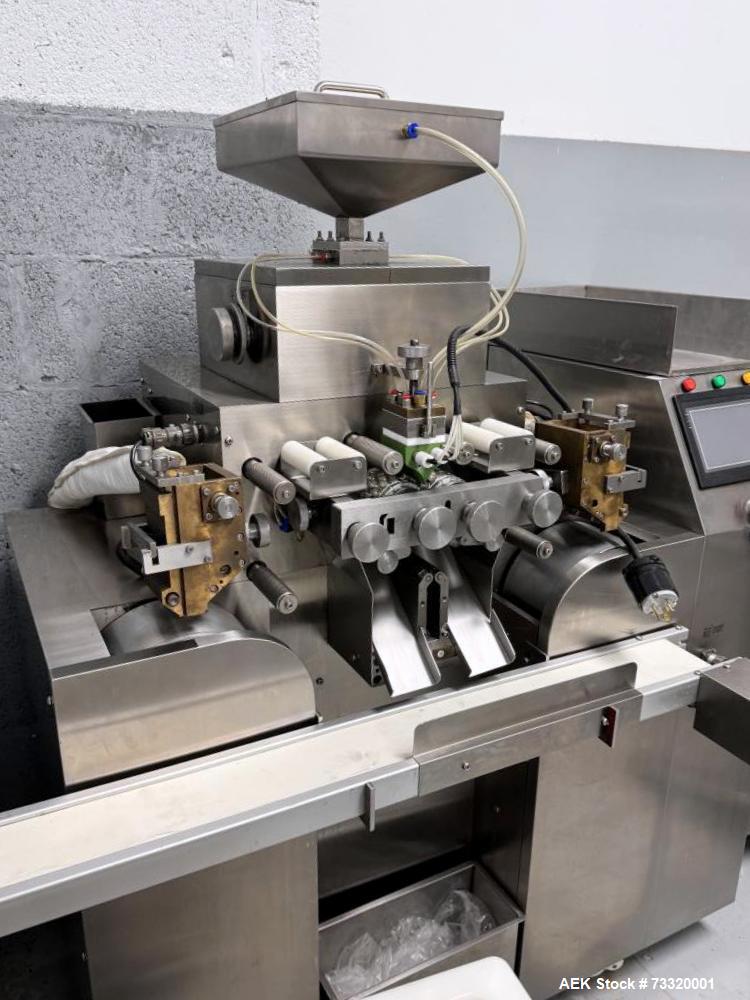

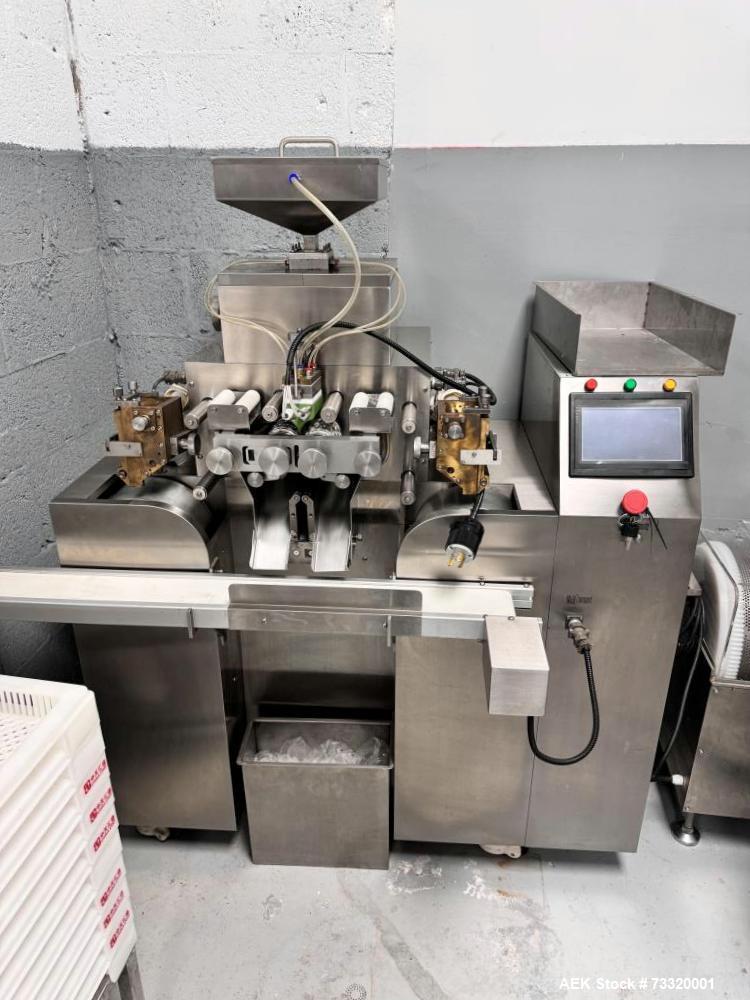

This used Huizhou Pingfang HTSYS-5 Capsule Filling System is a semi-automatic softgel encapsulation line designed for high-speed, small to medium-scale production. Capable of filling between 5,000 to 10,000 units per hour, the system handles capsule sizes from 10–500mg with precision and consistency.
Constructed from stainless steel for GMP-compliant use, this machine features a touchscreen PLC control panel, four piston-driven dosing stations, and a rolling die system with adjustable speeds from 0–5 RPM. Rolling die size is 64mm x 75mm.
The system comes fully equipped with essential peripherals for turnkey operation, including a 100L gelatin melting/dosing tank, tumble dryer, water chiller, air compressor, grinding tank, capsule conveyor, and drying trays. Reportedly test run once without product, it is in like-new condition.
🔹 Key Specifications
-
Model: HTSYS-5
-
Capsule Output: 5,000 – 10,000 units/hour
-
Capsule Size Range: 10mg – 500mg
-
Rolling Die Size: 64mm x 75mm
-
Die Speed: 0 – 5 RPM
-
Number of Pistons: 4
-
Construction: Stainless Steel
-
Control System: Touchscreen PLC
-
Overall Dimensions: 820mm (L) x 640mm (W) x 1200mm (H)
-
Electrical Supply: 220/380V
Included Components:
-

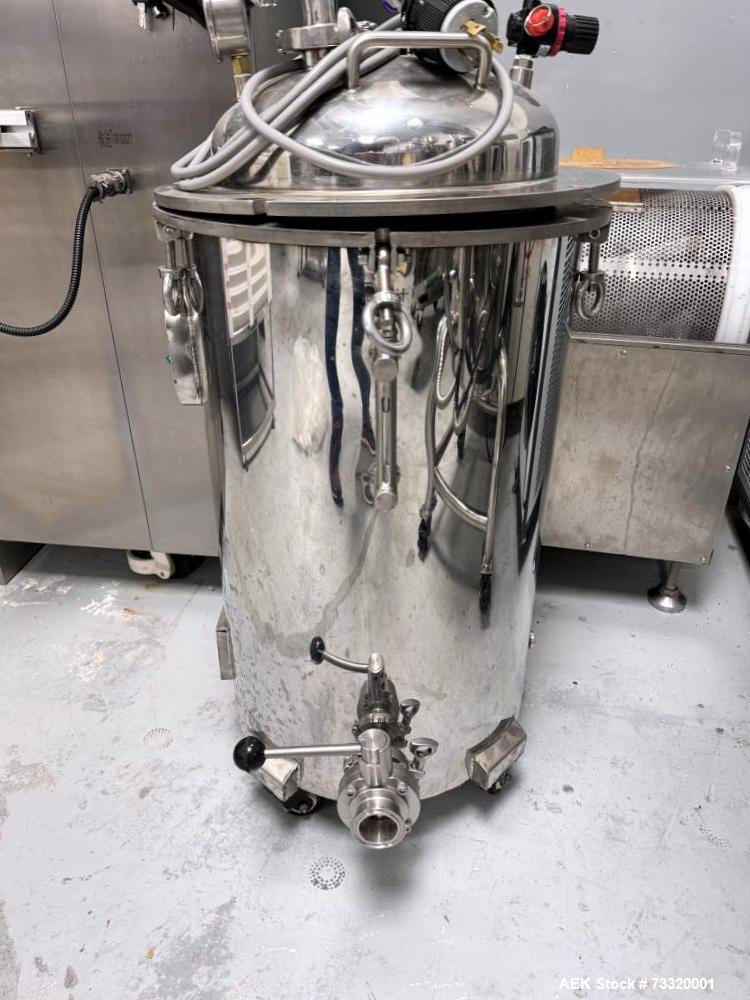

100L Stainless Steel Gelatin Melting/Dosing Tank
-

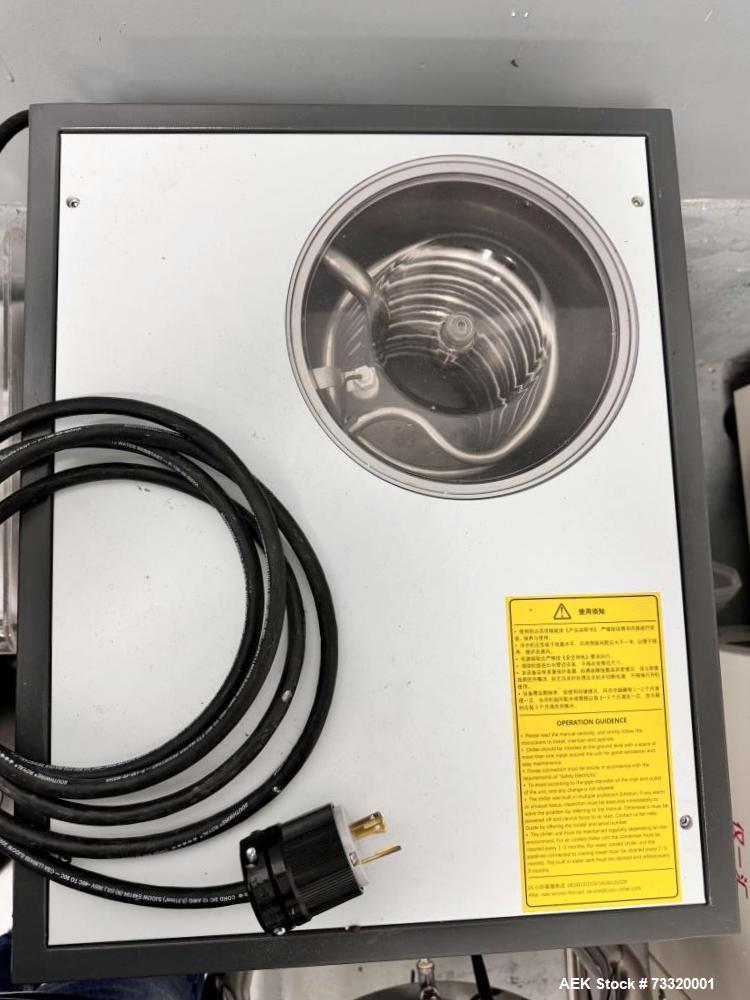

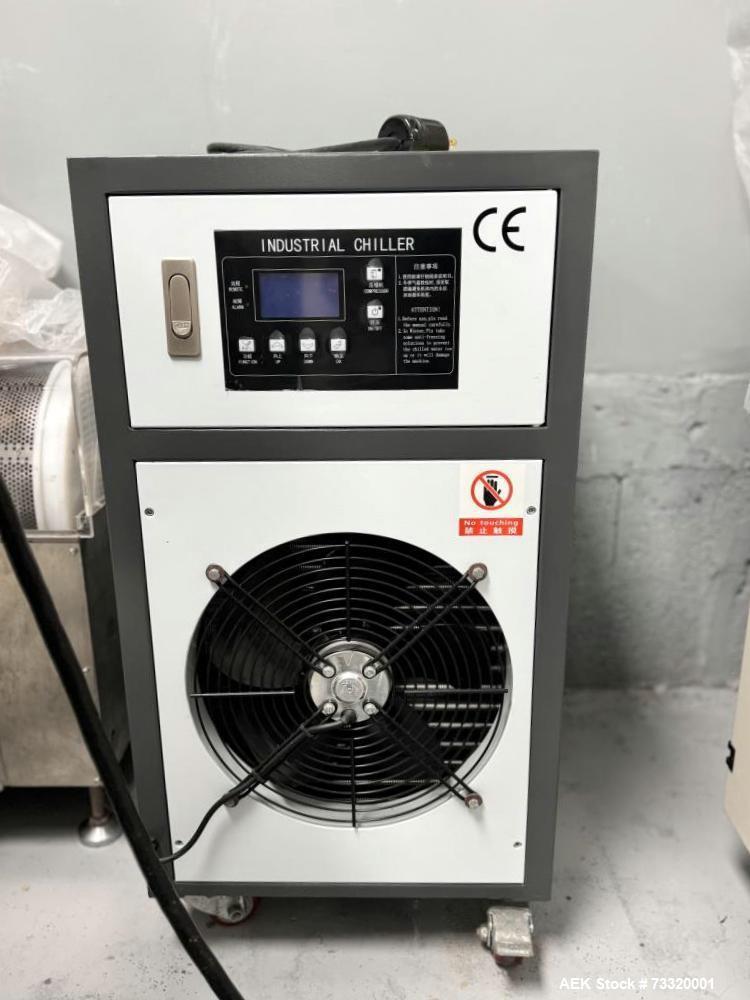

Water Chiller
-
Air Compressor
-

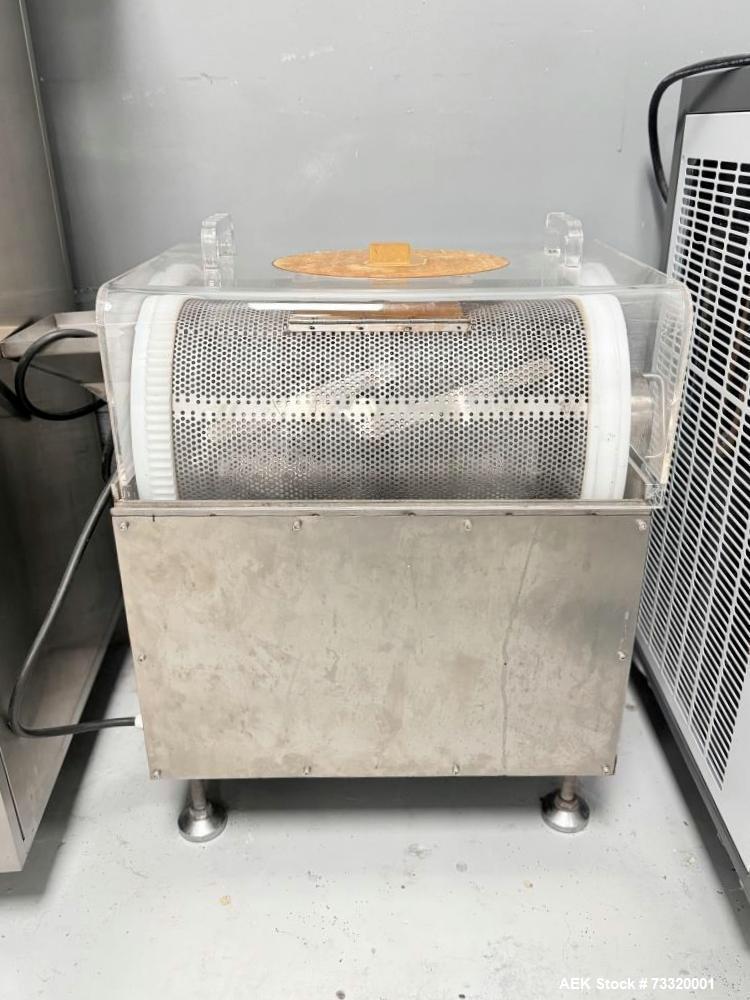

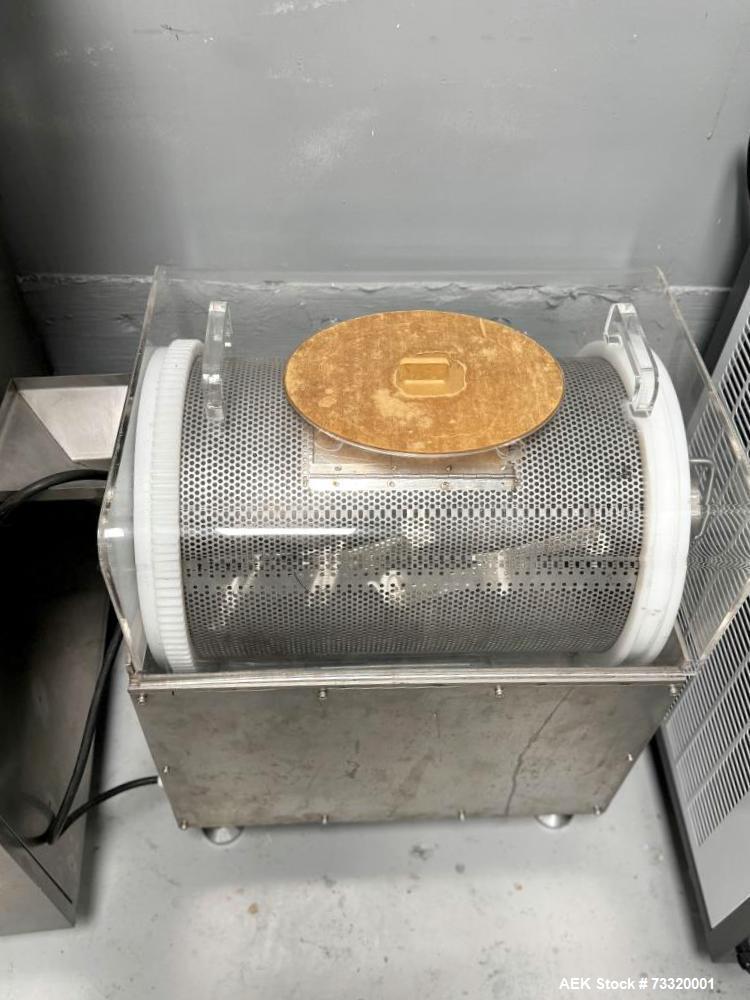

Tumble Dryer
-
Capsule Conveyor
-

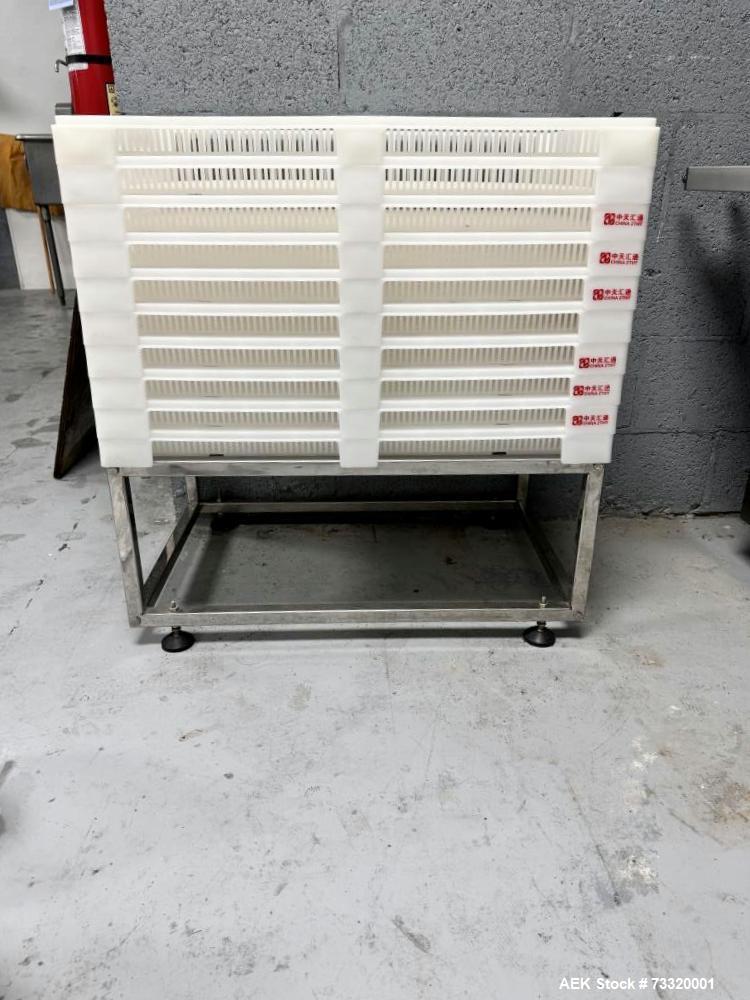

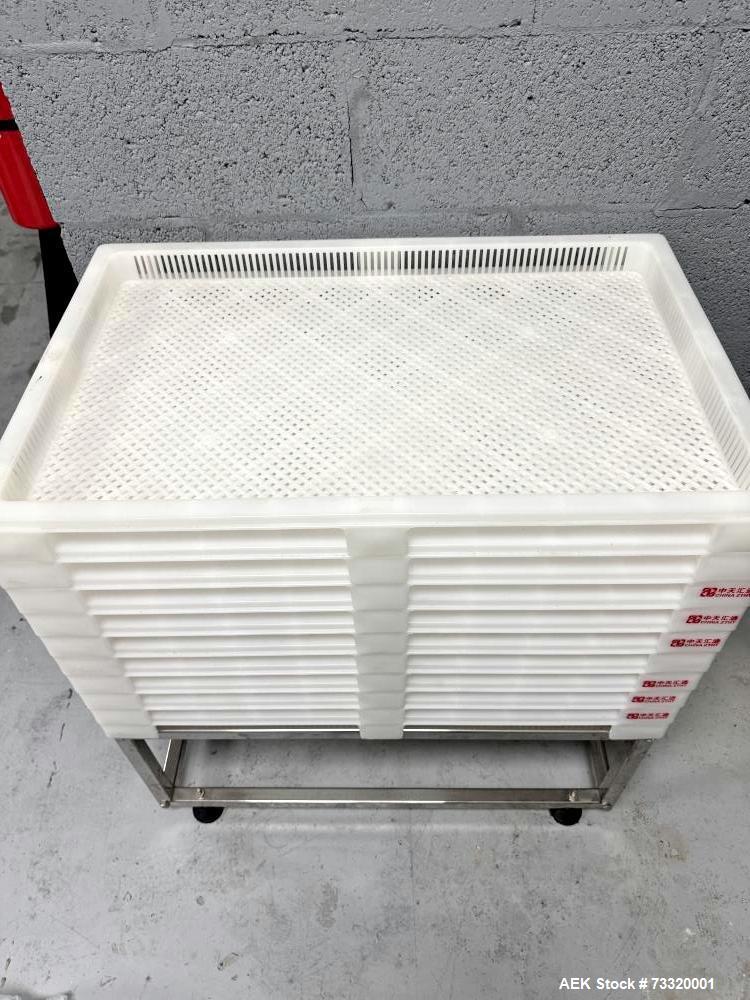

Capsule Drying Trays
-
Grinding Tank
-
Rolling Die System
🔹 Applications
-
Softgel capsule manufacturing
-
Nutraceuticals and supplement production
-
Pharmaceutical encapsulation
-
Vitamin and oil-based product filling
-
Herbal extract softgel filling
-
Cosmetic gel capsule production
-
CBD and hemp oil capsule encapsulation
-
Functional food ingredients dosing
-
OTC medication production
-
Small batch or R&D softgel runs
🔹 Used in Products For
-
Omega-3 and fish oil capsules
-
Herbal supplement softgels
-
CBD oil capsules
-
Multivitamin and mineral supplements
-
Liquid-filled pharma capsules
-
Essential oil capsules
-
Nutraceutical blends
-
Joint support supplements
-
Fat-soluble vitamins (A, D, E, K)
-
Cosmeceutical softgel formats
