Stock #
72627001

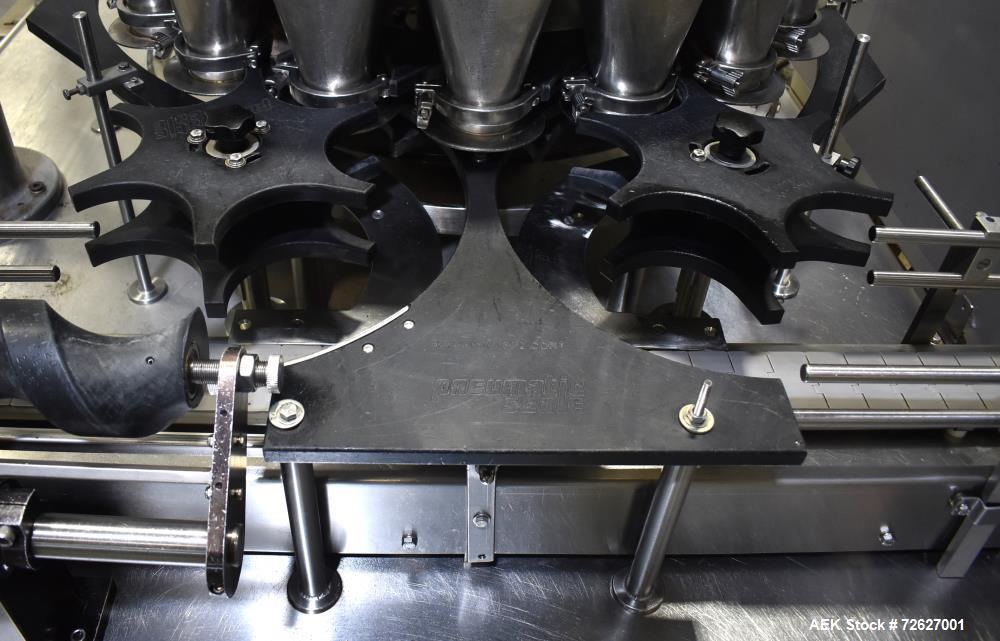

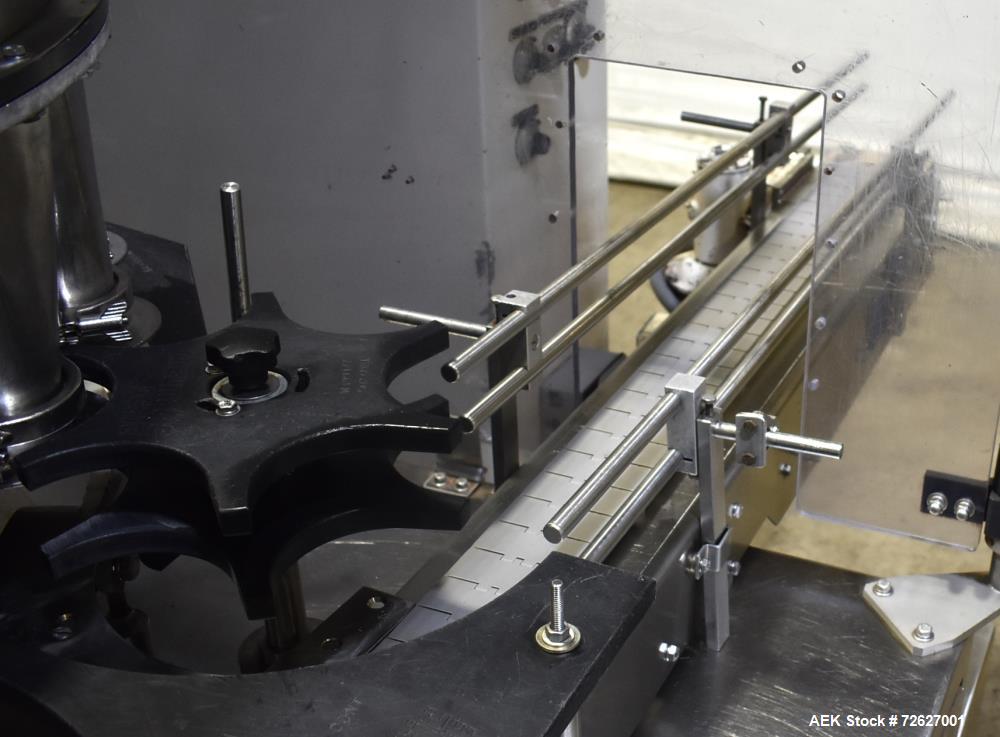

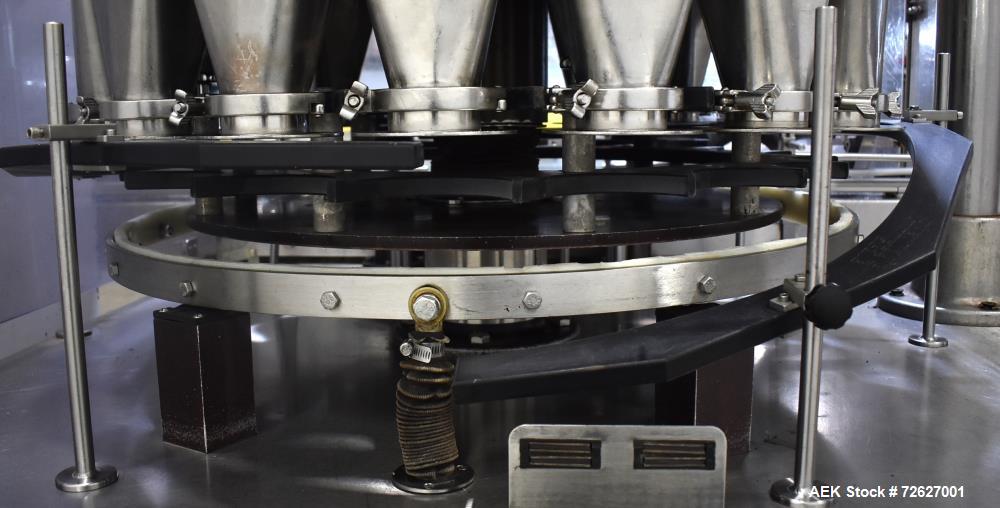

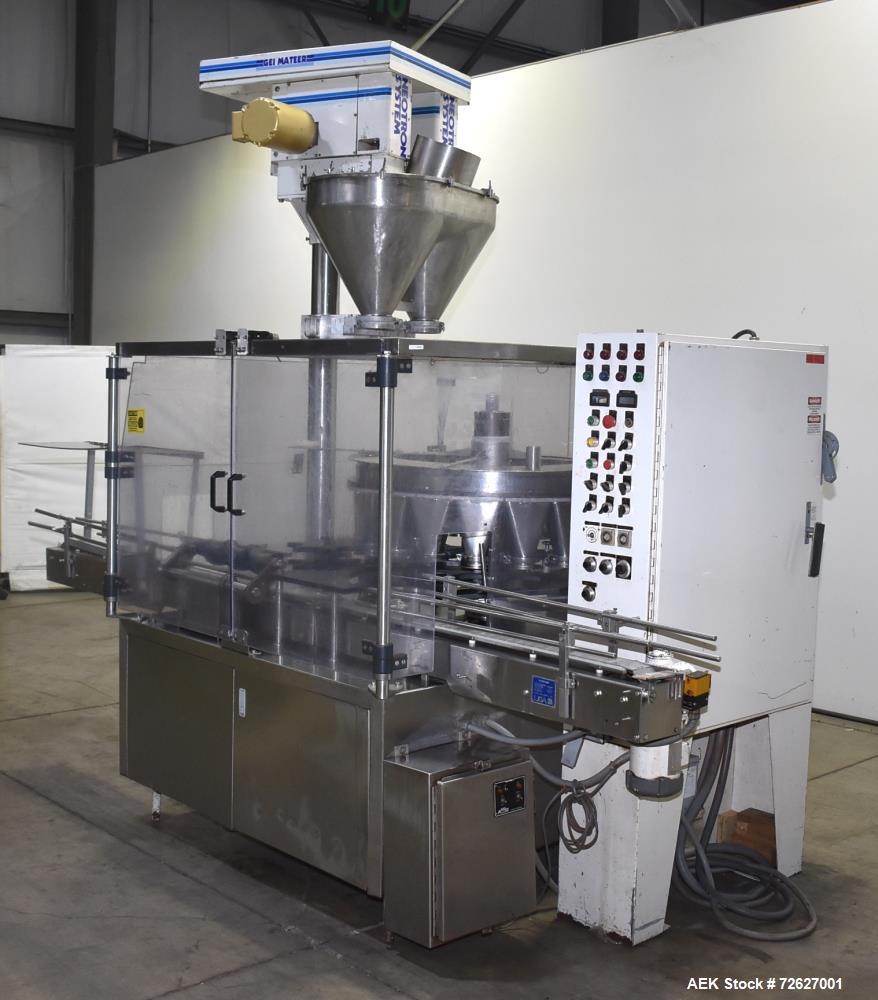

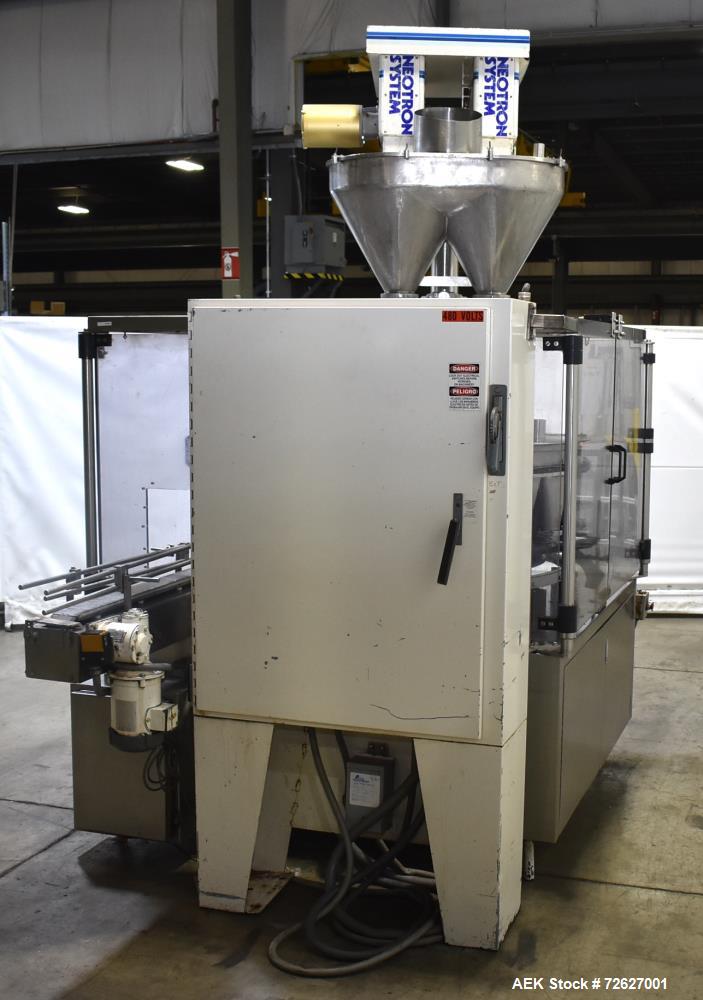

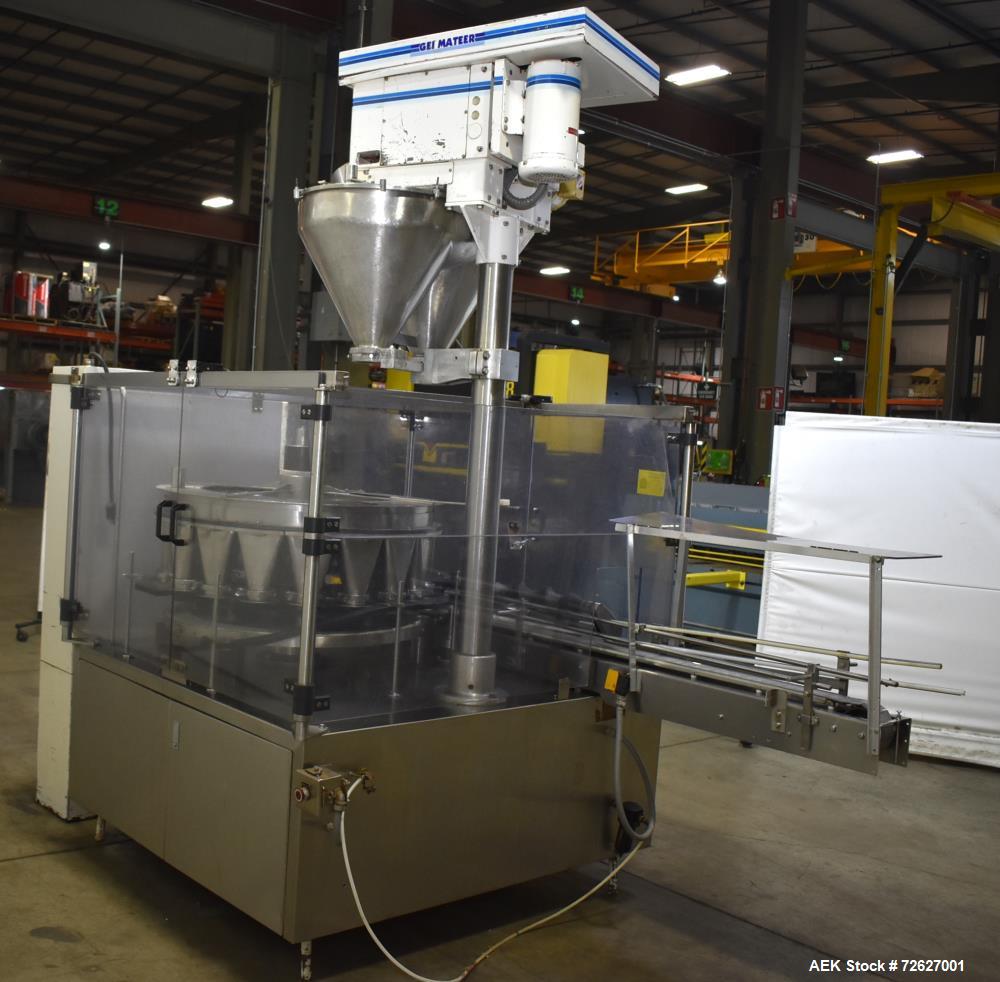

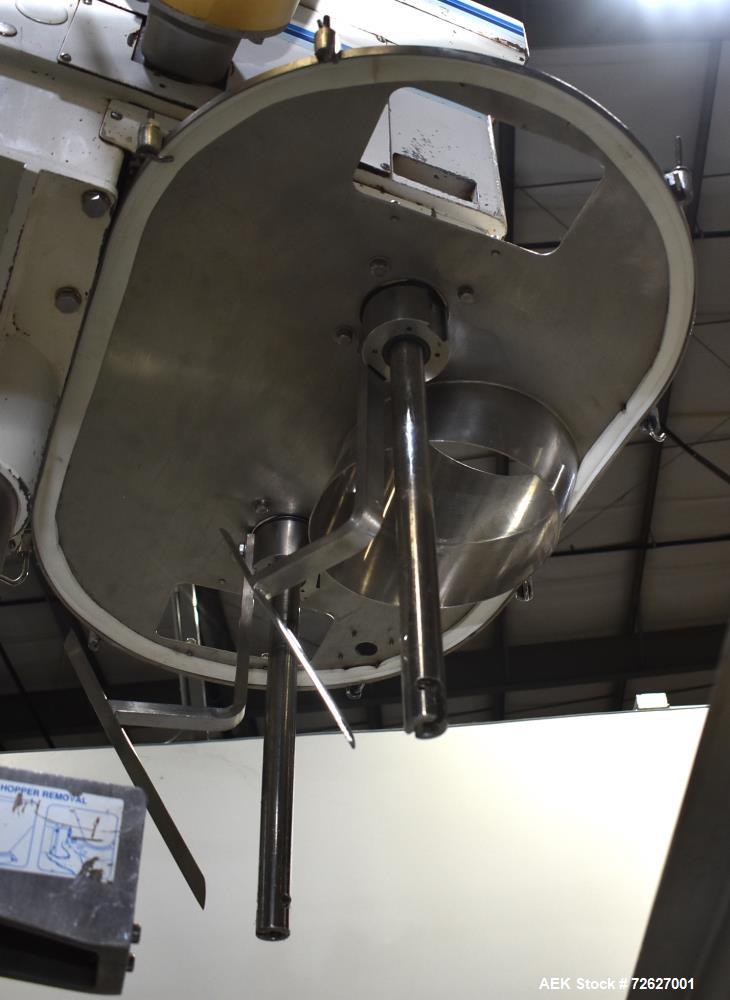

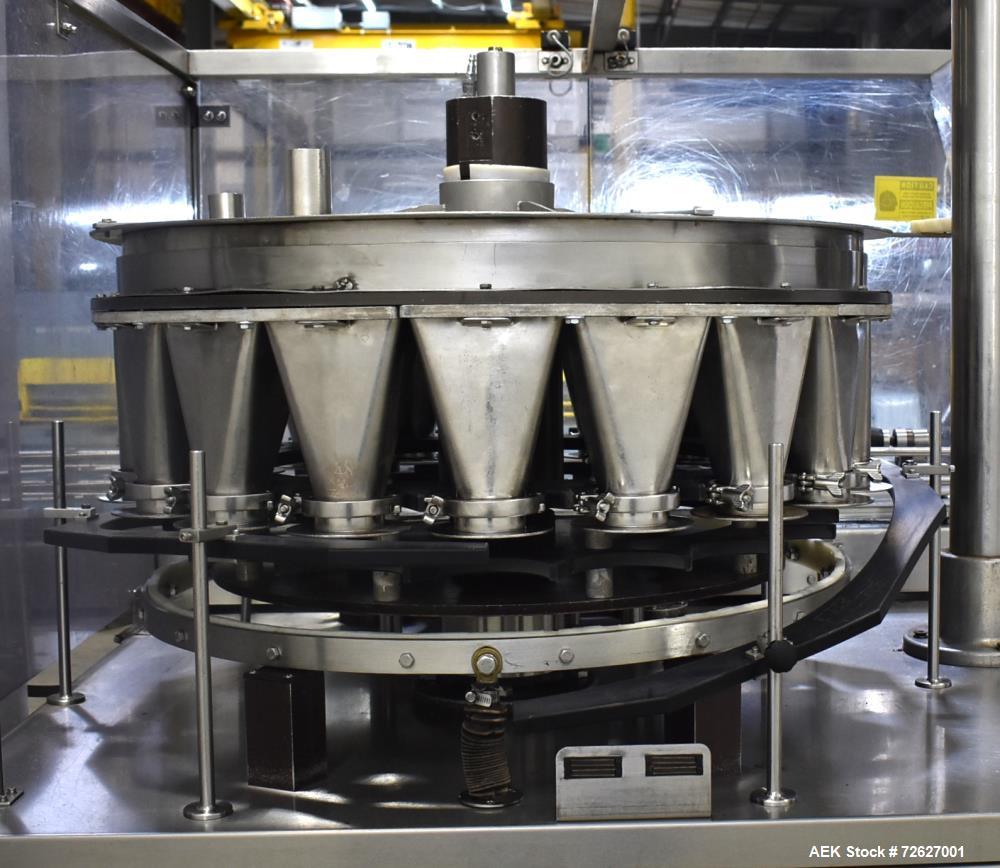

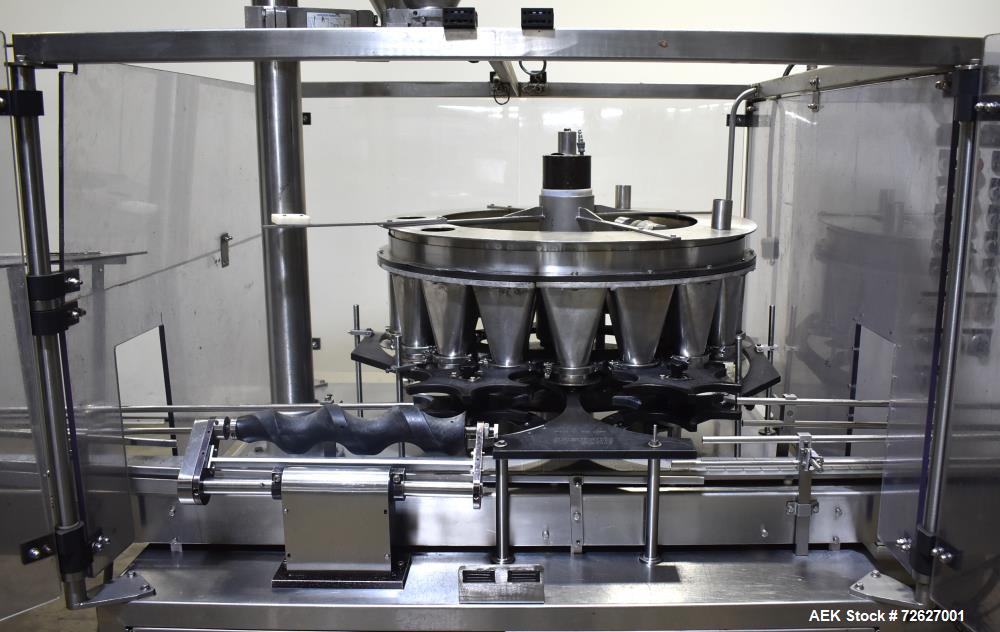

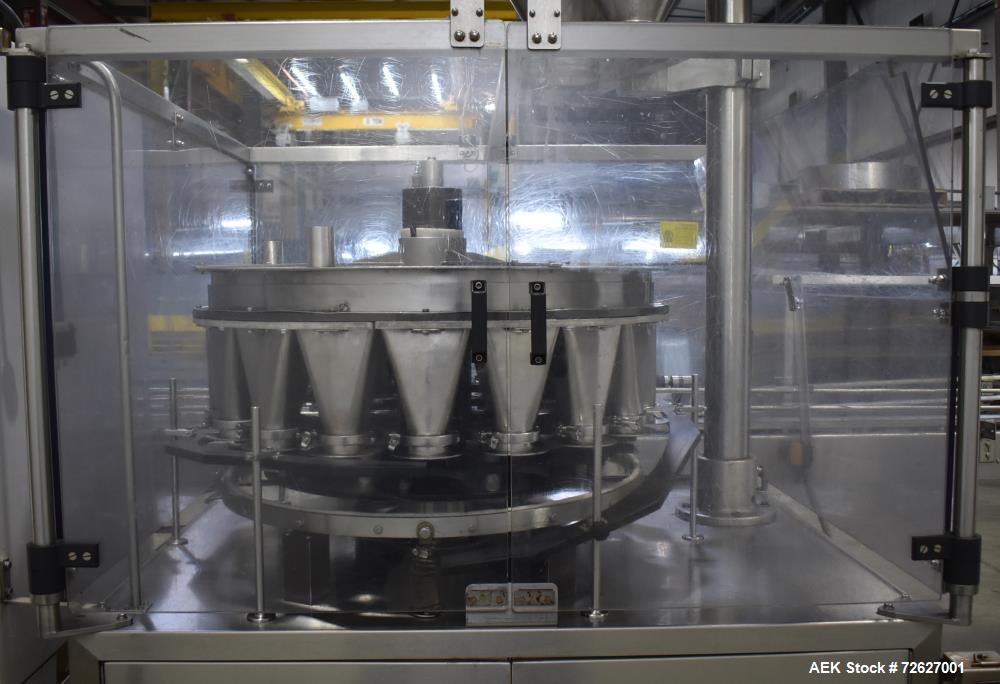

Used Mateer Pneumatic Scale Model 6700 18-Station Rotary Auger Filler. Machine is capable of filling 200 - 350 bottles per minute. Container size range: 3" - 9" (Height). Filling Range: 0.5oz -10 lbs or 14gm-4.5 Kg. Dual auger system with agitated hoppers. Wormscrew to starwheel container handling. , worm screw infeed, 18 pocket system on 7" centers and 42" dia turret.. Funnels have 3-1/2" diameter discharge spouts. Currently set up on a 502 diameter can and was last running coffee and hot cocoa cans. 3/60/480 Volt.
Used Equipment Facts About This Machine
Description:

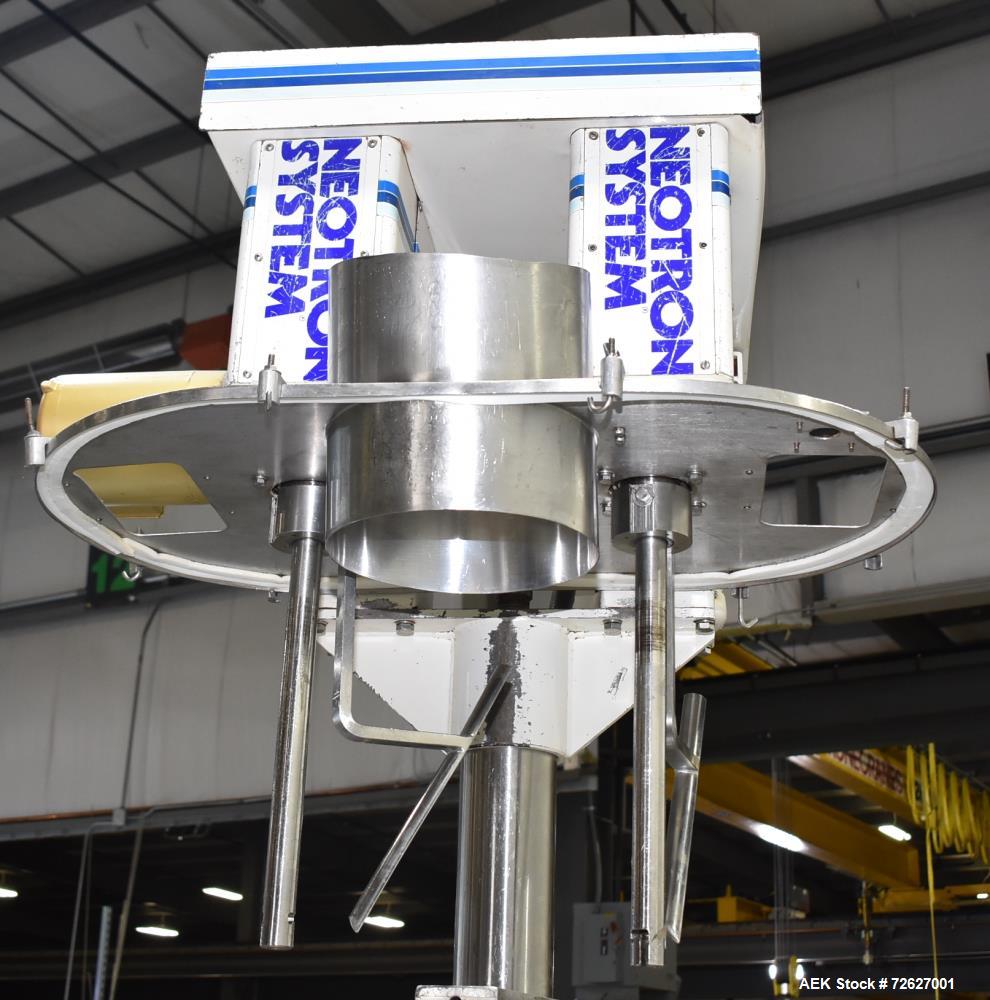

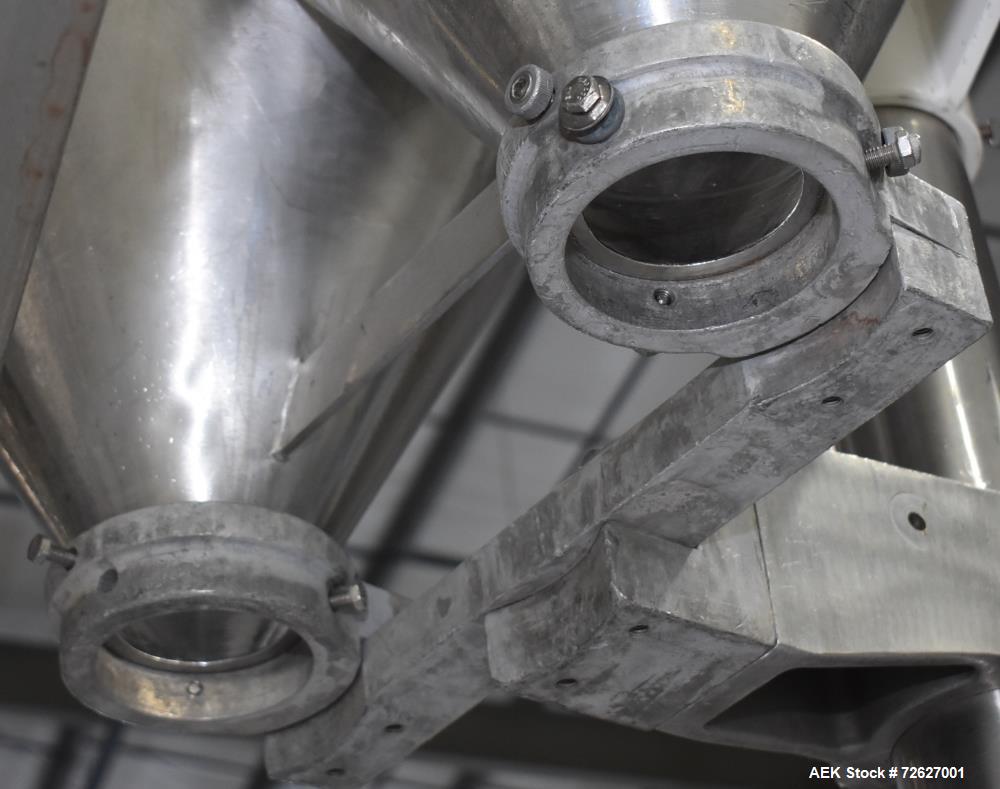

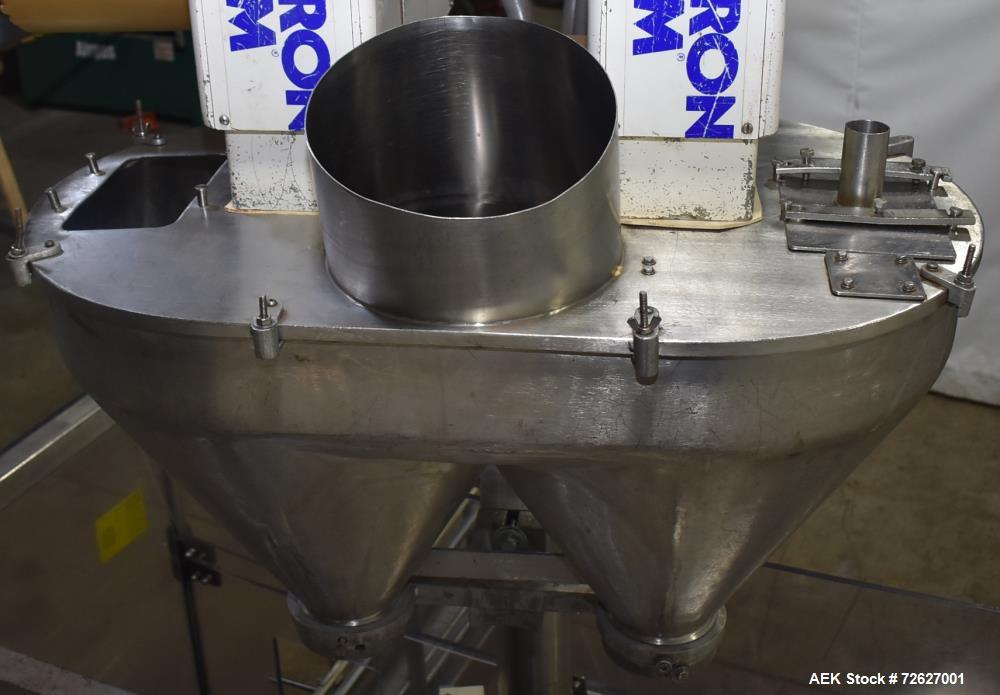

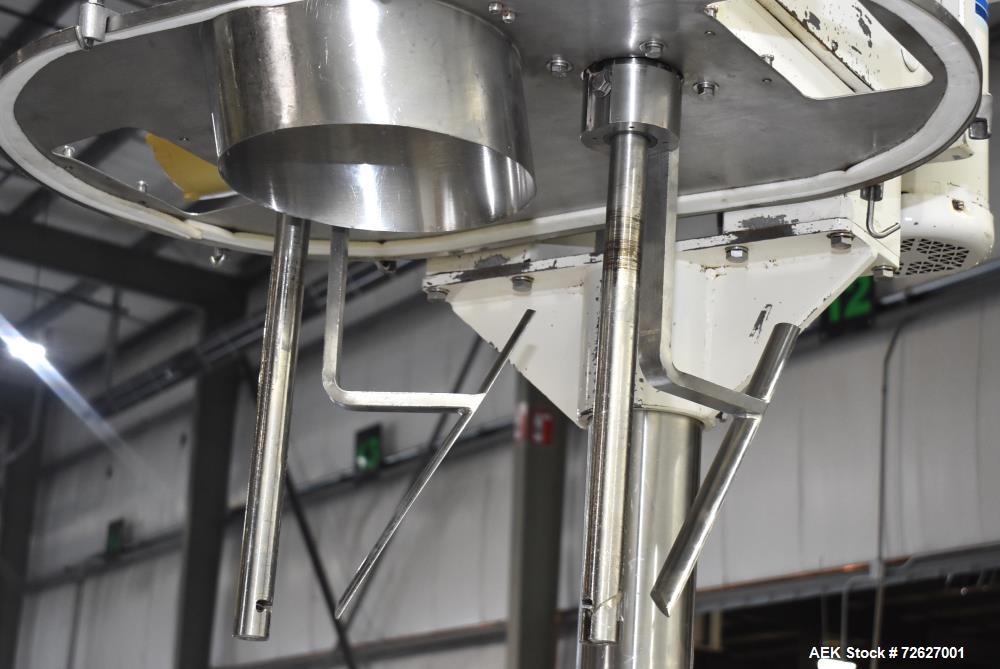

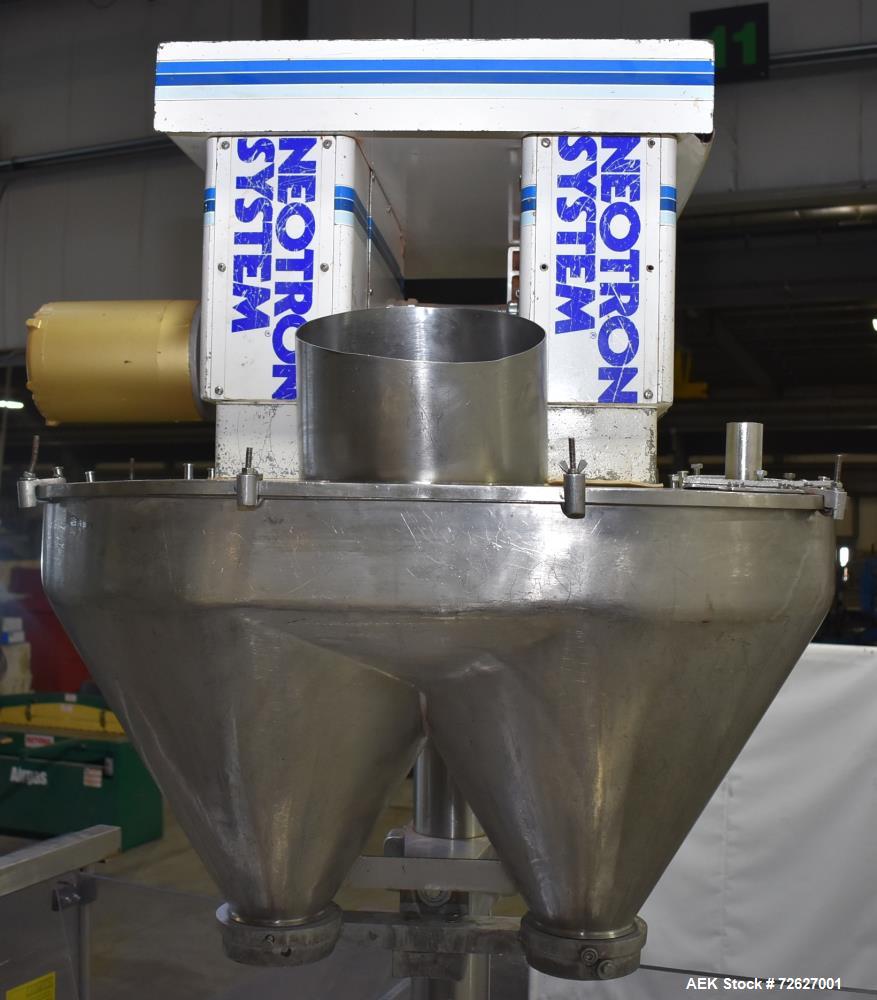

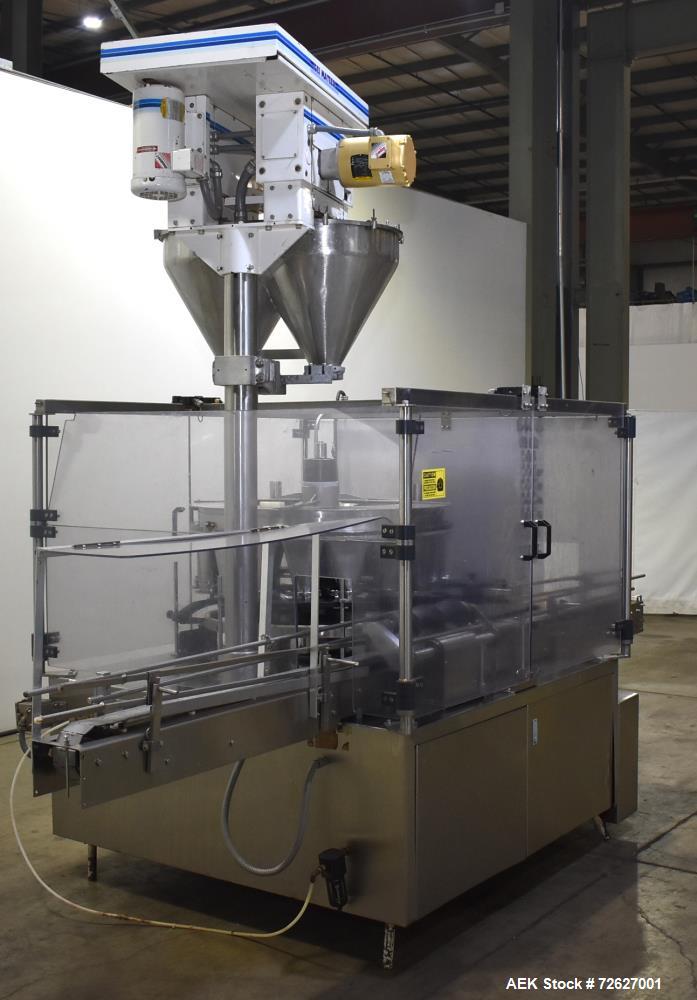

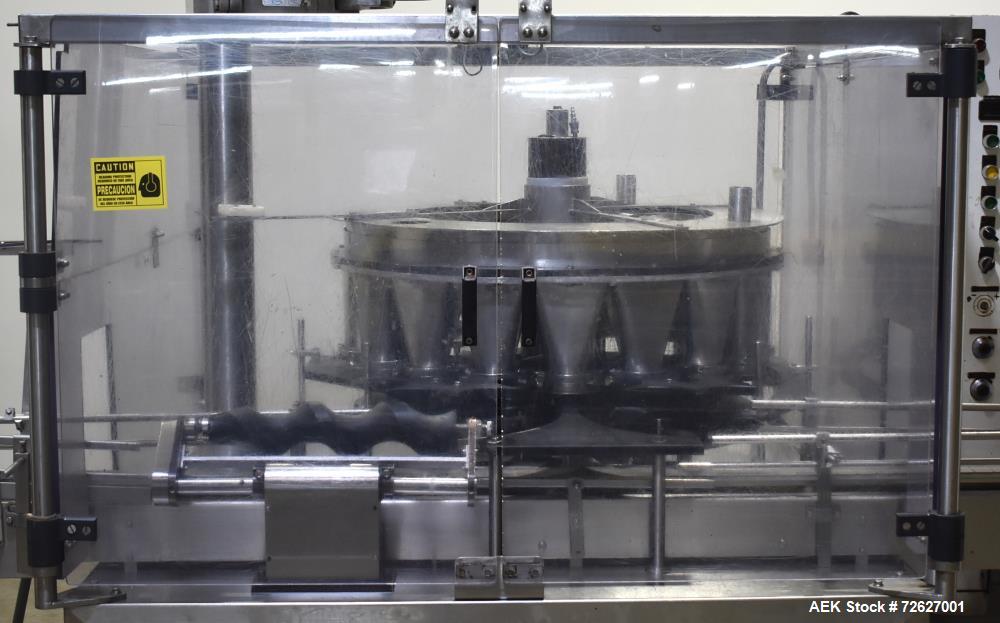

The Mateer Pneumatic Scale Model 6700 is an 18-station rotary auger filler designed for high-speed, precise filling of powdered and granular products into containers. It operates at speeds of 200 - 350 bottles per minute and accommodates container sizes ranging from 3” to 9” in height. The machine features a dual auger system with agitated hoppers, ensuring even and accurate dispensing. It is equipped with a worm screw infeed, an 18-pocket system on 7” centers, and a 42” diameter turret for efficient and continuous operation. The unit currently has 3-1/2” diameter discharge spouts and is configured for 502 diameter cans, having been last used for coffee and hot cocoa.
Specifications:
- Speed: 200 - 350 bottles per minute
- Container Size Range: 3” - 9” (height)
- Filling Range: 0.5 oz - 10 lbs (14g - 4.5kg)
- Number of Stations: 18

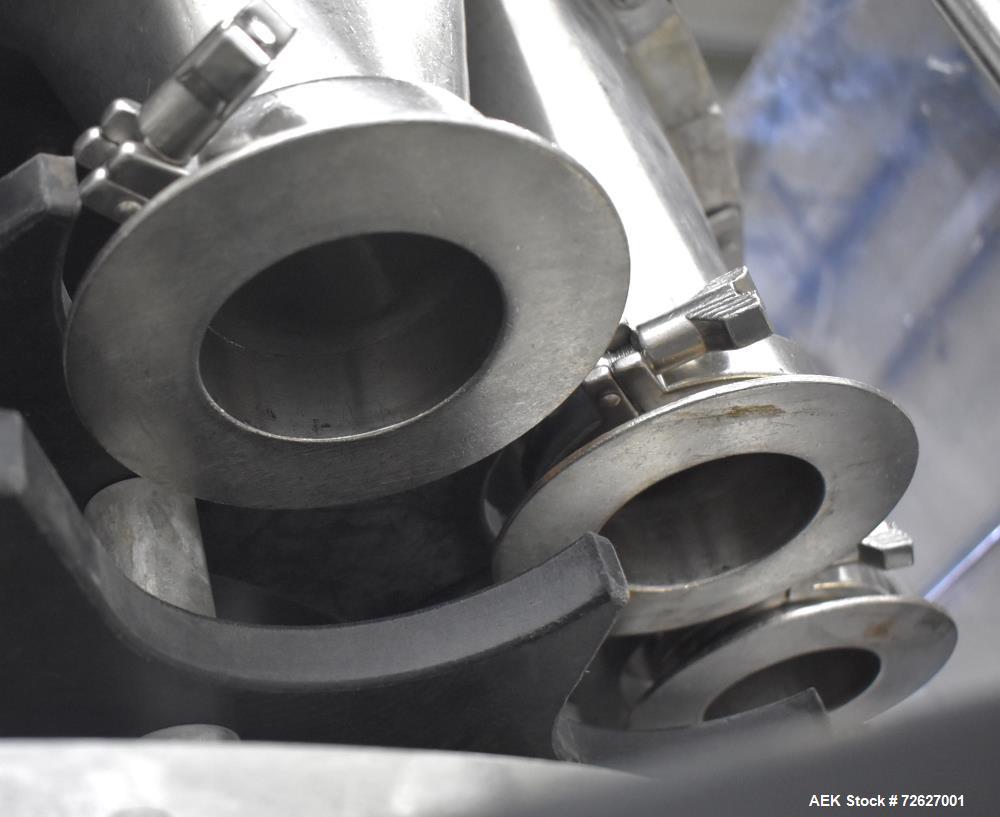

- Discharge Spout Diameter: 3-1/2”

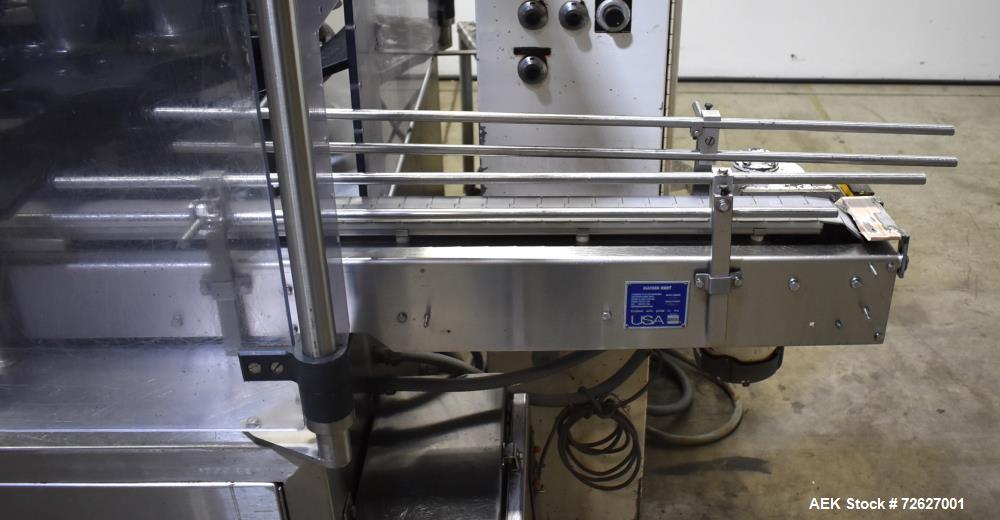

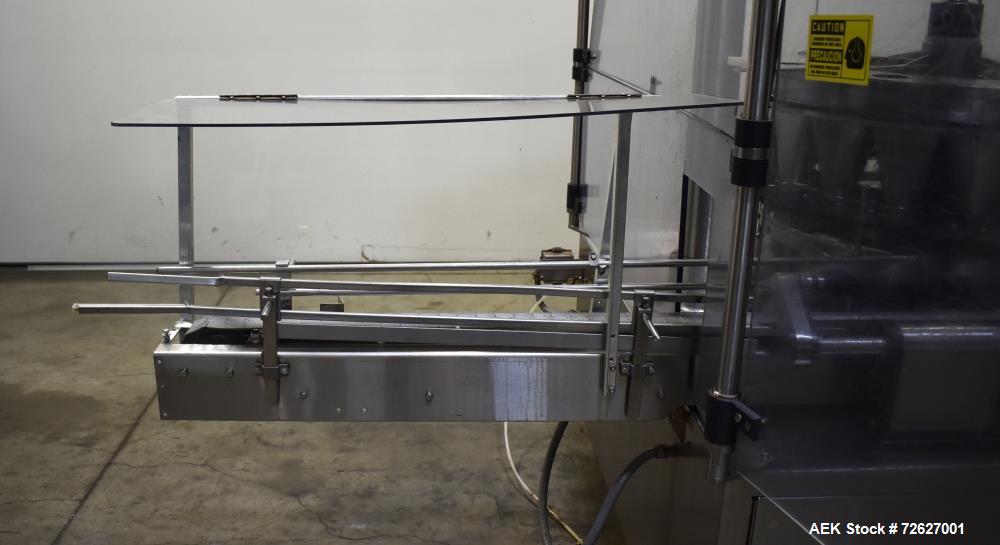

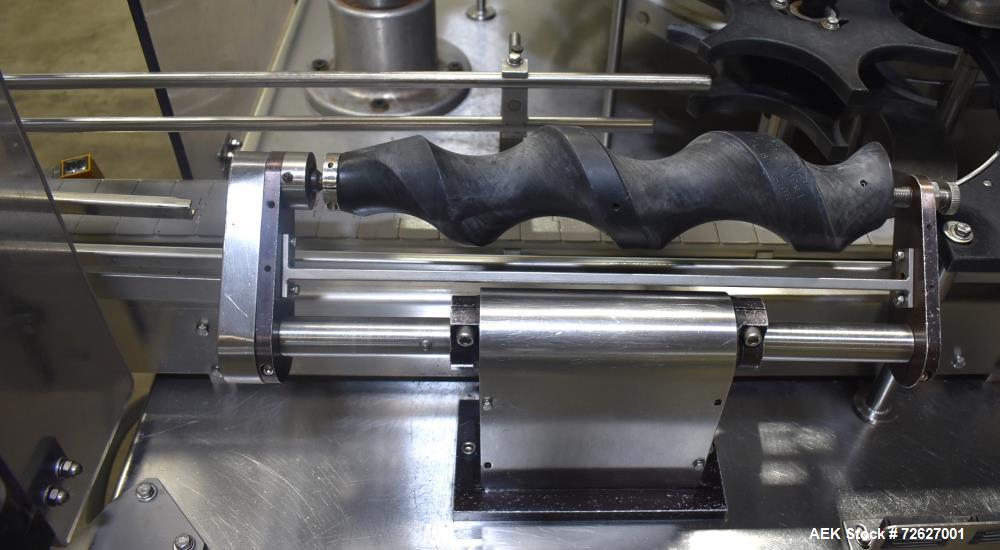

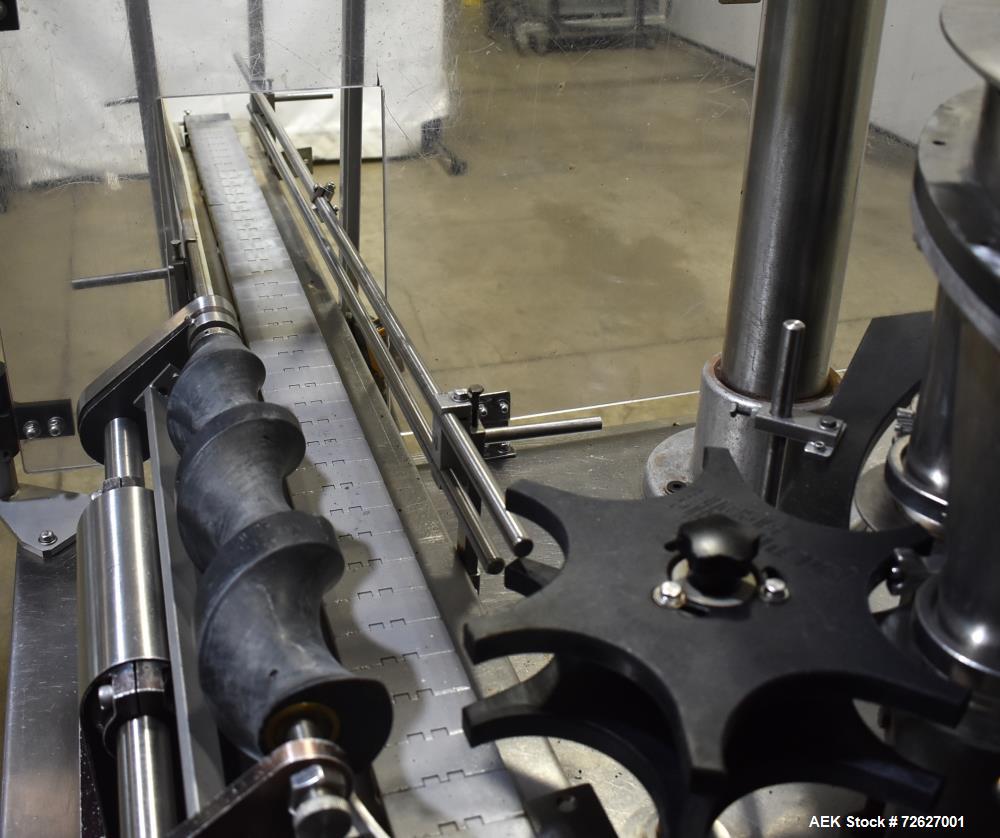

- Infeed System: Worm screw to starwheel handling
- Pocket System: 18 pockets, 7” center spacing

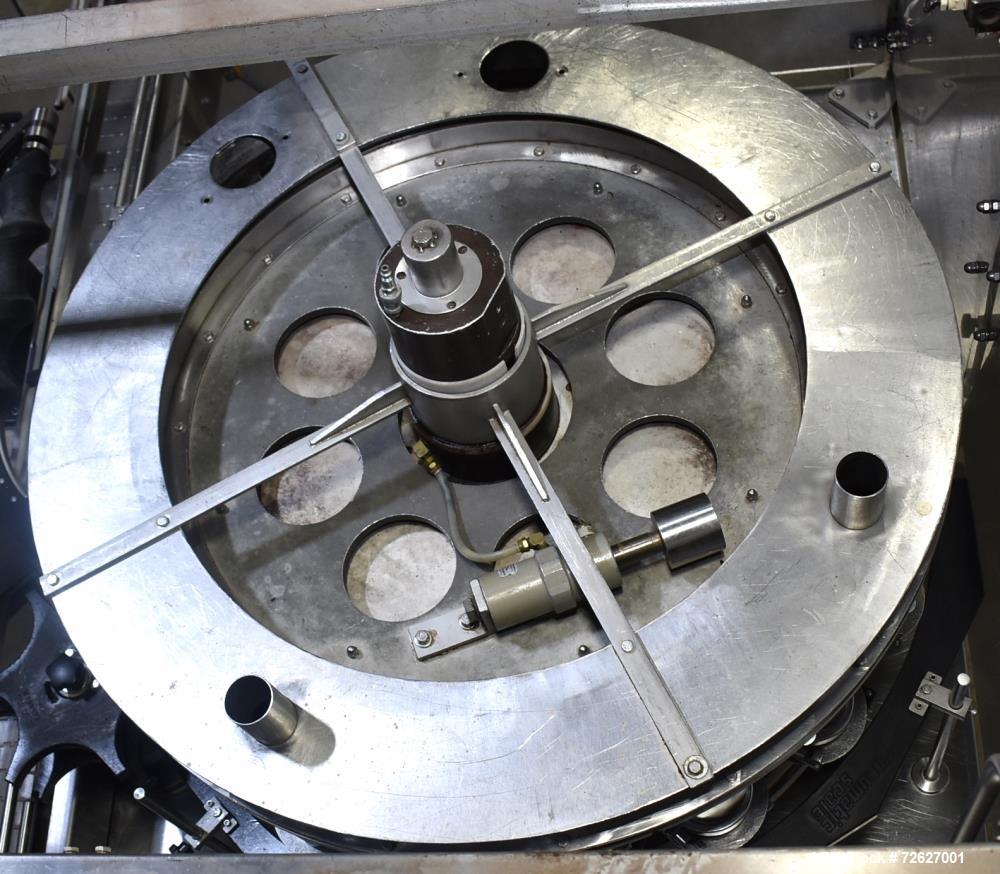

- Turret Diameter: 42”

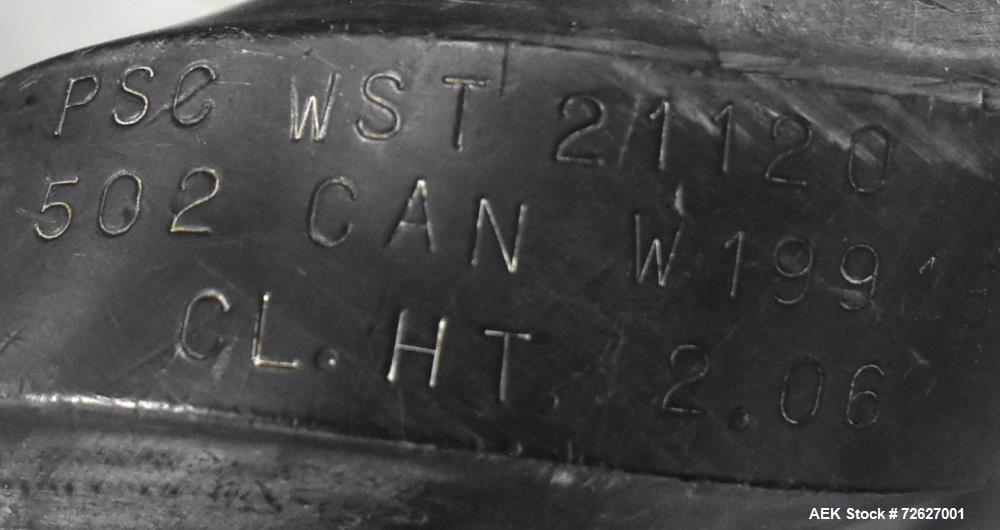

- Current Setup: 502 diameter can
- Last Used For: Coffee and hot cocoa filling

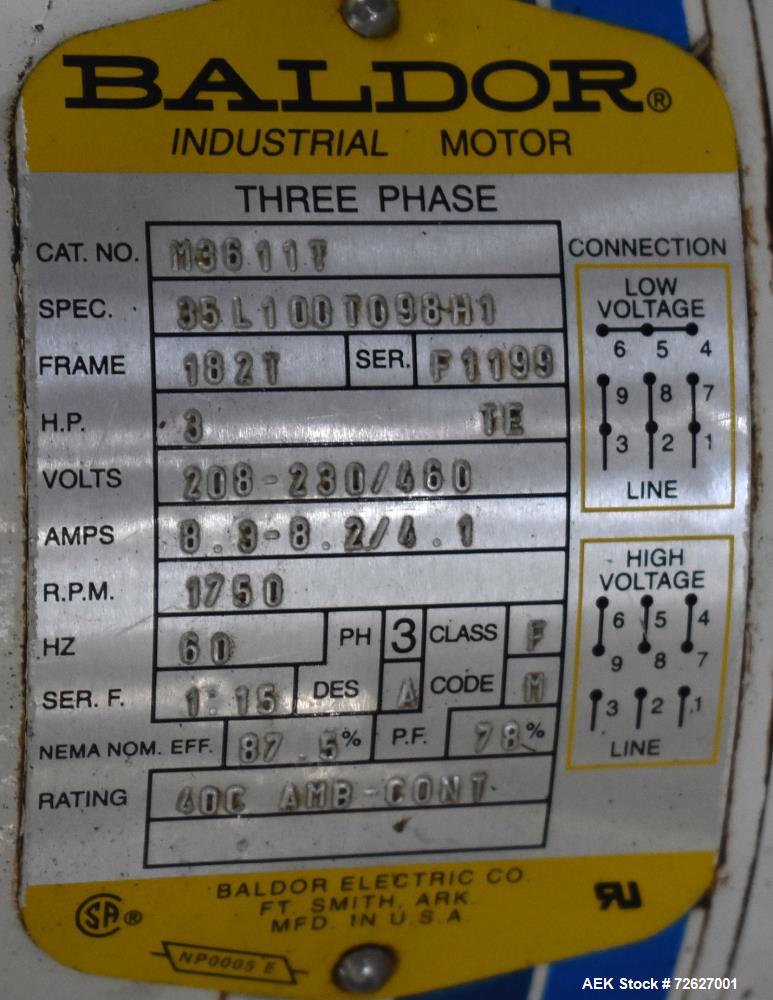

- Power Requirements: 3/60/480 Volt
Applications:
This rotary auger filler is suitable for a variety of industries that require high-speed, accurate powder and granular filling, including:
- Coffee and hot cocoa packaging
- Powdered food products (flour, sugar, spices)
- Nutritional powders (protein, meal replacements)
- Chemical and pharmaceutical powders
- Dry dairy products (milk powder, creamer)
- Baking ingredients (yeast, baking powder)
- Agricultural products (seed, animal feed supplements)
- Plastic and resin granules
- Dry beverage mixes
- Powdered detergents and cleaning agents
