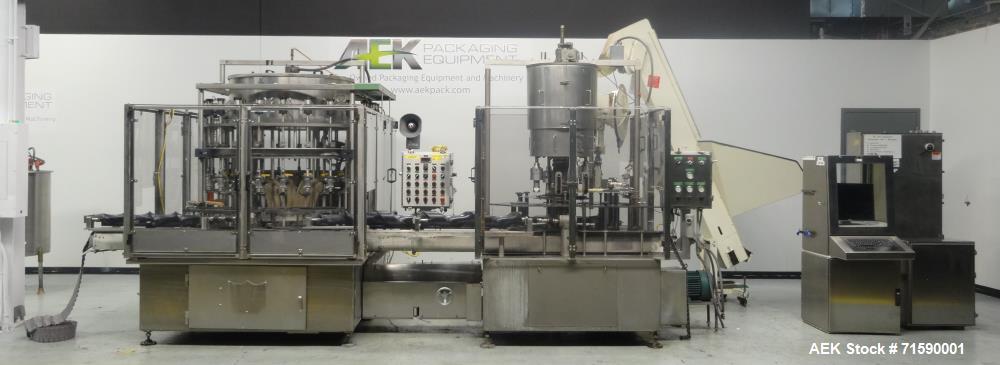

Used- US Bottlers Machinery Bottle Filling and Capping Line

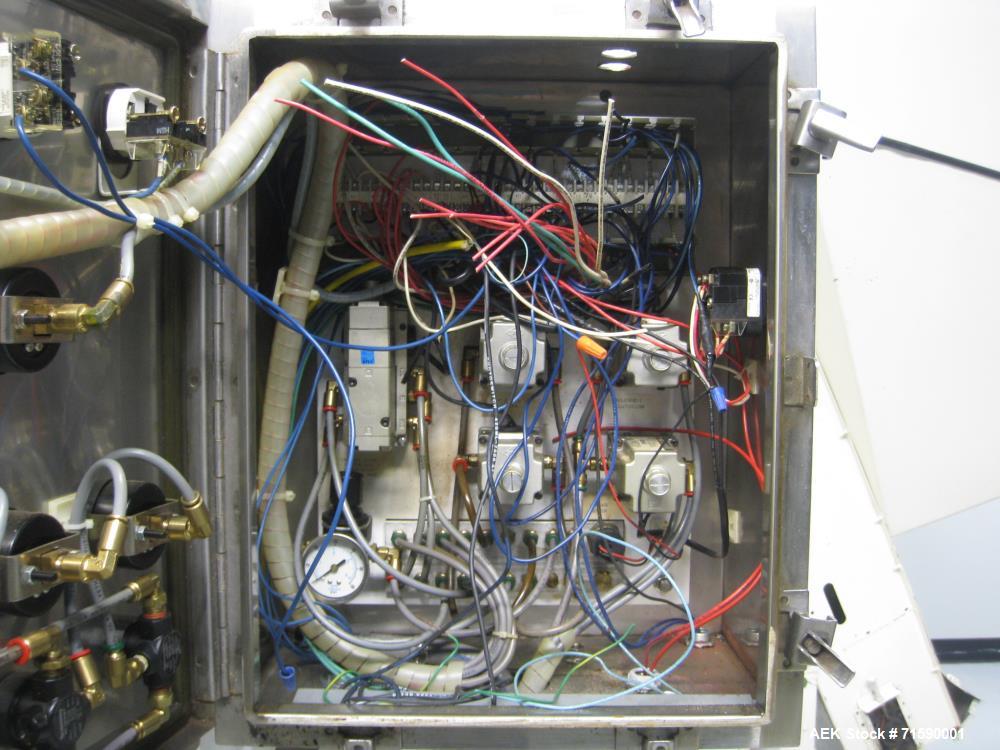

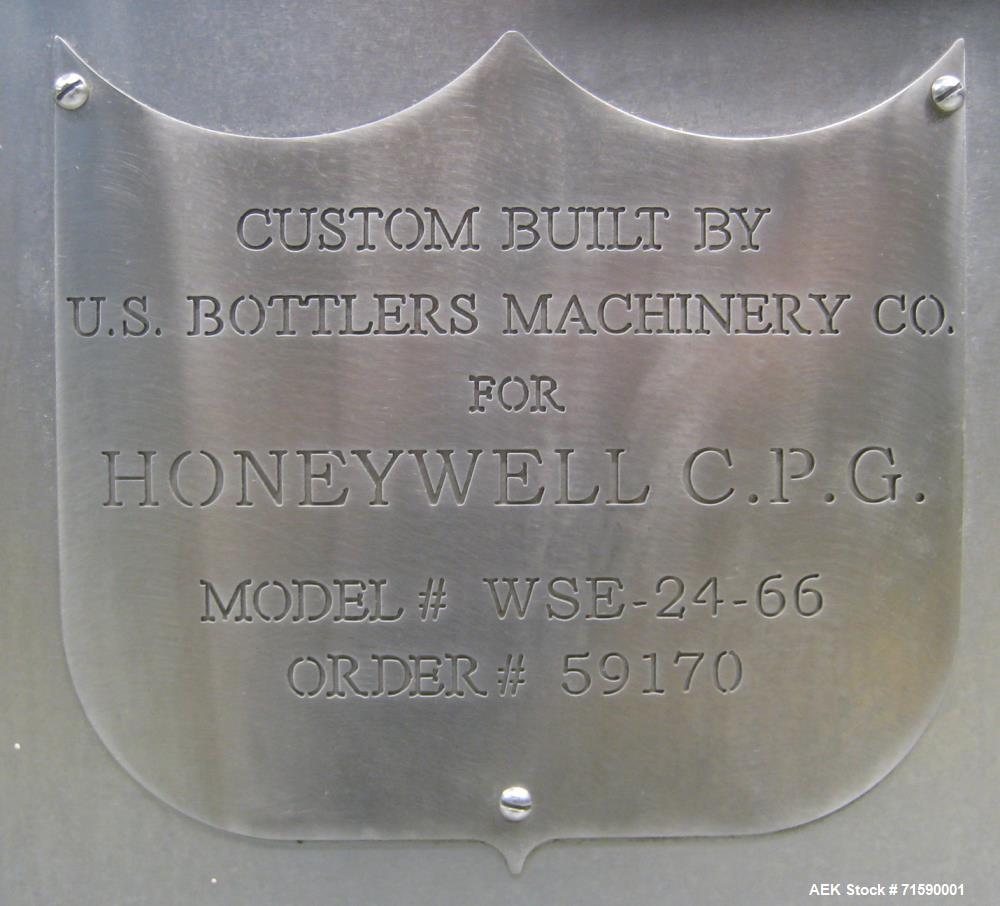

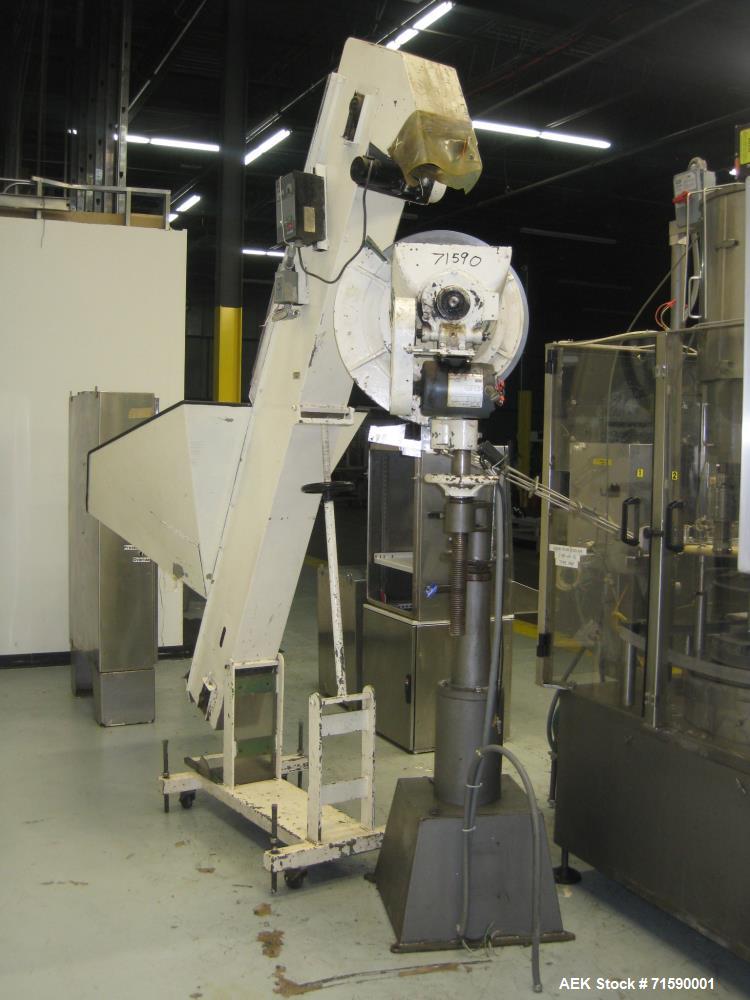

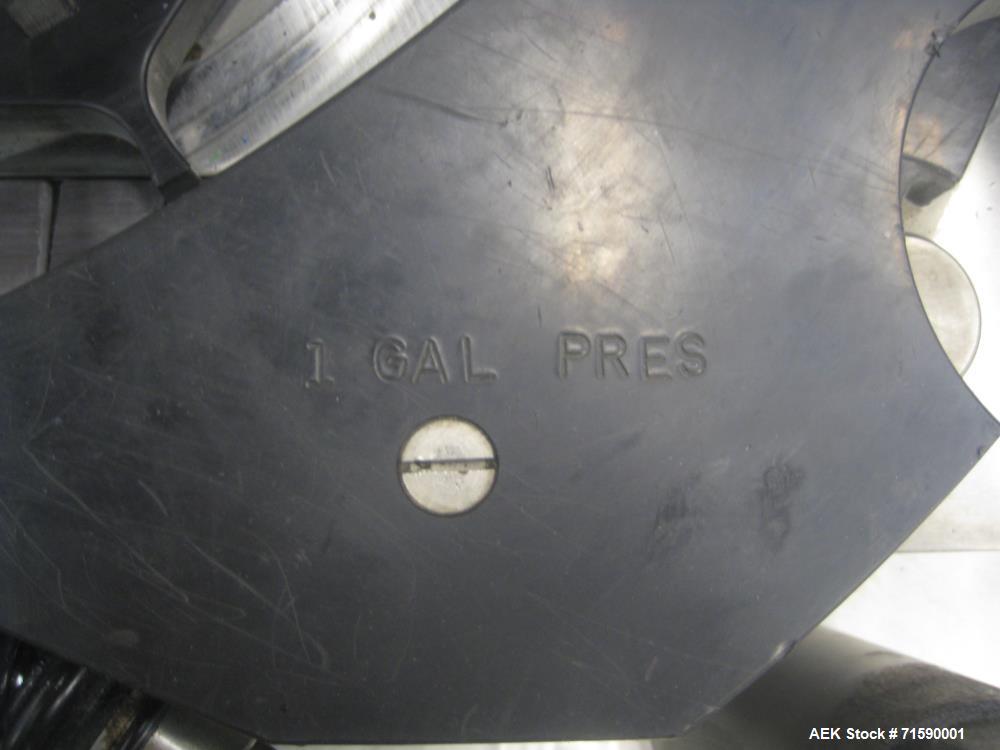

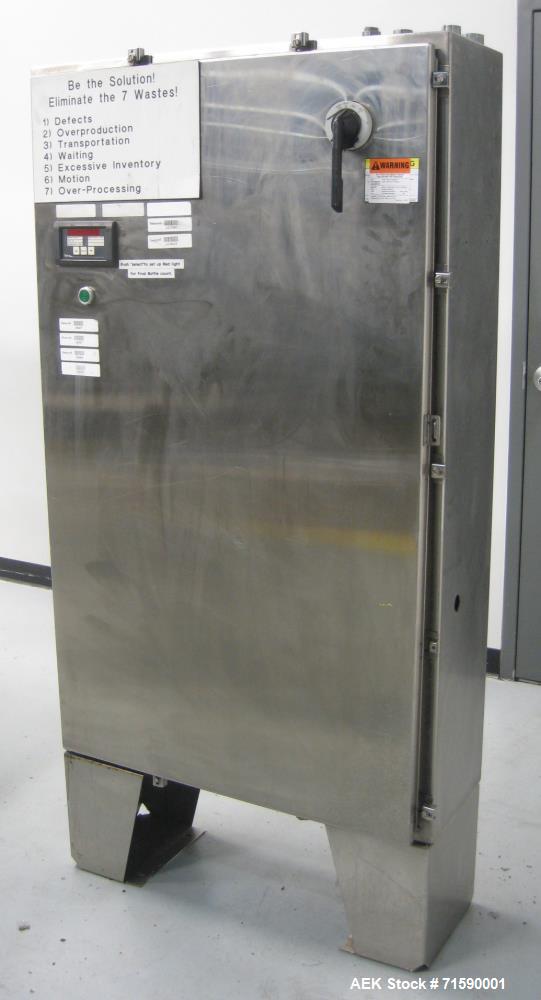

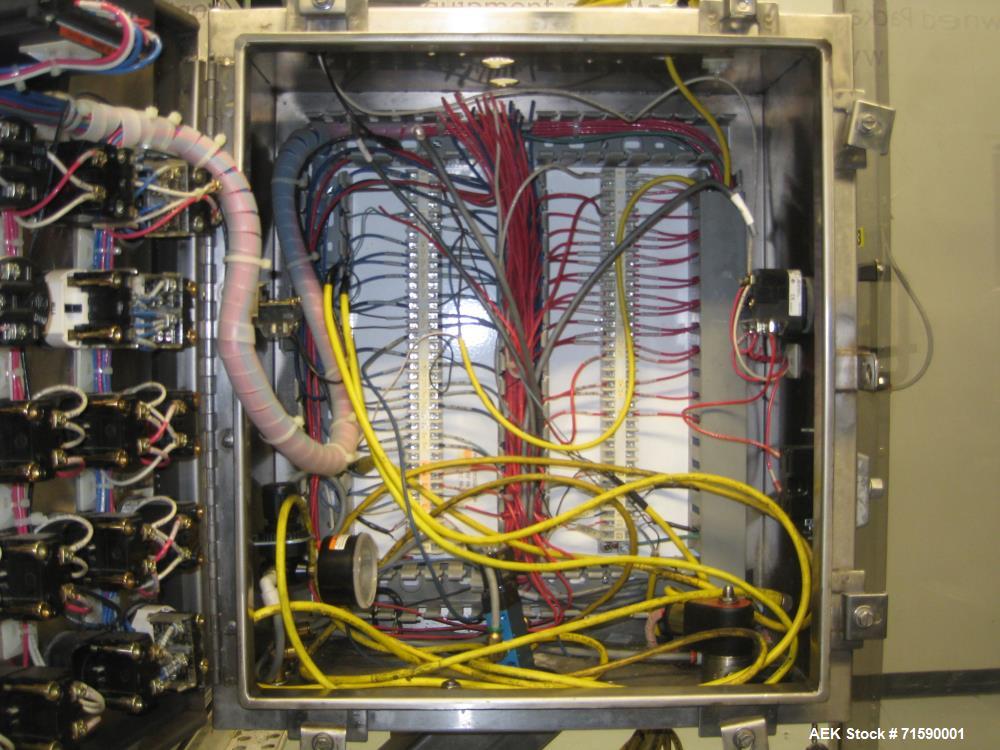

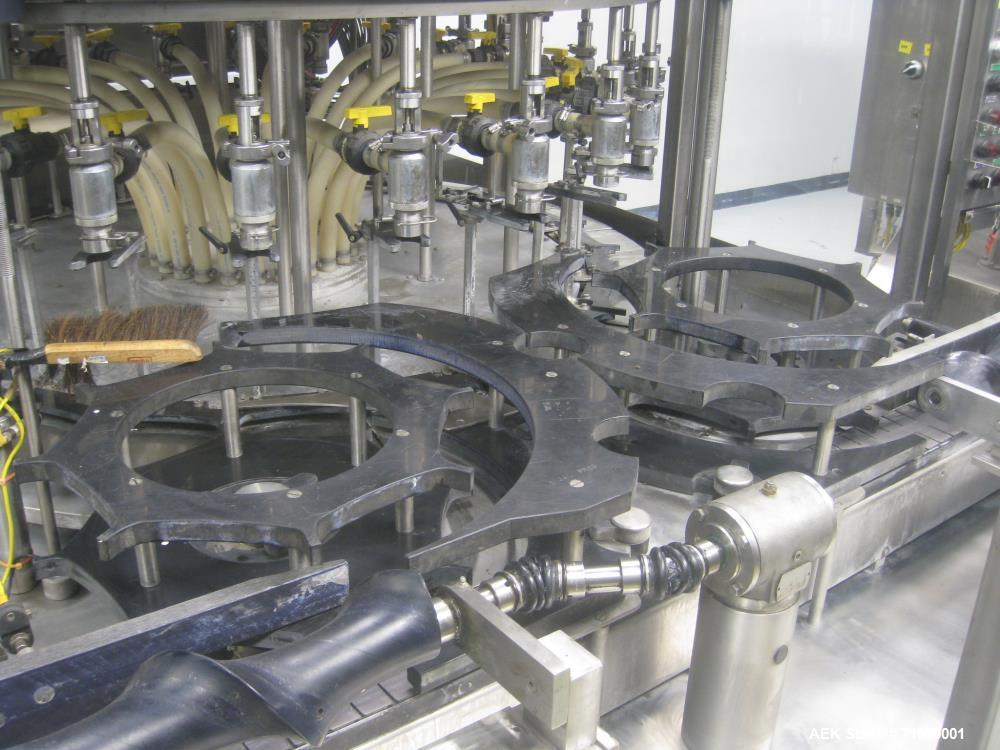

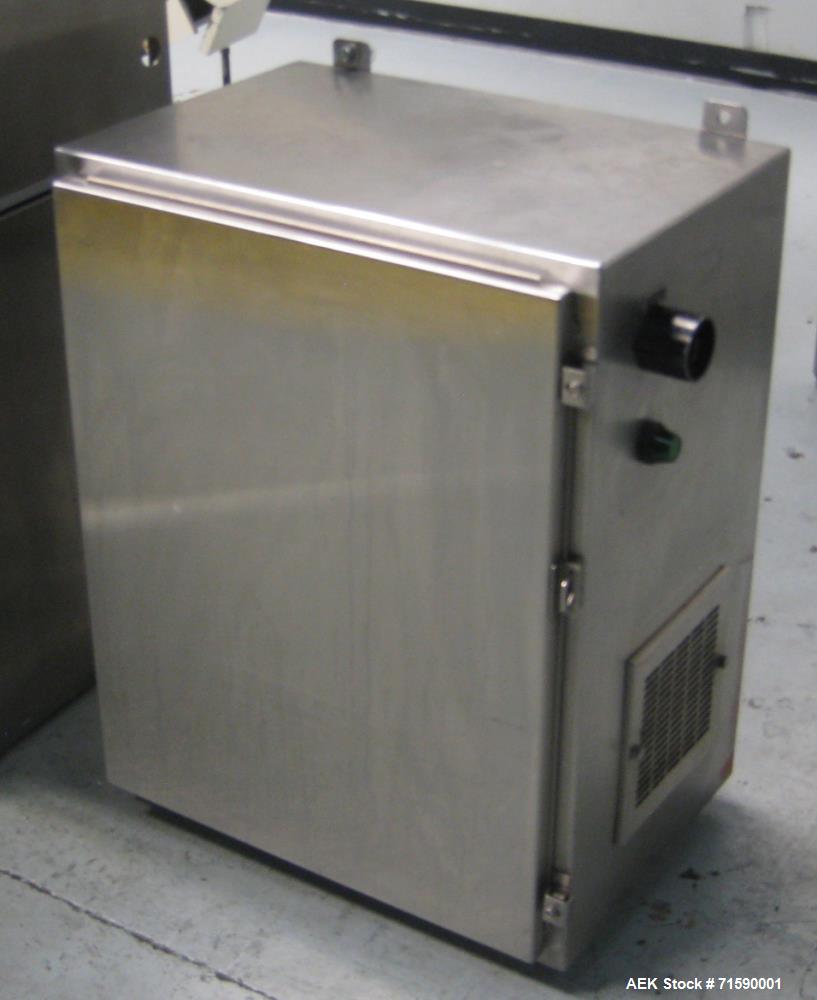

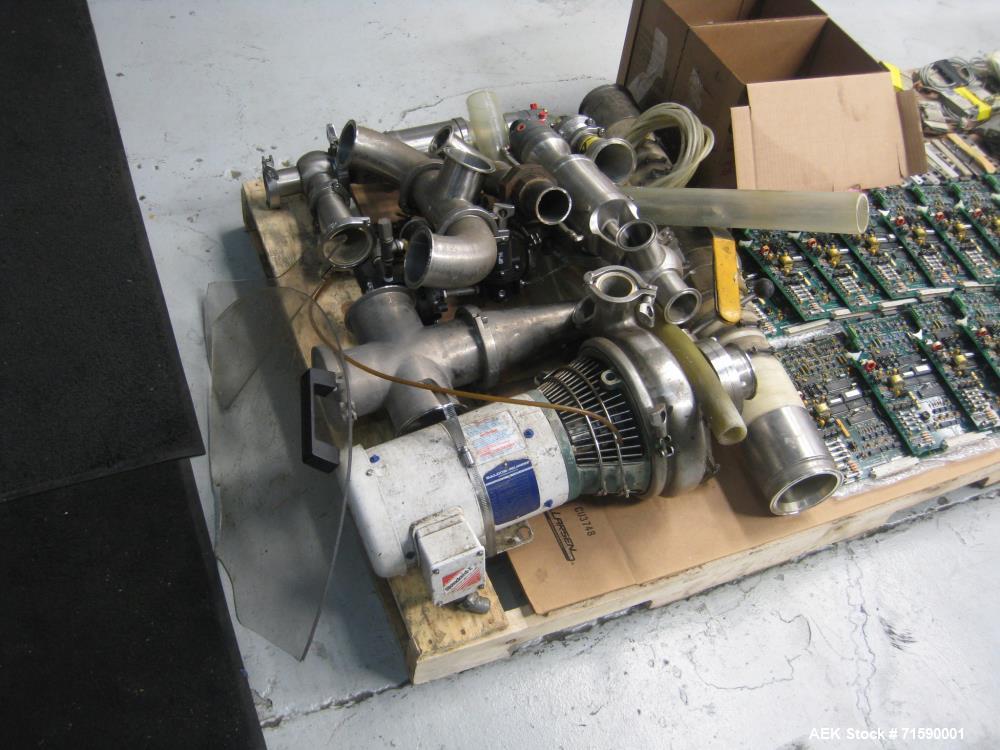

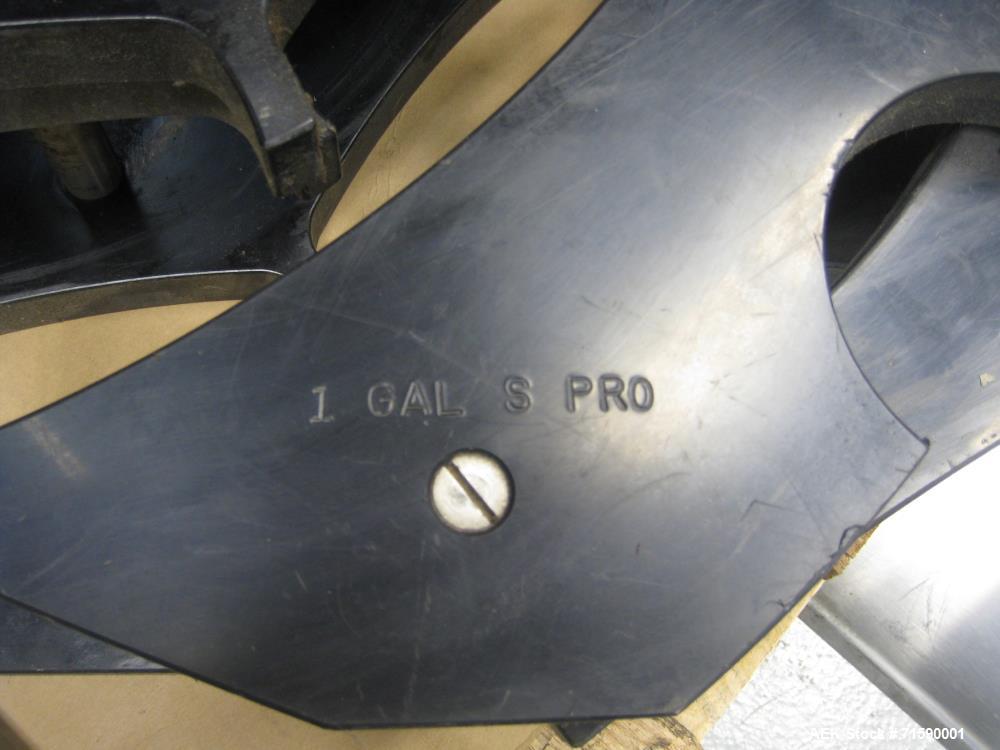

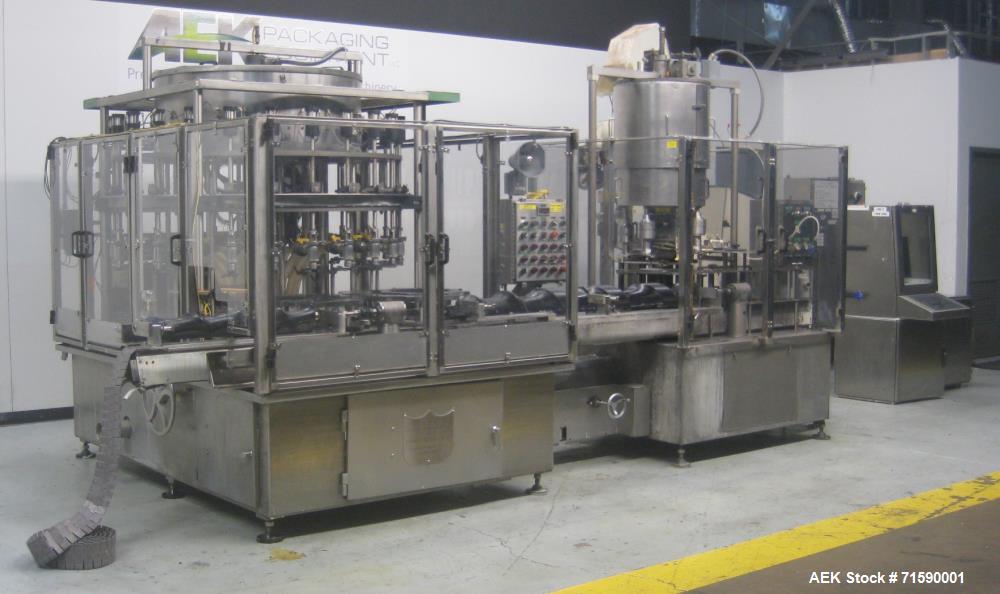

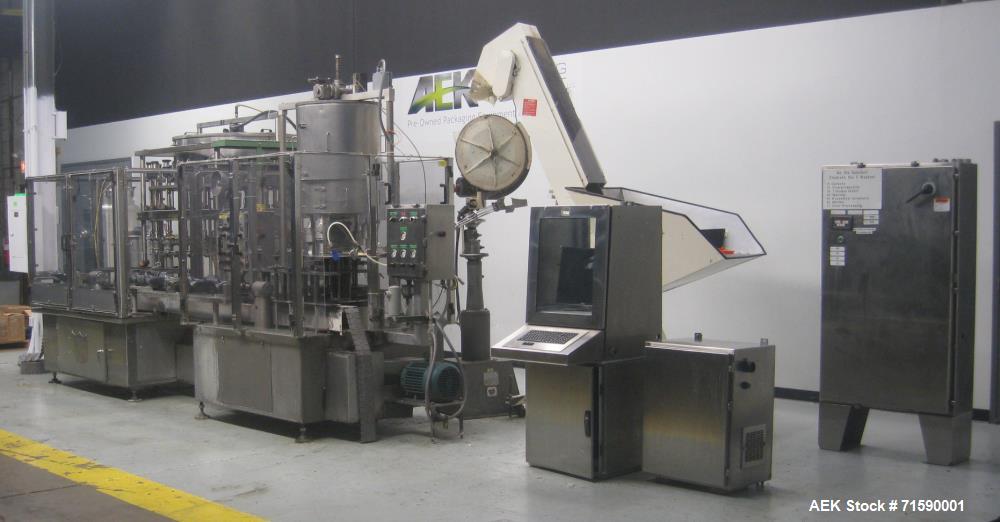

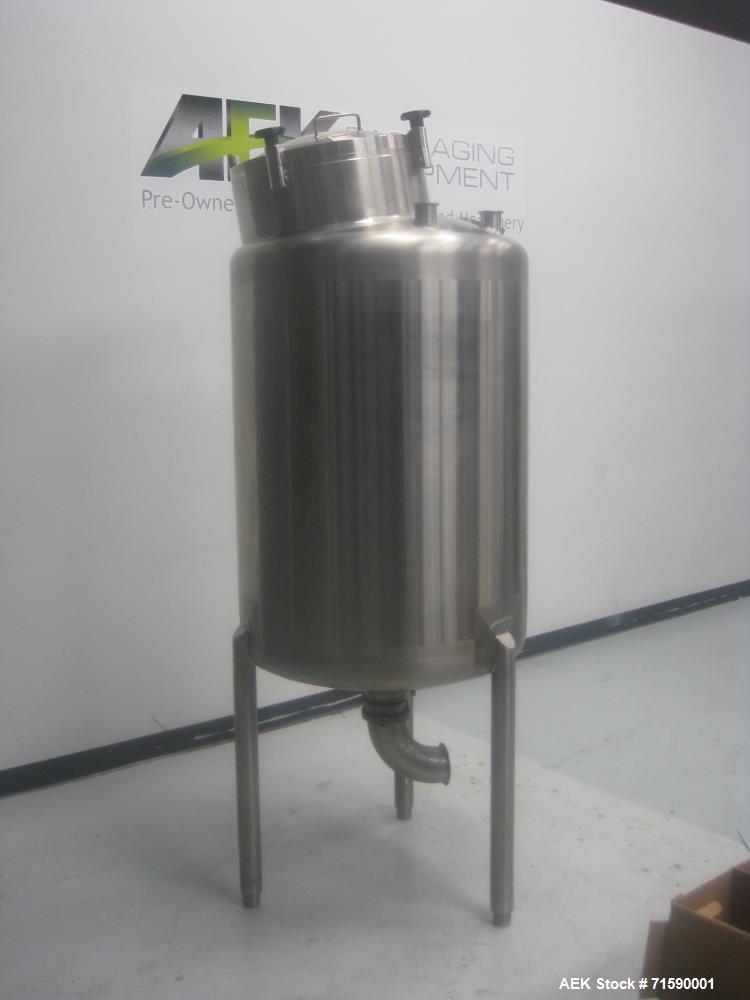

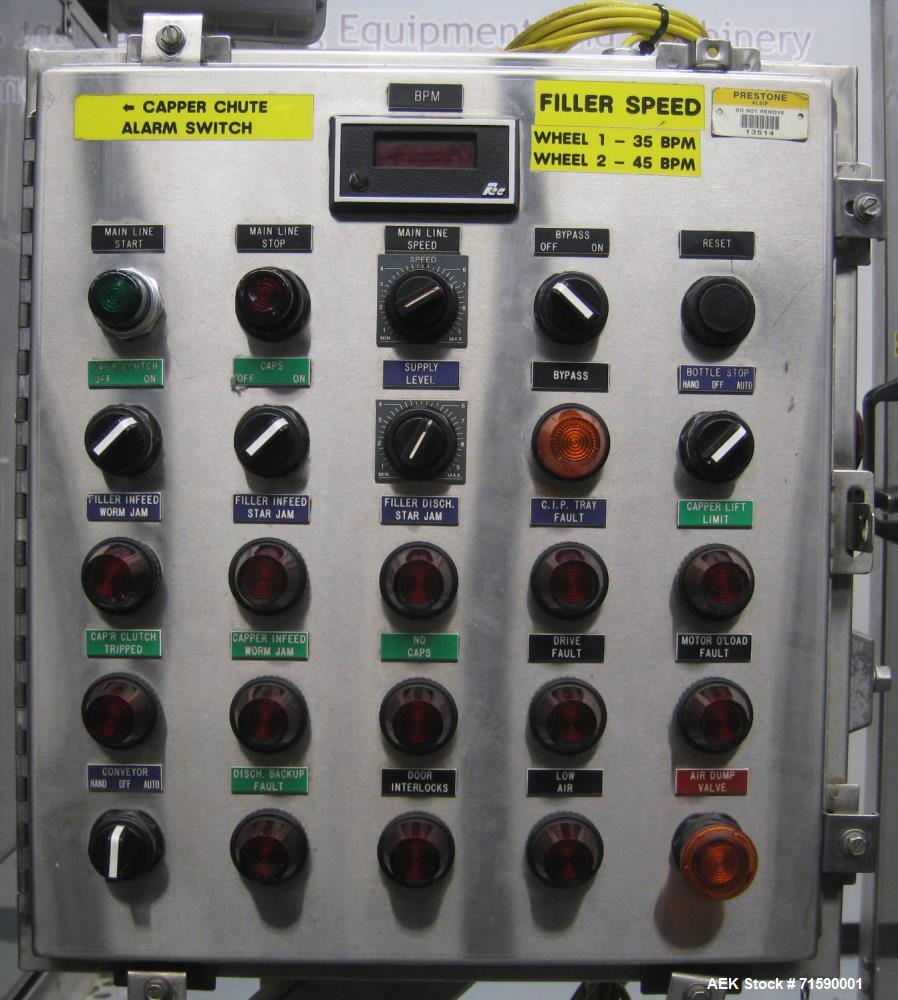

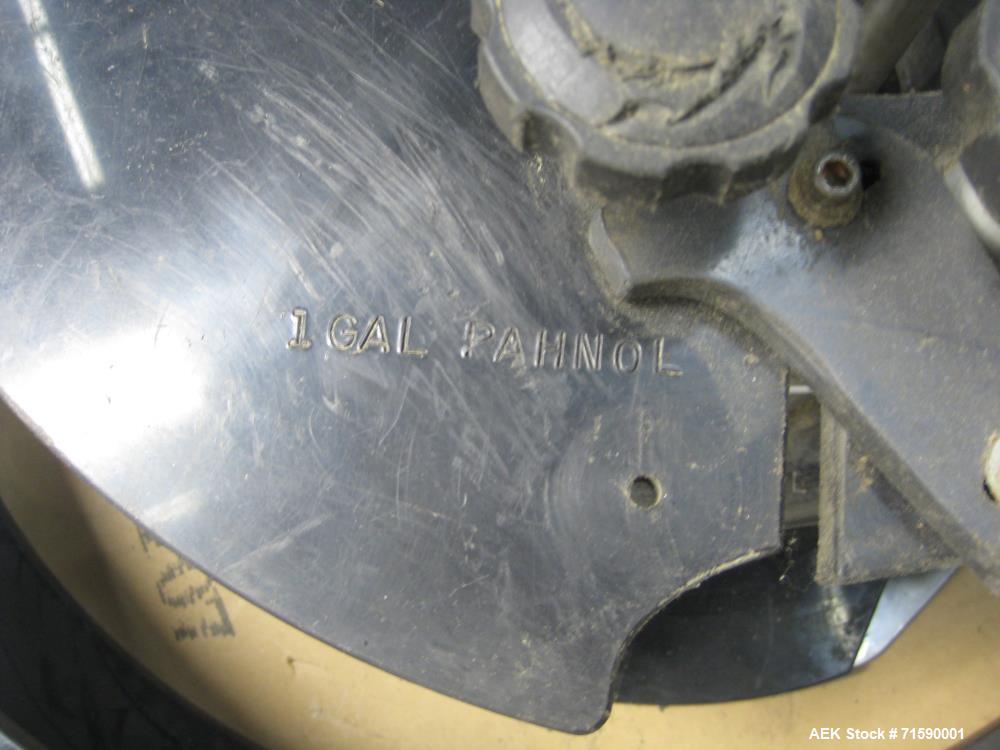

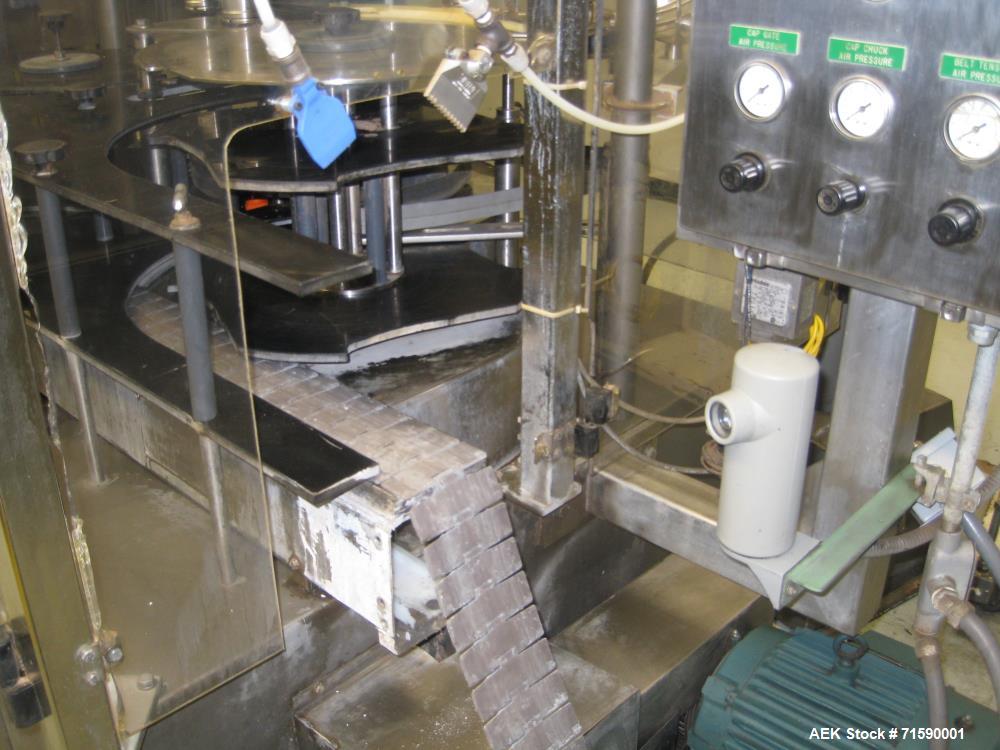

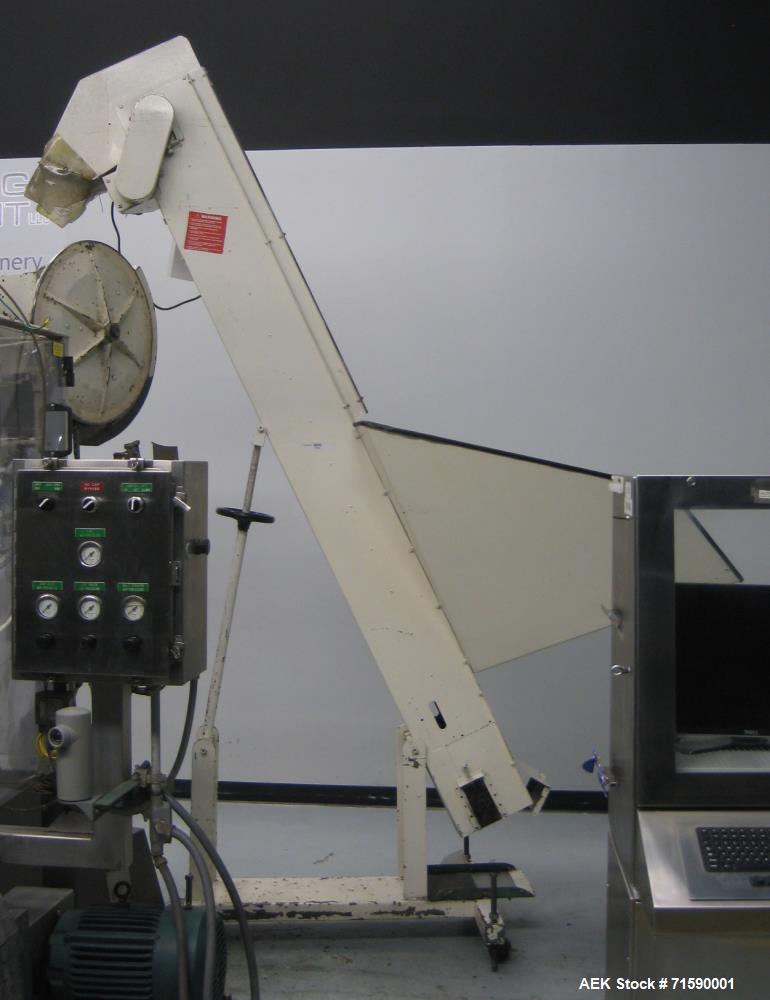

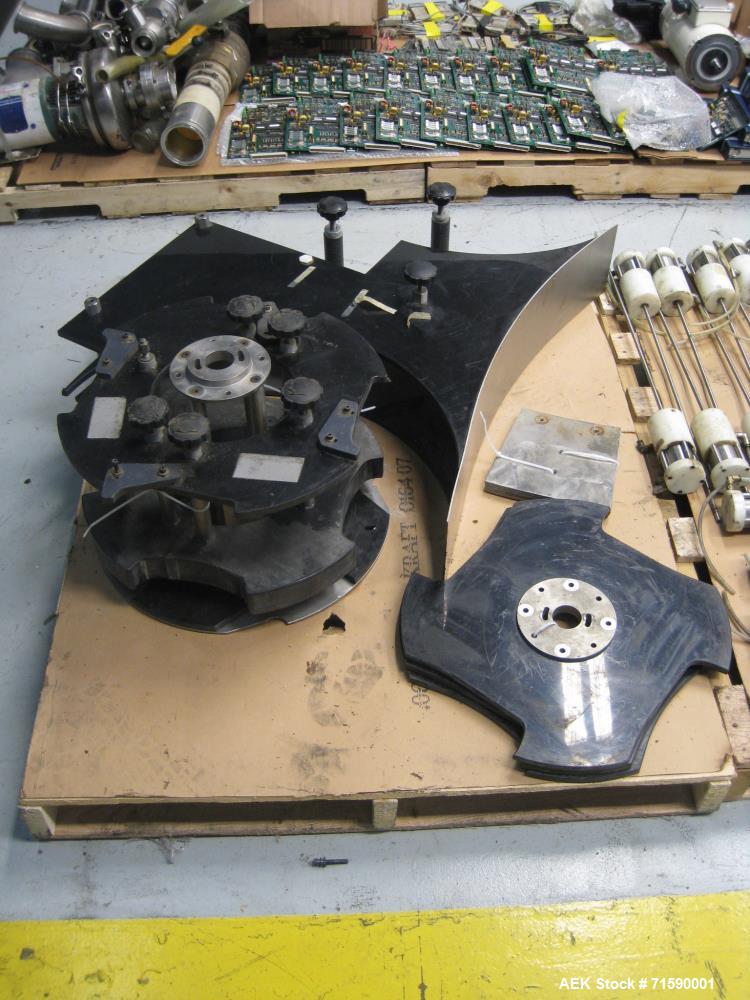

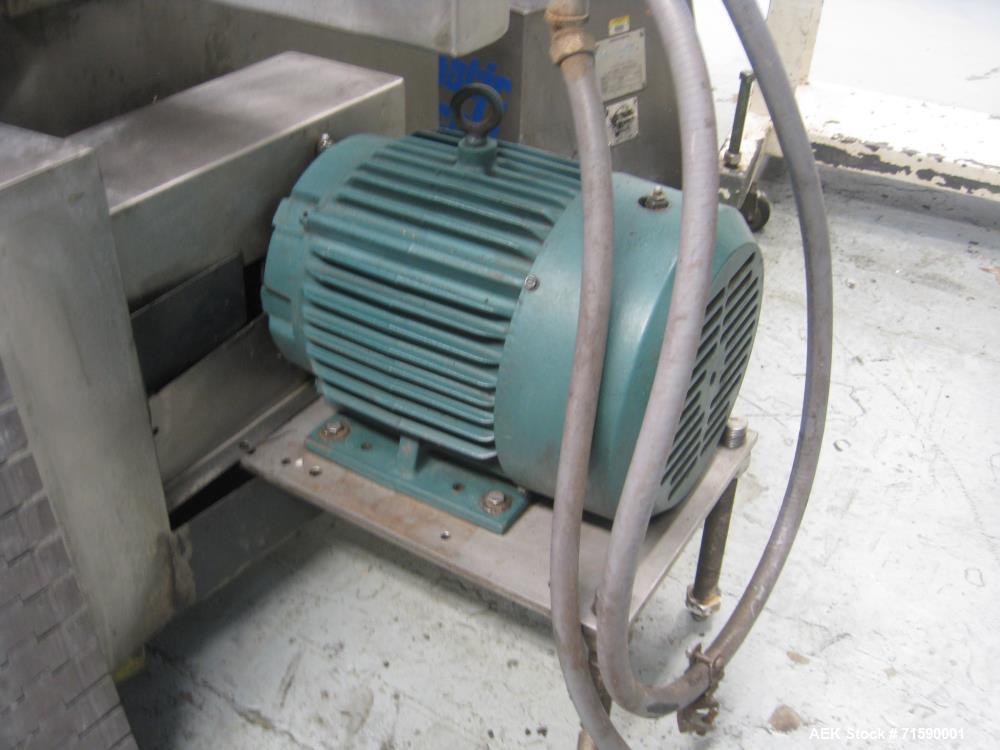

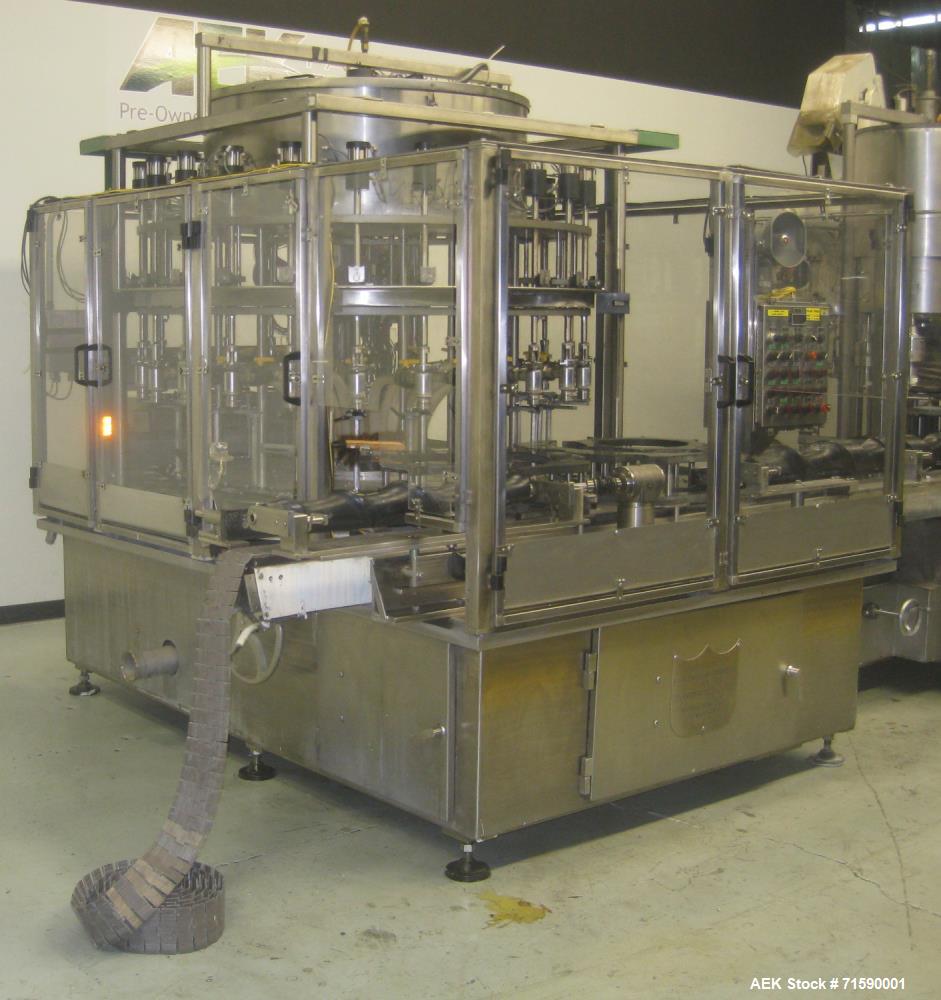

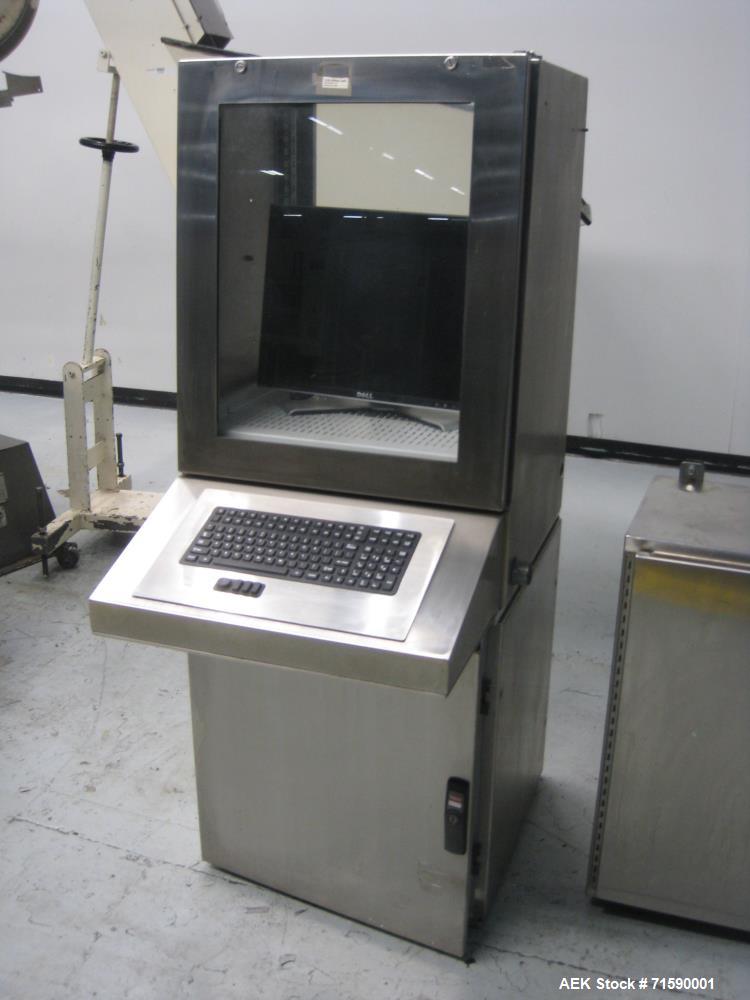

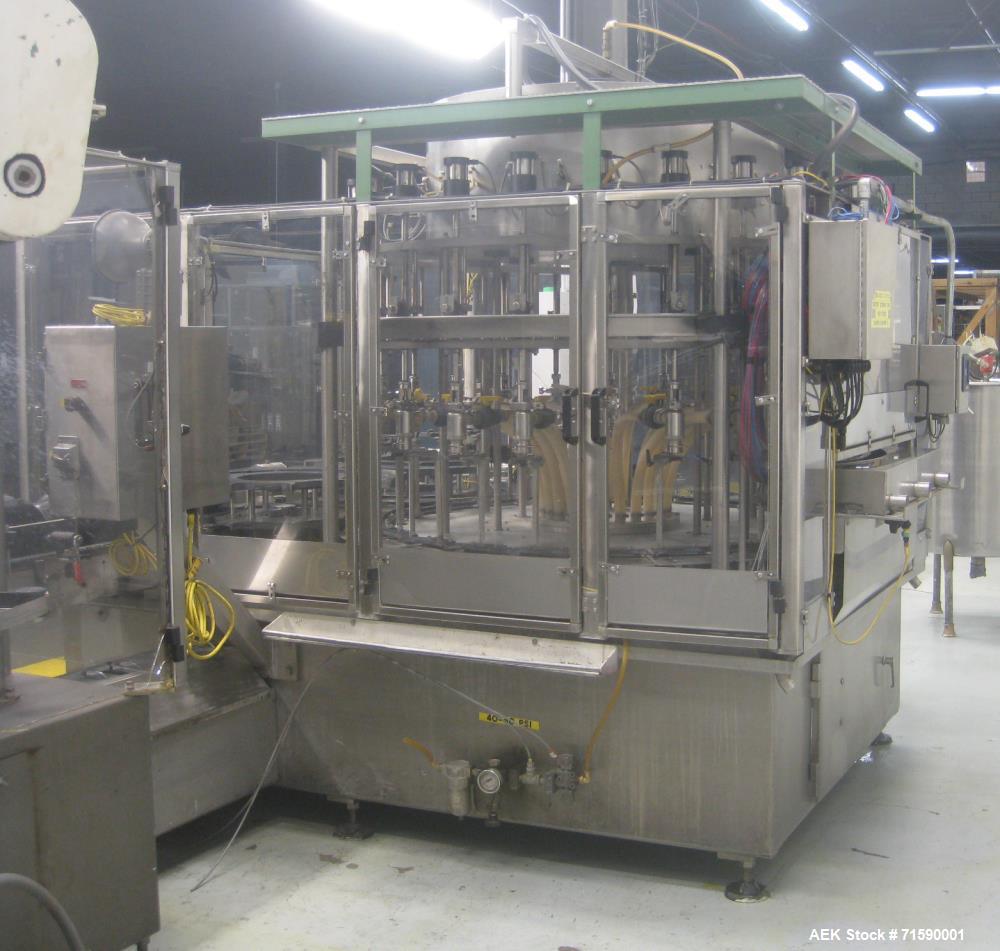

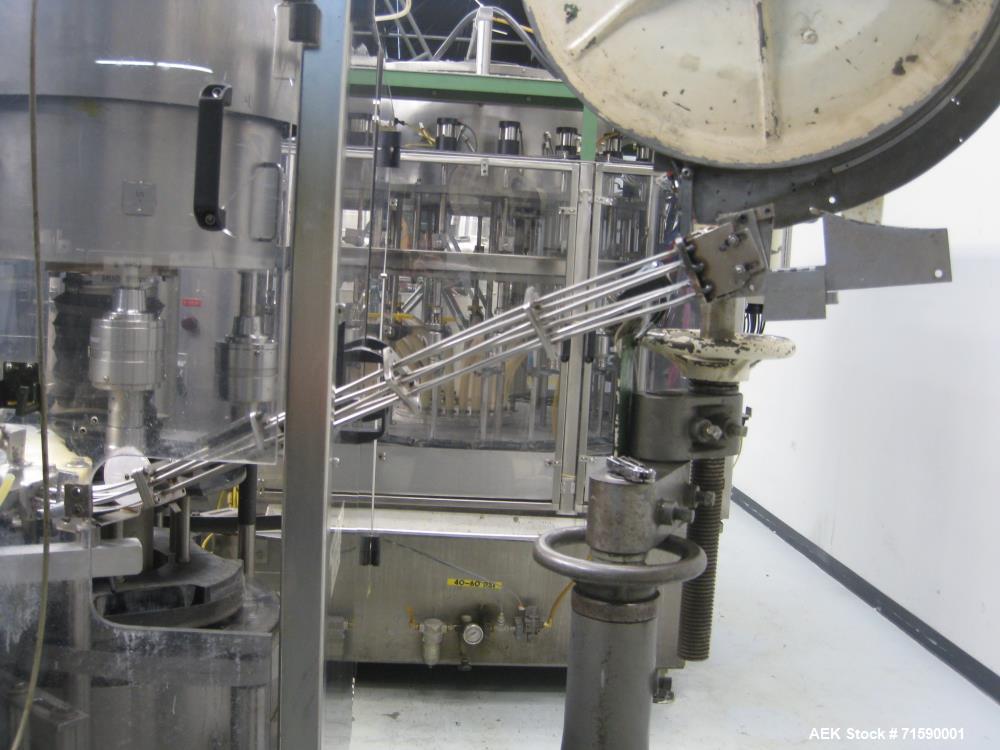

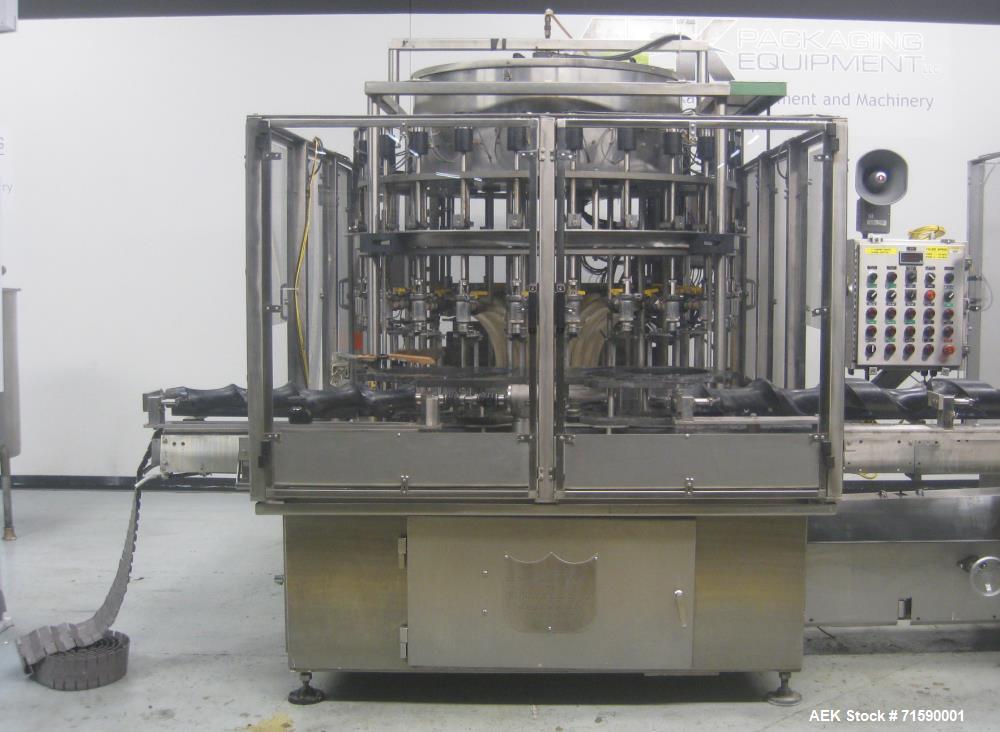

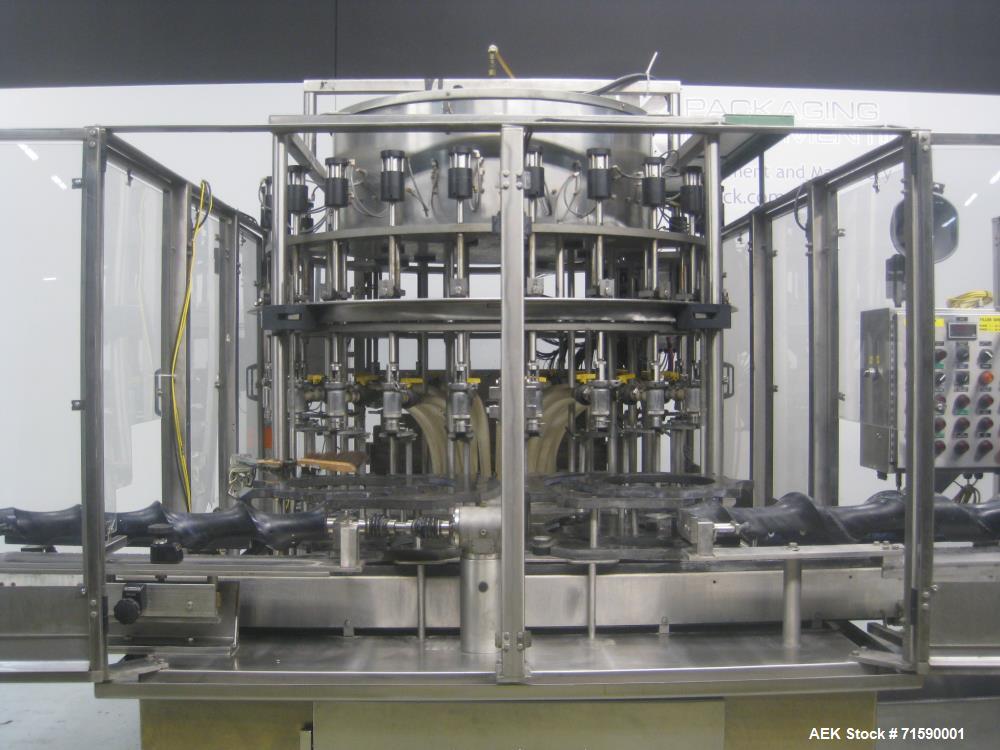

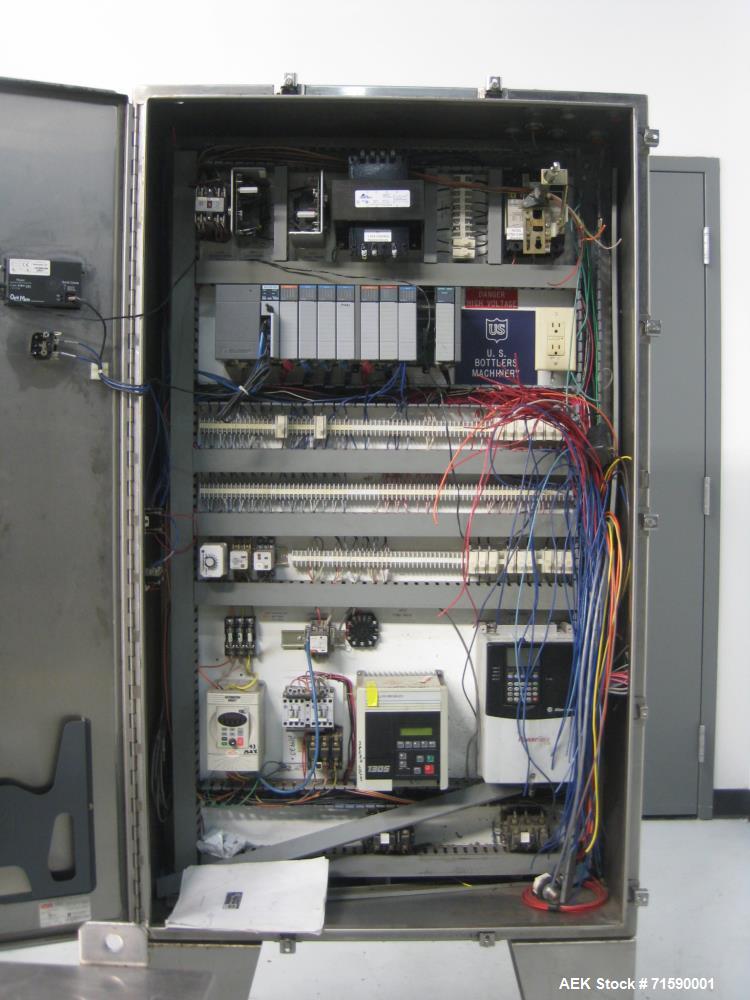

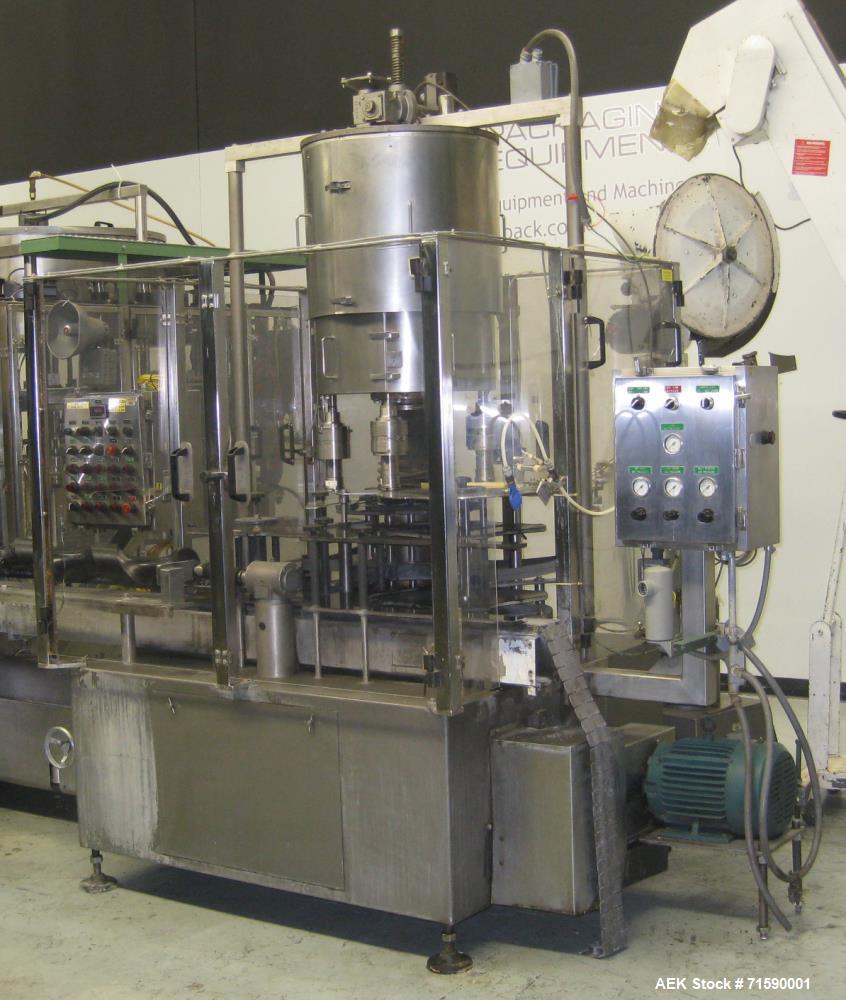

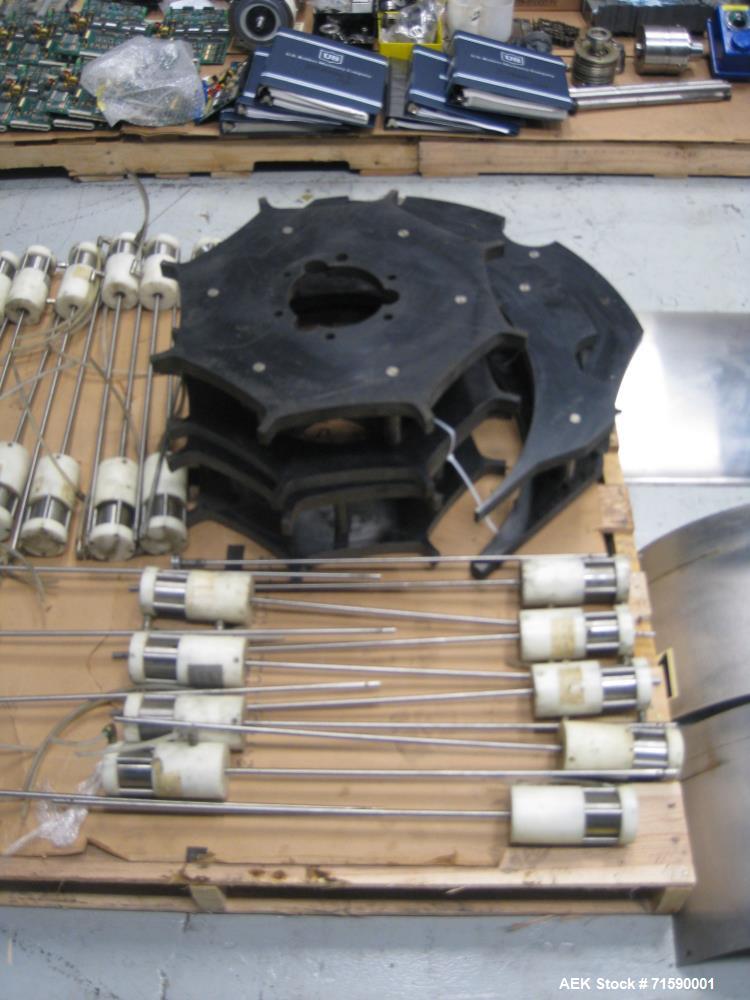

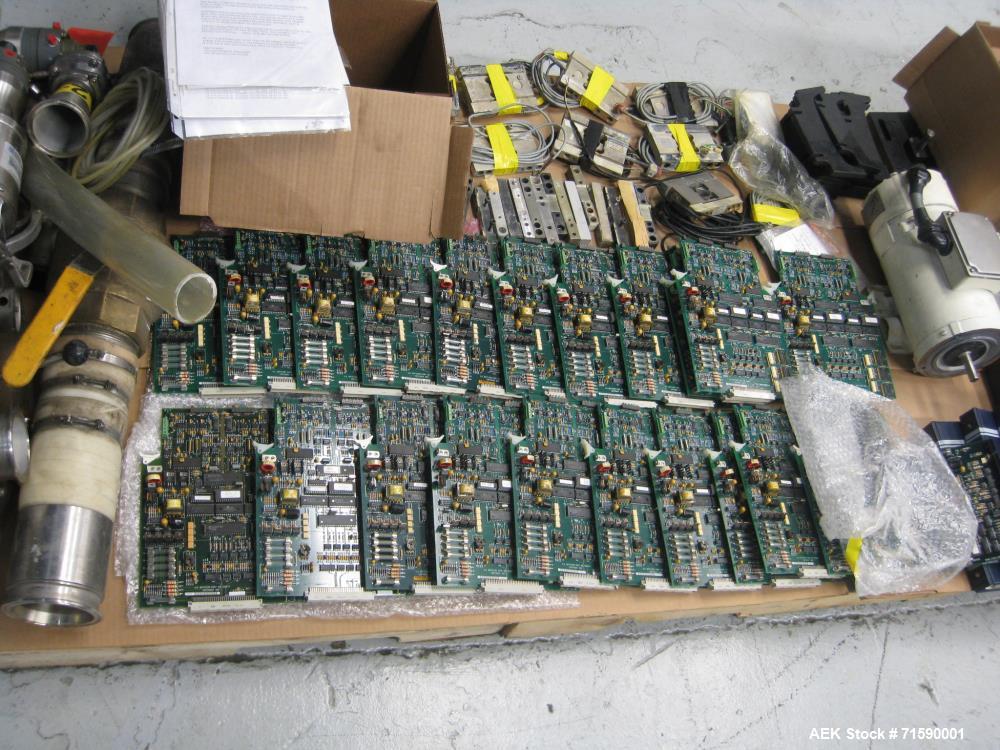

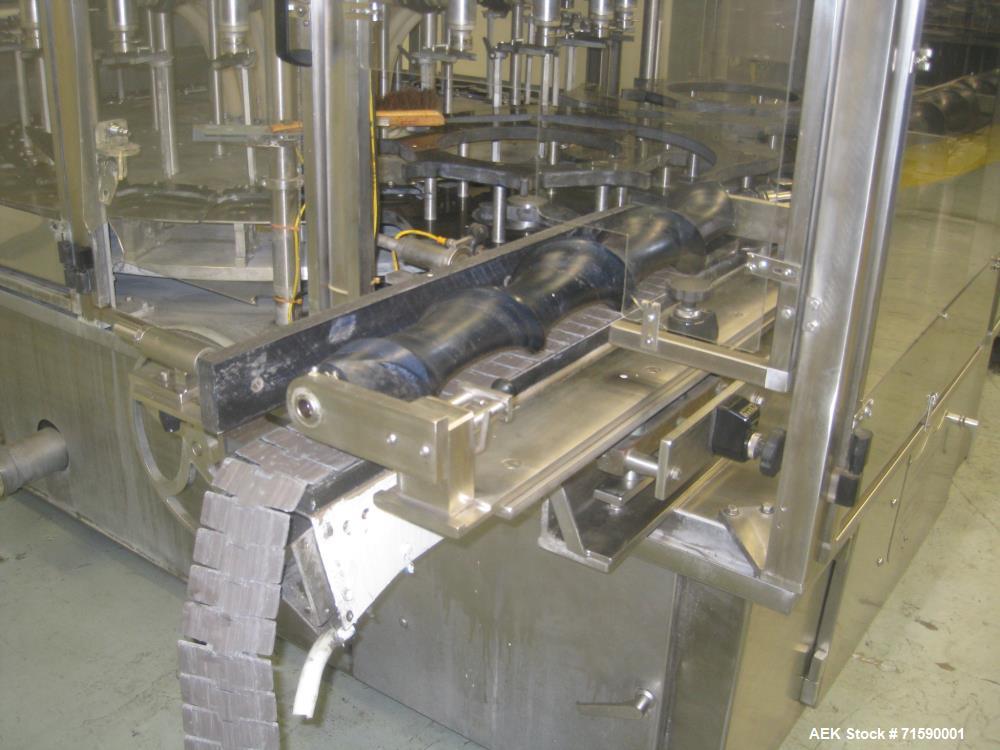

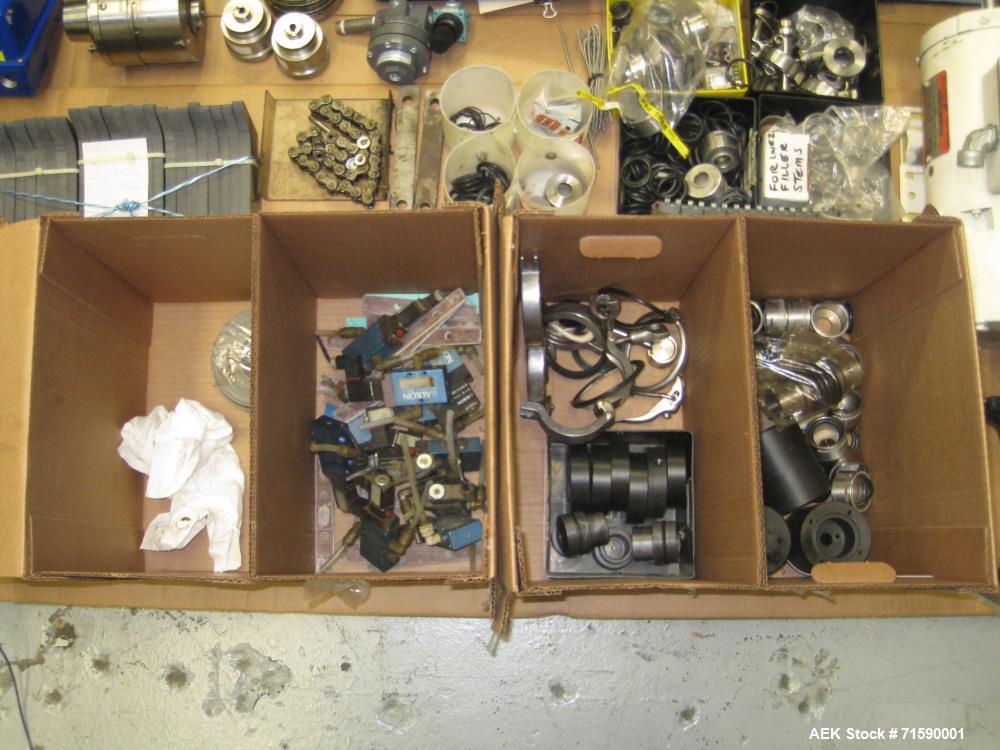

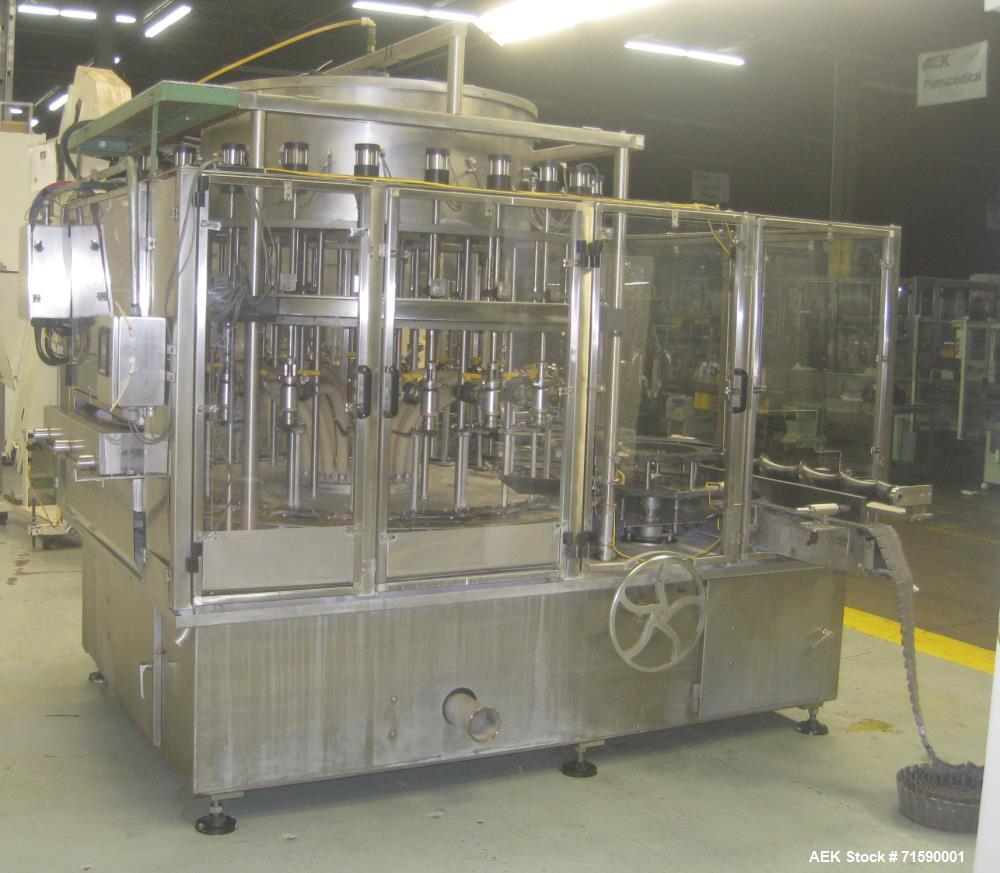

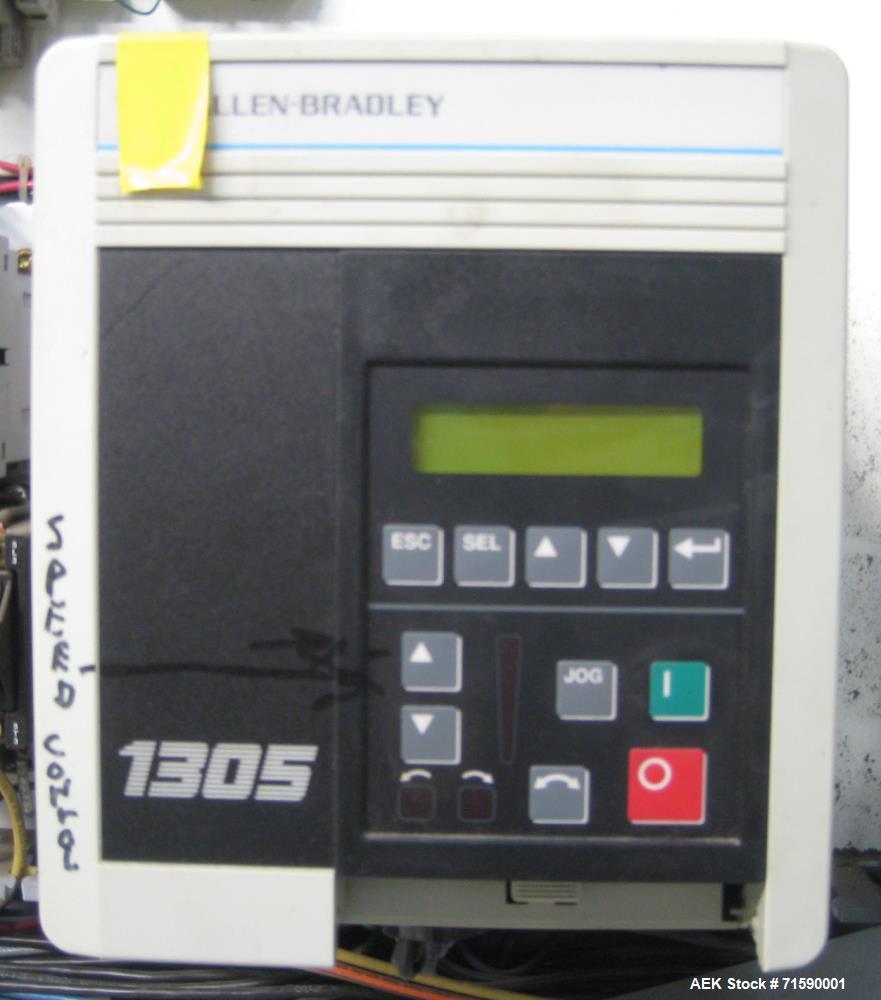

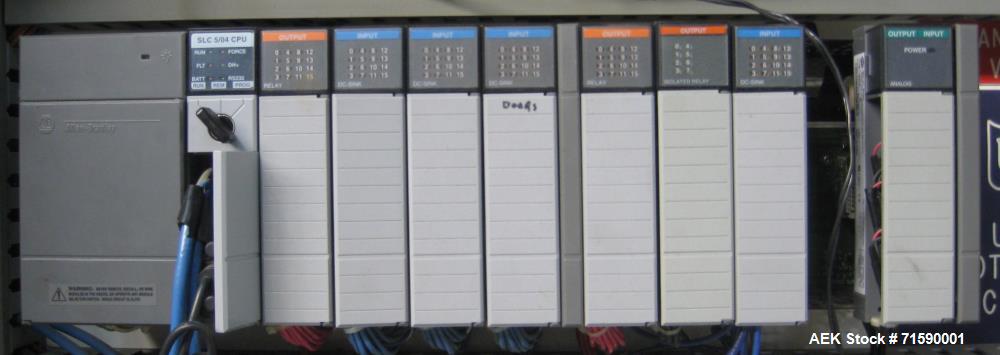

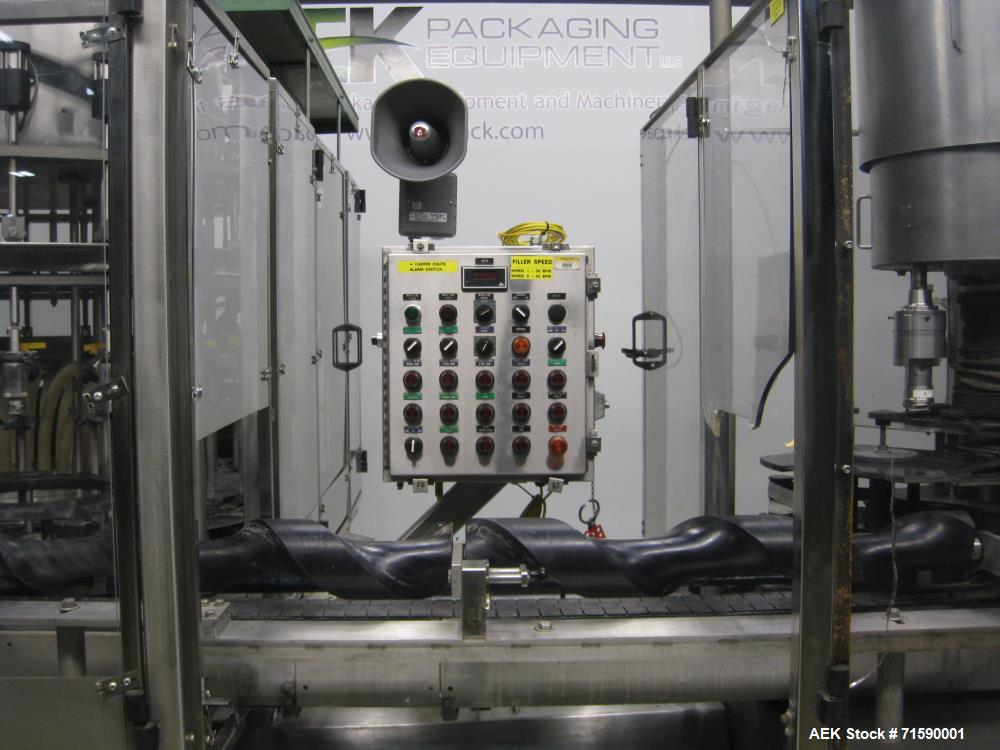

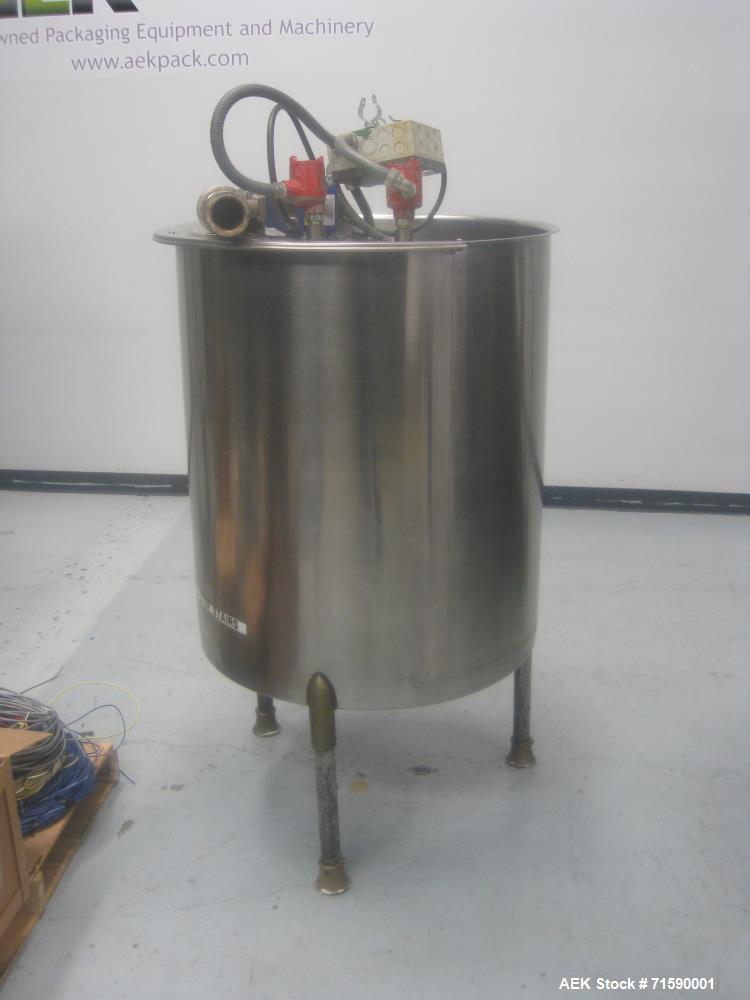

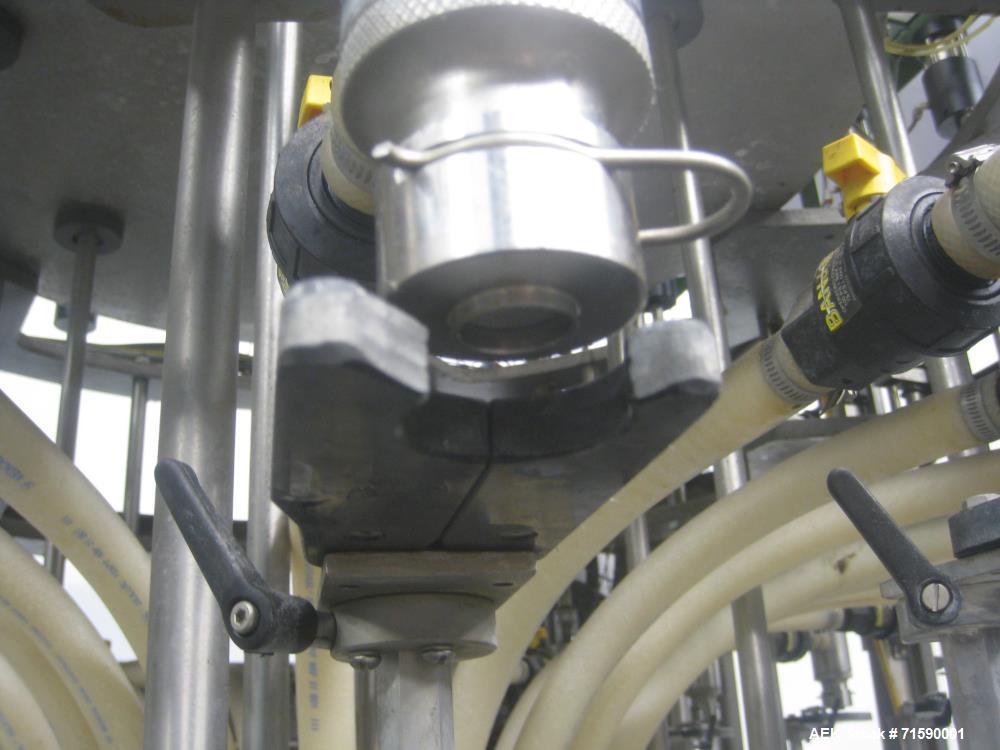

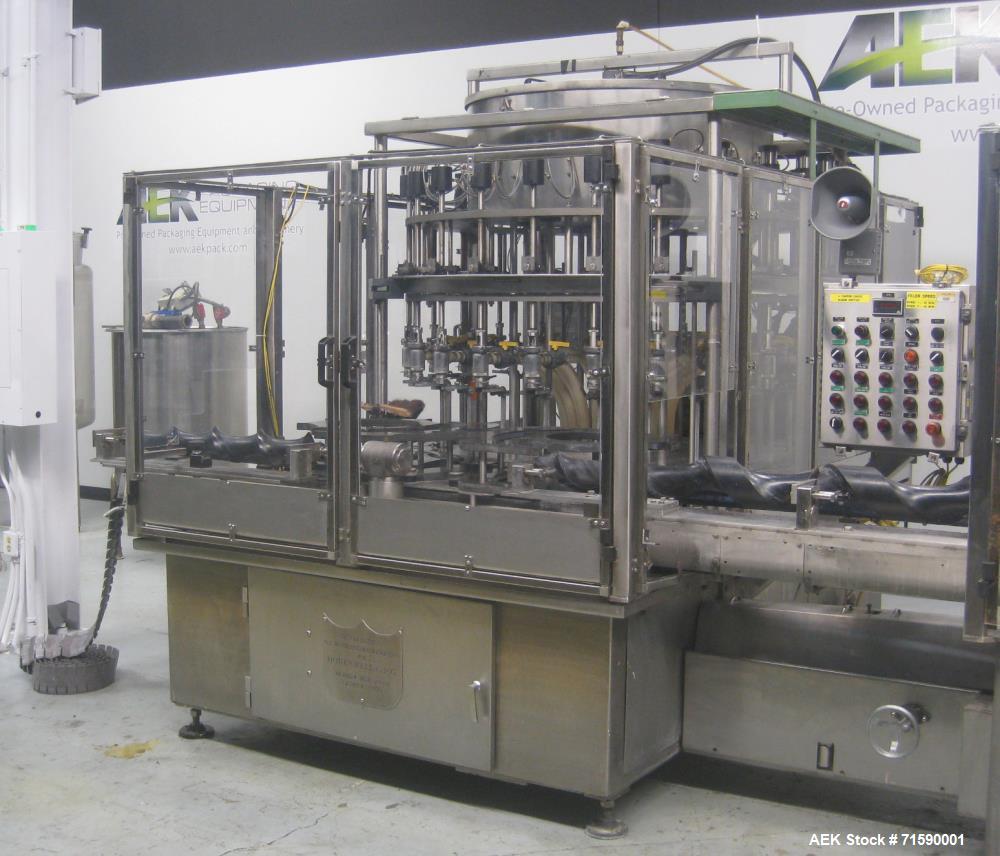

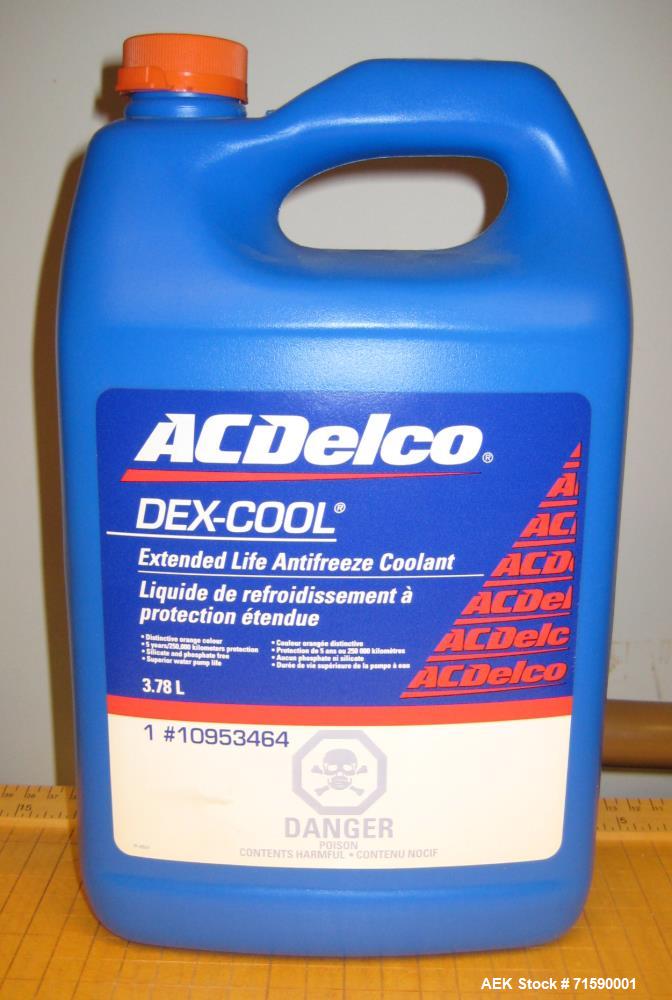

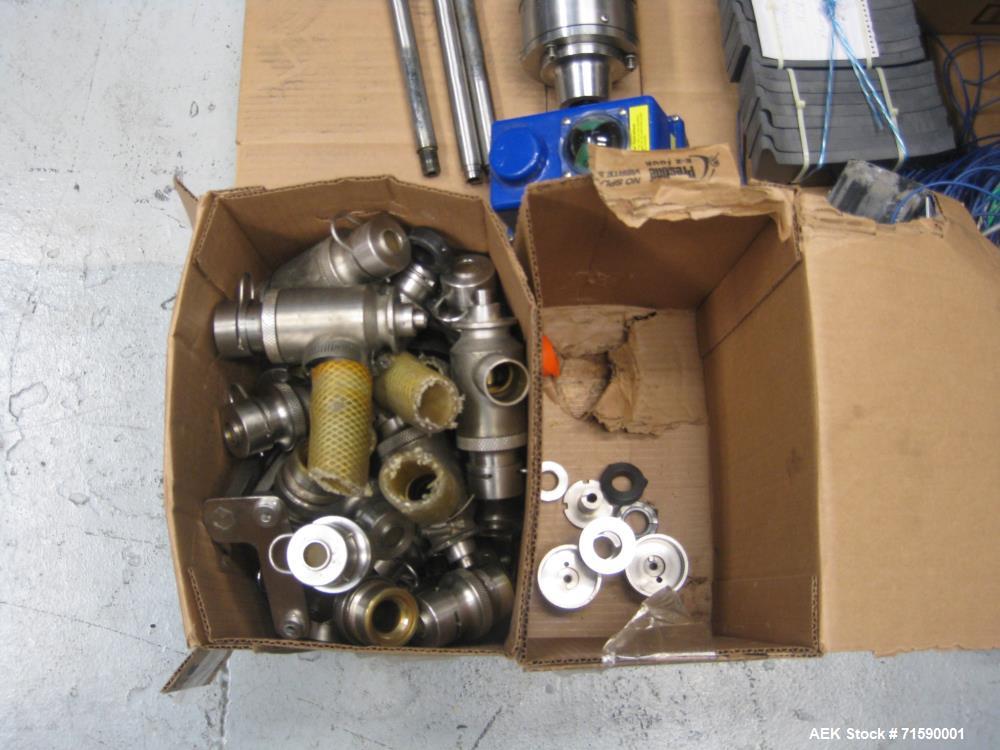

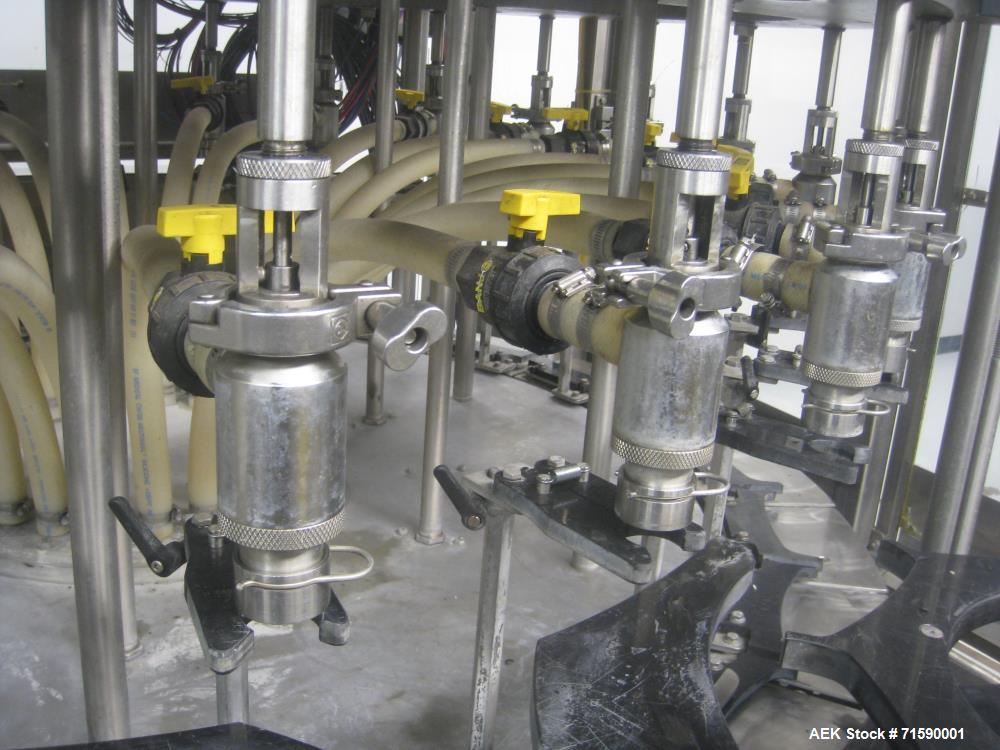

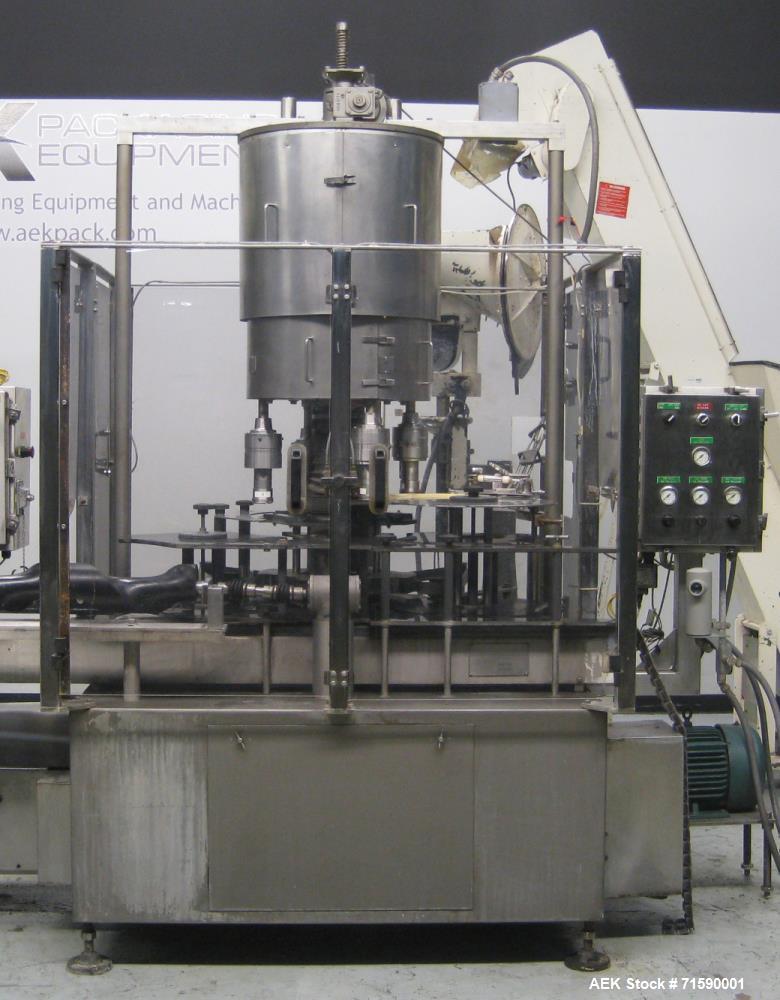

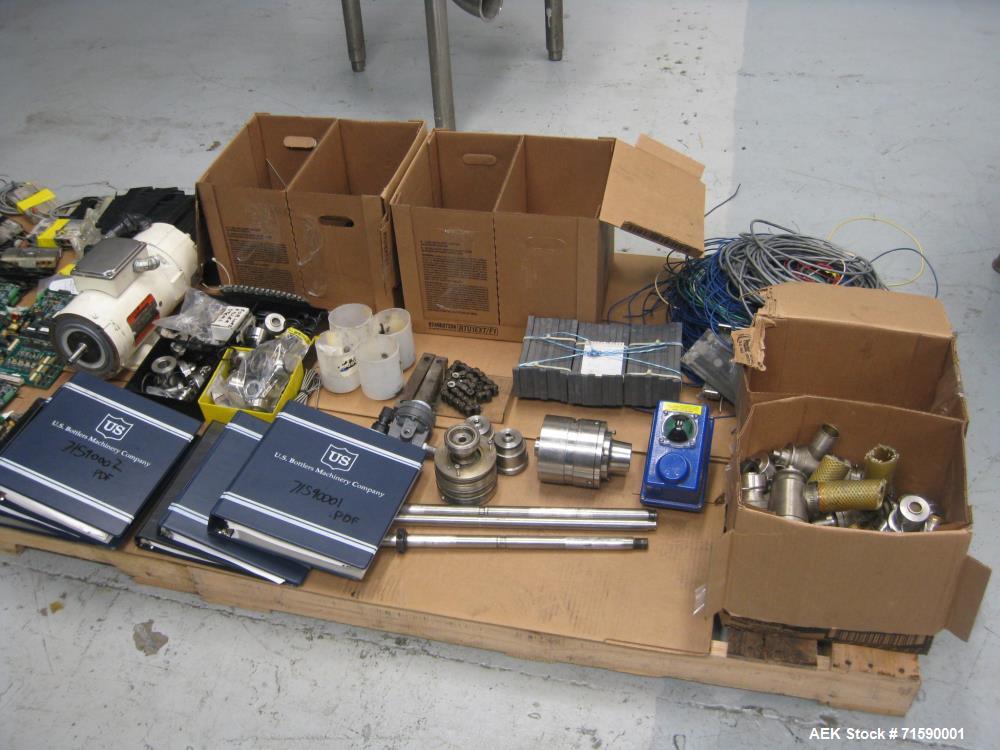

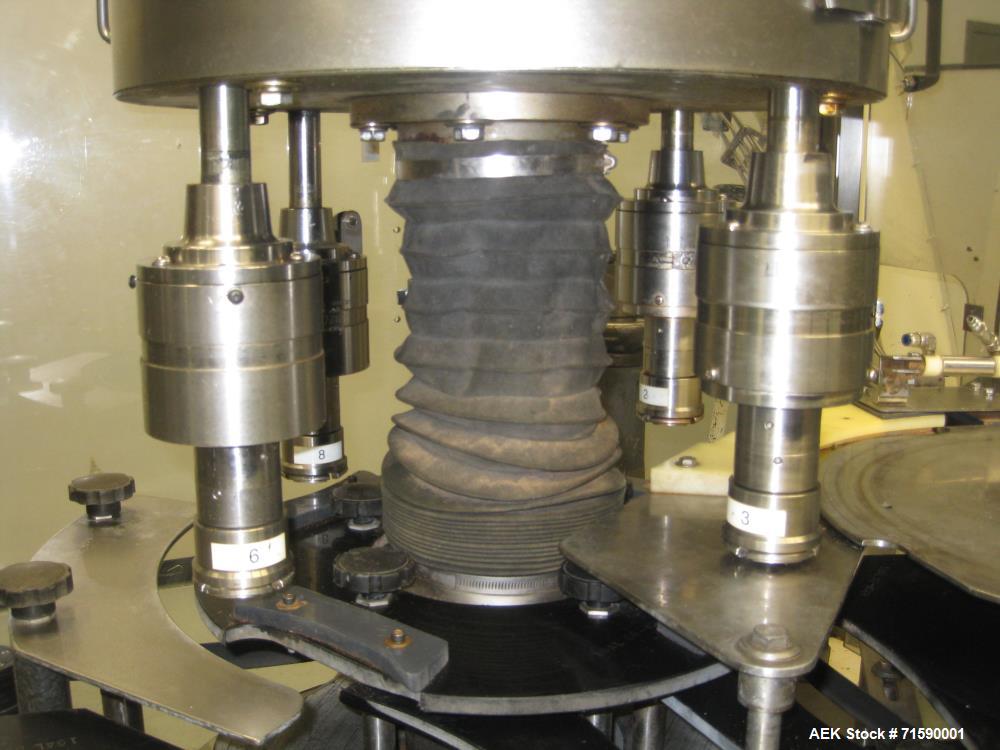

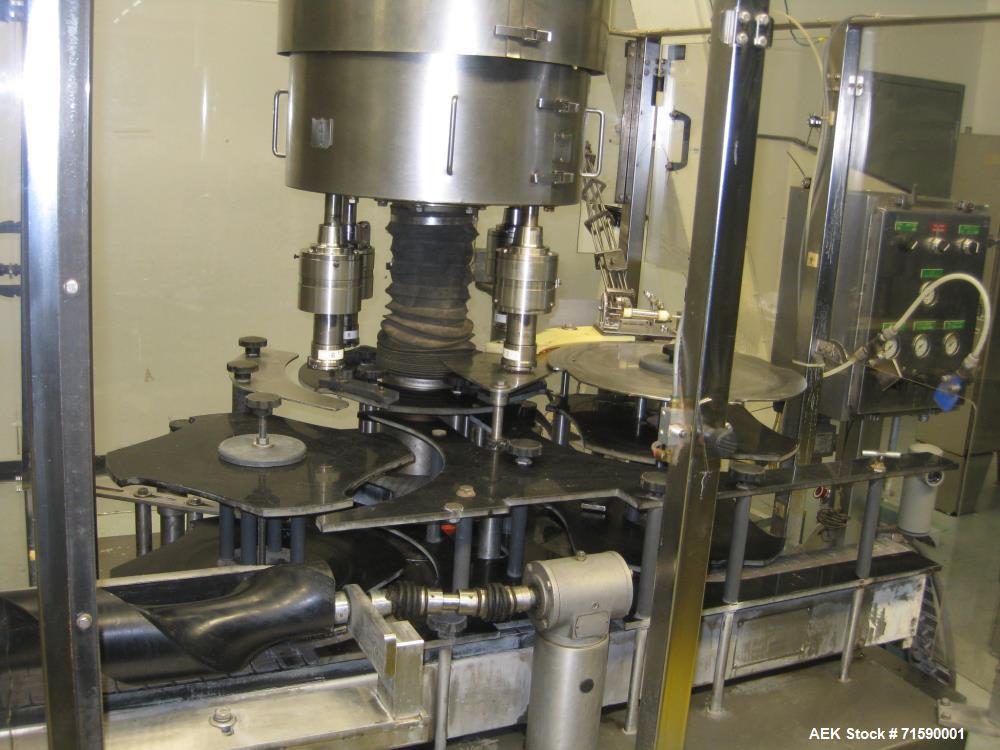

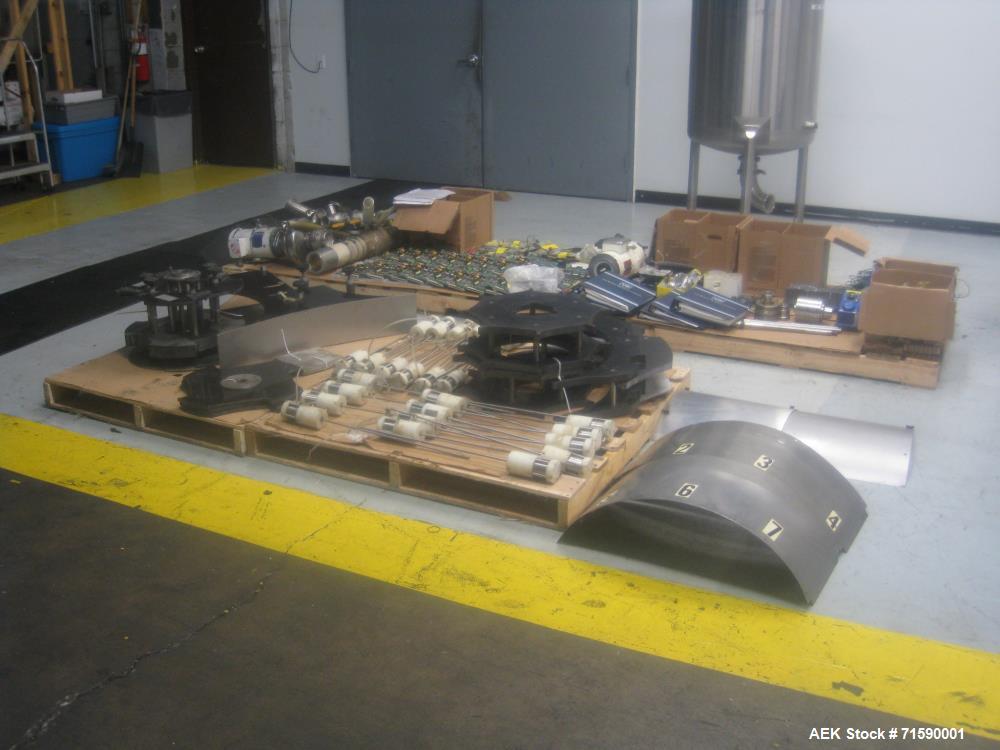

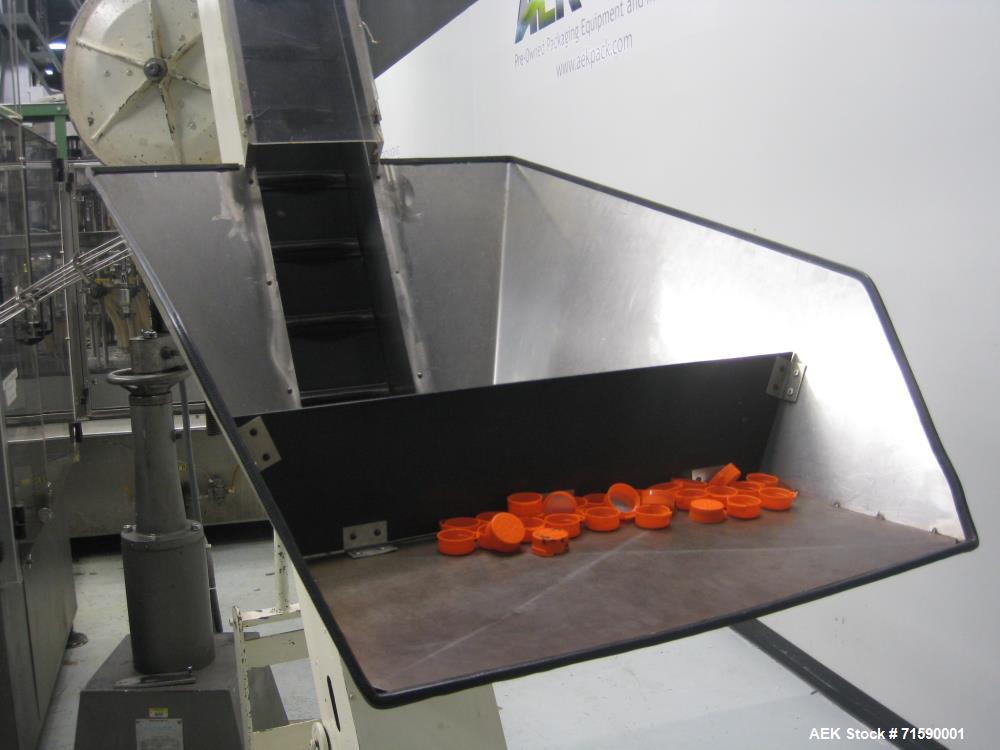

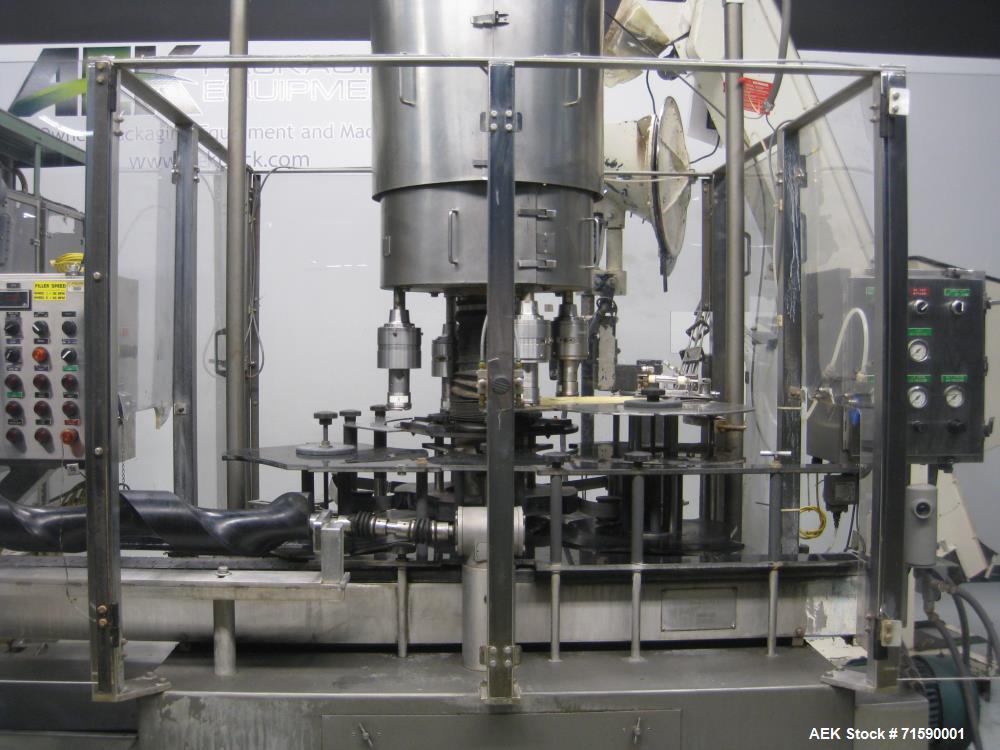

Used- US Bottlers Filler/Capper, Model WSE-24-66, 24 head electronic weigh scale technology close coupled and driven by USB Model PMC-4 4 head magnetic chuck capper. Now tooled for 1 gallon F-Style antifreeze containers with 38mm antifreeze style child resistant caps, running at 30 to 60 cpm. Filler nozzles are on 8" centers, 66" turret diameter, 5/8" id nozzle opening with pneumatic shut-off drip control, timing screw to 8 pocket stars and guides container handling. Capper chucks are on 8" centers, timing screw to 4 pocket stars and guides, with floor level cap hopper with cleated belt feeding Pneumatic Scale Model F30 Pin Dial cap sorter. Designed for 4.5" width table top plastic chain line conveyor. Primarily 304 stainless steel exterior construction with plexiglass barrier doors, 316 stainless filler contact parts. Filler includes 200 gallon supply tank, 2 hp centrifugal product pump, 120 gallon CIP/recirculation tank. Includes additional spare parts and load cells, scale circuit boards and additional set of F-Style container size parts. Utilizes Allen Bradley 5/04 PLC controls with VFD in stand alone console and main panel. Last use: Antifreeze. 3/60/480V.
