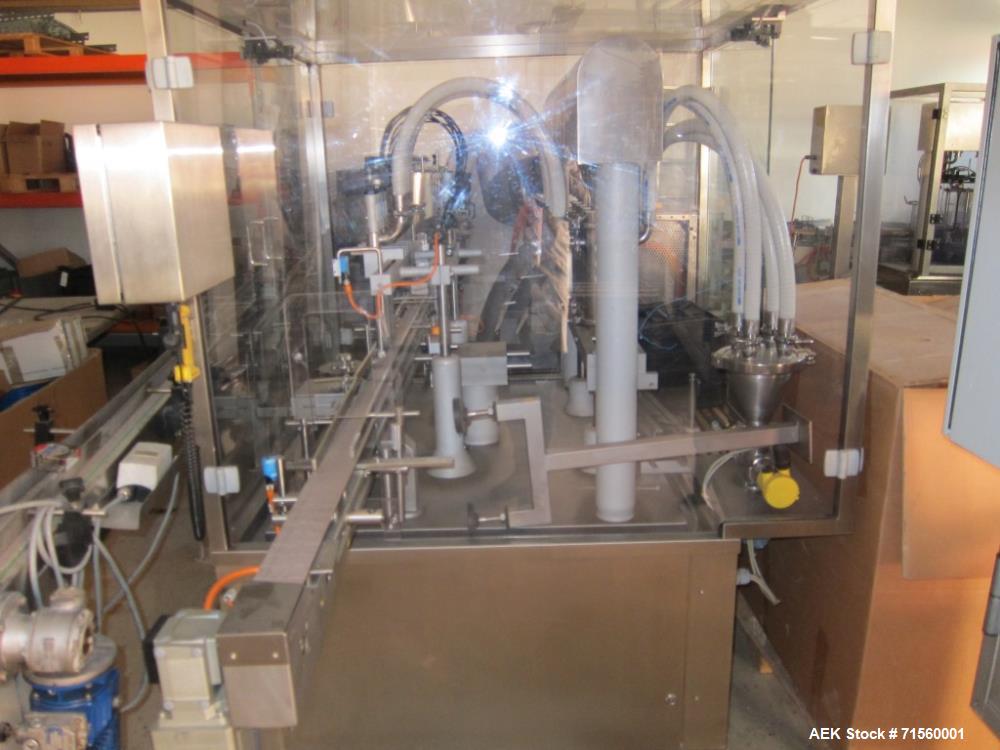

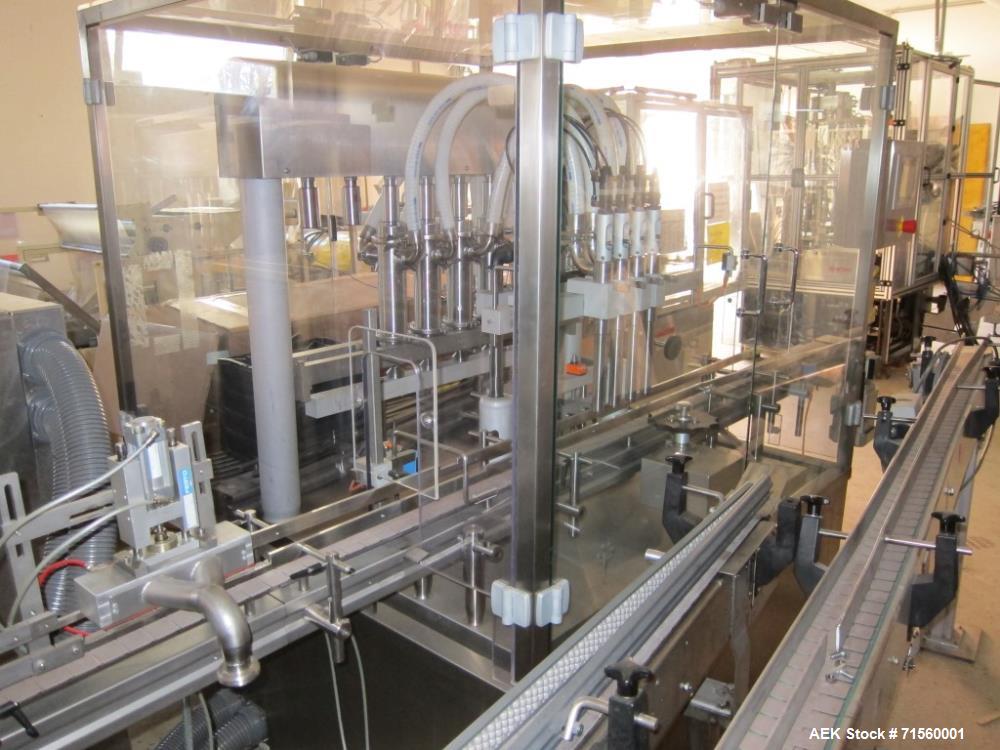

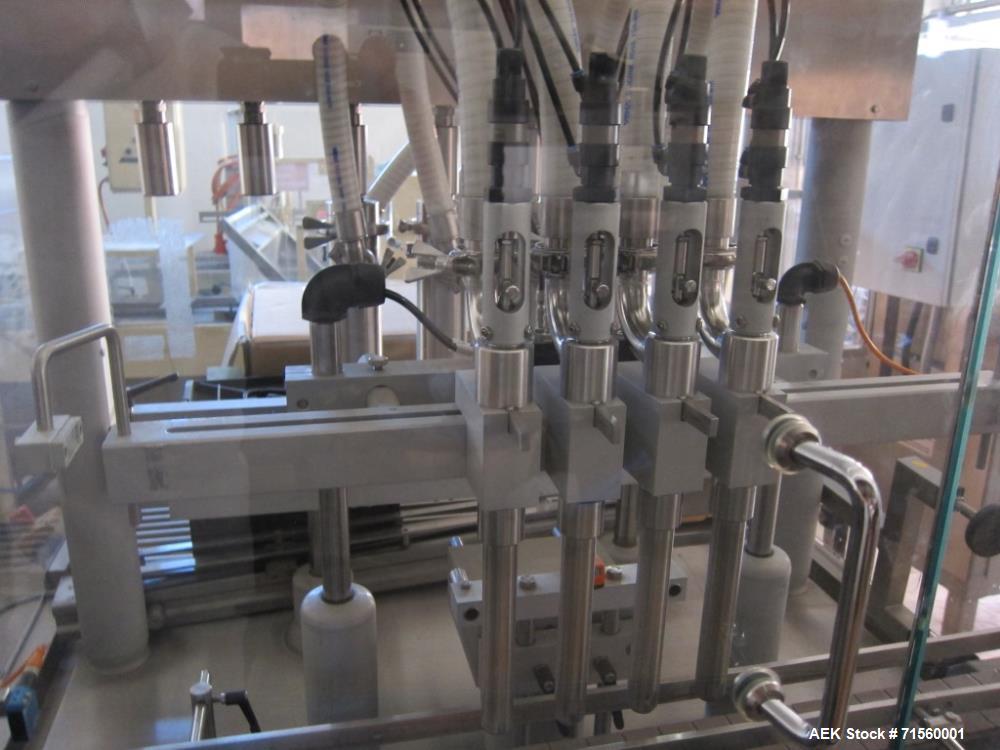

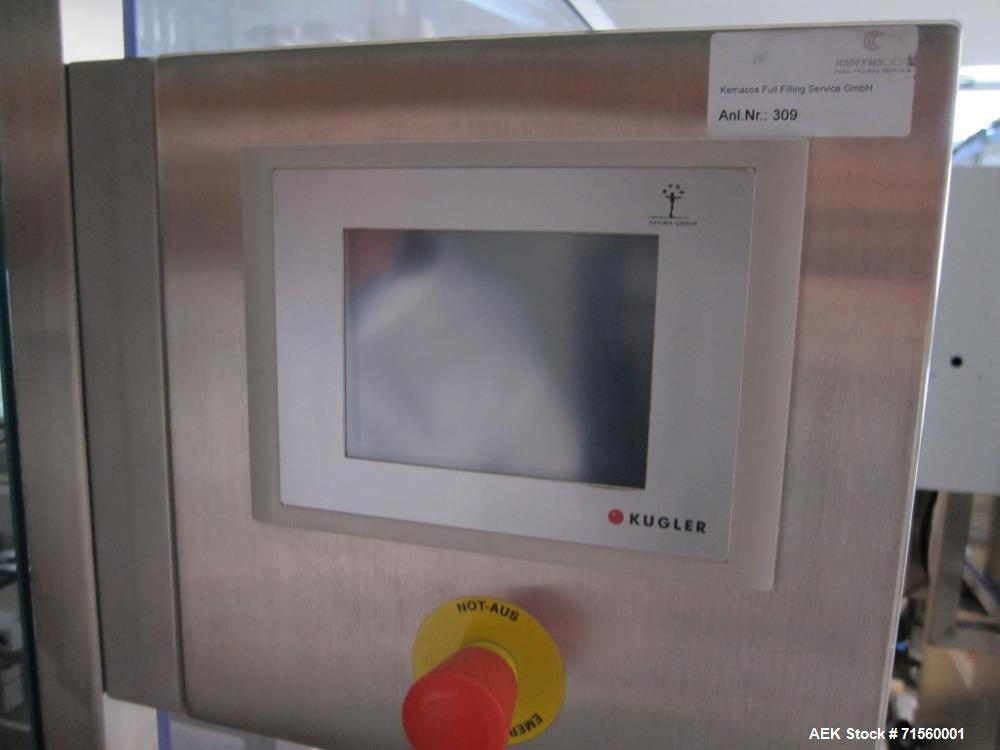

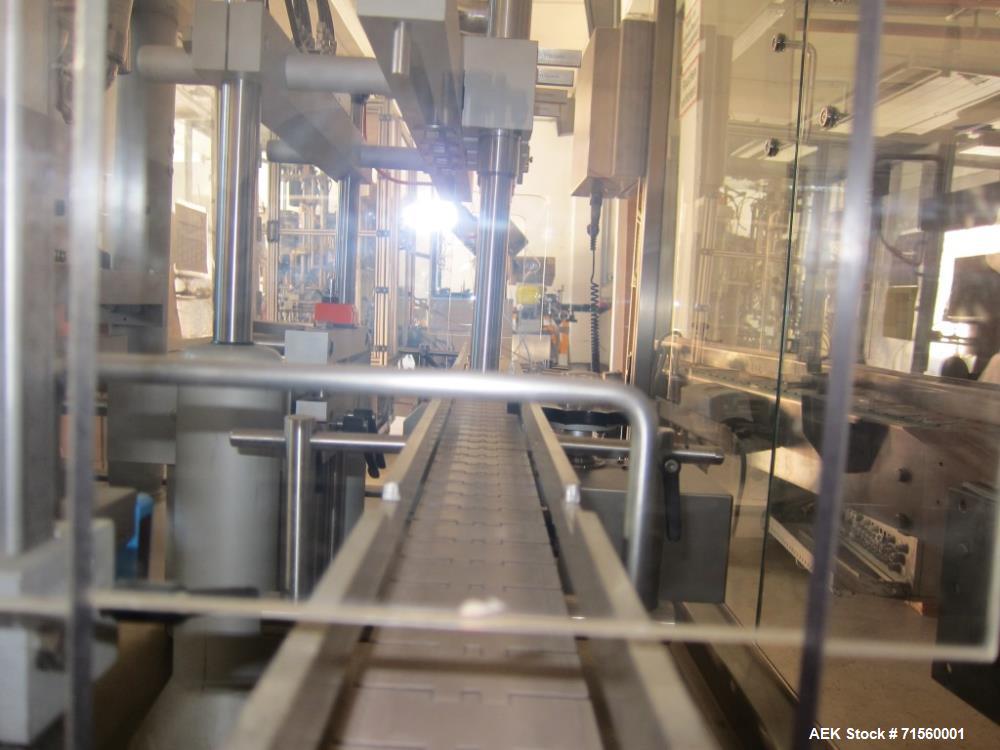

Used Kugler Fully Automatic Filling Machine Type Linofill. Controlled up to 30 cycles / min. The effective capacity depends on the packaging, dosing, Füllstellenanzahl and the product quality. Processing range: round container Ø 16 to 100 mm, width 16 to 120mm, depth 16 to 100 mm, container height 35 to 300 mm. Number of filling stations: 6 maximum, depending on the dosing and the desired application. Rotary pump version: whole appearance in easy care stainless steel, material no execution. 1.4301 (AISI 304) or plastic or anodized aluminum. Product wetted parts made of material No. 1.4404. Machine dimensions: length: 1,500 mm, width: 1,500 mm, height: 1,900 mm, length with conveyor belt: 3,500 mm. Electrical design: 230/400 V, 50 Hz. Standard used VDE 0113, corr. EN 60204/1 Net form TNS. Working height: 950 mm +/- 50 mm. Work towards: left to right. Safety: According to EN 415-2 for packaging machines, Dec. 1999, basic machine consisting of: stable design with height adjustable spindle feet and closed substructure. Infinitely variable speed adjustment on the control panel. Immersion nozzle device by separate Servo motor, max. 300 mm stroke. Freely programmable in the teach-in operation for new packaging formats. Format memory for 50 different containers / products. Control switch for monitoring the diving nozzles, "nozzle can not in containers immerse - machine stop", filling nozzles be raised. Centering for fixing the bottle opening of the filling nozzle. Drip tray, pneumatic under the filling nozzles mounted. Gebindeprüfeinrichtung - in the absence of container no filling, an electrical device with separately standing cabinet made of stainless steel and SPS. Control panel with touch screen, side attached to the machine. Lateral machine protection cladding polycarbonate, toughened glass doors with safety switches hedged. Machine cladding completely in stainless steel 1.4301 (AISI 304). Stainless steel cover of the machine table with circumferenti.
Used Kugler Fully Automatic Filling Machine Type Linofill. Controlled up to 30 cycles / min. The effective capacity depends on the packaging, dosing, Füllstellenanzahl and the product quality. Processing range: round container Ø 16 to 100 mm, width 16 to 120mm, depth 16 to 100 mm, container height 35 to 300 mm. Number of filling stations: 6 maximum, depending on the dosing and the desired application. Rotary pump version: whole appearance in easy care stainless steel, material no execution. 1.4301 (AISI 304) or plastic or anodized aluminum. Product wetted parts made of material No. 1.4404. Machine dimensions: length: 1,500 mm, width: 1,500 mm, height: 1,900 mm, length with conveyor belt: 3,500 mm. Electrical design: 230/400 V, 50 Hz. Standard used VDE 0113, corr. EN 60204/1 Net form TNS. Working height: 950 mm +/- 50 mm. Work towards: left to right. Safety: According to EN 415-2 for packaging machines, Dec. 1999, basic machine consisting of: stable design with height adjustable spindle feet and closed substructure. Infinitely variable speed adjustment on the control panel. Immersion nozzle device by separate Servo motor, max. 300 mm stroke. Freely programmable in the teach-in operation for new packaging formats. Format memory for 50 different containers / products. Control switch for monitoring the diving nozzles, "nozzle can not in containers immerse - machine stop", filling nozzles be raised. Centering for fixing the bottle opening of the filling nozzle. Drip tray, pneumatic under the filling nozzles mounted. Gebindeprüfeinrichtung - in the absence of container no filling, an electrical device with separately standing cabinet made of stainless steel and SPS. Control panel with touch screen, side attached to the machine. Lateral machine protection cladding polycarbonate, toughened glass doors with safety switches hedged. Machine cladding completely in stainless steel 1.4301 (AISI 304). Stainless steel cover of the machine table with circumferenti.
