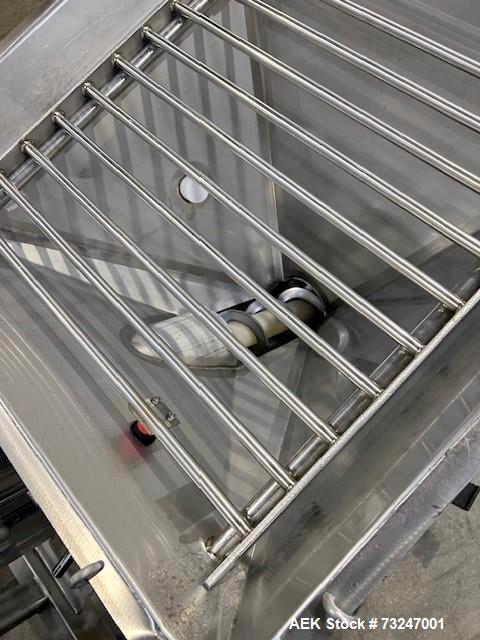

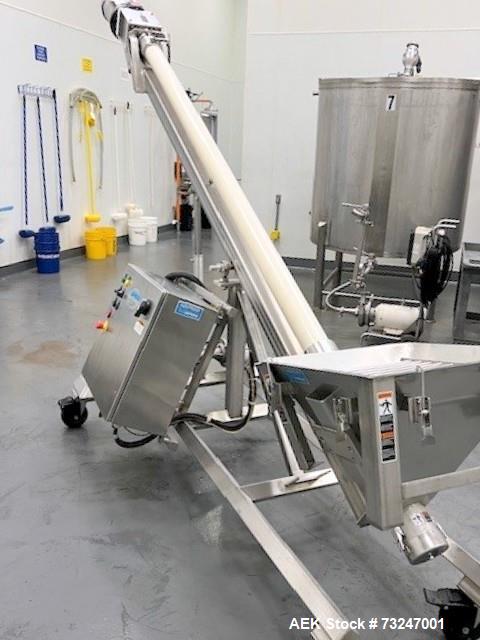

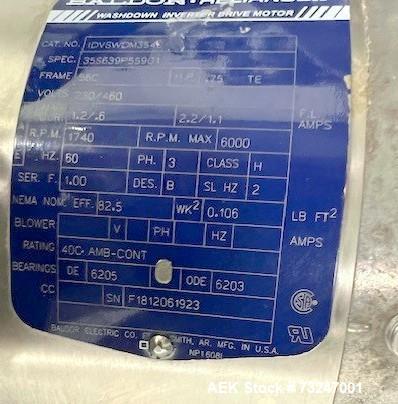

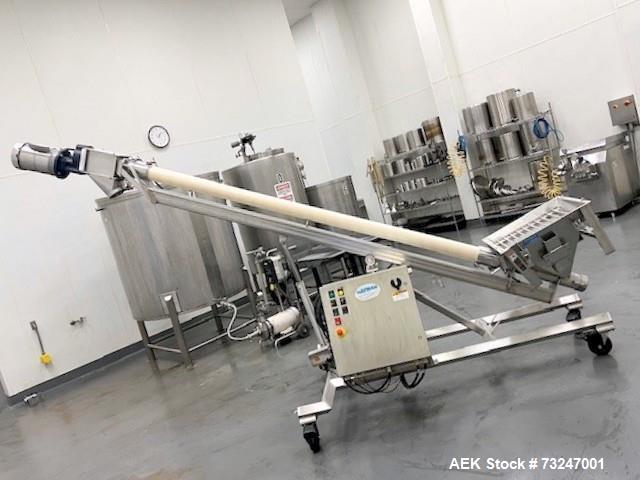

Used Hapman Series # 400 Helix Flexible Screw Conveyor. 4” wide x 12’ long stainless steel, flat wire Helix; U.H.M.W. polyethylene food grade conveyor, casing, 4” diameter, complete with quickreleaseT-handle stainless compression couplings; U.H.M.W. polyethylene inner center core; Drive/discharge assembly, fabricated of stainless steel. Includes top access cover and 3HP, 208/230/460 volt, 3 phase, 60 Hertz, wash-down duty drive motor operating through an inline gear reducer to provide a nominal auger rotational speed of approximately 360 RPM; Discharge transition adapter, located at drive head at 45? with 6” diameter discharge spout, stainless steel construction. 4 feet of 6” diameter clear urethane flex hose and two (2) stainless steel hose clamps; Receiving Hopper: 3 cubic foot volume surge capacity with 45° pick-up, and quick-release end clean-out cap. Fabricated of stainless steel. Includes support legs, safety bar grate with interlocking switch and vibrator mounting channel. Hopper is 26” tall. 26” square; Quick release top cover for receiving hopper. Fabricated of stainless steel and to include an 8” diameter x 2” high inlet neck and 2” NPT breather vent with dust sock; Portable base/support assembly designed to integrate and position all of the above components into a single portable unit. Fabricated of stainless steel. Includes casters, two (2) 6” diameter swivel with locks and two (2) rigid; Proximity type level sensor mounted in receiving hopper wall. Will be used as low level control. 24-250 volt AC/DC wash-down model; Variable speed reversing, electrical controls: Control panel to operate and protect the above conveyor equipment. Complete with main disconnect. Includes VFD, (YASKAWA V1000 SERIES DRIVE with 4-20 mA in and 0-10vdc out), “E” stop push-button, "on" pilot light, momentary reverse jog button; Mounted in NEMA 4X enclosure. Includes auto/manual selector switch for auto refill, complete with adjustable cycle timer. Has optional Hi/lo portable base/
Used Hapman Series # 400 Helix Flexible Screw Conveyor. 4” wide x 12’ long stainless steel, flat wire Helix; U.H.M.W. polyethylene food grade conveyor, casing, 4” diameter, complete with quickreleaseT-handle stainless compression couplings; U.H.M.W. polyethylene inner center core; Drive/discharge assembly, fabricated of stainless steel. Includes top access cover and 3HP, 208/230/460 volt, 3 phase, 60 Hertz, wash-down duty drive motor operating through an inline gear reducer to provide a nominal auger rotational speed of approximately 360 RPM; Discharge transition adapter, located at drive head at 45? with 6” diameter discharge spout, stainless steel construction. 4 feet of 6” diameter clear urethane flex hose and two (2) stainless steel hose clamps; Receiving Hopper: 3 cubic foot volume surge capacity with 45° pick-up, and quick-release end clean-out cap. Fabricated of stainless steel. Includes support legs, safety bar grate with interlocking switch and vibrator mounting channel. Hopper is 26” tall. 26” square; Quick release top cover for receiving hopper. Fabricated of stainless steel and to include an 8” diameter x 2” high inlet neck and 2” NPT breather vent with dust sock; Portable base/support assembly designed to integrate and position all of the above components into a single portable unit. Fabricated of stainless steel. Includes casters, two (2) 6” diameter swivel with locks and two (2) rigid; Proximity type level sensor mounted in receiving hopper wall. Will be used as low level control. 24-250 volt AC/DC wash-down model; Variable speed reversing, electrical controls: Control panel to operate and protect the above conveyor equipment. Complete with main disconnect. Includes VFD, (YASKAWA V1000 SERIES DRIVE with 4-20 mA in and 0-10vdc out), “E” stop push-button, "on" pilot light, momentary reverse jog button; Mounted in NEMA 4X enclosure. Includes auto/manual selector switch for auto refill, complete with adjustable cycle timer. Has optional Hi/lo portable base/
