Pre-Owned Frazier Bucket Elevator with 10" x 5.5" Buckets – Formerly Used for Candy & Mints

Manufacturer Information:
Frazier and Son is known for bucket elevators and material handling systems used in packaging, food processing, and dry product conveying applications. The Whiz-Lifter style bucket elevator is commonly used to move small dry products from a lower infeed point to elevated packaging, weighing, or processing equipment. This listing should be reviewed for manufacturer consistency because the title and description identify the unit as a Frazier and Son Whiz-Lifter, while the specifications show Yamato.

Main Product Description:

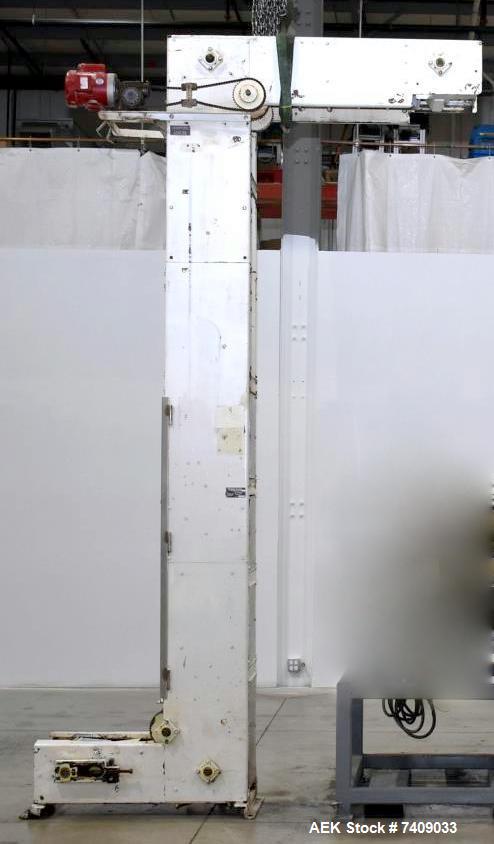

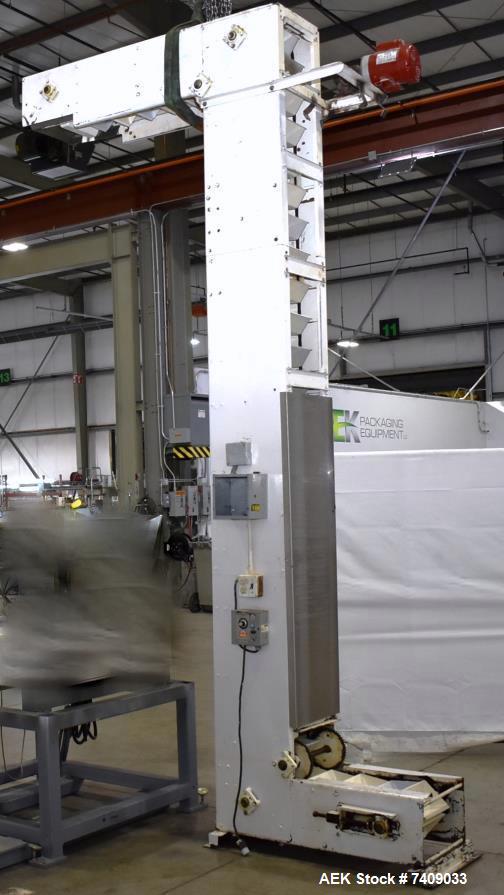

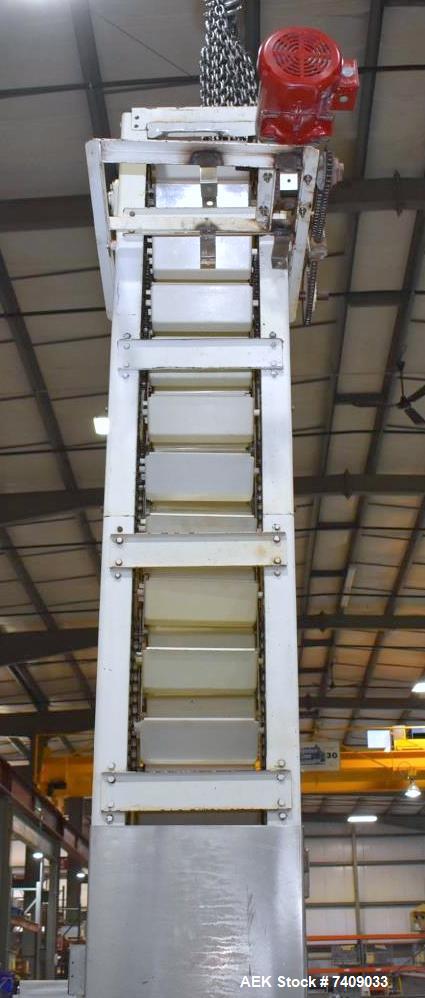

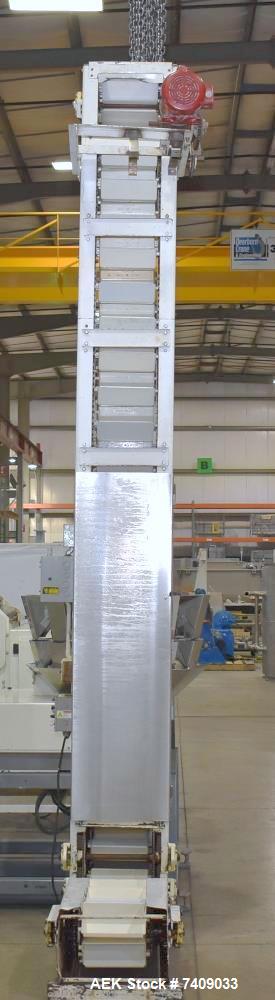

Used Frazier and Son Whiz-Lifter bucket elevator formerly running candies and mints. This bucket elevator has 10" wide x 5-1/2" x 3" deep buckets, a 14" infeed height, 25-1/2" infeed length, 149" discharge height, 63-1/2" discharge length, 160" overall height, 85" overall length, and 85"L x 21"W x 160"H overall footprint. The horizontal reach is 50", measured from the back of the elevator vertical shaft to the center of the discharge spout. This unit is commonly used for elevating candies, mints, gummies, snack foods, nuts, seeds, small dry food products, and other free-flowing materials into scales, hoppers, packaging machines, or downstream processing equipment.

Product Details:

• Stock number: 7409033
• Equipment type: bucket elevator conveyor
• Manufacturer: Frazier and Son
• Brand/model style referenced: Whiz-Lifter

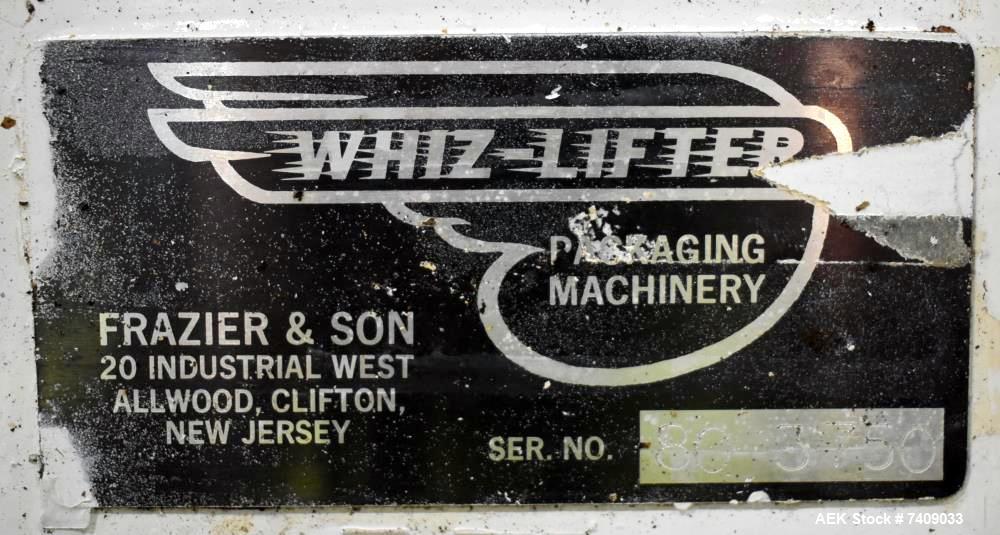

• Serial number: 80-3-750

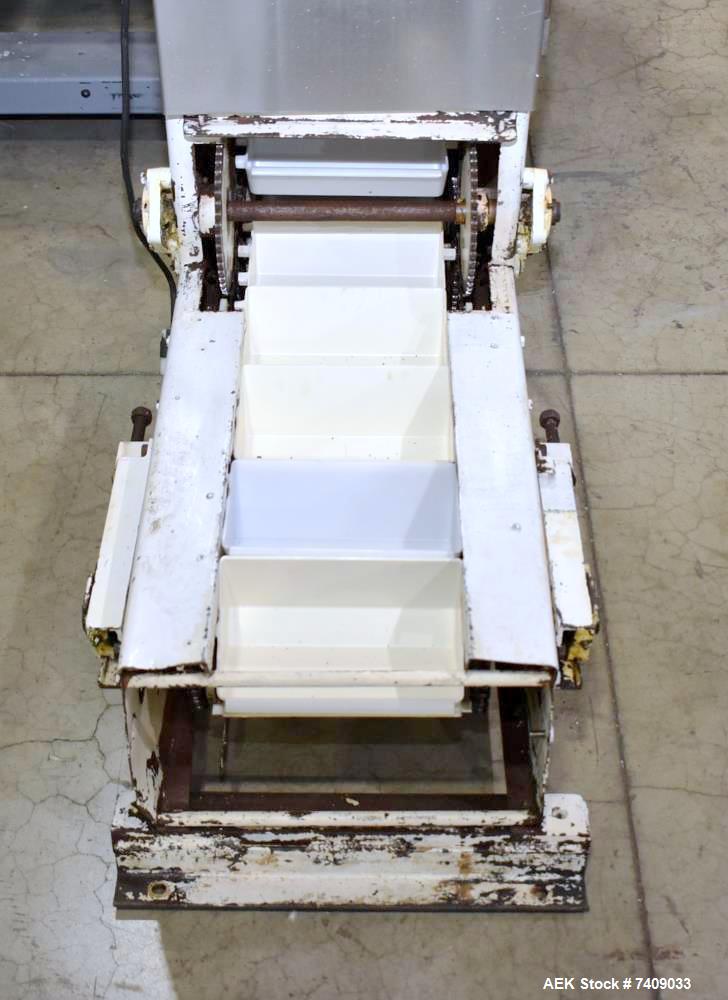

• Bucket size: 10" wide x 5-1/2" x 3" deep
• Infeed height: 14"
• Infeed length: 25-1/2"
• Discharge height: 149"
• Discharge length: 63-1/2"
• Overall height: 160"
• Overall length: 85"
• Overall footprint: 85"L x 21"W x 160"H
• Horizontal reach: 50", measured from the back of the elevator vertical shaft to the center of the discharge spout
• Last running: candies/mints
• Category: Packaging Equipment
• Subcategory: Conveyors - Bucket Elevators
• Condition: used

Specifications:

• Manufacturer: Frazier and Son
• Equipment name: Whiz-Lifter bucket elevator
• Serial number: 80-3-750
• Bucket width: 10"
• Bucket length: 5-1/2"
• Bucket depth: 3"
• Infeed height: 14"
• Infeed length: 25-1/2"
• Discharge height: 149"
• Discharge length: 63-1/2"
• Overall height: 160"
• Overall length: 85"
• Overall footprint: 85"L x 21"W x 160"H
• Horizontal reach: 50"
• Prior product/application: candies/mints
• Condition: used

Applications:

• Candy packaging lines
• Mint packaging lines
• Confectionery conveying
• Snack food conveying
• Dry product transfer
• Product elevation to scales
• Product feeding to hoppers
• Product feeding to packaging machines
• Bucket elevator conveying
• Vertical product transfer
• Packaging line integration
• Food production conveying
• Small-piece product handling
• Multihead scale feeding
• Weigher feeding
• Horizontal form fill seal line support
• Dry ingredient handling
• Free-flowing product transfer

Suitable Products / Materials:

• Candies
• Mints
• Gummies
• Hard candy
• Chocolate pieces
• Snack foods
• Nuts
• Seeds
• Cereal pieces
• Dry food products
• Small dry ingredients
• Granular products
• Pet treats
• Small plastic parts
• Small free-flowing products
• Confectionery products

FAQs:

• WHAT IS THIS FRAZIER AND SON WHIZ-LIFTER USED FOR? This bucket elevator is used to elevate small dry products from a lower infeed point to a higher discharge point for packaging, weighing, filling, or processing applications.
• WHAT PRODUCTS WAS THIS BUCKET ELEVATOR LAST RUNNING? The listing states the unit was last running candies/mints.
• WHAT IS THE BUCKET SIZE? The listed bucket size is 10" wide x 5-1/2" x 3" deep.
• WHAT IS THE INFEED HEIGHT? The listed infeed height is 14".
• WHAT IS THE INFEED LENGTH? The listed infeed length is 25-1/2".
• WHAT IS THE DISCHARGE HEIGHT? The listed discharge height is 149".
• WHAT IS THE DISCHARGE LENGTH? The listed discharge length is 63-1/2".
• WHAT IS THE OVERALL FOOTPRINT? The listed overall footprint is 85"L x 21"W x 160"H.
• WHAT IS THE HORIZONTAL REACH? The listed horizontal reach is 50", measured from the back of the elevator vertical shaft to the center of the discharge spout.
• IS THIS SUITABLE FOR FOOD OR CONFECTIONERY PACKAGING? The unit was last running candies/mints, making it relevant for confectionery and dry food packaging applications. Final suitability should be confirmed based on condition, construction, cleaning requirements, and product contact surfaces.
• CAN AARON EQUIPMENT HELP WITH SHIPPING? Yes. Aaron Equipment can help coordinate shipping options, logistics support, and equipment preparation based on buyer requirements.
• HOW CAN AARON EQUIPMENT HELP WITH THIS BUCKET ELEVATOR? Aaron Equipment can provide pricing, availability, additional photos, inspection details, and available measurements to help buyers determine whether this bucket elevator fits their packaging line.
