Triton Stainless Incline & Scrap Conveyor System – High-Speed, FDA Belts, 1,800 PPM

Manufacturer Information

Brand: Triton Innovation
Type: Conveyor System – Incline & Scrap Conveyors
Year Built: 2022
Condition: Used
Previous Use: Potato chip conveying
Voltage: 3/60/460V

Description

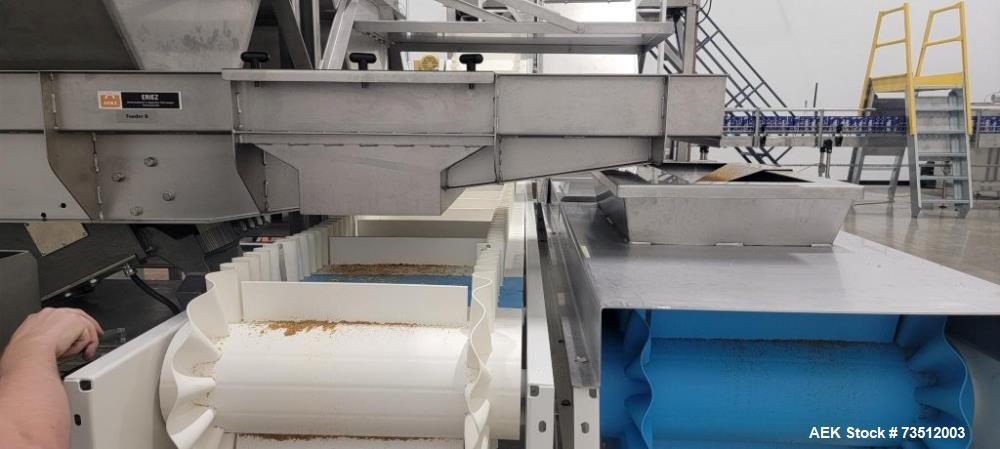

This Used Triton Innovation Conveyor System includes both an Incline Conveyor and a Scrap Conveyor, each built in a hygienic stainless steel “Z” style design for food-grade product handling. Both conveyors feature thermodrive positively driven blue flat-top FDA belts with thermolace splices, 4-inch corrugated sidewalls, and 3-inch tall flights on 12-inch centers for efficient product movement.

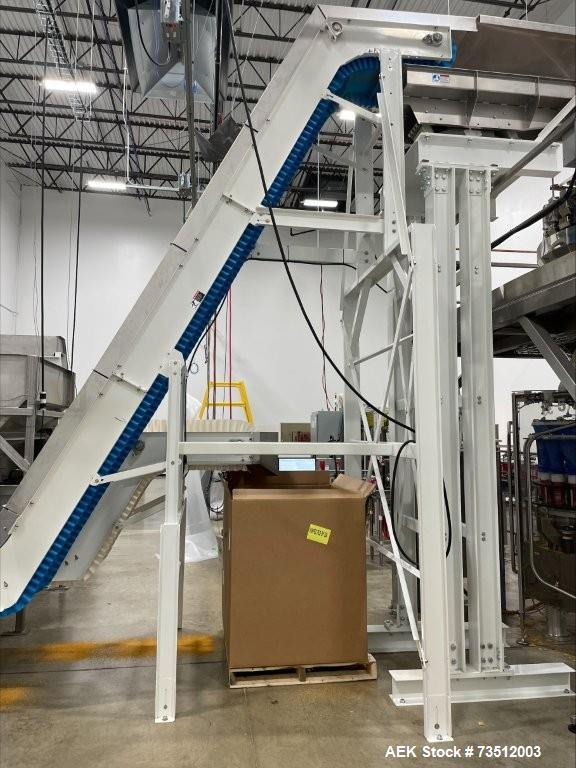

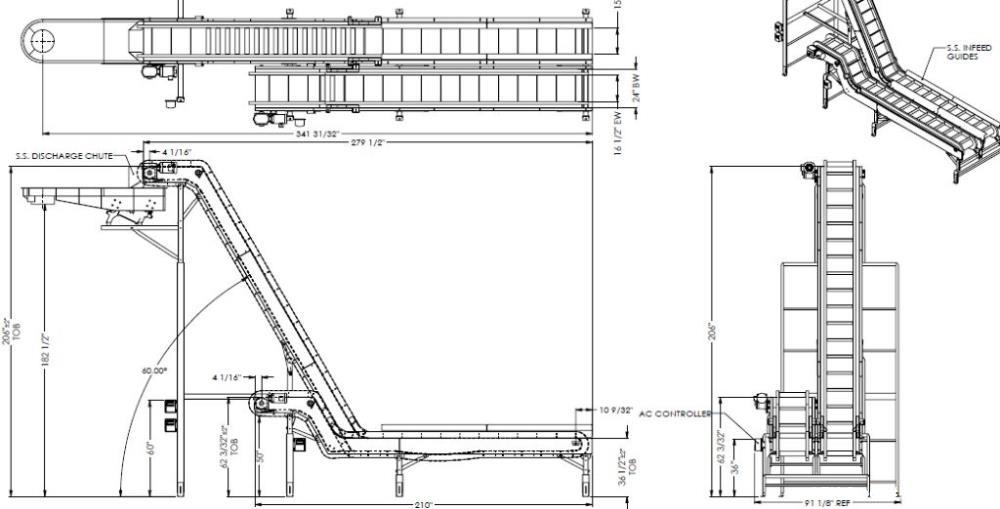

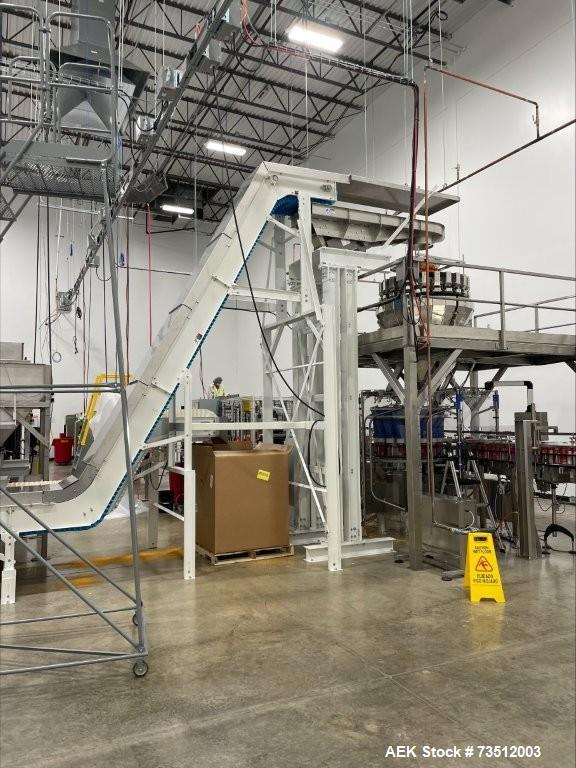

The Incline Conveyor has a 12’1” horizontal infeed and a 16’7” incline section at ~60°, with an overall length of 23’4”. The Scrap Conveyor has a 13’4” horizontal infeed and a shorter 2’4” incline, with an overall length of 17’6”. Both units are rated up to 1,800 PPM (depending on product) and powered for consistent, high-throughput conveying.

Originally used in a chip manufacturing line, this system is ideal for snack food, bakery, produce, and other sanitary conveying applications.

Specifications

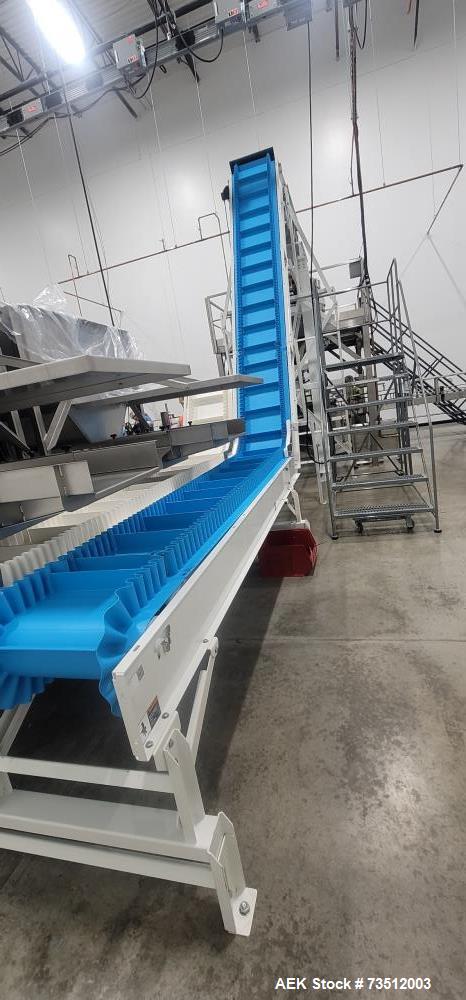

Incline Conveyor

• Design: Stainless steel “Z” style TD belt conveyor

• Capacity: 1,800 PPM (product dependent)

• Infeed Length: 12’1” horizontal

• Incline Section: 16’7” at ~60°

• Overall Length: 23’4”

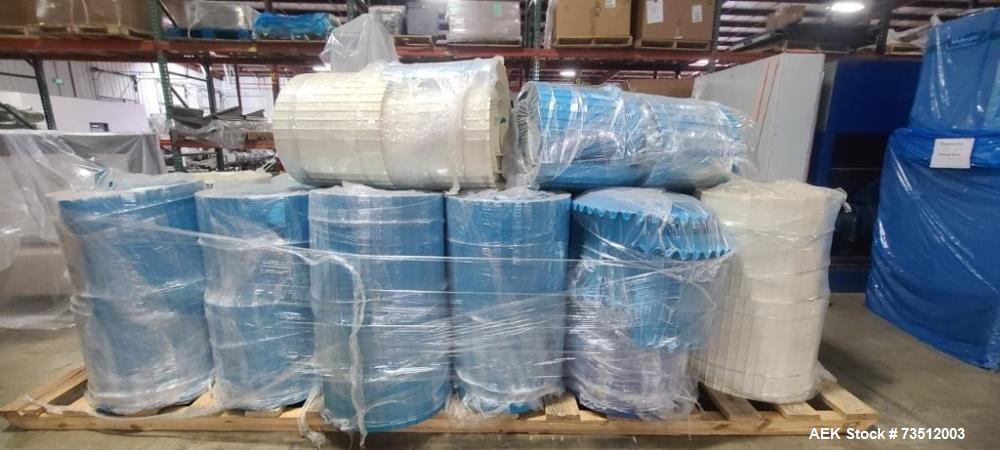

• Belt: 24” OAW, thermodrive blue flat top FDA belt with thermolace splice

• Sidewalls: 4” corrugated

• Belt Width (Effective): 16”

• Flights: 3” tall x 16” wide on 12” centers

• Covers: Stainless steel top covers

• Electrical: 3/60/460V

Scrap Conveyor

• Design: Stainless steel “Z” style TD belt conveyor

• Capacity: 1,800 PPM (product dependent)

• Infeed Length: 13’4” horizontal

• Incline Section: 2’4” at ~60°

• Overall Length: 17’6”

• Belt: 24” OAW, thermodrive blue flat top FDA belt with thermolace splice

• Sidewalls: 4” corrugated

• Belt Width (Effective): 16”

• Flights: 3” tall x 16” wide on 12” centers

• Electrical: 3/60/460V

What Might This Be Used For?

• Snack food production (chips, pretzels, popcorn)

• Bakery product transfer

• Frozen food handling

• Produce and vegetable conveying

• Meat and poultry processing

• Confectionery production lines

• Grain, cereal, and dry goods transfer

• Sanitary scrap product removal

• Packaging line product elevation

• High-volume sorting and feeding
