Used Robotic Case Packers

Stock# 73029002

Used- IDI Automation Fanuc Robotic Pick and Place Product Loader for Medical Device Diagnostic Swab Sticks. IDI Automated System:Automated loading system to receive swabs and load them into the pockets of aMultivac machine. The IDI automation receives groups of swabs that aremanually placed in the vibratory trays of the IDI feed system. These swabs are then separated and conveyed under machine visionguided robots where cameras locate the parts on the conveyor. The locationinformation is communicated to the robots. The robots pick the parts from theconveyor and place them on an intermediate conveyor. Another robot picks an array of swabs from this conveyor and loads them into the pockets of the Multivac machine. System includes: (6) Fanuc Scara Robots to pick swabs from the feed conveyor and load them onto the intermediate conveyor(6) Anubis Covers to cover the quill on each of the scara robots(1) Fanuc M-10iA Robot to pick an array of swabs from the intermediateconveyor and load them into formed pockets on the Multivac machine(6) Robot End of Arm Tools designed as needed to handle swabs(1) M-10 End of Arm Tool designed to handle an array of swabsMachine Vision System for robot guidance in picking the swabs from the swabfeed conveyor(7) Machine Vision Camera w/ lensDedicated LightingComponent mounting frameworkSystem Base painted/powder coated steel base on which to mount the majorcomponentsSwab Feed and Separation System operator places groups of 1000 swabs onthis system conveyor.System feeds swabs from bulk hoppers to the feeding belt.The system createsseparation between the parts and conveys them past the scara robots. Therobots pick from this conveyor system.Intermediate Conveyor the robots place swabs on this conveyor and the M-10robot picks an array from this conveyorAllen-Bradley CompactLogix PLC to serve as the system controllerTouchscreen Operator Interface on which to display system run timeinformationAdditional Touchscreen Operator Interface this screen is to be mounted in asmaller enclosure.System Safety Guarding safety devices, safety interlocks and relays, and EStopcontrols to enclose the IDI provided robot work area. Extruded aluminumfencing is mounted directly to the system base. Electrical Enclosure to houseIDI provided to system electrical components, robot

Stock# 72826001

Unused- Endflex (Paxiom) Boxxer All-in-One Case Erector, Sealer and Robotic Pick and Place Loader. Model CEPP-004. Has automatic product infeed, collator, robotic loader and case sealing system. Nordson Problue hot melt glue case sealing system, model Problue L7. Omron NJ101-1000 PLC, (2) Omron AC Servo Drives, Weintek MT8073iE HMI. Serial# 19550. 3/60/240V.

Stock# 72850004

Used-Pearson Model RTL-MX Robotic Top Load Case Packing Erecting and Sealing Line with Fanuc Robots. Line consisists of a Pearson Model CE25-T Automatic Case Erector and Bottom Taper Sealer and a Pearson CS-25T Top Case Sealer. Erector is capsble of speeds up to 25 cases per minute. Has a case size range: Knocked down flat - 13" to 40" Length, 8" to 26" Height. Bottom flap of 2.5" to 8", Formed case: 8" - 24" Length, 5" - 16" Width, 3" - 18.5" Depth, Open Depth (top flaps up) 5.5" to 21" with Allen Bradley CompactLogix PLC and Dekka tape heads. Pearson RTL-MX Robotic Loader with Fanuc Model M710iC/50 Robot with R-30iB controller. Allen Bradley CompactLoogix PLC and AB HMI. Includes Pearson Model CS25-T Automatic Tape Top Case Sealer. Capable of speeds up to 25 cases per minute (depending on application and case size). Has a case size range: 8" - 24" (length) x 5" - 16" (width) x 7" - 22-3/4" (height/depth). Last used in pharmaceutical packaging operation. Mfg. 2020.

Stock# 72839005

Used- Bosch (Syntegon) Presto Robotic Top Load Robotic Carton loader. Capable of speeds up to 400 packages per minute. Has a product size range: Length 2" to 7.9" or 50mm to 200mm, width .6" to 4.7" or 15mm to 120mm, height .24" to 2.3" or 6mm to 60mm. Weight .022 lb to 2.2 lb or 10g to 1Kg. Products in a layer: Max quantity in a layer 122. Max number of rows in a layer 2. Max weight of layer is 2.2 lbs. Product input requirement is a single stream of product with minimum spacing of 10% of overall product length. Carton or Tray Range: Length 2.4" to 16.5" or 60mm to 420mm, width 1.75" to 12.6" or 45mm to 320mm, height 1" to 5.9" or 25mm to 150mm. Pick & Place Spyder Robot Tray Packer. Beckoff EK1110 PLC, Bosch HMI, (7) Rex-roth Indradrive Cs drives. 3/60/230 Volt.

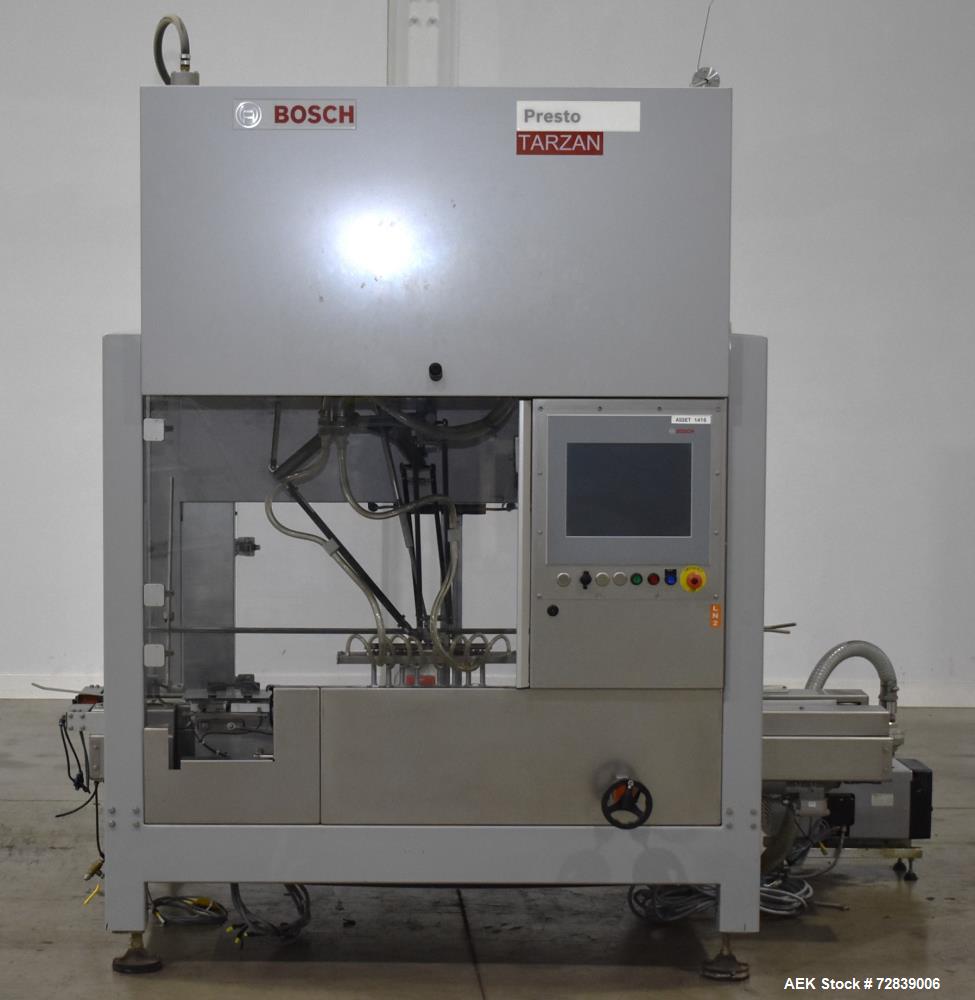

Stock# 72839006

Used- Bosch (Syntegon) Presto Robotic Top Load Robotic Case Packer capable of speeds up to 400 packages per minute. Has a product size range: Length 2" to 7.9" or 50mm to 200mm, width .6" to 4.7" or 15mm to 120mm, height .24" to 2.3" or 6mm to 60mm. Weight .022 lb to 2.2 lb or 10g to 1Kg. Products in a layer: Max quantity in a layer 122. Max number of rows in a layer 2. Max weight of layer is 2.2 lbs. Product input requirement is a single stream of product with minimum spacing of 10% of overall product length. Carton or Tray Range: Length 2.4" to 16.5" or 60mm to 420mm, width 1.75" to 12.6" or 45mm to 320mm, height 1" to 5.9" or 25mm to 150mm. Pick & Place Spyder Robot Tray Packer. Beckoff CX5020 PLC, Bosch HMI, (7) Rexroth Indra drives. 3/60/230 Volt.

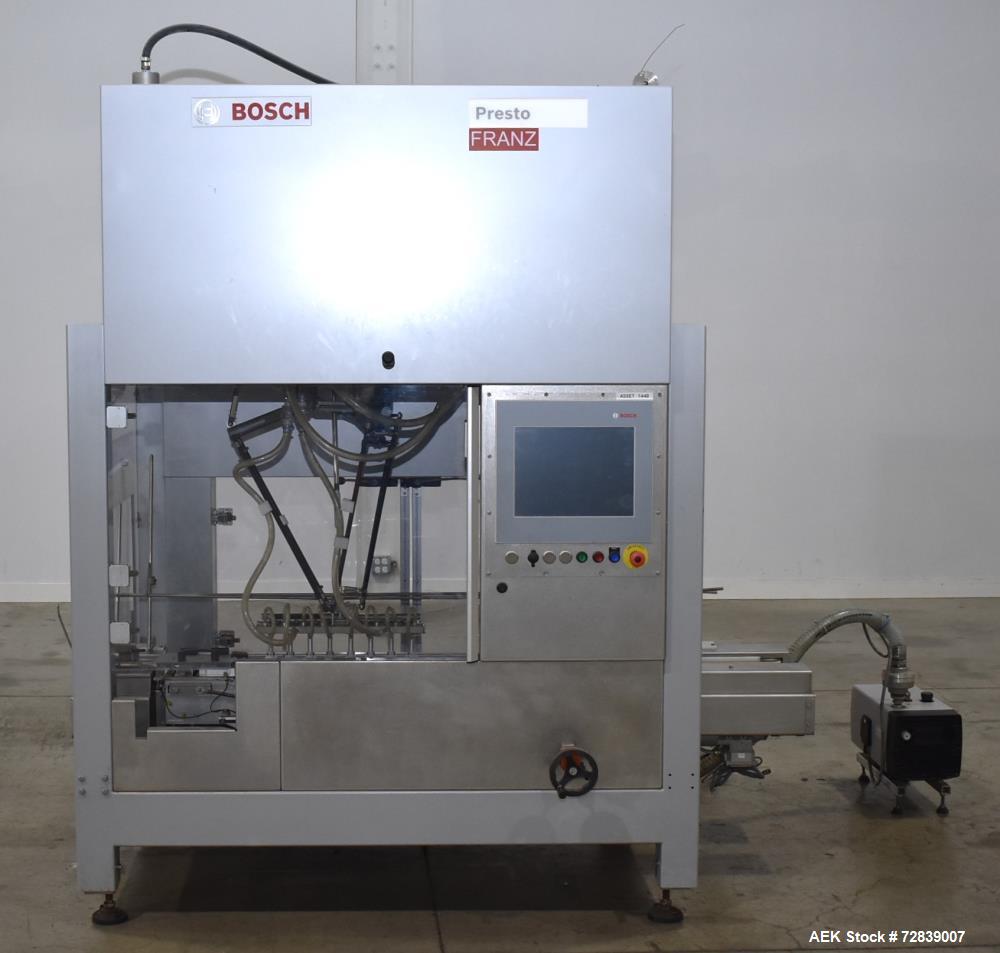

Stock# 72839007

Used- Bosch (Syntegon) Presto Robotic Top Load Robotic Case Packer capable of speeds up to 400 packages per minute. Has a product size range: Length 2" to 7.9" or 50mm to 200mm, width .6" to 4.7" or 15mm to 120mm, height .24" to 2.3" or 6mm to 60mm. Weight .022 lb to 2.2 lb or 10g to 1Kg. Products in a layer: Max quantity in a layer 122. Max number of rows in a layer 2. Max weight of layer is 2.2 lbs. Product input requirement is a single stream of product with minimum spacing of 10% of overall product length. Carton or Tray Range: Length 2.4" to 16.5" or 60mm to 420mm, width 1.75" to 12.6" or 45mm to 320mm, height 1" to 5.9" or 25mm to 150mm. Pick & Place Spyder Robot Tray Packer. Beckoff C520 PLC, Bosch HMI, (7) Rexroth Indra drives. 3/60/230 Volt.
